OWNER’S MANUAL

Mobile Audio/Video System

• Digital Audio Out-Coaxial

• PLL Synthesizer Stereo Radio

• DVD Player

• RDS (Radio Data System) Function

• Automatic Memory Storing

• Full Detachable Panel

• Preset Equalization

• Multi-subtitle Languages Function

• Multi-audio Languages Function

• Multi-angle Function

• Parental Control

• Remote Control

CS-180DVD

Compatible with PAL DVD (Video

CD) and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles

multi-function software (multi-language

audio-track/subtitle, multi-angle, multi-

story, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system (the regular system in a North

American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Centres

Do not attempt to disassemble or adjust

this precision product. Please refer to

the Service Centre list included with this

product for service assistance.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more than

30°.

FEATURES

CONTENTS

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

Installation .....................................................................................................6

Using the Detachable Front Panel .............................................................9

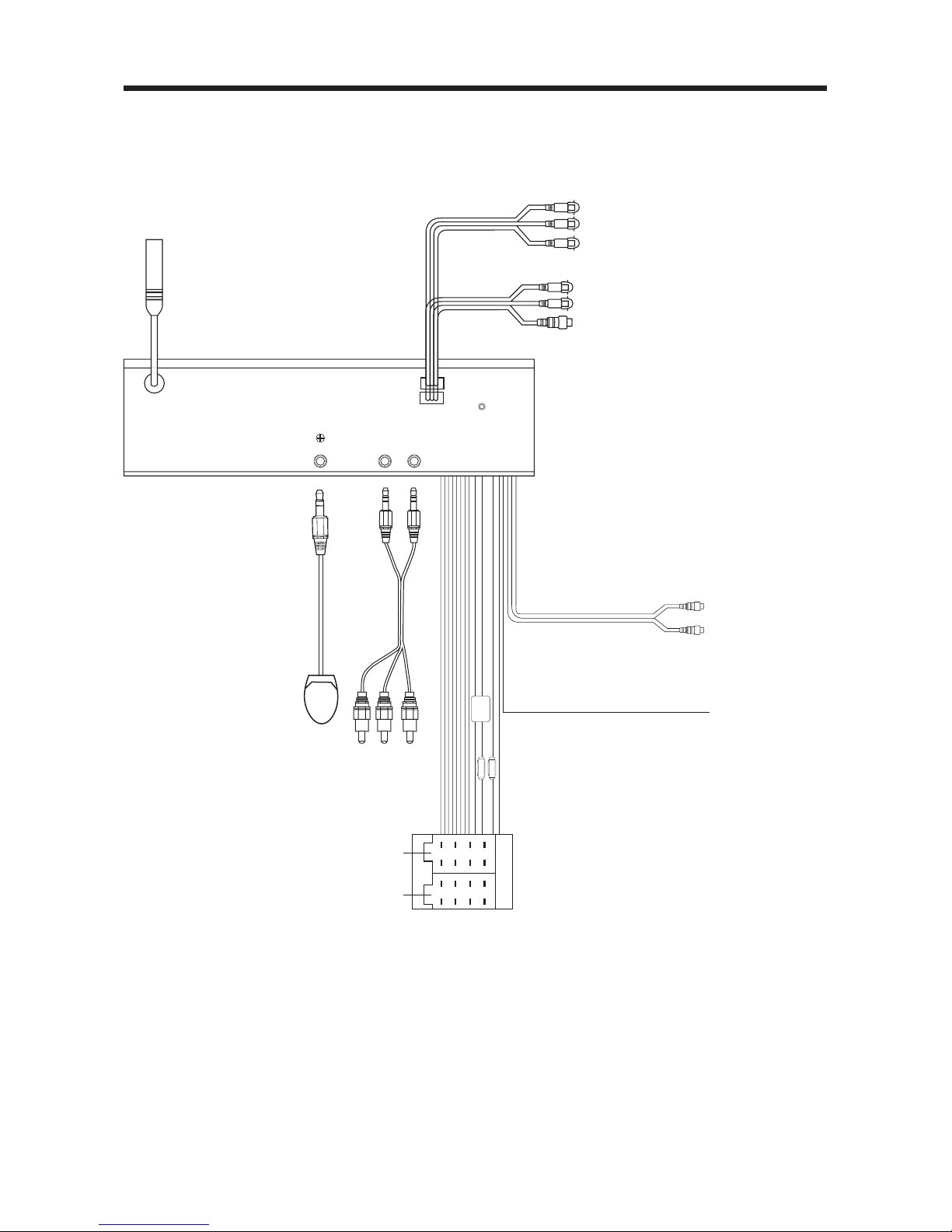

Wiring Connection ......................................................................................10

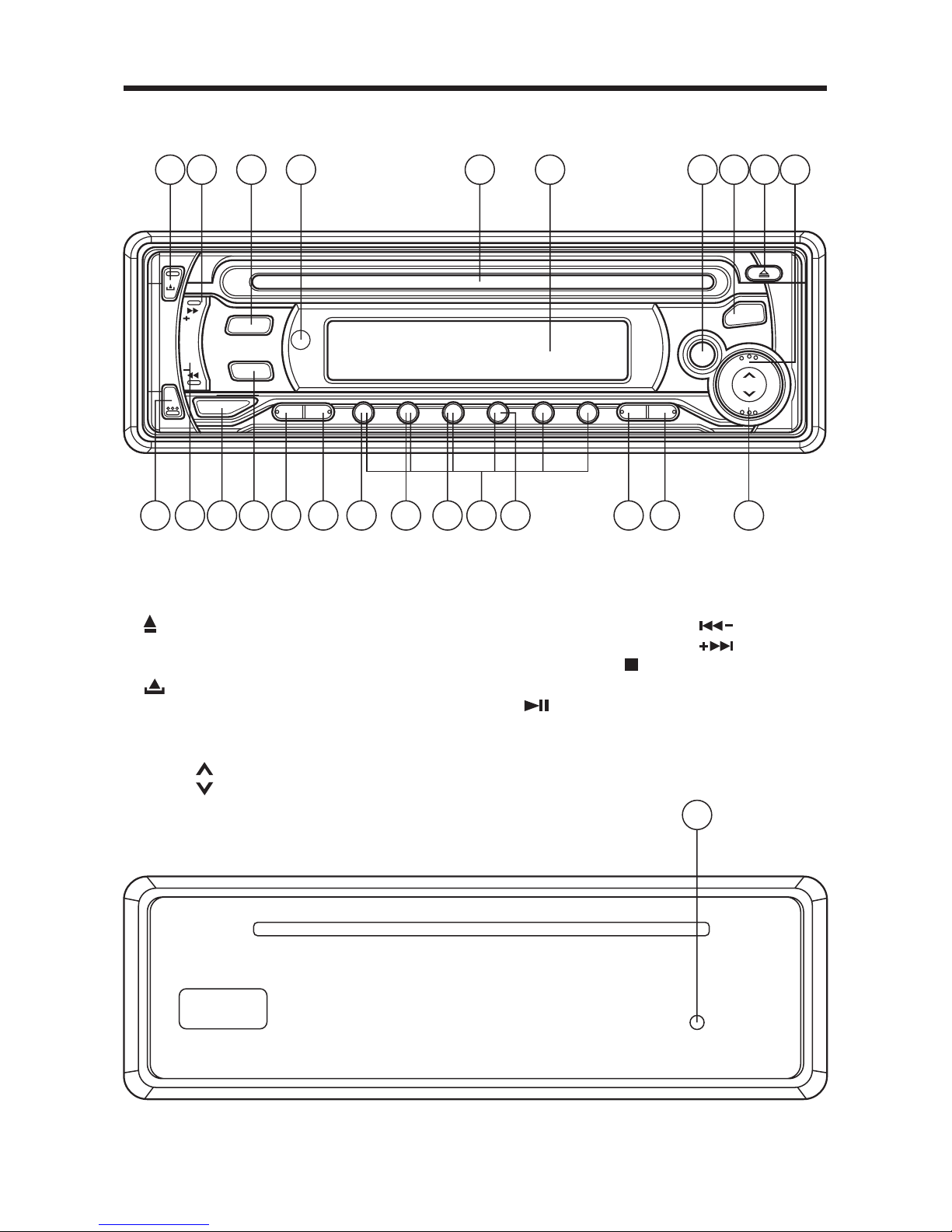

Location and Function of Keys..................................................................11

The Player ...............................................................................................11

Remote Control .......................................................................................12

Remote Control...........................................................................................14

Preparing the Remote Control.................................................................14

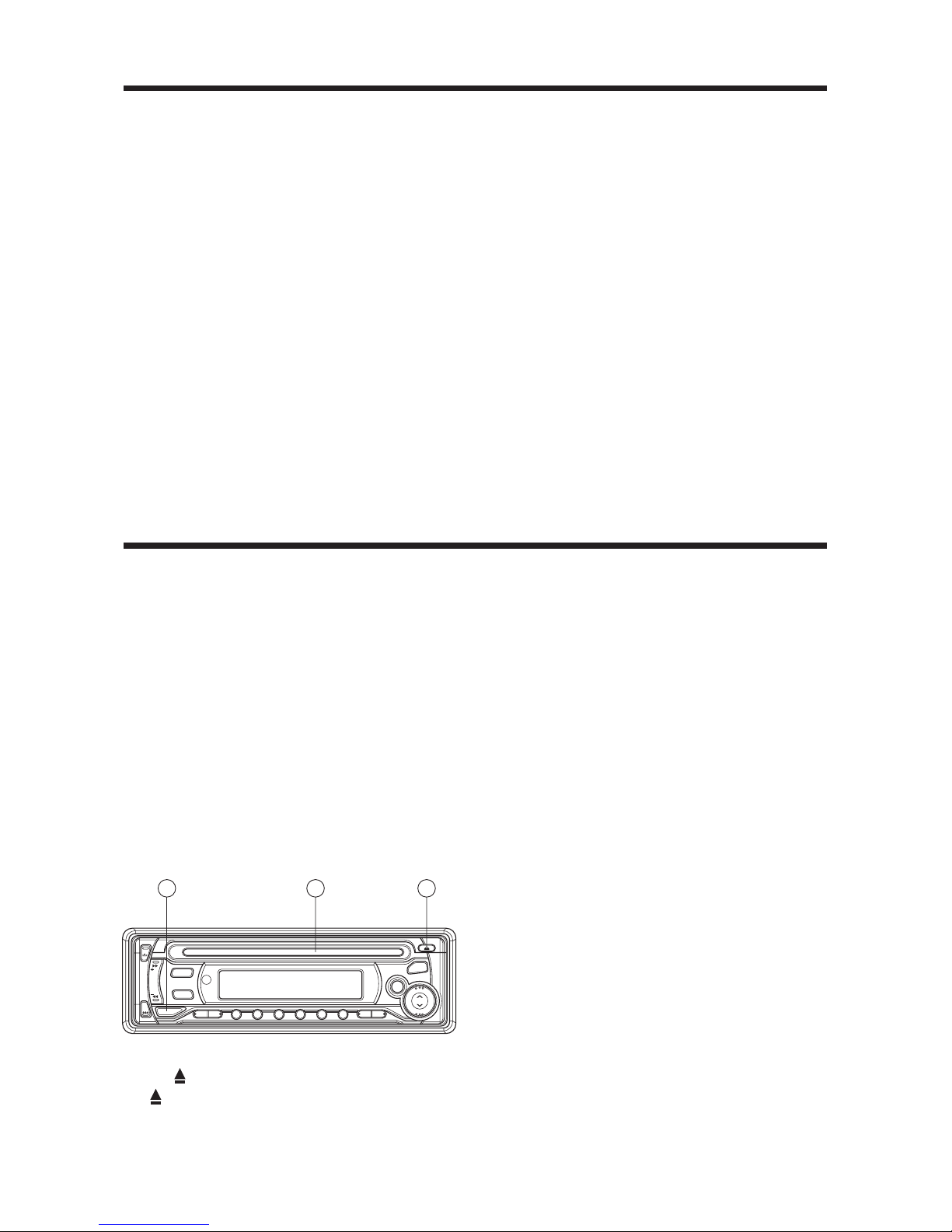

Loading/Ejecting a disc..............................................................................14

Loading a disc .........................................................................................14

Ejecting a disc .........................................................................................14

Operation.....................................................................................................15

Basic Operation .......................................................................................15

Radio Operation.......................................................................................15

Disc (DVD/VCD/CD/MP3) Operation .......................................................18

AV IN Operation .......................................................................................21

Setup ...........................................................................................................22

Initial Setup..............................................................................................22

General Setup..........................................................................................22

Speaker Setup .........................................................................................24

Audio Setup .............................................................................................24

Preferences Setup ...................................................................................25

Defaults Table ..........................................................................................27

Trouble Shooting.........................................................................................28

Specifications..............................................................................................29

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

SAFETY INFORMATION

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this

player

• DVD-ROM

• DVD-R/DVD-RAM

• CDV

• CD-G

Handling and Cleaning

• Dirt, dust, scratches and warping disc

will cause misoperation.

• Do not place stickers or make

scratches on discs.

• Do not warp discs.

• A disc should always be kept in its

case when not in use to prevent from

damaging.

• Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

INSTALLATION

Notes:

• Choose the mounting location where

the unit will not interfere with the

normal driving function of the driver.

• Before finally installing the unit,

connect the wiring temporarily and

make sure it is all connected up

properly and the unit and the system

work properly.

• Use only the parts included with the

unit to ensure proper installation.

The use of unauthorized parts can

cause malfunctions.

• Consult with your nearest dealer if

installation requires the drilling of holes

or other modifications of the vehicle.

• Install the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop,

like an emergency stop.

• If installation angle exceeds 30˚ from

horizontal, the unit might not give its

optimum performance.

• Avoid installing the unit where it would

be subject to high temperature, such

as from direct sunlight, or from hot air,

from the heater, or where it would be

subject to dust, dirt or excessive

vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either

from “Front” (conventional DIN Front-

mount) or “Rear” (DIN Rear-mount

installation, utilizing threaded screw holes

at the sides of the unit chassis).

For details, refer to the following

illustrated installation methods.

30˚

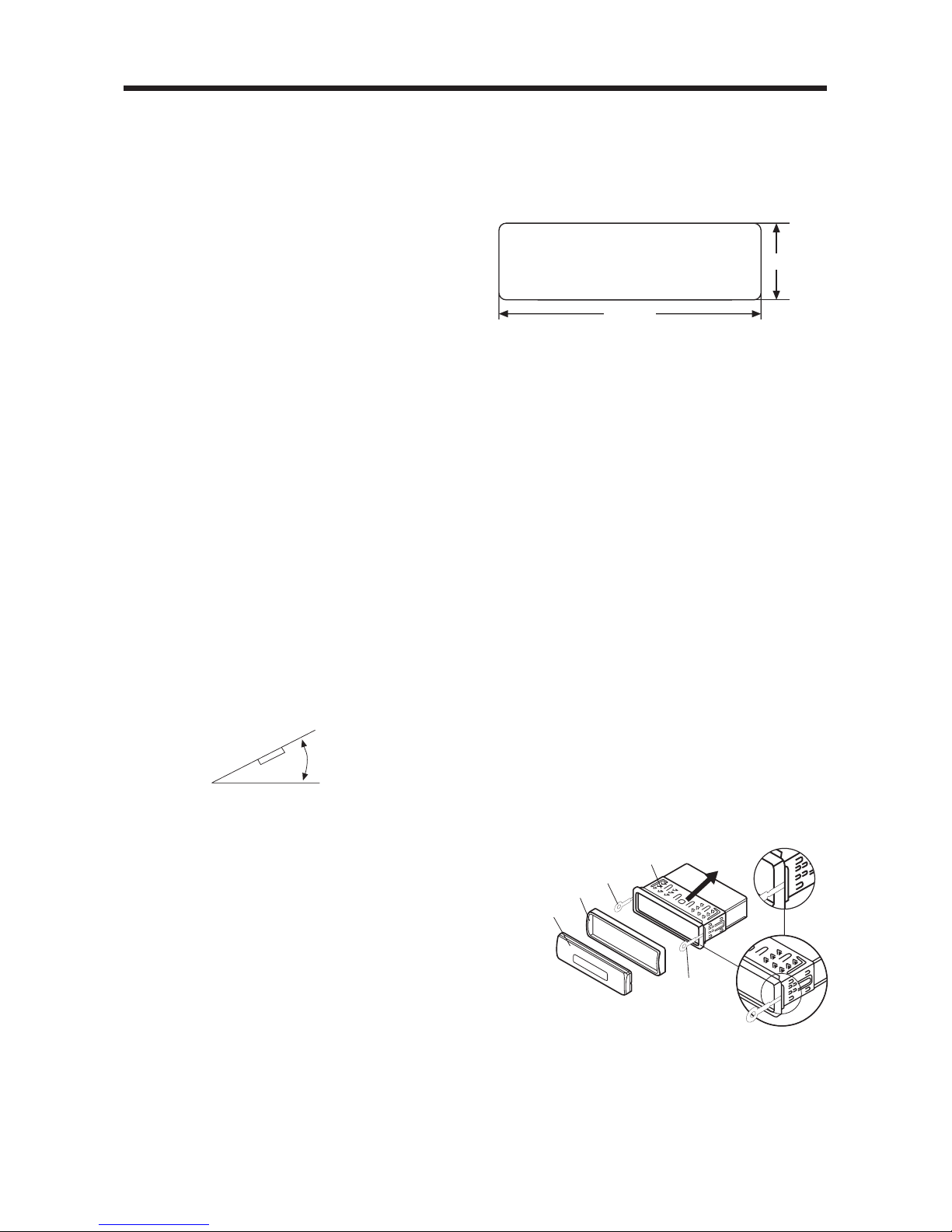

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be installed in any dashboard

having an opening as shown below:

Installing the unit

Be sure you test all connections first, and

then follow these steps to install the unit.

1. Make sure the ignition is turned off,

and then disconnect the cable from

the vehicle battery's negative (-)

terminal.

2. Disconnect the wire harness and the

antenna.

3. Press the release button on the front

panel and remove the control panel

(see the steps of “removing the front

panel”).

4. Lift the top of the outer trim ring then

pull it out to remove it.

5. The two supplied keys release tabs

inside the unit's sleeve so you can

remove it. Insert the keys as far as they

will go (with the notches facing up) into

the appropriate slots at the middle left

and right sides of the unit. Then slide

the sleeve off the back of the unit.

Front Panel

Outer Trim Ring

L Key

Sleeve

R Key

182 mm

53 mm

6. Mount the sleeve by inserting the sleeve

into the opening of the dashboard and

bend open the tabs located around the

sleeve with a screwdriver. Not all tabs

will be able to make contact, so

examine which ones will be most

effective. Bending open the appropriate

tabs behind the dashboard to secure

the sleeve in place.

7. Reconnect the wire harness and the

antenna and be careful not to pinch

any wires or cables.

8. Slide the unit into the sleeve until it

locks into place.

9. To further secure the unit, use the

supplied metal strap to secure the back

of the unit in place. Use the supplied

hardware (Hex Nut (M5mm) and Spring

Washer) to attach one end of the strap

to the mounting bolt on the back of

the unit. If necessary, bend the metal

strap to fit your vehicle's mounting

area. Then use the supplied hardware

(Tapping Screw (5x25mm) and Plain

Washer) to attach the other end of

metal strap to a solid metal part of the

vehicle under the dashboard. This strap

also helps ensure proper electrical

grounding of the unit.

Note to install the short threading

terminal of the mounting bolt to the

back of the unit and the other long

threading terminal to the dashboard.

Sleeve

Dashboard

Screwdriver

Tabs

INSTALLATION

10. Reconnect the cable to the vehicle

battery's negative (-) terminal. Then

replace the outer trim ring and install

the unit's front panel. (see the steps

of “installing the front panel”).

Removing the unit

1. Make sure the ignition is turned off,

then disconnect the cable from the

vehicle battery's negative (-) terminal.

2. Remove the metal strap attached the

back of the unit (if attached).

3. Press the release button to remove the

front panel.

4. Lift the top of the outer trim ring then

pull it out to remove it.

5. Insert both of the supplied keys into

the slots at the middle left and right

sides of the unit, then pull the unit out

of the dashboard.

Spring Washer

Tapping Screw

Plain Washer

Hex Nut

Metal Strap

Mounting Bolt

INSTALLATION

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow

these mounting instructions.

Use the screw holes marked T (Toyota),

N (Nissan) located on both sides of the

unit to fasten the unit to the factory radio

mounting brackets supplied with your

vehicle.

To fasten the unit to the factory radio

mounting brackets.

1. Use a screwdriver to loose the hook's

screws of the front left and right sides

of the unit and remove the hooks.

2. Align the screw holes on the bracket

with the screw holes on the unit, and

then tighten the screws (5x5mm) on

each side.

Note: the outer trim ring, sleeve and the

metal strap are not used for method B

installation.

Dashboard or

Console

Factory Radio

Mounting

Bracket

Hook

Screw

Side view showing

Screw Holes marked

T, N

USING THE DETACHABLE FRONT PANEL

REMOVING THE FRONT PANEL

1. Press the release button on

the front panel and pull off the front

panel.

2. Keep front panel into the case.

INSTALLING THE FRONT PANEL

To install the front panel, insert the panel

into the housing and make sure the panel

is properly installed. Otherwise,

abnormality occurs on the display or some

keys will not function properly.

Release Button

Front Panel

Protective Case

Front Panel

Precautions when handing

1. Do not drop the front panel.

2. Do not put pressure on the display or

control buttons when removing or

installing the front panel.

3. Do not touch the contacts on the front

panel or on the main unit body. It may

result in poor electrical contact.

4. If any dirt or foreign substances

adhered on the contacts, they can be

removed with a clean and dry cloth.

5. Do not expose the front panel to high

temperatures or direct sunlight in

anywhere.

6. Keep away any volatile agents (e.g.

benzene, thinner, or insecticides) from

touching the surface of the front panel.

7. Do not attempt to disassemble the

front panel.

WIRING CONNECTION

NOTE:

MUTE WHILE TELEPHONING

If your unit is connected to a mobile telephone through the telephone mute

line, the car radio’s volume will be muted as soon as you “pick up” the

telephone. “TEL MUTE” flashes in the display.

ANTENNA

CONNECTOR

AUDIO R IN (RED)

AUDIO L IN (WHITE)

VIDEO IN (YELLOW)

AV IN CABLE (BLACK)

VIDEO OUT 1 (YELLOW)

VIDEO OUT 2 (YELLOW)

DC OUT (BLACK)

DC + VIDEO OUT CABLE

FOR DVD SIGNAL OUTPUT ONLY

YELLOW

VIDEO OUT

WHITE

AUDIO L OUT

RED

AUDIO R OUT

RCA CABLE (GREY) RED

WHITE

Rch

Lch

REMOTE CONTROL RECEIVER

GREEN

ORANGE TELEPHONE MUTE

BLACK YELLOW

FUSE (15A)

Part B

Part A

CHOKE

BOX

1. PWR (power button)

2. TA

3. AF/REG

5. Disc Slot

6. MOD

8. Liquid Crystal Display

9. PTY/ENT/MUT

10. ST/LOC/TITLE

11. VOL

12. VOL

13. BND/MEN

14. 1~6 preset buttons

15. S-M

16. TUNE/SEEK/TRACK

17. TUNE/SEEK/TRACK

18. AMS/STOP

19. SEL

20.

21. SCN

22. RPT

23. SHF

24. IR

LOCATION AND FUNCTION OF KEYS

THE PLAYER

When remove the front panel:

25. LED

12 17 10 24 5 18 19 15 4 11

12186232023911613 14

REMOTE CONTROL

LOCATION AND FUNCTION OF KEYS

19 20

LOCATION AND FUNCTION OF KEYS

1. POWER Press POWER to turn the unit ON or OFF.

2. 0-9 Numeric buttons

3. SMART In DVD mode, press it shortly to enter SMART MODE function.

4. AMS (STOP) In radio mode, press for several seconds to enter into automatic

memory storing function; press shortly to scan preset station.

Press it to stop playback.

5. ( )/ ( ) Press ( ) to search forward rapidly & ( )to search reverse

rapidly.

In case of menu mode, / buttons served as cursor buttons

to select item ahead/back.

6. ( )/ ( )Press ( )to skip to the next track & press ( )to skip back

one track.

In radio mode, press ( )shortly to increase frequency or

press ( )shortly to decrease frequency by one step of channel

spacing. Hold ( )/ ( ) longer for fast tuning.

In case of menu mode, / buttons served as cursor buttons

to select item left/right.

7. SUB-T Changing of the SUBTITLE language on multi-subtitle language

DVD disc.

8. SETUP Display the SETUP menu.

9. ST/LO (TITLE) Display the TITLE menu that is stored in DVD disc.

In radio mode, press it to select mono or stereo mode. Press and

hold it for a long time to select between local and distant stations.

10. DISP Display statistical disc information during playback.

11. BAND (MENU)

In DVD mode, display the root menu that is stored on the DVD disc.

Changing between PBC ON and PBC OFF on the VCD disc.

In radio mode, press it to select desired band.

12. Press to play/pause the disc.

13. SLOW (ZOOM) Changing for slow playback motion (For VCD/DVD).

Allows the picture to be increased in size.

14. (MUTE) Confirm the Track/Chapter selected with the numeric buttons or

selected with the cursor buttons on screen display.

Press and hold it for several seconds to mute the sound.

Press it shortly to select program (RDS function). It is operated

as follows:

PTY MUSIC group -> PTY SPEECH group -> PTY off.

15. EQ (AUDIO) Press and hold the button for several seconds to change the

AUDIO soundtrack on multi-audio soundtrack DVD disc.

Press the button shortly to change the sound mode of the VCD

discs. Press it to select the equalization mode, such as FLAT,

CLAS, POP, ROCK.

16. VOL+ Press VOL+ button to increase the volume level.

17. SEL Press to select the desired adjustment mode. Then press VOL+/-

to change settings.

18. MODE Changing between radio mode, disc (DVD/VCD/CD/MP3) play

mode and AV IN mode.

Press it for several seconds to toggle sub-woofer output. Press

it for several seconds again to release this mode.

19. ANGLE Changing of the view angle on multi-angle DVD disc.

20. VOL-– Press VOL- button to decrease the volume level.

Loading a Disc

When all connections have completed,

you can load a disc as follow:

1. Turn the ignition on to the accessory

position.

2. Press the PWR button (1) on the front

panel or POWER button on the remote

control to turn on the unit.

3. Insert the disc with printed side facing

up into the disc slot (2).

4. The player starts playback

automatically.

Ejecting a Disc

Press (EJ) button (3) on the front oanel

or (EJECT) button on remote control

to eject the disc.

LOADING/EJECTING A DISC

Preparing the Remote Control

Inserting the Batteries

1. Open the battery compartment cover.

2. Insert the new battery. Make sure

that the positive and negative

terminals of the battery are oriented

as indicated.

3. Close the cover.

Battery: Two AAA size battery

Using the Remote Control

Point the remote control towards the

player front face remote sensor RX

(remote control signal receiver).

Operation angle: About ±30 degree in

each the direction of the front of the

remote sensor.

REMOTE CONTROL

OPERATION

VOL BASS TRE MID BAL FAD

(Volume) (Bass) (Treble) (Middle) (Balance) (Fader)

BASIC OPERATION

SWITCHING ON/OFF THE UNIT

Press PWR button on the front panel or

POWER button on the remote control to

turn on the unit.

FACEPLATE RELEASE

Press button on the front panel to

detach the removable faceplate.

SOUND ADJUSTMENT

Press SEL button on the front panel of

the unit or on the remote control to

select the desired adjustment mode.

The adjustment mode will change in the

following order:

By pressing the VOLUME /VOLUME

buttons on the front panel or VOL +/-

buttons on the remote control, it is

possible to adjust the desired sound

quality.

MUTE

Press and hold PTY button on the front

panel or (MUTE) button on the remote

control for several secounds to mute down

the sound instantly. Press it again to

resume sound output.

EQUALIZATION

Press EQ (AUDIO) button on the remote

control shortly to turn on equalization

function and to select desired audio mode.

There are three kinds of mode as below:

MODE SELECTION

Press MOD button on the front panel of

the unit or MODE button on the remote

control to select among radio, disc

(DVD/VCD/CD/MP3) play mode and AV

IN mode.

LIQUID CRYSTAL DISPLAY

Exhibit current frequency and activated

functions on the display of the front

panel.

REMOTE SENSOR

Point the remote control handset to the

remote sensor IR. Press the function

keys on the handset to control the

system.

RESET FUNCTION

RESET button on the housing must be

activated with either a ballpoint pen or

thin metal object. The RESET button is

to be activated for the following reasons:

- Initial installation of the unit when all

wiring is completed.

- All the function buttons do not operate.

- Error symbol on the display.

Note: if press RESET button, the unit

can’t work yet, please use a cotton swab

soaked in isopropyl alcohol to clean the

socket on the front panel.

RADIO OPERATION

SWITCHING TO RADIO MODE

Press MOD on the front panel or MODE

on the remote control to select radio

mode, the radio mode appears in the

display together with the memory band

and frequency.

SELECTING THE FREQUENCY BAND

During radio mode, shortly press

BND/MEN button on the front panel or

BAND (MENU) button on the remote

control to select the desired band. The

reception band will change in the following

order:

SELECTING STATION

During radio mode, shortly press

MANU/SKIP button on the front

panel or button on remote control to

increase frequency by one step of channel

spacing, and shortly press MANU/SKIP

on the front panel or button on

remote control to decrease frequency by

one step of channel spacing. Hold the

button longer for fast tuning. The

frequency is updated correspondingly on

display.

FLAT CLAS POP ROCK DSP OFF

FM1 FM2 FM3 MW1 MW2

LOCAL/DISTANT

Press and hold TA button on the front

panel or ST/LO button on the remote

control for several seconds to select

between local and distant stations.

Local setting for reception of strong

station, and a distant setting for reception

of weaker stations. This function is effect

during AUTO SEEK operation.

AUTOMATIC MEMORY STORING &

PROGRAM SCANNING

- Automatic memory storing

Press and hold AMS button on the

front panel or on the remote control for

several seconds, the radio searches

from the current frequency and checks

the signal strength until one cycle search

is finished. And then 6 strongest stations

are stored into the corresponding preset

number button.

- Program scanning

Press AMS button shortly to scan preset

station.

STATION STORING

Press any one of the preset buttons (1 to

6) on the front panel to select a station,

which had been stored inthe memory.

Press this button for several seconds,

current station is stored into the number

button.

MONO/STEREO

Press ST/TITLE button on the front panel

or ST/LO button on the remote control

shortly to select mono or stereo mode.

You can sometimes improve reception of

distant stations by selecting mono

operation.

RDS (RADIO DATA SYSTEM)

OPERATION

- Setting RDS Mode

Press AF/REG button on the front

panel of the DVD unit and release

immediately to switch on or off RDS

mode.

Whenever RDS is switched on, symbol

“AF” appears on the display. Program

name is displayed on receiving a RDS

station.

OPERATION

“AF” starts blinking if the broadcasting

signal getting worse.

“ALARM” will be displayed when an

emergency broadcasting is received;

meanwhile sound output level will be

adjusted to the preset output level

automatically when the volume control

is set at minimum.

- Regional Program Operation

Press AF/REG button for several

seconds to switch on or off region

mode.

Some broadcasting stations change

their program from normal

broadcasting to regional broadcasting

for a certain time period. When region

is on, the current listening program

remains unchanged. When region is

off, it allows the reception moves to

the regional station.

- Using PTY to Select Program

PTY button on the DVD unit is

operated as follows:

While selecting PTY engagement, its

selection is implemented by preset

buttons as described in notes.

When PTY is selected, the radio starts

to search corresponding PTY

information, and stops if the

corresponding PTY information is

detected.

If corresponding PTY information is

not existed any more, PTY engaging is

automatically exit to normal mode.

Notes:

When PTY mode is engaged, the PTY

switch is shared as follows:

According to above 2 allotted group,

the preset number is used for PTY

selection as follows:

MUSIC group

- POP M, ROCK M

- EASY M, LIGHT M

- CLASSICS, OTHER M

- JAZZ, COUNTRY

- NATION M, OLDIES

- FOLK M. SPEECH group

PTY MUSIC group PTY SPEECH group PTY off

- NEWS, AFFAIRS, INFO

- SPORT, EDUCATE, DRAMA

- CULTURE, SCIENCE, VARIED

- WEATHER, FINANCE, CHILDREN

- SOCIAL, RELIGION, PHONE IN

- TRAVEL, LEISURE, DOCUMENT

- Listening to Traffic Announcement

TA button on the DVD unit is operated

as follows:

When pressed short, it is engaging

whether TA mode on or off.

When TA mode is on and a traffic

announcement is transmitted:

If the unit is not in SMART MODE (refer

to SMART MODE FUNCTION below),

then in DVD or AV IN mode, it will

switch temporarily to radio mode, the

disc will stop playing (in DVD mode).

If the unit is in SMART MODE, when

receiving RDS signal, and AV IN mode,

it will switch temporarily to radio mode,

but the disc is still playing. But in DVD

mode, the disc will stop playing when

receiving RDS signal.

Temporary switch over to an EON

linked station when EON detects a

traffic announcement on that other

program.

If the volume level was under the

threshold point it will be raised to the

threshold point. But the user changed

the volume level which was more than

the threshold point (min. TA volume

level), it will be set to the last level.

When TA mode is on, TA of individual

segment is turned on.

When a TP station is received, TP of

individual segment is turned on.

TA interruption function

The current traffic announcement is

cancelled by pressing this key.

But the TA mode will not be off.

When pressed long, it is selected EON

TA LOCAL/EON TA DISTANCE mode.

The purpose of this key is to reduce

unwanted EON TA switching, which

EON TA information was received from

current station and the radio switched

to that EON linked station, but no

information could not be received

because the EON linked station is

located too far from that area. So the

radio is switched back to current

station again.

In above operation, a customer listen

to a wrong program or mute sound for

a while.

EON TA LOCAL mode

When the filed strength level of EON

linked is less than threshold level, the

radio does not switch that station, and

a customer can hardly listen to any

disturbances.

When EON TA LOCAL mode is

selected, “EON TA LO” on numeric

display is indicated for a few seconds.

EON TA DISTANCE mode

EON TA switching is try to

implemented by the information of

current station.

When EON TA DISTANCE mode is

selected, “EON TA DX” on numeric

display is indicated for a few seconds.

The RDS data used are the PI, PS, AF,

TP, TA, EON and PTY data.

PI: Program Identification Code

Code for identifying programs

PS: Program Service Name

Broadcast station name data

expressed in alphanumerically

characters

AF: Alternative Frequencies

Frequency list of broadcasting

stations transmitting the same

program

TP: Traffic Program Identification

Identification data for traffic

information broadcasting station

TA: Traffic Announcement

Identification

Identification data showing

traffic information is being

transmitted or not

EON: Enhanced Other Networks

Information

Broadcasting information on PI,

AF, TP, TA, etc. relating to

networks other than the network

used for current reception

PTY: Program Type Code

Contents of programs such as

news, light music, sports etc.

OPERATION

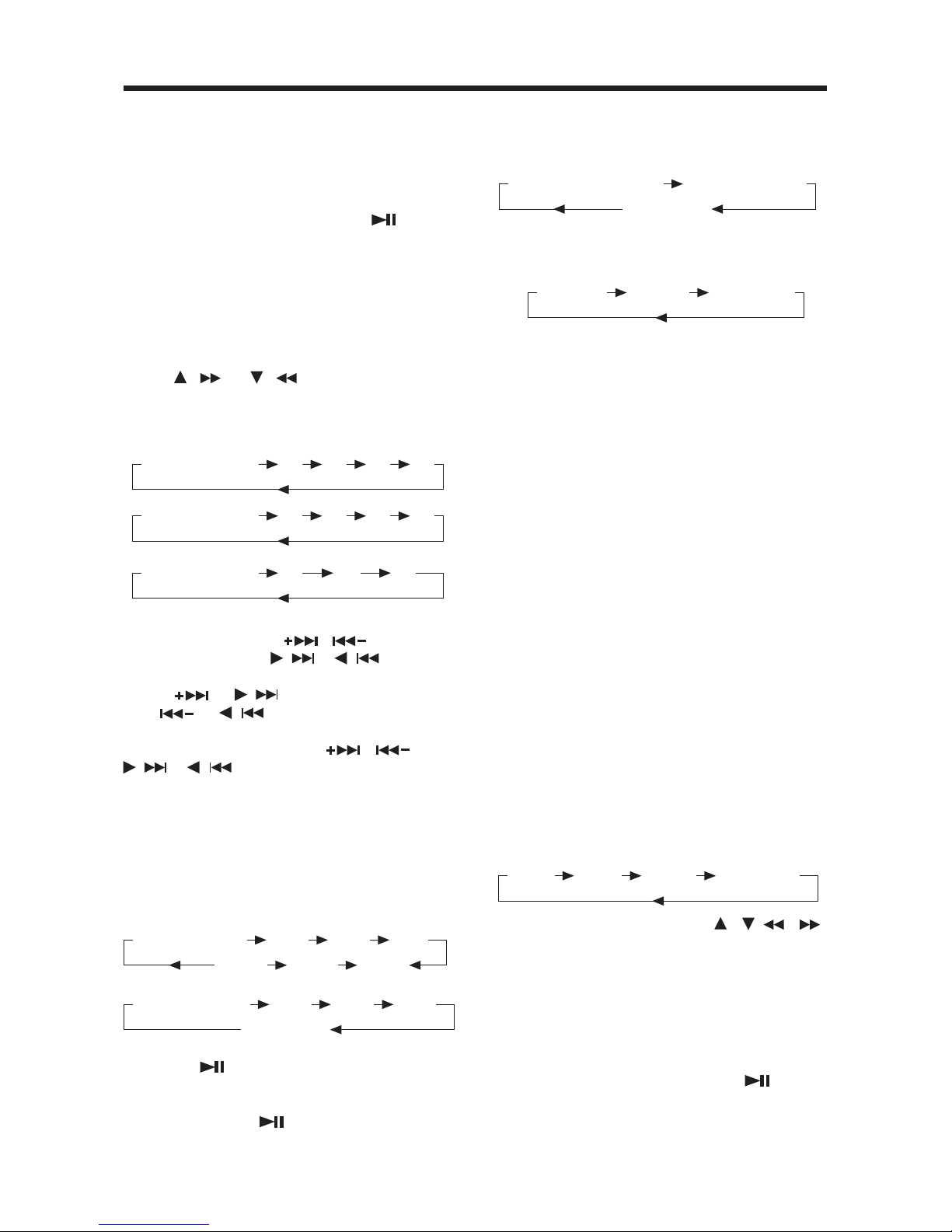

DISC (DVD/VCD/CD/MP3) OPERATION

STOPPING PLAY

- Briefly press the AMS (STOP) button

on the front panel or AMS (STOP)

button on the remote control to stop

the unit playback, when the button

is pressed, normal playback will

continue.

- Press AMS (STOP) button or AMS

(STOP) button twice to stop the

playback and go back to initial

Track/Chapter.

RAPID FORWARD/RAPID REVERSE

Press ( ) & ( ) during play. Each

time the button is pressed, the speed of

rapid forward/reverse changes according

to the disc as follow:

FOR DVD/VCD:

FOR CD:

FOR MP3:

SKIPPING TRACK

Press MANU/SKIP / buttons on

the front panel or ( ) / ( ) buttons

on the remote control during playback.

Press or ( ) to skip to next track,

and or ( ) to back one track.

Note: For some VCD 2.0 dics

(PBC-playback control), / or

( ) / ( ) buttons may be

unavailable.

SLOW MOTION PLAY

Press SLOW button on the remote

control shortly during play.

Each time the button is pressed, the

speed of slow forward changes

according to the disc as follow:

FOR DVD:

FOR VCD:

PAUSE PLAYING

Pressing on the remote control or on

the front panel during playback will stop

play temporary. To return to normal

playback, press once again.

REPEATING PLAYING

OPERATION

Normal Playback 2X 4X 6X 8X

FOR DVD:

Press the RPT button on the front panel

to select repeat mode as follow:

FOR VCD/CD:

In stop mode, press RPT button to select

repeat mode as follow:

1. Continuously repeat at the current

chapter/track, when selected REP-

ONE mode.

2. Select REP-ALL mode to continuously

repeat all chapter/track on the current

disc.

3. When the player finishes playback of

the current disc last chapter/track, it

will stop and display the elapsed time.

When REPEAT OFF mode is selected,

REP-ONE & REP-ALL disappears

from screen display.

4. REPEAT feature does not support

VCD2.0 (with PBC ON).

PBC FUNCTION

While the VCD disc is playing, press

BND/MEN button on the DVD unit or

BAND (MENU) button on the remote

control to change between PBC ON and

PBC OFF on the VCD disc.

ZOOM FUNCTION

Allows the picture to be increased in size.

Press and hold SLOW(ZOOM) button on

the remote control for several seconds

to toggle among 1.5 scale, 2.0 scale and

3.0 scale.

When the scale is 3 times, press ZOOM

button again to cancel the zoom function.

During Zoom mode, press / , /

buttons to move pictures left, right, up or

down direction.

PLAYING IN RANDOM ORDER (ONLY

FOR VCD/CD/MP3)

Press SHF on the front panel, track

selection will be made in random order.

The display screen will show “SHUFFLE

ON” on the screen. Then press button

to start SHUFFLE playback. Press SHF

button again in stop mode, “SHUFFLE

OFF” appears and release the mode.

Normal Playback 1X 2X 3X 4X

Normal Playback SF2X SF4X SF8X

SR8X SR4X SR2X

Normal Playback SF1X SF2X SF3X

STEP BWD

REP-ONE REP-ALL REPEAT OFF

1.5X 2.0X 3.0X Cancelled

Normal Playback 2X 4X 6X

CHAPTER REPEAT ON TITLE REPEAT ON

REPEAT OFF

PREVIEWING PLAYING (ONLY FOR

VCD/CD/MP3)

Press SCN button on the front panel

to play first several seconds of each

track on the current disc. Press again

to stop intro and listen to track.

ON-SCREEN DISPLAY FUNCTION

Press the DISP button during playback

will display the RDS clock first, and then

it will display the contents of the current

disc on the screen.

Example, how to display the contents of

the curreny disc.

FOR DVD:

(1) Press DISP for the first time:

Title Number, Total Title Number, Chapter

Number, Total Chapter Number of this

Title of the disc currently being played

will be shown on the screen, along with

the elapsed time.

(2) Press DISP for the second time:

(3) Press DISP for the third time:

(4) Press DISP for the fourth time:

(5) Press DISP for the fifth time:

The message on the screen will be cleared.

TITLE 01/03 CHAPTER 002/025

00:02:25

CHAPTER REMAIN

00:01:39

CHAPTER ELAPSED

00:00:24

TITLE REMAIN

01:46:58

OPERATION

FOR VCD:

(1) Press DISP for the first time:

(2) Press DISP for the second time:

(3) Press DISP for the third time:

(4) Press DISP for the fourth time:

(5) Press DISP for the fifth time:

The message on the screen will be cleared.

FOR CD:

(1)Press DISP for the first time:

(2)Press DISP for the second time:

(3)Press DISP for the third time:

SINGLE ELAPSED

00:25 01/13

TOTAL ELAPSED
