LENCO DVP-70 User manual

Please read this manual before operating
P/N
TITLE
DISPLAY
ANGLE LANGUAGE SUBTITLE
MUTE
L/R
1234
5678
SETUP
ENTER
SLOW
ZOOM
REPEAT
MARK
GOTO
MENU/PBC
REMOTE CONTROL
MODELNo.:RMC-220
90
ENGLISH
PORTABLE DVD PLAYER
OWNER`S MANUAL
MODEL NO :DVP-70
REVERSE
16:9 / 4:3MODE DOWN UP
PORTABLEDVDPLAYER
-
MODELDV 9820
OPEN
OPEN
MENU/PBC
PAUSE/STEP
ENTER
DISPLAY
FR
FF

Table of Contents.........................................................................................................................................................................1
Safety Information.......................................................................................................................................................................2
Remote Control............................................................................................................................................................................3
..................................................................................................................................................................................4
............................................................................................................................................................5
Playing Picture CD.....................................................................................................................................................................17
............................................................................................................................................18
.......................................................................................................................19
...........................................................................................................................................................20
....................................................................................................................21
................................................................................................................................................................22
...................................................................................................................................................................23-24
Description
Using the Remote Control
Cautions in Using Battery Pack
Playing a Disc.......................................................................................................................................................................12-16
Playing MP3 and Regular Audio CD
Setting Language for OSD, Menu, Voice, Subtitle
Setting Screen and Audio
Setting Parental Control, Password, Camera Angle
Adjusting LCD Screen
Troubleshooting
Connecting Earphones to the DVD Player.....................................................................................................................................6
Connecting to an External Component ........................................................................................................................................7
Connecting to a TV.......................................................................................................................................................................8
Using the AC Adaptor...................................................................................................................................................................9
Using the Battery Pack...............................................................................................................................................................10
Specifications...........................................................................................................................................................................25
..................................................................................................................................................11
5
1
Table of Contents

Safety Information
CLASS 1 LASERPRODUCT / KLASSE 1 LASERPRODUKT / LUOKAN 1 LASERLAITE / KLASS1 LASERAPPARAT / PRODUCTO
LASER CLASE.
INVISIBLE LASER RADIATION WHEN OPENAND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
1.Toprevent fire or electrical shock, donot expose this Player to rainor moisture.
2.Toavoid electrical shock, do not openthe cabinet, no user-serviceable parts inside,refer servicing toqualified personnel only.
3.Certain countries mayregulate the disposal of the batteryused to powerthis product. Please consult with yourlocal authority.
4.Listening with earphones for many hours at maximum volumemay damage your hearing.
5.The Player shouldbe connected to a power supplyonly of the type described inthe operating instructionsor as marked on the Player.
Please read allof the safety and operating instructionsbefore operating thisPlayer, follow all warnings placedon the Player
and in theuser's manual. These safety and operatinginstructions should beretained for future reference.
WARNING
SAFETY WARNING
Safety Information
Do not exposethe system to excessive moisture, rain,sand, or heat sources.
Place the DVDPlayer on a firm, flat surface.
Keep the DVDPlayer away from domestic heating equipmentand direct sunlight.
When placing theDVD Player in a cabinet, allowabout one inch of space allaround the DVD Player for ventilation.
5
2

P/N
TITLE
DISPLAY
ANGLE LANGUAGE SUBTITLE
MUTE
L/R
1234
5678
SETUP
ENTER
SLOW
ZOOMREPEAT MARK GOTO
MENU/PBC
REMOTE CONTROL
MODEL No.:RMC-220
90
Remote Control
Remote Control
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
12
24
23
13.DISPLAYButton
14.MUTE Button
15.ANGLE Button
16.LANGUAGE Button
17.SLOW Button
18.PLAYButton
19.STOP Button
20.FAST REVERSE( ) Button
21.FAST FORWARD ( ) Button
22.REPEAT Button
23.MARK Button
24.GOTO Button
Displays the currentdisc playback
information.
Selects the voicelanguage in a DVD.
Stops disc play
Use to marka point where the playback
starts each timewhen the MARK button
is pressed lateron.
Use to enterthe specific time to playback.
Use to accessvarious
camera angles ona DVD.
Starts disc play.
Allows you torepeat play
a title, chapter, track, ordisc.
5
3
1.L/R Button
2.P/N Button
3.TITLE Button
4.SUBTITLE Button
5.Number Buttons (0,1,...,9)
6.SETUP Button
7.
8.PAUSE/STEP ( )Button
9.SKIP FORWARD ( )Button
10.SKIP BACKWARD ( ) Button
11.ZOOM Button
12.MENU/PBC Button
Selects PAL/NTSC TV systems.
Selects the subtitle'slanguage.
Brings up thesetup MENU
to set upthe system's
language, audio, display,
password etc.
Brings up thedisc menu.
ENTER/DIRECTION Buttons
Use to skipto next title, chapter or track.
Use to skipto previous title,
chapter or track.

Description
5
4
OPEN
OPEN
VIDEO
VOLUME
POWER
ON OFF
DCIN 12V
SPDIF AUDIOIN AUDIOOUT INPUT O UTPUT
Front View
Right View
Bottom View
Left View
1.OPEN
2.EARPHONE / SPEAKER VOLUME
3.EARPHONE JACK
5.POWER ON/OFF
6.INPUT / OUTPUT
7.VIDEO
8.AUDIO OUT
9.AUDIO IN
1.RELEASE LATCH(Battery pack
separation switch)
1.BATTERYPACK
1
2
2.REMOTE CONTROL SENSOR
1.LED LIGHT
1.LCD
2. REVERSE DISPLAY
3.(16:9/4:3)/MODE/DOWN/UP
4.SPEAKER
5.DISC COVER
6.OPEN
7.PLAYBACK Buttons
PLAY( )
STOP( )
SKIP-FORWARD( )
SKIP-BACKWARD( )
4.DC IN 12V
10.SPDIF
2
3
4
11
12
14
8
4
5
6
93
2
1
2
OPEN
OPEN
PORTABLEDVDPLAYER
-
MODELDV9820
REVERSE
16:9/ 4:3MODEDOWN UP
MENU/PBC
PAUSE/STEP
ENTER
DISPLAY
FRFF
VOLUME SPDIF AUDIOINAUDIO OUT VIDEOINPUT OUTPUT POWER
ON OFF
DCIN 12V
5
6
7
1
9
10
13
15
8. LCD on/offswitch
9.MENU/PBC Button
10.ENTER Button
11.DIRECTION Button(UP/DOWN/
LEFT/RIGHT)
12.DISPLAY Button
13.PAUSE/STEP( ) Button
14.FAST REVERSE( ) Button
15.FAST FORWARD( ) Button
6
6
6
1

55
Using the Remote Control
Installing the battery
1. Press thelocking tab in the arrow direction.
Using the remote control
(1)
(2)
(3)
(4)
Point the remotecontrol directly at the remote sensor
on the frontof the DVD Player.
2. Pull outthe battery tray.
3. Insert a3V lithium battery into the
tray with thepolarity ( + ) facing up
as marked.
4. Replace thebattery tray by pushing it
until it clicksinto place.
Remote Control Sensor
P/N
TITLE
DISPLAY
ANGLE LANGUAGESUBTITLE
MUTE
L/R
1234
5678
SETUP
ENTER
SLOW
ZOOM
REPEAT
MARK
GOTO
MENU/PBC
REMOTECONTROL
MODELNo.:RMC-220
90
REVERSE
16:9 / 4:3 MODE DOWN UP
PORTABLEDVDPLAYER
-
MODELDV9820
OPEN
OPEN
MENU/PBC
PAUSE/STEP
ENTER
DISPLAY
FR
FF

5
6
Connecting Earphones to the DVD Player
You can attach anearphone with a stereo mini-jack plugto the phone jack ( )for private listening. Its volume isadjustable
using the VOLUME control dial. You can also connecta second earphone to the AUDIO OUT jack, but its volume cannot be
adjusted.
Note: When theearphone is connected to the PhoneJack ( ),the speaker will be disconnected.
Notes on DSP
The DSP decodes the digital audio signal intostereo dts or Dolby digital audiosignal for speaker and earphone playbackafter
converting the signalto analog and amplifying it.
The 5.1 digitalsignal passes through without decoding andcan be accessed by the SPDIFjack on thePlayer.
OPEN
OPEN
PORTABLEDVDPLAYER
-
MODELDV9820
REVERSE
16:9 / 4:3 MODE DOWN UP
MENU/PBC
PAUSE/STEP
ENTER
DISPLAY
FRFF
VOLUME SPDIF AUDIO IN AUDIO OUT VIDEO INPUT OUTPUT POWER
ON OFF
DC IN 12V

Connecting to an External Component
5
7
You can enjoy video from VCR or camcorder on your DVD player.
1. Turnoff DVD player, VCRand other components.
2. Connect theaudio and video cables as illustratedbelow.
3. Slide INPUT/OUTPUT to INPUT.
4. Turnon power.
AUDIO
OUT
VIDEO
OUT
LR
VCR or othercomponent equipped with external output connectors
Video out: Green
Video in: Yellow
Audio(left):White
Audio(right):Red
Audio (black)
Video(yellow)
AV CABLE(Not provided)
Audio(left):White
Audio(right):Red
Video out: Yellow
AV adaptorcable (provided)
(Mini-jack to RCA)
OPEN
OPEN
VIDEO
VOLUME
POWER
ON OFF
DCIN 12 V
SPDIF AUDIO IN AUDIO OUT INPUT OUTPUT

Connecting to a TV
5
8
TIPS
If you wishto view video on your TV only, close thedisplay panel ofyour DVD player.
With the displaypanel shut, use the remote tocontrol DVD player.
1. Turnoff DVD player and TV.
2. Connect theaudio and video cables as illustrated below.
3. Slide INPUT/OUTPUT to OUTPUT.
4.Turn on DVD player andTV.
5. Select correspondingVideo input which is connectedto DVD player.
6. Press PLAY on DVD player.
You can enjoy DVD quality video on TV screen.
AUDIO
IN
VIDEO
IN
LR
Connect to aTV equipped with external connectionjacks
AV CABLE(Not provided)
Audio (black)
Video(yellow)
Video out: Green
Video in: Yellow
Audio(left):White
Audio(right):Red
Audio(left):White
Audio(right):Red
Video in: Yellow
AV adaptorcable (provided)
(Mini-jack to RCA)
OPEN
OPEN
VIDEO
VOLUME
POWER
ON OFF
DCIN 12 V
SPDIF AUDIO IN AUDIO OUT INPUT OUTPUT

Using the AC Adaptor
Important !
Always turn off the DVD Player before connectingor disconnecting the AC cord.
. Using adifferent type of adaptor maycause malfunction or damage to theproduct.Only use theAC adaptor supplied with thisplayer
When theAC adaptor is used for prolongedperiod of time, the adaptor mayheat up,
This is normal and is not a causefor concern.
When not usingthe adaptor, unplug it fromthe outlet.
9
This portable DVDplayer can be powered byAC through the supplied switching powerAC adaptor. It canalso use the
supplied battery packto power.
When theAC adaptor is connected to theunit and powered, the unit willbe automatically and electrically disconnected fromthe
battery pack andpowered by the AC power.
AC adaptor
To home power outlet
To DC12V IN on the DVD player
OPEN
OPEN
VIDEO
VOLUME
POWER
ON OFF
DCIN 12V
SPDIF AUDIO IN AUDIO OUT INPUT OUTPUT
Power cord

10

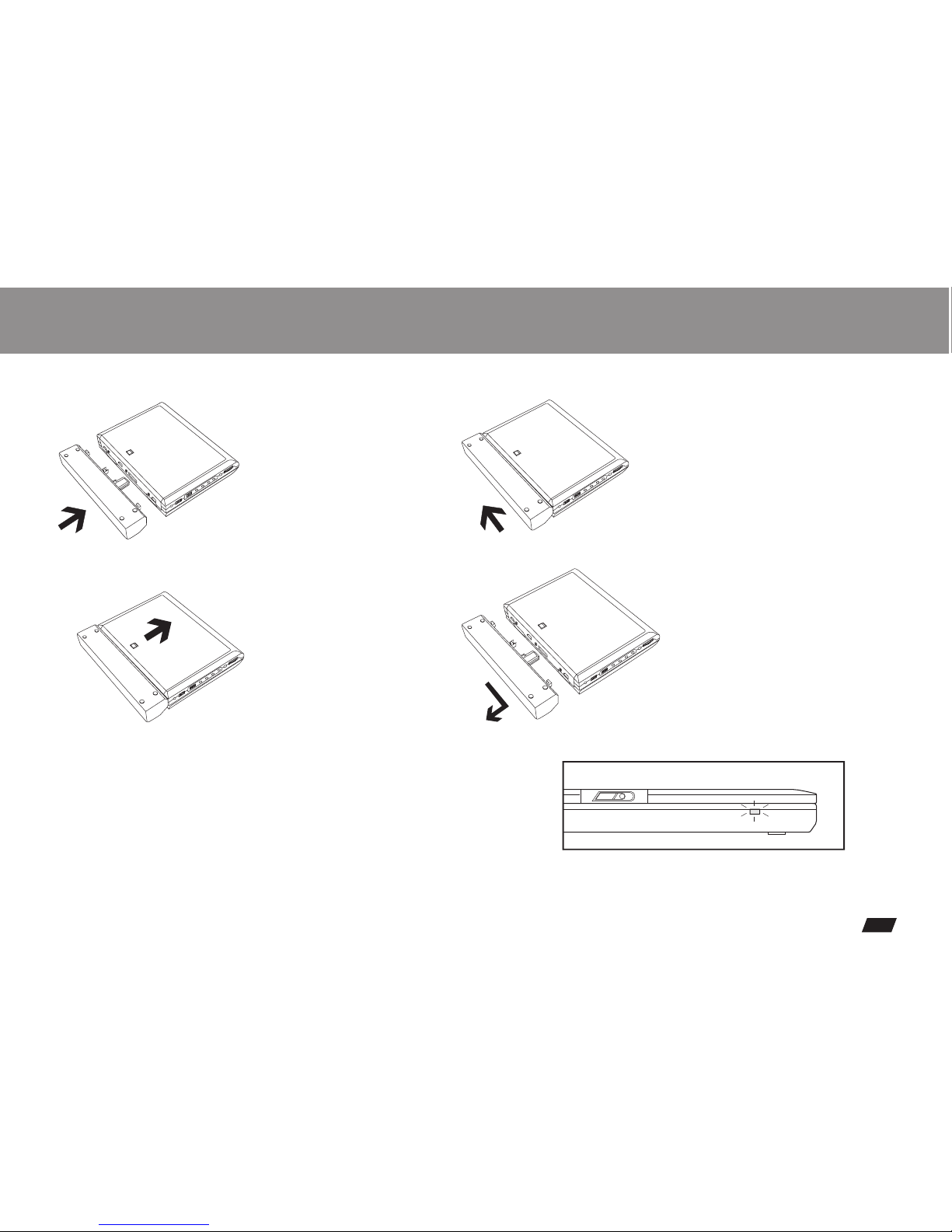

Using the Battery Pack
Installing the battery pack
Align and insertthe battery pack into the
corresponding slots onthe back of the unit. Slide the batterypack to the left until it clicksinto place.
Removing the battery pack
Slide down thelatch. Slide the batterypack to the right, and remove.
Charging the battery pack
1.Turn off the unit by sliding POWER ON/OFF to OFF.
Note: When the playeris turned on, the battery willnot be charged.
2.Attach thebattery pack to the unit.
3.Connect oneend of the AC cordto the jack on theAC adaptor.
4.Plug theother end of the ACcord into an AC outlet.
5.Connect theDC cord to the DC IN12V jack on the DVD player.
1.The LEDlights ( orange color ), andcharging begins.
2.When batteryis fully charged, the LED turnsto red.
OPEN

Cautions in Using Battery Pack
11
Danger!
Strictly follow thesesafety information when using the batterypack. Otherwise, ashort circuit, overheating, smoke, fire,
or damage tothe product may result.
Never disassemble ormodify the battery pack in anyway. Do not touchthe terminal ofthe battery packwith a metalobject.
Do not placethe battery pack in direct sunlight,dashboard of a vehicle, or hightemperature place. Itcan cause explosion or fire.
Do not exposethe battery pack to water,fire, or heat.
Always usethe included AC adaptor whencharging the battery pack.
This battery pack is designed exclusively for yourportable DVD player. Do notuse it with other devices.
Warning!
1. Do notdrop or subject to strong vibration.
2. Keep outof reach of children.
3. The battery pack may leak fluid thatis harmful to your eyes.
If this fluidgets in your eyes, wash eyesimmediately with large amounts of runningwater and getmedical attention immediately.
If the fluidgets on your skin or clothing,wash immediately with water.
Caution!
1. When notusing the battery pack, remove itand store in a cool place.
2. Do notuse the AC adaptor orbattery pack for a prolonged periodof time during recharging.
3. Keep thebattery pack free from smoke, steam,moisture, and dust.
4. Using thebattery pack under 0 C (32 F) or over 30 C(86 F) can cause reducedbattery life.
x

5
12
Playing a Disc
Play
Press to startplay.
1.Make surethe unit has the power eitherfrom the battery pack or theAC adaptor.
2.Loading adisc, following these steps:
Open the topcover by pushing the latch tothe right and lift the topcover.
Press the OPEN button to openthe disc lid.
Place a discinto the tray with the labelside facing up.
Close the disccover.
3.Slide INPUT/OUTPUT to OUTPUT (located on theside of the player).
4.Slide POWER to ON to turn onthe power.
Preparation for Playback
Stop
1.Press (onthe remote) or STOP (on the player)to temporarily stopthe playback, "PRESTOP" appears on the screen.
2.Press orSTOP again to stop the playback.
Pause
1.During playback,press (on theremote) or PAUSE (on the player) to pause.
2.Press toresume playback.
Resume
When you press or STOP, the playerremembers where you stopped, and whenyou press PLAY later, it will play fromwhere you
stopped it. However, during which,if the disc is removed, theSTOP ( ) buttonis pressed again or the playeris turned off, the
RESUME function will belost.

13
Skip
You can skip chapterson DVD-Video, tracks on CDs,and Video CDs.
1.To skip forward,press during playor while paused; it skips tothe next chapter or track. Eachpress increases the numbers of skips.
2.To skip toprevious chapter ortrack, press twice. Pressing once will only move tothe beginning of the current chapter or track.
Fast Forward and Reverse
1.During playback,to fast forward, repeatedly press toincrease the fast forward speed 2x,4x, 8x, 16x, 32x.
2.During playback,to fast rewind, repeatedly press toincrease the fast reverse speed 2x,4x ,8x ,16x, 32x.
3.To resume normalplayback, press .
Slow Motion
1.During playback,repeatedly press SLOW to play at 1/2, 1/4, 1/8,1/16, 1/32 speeds.
2.To resume normalplayback, press .
You can only performslow motion play in the forwarddirection.
Frame-by-Frame Playback
1.During playback,press or PAUSE to pause.
2.Repeatedly press or PAUSE to play onefame at a time.
3.To resume normalplayback, press .
You can only performstep play in the forward direction.
Repeat Playback
You can play achapter, a track, a title,a file or the entire discrepeatedly.
1.During playback,repeatedly press REPEAT to choose a Repeat option. Dependingon the type of disc,the Repeatoptions may
be different.
2.To cancel repeatplayback, repeatedly pressREPEAT until OFF appears on the screen.
Playing a Disc

Mark (Bookmark)
You can playback froma certain point using the MARK function.
1.During playback,press MARK to mark thepoint at which you want tostart the playback.
2.At anytime, when MARK is pressed again, it starts toplayback from themarked point.
5
14
GOTO
GOTO lets you choosea specific elapsed playing time ora desired Chapter/Title/Track to begin playback.
1.Press GOTO, title, chapter ortrack information appears depending on thedisc format.
2.Use keyto change Chapter/Title/Track number, and tomove between Chapter/Title/Track.
3.Press GOTO again, to enterthe elapsed time.
4.Press PLAY to start playback.
5.If youwant to play from a specificChapter, Title or Track, you can skip Step3.
GOTO function is notvalid for MP3/JPEG file in CD-ROMformat and Picture CD.
Some DVDs donot allow this function during specificTitle/Chapter isplaying.
Zoom
ZOOM lets you enlargethe video image during playback and pan through theenlarged image.
1.Press ZOOM repeatedly during videoplayback to enlarge the image to x 2 orx 4 times of the normalsize.
2.Press ZOOM repeatedly while displayingJPEG file and Picture CD disc to zoom inthe picture at 150% or 200%
and zoom outthe picture at 25% or 50%.
Use direction keys( and )to move around(pan and scan) the enlarged video or picture.
Playing a Disc

Mute
Press MUTE to silence theaudio, press MUTE again to restore it.
Language
Repeatedly press LANGUAGE during DVD playbackto change thelanguage of the voice if thedisc has multiple languages.
This function isonly valid for DVDs.
Subtitle
Repeatedly press SUBTITLE during DVD playbackto change thesubtitle's language If the disc hasmultiple subtitle's languages.
This function isonly valid for DVDs.
Angle
Repeatedly press ANGLE during DVD playbackto change thecamera angle if the disc hasdifferent camera angles.
This function isonly valid for DVDs.
15
Menu/PBC
During DVD playback,press MENU/PBC to return tothe disc's Start Menu. If thedisc does not have the Start Menu,
or discs thatrefuse MENU function, appears.
For VCD playback,press MENU/PBC to turn on/off PBC (PlaybackControl). If PBCis enabled, menu of scene's thumbnailsappears,
you can makeselection for playback.
Playing a Disc

Display
Press DISPLAYduring DVD playback to display playbackinformation such as current title, chapter, track, elapsedtime etc.
Press DISPLAY again to showadditional information such as audio channels,TV system, language etc.
Press DISPLAY again to removeinformation.
Audio Channel
When playing CDor VCD, repeatedly press L/R to change the sound output toStereo, left/left, right/right.
Turn Off The Player
1.Press STOP twice to stopthe playback, if the unit isplaying.
2.Slide POWER ON/OFF to OFF to turn off the power.
5
16
Playing a Disc

Playing Picture CD
Valid Picture CD
The player canplay both Kodak Picture CD thatyou order from photo processing store,and home-made CDby burning JPEG files
onto a CD-Ror CD-RW disc.
Transition Effect
There are 12transition effects to move fromone slide to another. Tochange transition effect, repeatedly press ANGLE.
In most cases, after the disc is placed into the player, the player will start to slide show automatically.
In other cases, the file manager appears. Use direction keys ( and ) to select the picture and press PLAY to play.
1.During playback,press (on the remote) or PAUSE (on the player)to pause.
2.Press toresume playback.
The picture canbe rotated and flipped.
1.During playback,press or Pause to temporarily stopthe playback.
2.Use directionkeys ( and ) to rotateright 90 degrees, left 90 degrees,flip vertically and flip horizontally respectively.
Next/Previous
You can manually skipto the next picture by pressing , and toskip to the previous picture bypressing .
Slide Show Speed
During slide show, the displayingtime of eachpicture can be changed by repeatedly pressing .
Available intervals are 2 sec, 4 sec, 8sec and 10 .
1.Cover Up 2.Cover Down 3.Uncover Up 4.Uncover Down 5.Split Horizontal in 6.Split Horizontal out 7.Wipe Up
8.Wipe Down 9.Blinds Horizontal Up 10.Blinds Horizontal Down 11.Fade Trough Black 12.No Effect
5
17
Play
Pause
Rotate

Playing MP3 and Regular Audio CD
Valid MP3 CD
Your MP3 files should be ISO 9660or JOLIET format.
5
18
Play
In most cases,when a MP3 or audio discis placed into the player,the first song file of thefirst folder plays.
In other cases, the file manager appears. Use direction keys ( and ) to select the song file and press PLAY to play.

P/N
TITLE
DISPLAY
ANGLE LANGUAGE SUBTITLE
MUTE
L/R
1234
5678
SETUP
ENTER
SLOW
ZOOMREPEAT MARK GOTO
MENU/PBC
REMOTE CONTROL
MODEL No.:RMC-220
90
Language Setup
ACB
Language Setup
ACB
English
Chinese
Japanese
French
German
Italian
Spanish
Portuguese
P/NDISPLAY MUTE L/R
1234
REMOTE CONTROL
MODEL No.:RMC-220
5678
Language Setup
ACB
OSD
Menu
Audio
Subtitle
English
French
German
Italian
Spanish
Portuguese
OSD
Menu
Audio
Subtitle
OSD
Menu
Audio
Subtitle
English
Chinese
Japanese
French
German
Italian
Spanish
Portuguese
Hindi
Thai
Russian
Korean
Other
Language Setup
ACB
OSD
Menu
Audio
Subtitle
English
Chinese
Japanese
French
German
Italian
Spanish
Portuguese
Hindi
Thai
Russian
Korean
Other
Off
( , )
Press order:
( , )
Press order:
( , )
Press order:
( , )
Press order:
:Move :Select SETUP: Quit
Setting Language for OSD,Menu, Voice, Subtitle
1. Press SETUP on the remotecontrol.
2. Use thedirection keys ( ) to selectLanguage
Setup and itssub-menu.
3. Press ENTER or SETUP to confirm andexit.
Changing OSD language
Changing menu language
Changing voice language
Changing subtitle language
5
19
P/N
TITLE
DISPLAY
ANGLE LANGUAGE SUBTITLE
MUTE
L/R
1234
5678
SETUP
ENTER
SLOW
ZOOMREPEAT MARK GOTO
MENU/PBC
REMOTE CONTROL
MODEL No.:RMC-220
90
P/N
TITLE
DISPLAY
ANGLE LANGUAGE SUBTITLE
MUTE
L/R
1234
5678
SETUP
ENTER
SLOW
ZOOMREPEAT MARK GOTO
MENU/PBC
REMOTE CONTROL
MODEL No.:RMC-220
90
P/N
TITLE
DISPLAY
ANGLE LANGUAGE SUBTITLE
MUTE
L/R
1234
5678
SETUP
ENTER
SLOW
ZOOMREPEAT MARK GOTO
MENU/PBC
REMOTE CONTROL
MODEL No.:RMC-220
90
