Lennox FLEXY II Series User manual

Providing indoor climate comfort
FLEXY II
FLEXYII-IOM-1007-E
Installation, operating
and maintenance

IOM –FLEXY II –1007 –E Page 1
INSTALLATION
OPERATION
MAINTENANCE MANUAL
Ref. FLEXYII_IOM/1007-E
The pres ent m anual applies to the f ollowing ROOF TOP v ersions:
FCM 85 -FCM 100 -FCM 120 -FCM 150 -FCM 170 -FCM 200 -FCM 230
FHM 85 -FHM 100 -FHM 120 -FHM 150 -FHM 170 -FHM 200 - FHM 230
FDM 85 -FDM 100 -FDM 120 -FDM 150 -FDM 170 -FDM 200 -FDM 230
FGM 85 -FGM 100 -FGM 120 -FGM 150 -FGM 170 -FGM 200 -FGM 230
FXK 25 -FXK 30 -FXK 35 -FXK 40 -FXK 55 -FXK 70 -FXK 85 -FXK 100 -FXK 110 -FXK 150 -FXK 170
NOTES FOR UNIT FITTED WITH GAS BURNER:
LENNOX have been providing environmental solutions si nc e 1 8 95 , o ur r an ge o f B al ti c TM rooftop co ntinues to meet the
standards that have made LENNOX a household name. Flexible design solutions to meet YOUR n eeds and u nco mpromising
attention to detail. Engineered to last, simple to maintain and Quality that becomes a standard. Further Information on
www.lennoxeurope.com.
Al l th e t e ch n i c al an d t ech n o l o g i ca l i n for ma t i o n con t ai n ed in thi s ma nu al, in cl u d i n g any drawing and techni cal descri ption s
provided by us, remain the property of Lennox and must notbe used (except in oper ation o f thi s prod uct), reproduced,
issued to or made available to third parts without the prior written agreementof Lennox.
The tech ni cal i nf or ma ti onsand s pecifications c ontained i n this manual are for reference onl y. T he manufact urer reser ves the right to modif y
thes e without warning and without obligation to modif y equipment alread y sol d.
CONTENTS
THE UNIT MUST BE INSTALLED IN ACCORDANCE WITH LOCAL
SAFETY CODES AND REGULATIONS AND CAN O NLY BE USED IN WELL
VENTILATED AREA.
PLEASE READ CAREF ULLY THE MANUF ACTURER'S INSTRUCTIONS
BEFORE STARTING T HIS UNIT.
THIS MANUAL IS ONLY VALID FOR UNITS DISPLAYING THE FOLLOWING
CODES: GB IR GR DA NO FI IS
In case these symbols are not displayed on the unit, please refer to the technical
documentation which will eventually detail any modifications required to the
installation of the unit in a particular country.
Switchgear must be installed on each unit in accordance with the Machine
Directive and the standard NF EN 60204.

IOM –FLEXY II –1007 –E Page 2
COMMISSIONING SHEET...............................................................................................................6
INSTALLATION
Transport -Handling .................................................................................................................10
Dimensions and weights............................................................................................................12
Lifting the units ........................................................................................................................14
Preliminary checks ...................................................................................................................15
Minim um clearance around the unit..............................................................................................16
Installation on roof mounting frame..............................................................................................17
Curbing and flashing ................................................................................................................18
Duct connections......................................................................................................................19
Non-adjustable non-assembled roof curb installation.......................................................................20
Non-adjustable non-assembled roof curb installation instructions.......................................................21
Adjustable roof curb .................................................................................................................22
Non-adjustable Non-as s em b l e d roof curb .....................................................................................23
Multidirec t ional roof curb ...........................................................................................................24
Return roof curb ......................................................................................................................25
Return horizontal roof curb.........................................................................................................26
Trans ition roof curb...................................................................................................................27
Energy Recov ery......................................................................................................................28
Economiser and extraction.........................................................................................................29
COMMISSIONING
Bef ore connecting the power ......................................................................................................30
CLIMATIC...............................................................................................................................31
Powering the unit .....................................................................................................................31
Run test .................................................................................................................................32
VENTILATION
Belt tension ................................................................................................................................................33
Mount ing ans adjus t ing pulley s .... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..........................34
Airflow balancing........................................................................................................................................35
Filters ..........................................................................................................................................................43
Air sock control........................................................................................................................44
UV Light.................................................................................................................................45
HEATING OPTIONS
Hot water coils ........................................................................................................................46
Electric heater .........................................................................................................................48
Gas burners............................................................................................................................49
Modulat ing gas burners .............................................................................................................60
CONTENTS

IOM –FLEXY II –1007 –E Page 3
ELECTRICAL DATA: WIRING DIAGRAMS
Diagram reference legend..........................................................................................................69
Main current diagram TRI/400V/50Hz + T……………………………………………………..........................70
CLIMATIC 50 controller…………………………………………………………………………..........................72
CLIMATIC 50 input……………………………………………………………………………………. ..................73
CLIMATIC 50 output…………………………………………………………………………………. ...................74
DAD smoke detector……………………………………………………………………………….......................75
General customer connection (TCB..............................................................................................76
General customer connection with Advanced Control Pack (ADC)......................................................77
Gas burner 60 kW and hot water coil............................................................................................78
Gas burner 120 kW ..................................................................................................................79
Gas burner 180/240 kW.............................................................................................................80
Electric heater .........................................................................................................................81
General customer connection diagram..........................................................................................82
Electrical data control variables...................................................................................................83
REFRIGERATION CIRCUIT
R410A ...................................................................................................................................84
Adv anced scroll temperature protection (ASTP)..............................................................................85
Principle sketches ....................................................................................................................86
HOT WATER COIL.........................................................................................................................90
MAINTENANCE DIAGNOSTIC.........................................................................................................91
MAINTENANCE PLAN....................................................................................................................94
WARRANTY .................................................................................................................................97
CERTIFICATES.............................................................................................................................98
CONTENTS

IOM –FLEXY II –1007 –E Page 4
All FL EXYII Units are compliant with the PED directive 97-23/CE
The following note must be followed carefully
Al l w o r k o n th e un i t mu s t b e carried out by a qualified and authorised employee.
Non-compliance with thefollowing instructions may result in injury or serious accidents.
Work on the unit:
The unit s hall be is olated f rom the elec t ric al supply by disconnection and locking us ing t he m ain is olating switc h.
Workers shall wear the appropriate personal protective equipment (helmet, glov es, glasses, etc.).
Work on the electrical system:
Work on electric components shall be performed with the power off by employees having v alid electrical qualif ication and
authorisation.
Work on the refrigerating circuit(s):
Monit oring of t he pres s ures, draining and f illing of t he sy st em u n d e r p r es s u r e s h all be c arried out u s i n g c o n n ec t i o ns prov ided
forthis purpose andsuitable equipment.
To prev ent t he risk of ex plosion due to spray ing of c oolant and oil, the relevant circuit shall be drained and at zero
pressure before any disassembly or unbrazing of the refrigerating parts takes place.
There is a res idual ris k of press ure build-up by degassing the oil or by heating the exchangers after the circuit has been
drained. Zero pressure shall be maintained by venting the drain connection to the atmosphere on the low pressure side.
The brazing shall be carried out by a qualif ied brazier. The brazing shall comply with standard NF EN1044 (minimum 30%
silv er).
Replacing components:
In order to maintain CE marking compliance, replacement of components shall be carried out using spare parts, or using
parts approved by Lennox.
Only the coolant shown on the manuf acturer’s nameplate shall be used, to the exclusion of all other products (mix of
coolants, hydrocarbons, etc.).
CAUTION:
In the e v e n t o f fi r e, r efri g er a t in g c ir cui t s c an cau se an exp lo s io n a nd sp r a y c oo l an t g as an d oi l.
TRANSPORT –HANDLING:
- Never lift the unit without f orklift protections
- Remov e theforklift protection before installation
- An approach ramp must be installed if the unit’s installation requirements tell that it's necessary to reach the main switch.
This recomm endat ion is v alid f or ins t allat ions in general and in part icular f or return and curbs . It ’s also v alid t o reac h ot her
parts of the unit: f ilters, refrigerant circuit, etc…
- It’s adv ised to fix curbs and roofcurbs to the unit
- Whatever the supply conf iguration is, respect a minimal duct’s length of 2m before any elbow or any duct’s section change.
COMMISSIONING:
- It must only be carried out by trained ref rigeration engineers.
- Don’t forget to open the insulationv alve on t h e l i q u i d l i n e b ef o r e st art ing t he unit
FILTERS:
- Do thefiltersfire classification’s choice according to local regulations.
FANSTART:
- Any adjustment has to be done power stopped.
GAS:
- Any work on gas module must be carried out by qualified personnel
- A unit with gas module must be installed in accordance with local safety codes and regulations and can only be used in
planed installation conditions for outdoor.
- Bef ore c om m is s ioning t his ty p e of unit , it’s mandatory to ensure that the gas distribution system is compatible with the
adjustment and settings of the unit.
IMPORTANT NOTICE
–
Safety instructions

IOM –FLEXY II –1007 –E Page 5
UV LIGHT :
- The UV lamp em its shortw ave UV-C ultraviolet radiation which is harmful to skin and eyes
- It can cause serious skin burns and eye inflammation w ithin ONE SECOND of exposure
- Do not enter the machine while UV are switched on
- Mak e s ure the UV light c irc uit break er is OF F when opening the ret urn air s ection door and the supply air section doors
- The f ollowing logo will appear to inf orm about t he UV-C radiation risk
IMPORTANT NOTICE
–
Safety instructions

IOM –FLEXY II –1007 –E Page 6
Site details
Site
Unit Ref
Installer
………………………………………
……………………………………....
………………………………………
Control ler
Model
Serial No
Refrigerant
………………………………….
……………….…………………
…………………………………
…………………………………
(1) ROOF INSTALLATION
Sufficient Access OK
Yes No
Condensate drain fitted
Y es No
Roof curb
OK Not OK
(2) CONNECTIONS CHECK
Phase check
Yes No
Voltage between
Phases
1 / 2
……………….
2 / 3
……………….
1 / 3
……………….
(3)CLIMATIC CONFIGURATION CHECK
CLIMATIC 50 Configured according to the Options and Specifications:
Yes No
(4) SUPPLY BLOWER SECTION
Ty pe :
Power display ed on plate:
Voltage displayed on plate:
Current display ed on plate:
KW
V
A
N°1
……………………
……………………
……………………
N°2
……………………
……………………
……………………
Fan Ty pe : Forward
Backward
Forward
Backward
Displayed Belt Length : mm …………………… ……………………
Tension Checked: Yes No Yes No
Alignment Checked : Yes No Yes No
Mot or Pulley Diamet er: D Mmm …………………… ……………………
Fan Pulley Diameter: DP mm …………………… ……………………
Fan Speed = Mot or rpm x DM / DP
Av eraged Meas ured Am ps :
rpm
A
……………………
……………………
……………………
……………………
Shaft Mechanical Power (Ref er to airf low balancing) W …………………… ……………………
Operating point checked : Yes No Yes No
Estimated Airflow m3/h …………………… ……………………
(5) AIRFLOW PRESS. SENSOR CHECK
Measured pres s ure drop…………………………… mbar
Set Points Adjusted: Yes No
If Y es enter new values:
3410: ………… 3411: ………… 3412: …………
(6) EXTERNAL SENSOR CHECKS
Check and record temp. in menu 2110
Yes Non
Check electrical connections :
Yes No 100% Fresh Air 100% return Air
Supply Temperature ………………………..°C ………………………..°C
Return Tem perat ure ………………………..°C ………………………..°C
Outdoor Temperature ………………………..°C ………………………..°C
(7) MIXING AIR DAMPERS CHECKS
Dampers open & close freely
OK % Minimum FA: Power exhaust checked Enthalpy sensor(s) checked
Yes No ……………..% Yes No Yes No
COMMISSIONING REPORT

IOM –FLEXY II –1007 –E Page 7
(8) REFRIGERATION SECTION
Outdoor F an Motor Current: Check Rotation
Mot or 1 / Moteur 1 L1 ……..A L2 ……..A L3 ……A Yes No
Mot or 2 / Moteur 2 L1 ……..A L2 ……..A L3 ……A Yes No
Compressor Voltage
Mot or 3 / Moteur 3 L1 ……..A L2 ……..A L3 ……A Yes No Comp1: …….. V
Mot or 4 / Moteur 4 L1 ……..A L2 ……..A L3 ……A Yes No Comp2: …….. V
Mot or 5 / Moteur 5 L1 ……..A L2 ……..A L3 ……A Yes No Comp3: …….. V
Mot or 6 / Moteur 6 L1 ……..A L2 ……..A L3 ……A Yes No Comp4: …….. V
Compressor Amps COOLING Pressures & Tem perat ures
Tem perat ures Pressures
Phase 1 Phase 2 Phase 3
Suction Discharge LP/ BP HP / HP
Comp 1 …..… A …..… A …..… A ……… °C ……… °C ……… Bar ……… Bar
Comp 2 …..… A …..… A …..… A ……… °C ……… °C ……… Bar ……… Bar
Comp 3 …..… A …..… A …..… A ……… °C ……… °C ……… Bar ……… Bar
Comp 4 …..… A …..… A …..… A ……… °C ……… °C ……… Bar ……… Bar
Check Reversing valves :
Valv e1: Yes No
Valv e2: Yes No
Valv e3: Yes No
Valv e4: Yes No
Compressor Amps HEATING Pressures & Temp eratures
Tem perat ures Pressures
Phase 1 Phase 2 Phase 3
Suction Discharge LP/ BP HP / HP
Comp 1 …..… A …..… A …..… A ……… °C ……… °C ……… Bar ……… Bar
Comp 2 …..… A …..… A …..… A ……… °C ……… °C ……… Bar ……… Bar
Comp 3 …..… A …..… A …..… A ……… °C ……… °C ……… Bar ……… Bar
Comp 4 …..… A …..… A …..… A ……… °C ……… °C ……… Bar ……… Bar
HP cut out ……Bar LP cut out ………..…... Bar
Refrigerant charge C1 : ………..kg C2 : ……….. k g C3 : ……….. k g C4 : ……….. k g
(8)ELECTRIC HEATER SECTION
Ty pe : …………………………………………………. Serial No.: ………………………..
AMPS 1st stage (Baltic) AMPS 2nd stage (Baltic)
1 ………………. 2 ………………. 3 ………………. 1 ………………. 2 ………………. 3 ……………….
(9) HOT WATER COIL SECTION
Check Three Way Valve Mov ement : Yes No
(10) GAS HEATING SECTION
Gas Burner N°1 Gas Burner N°2
Size :
……………………….
Valv e type :
…………………….
Size :
……………………….
Valv e type :
…………………….
Pipe size: Gas type : G……. Pipe size Gas type : G…….
Line pressure :
………………………
Drop test
Yes No
line pressure :
………………………
Drop test
Yes No
Check manifold pressure:
High f ire …….…Low fire ………..
Check manifold pressure:
High f ire …….…... Low fire………..
Pressure cut out airf low press switc h :
……………………mbar /Pa
Pressure cut out airf low press switch :
……………………mbar /Pa
Mot or amps :
……….A
Flue temp.
……… °C
CO2 %:
………%
CO ppm:
………%
Mot or Am ps:
……….A
Flue temp.
………. °C
CO2 %:
………%
CO ppm:
………%
(11) REMOTE CONTROL BMS CHECK
Ty pe :
…………………………..
Sensor type
………………………………..
KP07 KP/17 checked:
Yes No
Interconnect wiring checked:
Yes No
COMMISSIONING REPORT

IOM –FLEXY II –1007 –E Page 8
It is recommended thatyouf ill the two tables below bef ore transferring the zone settings to the Climatic 50 controller.
Refer to control section page 55 / Se référer à la section régulation page 55
Time Zones / Zones Horaires
Hour 0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Example UNO
7h15 ZA 11h00 ZB 14h00 ZC 19h00 UNO
Monday
Tuesday
Wednesday
Thurs day
Friday
Saturday
Sunday
Variables to adjust for each time zone / Consignes à renseigner pour chaque zone horaire
Start z.A Start z.B Start z.C Start UNO
hour (3211)
min (3212) hour (3213) min (3214) hour (3215) min (3216) hour (3217) min (3218)
Monday
Tuesday
Wednesday
Thurs day
Friday
Saturday
Sunday
Description Unit Menu Min
Max Zone A Zone B Zone C UNOC
Sp Room °C 3311 8 35
Mini. Air % 3312 0 100
Sp Dy na °C 3321 0 99.9
Sp Cool °C 3322 8 35
Sp Heat °C 3323 8 35
Swap Heater On/Off 3324 ~ ~
Activ ation On/Off 3331 ~ ~
Swap Heater On/Off 3332 ~ ~
Sp.Dehu % 3341 0 100
Sp.Humi % 3342 0 100
Fan On/Off On/Off 3351 ~ ~
Fan Dead On/Off 3352 ~ ~
F.Air On/Off 3353 ~ ~
CO2 On/Off 3354 ~ ~
Comp.Cool. On/Off 3355 ~ ~
Comp.Heat. On/Off 3356 ~ ~
AuxHeat On/Off 3357 ~ ~
Humidif. On/Off 3358 ~ ~
Low Noise On/Off 3359 ~ ~ N/A N/A N/A
COMMISSION
ING REPORT

IOM –FLEXY II –1007 –E Page 9
COMMENTS:……………………………………………………………………………………………………………………………………
………………………….………………………………………………………………………………………………………………………
……...
……………………….……………………………………………………………………………………
………………………………………...……………………….……………………………………………
………………………………………………………………………………...……………………….……
………………………………………………………………………………………………………………
………...……………………….……………………………………………………………………………
………………………………………………...……………………….……………………………………
………………………………………………………………………………………...……………………
….…………………………………………………………………………………………………………
…………………...……………………….…………………………………………………………………
…………………………………………………………...……………………….…………………………
…………………………………………………………………………………………………...…………
…………….………………………………………………………………………………………………
……………………………...……………………….………………………………………………………
……………………………………………………………………...……………………….………………
……………………………………………………………………………………………………………...
……………………….……………………………………………………………………………………
………………………………………...……………………….……………………………………………
………………………………………………………………………………...……………………….……
………………………………………………………………………………………………………………
………...……………………….……………………………………………………………………………
………………………………………………...……………………….……………………………………
………………………………………………………………………………………...……………………
….…………………………………………………………………………………………………………
…………………...……………………….…………………………………………………………………
…………………………………………………………...……………………….…………………………
…………………………………………………………………………………………………...…………
…………….………………………………………………………………………………………………
……………………………...……………………….………………………………………………………
……………………………………………………………………...……………………….………………
……………………………………………………………………………………………………………...
……………………….……………………………………………………………………………………
………………………………………...……………………….……………………………………………
………………………………………………………………………………...……………………….……
………………………………………………………………………………………………………………
………...……………………….……………………………………………………………………………
………………………………………………...……………………….……………………………………
………………………………………………………………………………………...……………………
….…………………………………………………………………………………………………………
…………………...……………………….…………………………………………………………………
…………………………………………………………...……………………….…………………………
…………………………………………………………………………………………………...…………
…………….………………………………………………………………………………………………
……………………………...……………………….………………………………………………………
……………………………………………………………………...……………………….………………
……………………………………………………………………………………………………………...
……………………….……………………………………………………………………………………
…………………………………
COMMISSIONING REPORT

IOM –FLEXY II –1007 –E Page 10
DELIVERY CHECKS
On receipt of a new equipment please check the following
points. It is the customer’s responsibility to ensure that the
products are in good working order:
- The exterior has not been dam aged in any way.
- The lif ting and handling equipment are suitable for the
equipment and comply with the specif ications of the
handling instructions enclosed here-in.
-Accessories ordered for on site installation have been
deliv ered and are in good working order.
- The equipment supplied corresponds to the order and
matches the delivery note.
If the product is damaged, exact details must beconfirmed
in writing by registered post to the shipping company
wit hin 48 hours of delivery (work ing day s ). A c opy of the
letter must be addressed to Lennox and the supplier or
distributor f or inf ormation purposes. Failure to comply will
inv alidate any claim against the shipping company.
RATING PLATE
The rat ing plate prov ides a c omplet e ref erenc e for t he
model and ensures that the unit corresponds to the model
ordered. It states the electrical power consumption of the
unit on start-up, its rated power and its supply v oltage. The
supply voltage must not dev iate bey ond +10/-15 %. The
start-up power is the maximum value likely to be achiev ed
for the specified operational voltage. The customer must
hav e a suitable electrical supply. It is theref ore important to
check whether the supply v oltage stated on the unit's
rating plate is compatible with that of the mains electrical
supply. The rating plate also states the year of
manuf acture as well as the ty pe of refrigerant used and the
required charge for each compressor circuit.

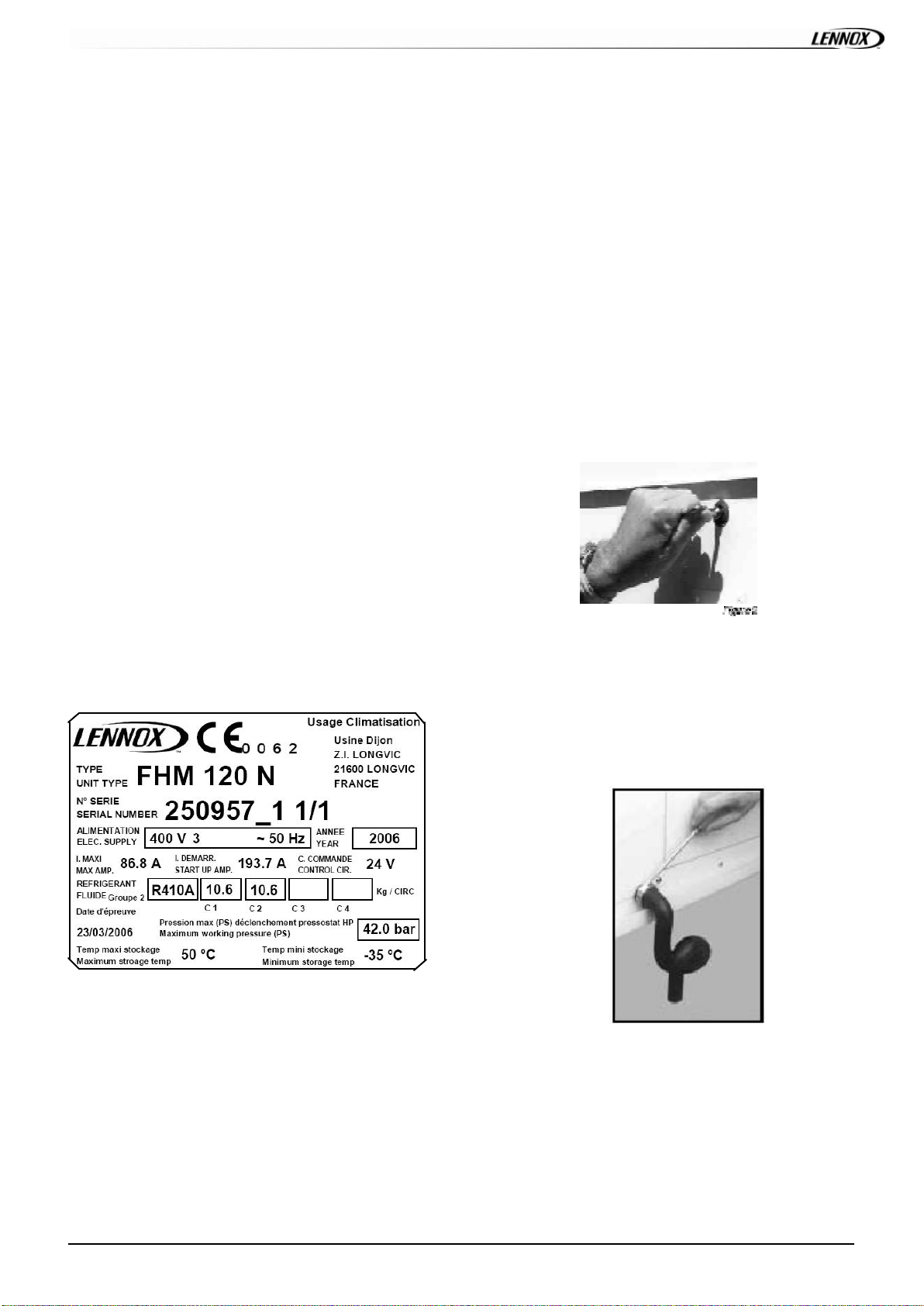

Fig. 1
STOR AGE
When units are deliv ered on site they are not alway s
required immediately and are sometimes put into storage.
In the event of medium to long-term storage, we
recommend thef ollowing procedures:
-Ensure that there is no water in the hydraulic systems.
- Keep the heat exchanger covers in position (AQUILUX
cover).
-Keep protective plastic film in position.
-Ensure the electrical panels are closed.
- Keep all items and opt ions s u p p l i e d i n a dry an d c lean
place f orf uture assembly bef ore using the equipment.
MAINTENANCE KEY
On deliv ery we recommend that you keep the key which is
attached to an ey ebolt in a safe and accessible place. This
allows y ou to open the panels f or maintenance and
installation work.
The loc k s are ¼ turn + then tighter (figure 2).
CONDENSATE DRAINS
The c ondensat e drains are not assem bled when deliv ered
and are stored
in the electrical panel with their clamping collars.
To as s emble t hem, ins ert t hem on the condensat e tray outlets
and use a screwdriverto tighten the collars (Figure 3).
TRANSPORT
–
HANDLING
–
WARNING
Fig. 3

IOM –FLEXY II –1007 –E Page 11
TRANSPORT
–
HANDLING
Handling slings to guide the
unit towards the roofcurb
Vacuum lifting beam to
position the unit
COMPLIANT
NON
-
COMPLIANT
MANDATORY HANDLING DEVICES

IOM –FLEXY II –1007 –E Page 12
DIM ENSIONS AND WEI GHTS
FLEXY2 FCM/FHM/FGM/FDM 85 100 120 150 170 200 230
View (F, G, H box) F BOX F BOX
F BOX G BOX G BOX H BOX H BOX
A mm 2200 2200 2200 2200 2200 2200 2200
B mm 3350 3350 3350 4380 4380 5533 5533
C mm 1510 1510 1510 1834 1834 2134 2134
D mm 360 360 360 450 450 615 615
Weight of standard units FCM
Wi thout economi se r kg 933.8 1008.8 1085.0 1367.0 1430.0 1650.0 1950.0
Wi th e conom i ser kg 990.3 1065.3 1141.5 1442.0 1505.0 1751.7 2051.7
Weight gas unit FGM
Standard heat Without economiser kg 1040.8 1115.8 1192.0 1608.0 1671.0 1913.9 2213.9
Standard heat With economiser kg 1097.3 1172.3 1248.5 1683.0 1746.0 2015.6 2315.6
High heat without economiser kg 1110.8 1185.8 1262.0 1631.0 1694.0 1954.1 2254.1
High heat With economiser kg 1167.3 1242.3 1318.5 1706.0 1769.0 2055.8 2355.8
TRANSPORT
–
HANDLING
F & G BOX H BOX
A
D
B
C
D
A
B
C

IOM –FLEXY II –1007 –E Page 13
DIM ENSIONS AND WEI GHTS
LENGTH HEIGHT WIDT H HOOD WEIGHT
Side Fan Standard
mm mm mm mm mm kg
FXK025 4070 1635 1055 490 600 950
FXK030 4070 1635 1055 490 600 980
FXK035 4750 2255 1290 490 600 1400
FXK040 4750 2255 1290 490 600 1450
FXK055 4750 2255 1290 490 600 1600
FXK070 5050 2255 1725 890 600 1800
FXK085 5050 2255 1725 890 600 1900
FXK100 5050 2255 1725 890 600 2000
FXK110 5650 2255 2000 860 - 2620
FXK140 5650 2255 2000 860 - 2620
FXK170 5650 2255 2000 860 - 2650
TRANSPORT
–
HANDLING

IOM –FLEXY II –1007 –E Page 14
LIFTING THE UNIT
As s how n on th e picture b el ow, a l ifti ng frame is n ecessa ry.
Af te r lifti ng, w ithd raw an gle’s fe et a nd li fting lugs .
TRANSPORT
–
HANDLING

IOM –FLEXY II –1007 –E Page 15
FORKLIFT PROTECTIONS
NEVER LIFT THE UNIT WITHOUT FORKLIFT PROTECTIONS
REMOVE THE FORKLIFT PROTECTIONS
BEFORE INSTALLATION
PRELIMINARY CHECKS
Bef ore installing the equipment, the following points MUST
be checked:
-Have theforklift protections been remov ed?
-Is there sufficient space for the equipment?
-Is the surface on which the equipment is to be
installed sufficiently solid to withstand its weight? A
detailed study of the f rame must be made bef orehand.
-Do the supply and return ductwork openings
excessiv ely weaken the structure?
-Are there any obstructing items which could hinder
the operation of the equipment?
-Does the electrical power av ailable correspond to the
equipment's electrical specifications?
-Is drainage provided for the condensate?
-Is there sufficient access for maintenance?
- Installation of the equipment could require different
lif ting methods which may vary with each installation
(helicopter or crane). Hav e these been ev aluated?
-Ensure that the unit is installed in accordance with the
installation instructions and local applicable codes.
-Check to ensure that the ref rigerant lines do not rub
against the cabinet or against other ref rigerant lines.
In general, make sure no obstacles (walls, trees or roof
ledges) are obstructing the duct connections or hindering
assembly and maintenance access.
INSTALLATION REQUIREM ENTS
The surf ace on which the equipment is t o be ins t alled m ust
be clean and f ree of any obstacles which could hinder the
flowof airtothecondensers:
-Av oid unev en surfaces
-Av oid installing two units side by side or close to eac h
other as this may restrict the airflow to the condensers.
Bef ore installing a packaged Rooftop unit it is important to
understand:
-The direction of prev ailing winds
-The direc t ion and posit ion of air f lows.
-The external dimensions of the unit and the
dimensions of the supply and return air connections.
-The arrangement of t he doors and t he s pac e required
to open them to access the various components.
CONNECTIONS
-Ensure that all the pipe-work crossing walls or roofs
are secured, sealed and insulated.
-To av oid c ondens ation problems, make sure that all
pipes are insulated according to the temperatures of
fluids andtype of rooms.
NOTE: The AQUILUX protection sheets f itted to thef inned
surf aces must be removed prior to st art up.
INSTALLATION

IOM –FLEXY II –1007 –E Page 16
MINIMUM CLEAR AN C E AROU N D TH E UNIT
Figure 4 shows the required clearances and serv ice access around the unit.
NOTE: Ensure thef resh air inlet does not f ace prevailing wind direction.
A B C D
FCM/FHM/FGM/FDM
FBOX 2200 (1) 2000 2000 2000
G BOX 2700 (1) 2000 2000 2000
H BOX 2700 (1) 2000 2000 2000
FX
25 & 30 * 1100 * 1700
3555 * 1300 * 2300
70100 * 1700 * 2300
110170 * 2000 * 2300
(1) Add 1 meter if the units are equipped with gas burner
A
B
C
D
INSTALLATION

IOM –FLEXY II –1007 –E Page 17
CAUTION:
-An approach ramp must be installed if the unit’s installation requirements tell that it's
necessary to reach the main switch. This recommendation is valid for installations in
general and in particular for return and curbs. It ’s also valid to reach other parts of
the unit: filters, refrigerant circuit, etc…
-It’s advised to fix curbs and roofcurbs to t he unit.
As lev els are adjustable, observe the following
recommendations when installing the equipment
Abov e all, ensure that all the adjustable returns are facing
outward (“1” f igure 4). They are us ually t urned ins ide-out
fortransport.
Place the roof mounting f rame on the trimmer beam by
first lining uptheinlet andthe outlet opening. (“2”-f igure 5)
After lev elling the f rame, secure the adjustable returns on
the trimmer.
It is important to centre the unit on the roof frame
INSTALLATION ON A ROOF
MOUNTING FRAME

Fig. 4
Fig. 5
Fig. 6

IOM –FLEXY II –1007 –E Page 18
When the f ram e is c orrect ly pos it ioned, i t is essential to sec ure t he as s embly with a disc onnect ed st it c hed welded seam (20 t o
30mm every 200mm ) along t he out s ide o r by us i n g a n a l t e r n at iv e m et hod
CURBING AND FL AS HING
Outside of frame must be insulated with rigid type insulation;
We recommend a minimum of 20 mm thick ins ulation (2-f igure 7).
Check that the insulation is continuous, counterf lash and seal around the
frame
as shown in (1-f igure 7).
CAUTION: To be effective, the upstream must end below the drop edge (3 -f igure
7).
Where pipes and electrical conduits extend through the roof, flashing must be
conf ormed to local codes of practice.
Bef ore installing the equipment, make sure that seals are not damaged and check that the unit is secured to the mounting
frame. Once in position, the bottom of the equipment must be horizontal.
The installer must c omply with local aut hority standards and specifications.
RECOMMENDATIONS FOR DUCTS CONNECTIONS
Some rules must be complied with for the connections between ducts and unit done on site.
INSTALLATION ON A ROOFMOUNTING FRAM E
Fig. 7
