Lenovo A2016b30 User manual

Quick Start Guide
Read this guide carefully before using your smartphone.
Lenovo B
Lenovo A2016b30

Reading before using your smartphone
For your safety
Before assembling, charging or using your mobile device for the first
time, please read the important product safety and legal information
provided with your product.
Usage
This phone supports apps and services that may use a lot of data, so
make sure your data plan meets your needs. Contact your service
provider for details. Certain apps and features may not be available in
all countries.
Electrical requirements
Battery: 7.6 Wh 2000 mAh
Adapter: AC
Entrance: 100-240 V AC 50/60 Hz 0.13 A
Exit: 5.0 V DC 1.0A

First glance
Volume buttons
3
1Receiver 2
Touch screen 6
Front-facing camera
4On/Off button 5
Multitask button 9
Back button
7Home button 8
Speaker
12
Headset connector
10 Micro USB connector 11 Flash
13 Microphone
14
Rear-facing camera
12
11
109
13
14
7
86
5
4
3
12

Preparing your smartphone
You must insert the Micro-SIM card provided by your carrier to use cellular
services. Set up your smartphone as shown.
Always turn off your smartphone first before you insert or remove a
Micro-SIM card. Insert or remove a Micro-SIM card with your
smartphone on may damage your Micro-SIM card or smartphone
permanently.

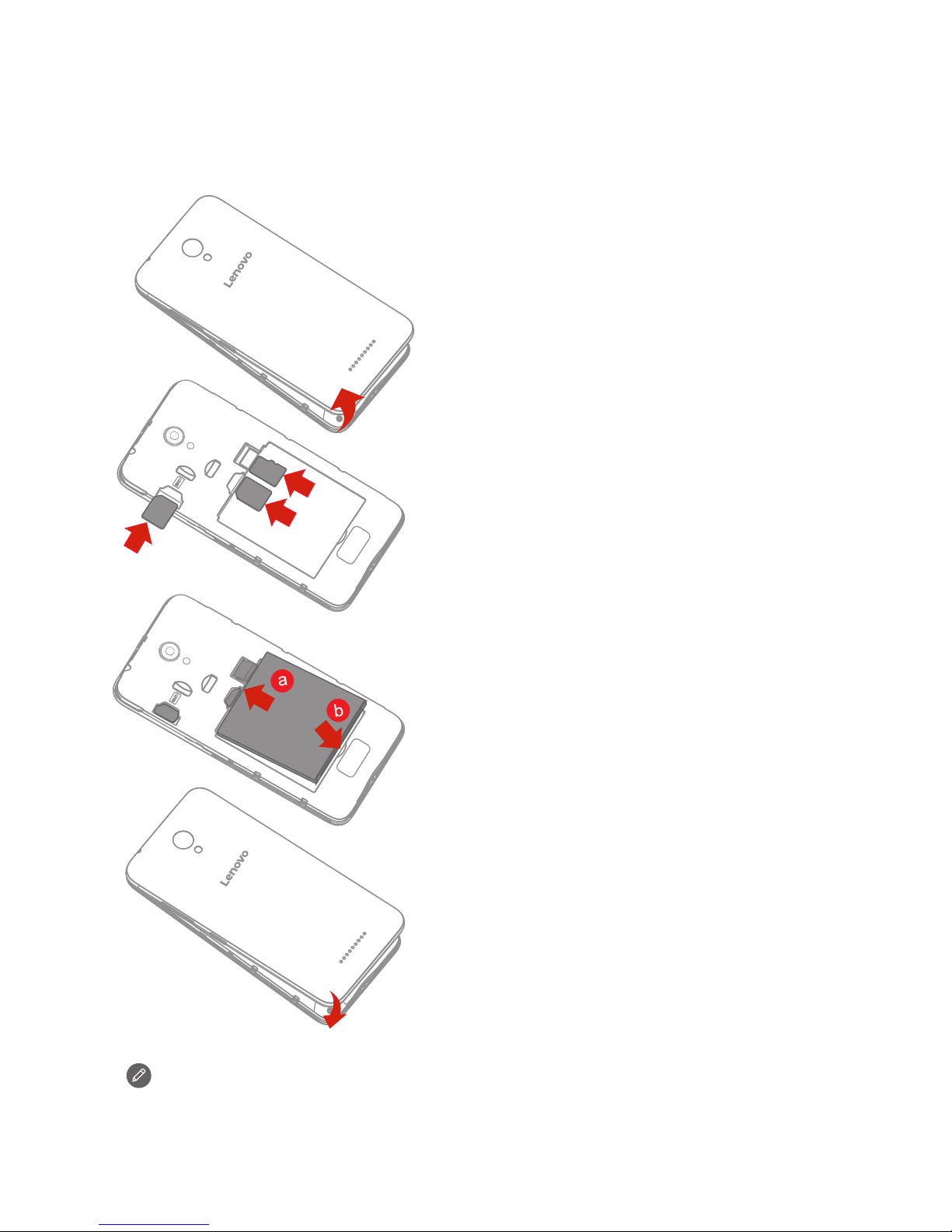

Step 1. Open the back cover.
Step 2. Insert the Micro-SIM
cards and the microSD
card.
Step 3. Install the battery.
a. Align the battery
connectors on the battery
with the pins in the
battery compartment.
b. Push the battery down
into place.
Step 4. Install the back cover.
microSD
SIM
SIM

2
1
Low battery power Fully charged Charging
Charge the battery as shown.
Turning on or turning off your smartphone
Turn on: Press and hold the On/Off button until
the Lenovo logo appears.
Turn off: Press and hold the On/Off button for a
few seconds, then tap Power off and OK.
Method 1.
Method 2.
Connect your smartphone to a power outlet using the
cable and USB power adapter that come with your
smartphone.
Connect your smartphone to a computer using the cable
that comes with your smartphone.
Charging the battery
You must insert the Micro-SIM card provided by your carrier to use cellular
services. Set up your smartphone as shown.
