Lenovo ThinkPad 10 Ultrabook User manual

ThinkPad 10 Ultrabook Keyboard User Guide

http://www.lenovo.com/safety
Note: efore installing the product, be sure to read the warranty information in Appendix “Lenovo Limited
Warranty” on page 17.
Second Edition (April 2014)
©Copyright Lenovo 2014.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant aGeneral Services Administration
“GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Contents
Chapter 1. Abo t the keyboard .....1
Product description. . . . . . . . . . . . . . 1
Front view ................. 2
Rearview.................. 4
Chapter 2. Installing the keyboard ...5
Chapter 3. Using the keyboard .....7
Using the two-button clickpad of the keyboard ...7
Storing or removing the Tablet Digitizer Pen ....8
Chapter 4. Tro bleshooting ......11
Chapter 5. Prod ct specifications ..13
Appendix A. Service and S pport ...15
Online technical support . ..........15
Telephone technical support .........15
Appendix B. Lenovo Limited
Warranty. . . . . . . . . . . . . . . . 17
Part 1 - General Terms ........... 17
Part 2- Country-specific Terms ........19
Part 3- Warranty Service Information. .....22
Appendix C. Electronic emission
notices ................ 25
Federal Communications Commission Declaration
of Conformity ............... 25
Appendix D. Notices. .........29
Recycling information . ...........29
Recycling information for razil ........29
Important WEEE information .........30
Export Classification Notice .........30
Trademarks................ 30
Appendix E. Restriction of Hazardo s
S bstances Directive (RoHS) .....31
European Union RoHS ........... 31
ChinaRoHS................ 31
Turkish RoHS ............... 31
UkraineRoHS............... 31
India RoHS ................ 31
©Copyright Lenovo 2014 i

ThinkPad 10 Ultrabook Keyboard User Guideii

Chapter 1. Abo t the keyboard
This chapter provides product information for the ThinkPad®10 Ultrabook®Keyboard (hereafter called the
keyboard).
Prod ct description
The keyboard is athin, mechanical, qwerty keyboard that provides an improved and flexible typing
experience. It is designed especially for the ThinkPad 10 tablet (hereafter called the tablet). The keyboard
is connected to the tablet through pogo pins, which provide afast and tactile connection. The keyboard
also provides atwo-button clickpad and several special keys, as similar as aThinkPad-notebook-computer
keyboard.
Your option package includes the following:
•ThinkPad 10 Ultrabook Keyboard
•Setup and warranty poster
Contact your place of purchase if any item is missing or damaged. Ensure that you retain the proof of
purchase and packing material. They might be required to receive warranty service.
©Copyright Lenovo 2014 1

Front view
The following illustration shows the front view of the keyboard.

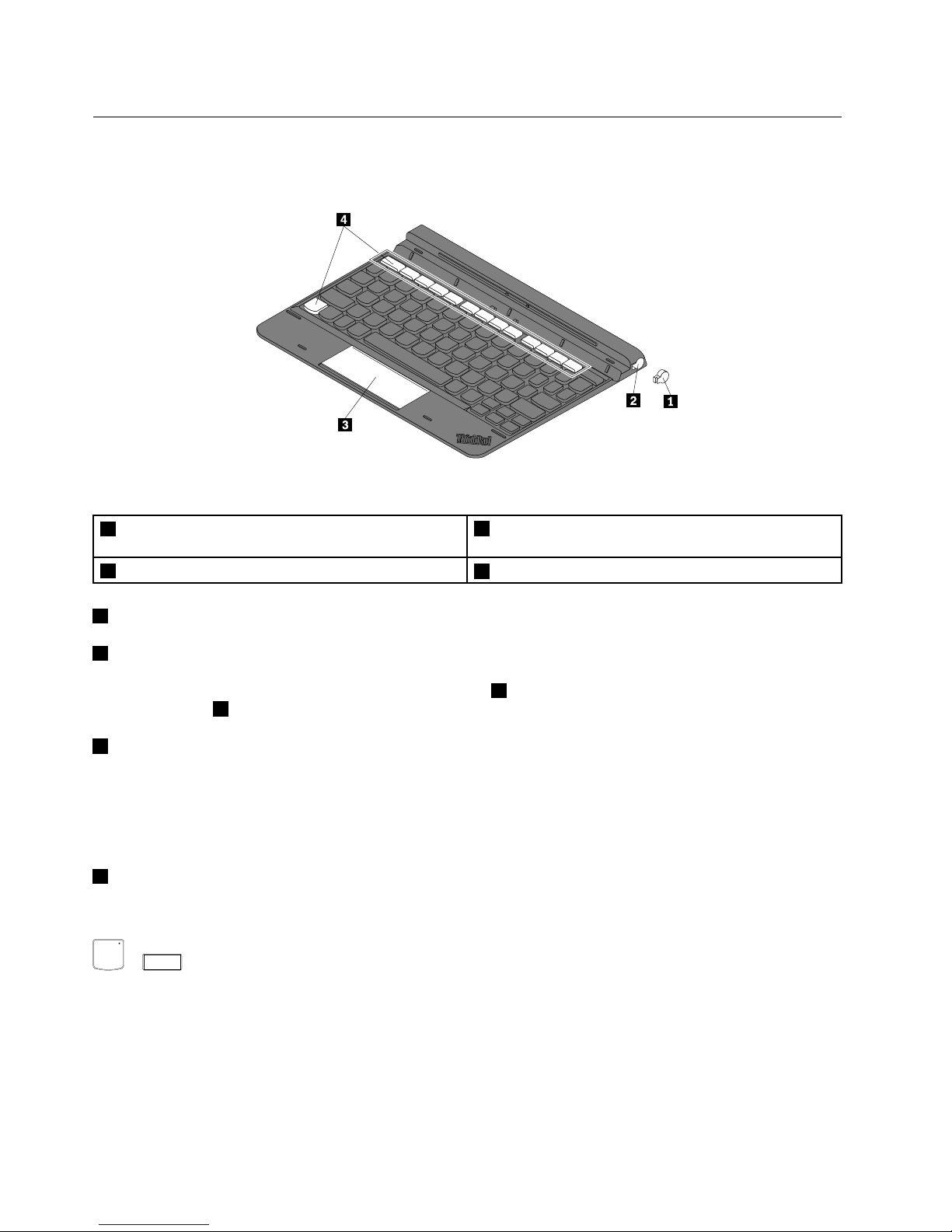

Figure 1. Front view of the keyboard
1Tablet Digitizer Pen slot cover (available on some
models)
2Tablet Digitizer Pen slot
3Two-button clickpad 4Special keys
1
2
Tablet Digitizer Pen slot cover
Tablet Digitizer Pen slot
Some models come with aTablet Digitizer Pen slot cover 1.To store the Tablet Digitizer Pen in the Tablet
Digitizer Pen slot 2,remove the Tablet Digitizer Pen slot cover first if available.
3Two-b tton clickpad
The two-button clickpad is apointer-positioning device that enables you to point, select, drag, and scroll like
you are using aconventional mouse.
For more information, see “Using the two-button clickpad of the keyboard” on page 7.
4Special keys
The keyboard has several special keys. Press aspecial key to quickly control the associated function.
Fn
+
FnLk
Esc
:Press Fn+Esc to enable or disable the Fn Lock function.
• When the Fn Lock f nction is disabled:The LED on the upper-right corner of the Fn key is off. To
initiate the special function of each key, press the function key directly. To input F1–F12, press the Fn key
and the corresponding function key.
• When the Fn Lock f nction is enabled:The LED on the upper-right corner of the Fn key turns on. To
input F1–F12, press the function keys directly. To initiate the special function of each key, press the Fn
key and the corresponding function key.
ThinkPad 10 Ultrabook Keyboard User Guide2

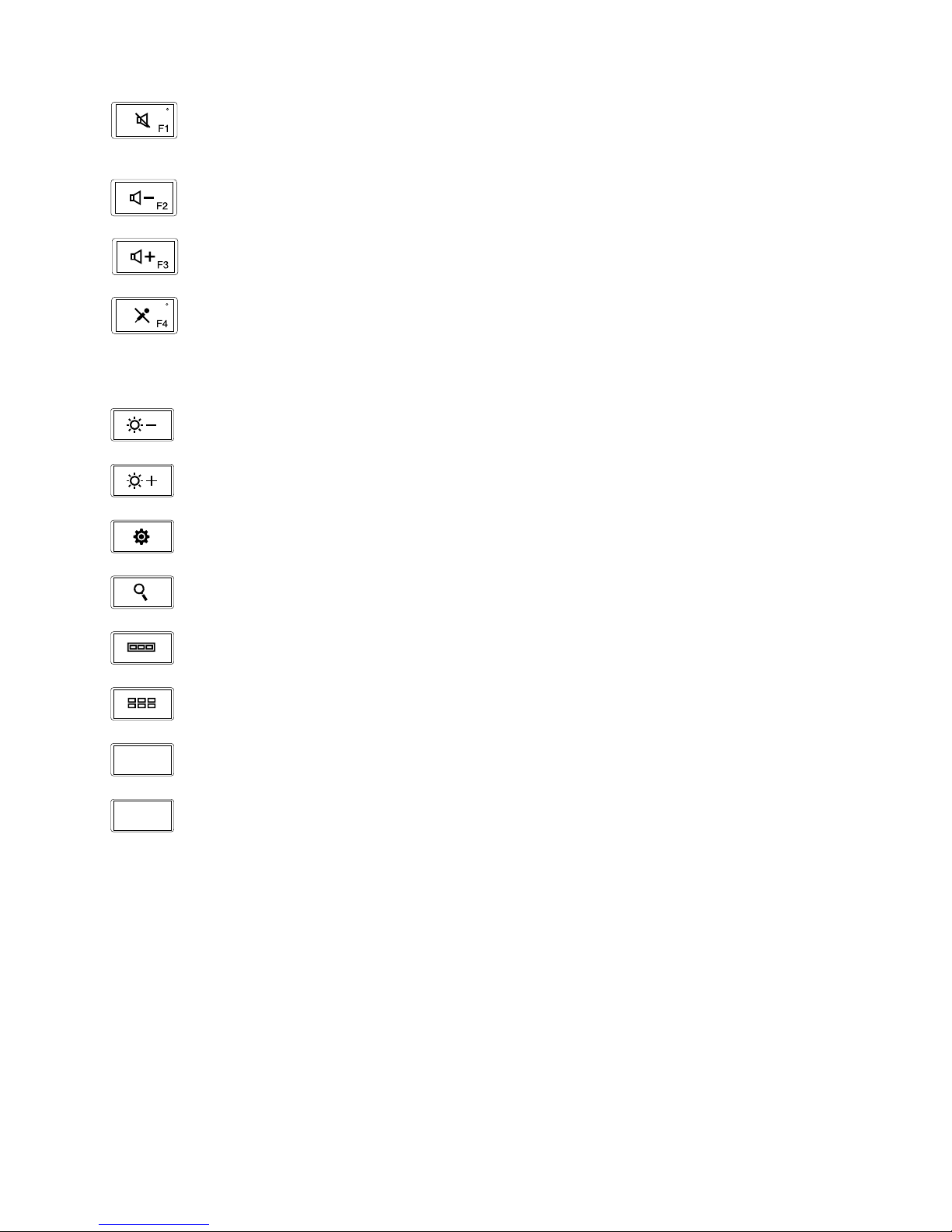

Mute or unmute the speakers. When the LED on the upper-right corner of the key turns on, it
indicates that the speakers are muted.
Turn down the speaker volume.
Turn up the speaker volume.
Mute or unmute the microphone. When the LED on the upper-right corner of the key turns on, it
indicates that the speakers are muted.
Note: There is aLED on the F4 key to indicate the key status.
F5
F6
F7
F8
F9
F10
F11
Home
F12
End
Turn down the brightness.
Turn up the brightness.
Open the Settings charm.
Open the Search charm.
View all the applications that you have opened.
View all applications.
Navigate to the top when you are viewing information, such as adocument or aWeb page.
Navigate to the bottom when you are viewing information, such as adocument or aWeb page.
Chapter 1.About the keyboard 3

Rear view

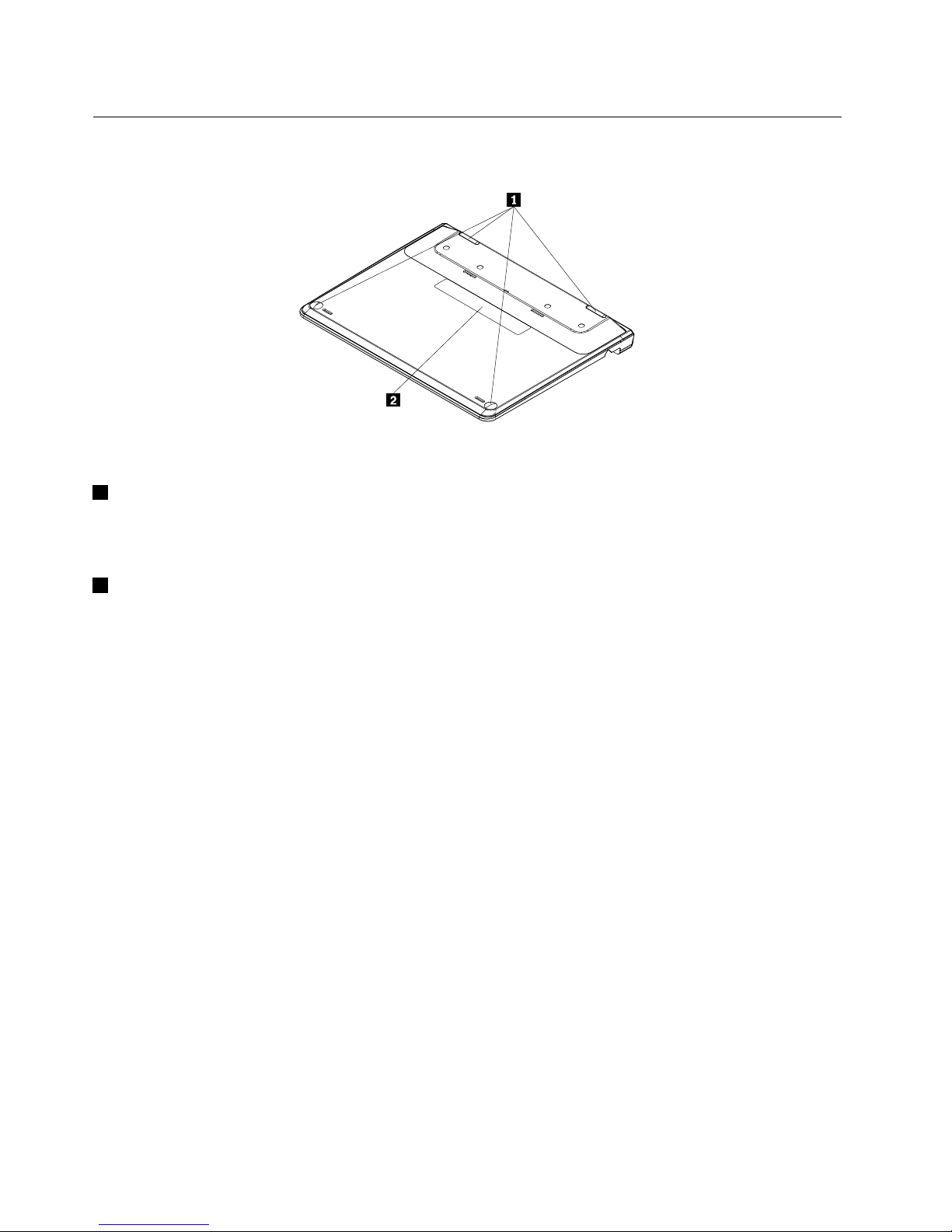

Figure 2. Rear view of the keyboard
1Non-skid feet
The four non-skid feet on the bottom of your keyboard help prevent the keyboard from moving when
you are using the keyboard.
2Label
The label on the bottom of the keyboard provides product information about the keyboard.
ThinkPad 10 Ultrabook Keyboard User Guide4

Chapter 2. Installing the keyboard
This chapter provides information on how to install the keyboard.
The keyboard is especially designed for the ThinkPad 10 tablet. efore using the tablet with the keyboard,
install the keyboard by doing the following:
1. Place the keyboard on aflat surface.
2. Insert the tablet into the keyboard as shown in the following illustration. The tablet is attached to
the keyboard magnetically.
Figure 3. Inserting the tablet into the keyboard
Note: Do not detach the tablet from the keyboard while using the keyboard, otherwise the keyboard will
be disabled.
Carrying or storing the tablet together with the keyboard
Sometimes you do not need to use the keys on the keyboard, but you would like to carry or store the
tablet together with the keyboard. In this situation, you might consider the following methods depending
on the model of your tablet.
• For models that are not equipped with asmart card slot, you can install the tablet into the keyboard with
the tablet screen facing upward. To achieve this, do the following:
Note: Your tablet might look slightly different from the following illustration.
1. Detach the tablet from the keyboard.
2. Position the tablet with the tablet screen facing upward.
©Copyright Lenovo 2014 5

3. Gently slide your tablet as shown. The tablet will be attached to the keyboard magnetically. The
keyboard is disabled in this situation.

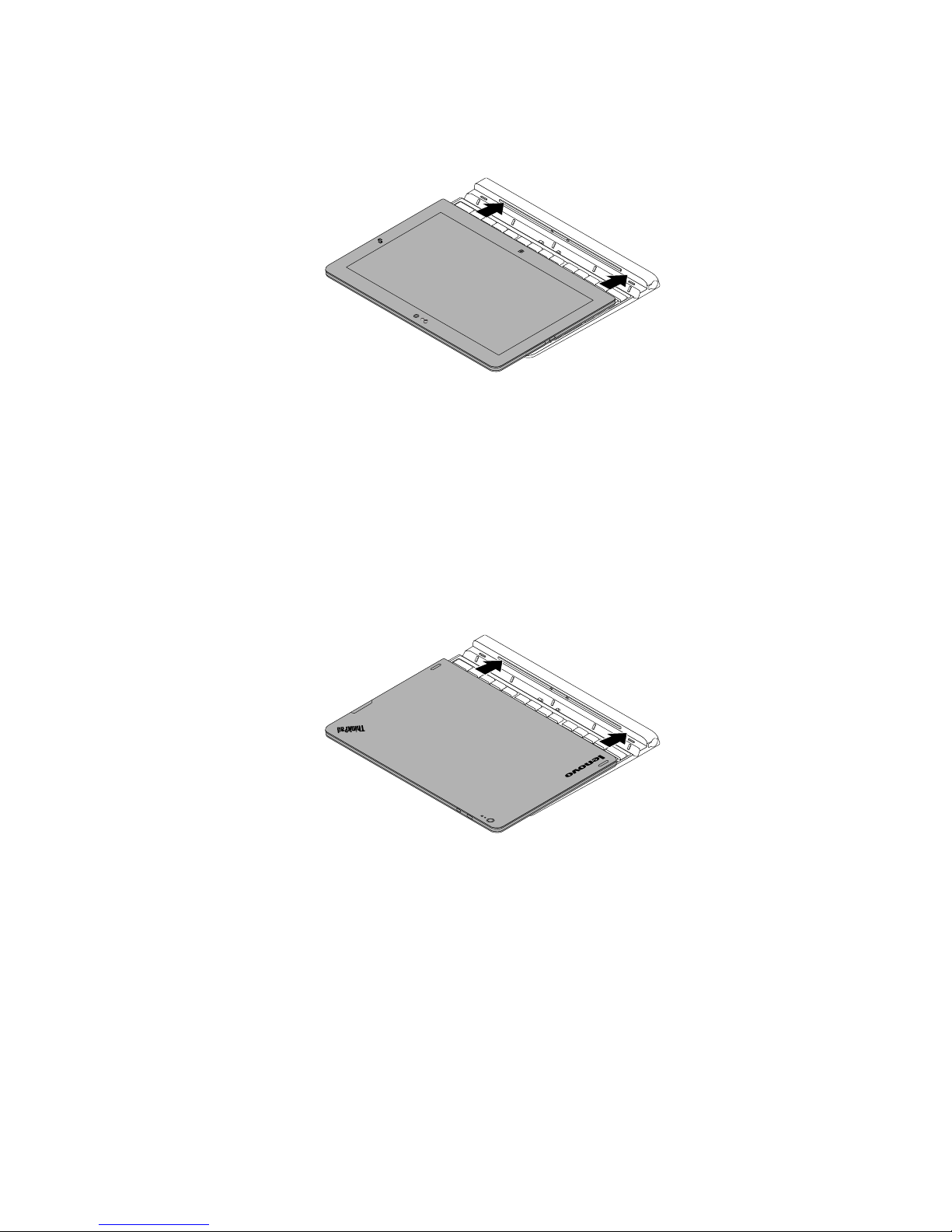

Figure 4. Sliding the tablet into the keyboard with the tablet screen facing upward
• For all models, you can install the tablet into the keyboard with the tablet screen facing downward. To
achieve this, do the following:
Note: Your tablet might look slightly different from the following illustration.
1. Detach the tablet from the keyboard.
2. Position the tablet with the tablet screen facing downward.
3. Gently slide your tablet as shown. The tablet will be attached to the keyboard magnetically. The
keyboard is disabled and the tablet enters sleep mode in this situation.
Figure 5. Sliding the tablet into the keyboard with the tablet screen facing downward
ThinkPad 10 Ultrabook Keyboard User Guide6

Chapter 3. Using the keyboard
This chapter provides information about using the two-button clickpad and storing the Tablet Digitizer Pen.
Using the two-b tton clickpad of the keyboard
The two-button clickpad is apointer-positioning device that enables you to point, select, drag, and scroll,
like you do when using amouse.
efore you use the two-button clickpad, remove the plastic film from the two-button clickpad first. You can
enable or disable the two-button clickpad by pressing Fn+8.
The right-click area 1on the two-button clickpad works as the right-click button on aconventional mouse.
The rest area on the two-button clickpad works as the left-click button on aconventional mouse.

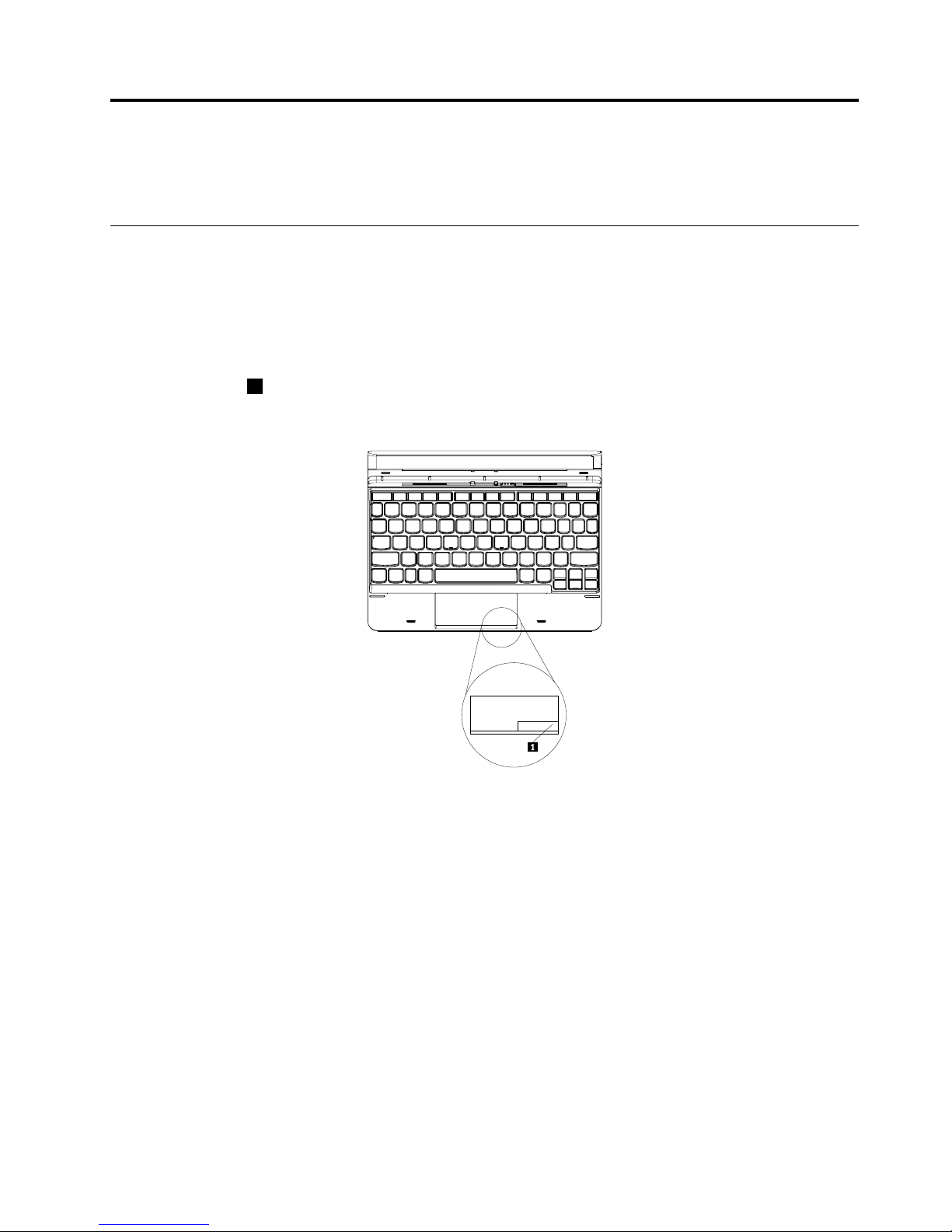

Figure . The right-click area of the two-button clickpad
The following table shows the touch gestures when you are using the two-button clickpad.
©Copyright Lenovo 2014 7

To ch gest res Tasks
Tap to perform an action.
Tap with two fingers simultaneously to open acontext
menu.
Swipe to the left or right with two fingers to scroll
through items, such as lists, pages, and photos. The
content of the items is moved in the same direction
of the fingers.
Swipe up or down with two fingers to scroll through
items, such as lists, pages, and photos. The content
of the items is moved in the same direction of the
fingers.
Storing or removing the Tablet Digitizer Pen
Some tablet models are equipped with aTablet Digitizer Pen (hereafter called the pen). You can store the
pen in the Tablet Digitizer Pen slot on the right side of the keyboard.
Note: The pen contains pressure sensors. Do not push the tip of the pen for an extended period of time. Do
not subject the pen to shock or vibration.
ThinkPad 10 Ultrabook Keyboard User Guide8

To store the pen in the keyboard, remove the Tablet Digitizer Pen slot cover first 1.Then push the pen gently
into the Tablet Digitizer Pen slot until you hear aclick
Note: The Tablet Digitizer Pen slot cover is available on some models.
2.
Figure 7. Storing the pen in the keyboard
To remove the pen from the keyboard, press the pen gently into the Tablet Digitizer Pen slot 1to release the
pen. Then pull the pen out 2.
Figure 8. Removing the pen from the keyboard
Chapter 3.Using the keyboard 9

10 ThinkPad 10 Ultrabook Keyboard User Guide

Chapter 4. Tro bleshooting
This chapter describes what to do if you experience aproblem with your keyboard.
Problem:Some of the keys, LEDs on the keyboard, and special key combinations do not work.
Sol tion:To solve the problem, do the following:
1. Ensure that you have correctly installed the keyboard.
2. There are software dependencies to get the most complete support of the Fn key and special key
combinations for your tablet. You can update the Hotkey Features Integration software for the tablet to
the latest version. To download the latest Hotkey Features Integration software, go to:
http://www.lenovo.com/support
Problem:The keyboard or the two-button clickpad cannot be recognized by your tablet.
Sol tion:To solve the problem, do the following:
1. Reattach the tablet into the keyboard.
2. Restart the tablet.
3. If the two-button clickpad still cannot be recognized, press Fn+8 to check if it is disabled. You can
enable or disable the two-button clickpad by pressing Fn+8.
If the problem still persists, contact Lenovo for technical support.
©Copyright Lenovo 2014 11

12 ThinkPad 10 Ultrabook Keyboard User Guide

Chapter 5. Prod ct specifications
This chapter describes the keyboard specifications.
Color:lack
Operating voltage:5V(typical)
Power cons mption:100 mA maximum
PC interface:US pogo pins
Key:80 keys, 81 keys, or 85 keys (varies by country or region)
S pported operating system:Microsoft®Windows®8.1 (32-bit)
Weight:About 535 g(1.18 lb)
Dimension
Length: 196.5 mm (7.74 inches)
Width: 256.1 mm (10.08 inches)
Height: 26 mm (1.02 inches) to 7.3 mm (0.29 inch)
2 6 m m ( 1 . 0 2 i n c h e s )
7 . 3 m m ( 0 . 2 9 i n c h )

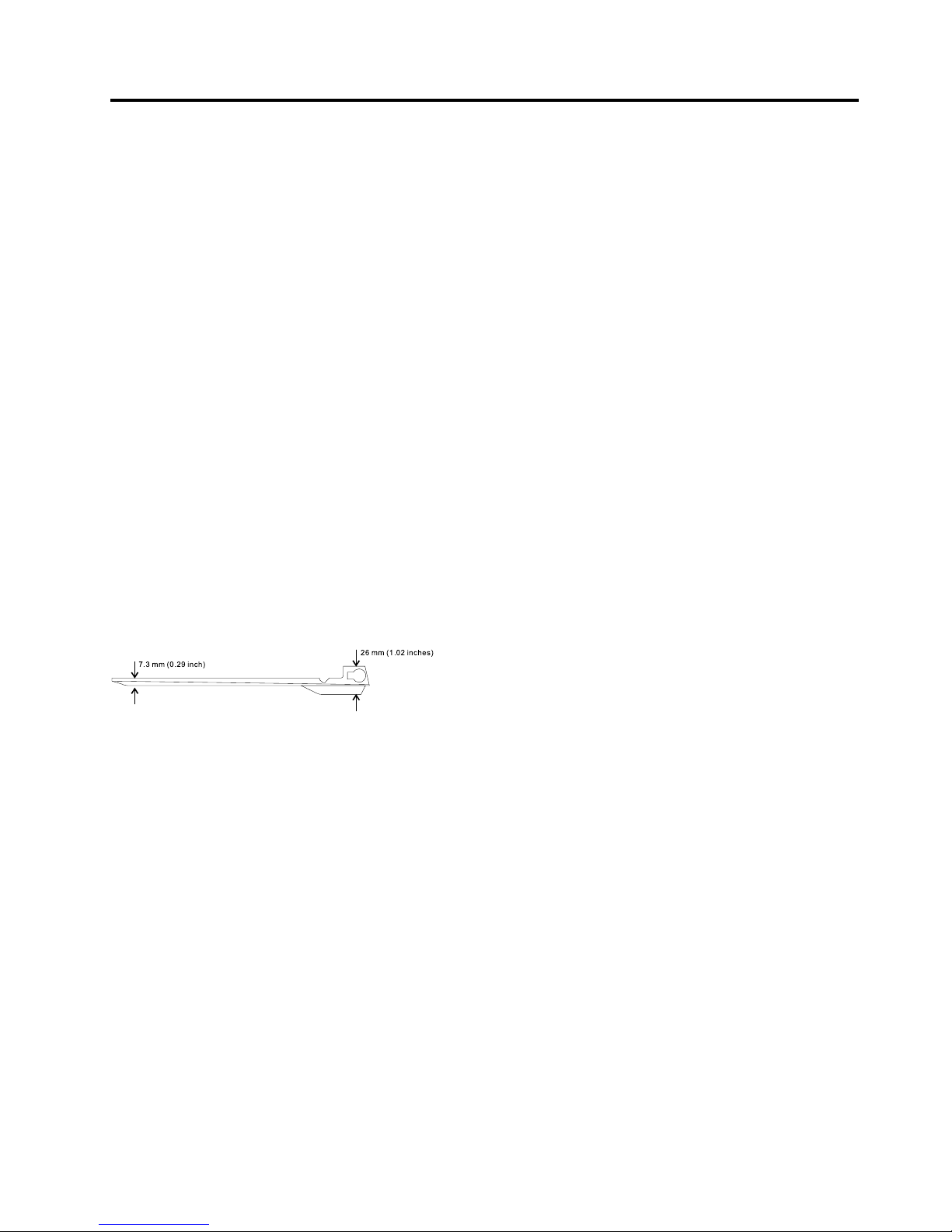

Figure 9. Height of the keyboard
©Copyright Lenovo 2014 13

14 ThinkPad 10 Ultrabook Keyboard User Guide

Appendix A. Service and S pport
The following information describes the technical support that is available for your product, during the
warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for afull
explanation of Lenovo warranty terms.
Online technical s pport
Online technical support is available during the lifetime of aproduct at:
http://www.lenovo.com/support
Product replacement assistance or exchange of defective components also is available during the warranty
period. In addition, if your option is installed in aLenovo computer, you might be entitled to service at your
location. ALenovo technical support representative can help you determine the best alternative.
Telephone technical s pport
Installation and configuration support through the Customer Support Center will be available until 90 days
after the option has been withdrawn from marketing. After that time, the support is cancelled, or made
available for afee, at Lenovo’s discretion. Additional support is also available for anominal fee.
efore contacting aLenovo technical support representative, please have the following information available:
option name and number, proof of purchase, computer manufacturer, model, serial number and manual,
the exact wording of any error message, description of the problem, and the hardware and software
configuration information for your system.
Your technical support representative might want to walk you through the problem while you are at your
computer during the call.
Telephone numbers are subject to change without notice. The most up-to-date telephone list for Lenovo
Support is always available at http://www.lenovo.com/support/phone. If the telephone number for your
country or region is not listed, contact your Lenovo reseller or Lenovo marketing representative.
©Copyright Lenovo 2014 15

16 ThinkPad 10 Ultrabook Keyboard User Guide
