Rack installation instructions
Review the documentation that comes with the rack cabinet for safety and cabling information. Before
you install the server in a rack cabinet, review the following guidelines:
vTwo or more people are required to install devices 2U or larger in a rack cabinet.
vOne or more people are required to install devices 1U or larger in a rack cabinet.
vMake sure that the room air temperature is below 40°C (104°F).
vDo not block any air vents; usually 15 cm (6 in.) of space provides proper airflow.
vDo not leave open spaces above or below an installed server in your rack cabinet. To help prevent
damage to server components, always install a blank filler panel to cover the open space and to help
ensure proper air circulation.
vInstall the server only in a rack cabinet with perforated doors.
vPlan the device installation starting from the bottom of the rack cabinet.
vInstall the heaviest device in the bottom of the rack cabinet.
vAlways install the tip plates on the rack.
vDo not extend more than one device out of the rack cabinet at the same time.
vRemove the rack doors and side panels to provide easier access during installation.
vConnect the server to a properly grounded outlet.
vDo not overload the power outlet when you install multiple devices in the rack cabinet.
vInstall the server in a rack that meets the following requirements:
– Minimum depth of 70 mm (2.76 in.) between the front mounting flange and inside of the front door.
– Minimum depth of 157 mm (6.18 in.) between the rear mounting flange and inside of the rear door.
Use safe practices when lifting.
≥18 kg (39.7 lb) ≥32 kg (70.5 lb) ≥55 kg (121.2 lb)
Do not place any objects on top of
rack-mounted devices.
Notes:
1. When you install a 2U server, be sure to install the rails in the bottom U of the 2U area in the rack.
2. Cage nuts and clip nuts may be required to install the server in a rack cabinet.
3. Your server might look different from the servers that are illustrated, and some parts of the rack
installation kit might not be used.

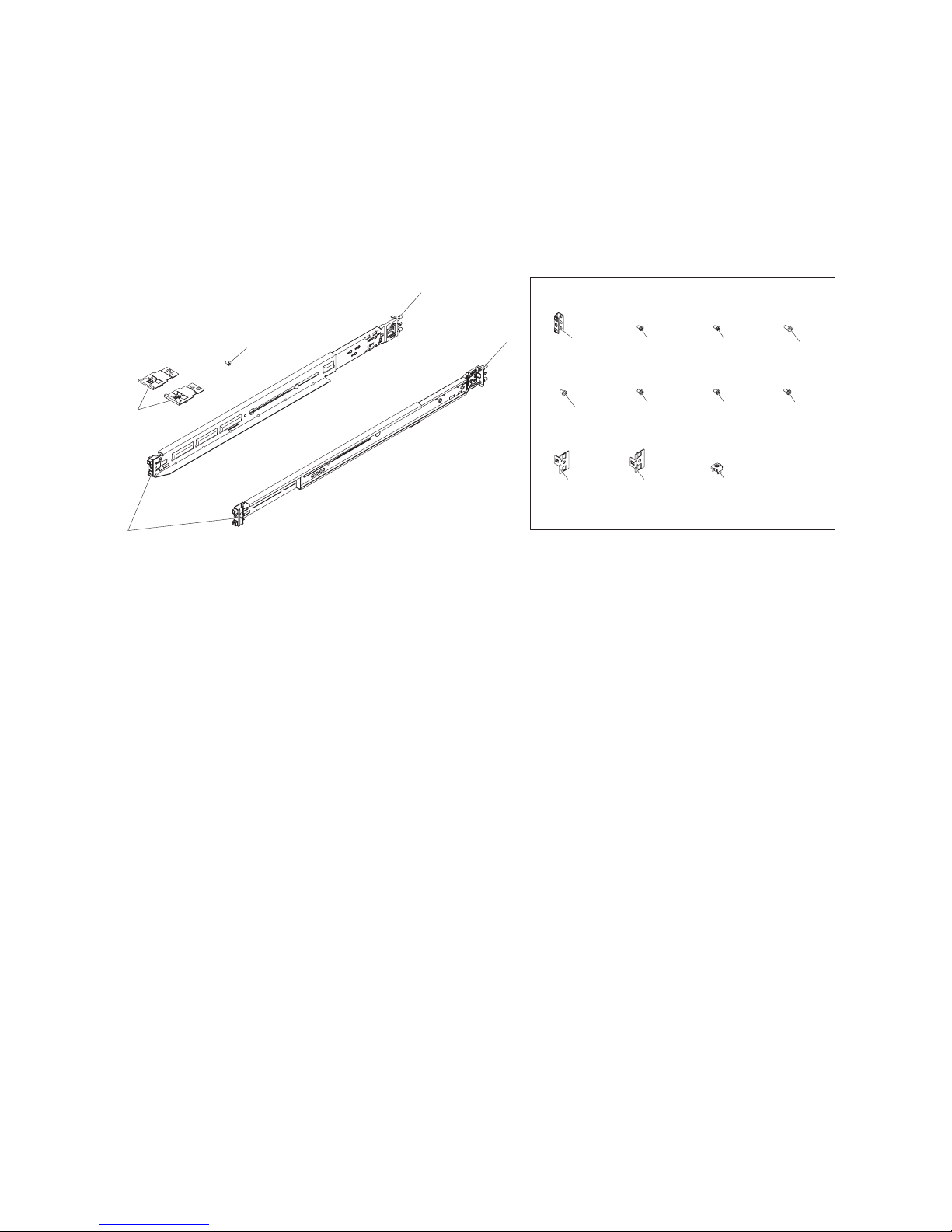

The following illustration shows the items that you need to install the server in the rack cabinet. If any
items are missing or damaged, contact your place of purchase.
Notes:
1. Some items come with the server, not in the rack installation kit.
2. You will need the components in the screw kit option to install the rails in a rack with threaded holes.
3. For the 1U server, if the rails in your rack installation kit came with shipping screws, remove them
before you begin the following installation procedure.
10-32 screws
(4)
M4 screws
(L8)(8)
Cage nuts
(2)
12-24 screws
(2)
M6 screws
(2)
M5 screws
(2)
For racks with threaded-holes
(right)
(left)
Front of rails
Shipping
brackets
Countersunk head
10-32 screws
for shipping brackets
(2) Adapters
(4)
2U shipping
bracket
(left)
2U shipping
bracket
(right)
M4 screws
(L12)(2)
10-32 screws
(L12)(2)
2

Installing a 2U server into the rack
For rack with square-shaped or circle-shaped holes
1
Rack Rear
Square-shaped holes
Circle-shaped holes
2
Rack Front
Square-shaped holes
Circle-shaped holes

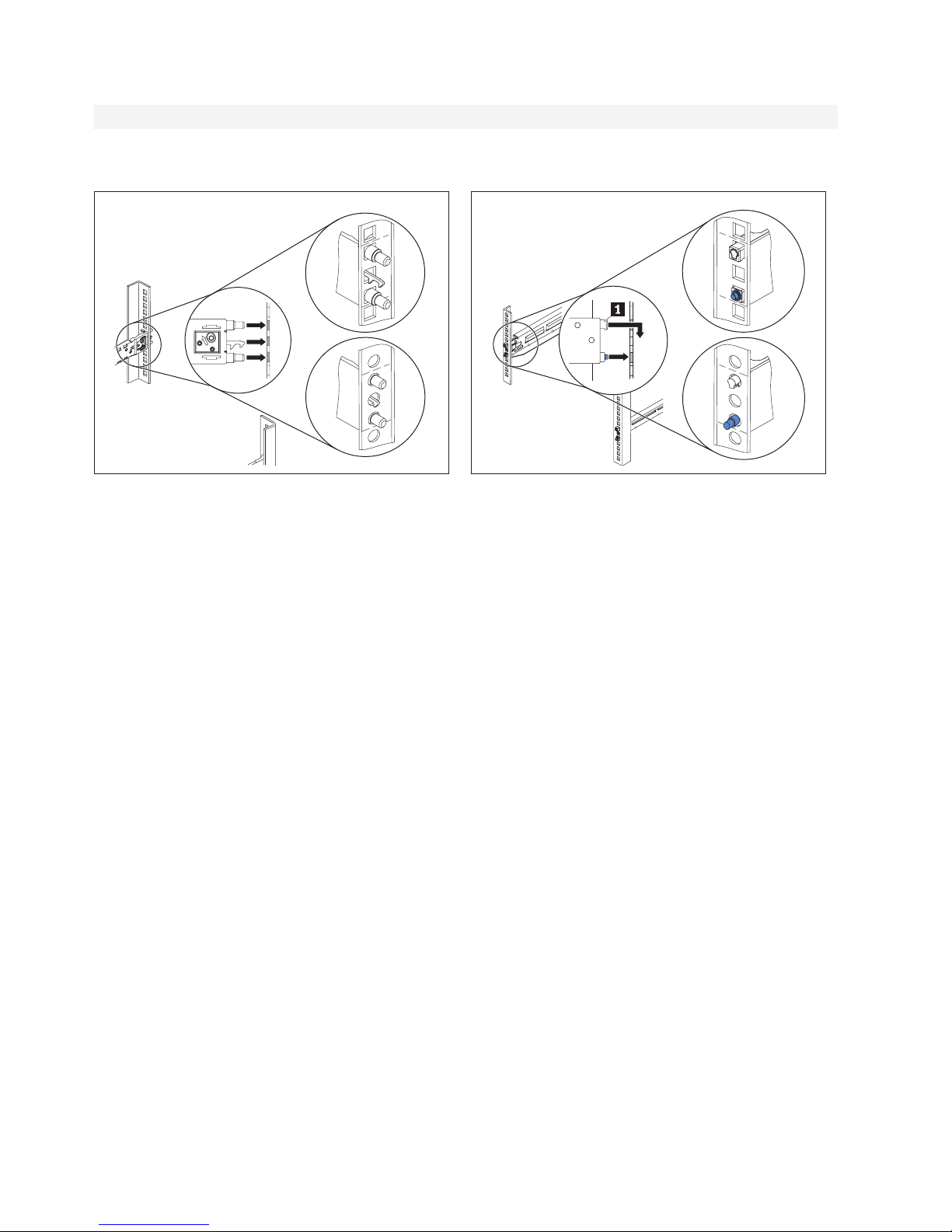

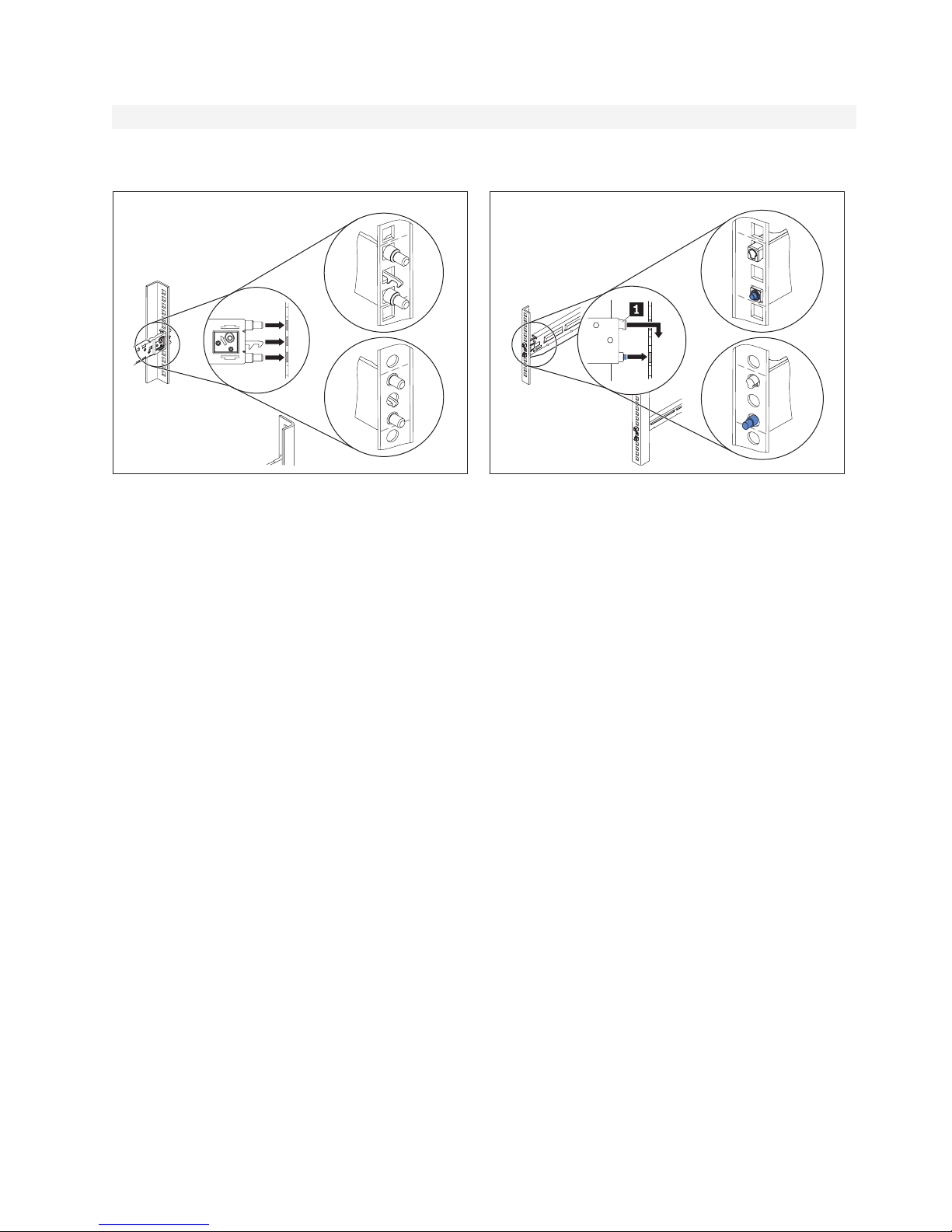

Installing the rear end of the rails in a rack with
non-threaded holes.
Note: The non-threaded holes on the rack will
either be square-shaped or circle-shaped.
Choose one of the rails for installation. By facing
the front side of the racks, line up the pins on the
rear of the rail with either the square-shaped or
circle-shaped holes on the rear of the rack. Push the
rail so that the pins go into the holes and latches
into place.
Installing the front end of the rails in a rack with
non-threaded holes.
Pull the rail forward and insert the pins 1 on the
front of the rail into either the square-shaped or
circle-shaped holes on the front of the rack. Drop
the rail down until it latches into place.
Repeat steps 1 and 2 to install the other rail. Make
sure that each rail is securely engaged in the rack.
Go to step 3.
3

For rack with threaded-holes
142
Before installing the rails in rack with threaded
holes, first install the adapters on the front and
rear side of the rails.
Choose one of the rails for installation. Line up the
pins on the front of the rail with the two
circle-shaped holes of the adapter 1. Push the
adapter so that the pins go into the holes and the
front adapter latches on the rail.
Align the 10-32 (L8) screw 2 with the middle hole
of both the adapter and rail, then install the 10-32
(L8) screw.
Slide the cage nut 3 into the adapter. You may
need to slightly squeeze the cage nut in order to do
so.
Note: For racks that have 10-32 thread, the 10-32
cage nut is not required.
Line up the pins on the rear of the rail with the
three circle-shaped holes on the adapter. Push the
adapter 4 so that the pins go into the holes and
the adapter latches on the rail.
Installing the rails in a rack with threaded holes.
Align the pins on the rear of the rail and attached
adapter with the holes on the rear of the rack; then
install the M4 (L8) screws to secure the rail to the
rear of the rack. Repeat this step for the front of the
rail.
Repeat steps 1 and 2 to install the other rail. Make
sure that each rail is securely installed in the rack.
Go to step 3.
4

3 4

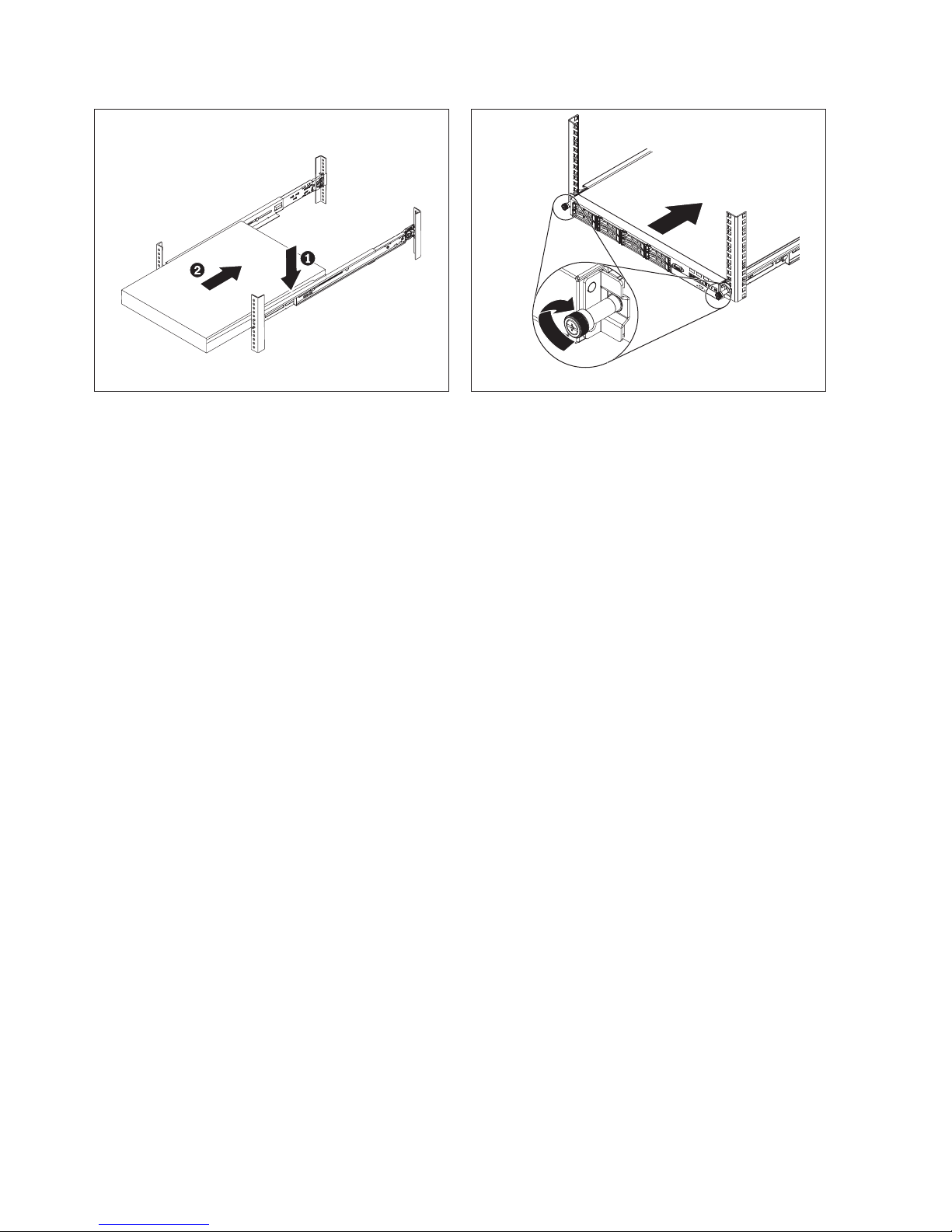

Installing the server on the rails.
Carefully hold the server and tilt it into position
over the rails, and then slowly lower the rear of the
server on the rails 1. Make sure that the server
sits on the rails securely and push the server 2 all
the way into the rack.
Tightening the front thumbscrews.
When you move the rack cabinet, or if you install
the rack cabinet in a vibration-prone area, tighten
the two thumbscrews on the front of the server to
secure the server in the rack cabinet.
5

Installing shipping brackets to 2U server for shipping
1
3
Rack Rear
Threaded-hole rack 2
Shipping
bracket
hooks
Rack Rear
A
B
Square-hole or
circle-hole rack
Circle-shaped holes
Square-shaped holes
Securing the server in the rack with threaded
holes for shipping.
Note: If you have installed the server in a rack with
threaded holes, you must remove the server from
the rack before installing the shipping brackets.
For servers installed in the rack with threaded
holes, install the two M4 screws 1 to fasten the
rear of the rail to the rack. Align the holes on the
shipping bracket 2 marked "Left" to the rear of
the left rail; then, install the screw 3 to secure the
shipping bracket to the rack. When installing this
screw, make sure the thread in the hole matches the
specific screw that is needed.
Install the other shipping bracket to the rear of the
right rail.
Securing the server in the rack with non-threaded
holes for shipping.
Note: The non-threaded holes will either be
square-shaped or circle-shaped.
For servers installed in the rack with non-threaded
holes, install the shipping bracket 1 marked "Left"
to the side of the left rail. Before installing, check
the non-threaded holes on the rack to see whether it
is square-shaped or circle-shaped. Afterwards, align
the shipping bracket to the corresponding hole on
the left side of the rail marked "2U". After knowing
which hole to align with, insert the shipping
bracket hooks into the holes of the rail. Upon
insertion, there should be no gap between the
shipping bracket and rail. Meanwhile, you will
notice the holes on the shipping bracket and rail are
not entirely aligned yet. For full alignment, shift the
shipping bracket to either the square-shaped or
circle-shaped icon. Finally, install the screw 2 to
secure the shipping bracket to the rack. Refer to the
following illustration for further details.
Install the other shipping bracket to the rear of the
right rail.
6

Shipping bracket
(For 2U server
square-hole rack)
(For 2U server
circle-hole rack)
Securing the server in the rack with non-threaded
holes for shipping (continued).
7

Installing a 1U server into the rack
For rack with square-shaped or circle-shaped holes
1
Rack Rear
Square-shaped holes
Circle-shaped holes
2
Rack Front
Square-shaped holes
Circle-shaped holes
Installing the rear end of the rails in a rack with
non-threaded holes.
Note: The non-threaded holes on the rack will
either be square-shaped or circle-shaped.
Choose one of the rails for installation. By facing
the front side of the racks, line up the pins on the
rear of the rail with either the square-shaped or
circle-shaped holes on the rear of the rack. Push the
rail so that the pins go into the holes and latches
into place.
Installing the front end of the rails in a rack with
non-threaded holes.
Pull the rail forward and insert the pins 1 on the
front of the rail into either the square-shaped or
circle-shaped holes on the front of the rack. Drop
the rail down until it latches into place.
Repeat steps 1 and 2 to install the other rail. Make
sure that each rail is securely engaged in the rack.
Go to step 3.
8

For rack with threaded-holes
For 1U Server
Adapter
M4 (L12 ) screw
14
Installing the M4 (L12) screw into the adapter.
Insert the M4 (L12) screw into the holes on the
adapter. Repeat this step for the other adapter.
Before installing the rails in rack with threaded
holes, first install the adapters on the front and
rear side of the rails.
Choose one of the rails for installation. Line up the
pins on the front of the rail with the two
circle-shaped holes of the adapter 1. Push the
adapter so that the pins go into the holes and the
front adapter latches on the rail.
Align the 10-32 (L8) screw 2 with the middle hole
of both the adapter and rail, then install the 10-32
(L8) screw.
Slide the cage nut 3 into the adapter. You may
need to slightly squeeze the cage nut in order to do
so.
Note: For rails that use 10-32 screws, the cage nut
is not required.
Line up the pins on the rear of the rail with the
three circle-shaped holes on the adapter. Push the
adapter 4 so that the pins go into the holes and
the adapter latches on the rail.
9

2 3
Installing the rails with the attached adapters in a
rack with threaded holes.
Align the pins on the rear of the rail and attached
adapter with the holes on the rear of the rack; then
install the M4 (L8) screws to secure the rail to the
rear of the rack. Repeat this step for the front of the
rail.
Repeat steps 1 and 2 to install the other rail. Make
sure that each rail is securely installed in the rack.
Go to step 3.
Removing the rack brackets from the server.
Note: If your server does not come with the rack
brackets, go to step 5.
Loosen the screws and remove the rack brackets
from the side of the server. Go to step 4.
10

4A
Rack Front
4B
Rack Front
Washers
Installing the rack brackets.
Align the hole on the rack bracket with the middle
hole on the front of the rack; then, install the screws
to secure the rack bracket in the rack.
Repeat this step to install the other rack bracket.
Make sure that each rack bracket is securely
installed in the rack. Go to step 5.
Installing the rack brackets (for racks with
square-shaped holes on the front).
Align the hole on the rack bracket with the middle
hole on the front of the rack; then, install the screws
to secure the rack bracket in the rack.
Notes:
1. A washer needs to be added between the hole
and the rack bracket during installation.
2. For racks with threaded holes, you will need to
replace the 10-32 (L10) screws that you
previously removed with the 10-32 (L12) screws
to secure the rack bracket in the rack.
Repeat this step to install the other rack bracket.
Make sure that each rack bracket is securely
installed in the rack. Go to step 5.
11

5 6
Installing the server on the rails.
Carefully hold the server and tilt it into position
over the rails, and then slowly lower the rear of the
server on the rails 1. Make sure that the server
sits on the rails securely and push the server 2 all
the way into the rack.
If the server comes with latches, the latches click
into place when the server is securely installed in
the rack.
Tightening the front thumbscrews (for specific
models).
Depending on your server model, thumbscrews are
available on the front of the server. If they are
available, remember no rack brackets will be
present. When you move the rack cabinet, or if you
install the rack cabinet in a vibration-prone area,
tighten the two thumbscrews on the front of the
server to secure the server in the rack cabinet.
12

Installing shipping brackets to 1U server for shipping
1
Shipping
bracket
hooks
Rack Rear
Shipping bracket
(For 1U server
threaded-hole
rack)
Securing the server in the rack with threaded
holes for shipping.
Note: If you install the server in a rack with
threaded holes, you must remove the server from
the rack before installing the shipping brackets.
For servers installed in the rack with threaded
holes, install the shipping bracket 1 marked "Left"
to the rear of the left rail. Align the upper hole on
the shipping bracket to the hole on the rear of the
rail marked "1UT"; then, install the shipping bracket
hooks into the holes of the rail. It is normal to see a
small gap between the shipping bracket and rail.
Meanwhile, you will notice the holes on the
shipping bracket and rail are not entirely aligned
yet. For full alignment, press on the shipping
bracket where the holes are located and shift the
shipping bracket to the "1UT" icon. Finally, install
the screw 2 to secure the shipping bracket to the
rack. Refer to the illustration on the right for further
details.
Install the other shipping bracket to the rear of the
right rail.
Securing the server in the rack with threaded
holes for shipping (continued).
13

1
A
B
Shipping
bracket
hooks
Rack Rear
Circle-shaped holes
Square-shaped holes
Shipping bracket
(For 1U server
square-hole rack)
(For 1U server
circle-hole rack)
Securing the server in the rack with non-threaded
holes for shipping.
For servers installed in the rack with non-threaded
holes, install the shipping bracket 1 marked "Left"
to the rear of the left rail. Before installing, check
the non-threaded holes on the rack to see whether it
is square-shaped or circle-shaped. Afterwards, align
the shipping bracket to the corresponding hole on
the side of the rail marked "1U". After knowing
which hole to align with, insert the shipping
bracket hooks into the holes of the rail. Upon
insertion, a small gap will exist between the
shipping bracket and rail. Meanwhile, you will
notice the holes on the shipping bracket and rail are
not entirely aligned yet. For full alignment, press on
the part of the shipping bracket where the holes are
located and shift the shipping bracket to either the
square-shaped or circle-shaped icon. Finally, install
the screw 2 to secure the shipping bracket to the
rack. Refer to the illustration on the right for further
details.
Install the other shipping bracket to the rear of the
right rail.
Securing the server in the rack with non-threaded
holes for shipping (continued).
14

Removing a 2U server from the rack
1 2
Rack Rear
Square-shaped holes
Circle-shaped holes
Removing the server from the rack.
To remove the server from the rack, disconnect the
cables from the rear of the server. Loosen the
thumbscrews and lift the handle on the front of the
server 1; then, pull the server slightly forward
2.
While supporting the rear of the server, press the
release latches 3 on both sides of the server to
slide the server out of the rack.
Remove the server out of the rack cabinet 4 and
place it on a sturdy surface.
Removing the rear end of the rails with
non-threaded holes.
Notes:
1. If you are removing the rails with threaded
holes, go to step 4.
2. The non-threaded holes will either be
square-shaped or circle-shaped.
To disengage the rails from the rear of the rack,
push the middle latch upward 1 and then push
back on the rail 2.
15

3
Rack Front
Square-shaped holes
Circle-shaped holes
4Threaded-hole rack 3
Removing the front end of the rails with
non-threaded holes.
To remove the rails from the front of the rack, push
in the lower pin 1 and lift up slightly on the front
of the rail 2. Remove the rails from the rack.
Removing the rails with threaded holes.
To remove the rails from a rack with threaded
holes, first remove the shipping bracket from the
rack by unscrewing the screw; then remove the
screws from the front and rear of the rails to
remove the rails from the rack.
16

Removing a 1U server from the rack
1 1
Removing the server that comes with latches from
the rack.
Note: If your server comes with thumbscrews, refer
to the illustration on the right.
To remove the server from the rack, disconnect the
cables from the rear of the server. Press the release
latches on the front of the server 1; then, pull the
server slightly forward 2.
While supporting the rear of the server, press the
release latches 3 on both sides of the server to
slide the server out of the rack.
Remove the server out of the rack cabinet 4 and
place it on a sturdy surface. Go to Step 2.
Removing the server that comes with front
thumbscrews.
To remove the server from the rack, disconnect the
cables from the rear of the server. Loosen the two
thumbscrews on the front of the server 1; then,
pull the server slightly forward 2.
While supporting the rear of the server, press the
release latches 3 on both sides of the server to
slide the server out of the rack.
Remove the server out of the rack cabinet 4 and
place it on a sturdy surface.
Please remember no rack brackets are present when
the server comes with thumbscrews. Go to Step 3.
17

2
Rack Front
Threaded-hole rack
3
Removing the rack brackets.
Loosen the screws and remove the rack brackets
from the front end of the rails.
Removing the rails from a rack with threaded
holes.
To remove the rails from a rack with threaded
holes, remove the screws from the front and rear of
the rails; then, remove the rails from the rack.
Note: If you are removing the rails with
non-threaded holes, go to the section below.
3Square-shaped holes
Circle-shaped holes
Rack Front
4Square-shaped holes
Circle-shaped holes
Rack Rear
Removing the front end of the rails with
non-threaded holes.
Note: The non-threaded holes will either be
square-shaped or circle-shaped.
To remove the rails from the front of the rack with
non-threaded holes, push in the lower pin 1 and
lift up slightly on the front of the rail 2. Remove
the rails from the rack.
Removing the rear end of the rails with
non-threaded holes.
To disengage the rails from the rear of the rack with
non-threaded holes, push the middle latch upward
1 and then push back on the rail 2.
Store this information with your server documentation for future use.
18

Third Edition (November 2014)
© Copyright Lenovo 2014.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services
Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No.
GS-35F-05925.
(1P) P/N: 00KC054
