Lenovo 41N3015 - 250GB Serial Ata Hard Disk Drive User manual

Notebook Computer Hard Disk
Drive User’s Guide

Note: Before using this information and the product it supports, read the information
in Appendix A, “Service and Support,” on page A-1, Appendix B, “Lenovo Limited
Warranty,” on page B-1, and Appendix C, “Notices,” on page C-1.
Second Edition (March 2007)
©Copyright Lenovo 2006, 2007.
Portions ©Copyright International Business Machines Corporation 2005.
All rights reserved.
U.S. GOVERNMENT USERS –RESTRICTED RIGHTS: Our products and/or services are
provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government
is subject to the GSA ADP Schedule contract with Lenovo Group Limited, if any, or the
standard terms of this commercial license, or if the agency is unable to accept this
Program under these terms, then we provide this Program under the provisions set forth
in Commercial Computer Software–Restricted Rights at FAR 52.227-19, when applicable,
or under Rights in Data-General, FAR 52.227.14 (Alternate III).

Contents
Safety information ....................v
General safety guidelines ................. vii
Service ........................ vii
Power cords and power adapters ............... vii
Extension cords and related devices .............. viii
Plugs and outlets .................... viii
Batteries .......................ix
Heat and product ventilation ................ix
Preface........................xi
About your Lenovo Notebook Computer Hard Disk Drive ..... 1-1
Handling the hard disk drive ................ 1-1
Replacing the ThinkPad hard disk drive ............ 1-1
Replacing the Lenovo 3000 hard disk drive ........... 1-2
Appendix A. Service and Support .............. A-1
Registering your option .................. A-1
Online technical support ................. A-1
Telephone technical support ................ A-1
Appendix B. Lenovo Limited Warranty ............ B-1
Warranty information................... B-5
Guarantee supplement for Mexico .............. B-7
Lenovo Limited Warranty -Customer Notice ........... B-8
Appendix C. Notices .................. C-1
Recycling information .................. C-2
Trademarks ...................... C-3
Appendix D. Electronic emission notices ........... D-1
©Lenovo 2006, 2007. Portions ©IBM Corp. 2005. iii

iv Notebook Computer Hard Disk Drive User’s Guide

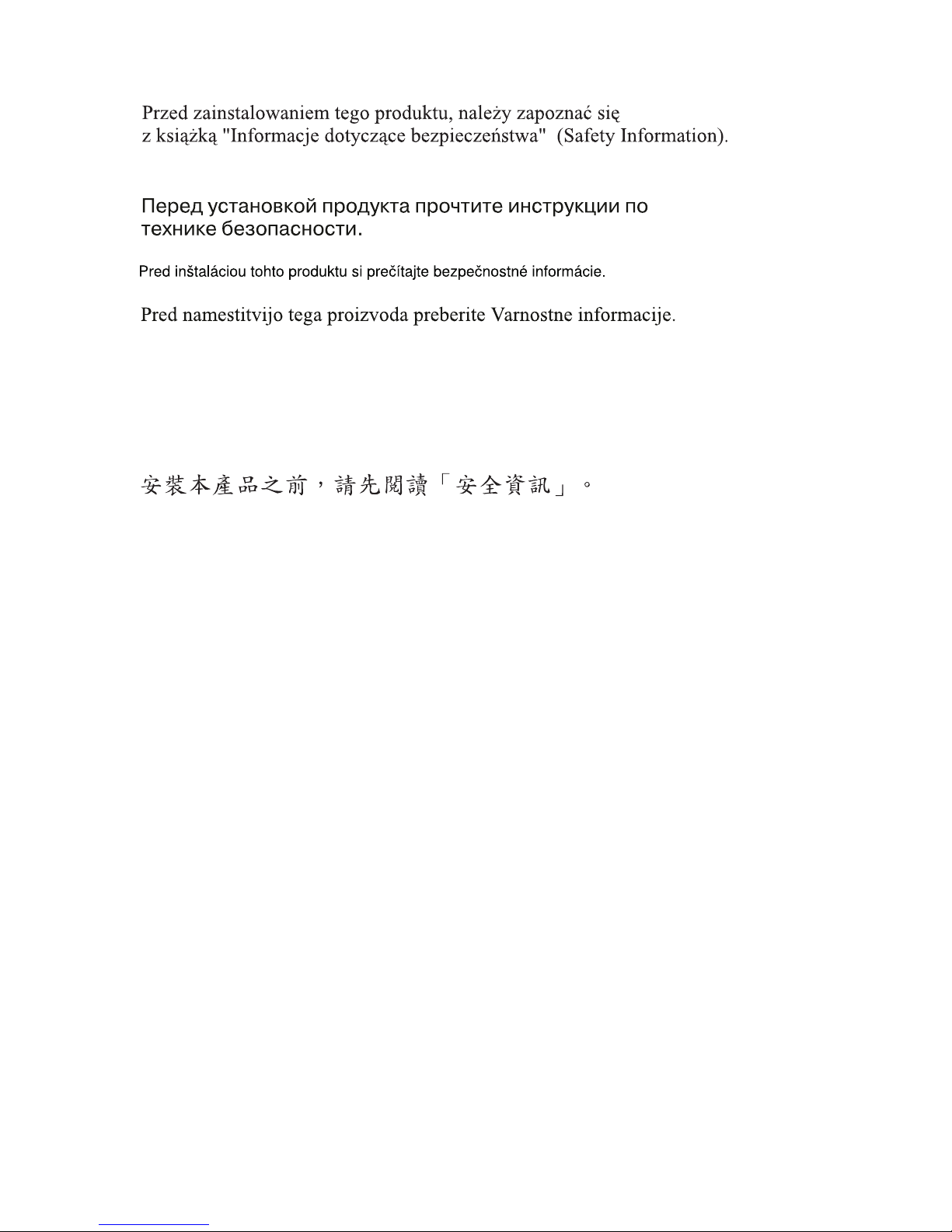

Safety information
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety
Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Lees voordat udit product installeert eerst de veiligheidsvoorschriften.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette
produktet.
©Lenovo 2006, 2007. Portions ©IBM Corp. 2005. v

Antes de instalar este produto, leia as Informações sobre Segurança.
Antes de instalar este producto lea la información de seguridad.
Läs säkerhetsinformationen innan du installerar den här produkten.
vi Notebook Computer Hard Disk Drive User’s Guide

General safety guidelines
Always observe the following precautions to reduce the risk of injury and
property damage.
Service
Do not attempt to service aproduct yourself unless instructed to do so by the
Customer Support Center. Use only aservice provider who is approved to
repair your particular product.
Note: Some parts can be upgraded or replaced by the customer. These parts
are referred to as Customer Replaceable Units, or CRUs. Lenovo
expressly identifies CRUs as such, and provides documentation with
instructions when it is appropriate for customers to replace those parts.
You must closely follow all instructions when performing such
replacements. Always make sure that the power is turned off and that
the product is unplugged from any power source before you attempt the
replacement. If you have any questions or concerns, contact the
Customer Support Center.
Power cords and power adapters
Use only the power cords and power adapters supplied by the product
manufacturer.
Never wrap apower cord around the power adapter or other object. Doing so
can stress the cord in ways that can cause the cord to fray, crack or crimp. This
can present asafety hazard.
Always route power cords so that they will not be walked on, tripped over, or
pinched by objects.
Protect the cord and power adapters from liquids. For instance, do not leave
your cord or power adapter near sinks, tubs, toilets, or on floors that are
cleaned with liquid cleansers. Liquids can cause ashort circuit, particularly if
the cord or power adapter has been stressed by misuse. Liquids can also cause
gradual corrosion of the power cord terminals and/or the connector terminals
on the adapter which can eventually result in overheating.
Always connect power cords and signal cables in the correct order and ensure
that all power cord connectors are securely and completely plugged into
receptacles.
©Lenovo 2006, 2007. Portions ©IBM Corp. 2005. vii

Do not use any power adapter that shows corrosion at the ac input pins
and/or shows signs of overheating (such as deformed plastic) at the ac input
or anywhere on the power adapter.
Do not use any power cords where the electrical contacts on either end show
signs of corrosion or overheating or where the power cord appears to have
been damaged in any way.
Extension cords and related devices
Ensure that extension cords, surge protectors, uninterruptible power supplies,
and power strips that you use are rated to handle the electrical requirements of
the product. Never overload these devices. If power strips are used, the load
should not exceed the power strip input rating. Consult an electrician for more
information if you have questions about power loads, power requirements, and
input ratings.
Plugs and outlets
If areceptacle (power outlet) that you intend to use with your computer
equipment appears to be damaged or corroded, do not use the outlet until it is
replaced by aqualified electrician.
Do not bend or modify the plug. If the plug is damaged, contact the
manufacturer to obtain areplacement.
Some products are equipped with athree-pronged plug. This plug fits only
into agrounded electrical outlet. This is asafety feature. Do not defeat this
safety feature by trying to insert it into anon-grounded outlet. If you cannot
insert the plug into the outlet, contact an electrician for an approved outlet
adapter or to replace the outlet with one that enables this safety feature. Never
overload an electrical outlet. The overall system load should not exceed 80
percent of the branch circuit rating. Consult an electrician for more information
if you have questions about power loads and branch circuit ratings.
Be sure that the power outlet you are using is properly wired, easily accessible,
and located close to the equipment. Do not fully extend power cords in away
that will stress the cords.
Connect and disconnect the equipment from the electrical outlet carefully
viii Notebook Computer Hard Disk Drive User’s Guide

Batteries
All personal computers manufactured by Lenovo contain anon-rechargeable
coin cell battery to provide power to the system clock. In addition many
mobile products such as notebook PCs utilize arechargeable battery pack to
provide system power when in portable mode. Batteries supplied by Lenovo
for use with your product have been tested for compatibility and should only
be replaced with Lenovo approved parts.
Never attempt to open or service any battery. Do not crush, puncture, or
incinerate batteries or short circuit the metal contacts. Do not expose the
battery to water or other liquids. Only recharge the battery pack strictly
according to instructions included in the product documentation.
Battery abuse or mishandling can cause the battery to overheat, which can
cause gasses or flame to “vent” from the battery pack or coin cell. If your
battery is damaged, or if you notice any discharge from your battery or the
buildup of foreign materials on the battery leads, stop using the battery and
obtain areplacement from the battery manufacturer.
Batteries can degrade when they are left unused for long periods of time. For
some rechargeable batteries (particularly Lithium Ion batteries), leaving a
battery unused in adischarged state could increase the risk of abattery short
circuit, which could shorten the life of the battery and can also pose asafety
hazard. Do not let rechargeable Lithium-Ion batteries completely discharge or
store these batteries in adischarged state.
Heat and product ventilation
Computers generate heat when turned on and when batteries are charging.
Notebook PCs can generate asignificant amount of heat due to their compact
size. Always follow these basic precautions:
vDo not leave the base of your computer in contact with your lap or any part
of your body for an extended period when the computer is functioning or
when the battery is charging. Your computer produces some heat during
normal operation. Extended contact with the body could cause discomfort
or, potentially, askin burn.
vDo not operate your computer or charge the battery near flammable
materials or in explosive environments.
vVentilation slots, fans and/or heat sinks are provided with the product for
safety, comfort, and reliable operation. These features might inadvertently
become blocked by placing the product on abed, sofa, carpet, or other
flexible surface. Never block, cover or disable these features.
General safety guidelines ix

xNotebook Computer Hard Disk Drive User’s Guide

Preface
You can increase the storage capacity of your Lenovo
™ notebook computer by
replacing the Hard Disk Drive with one of greater capacity.
Your option package contains the following:
vLenovo Notebook Computer Hard Disk Drive
vLenovo Notebook Computer Hard Disk Drive User’s Guide
If any of the items listed above are missing or damaged, contact your place of
purchase. Be sure to retain your proof of purchase; it might be required to
receive warranty service.
©Lenovo 2006, 2007. Portions ©IBM Corp. 2005. xi

xii Notebook Computer Hard Disk Drive User’s Guide

About your Lenovo Notebook Computer Hard Disk
Drive
This section provides information on handling and replacing your Lenovo
Notebook Computer Hard Disk Drive.
Handling the hard disk drive
To protect your hard disk drive, observe the following precautions:
vKeep the drive in its static-protective bag until you are ready to install the
drive in your Lenovo notebook computer. If you must put the drive down,
place the static-protective bag on aflat, padded surface, and place the drive
on the bag with the component side facing up.
vHandle the drive with care. Dropping or jarring the drive can damage the
components inside the drive housing.
vLimit your movement. Movement can cause static electricity buildup.
vDo not subject the drive to physical shocks.
vHandle the drive by the edges.
vDo not touch any exposed components on the drive.
vDo not apply pressure to the cover of the drive.
Attention: The drive is very sensitive. Incorrect handling can cause damage
and permanent loss of data on the hard disk. Before removing the hard disk
drive, make abackup copy of all the information on the hard disk, and then
turn the computer off. Never remove the drive while the system is operating,
in standby mode, or in hibernation mode.
Replacing the ThinkPad hard disk drive
Replace the hard disk drive only if you upgrade it or have it repaired. The
connectors and bay of the hard disk drive were not designed for frequent
changes or drive swapping.
Note: The following procedure may vary depending on the model of your
ThinkPad
® notebook computer. For more detailed instructions, refer to
your system documentation.
To replace the hard disk drive, complete the following procedure:
1. Turn off your ThinkPad computer.
2. Disconnect the ac adapter and all cables from the computer.
3. Close the display and turn the computer over.
©Lenovo 2006, 2007. Portions ©IBM Corp. 2005. 1-1

4. Remove the battery.
5. Remove the screw that secures the hard disk drive.
6. Remove the cover, then remove the hard disk drive by pulling on the tab.
7. Detach the side rubbers from the hard disk drive.
8. Unpack the new hard disk drive.
Attention
Before you unpack the hard disk drive, be sure to read “Handling
the hard disk drive” on page 1-1.
9. Attach the side rubbers to the new hard disk drive.
10. Insert the hard disk drive with the attached side rubbers into the hard
disk drive bay; then firmly install them and replace the cover.
11. Reinstall the screw.
Note: You can replace the screw with asecurity screw to prevent the hard
disk drive from being easily removed. The security screw may not
be included in your ship group. However, you can purchase screws
directly from NABS at www.nabsnet.com.
12. Reinstall the battery.
13. Connect the ac adapter and cables to the computer.
Replacing the Lenovo 3000 hard disk drive
Replace the hard disk drive only if you upgrade it or have it repaired. The
connectors and bay of the hard disk drive were not designed for frequent
changes or drive swapping.
Note: The following procedure may vary depending on the model of your
Lenovo notebook computer. For more detailed instructions, refer to your
system documentation.
To replace the hard disk drive, complete the following procedure:
1. Turn off the notebook computer.
2. Disconnect the AC adapter and all cables from the computer.
3. Close the display and turn the computer over.
4. Remove the battery.
5. Locate the hard disk drive cover and remove the two screws that secure it.
6. Lift off the cover using the slot in the housing near the screws.
7. Slide the drive away from the connector until it is completely released.
1-2 Notebook Computer Hard Disk Drive User’s Guide

8. Lift the hard disk drive out by the plastic tab attached to the drive. Notice
that the side of the drive that is facing up so that replacement drive will
have the same orientation.
Attention: Before you unpack the hard disk drive, be sure to read,
“Handling the hard disk drive” on page 1-1.
9. Place the replacement drive into the system and carefully slide it into the
connector until seated.
10. Reinstall and secure the cover with the two screws.
11. Reinstall the battery.
12. Connect the AC adapter and cables to the computer.
About your Lenovo Notebook Computer Hard Disk Drive 1-3

Apropos de l’unité de disque dur de votre ordinateur
portable Lenovo
La présente section fournit des informations sur la manipulation et le
remplacement de l’unité de disque dur de votre ordinateur portable Lenovo.
Manipulation de l’unité de disque dur
Pour protéger l’unité de disque dur, observez les précautions suivantes :
vLaissez l’unité dans son emballage antistatique jusqu’à ce que vous soyez
prêt àl’installer dans l’ordinateur Lenovo. Si vous devez poser l’unité,
placez l’emballage antistatique sur une surface plane rembourrée et posez
l’unité sur l’emballage, côté composants vers le haut.
vManipulez l’unité avec précaution. Si vous la laissez tomber ou si vous la
cognez, vous risquez d’endommager ses composants internes.
vLimitez vos mouvements. Les mouvements contribuent en effet àgénérer de
l’électricité statique.
vEvitez de faire subir des chocs physiques àl’unité.
vManipulez l’unité en la tenant par ses bords.
vNe touchez pas les composants exposés de l’unité.
vN’exercez aucune pression sur le cache de l’unité.
Avertissement :L’unité est extrêmement sensible. Toute manipulation
incorrecte risque d’entraîner des dommages et la perte permanente des
données stockées sur le disque dur. Avant de retirer l’unité de disque dur,
faites une copie de sauvegarde de toutes les informations stockées sur le
disque dur, puis mettez l’ordinateur hors tension. Ne retirez jamais l’unité
pendant que le système est actif, en mode veille ou en mode hibernation.
Remplacement de l’unité de disque
Ne remplacez l’unité de disque dur que si vous effectuez une mise àniveau ou
si vous devez la faire réparer. Les connecteurs et la baie de l’unité de disque
dur n’ont pas été conçus pour des changements fréquents ou pour des
échanges d’unité.
Remarque :La procédure suivante peut varier en fonction du modèle
d’ordinateur ThinkPad. Pour obtenir des instructions plus
détaillées, reportez-vous àla documentation fournie avec votre
système.
1-4Unité de disque dur pour ordinateur portable -Guide d’utilisation

Pour remplacer l’unité de disque dur, procédez comme suit :
1. Mettez l’ordinateur ThinkPad hors tension.
2. Débranchez le boîtier d’alimentation et tous les câbles de l’ordinateur.
3. Fermez l’écran et retournez l’ordinateur.
4. Retirez la batterie.
5. Retirez la vis qui permet de fixer l’unité de disque dur.
6. Retirez le cache, puis l’unité de disque dur, en la soulevant par la
languette.
7. Retirez les parties latérales en caoutchouc de l’unité de disque dur.
8. Déballez la nouvelle unité de disque dur.
Attention
Avant de déballer l’unité de disque dur, lisez attentivement la
section «Manipulation de l’unité de disque dur», àla page 1-4.
9. Remettez les parties latérales en caoutchouc sur la nouvelle unité.
10. Insérez l’unité de disque dur dans la baie d’unité de disque dur, puis
installez-la correctement et remettez le cache en place.
11. Réinstallez la vis.
Remarque :Vous pouvez remplacer la vis par une vis de sécurité pour
que l’unité de disque dur ne puisse pas être retirée
facilement. La vis de sécurité peut ne pas être incluse dans les
accessoires livrés. Vous pouvez néanmoins vous en procurer
une directement auprès de NABS, àl’adresse
www.nabsnet.com.
12. Réinstallez la batterie.
13. Rebranchez le boîtier d’alimentation et les câbles sur l’ordinateur.
Remplacement de l’unité de disque dur Lenovo 3000
Ne remplacez l’unité de disque dur que si vous effectuez une mise àniveau ou
si vous devez la faire réparer. Les connecteurs et la baie de l’unité de disque
dur n’ont pas été conçus pour des changements fréquents ou pour des
échanges d’unité.
Remarque :La procédure suivante peut varier en fonction du modèle
d’ordinateur Lenovo. Pour obtenir des instructions plus détaillées,
reportez-vous àla documentation fournie avec votre système.
Pour remplacer l’unité de disque dur, procédez comme suit :
1. Mettez l’ordinateur hors tension.
Apropos de l’unité de disque dur de votreordinateur portable Lenovo 1-5

2. Débranchez le boîtier d’alimentation et tous les câbles de l’ordinateur.
3. Fermez l’écran et retournez l’ordinateur.
4. Retirez la batterie.
5. Localisez le cache de l’unité de disque dur et desserrez les deux vis qui le
maintiennent en place.
6. Soulevez le cache àl’aide de la fente se trouvant àcôté des vis.
7. Tirez sur l’unité pour la retirer complètement de son connecteur.
8. Soulevez l’unité de disque dur àl’aide de la languette en plastique qui lui
est apposée. Prenez note de l’orientation de l’unité pour repositionner
l’unité de remplacement de la même manière.
Avertissement :Avant de déballer l’unité de disque dur, lisez la section
«Manipulation de l’unité de disque dur», àla page 1-4.
9. Placez l’unité de remplacement dans le système en l’insérant avec
précaution dans le connecteur, jusqu’à ce qu’elle soit bien en place.
10. Réinstallez le cache et resserrez les deux vis.
11. Réinstallez la batterie.
12. Rebranchez le boîtier d’alimentation et les câbles sur l’ordinateur.
1-6Unité de disque dur pour ordinateur portable -Guide d’utilisation

Sobre aUnidade de Disco Rígido do Computador
Notebook da Lenovo
Esta seção fornece informações sobre como manipular esubstituir aUnidade
de Disco Rígido do Computador Notebook da Lenovo.
Manipulando aUnidade de Disco Rígido
Para proteger aunidade de disco rígido, tome as seguintes precauções:
vMantenha aunidade em sua embalagem antiestática até que esteja pronto
para instalar aunidade em seu notebook Lenovo. Se você precisar colocar a
unidade na posição deitada, coloque aembalagem antiestática em uma
superfície plana erevestida, colocando-a na embalagem com olado do
componente virado para cima.
vManuseie aunidade com cuidado. Derrubar ou sacudir aunidade pode
danificar os componentes dentro do invólucro.
vLimite seus movimentos. Eles podem causar acúmulo de eletricidade
estática.
vNão submeta aunidade achoques físicos.
vManipule aunidade pelas extremidades.
vNão toque em nenhum componente exposto na unidade.
vNão pressione atampa da unidade.
Atenção: Aunidade émuito sensível. Amanipulação incorreta pode causar
danos eperda permanente de dados no disco rígido. Antes de remover a
unidade de disco rígido, faça uma cópia de backup de todas as informações do
disco rígido edesligue ocomputador. Nunca remova aunidade enquanto o
sistema estiver nos modos de espera, hibernação ou em operação.
Substituindo aUnidade de Disco Rígido do ThinkPad
Só substitua aunidade de disco rígido se você tiver feito upgrade dela ou se
ela tiver sido reparada. Os conectores ecompartimentos da unidade de disco
rígido não foram desenvolvidos para alterações freqüentes ou trocas de
unidades.
Nota: Oprocedimento aseguir pode variar dependendo do modelo do
computador notebook ThinkPad®.Para obter instruções mais detalhadas,
consulte adocumentação do sistema.
Para substituir aunidade de disco rígido, execute os seguintes procedimentos:
1. Desligue ocomputador ThinkPad.
©Lenovo 2006, 2007. Portions ©IBM Corp. 2005. 1-7

2. Desconecte oadaptador de corrente alternada etodos os cabos do
computador.
3. Feche ovídeo evire ocomputador.
4. Remova abateria.
5. Remova oparafuso que prende aunidade de disco rígido.
6. Remova atampa, em seguida, remova aunidade de disco rígido puxando
aguia.
7. Remova as borrachas laterais da unidade de disco rígido.
8. Remova aembalagem da nova unidade de disco rígido.
Atenção
Antes de remover aembalagem da unidade de disco rígido, leia
“Manipulando aUnidade de Disco Rígido” na página 1-7.
9. Coloque as borrachas laterais na nova unidade de disco rígido.
10. Insira aunidade de disco rígido com as borrachas laterais anexadas no
compartimento da unidade de disco rígido; em seguida, instale-as
firmemente esubstitua atampa.
11. Recoloque oparafuso.
Nota: Épossível substituir oparafuso por um parafuso de segurança para
evitar que aunidade de disco rígido seja removida facilmente. O
parafuso de segurança pode não ter sido incluído no pacote
enviado. No entanto, épossível adquiri-los diretamente no site
NABS, no endereço www.nabsnet.com.
12. Reinstale abateria.
13. Conecte oadaptador de corrente alternada eos cabos ao computador.
Substituindo aUnidade de Disco Rígido do Lenovo 3000
Só substitua aunidade de disco rígido se você tiver feito upgrade dela ou se
ela tiver sido reparada. Os conectores ecompartimentos da unidade de disco
rígido não foram desenvolvidos para alterações freqüentes ou trocas de
unidades.
Nota: Oprocedimento aseguir pode variar, dependendo do modelo de seu
notebook Lenovo. Para obter instruções mais detalhadas, consulte a
documentação do sistema.
Para substituir aunidade de disco rígido, execute os seguintes procedimentos:
1. Desligue onotebook.
1-8Guia do Usuário da Unidade de Disco Rígido do Computador Notebook
