Lenovo 7D7Y User manual

Service Guide for DM120S, DM240S, and
DM600S
Machine Types: 7Y58, 7Y59, 7Y43, 7D7Y, 7D7X, 7D7Z

Second Edition (September 2021)
© Copyright Lenovo 201 , 2021.
L M TED AND RESTR CTED R GHTS NOT CE: f data or software is delivered pursuant to a General Services
Administration (GSA) contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-
05925.

Contents
Chapter 1. Hot-swapping a disk drive in a
DM240S or DM120S disk shelf. . . . . . 1
Chapter 2. Hot-swapping a disk
drive in a DM600S disk shelf . . . . . . . 5
Chapter 3. Hot-swapping a power
supply . . . . . . . . . . . . . . . . . 11
Chapter 4. Replacing a fan module in
a DM600S disk shelf . . . . . . . . . . 15
Chapter 5. Replacing a drive drawer
in a DM600S disk shelf . . . . . . . . . 17
Removing the cable chains . . . . . . . . . . 18
Removing a drive drawer . . . . . . . . . . . 23
nstalling a drive drawer. . . . . . . . . . . . 25
Attaching the cable chains . . . . . . . . . . 28
Chapter 6. Hot-swapping or
replacing an IOM12 module . . . . . . 33
Chapter 7. Hot-removing disk
shelves with IOM12 modules . . . . . 37
Chapter . Monitoring disk shelf
LEDs . . . . . . . . . . . . . . . . . . 43
Operator display panel LEDs. . . . . . . . . . 43
OM12 module LEDs . . . . . . . . . . . . . 44
Power supply LEDs . . . . . . . . . . . . . 44
Fan LEDs on DM600S disk shelves . . . . . . . 45
Disk drive LEDs . . . . . . . . . . . . . . . 46
Appendix A. Contacting Support . . . 49
Appendix B. Notices. . . . . . . . . . 51
Trademarks . . . . . . . . . . . . . . . . 52
Index . . . . . . . . . . . . . . . . . . 53
© Copyright Lenovo 2018, 2021 i

ii Service Guide for DM120S, DM240S, and DM600S

Chapter 1. Hot-swapping a disk drive in a DM240S or DM120S
disk shelf
You can hot-swap a failed disk drive in a DM240S or DM120S disk shelf—nondisruptively replace a disk
drive in a system that is powered on and serving data ( /O is in progress). When a disk drive fails, the system
logs a warning message to the system console indicating which disk drive has failed. n addition, the
attention (amber) LED on the operator display panel and the attention (amber) LED on the failed disk drive
illuminate.
Before you begin
• The disk drive that you are installing must be supported by the DM240S or DM120S disk shelf.
Lenovo Press
• All other components in the system must be functioning properly; if not, contact technical support.
• The disk drive you are removing must be failed.You can verify the disk drive is failed by running the
storage disk show -broken command. The failed disk drive appears in the list of failed disk drives. f it does
not, you should wait, and run the command again.
Note: t can take up to several hours for the disk drive to appear in the list of failed disk drives.
• f you are replacing a self-encrypting disk (SED), you must follow the instructions for replacing an SED in
the Disks and Aggregates Power Guide. The instructions describe additional steps you must perform
before and after replacing an SED.
ONTAP 9 Disks and Aggregates Power Guide
About this task
• You should take steps to avoid electrostatic discharge (ESD):
– Keep the disk drive in the ESD bag until you are ready to install it.
– Open the ESD bag by hand or cut the top off with a pair of scissors.
Attention: Do not insert a metal tool or knife into the ESD bag.
– Always wear an ESD wrist strap grounded to an unpainted surface on your storage enclosure chassis.
f a wrist strap is unavailable, touch an unpainted surface on your storage enclosure chassis before
handling the disk drive.
• You should take steps to handle disk drives carefully:
– Always use two hands when removing, installing, or carrying a disk drive to support its weight.
Attention: Do not place hands on the disk drive boards exposed on the underside of the disk drive
carrier.
– You should place disk drives on cushioned surfaces, and never stack disk drives on top of each other.
– You should be careful not to bump disk drives against other surfaces.
• Disk drives should be kept away from magnetic devices.
Attention: Magnetic fields can destroy all data on the disk drive and cause irreparable damage to the disk
drive circuitry.
• Best practice is to have the current version of the Disk Qualification Package (DQP) installed before hot-
swapping a disk drive. Having the current version of the DQP installed allows your system to recognize
and utilize newly qualified disk drives; therefore, avoiding system event messages about having non-
© Copyright Lenovo 2018, 2021 1

current disk drive information. You also avoid the possible prevention of disk partitioning because disk
drives are not recognized. The DQP also notifies you of non-current disk drive firmware.
Lenovo Data Center Support
• Best practice is to have the current versions of disk shelf ( OM) firmware and disk drive firmware on your
system before adding new disk shelves, shelf FRU components, or SAS cables. Current versions of
firmware can be found on the Lenovo Support Web site.
Lenovo Data Center Support
• Disk drive firmware is automatically updated (nondisruptively) on new disk drives with non current
firmware versions.
Note: Disk drive firmware checks occur every two minutes.
• f needed, you can turn on the disk shelf's location (blue) LEDs to aid in physically locating the affected
disk shelf:
storage shelf location-led modify -node node_name -shelf-name shelf_name -led-status on
A disk shelf has three location (blue) LEDs: one on the operator display panel and one on each OM12
module. Location LEDs remain illuminated for 30 minutes. You can turn them off by entering the same
command, but using the off option.
• f needed, you can refer to the Monitoring disk shelf LEDs section for information about the meaning and
location of disk shelf LEDs on the operator display panel and FRU components.
The video for this task is available at:
• Youtube: https://www.youtube.com/playlist?list=PLYV5R7hVcs-Bl5q5uq V0US3rLklB5GOP
• Youku: https://list.youku.com/albumlist/show/id_51948223
Step 1. f you want to manually assign disk ownership for the replacement disk drive, you need to disable
disk ownership automatic assignment if it is enabled; otherwise, go to the next step.
Note: You need to manually assign disk ownership if disk drives in the stack are owned by both
controllers in an HA pair.
Note: You manually assign disk ownership and then reenable disk ownership automatic
assignment later in this procedure.
a. Verify if disk ownership automatic assignment is enabled: storage disk option show
f you have an HA pair, you can enter the command at the console of either controller.
f disk ownership automatic assignment is enabled, the output shows “on” (for each controller)
in the “Auto Assign” column.
b. f disk ownership automatic assignment is enabled, you need to disable it:
storage disk option modify -node node_name -autoassign off
You need to disable disk ownership automatic assignment on both controllers in an HA pair.
Step 2. Properly ground yourself.
Step 3. Unpack the new disk drive, and set it on a level surface near the disk shelf.Save all packaging
materials for use when returning the failed disk drive.
Note: Lenovo requires that all returned disk drives be in a ESD-rated bag.
Step 4. Physically identify the failed disk drive from the system console warning message and the
illuminated attention (amber) LED on the disk drive.
2Service Guide for DM120S, DM240S, and DM600S

Note: The activity (green) LED on a failed disk drive can be illuminated (solid), which indicates the
disk drive has power, but should not be blinking, which indicates /O activity. A failed disk drive has
no /O activity.
Step 5. Press the release button on the disk drive face, and then pull the cam handle to its fully open
position to release the disk drive from the mid plane.
When you press the release button, the cam handle on the disk drive springs open partially.
Note: Disk drives in a DM120S disk shelf are arranged horizontally with the release button located
on the left of the disk drive face. Disk drives in a DM240S disk shelf are arranged vertically with the
release button located at the top of the disk drive face.
The following illustrations show disk drives in a DM120S disk shelf:
Step 6. Slide out the disk drive slightly to allow the disk to safely spin down, and then remove the disk drive
from the disk shelf.A disk can take up to one minute to safely spin down.
Note: When handling a disk drive, always use two hands to support its weight.
Step 7. Using two hands, with the cam handle in the open position, insert the replacement disk drive into
the disk shelf, firmly pushing until the disk drive stops.
Note: Wait a minimum of 10 seconds before inserting a new disk drive. This allows the system to
recognize that a disk drive was removed.
Note: Do not place hands on the disk drive boards that are exposed on the underside of the disk
carrier.
Chapter 1.Hot-swapping a disk drive in a DM240S or DM120S disk shelf 3

Step 8. Close the cam handle so that the disk drive is fully seated into the mid plane and the handle clicks
into place.Be sure to close the cam handle slowly so that it aligns correctly with the face of the disk
drive.
Step 9. f you are replacing another disk drive, repeat Steps 3 through 8.
Step 10. Verify the disk drive's activity (green) LED is illuminated.When the disk drive's activity LED is solid
green, it means the disk drive has power. When the disk drive's activity LED is blinking, it means
the disk drive has power and /O is in progress.
Step 11. f you disabled disk ownership automatic assignment in Step 1, manually assign disk ownership,
and then reenable disk ownership automatic assignment if needed:
a. Display all unowned disks: storage disk show -container-type unassigned
b. Assign each disk: storage disk assign -disk disk_name -owner owner_name
You can use the wildcard character to assign more than one disk at once.
c. Reenable disk ownership automatic assignment if needed:
storage disk option modify -node node_name -autoassign on
You need to reenable disk ownership automatic assignment on both controllers in an HA pair.
Step 12. f you are instructed to return the failed part, follow all packaging instructions and use any
packaging materials that are provided.
4Service Guide for DM120S, DM240S, and DM600S

Chapter 2. Hot-swapping a disk drive in a DM600S disk shelf
You can hot-swap a failed disk drive in a DM600S disk shelf—nondisruptively replace a disk drive in a
system that is powered on and serving data ( /O is in progress). When a disk drive fails, the system logs a
warning message to the system console indicating which disk drive has failed. n addition, the attention
(amber) LED on the operator display panel, the attention LED on the drawer containing the failed disk, and
the attention LED on the failed disk drive (visible when the drawer is open) illuminate.
Before you begin
• The replacement disk drive must be supported by the DM600S disk shelf.
Lenovo Press
• All other components in the system must be functioning properly; if not, contact technical support.
• The disk drive you are removing must be failed.You can verify the disk drive is failed by running the
storage disk show -broken command. The failed disk drive appears in the list of failed disk drives. f it does
not, you should wait, and run the command again.
Note: t can take up to several hours for the disk drive to appear in the list of failed disk drives.
• f you are replacing a self-encrypting disk (SED), you must follow the instructions for replacing an SED in
the Disks and Aggregates Power Guide. The instructions describe additional steps you must perform
before and after replacing an SED.
ONTAP 9 Disks and Aggregates Power Guide
About this task
• You should take steps to avoid electrostatic discharge (ESD):
– Keep the disk drive in the ESD bag until you are ready to install it.
– Open the ESD bag by hand or cut the top off with a pair of scissors.
Attention: Do not insert a metal tool or knife into the ESD bag.
– Always wear an ESD wrist strap grounded to an unpainted surface on your storage enclosure chassis.
f a wrist strap is unavailable, touch an unpainted surface on your storage enclosure chassis before
handling the disk drive.
• You should take steps to handle disk drives carefully:
– Always use two hands when removing, installing, or carrying a disk drive to support its weight.
Attention: Do not place hands on the disk drive boards exposed on the underside of the disk drive
carrier.
– You should place disk drives on cushioned surfaces, and never stack disk drives on top of each other.
– You should be careful not to bump disk drives against other surfaces.
• Disk drives should be kept away from magnetic devices.
Attention: Magnetic fields can destroy all data on the disk drive and cause irreparable damage to the disk
drive circuitry.
• Best practice is to have the current version of the Disk Qualification Package (DQP) installed before hot-
swapping a disk drive. Having the current version of the DQP installed allows your system to recognize
and utilize newly qualified disk drives; therefore, avoiding system event messages about having non-
current disk drive information. You also avoid the possible prevention of disk partitioning because disk
drives are not recognized. The DQP also notifies you of non-current disk drive firmware.
© Copyright Lenovo 2018, 2021 5

Lenovo Data Center Support
• Best practice is to have the current versions of disk shelf ( OM) firmware and disk drive firmware on your
system before adding new disk shelves, shelf FRU components, or SAS cables. Current versions of
firmware can be found on the Lenovo Support Web site.
Lenovo Data Center Support
• Disk drive firmware is automatically updated (nondisruptively) on new disk drives with non current
firmware versions.
Note: Disk drive firmware checks occur every two minutes.
• f needed, you can turn on the disk shelf's location (blue) LEDs to aid in physically locating the affected
disk shelf:
storage shelf location-led modify -node node_name -shelf-name shelf_name -led-status on
A disk shelf has three location (blue) LEDs: one on the operator display panel and one on each OM12
module. Location LEDs remain illuminated for 30 minutes. You can turn them off by entering the same
command, but using the off option.
• f needed, you can refer to the Monitoring disk shelf LEDs section for information about the meaning and
location of disk shelf LEDs on the operator display panel and FRU components.
• The DM600S drive shelf consist of five drive drawers (drive drawer 1 at the top through drive drawer 5 at
the bottom) that each contain 12 drive slots.
• The following illustration shows how the drives are numbered from 0 to 11 in each drive drawer within the
shelf.
6Service Guide for DM120S, DM240S, and DM600S

The video for this task is available at:
• Youtube: https://www.youtube.com/playlist?list=PLYV5R7hVcs-BDPWjJVZFuHRfNWPEOhFWJ
• Youku: https://list.youku.com/albumlist/show/id_51950116
Step 1. f you want to manually assign disk ownership for the replacement disk drive, you need to disable
disk ownership automatic assignment if it is enabled; otherwise, go to the next step.
Note: You need to manually assign disk ownership if disk drives in the stack are owned by both
controllers in an HA pair.
Note: You manually assign disk ownership and then reenable disk ownership automatic
assignment later in this procedure.
a. Verify if disk ownership automatic assignment is enabled: storage disk option show
f you have an HA pair, you can enter the command at the console of either controller.
f disk ownership automatic assignment is enabled, the output shows “on” (for each controller)
in the “Auto Assign” column.
b. f disk ownership automatic assignment is enabled, you need to disable it:
storage disk option modify -node node_name -autoassign off
You need to disable disk ownership automatic assignment on both controllers in an HA pair.
Step 2. Properly ground yourself.
Step 3. Unpack the new disk drive, and set it on a level surface near the disk shelf.Save all packaging
materials for use when returning the failed disk drive.
Note: Lenovo requires that all returned disk drives be in a ESD-rated bag.
Step 4. dentify the failed disk drive from the system console warning message and the illuminated amber
attention LED on the drive drawer.
The 2.5-inch and 3.5-inch SAS drive carriers do not contain LEDs. nstead, you must look at the
Attention LEDs on the drive drawers to determine which drive has failed.
The drive drawer's Attention LED (amber) blinks so you can open the correct drive drawer to
identify which drive to replace.
The drive drawer's Attention LED is on the front-left side of the drawer. There is a warning symbol
on the drive handle just behind the LED to help locate the failing drive.
Step 5. Open the drawer containing the failed drive:
a. Unlatch the drive drawer by pulling on both levers.
b. Using the extended levers, carefully pull the drive drawer out until it stops.
c. Look at the top of the drive drawer to find the Attention LED that resides on the drawer in front
of each drive.
Step 6. Remove the failed drive from the open drawer:
Chapter 2.Hot-swapping a disk drive in a DM600S disk shelf 7

a. Gently pull back the orange release latch that is in front of the drive you want to remove.
1Orange release latch
b. Open the cam handle, and lift out the drive slightly.
c. Wait 30 seconds.
d. Use the cam handle to lift the drive from the shelf.
e. Place the drive on an antistatic, cushioned surface away from magnetic fields.
Step 7. nsert the replacement drive in the drawer:
a. Raise the cam handle on the new drive to vertical.
b. Align the two raised buttons on each side of the drive carrier with the matching gap in the drive
channel on the drive drawer.
Service Guide for DM120S, DM240S, and DM600S

1 Raised button on the right side of the drive carrier
c. Lower the drive straight down, and then rotate the cam handle down until the drive snaps into
place under the orange release latch.
d. Carefully push the drive drawer back into the enclosure.
Attention: Possible loss of data access – Never
slam the drawer shut. Push the drawer in slowly to
avoid jarring the drawer and causing damage to the
storage array.
e. Close the drive drawer by pushing both levers towards the center.The green Activity LED for
the replaced drive on the front of the drive drawer comes on when the drive is inserted
correctly.
Step 8. f you are replacing another disk drive, repeat Steps 4 through 7.
Step 9. Check the Activity LED and the Attention LED on the drive you replaced.
LED status Description
The Activity LED is on or blinking, and the
Attention LED is off
The new drive is working correctly.
The Activity LED is off The drive might not be installed correctly.
Remove the drive, wait 30 seconds, and then
reinstall it.
The Attention LED is on The new drive might be defective. Replace it
with another new drive.
Note: When you first insert a drive, its
Attention LED might be on. However, the LED
should go off within a minute.
Step 10. f you disabled disk ownership automatic assignment in Step 1, manually assign disk ownership,
and then reenable disk ownership automatic assignment if needed:
a. Display all unowned disks:storage disk show -container-type unassigned
b. Assign each disk: storage disk assign -disk disk_name -owner owner_name You can use the
wildcard character to assign more than one disk at once.
Chapter 2.Hot-swapping a disk drive in a DM600S disk shelf 9

c. Reenable disk ownership automatic assignment if needed: storage disk option modify -node
node_name -autoassign on You need to reenable disk ownership automatic assignment on
both controllers in an HA pair.
Step 11. f you are instructed to return the failed part, follow all packaging instructions and use any
packaging materials that are provided.
10 Service Guide for DM120S, DM240S, and DM600S

Chapter 3. Hot-swapping a power supply
You can hot-swap a failed power supply in a DM600S, DM240S, or DM120S disk shelf—nondisruptively
replace a power supply in a system that is powered on and serving data ( /O is in progress). When a power
supply fails, the system logs a warning message to the system console indicating which power supply failed.
n addition, the attention (amber) LED on the operator display panel and the attention (amber) LED on the
failed power supply should illuminate.
Before you begin
All other components in the system, including the other power supply, must be functioning properly.
About this task
• f you are replacing more than one power supply, you must do so one at a time so that the disk shelf
maintains power.
• You must replace a power supply within two minutes of removal to minimize disruption to the disk shelf's
airflow.
• Always use two hands when removing, installing, or carrying a power supply to support its weight.
• Best practice is to have the current versions of disk shelf ( OM) firmware and disk drive firmware on your
system before adding new disk shelves, shelf FRU components, or SAS cables. Current versions of
firmware can be found on the Lenovo Support Web site.
Lenovo Data Center Support
• f needed, you can turn on the disk shelf's location (blue) LEDs to aid in physically locating the affected
disk shelf:
storage shelf location-led modify -node node_name -shelf-name shelf_name -led-status on
A disk shelf has three location (blue) LEDs: one on the operator display panel and one on each OM12
module. Location LEDs remain illuminated for 30 minutes. You can turn them off by entering the same
command, but using the off option.
• f needed, you can refer to the Monitoring disk shelf LEDs section for information about the meaning and
location of disk shelf LEDs on the operator display panel and FRU components.
For DM120S and DM240S, the video for this task is available at:
• Youtube: https://www.youtube.com/playlist?list=PLYV5R7hVcs-Bl5q5uq V0US3rLklB5GOP
• Youku: https://list.youku.com/albumlist/show/id_51948223
For DM600S, the video for this task is available at:
• Youtube: https://www.youtube.com/playlist?list=PLYV5R7hVcs-BDPWjJVZFuHRfNWPEOhFWJ
• Youku: https://list.youku.com/albumlist/show/id_51950116
Step 1. Properly ground yourself.
Step 2. Unpack the new power supply and set it on a level surface near the shelf.Save all packing materials
for use when returning the failed power supply.
Step 3. Physically identify the failed power supply from the system console warning message and the
illuminated attention (amber) LED on the power supply.
Step 4. Turn off the failed power supply and disconnect the power cable:
a. Turn off the power switch on the power supply.
© Copyright Lenovo 2018, 2021 11

b. Open the power cord retainer and unplug the power cord from the power supply.
c. Unplug the power cord from the power source.
Step 5. Press the orange latch on the power supply cam handle until it releases, and then open the cam
handle to fully release the power supply from the mid plane.The following illustration is for a power
supply used in a DM240S or DM120S disk shelf; however, the latch operates the same way for
power supplies used in DM600S disk shelves:
Step 6. Use the cam handle to slide the power supply out of the disk shelf. f you have a DM240S or
DM120S disk shelf, as you remove the power supply, a flap swings into place to block the empty
bay, helping to maintain air flow and cooling.
Note: When handling a power supply, always use two hands to support its weight.
Step 7. Make sure that the on/off switch of the new power supply is in the Off position.
Step 8. Using two hands, with the cam handle of the new power supply in the open position, support and
align the edges of the new power supply with the opening in the disk shelf, and then firmly push the
new power supply until it meets the mid plane.
Attention: Do not use excessive force when sliding the power supply into the disk shelf; you might
damage the connectors.
Step 9. Close the cam handle so that the latch clicks into the locked position and the power supply is fully
seated.
Step 10. Reconnect the power supply cable and turn on the new power supply:
a. Reconnect the power cord to the power source.
b. Reconnect the power cord to the power supply and secure the power cord with the power
cord retainer.
12 Service Guide for DM120S, DM240S, and DM600S

c. Turn on the power switch. The power supply's power (green) LED and attention (amber) LED
illuminate, and then within 40 seconds, the attention (amber) LED turns off.
Step 11. f you are instructed to return the failed part, follow all packaging instructions and use any
packaging materials that are provided.
Chapter 3.Hot-swapping a power supply 13

14 Service Guide for DM120S, DM240S, and DM600S

Chapter 4. Replacing a fan module in a DM600S disk shelf
Each DM600S drive shelf includes two fan modules. f a fan module fails, you must replace it as soon as
possible to ensure that the shelf has adequate cooling. When you remove the failed fan module, you do not
have to turn off power to your disk shelf.
About this task
The video for this task is available at:
• Youtube: https://www.youtube.com/playlist?list=PLYV5R7hVcs-BDPWjJVZFuHRfNWPEOhFWJ
• Youku: https://list.youku.com/albumlist/show/id_51950116
You must ensure that you remove and replace the fan module within 30 minutes to prevent the system from
overheating.
Step 1. Put on antistatic protection.
Step 2. Unpack the new fan module, and place it on a level surface near the shelf.Save all packing material
for use when returning the failed fan.

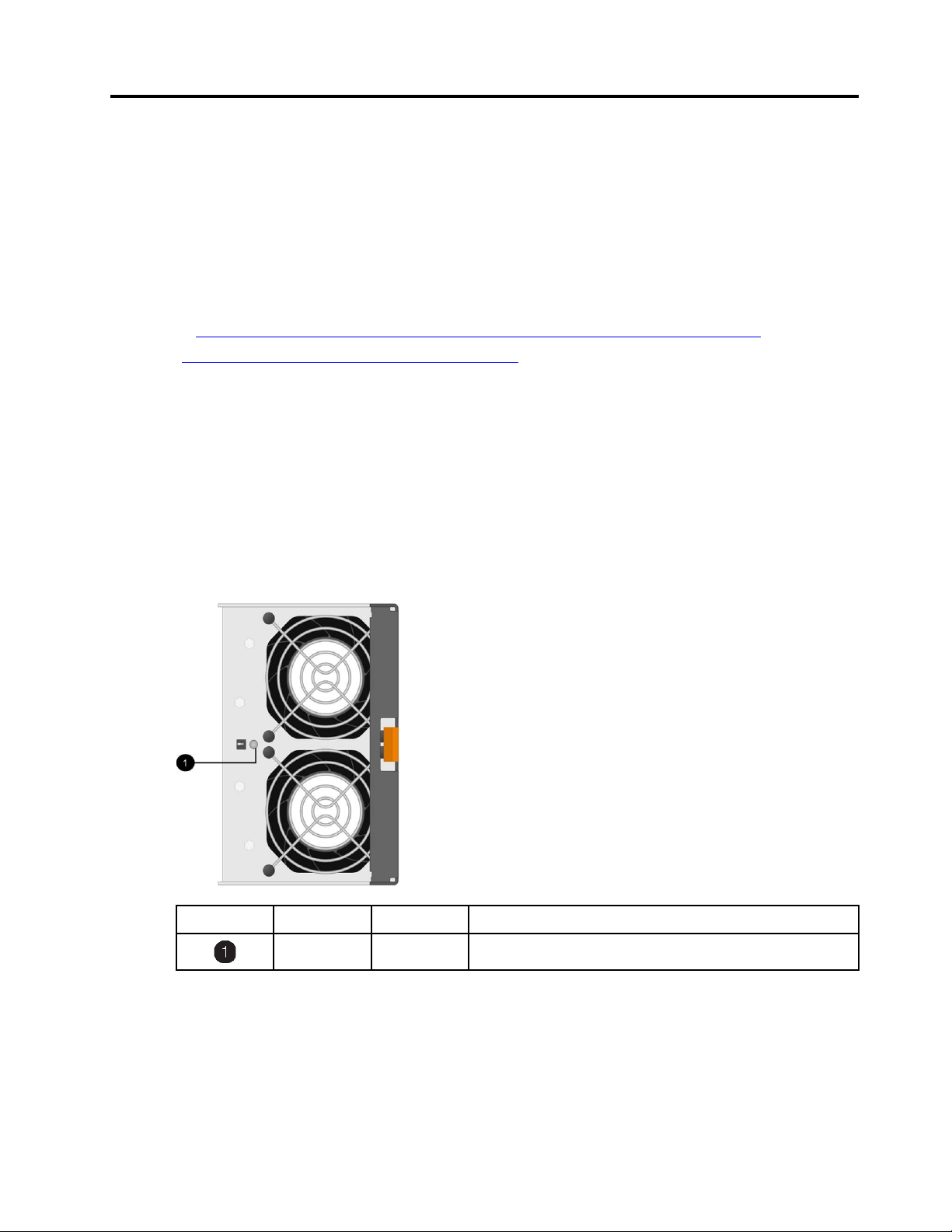

Step 3. From the back of the disk shelf, look at the Attention LEDs to locate the fan module you need to
remove.
You must replace the fan module that has its Attention LED on.
Item LED name State Description
Attention Solid amber The fan has a fault.
Step 4. Press the orange tab to release the fan module handle.
© Copyright Lenovo 2018, 2021 15

Tab that you press to release the fan module
handle
Step 5. Use the fan module handle to pull the fan module out of the shelf.
Handle to pull the fan module out
Step 6. Slide the replacement fan module all the way into the shelf, moving the fan module handle to the
side until it latches with the orange tab.
Step 7. Check the amber Attention LED on the new fan module.
Note: After you replace the fan module, the Attention LED stays on (solid amber) while the
firmware checks that the fan module was installed correctly. The LED goes off after this process is
complete.
Step 8. f you are instructed to return the failed part, follow all packaging instructions and use any
packaging materials that are provided.
16 Service Guide for DM120S, DM240S, and DM600S
