Lenovo Storage D1212 and D1224 Drive Enclosures
Product Guide
The Lenovo Storage D1212 and D1224 Disk Expansion Enclosures offer 12 Gbps SAS direct-
attached storage expansion capabilities that are designed to provide simplicity, speed, scalability, security,
and high availability for small to large businesses. The D1212 and D1224 deliver enterprise-class storage
technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host
connectivity.
The D1212 and D1224 expansion units are designed for a wide range of workloads, including big data and
analytics, video surveillance, media streaming, private clouds, file and print serving, e-mail and
collaboration, and databases. They also well-suited for software defined storage (SDS) and Windows
Server solutions with Storage Spaces.
Figure 1. Lenovo Storage D1212 and D1224 Disk Expansion Enclosures
Did you know?
The D1212 and D1224 expansion enclosures offer flexible drive configurations with the choice of 2.5-inch
and 3.5-inch drive form factors, 10K or 15K rpm SAS and 7.2K rpm NL SAS hard disk drives (HDDs) and
self-encrypting drives (SEDs), and SAS solid-state drives (SSDs).
With support for daisy chaining, the D1212 can be scaled up to 960 TB for capacity-optimized
configurations with HDDs, and the D1224 can be scaled up to 192 drives for performance-optimized
configurations.
The D1212 and D1224 expansion units support 12 Gbps SAS connectivity, which doubles the data
transfer rate compared to 6 Gb SAS solutions to maximize performance of storage I/O-intensive
applications.
Lenovo Storage D1212 and D1224 Drive Enclosures 1

Key features
Key features and benefits provided by the D1212 and D1224 storage expansion enclosures include:
Versatile, scalable storage expansion with dual Environmental service Module (ESM) configurations
for high availability and performance
Flexible host connectivity to match diverse client needs for direct attach storage with support for 12
Gb SAS RAID adapters for advanced data protection or 12 Gb SAS Host Bus Adapter (HBA) for
maximum JBOD performance
12 Gb SAS drive-side connectivity with support for 12x 3.5-inch large form factor (LFF) drives in the
D1212 enclosure or 24x 2.5-inch small form factor (SFF) drives in the D1224 enclosure
Scalability of up to 96 LFF or 192 SFF drives per RAID adapter or HBA with the attachment of up to
eight D1212 or D1224 daisy-chained expansion enclosures, or a combination of both, to satisfy
growing needs for storage capacity and performance
Flexibility in storing data on high performance SAS SSDs, performance-optimized enterprise SAS
HDDs, or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types and form
factors on a single RAID adapter or HBA to perfectly meet performance and capacity requirements
for various workloads
Self-encrypting drives with a supported RAID adapter allow clients to secure their sensitive data and
to comply with various security regulations when required
Support multiple host attachments and SAS zoning for storage partitioning
The D1212 and D1224 are designed to support the complete range of data storage requirements, from
highly utilized applications to high-capacity, low usage applications.
The following 3.5-inch SAS drives are supported by the D1212:
High performance solid-state drives (3 drive writes per day [DWD] and 10 DWD): 400 GB
Performance-optimized, enterprise class disk drives: 900 GB 10K rpm
High-capacity, archival-class nearline disk drives: 2 TB, 4 TB, 6 TB, 8 TB, and 10 TB 7.2K rpm
High-capacity, archival-class nearline self-encrypting disk drives: 4 TB 7.2K rpm
The following 2.5-inch SAS drives are supported by the D1224:
High performance solid-state drives (3 DWD and 10 DWD): 400 GB, 800 GB, and 1.6 TB
High performance self-encrypting solid-state drives (10 DWD): 800 GB
Capacity optimized solid-state drives (3 DWD): 3.84 TB
Capacity optimized solid-state drives (1 DWD): 3.84 TB and 7.68 TB
Performance-optimized, enterprise class disk drives
300 GB, 600 GB, and 900 GB 15K rpm
600 GB, 900 GB, 1.2 TB, and 1.8 TB 10K rpm
Performance-optimized, enterprise class self-encrypting disk drives: 1.2 TB 10K rpm
High-capacity, archival-class nearline disk drives: 1 TB and 2 TB 7.2K rpm
Additional drives and expansion units are designed to be dynamically added with virtually no downtime
(operating system dependent), helping to quickly and seamlessly respond to growing capacity demands.
Lenovo Storage D1212 and D1224 Drive Enclosures 2

The D1212 and D1224 expansion enclosures are designed to offer high levels of system and data
availability with the following technologies:
Dual ESMs provide redundant paths from a supported RAID controller to the drives in
the enclosures for I/O load balancing and failover
Dual-port drives (both HDDs and SSDs) with automatic drive failure detection and RAID rebuild with
global hot spares with a supported RAID adapter
Redundant hardware, including host ports, ESMs, and power and cooling modules (PCMs)
Hot-swappable and customer replaceable components, including ESMs, PCMs, and drives
Components and connectors

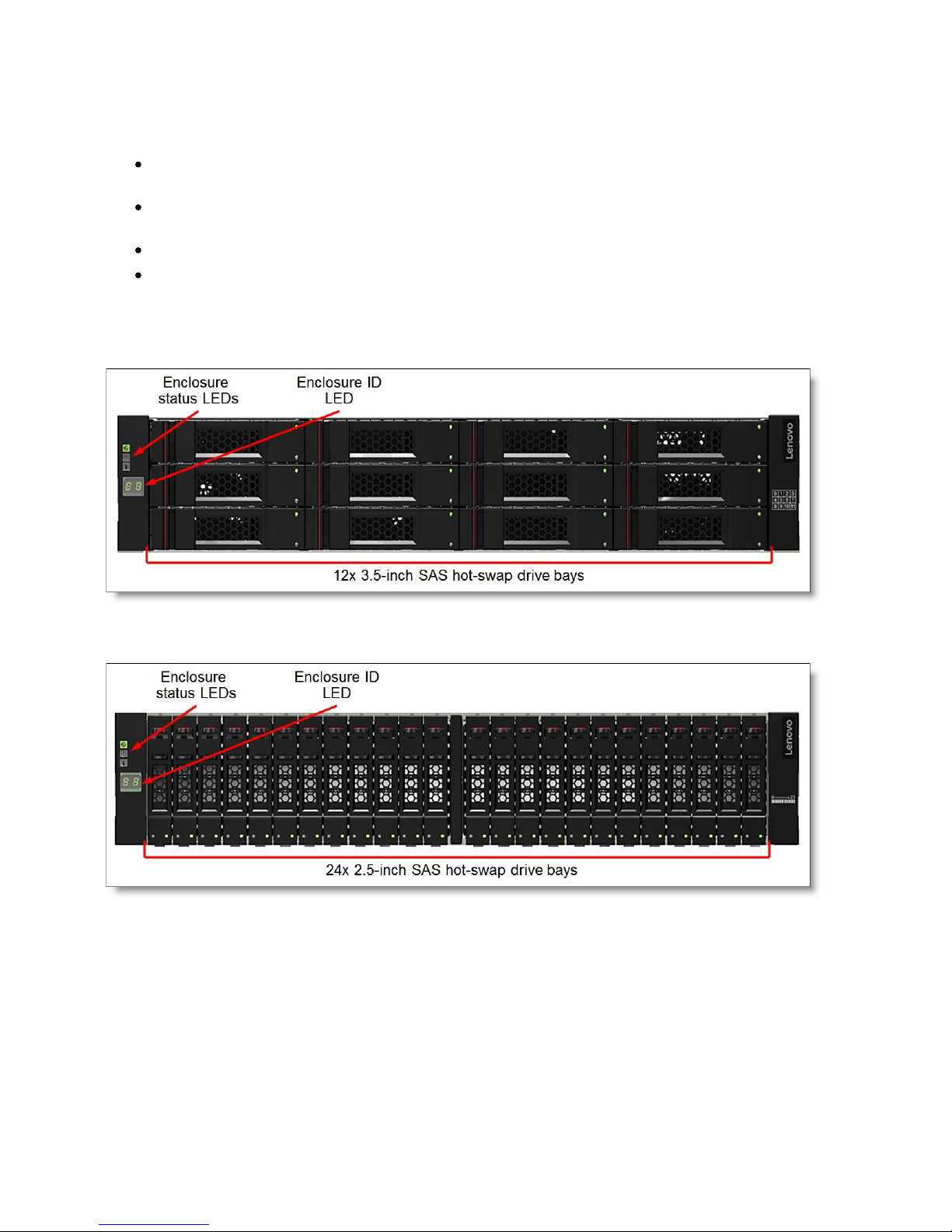

The following figure shows the front of the D1212 drive expansion enclosure.
Figure 2. Front view of the D1212 drive enclosure
The following figure shows the front of the D1224 drive expansion enclosure.
Figure 3. Front view of the D1224 drive enclosure
Lenovo Storage D1212 and D1224 Drive Enclosures 3

The following figure shows the rear of the D1212 and D1224 drive enclosures.
Figure 4. Rear view of the D1212 and D1224 drive enclosures
Note: The ESMs (shown in Figure 4) have additional service ports with a specialized connector, and these
ports are reserved for use by a Lenovo service technician.
System specifications
The following table lists the D1212 and D1224 system specifications.
Table 1. System specifications
Components Specification
Form factor 2U rack mount
Number of ESMs 2
Expansion ports 3x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) ports (A, B, C) per ESM
Drive bays D1212: 12 LFF hot-swap drive bays; up to 8x D1212 enclosures can be daisy chained
on a supported RAID adapter or HBA for a total of up to 96 LFF drives.
D1224: 24 SFF hot-swap drive bays; up to 8x D1224 enclosures can be daisy chained
on a supported RAID adapter or HBA for a total of up to 192 SFF drives.
Intermix of SFF and LFF enclosures is supported.
Drive
technologies
SAS and NL SAS HDDs and SEDs; SAS SSDs. Intermix of HDDs, SEDs, and SSDs is
supported within an enclosure, but not within a RAID array.
Drive connectivity Dual-ported 12 Gb SAS drive attachment infrastructure.
Lenovo Storage D1212 and D1224 Drive Enclosures 4

Drives SFF drives:
400 GB, 800 GB, and 1.6 TB SAS SSDs (3 DWD and 10 DWD)
800 GB SAS SED SSDs (10 DWD)
3.84 TB SAS SSDs (3 DWD)
3.84 TB and 7.68 TB SAS SSDs (1 DWD)
300 GB, 600 GB, and 900 GB 15K rpm SAS HDDs
600 GB, 900 GB, 1.2 TB, and 1.8 TB 10K rpm SAS HDDs
1.2 TB 10K rpm SAS SED HDD
1 TB and 2 TB 7.2K rpm NL SAS HDDs
LFF drives:
400 GB SAS SSDs (3 DWD and 10 DWD) (hybrid tray - 2.5 in. drive in the 3.5-in. tray)
900 GB 10K rpm SAS HDD (hybrid tray - 2.5 in. drive in the 3.5-in. tray)
2 TB, 4 TB, 6 TB, 8 TB, and 10 TB 7.2K rpm NL SAS HDDs
4 TB 7.2K rpm NL SAS SED HDD
Storage capacity D1212: Up to 960 TB (96x 10 TB LFF NL SAS HDDs)
D1224: Up to 1.47 PB (192x 7.68 TB SFF SAS SSDs)
Host adapters RAID adapters:
ServeRAID M5225 (2-port 12 Gb SAS; RAID 0, 1, 10, 5, 50; optional RAID 6, 60)
Host bus adapters (non-RAID)
N2225 (2-port 12 Gb SAS)
N2226 (4-port 12 Gb SAS)
ThinkServer 9300-8e (2-port 12 Gb SAS)
ThinkServer 8885e (2-port 12 Gb SAS)
Host operating
systems
Microsoft Windows Server 2008 R2, 2012 and 2012 R2; Red Hat Enterprise Linux (RHEL) 6
and 7; SUSE Linux Enterprise Server (SLES) 11 and 12; VMware vSphere 5.5 and 6.0.
Cooling Redundant cooling with two fans built into power and cooling modules (PCMs).
Power supply Two redundant hot-swap 580 W AC power supplies built into PCMs.
Hot-swap parts ESMs, drives, PCMs.
Management
interfaces
SAS Enclosure Services, 10/100 Mb Ethernet for external management.
Security features SAS zoning, self-encrypting drives (SEDs).
Warranty Three-year customer-replaceable unit, parts delivered limited warranty with 9x5 next business
day response.
Service and
support
Optional warranty service upgrades are available through Lenovo: Technician installed parts,
24x7 coverage, 2-hour or 4-hour response time, 6-hour or 24-hour committed repair, 1-year
or 2-year warranty extensions, YourDrive YourData, remote technical support, hardware
installation.
Dimensions Height: 88 mm (3.5 in), width: 443 mm (17.4 in), depth: 630 mm (24.8 in)
Maximum weight D1212: 26 kg (57.3 lb)
D1224: 24 kg (52.9) lb
Components Specification
Lenovo Storage D1212 and D1224 Drive Enclosures 5

Models
The following table lists the relationship models of the D1212 and D1224 drive enclosures.
Table 2. D1212 and D1224 relationship models
Description
Part
number
LFF models
Lenovo Storage D1212 LFF Chassis, Dual ESM (US English documentation) 4587A11*
Lenovo Storage D1212 LFF Chassis, Dual ESM (Simplified Chinese documentation) 4587A1C^
Lenovo Storage D1212 LFF Chassis, Dual ESM (Japanese documentation) 4587A1J**
SFF models
Lenovo Storage D1224 SFF Chassis, Dual ESM (US English documentation) 4587A31*
Lenovo Storage D1224 SFF Chassis, Dual ESM (Simplified Chinese documentation) 4587A3C^
Lenovo Storage D1224 SFF Chassis, Dual ESM (Japanese documentation) 4587A3J**
* Available worldwide (except China and Japan)
^ Available only in China
** Available only in Japan
The following table lists the TopSeller models of the D1212 and D1224 drive enclosures.
Table 3. D1212 and D1224 TopSeller models
Description
Part
number
LFF models - North America (NA) and Europe, Middle East, and Africa (EMEA)
Lenovo Storage D1212 LFF Dual ESM Disk Expansion Enclosure (US English documentation) 4587E11
LFF models - Brazil and Latin America
Lenovo Storage D1212 LFF Chassis, Dual ESM, 4x 2TB 3.5" HDDs, 4x 0.5m SAS cables 4587EAU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 4x 4TB 3.5" HDDs, 4x 0.5m SAS cables 4587EBU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 4x 6TB 3.5" HDDs, 4x 0.5m SAS cables 4587ECU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 4x 8TB 3.5" HDDs, 4x 0.5m SAS cables 4587EDU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 8x 2TB 3.5" HDDs, 4x 0.5m SAS cables 4587EEU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 8x 4TB 3.5" HDDs, 4x 0.5m SAS cables 4587EFU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 8x 6TB 3.5" HDDs, 4x 0.5m SAS cables 4587EGU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 8x 8TB 3.5" HDDs, 4x 0.5m SAS cables 4587EHU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 12x 2TB 3.5" HDDs, 4x 0.5m SAS cables 4587EIU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 12x 4TB 3.5" HDDs, 4x 0.5m SAS cables 4587EJU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 12x 6TB 3.5" HDDs, 4x 0.5m SAS cables 4587EKU
Lenovo Storage D1212 LFF Chassis, Dual ESM, 12x 8TB 3.5" HDDs, 4x 0.5m SAS cables 4587ELU
SFF models - North America (NA) and Europe, Middle East, and Africa (EMEA)
Lenovo Storage D1224 SFF Dual ESM Disk Expansion Enclosure (US English documentation) 4587E31
SFF models - Brazil and Latin America
Lenovo Storage D1224 SFF Chassis, Dual ESM, 9x 1.2TB 10K HDDs, 4x 0.5m SAS cables 4587E6U
Lenovo Storage D1224 SFF, Dual ESM, 9x 1.2TB 10K HDDs, 2x 400GB SSDs, 4x 0.5m SAS cables 4587E2U
Lenovo Storage D1224 SFF, Dual ESM, 9x 1.2TB 10K HDDs, 4x 400GB SSDs, 4x 0.5m SAS cables 4587E4U
Lenovo Storage D1212 and D1224 Drive Enclosures 6

Lenovo Storage D1224 SFF Chassis, Dual ESM, 18x 1.2TB 10K HDDs, 1x 0.5m SAS cable 4587E5U
Lenovo Storage D1224 SFF, Dual ESM, 18x 1.2TB 10K HDDs, 2x 400GB SSDs, 4x 0.5m SAS cables 4587E1U
Lenovo Storage D1224 SFF, Dual ESM, 18x 1.2TB 10K HDDs, 4x 400GB SSDs, 4x 0.5m SAS cables 4587E3U
Description
Part
number
The part numbers for the D1212 and D1224 drive enclosures include the following items:
One LFF or SFF chassis with the following components:
Dual 3-port environmental service modules
Two power and cooling modules
Drives (select models; see Table 2 and Table 3 for details)
Two 1.5m, 10A/100-250V, C13 to IEC 320-C14 rack power cables
External 0.5m 12Gb SAS cables (select models; see Table 2 and Table 3 for details)
Lenovo Storage 12Gb SAN Rack Mount Kit - Rails 25"-36"
Documentation package
Host connectivity

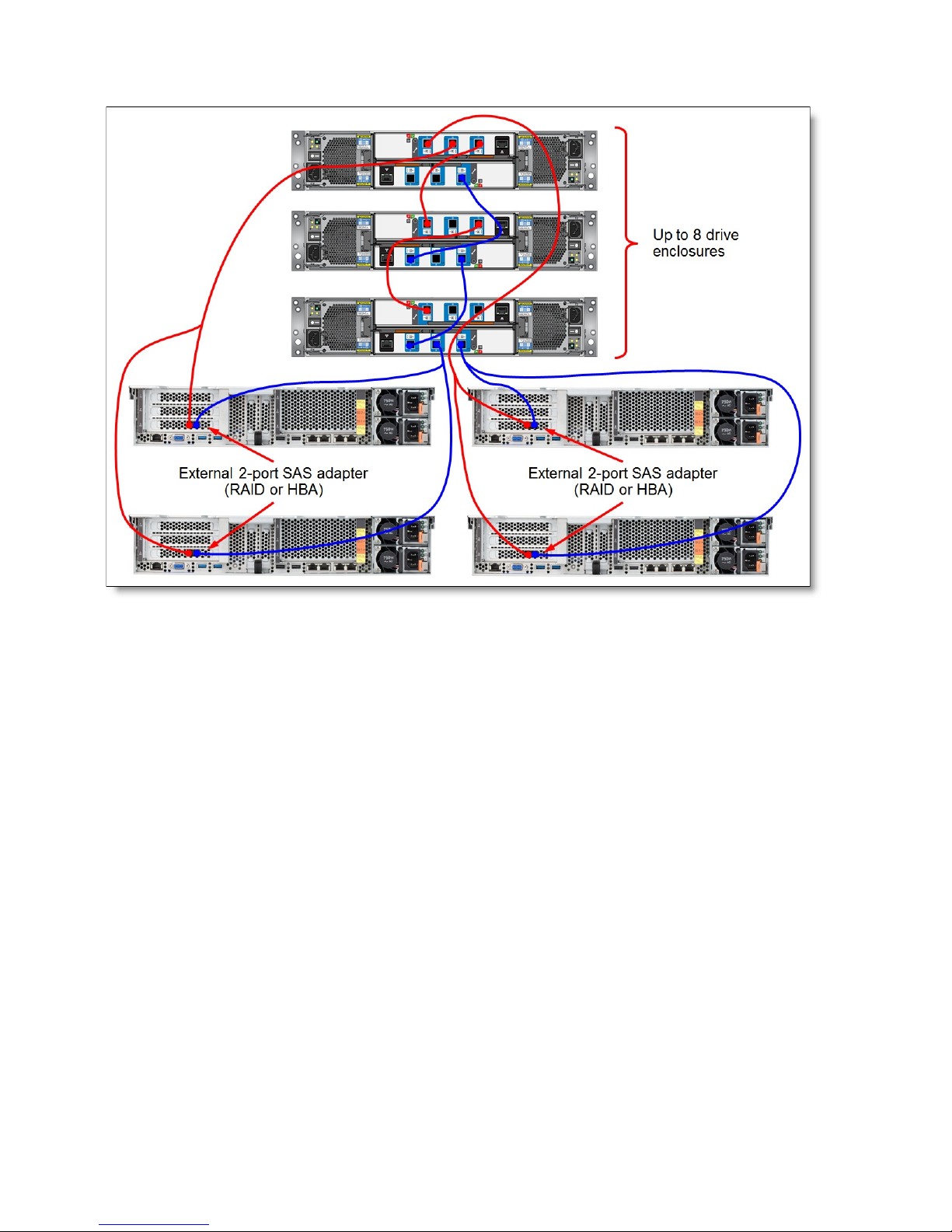

The D1212 and D1224 drive enclosures support dual environmental service module (ESM) configurations.
Each ESM has three 12 Gb SAS x4 ports (Mini-SAS HD SFF-8644 connectors) labeled A, B, and C. These
ports are used for connections to a supported RAID adapter or HBA installed in a server and for daisy
chaining the D1212 and D1224 enclosures between each other.
Port A on each ESM is used for connecting the external SAS ports on the RAID controller or HBA to the
enclosure, or for connecting Port C on each ESM in the adjacent enclosure for daisy chaining.
Port B on each ESM is used for connecting the external SAS ports on the RAID controller or HBA to the
enclosure. Daisy-chaining does not use Port B for connections between adjacent enclosures.
Port C on each ESM is used for connecting the external SAS ports on the RAID controller or HBA to the
enclosure, or for connecting Port A on each ESM in the adjacent enclosure for daisy chaining.
Up to eight D1212 or D1224 drive enclosures, or a combination of both, can be daisy-chained with
support for up to four hosts attached to the chain. Without daisy-chaining, a standalone
D1224 drive enclosure can support up to six directly attached hosts.
Lenovo Storage D1212 and D1224 Drive Enclosures 7

The following figures illustrate different host connectivity topologies.
Figure 5. Connectivity topology with one host
Figure 6. Connectivity topology with two hosts
Lenovo Storage D1212 and D1224 Drive Enclosures 8

Figure 7. Connectivity topology with four hosts
For topologies with four or more hosts, SAS Y-cables are required to connect the hosts to the drive
enclosure. The SAS Y-cable allows two hosts be connected to one SAS port on the ESM. The Y-cables
and standard cables are mutually exclusive, that is, either Y-cables or standard cables can be used to
connect the hosts to the same drive enclosure, but not both.
The SAS zoning feature of the D1212 and D1224 specifies how multiple hosts access drives in the
enclosures. If SAS zoning is disabled, all attached hosts can access all drives in the enclosures, which is
typically used in standalone single-host or clustered multi-host environments, where all cluster nodes need
access to all drives. If SAS zoning is enabled, each connected host has exclusive access to a predefined
set of drives, and multiple hosts are isolated from each other.
Note: Attachment of more than one host to the same enclosure without SAS zoning is supported with
HBAs only (RAID controllers are not supported). While all attached hosts are capable of accessing all
drives in the enclosures, the clustering software running on the hosts controls which cluster nodes have
access to the drives at any given time.
Lenovo Storage D1212 and D1224 Drive Enclosures 9

The supported zone configurations are shown in the following table.
Note: Mode 0 means that zoning is disabled.
Table 4. D1212 and D1224 zoning configurations
Zoning
mode
Number
of zones
Maximum
number
of hosts
Zone
number Host ports
Expansion
ports
Drive bays
D1212 D1224
Zoning with SAS standard cables
Mode 0 1 2 1 A, B C 0-11 0-23
Mode 1 2 2 1 A C 0-1, 4-5, 8-9 0-11
2 B 2-3, 6-7, 10-11 12-23
Mode 2 3 3 1 A N/A 0-3 0-7
2 B 4-7 8-15
3 C 8-11 16-23
Zoning with SAS Y-cables
Mode 0 1 4 1 A.1, A.2, B.1, B.2 C 0-11 0-23
Mode 3 3 3 1 A.1 C 0-3 0-7
2 A.2 4-7 8-15
3 B.1 8-11 16-23
Mode 4 4 4 1 A.1 C 0, 4, 8 0-5
2 A.2 1, 5, 9 6-11
3 B.1 2, 6, 10 12-17
4 B.2 3, 7, 11 18-23
Mode 5 6 6 1 A.1 N/A N/A 0-3
2 A.2 4-7
3 B.1 8-11
4 B.2 12-15
5 C.1 16-19
6 C.2 20-23
Lenovo Storage D1212 and D1224 Drive Enclosures 10

The following table lists ordering information for the SAS cables.
Table 5. SAS cable options
Description
Part
number
Feature
code
Maximum
quantity per one
D1212 or D1224
Connectivity cables - Mini-SAS HD Host Adapter to Expansion
External MiniSAS HD 8644/MiniSAS HD 8644 0.5M Cable 00YL847 AU16 6
External MiniSAS HD 8644/MiniSAS HD 8644 1M Cable 00YL848 AU17 6
External MiniSAS HD 8644/MiniSAS HD 8644 2M Cable 00YL849 AU18 6
External MiniSAS HD 8644/MiniSAS HD 8644 3M Cable 00YL850 AU19 6
External MiniSAS HD 8644/MiniSAS HD 8644 6M Cable 00KH452 AUJY 6
External MiniSAS HD 8644/2xMiniSAS HD 8644 2M Y-Cable 01DC164 AU1A 6
Connectivity cables - Expansion to Expansion
External MiniSAS HD 8644/MiniSAS HD 8644 0.5M Cable 00YL847 AU16 2
External MiniSAS HD 8644/MiniSAS HD 8644 1M Cable 00YL848 AU17 2
External MiniSAS HD 8644/MiniSAS HD 8644 2M Cable 00YL849 AU18 2
External MiniSAS HD 8644/MiniSAS HD 8644 3M Cable 00YL850 AU19 2
External MiniSAS HD 8644/MiniSAS HD 8644 6M Cable 00KH452 AUJY 2
Drives
The D1212 drive enclosure supports up to 12 LFF hot-swap drives, and the D1224 drive enclosure
supports up to 24 SFF hot-swap drives. The following tables list drive options for the D1212 and D1224
drive enclosures.
Table 6. LFF drive options
Description
Part
number
Feature
code
Maximum
quantity per
one D1212
3.5-inch SAS hot-swap HDDs
Lenovo Storage 900GB 10K SAS Hybrid tray HDD (2.5" in 3.5") 01DC182 AU1G 12
3.5-inch NL SAS hot-swap HDDs
Lenovo Storage 2TB 7.2K 3.5" NL-SAS HDD 00YH993 AU1F 12
Lenovo Storage 4TB 7.2K 3.5" NL-SAS HDD 01DC487 AU1D 12
Lenovo Storage 6TB 7.2K 3.5" NL-SAS HDD 00YG668 AU1C 12
Lenovo Storage 8TB 7.2K 3.5" NL-SAS HDD 00YG663 AU1B 12
Lenovo Storage 10TB 7.2K 3.5" NL-SAS HDD 01DC626 AU3S 12
3.5-inch NL SAS hot-swap SEDs
Lenovo Storage 4TB 7.2K 3.5" NL-SAS SED HDD 00YG673 AU1E 12
3.5-inch SAS hot-swap SSDs (10 DWD)
Lenovo Storage 400GB 3 DWD SAS SSD - Hybrid Tray (2.5" in 3.5") 01GV682 AV2H
3.5-inch SAS hot-swap SSDs (10 DWD)
Lenovo Storage 400GB 10 DWD SAS SSD - Hybrid tray (2.5" in 3.5") 01CX642 AV2G 12
Lenovo Storage D1212 and D1224 Drive Enclosures 11

Table 7. SFF drive options
Description
Part
number
Feature
code
Maximum
quantity per
one D1224
2.5-inch SAS hot-swap HDDs
Lenovo Storage 300GB 15K 2.5" SAS HDD 01DC197 AU1J 24
Lenovo Storage 600GB 10K 2.5" SAS HDD 01DC427 AU1Q 24
Lenovo Storage 600GB 15K 2.5" SAS HDD 01DC192 AU1H 24
Lenovo Storage 900GB 10K 2.5" SAS HDD 01DC417 AU1N 24
Lenovo Storage 900GB 15K 2.5" SAS HDD 01KP040 AVP5 24
Lenovo Storage 1.2TB 10K 2.5" SAS HDD 01DC407 AU1L 24
Lenovo Storage 1.8TB 10K 2.5" SAS HDD 01DC402 AU1K 24
2.5-inch SAS hot-swap SED HDDs
Lenovo Storage 1.2TB 10K 2.5" SAS SED HDD 01DC412 AU1M 24
2.5-inch NL SAS hot-swap HDDs
Lenovo Storage 1TB 7.2K 2.5" NL-SAS HDD 01DC442 AU1S 24
Lenovo Storage 2TB 7.2K 2.5" NL-SAS HDD 01DC437 AU1R 24
2.5-inch SAS hot-swap SSDs (1 DWD)
Lenovo Storage 3.84TB 1 DWD 2.5" SAS SSD (1200.2) 01CX632 AV2F 24
Lenovo Storage 3.84TB 1 DWD 2.5" SAS SSD (PM1633a) 01KP065 AVPA 24
Lenovo Storage 7.68TB 1 DWD 2.5" SAS SSD (PM1633a) 01KP060 AVP9 24
2.5-inch SAS hot-swap SSDs (3 DWD)
Lenovo Storage 400GB 3 DWD 2.5" SAS SSD 01DC482 AU1V 24
Lenovo Storage 800GB 3 DWD 2.5" SAS SSD 01DC477 AU1U 24
Lenovo Storage 1.6TB 3 DWD 2.5" SAS SSD 01DC472 AU1T 24
2.5-inch SAS hot-swap SSDs (10 DWD)
Lenovo Storage 400GB 10 DWD 2.5" SAS SSD 01DC462 AUDK 24
Lenovo Storage 800GB 10 DWD 2.5" SAS SSD 01DC452 AUDH 24
Lenovo Storage 1.6TB 10 DWD 2.5" SAS SSD 01DC447 AUDG 24
2.5-inch SAS hot-swap SED SSDs (10 DWD)
Lenovo Storage 800GB 10 DWD 2.5" SAS SSD (SED) 01DC457 AUDJ 24
Power cables
Lenovo Storage D1212 and D1224 Drive Enclosures 12

Power cables
The D1212 and D1224 ship standard with two 1.5m, 10A/100-250V, C13 to IEC 320-C14 rack power
cables. Other power cable options are also available, and the part numbers and feature codes to order the
power cables are listed in the following table (two power cables are required per each D1212 and D1224).
Table 8. Power cable options
Description
Part
number
Feature
code
Rack power cables
1.2m, 10A/100-250V, 2 Short C13s to Short C14 Rack Power Cable 47C2487 A3SS
1.2m, 16A/100-250V, 2 Short C13s to Short C20 Rack Power Cable 47C2491 A3SW
1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7937 6201
2.5m, 10A/100-250V, 2 Long C13s to Short C14 Rack Power Cable 47C2488 A3ST
2.5m, 16A/100-250V, 2 Long C13s to Short C20 Rack Power Cable 47C2492 A3SX
2.8m, 10A/100-250V, 2 Short C13s to Long C14 Rack Power Cable 47C2489 A3SU
2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable None* 6311
2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable 39Y7938 6204
2.8m, 16A/100-250V, 2 Short C13s to Long C20 Rack Power Cable 47C2493 A3SY
4.1m, 10A/100-250V, 2 Long C13s to Long C14 Rack Power Cable 47C2490 A3SV
4.1m, 16A/100-250V, 2 Long C13s to Long C20 Rack Power Cable 47C2494 A3SZ
4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7932 6263
Country-specific power cords
10A/125V C13 to NEMA 5-15P 4.3m line cord 39Y7931 6207
10A/250V C13 to NEMA 6-15P 2.8m line cord 46M2592 A1RF
Argentina 10A/250V C13 to IRAM 2073 2.8m line cord 39Y7930 6222
Australia/NZ 10A/250V C13 to AS/NZ 3112 2.8m line cord 39Y7924 6211
Brazil 10A/250V C13 to NBR 14136 2.8m line cord 69Y1988 6532
China 10A/250V C13 to GB 2099.1 2.8m line cord 39Y7928 6210
Denmark 10A/250V C13 to DK2-5a 2.8m line cord 39Y7918 6213
European 10A/230V C13 to CEE7-VII 2.8m line cord 39Y7917 6212
India 10A/250V C13 to IS 6538 2.8m line cord 39Y7927 6269
Israel 10A/250V C13 to SI 32 2.8m line cord 39Y7920 6218
Italy 10A/250V C13 to CEI 23-16 2.8m line cord 39Y7921 6217
Japan 12A/125V C13 to JIS C-8303 2.8m line cord 46M2593 A1RE
Korea 12A/250V C13 to KETI 2.8m line cord 39Y7925 6219
South Africa 10A/250V C13 to SABS 164 2.8m line cord 39Y7922 6214
Switzerland 10A/250V C13 to SEV 1011-S24507 2.8m line cord 39Y7919 6216
Taiwan 15A/125V C13/CNS 10917 2.8m line cord 00CG267 6402
United Kingdom 10A/250V C13 to BS 1363/A 2.8m line cord 39Y7923 6215
Physical specifications
Lenovo Storage D1212 and D1224 Drive Enclosures 13

Physical specifications
The D1212 and D1224 have the following dimensions and weight (approximate):
Height: 88 mm (3.5 in.)
Width: 443 mm (17.4 in.)
Depth: 630 mm (24.8 in.)
Maximum weight
D1212: 26 kg (57.3 lb)
D1224: 24 kg (52.9 lb)
Operating environment
The D1212 and D1224 are supported in the following environment:
Air temperature:
Operating: 5 °C to 40 °C (41 °F to 104 °F)
Storage: -40 °C to +60 °C (-40 °F to 140 °F)
Maximum altitude: 3,045 m (10,000 ft)
Humidity:
Operating: 20% to 80% (non-condensing)
Storage: 5% to 100% (no precipitation)
Electrical:
100 to 127 (nominal) V AC; 50 Hz to 60 Hz; 6.11 A
200 to 240 (nominal) V AC; 50 Hz to 60 Hz; 3.05 A
BTU output: 1979 BTU/hr (580 W)
Noise level: 6.5 bels
Warranty
The D1212 and D1224 have a three-year customer-replaceable unit (CRU) warranty with standard call
center support during normal business hours and 9x5 Next Business Day Parts Delivered. Lenovo offers
the service upgrades through warranty maintenance upgrades and post-warranty maintenance agreements
with a well-defined scope of services, including service hours, response time, term of service, and service
agreement terms and conditions.
Lenovo warranty service upgrade offerings are country-specific. Not all warranty service upgrades are
available in every country. For more information about Lenovo warranty service upgrade offerings that are
available in your country, go to the Lenovo Enterprise Solutions Configurator (LESC):
http://lesc.lenovo.com
The following table explains warranty service definitions for the D1212 and D1224 drive enclosures.
Table 9. Warranty service definitions
Term Description
Parts
Delivered
If a problem with your product cannot be resolved via telephone and a CRU part is required, Lenovo
will send a replacement CRU to arrive at your location.
Technician
Installed
Parts
If a problem with your product cannot be resolved via telephone, a Service Technician will be
dispatched to arrive at your location.
Hours of
coverage
9x5: 9 hours per day, 5 days per week, during normal business hours, excluding local public
and national holidays
24x7: 24 hours per day, 7 days per week, 365 days per year.
Lenovo Storage D1212 and D1224 Drive Enclosures 14

Response
time target
2 hours, 4 hours or Next Business Day: The time period from when the telephone based
troubleshooting is completed and logged, to the delivery of the CRU or arrival of a Service
Technician and part at the Customer’s location for repair.
Committed
Repair
6 hours or 24 hours: The time period between the service request registration in Lenovo’s call
management system and the restoration of the product to conformance with its specification by a
Service Technician.
Term Description
The following Lenovo warranty service upgrades are available:
Warranty and maintenance service upgrades:
Three, four, or five years of 9x5 or 24x7 service coverage
Parts delivered or technician installed parts from next business day to 4 or 2 hours
Committed repair service
Warranty extension of up to 5 years
Post warranty extensions
Committed Repair Service
Committed Repair Services enhances the level of Warranty Service Upgrade or Post
Warranty/Maintenance Service offering associated with the selected systems. Offerings vary and
are available in select countries.
Priority handling to meet defined time frames to restore the failing machine to good working
condition
24x7x6: Service performed 24 hours per day, 7 days per week, within 6 hours
24x7x24: Service performed 24 hours per day, 7 days per week, within 24 hours
YourDrive YourData
Lenovo’s YourDrive YourData service is a multi-drive retention offering that ensures your data is
always under your control, regardless of the number of drives that are installed in your Lenovo
system. In the unlikely event of a drive failure, you retain possession of your drive while Lenovo
replaces the failed drive part. Your data stays safely on your premises, in your hands. The YourDrive
YourData service can be purchased in convenient bundles with Lenovo warranty upgrades and
extensions.
Remote Technical Support
Lenovo Remote Technical Support provides comprehensive technical call center “how to” support
for covered servers, storage, operating systems, and applications. Support staff can help answer
troubleshooting and diagnostic questions, address product compatibility and interoperability
issues, isolate causes of problems, and more.
Hardware Installation Services
Lenovo experts can seamlessly manage the physical installation of your server, storage, or
networking hardware. Working at a time convenient for you (business hours or off shift), the
technician will unpack and inspect the systems on your site, install options, mount in a rack
cabinet, connect to power and network, check and update firmware to the latest levels, verify
operation, and dispose of the packaging, allowing your team to focus on other priorities. Your new
systems will be configured and ready for your software installation.
Regulatory compliance
Lenovo Storage D1212 and D1224 Drive Enclosures 15

Regulatory compliance
The D1212 and D1224 drive enclosures conform to the following regulations:
BSMI CNS 13438, Class A; CNS 14336 (Taiwan)
CCC GB 4943.1, GB 17625.1, GB 9254 Class A (China)
CE Mark (European Union)
CISPR 22, Class A
EAC (Russia)
EN55022, Class A
EN55024
FCC Part 15, Class A (United States)
ICES-003/NMB-03, Class A (Canada)
IEC/EN60950-1
KC Mark (Korea)
NOM-019 (Mexico)
Reduction of Hazardous Substances (ROHS)
UL/CSA IEC 60950-1
VCCI, Class A (Japan)
RAID controllers and HBAs
The D1212 and D1224 expansion enclosures are supported with the RAID adapters and HBAs that are
listed in the following table.
Table 10. RAID controllers and HBAs
Description Part number
Maximum
quantity of
enclosures
per adapter
System x adapters
ServeRAID M5225-2GB SAS/SATA Controller 00AE938 8
N2225 SAS/SATA HBA 00AE912 8
N2226 SAS/SATA HBA 00AE916 8
ThinkServer adapters
ThinkServer 9300-8e PCIe 12Gb 8-port External SAS Adapter by LSI 4XB0F28703 8
ThinkServer 8885e PCIe 12Gb 8-port External SAS Adapter by PMC 4XB0G88727 8
Lenovo Storage D1212 and D1224 Drive Enclosures 16

The following table summarizes features of supported adapters.
Table 11. HBA features and specifications summary
Feature M5225-2GB N2225 N2226 9300-8e 8885e
Part number 00AE938 00AE912 00AE916 4XB0F28703 4XB0G88727
Form factor Low profile Low profile Low profile Low profile Low profile
Controller chip LSI SAS3108 LSI SAS3008 LSI SAS3008 LSI SAS3008 PMC PM8063
Host interface PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Port interface 12 Gbps SAS 12 Gbps SAS 12 Gbps SAS 12 Gbps SAS 12 Gbps SAS
Number of ports 8 8 16 8 8
External connectors 2x Mini-SAS HD
(SFF-8644)
2x Mini-SAS HD
(SFF-8644)
4x Mini-SAS HD
(SFF-8644)
2x Mini-SAS HD
(SFF-8644)
2x Mini-SAS HD
(SFF-8644)
Drive interface SAS, SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA
Drive type HDD, SED, SSD HDD, SSD HDD, SSD HDD, SSD HDD, SSD
Max number of devices 240 1024 1024 1024 256
RAID levels 0/1/10/5/50;
Optional 6/60
(PN 47C8706)
None None None None
JBOD mode None Yes Yes Yes Yes
Cache 2 GB (included) None None None 1 GB
Cache protection Flash backup None None None None
Servers
The D1212 and D1224 expansion enclosures are supported with the following Lenovo servers:
System x3250 M5 Type 5458
System x3550 M5 Type 5463
System x3550 M5 Type 8869
System x3650 M5 Type 5462
System x3650 M5 Type 8871
System x3750 M4 Type 8753
System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
ThinkServer RD350 (E5-2600 v3 and E5-2600 v4)
ThinkServer RD450 (E5-2600 v3 and E5-2600 v4)
ThinkServer RD550 (E5-2600 v3 and E5-2600 v4)
ThinkServer RD650 (E5-2600 v3 and E5-2600 v4)
For RAID adapters and HBAs support details for a particular server, refer to a Lenovo Press product guide
for the server, found at: http://lenovopress.com
Operating systems
Lenovo Storage D1212 and D1224 Drive Enclosures 17

Operating systems
The D1212 and D1224 expansion enclosures support the following operating systems that are supported
by RAID adapters and HBAs that are listed in Table 9:
Microsoft:
Microsoft Windows Server 2012 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2008 R2 SP1
Red Hat:
Red Hat Enterprise Linux 7.2
Red Hat Enterprise Linux 7.1
Red Hat Enterprise Linux 6.8 Server x64 Edition
Red Hat Enterprise Linux 6.7 Server x64 Edition
SUSE:
SUSE Linux Enterprise Server 12 SP1
SUSE Linux Enterprise Server 12
SUSE Linux Enterprise Server 11 SP4 for AMD64/EM64T
VMware:
VMware vSphere 6.0 (ESXi) Update 1
VMware vSphere 6.0 (ESXi)
VMware vSphere 5.5 (ESXi) Update 3
For information about operating compatibility with System x and ThinkServer systems, refer to the
Operating System Interoperability Guide: http://lenovopress.com/osig
Rack cabinets
The following table lists the rack cabinets that are offered by Lenovo that can be used in D1212 and
D1224 storage expansion solutions.
Table 12. Rack cabinets
Description Part number
25U S2 Standard Rack 93072RX
25U Static S2 Standard Rack 93072PX
42U S2 Standard Rack 93074RX
42U 1100mm Enterprise V2 Dynamic Rack 93634PX
42U 1100mm Enterprise V2 Dynamic Expansion Rack 93634EX
42U 1200mm Deep Dynamic Rack 93604PX
42U 1200mm Deep Static Rack 93614PX
42U Enterprise Rack 93084PX
42U Enterprise Expansion Rack 93084EX
For more information, see the list of Product Guides in the Rack Cabinets category:
http://lenovopress.com/servers/options/racks
Lenovo Storage D1212 and D1224 Drive Enclosures 18

Power distribution units
The following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in
D1212 and D1224 storage expansion solutions.
Table 13. Power distribution units
Description
Part
number
0U Basic PDUs
0U 36 C13/6 C19 24A/200-240V 1 Phase PDU with NEMA L6-30P line cord 00YJ776
0U 36 C13/6 C19 32A/200-240V 1 Phase PDU with IEC60309 332P6 line cord 00YJ777
0U 21 C13/12 C19 32A/200-240V/346-415V 3 Phase PDU with IEC60309 532P6 line cord 00YJ778
0U 21 C13/12 C19 48A/200-240V 3 Phase PDU with IEC60309 460P9 line cord 00YJ779
Switched and Monitored PDUs
0U 20 C13/4 C19 Switched and Monitored 24A/200-240V/1Ph PDU w/ NEMA L6-30P line cord 00YJ781
0U 20 C13/4 C19 Switched and Monitored 32A/200-240V/1Ph PDU w/ IEC60309 332P6 line cord 00YJ780
0U 18 C13/6 C19 Switched / Monitored 32A/200-240V/346-415V/3Ph PDU w/ IEC60309 532P6 cord 00YJ782
0U 12 C13/12 C19 Switched and Monitored 48A/200-240V/3Ph PDU w/ IEC60309 460P9 line cord 00YJ783
1U 9 C19/3 C13 Switched and Monitored DPI PDU (without line cord) 46M4002
1U 9 C19/3 C13 Switched and Monitored 60A 3Ph PDU with IEC 309 3P+Gnd cord 46M4003
1U 12 C13 Switched and Monitored DPI PDU (without line cord) 46M4004
1U 12 C13 Switched and Monitored 60A 3 Phase PDU with IEC 309 3P+Gnd line cord 46M4005
Ultra Density Enterprise PDUs (9x IEC 320 C13 + 3x IEC 320 C19 outlets)
Ultra Density Enterprise C19/C13 PDU Module (without line cord) 71762NX
Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph with IEC 309 3P+Gnd line cord 71763NU
C13 Enterprise PDUs (12x IEC 320 C13 outlets)
DPI C13 Enterprise PDU+ (without line cord) 39M2816
DPI Single Phase C13 Enterprise PDU (without line cord) 39Y8941
C19 Enterprise PDUs (6x IEC 320 C19 outlets)
DPI Single Phase C19 Enterprise PDU (without line cord) 39Y8948
DPI 60A 3 Phase C19 Enterprise PDU with IEC 309 3P+G (208 V) fixed line cord 39Y8923
Front-end PDUs (3x IEC 320 C19 outlets)
DPI 30amp/125V Front-end PDU with NEMA L5-30P line cord 39Y8938
DPI 30amp/250V Front-end PDU with NEMA L6-30P line cord 39Y8939
DPI 32amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8934
DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8940
DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8935
Universal PDUs (7x IEC 320 C13 outlets)
DPI Universal 7 C13 PDU (with 2 m IEC 320-C19 to C20 rack power cord) 00YE443
NEMA PDUs (6x NEMA 5-15R outlets)
DPI 100-127V PDU with fixed NEMA L5-15P line cord 39Y8905
Line cords for PDUs that ship without a line cord
DPI 30a Line Cord (NEMA L6-30P) 40K9614
DPI 32a Line Cord (IEC 309 P+N+G) 40K9612
Lenovo Storage D1212 and D1224 Drive Enclosures 19

DPI 32a Line Cord (IEC 309 3P+N+G) 40K9611
DPI 60a Cord (IEC 309 2P+G) 40K9615
DPI 63a Cord (IEC 309 P+N+G) 40K9613
DPI Australian/NZ 3112 Line Cord (32A) 40K9617
DPI Korean 8305 Line Cord (30A) 40K9618
Description
Part
number
For more information, see the list of Product Guides in the PDU category:
http://lenovopress.com/servers/options/pdu
Uninterruptible power supply units
The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo that can
be used in D1212 and D1224 storage expansion solutions.
Table 14. Uninterruptible power supply units
Description Part number
RT1.5kVA 2U Rack or Tower UPS (100-125VAC) 55941AX
RT1.5kVA 2U Rack or Tower UPS (200-240VAC) 55941KX
RT2.2kVA 2U Rack or Tower UPS (100-125VAC) 55942AX
RT2.2kVA 2U Rack or Tower UPS (200-240VAC) 55942KX
RT3kVA 2U Rack or Tower UPS (100-125VAC) 55943AX
RT3kVA 2U Rack or Tower UPS (200-240VAC) 55943KX
RT5kVA 3U Rack or Tower UPS (200-240VAC) 55945KX
RT6kVA 3U Rack or Tower UPS (200-240VAC) 55946KX
RT8kVA 6U Rack or Tower UPS (200-240VAC) 55948KX
RT11kVA 6U Rack or Tower UPS (200-240VAC) 55949KX
RT8kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) 55948PX
RT11kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) 55949PX
For more information, see the list of Product Guides in the Uninterruptible Power Supply Units category:
http://lenovopress.com/servers/options/ups
Lenovo Financial Services
Lenovo Storage D1212 and D1224 Drive Enclosures 20
