Lenovo px2-300d User manual

px2-300d Network Storage
with LifeLine 4.1
User Guide

© 2014 LenovoEMC, Ltd. All rights reserved.
Lenovo and the Lenovo logo are registered trademarks of Lenovo in the United States, other countries, or
both. The EMC logo is a registered trademark of EMC Corporation in the United States and/or other
countries. LenovoEMC and LifeLine are registered trademarks or trademarks of LenovoEMC, Ltd. in the
United States, other countries, or both. Windows is a trademark of the Microsoft group of companies. Mac
is a trademark of Apple Inc., registered in the United States and other countries. Linux® is the registered
trademark of Linus Torvalds in the U.S. and other countries. Certain other product names, brand names,
and company names may be trademarks or designations of their respective owners.

CONTENTS
Setting up Your px2-300d Network Storage 1
Setup Overview 2
About the px2-300d Device Components 3
Front Panel 3

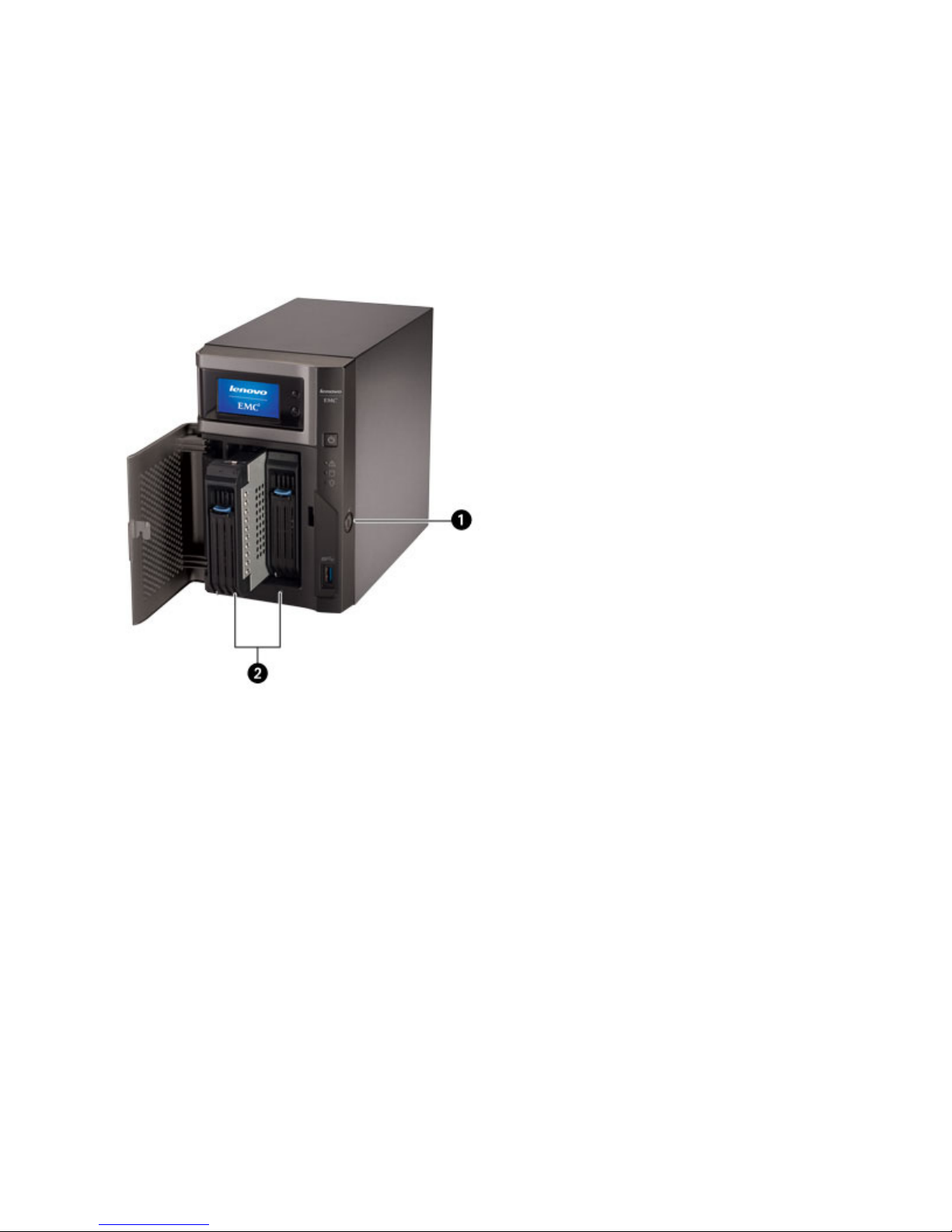

Drive Bay Access 4

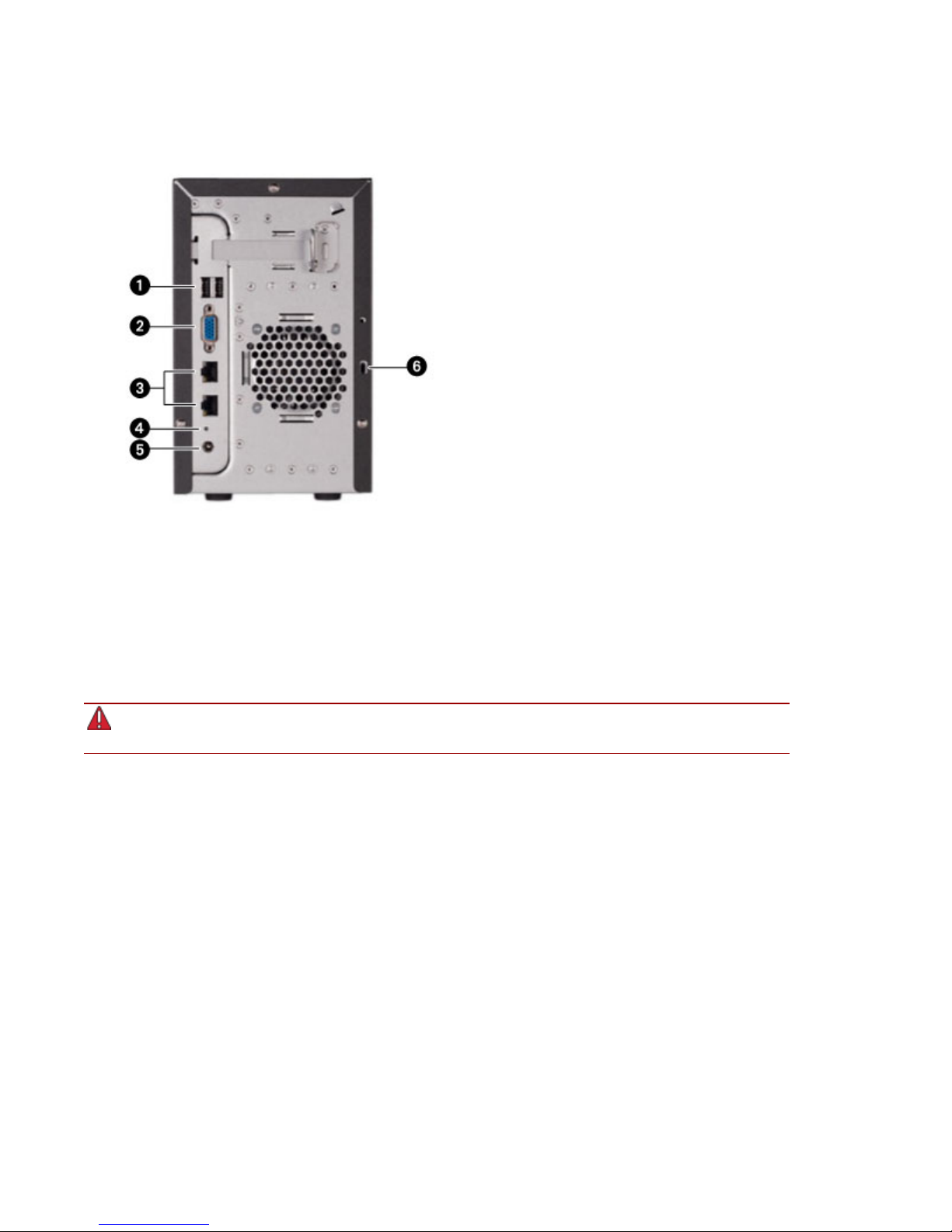

Rear Panel 5
Default Settings 5
Connecting the px2-300d Network Storage to Your Network 6
Check Package Contents 6
Connecting the px2-300d 6
Safety Information 8
Accessing Your Device If It's Not Discovered 9
Direct Access Using the Device IP Address or Model Name 9
Discovery Using LenovoEMC Storage Manager 9
Discovering the px2-300d Using Your Computer OS 9
Setting Up Favorite Features 11
Setting Up Additional Features 12
Device Setup 13
Device Configuration Options 15
Network Settings 16
Manually Configuring Network Settings 17
Bonding NICs 18
VLAN Settings 19
Naming Your px2-300d Network Storage 20
Configuring Your px2-300d Network Storage to Use Active Directory 21
Enabling Active Directory Trusted Domains 22
Customizing Access to Features on Your px2-300d Network Storage 23
Enabling the Display of Features 23
Enabling Access Permissions to Features 23
Non-Administrator User Log In 24
Obtaining Alerts About Your px2-300d Network Storage 25
Tracing Events on Your px2-300d Network Storage 26
Downloading the complete event log file 26
iii

Obtaining System Status for Your px2-300d Network Storage 27
Space Usage 27
Control Panel 27
Device Information 27
Using Your px2-300d Network Storage in Various Time Zones 29
Setting the Display Language for Your px2-300d Network Storage 30
Printing Documents 31
Securing Your px2-300d Network Storage and Contents 32
How Do I Secure My px2-300d Network Storage? 33
Security Settings 34
Users and Groups 35
Users and Groups Overview 36
Users 36
Groups 36
How Access Rights Are Granted Using Groups in Workgroup Mode 36
Adding Users 37
Managing Users 38
Changing User Information 38
Changing User Access Permissions 39
Setting Quotas 39
Deleting Users 39
Adding Groups 40
Managing Groups 41
Removing a User from the Group 41
Changing Group Access Permissions 41
Deleting Groups 42
Using Active Directory Domain 43
Active Directory Users and Groups Overview 44
Managing Active Directory Users and Groups 45
Importing Users and Groups from Active Directory 45
Synchronizing with the Active Directory Controller 45
Changing Access Permissions 46
Setting Quotas 46
Deleting an Active Directory User or Group 46
iv

Managing Your px2-300d Network Storage with Local and Active Directory Users 47
Enabling Active Directory after Creating Users in Workgroup Mode 47
Logging in to Your px2-300d 47
Creating Local Users and Groups in Active Directory Mode 47
Creating Share Permissions for AD Users and Local Users 48
Switching to Workgroup Mode from Active Directory 48
Sharing Files 49
Sharing Overview 50
Interfaces for Sharing 50
Shares 51
What are Shares and How Do I Organize Content with Them? 51
Adding Shares 52
Managing Shares 53
Deleting Shares 55
Using Protocols to Share Files 56
What Are Protocols and How Do I Use Them to Share Files? 56
AFP File Sharing for Macs 56
Bluetooth File Sharing 56
FTP File Sharing 57
TFTP 57
NFS File Sharing 57
rsync: Synchronizing Files with Another Storage Device or Other Computers 58
Monitoring Your Device with an SNMP Management Tool 59
Managing File Sharing with Web Access (http/https) 60
WebDAV: Managing Files Using HTTP or HTTPS 60
Windows DFS: Creating a Distributed Windows File System 60
Windows File Sharing 61
Sharing Content through the Home Page 62
Sharing Your Content with the World 62
Adding a Custom Home Page 62
Automatically Sending Content to Multiple People at Once 64
How to Set Up an Email Distribution Active Folder 64
Sharing Content Using Social Media: Overview 65
Managing Your Content 66
Transferring Content to and from Your px2-300d Network Storage with Copy Jobs 67
Copy Jobs Limitations 67
v

Getting Content from a USB External Storage Device 68
Safely removing external storage 68
One-touch Transferring of Content from a USB Device 69
Setting QuikTransfer 69
Drive Management 70
Managing Drives 71
Write Caching 71
Global Drive Management Settings 71
Storage Pool Information 72
Drive Status 72
Adding New Drives to Your px2-300d Network Storage 73
Storage Pool Management 75
Understanding How Your Content Is Stored 76
Storage Pools 76
Volumes 76
Adding and Managing Storage Pools 77
Adding a Data Storage Pool 77
Improving Performance with a Cache Storage Pool 78
Creating a Cache Storage Pool 78
Assigning a Cache Pool to a Volume 79
Volumes 80
Snapshots 80
Exposing/Unexposing the Snapshot 81
Restoring a Snapshot 81
Deleting a Snapshot 81
Displaying Shares in the Snapshot 81
Make the Snapshot Read-only 81
Changing Expose Mode 81
Adding and Managing Volumes 82
Deleting a Storage Pool 84
Changing RAID Protection Types 85
iSCSI: Creating IP-Based Storage Area Networks (SAN) 86
iSCSI Overview 87
Adding iSCSI Drives 88
vi

Enabling iSCSI Drives 88
Connecting to iSCSI Drives 88
Managing iSCSI Drives 89
Adding CHAP User Access to an iSCSI Drive 89
Deleting iSCSI Drives 90
Backing up and Restoring Your Content 91
Backup and Restore Overview 92
Backup of Data through RAID Protection 92
Backing up to and Restoring from Your px2-300d Network Storage 93
Backing up Macs with Time Machine 93
One-touch Transferring of Content from a USB Device 93
Copy Jobs Overview 94
Backing up Your px2-300d Network Storage 95
Copy Jobs 95
From: Settings 96
To: Settings 97
Setting a Schedule 97
Registering with Avamar for Backup and Restore 99
Backing up with Amazon S3 100
Restoring Files with Amazon S3 100
Backing up with LenovoEMC Personal Cloud 101
Restoring Files with Personal Cloud 101
Personal Cloud: Accessing Your LenovoEMC Personal Cloud From Anywhere in the
World 102
What Is LenovoEMC Personal Cloud ? 103
LenovoEMC Personal Cloud Key Terms 103
Is My Content Secure? 104
Creating a LenovoEMC Personal Cloud 105
Configuring Router Port Forwarding for Personal Cloud 106
Router Port Forwarding 106
Configuring Your LenovoEMC Personal Cloud 107
Enabling Internet Access to the px2-300d 107
Changing Personal Cloud Settings 107
Inviting People onto Your LenovoEMC Personal Cloud 108
Joining a Trusted Device to LenovoEMC Personal Cloud 109
vii

Managing Trusted Devices on a Personal Cloud 110
Disconnecting Trusted Devices 110
Deleting Trusted Devices 110
Using Copy Jobs with a LenovoEMC Personal Cloud 111
Disabling or Deleting Your LenovoEMC Personal Cloud 112
Accessing Content Using Your LenovoEMC Personal Cloud 113
Informing Users What to Do with LenovoEMC Personal Cloud 114
Sharing Content Using Social Media 115
Sharing Content Using Social Media: Overview 116
Facebook 117
Flickr 118
YouTube 119
Share Content through LenovoEMC Personal Cloud 120
Media Management 121
Media Management Overview 122
Scanning for Media Content 122
Media Services Capabilities and Limitations 123
Sharing Media Content over the Internet 124
Enabling Internet Access from the Media Server Page 124
Media Aggregation 125
Enabling Media Aggregation 125
Social Media Sharing 126
Streaming Music, Movies, and Pictures 127
Example: Setting up iTunes 127
Example: Setting up Xbox 360 127
Photos 128
Photos Overview 128
Streaming Pictures 128
Creating a Slideshow on the Device Home Page 128
Automatically Resizing Your Photos 128
Getting Pictures from Your Camera 129
Music 130
Music Overview 130
Streaming Music 130
Videos 131
viii

Video Capabilities Overview 131
Streaming Movies 131
Adding Applications to Your px2-300d Network Storage 132
Application Overview 133
Application Installation 134
Application Manager 135
Starting or stopping an application 135
Adding applications 135
Removing applications 135
Software Updates 136
Auto-update process: installing a device software update 136
Manual update process: installing a device software update 136
Backing up and Recovering Your px2-300d Network Storage Settings 138
Backing Up Your px2-300d Network Storage Settings 139
Backing up Device Configuration 139
Restoring a Configuration Backup 139
Hardware Management 140
Energy Saving 141
Power Down Drives 141
Brightness 141
Wake On LAN 141
Creating a Power Schedule 141
Factory Reset 142
UPS Management 143
Troubleshooting Routers 144
Enabling the DMZ 144
Configuring Port Forwarding on Double NAT Networks 145
Bridging the Secondary Router 145
Bridging the Primary Router 145
Additional Support 147
How to Get Help 148
Support 149
ix

Legal 150
Open Source 151
Warranty Information 152
Limited Warranty Notice 152
Limited Warranty for Iomega Products 152
Regulatory Information 153
Federal Communications Commission (FCC) Statement 153
Canadian Verification 153
European Union - Compliance to the Electromagnetic Compatibility Directive 154
Important WEEE Information 154
European Union RoHS 154
India RoHS 154
California Perchlorate Information 155
Polyvinyl Chloride (PVC) Cable and Cord Notice 155
Recycling and environmental information 155
Export classification notice 155
Copyright and Trademark Information 156
x

Setting up Your px2-300d
Network Storage
Setting up Your px2-300d Network Storage 1
CHAPTER 1

Setup Overview
It's easy to set up your px2-300d Network Storage:
●Remove it from the box, connect it to your network switch or hub, and then power it up.
●Launch a web browser and either enter the Setup URL, http://setup.lenovoemc.com, or use the
device IP address or model name to access the device directly.
● Device Setup launches automatically the first time you access your device and guides you
through selecting the configuration options that best meet your needs.
Refer to the following sections for information on the device components and connection instructions.
About the px2-300d Components
Connecting the px2-300d to Your Network
Safety Information
Accessing Your Device If It Is Not Discovered
By default, the px2-300d will attempt to acquire an IP address from DHCP, If there is not a DHCP
server available on the network, the px2-300d will use an IP address in the self-assigned APIPA
range (169.254.x.x).
Setting up Your px2-300d Network Storage
2 Setup Overview

About the px2-300d Device Components
Front Panel
Status Indicators, Buttons and Ports
1. LCD display — Scroll through the display screen to view the device name, free disk space, IP address,
and date and time. You can initiate a QuikTransfer Copy Job from the LCD and view or dismiss any errors
or warnings on the px2-300d without having to turn on your computer.
2. Display control buttons — Press to scroll the display screen; select options and functions shown on
the display.
3. Power button — Press and release to power the px2-300d on or off. CAUTION! Holding the power
button for 4 seconds will result in a forced shutdown and could cause data loss if data transfers are in
process.
Holding the power button for 4 seconds will result in a forced shutdown and could cause data loss
if data transfers are in process.
4. Status indicators — Displays the current operational status of the px2-300d.
●System Status: Off when the system is functioning normally. Flashes blue during RAID
rebuild. Flashes red if there is a system or drive error. Use the LCD display or the device
console to view details.
●Disk Activity: Flashes blue during disk activity. Flashes red if there is a drive error or degraded
drive mode. Off if all drives are removed.
Setting up Your px2-300d Network Storage
About the px2-300d Device Components 3

●Power: Flashes white during system startup. Glows solid white when the px2-300d is powered
up and ready.
5. Key lock (front panel side) — Use to secure access to the drive bays.
6. USB 3.0 connector — Supports devices such as USB storage devices and printers.
Drive Bay Access
1. Key lock — Use key to open the front panel to access the drive bays.
2. Drive bays — The px2-300d has two user-serviceable drive bays. Pull out a drive tray to install or
replace a hard disk drive.
Refer to the list of qualified hard disks on the LenovoEMC support site at www.iomega.com/support before
adding new drives. Add one drive at a time to ensure correct recognition on the device.
Setting up Your px2-300d Network Storage
4 About the px2-300d Device Components

Rear Panel
1. USB 2.0 connectors — Supports devices such as USB storage devices and printers.
2. VGA output connector — Connect a monitor for video surveillance applications.
3. Gigabit Ethernet Ports — High-speed Ethernet connectors that will automatically detect your network
speed (10/100/1000Base-T).
4. Reset Button — Hold the Reset button for four seconds to reset security and network settings. This
allows you to regain access if network settings are incorrect or you’ve forgotten your password.
The reset button does not initiate a full factory reset. To perform a full factory reset, select Factory
Reset from the System page in the px2-300d Management Console.
5. Power Connector — Plug the power cable into this connector.
6. Security Lock — Connect security cable to protect your px2-300d from theft.
Default Settings
●IP Address — If no DHCP server is found on your network the px2-300d will get a self-assigned
IP address in the 169.254.x.x range.
●Device Name — The default name for your px2-300d Network Storage is px2-300d. If there is
more than one px2-300d on your network, a number is added to the name, such as px2-300d-1
px2-300d-2, and so on.
●Default Shares — Device setup will create default Shares on your px2-300d. The specific default
Shares will vary depending on the options you select during device setup. You can create
additional Shares as desired.
Setting up Your px2-300d Network Storage
About the px2-300d Device Components 5

Connecting the px2-300d Network Storage to Your
Network
Check Package Contents
Verify that the box contains the following items:
1. px2-300d (models may vary)
2. Power Adapter and Cord
3. Quick Start Guide
4. Ethernet Cable
Package contents may vary.
Connecting the px2-300d
If you have purchased more than one px2-300d, complete all steps on one device before setting up
additional devices.
1. Make sure at least one hard drive is installed in the px2-300d. Refer to
http://support.lenovoemc.com for a list of drives approved for use with the px2-300d.
2. Use the included network cable to connect the px2-300d to your network router, switch, or hub.
3. Use the included power adapter and cord to plug the px2-300d into a surge-protected power
source.
Setting up Your px2-300d Network Storage
6 Connecting the px2-300d Network Storage to Your Network

4. Your px2-300d should power on automatically.
5. To set up your px2-300d, open a web browser and go to http://setup.lenovoemc.com, or enter the
device IP address or the model name "px2-300d" in your computer's web browser. Device Setup
will launch automatically the first time you access your px2-300d and guide you through
configuring basic setup options.
On a Mac use "local.px2-300d" to access Device Setup using the model name. For best results,
use a computer that is connected to the same subnet or network segment as the px2-300d. If
Device Setup doesn't launch, see Accessing Your Device If It's Not Discovered.
6. OPTIONAL: if desired, install the LenovoEMC Storage Manager and Twonky Media Server
software.
LenovoEMC Storage Manager will automatically scan your network and connect to available
Shares on the px2-300d.
Installing the Twonky Media Server software enables you to manage media aggregation on your
client computer.
Mac Users: When you install LenovoEMC Storage Manager, its icon will appear on the Menu
Bar. Shares on the px2-300d will mount and appear on the Mac Desktop.
NOTE: If the px2-300d Shares do not appear on the Mac Desktop, open Finder Preferences and
check Connected Servers under "Show these items...". You can also find the Shares listed
under Shared when you open a Finder window.
PC Users: When you install LenovoEMC Storage Manager, its icon will appear in the System
Tray. Shares on the px2-300d will automatically be assigned a drive letter and will be available in
the Network section in Windows Explorer or under Computer Network Locations.
If you receive a message from your operating system's firewall alerting you of network activity
while installing the software, be sure to unblock communications.
If you do not install the LenovoEMC Storage Manager, see Discovering the px2-300d Using Your
Computer OS for information on how to manually connect Shares on the device.
Setting up Your px2-300d Network Storage
Connecting the px2-300d Network Storage to Your Network 7

Safety Information
Observe the following guidelines when using your px2-300d Network Storage:
●Follow all instructions marked on the px2-300d and in the documentation.
●Use only the power supply provided with the px2-300d.
●Unplug the px2-300d before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for
cleaning.
●Do not use the px2-300d near water. Do not spill liquid on or into the px2-300d.
●Do not place the px2-300d on an unstable surface.
●Do not place the px2-300d near or on a radiator or heat register.
●Openings in the px2-300d are provided for fans and air ventilation and should not be blocked or
covered. Make sure the px2-300d has ample ventilation (at least 6 inches or 127 mm) in front and
behind the unit.
●Do not walk on the power cord or allow anything to rest on it.
●There is a danger of explosion if the coin cell lithium battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the equipment manufacturer. Dispose of used
batteries according to local, state, regional, and federal regulations.
Under any of the following conditions, unplug the px2-300d from the wall outlet and contact technical
support:
●The power cord or plug is damaged.
●Liquid has been spilled into the device.
●The device does not function properly when the operating instructions are followed.
●The device was dropped or the exterior enclosure is damaged.
Setting up Your px2-300d Network Storage
8 Safety Information

Accessing Your Device If It's Not Discovered
If your px2-300d is not discovered when you enter the Setup URL, you can use one of the following options
to access it. Device Setup will launch automatically the first time you access your device.
Direct Access Using the Device IP Address or Model Name
You can access the device management interface directly using your computer's web browser by entering
either the device IP address or the model name in the URL bar.
●The LCD screen on your px2-300d will show the IP address.
●The default name for your px2-300d Network Storage is px2-300d. If there is more than one px2-
300d on your network, a number is added to the name, such as px2-300d-1 px2-300d-2, and so on.
Discovery Using LenovoEMC Storage Manager
You can install LenovoEMC Storage Manager from the LenovoEMC web support site. Select your px2-
300d from the LenovoEMC products on the support home page, and then look for LenovoEMC Storage
Manager under Downloads and Updates.
Installing LenovoEMC Storage Manager on your client computer helps you discover the px2-300d on your
network. It also makes it allows multiple computers on your network to interact with the px2-300d.
Discovering the px2-300d Using Your Computer OS
You can access the management interface for your px2-300d using your client computer's operating
system as described by these methods for Windows PCs or Macs.
Windows 8:
1. Click File Explorer on the task bar.
2. You should see your px2-300d listed under Other Devices.
3. Right-click on the icon for your px2-300d and select View device webpage to launch the web-
based device management interface.
4. You can also select Properties from the right-click menu to see the device webpage URL. Click
the URL to launch the device management interface.
The webpage URL shows the IP address assigned to your px2-300d.
Windows 7 and Vista:
1. Click Start > Computer > Network.
2. You should see your px2-300d listed under Other Devices.
3. Double-click the device icon to access the px2-300d device management console.
Setting up Your px2-300d Network Storage
Accessing Your Device If It's Not Discovered 9

Windows XP:
1. If you have not enabled UPnP Discovery, click Start > Help and Support.
2. In the Help and Support browser, search for UPnP and follow the steps from “Install the UPnP
framework”.
3. After UPnP is enabled, open Windows Explorer and in the Folders view, expand My Network
Places.
4. You should see your px2-300d listed.
5. Double-click the device icon to access the px2-300d device management console.
Mac:
1. Open a new Finder window.
2. Select All... under Shared on the left side of the Finder window,
3. Double-click your px2-300d to login to the device management console.
After you complete setup for your px2-300d, you can connect to device Shares by selecting
Go > Connect to Server and entering either afp://<device IP address> or smb://<device
IP address>. You can find the IP address for your px2-300d using the LCD screen.
Setting up Your px2-300d Network Storage
10 Accessing Your Device If It's Not Discovered
