ThinkSystem Micro DataCenter 6U Acoustic
1200mm Deep Rack Cabinet
User Guide
Machine Type: D3A, D3M

First Edition (May 2020)
© Copyright Lenovo 2020.
LIMITED ND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services
dministration (GS ) contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No.
GS-35F-05925.

Contents
Safety . . . . . . . . . . . . . . . . . . iii
Safety statement . . . . . . . . . . . . . . . iv
Chapter 1. Introduction . . . . . . . . . 1
Chapter 2. Specifications . . . . . . . . 3
Supported servers. . . . . . . . . . . . . . . 3
Chapter 3. Parts Listing . . . . . . . . . 5
Chapter 4. Moving the rack cabinet. . . 7
Casters . . . . . . . . . . . . . . . . . . . 8
Crane lifter . . . . . . . . . . . . . . . . . 10
Chapter 5. Managing cables . . . . . 15
Grounding cable . . . . . . . . . . . . . . 15
Chapter 6. Installing optional kits . . . 19
Installing the rail kits . . . . . . . . . . . . . 19
Install the rail kit and SE350 E1 Enclosure
(1U2N) . . . . . . . . . . . . . . . . 19
Install the rail kit and SR250 . . . . . . . . 25
Install the rail kit and SR6 0 . . . . . . . . 30
Install the DPI universal rack power distribution
unit. . . . . . . . . . . . . . . . . . . . 3
Installing switches . . . . . . . . . . . . . . 39
Installing uninterruptible power systems (UPS). . . 40
Chapter 7. Hardware removal,
installation and conversion . . . . . . 41
Removing and installing the side panels . . . . . 41
Remove the side panels . . . . . . . . . . 41
Install the side panels. . . . . . . . . . . 41
Removing, installing and reversing the doors . . . 42
Remove the door . . . . . . . . . . . . 42
Install the door . . . . . . . . . . . . . 44
Reverse the door . . . . . . . . . . . . 46
ppendix . Getting help and
technical assistance . . . . . . . . . . 53
Before you call . . . . . . . . . . . . . . . 53
Contacting Support . . . . . . . . . . . . . 54
ppendix B. Notices. . . . . . . . . . 55
Trademarks . . . . . . . . . . . . . . . . 56
Index . . . . . . . . . . . . . . . . . . 57
© Copyright Lenovo 2020 i

ii ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet User Guide

Safety
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.
Avant d'installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.
Antes de instalar este produto, leia as Informações sobre Segurança.
© Copyright Lenovo 2020 iii

Antes de instalar este producto, lea la información de seguridad.
Läs säkerhetsinformationen innan du installerar den här produkten.
Safety statement
Read this section carefully before operating any task on the cabinet.
R001
C UTION:
To ensure safety, all configurations of the rack cabinet must be certified by a nationally recognized
testing laboratory to verify compliance with country-specific safety regulations. This process ensures
that the end product remains safe for the operator and service personnel under normal and
foreseeable misuse conditions.
R002
D NGER
• lways lower the leveling pads on the rack cabinet.
• lways install stabilizer brackets on the rack cabinet.
• lways install the heaviest devices in the bottom of the rack cabinet.
• lways install servers and optional devices starting from the bottom of the rack cabinet.
R003
iv ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet User Guide

D NGER
• Do not extend more than one sliding device at a time.
• The maximum allowable weight for a device on slide rails is 80 kg (176 lb). Do not install a sliding
device that exceeds this weight.
S029
D NGER
Electrical current from power, telephone, and communication cables is hazardous.
To avoid a shock hazard:
• Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration
of this product during an electrical storm.
• Connect all power cords to a properly wired and grounded power source.
• Connect to properly wired power sources any equipment that will be attached to this product.
• When possible, use one hand only to connect or disconnect signal cables.
• Never turn on any equipment when there is evidence of fire, water, or structural damage.
• Disconnect the attached ac power cords, dc power sources, network connections,
telecommunications systems, and serial cables before you open the device covers, unless you
are instructed otherwise in the installation and configuration procedures.
• Connect and disconnect cables as described in the following table when installing, moving, or
opening covers on this product or attached devices.
To Connect: To Disconnect:
1. Turn OFF all power sources and equipment that is to
be attached to this product.
2. Attach signal cables to the product.
3. Attach power cords to the product.
• For ac systems, use appliance inlets.
• For dc systems, ensure correct polarity of -48 V dc
connections: RTN is + and -48 V dc is -. Earth
ground should use a two-hole lug for safety.
4. Attach signal cables to other devices.
5. Connect power cords to their sources.
6. Turn ON all the power sources.
1. Turn OFF all power sources and equipment that is to
be attached to this product.
• For ac systems, remove all power cords from the
chassis power receptacles or interrupt power at
the ac power distribution unit.
• For dc systems, disconnect dc power sources at
the breaker panel or by turning off the power
source. Then, remove the dc cables.
2. Remove the signal cables from the connectors.
3. Remove all cables from the devices.
© Copyright Lenovo 2020 v

S036
18 - 32 kg (39 - 0 lb) 32 - 55 kg ( 0 - 121 lb) > 55 kg (121 lb)
C UTION:
Use safe practices when lifting.
R006
C UTION:
Do not place any object on top of a rack-mounted device unless that rack-mounted device is intended
for use as a shelf.
R007
D NGER
• Connect power cords from devices in the rack cabinet to electrical outlets that are near the rack
cabinet and are easily accessible.
• Each rack cabinet might have more than one power cord. Be sure to disconnect all power cords
in the rack cabinet before you service any device in the rack cabinet.
• Install an emergency-power-off switch if more than one power device (power distribution unit or
uninterruptible power supply) is installed in the same rack cabinet.
• Connect all devices that are installed in a rack cabinet to power devices that are installed in the
same rack cabinet. Do not connect a power cord from a device that is installed in one rack
cabinet to a power device that is installed in a different rack cabinet.
R009
C UTION:
vi ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet User Guide

Removing components from the upper positions in the Enterprise Rack cabinet improves rack
stability during relocation. Follow these general guidelines whenever you relocate a populated rack
cabinet within a room or building:
• Reduce the weight of the rack cabinet by removing equipment starting at the top of the rack
cabinet. When possible, restore the rack cabinet to the configuration of the rack cabinet as you
received it. If this configuration is not known, you must do the following:
– Remove all devices in the 32 U position and above.
– Make sure that the heaviest devices are installed in the bottom of the rack cabinet.
– Make sure that there are no empty U positions between devices installed in the rack cabinet
below the 32 U position.
• If the rack cabinet that you are relocating is part of a suite of rack cabinets, detach the rack cabinet
from the suite.
• Inspect the route that you plan to take, to eliminate potential hazards.
• Make sure that the route that you choose can support the weight of the loaded rack cabinet. See
the documentation that comes with your rack cabinet for the weight of a loaded rack cabinet.
• Make sure that all door openings are at least 760 x 2030 mm (30 x 80 in.)
• Make sure that all devices, shelves, drawers, doors, and cables are secure.
• Make sure that the four leveling pads are raised to their highest positions.
• Make sure that no stabilizer bracket is installed on the rack cabinet.
• Do not use a ramp that is inclined more than 10 degrees.
• When the rack cabinet is in the new location, do the following:
– Lower the four leveling pads.
– Install stabilizer brackets on the rack cabinet.
– If you removed any devices from the rack cabinet, repopulate the rack cabinet from the lowest
position to the highest position.
If a long-distance relocation is required, restore the rack cabinet to the configuration of the rack
cabinet as you received it. Pack the rack cabinet in the original packaging material, or equivalent.
lso, lower the leveling pads to raise the casters off the pallet and bolt the rack cabinet to the pallet.
© Copyright Lenovo 2020 vii

viii ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet User Guide

Chapter 1. Introduction
See this documentation to learn about specification details and installation instructions of ThinkSystem
Micro DataCenter 6U Acoustic Rack Cabinet.
ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet is a 6U cabinet designed for Micro
DataCenter servers.
Figure 1. ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Ca inet
The cabinet comes with a limited warranty. For details about the warranty, see:
https://support.lenovo.com/us/en/solutions/ht503310
For details about your specific warranty, see:
http://datacentersupport.lenovo.com/warrantylookup
© Copyright Lenovo 2020 1

2ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet User Guide

Chapter 2. Specifications
See this section for information about ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack
Cabinet.
Dimension and weight
Dimension • Length: 1490 mm (58.66 inch)
• Width:
– Without the wheeled tray: 345 mm (13.58 inch)
– With the wheeled tray: 512.5 mm (20.18 inch)
• Height: 68 mm (2 .05 inch)
Weight • Without the wheeled tray: 82 kg (180.8 lbs)
• With the wheeled tray: 92 kg (202.8 lbs)
Supported servers
See this section for information about the servers that are supported by the rack cabinet.
This rack cabinet supports the following servers:
• SR250: up to four units with Toolless Friction Rail v2
See https://thinksystem.lenovofiles.com/help/topic/ Y51/pdf_files.html for more information.
• SE350 E1 Enclosure (1U 2-node): up to four units of E1 enclosures with Toolless Friction Rail v2
See https://thinksystem.lenovofiles.com/help/topic/SE350/pdf_files.html for more information.
Note: This rack cabinet does not support SE350 E2 Enclosure (2U 2-node). See https://
thinksystem.lenovofiles.com/help/topic/SE350/server_specifications.html for details about SE350
configurations.
• SR6 0: up to two units with vertical mounting kit
© Copyright Lenovo 2020 3

4ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet User Guide

Chapter 3. Parts Listing
Figure 2. Rack ca inet components
Ta le 1. Rack ca inets components
1 Rack cabinet frame 5 Shipping bracket
2 Wheeled trays 6 Removable and reversible door
3 Removable side panel 7 Key
4 Hardware box (see “Hardware box” on page 5) 8 Removable side panel
Hardware box
Figure 3. Components in the hardware ox
© Copyright Lenovo 2020 5

Ta le 2. Components in the hardware ox
1 20 M6 screws 5 One socket wrench
2 16 flange nuts 6 One spud socket wrench
3 20 G-type cage nuts 7 15 cable ties
4 One combination wrench 8 Two bolt-down brackets
6ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet User Guide

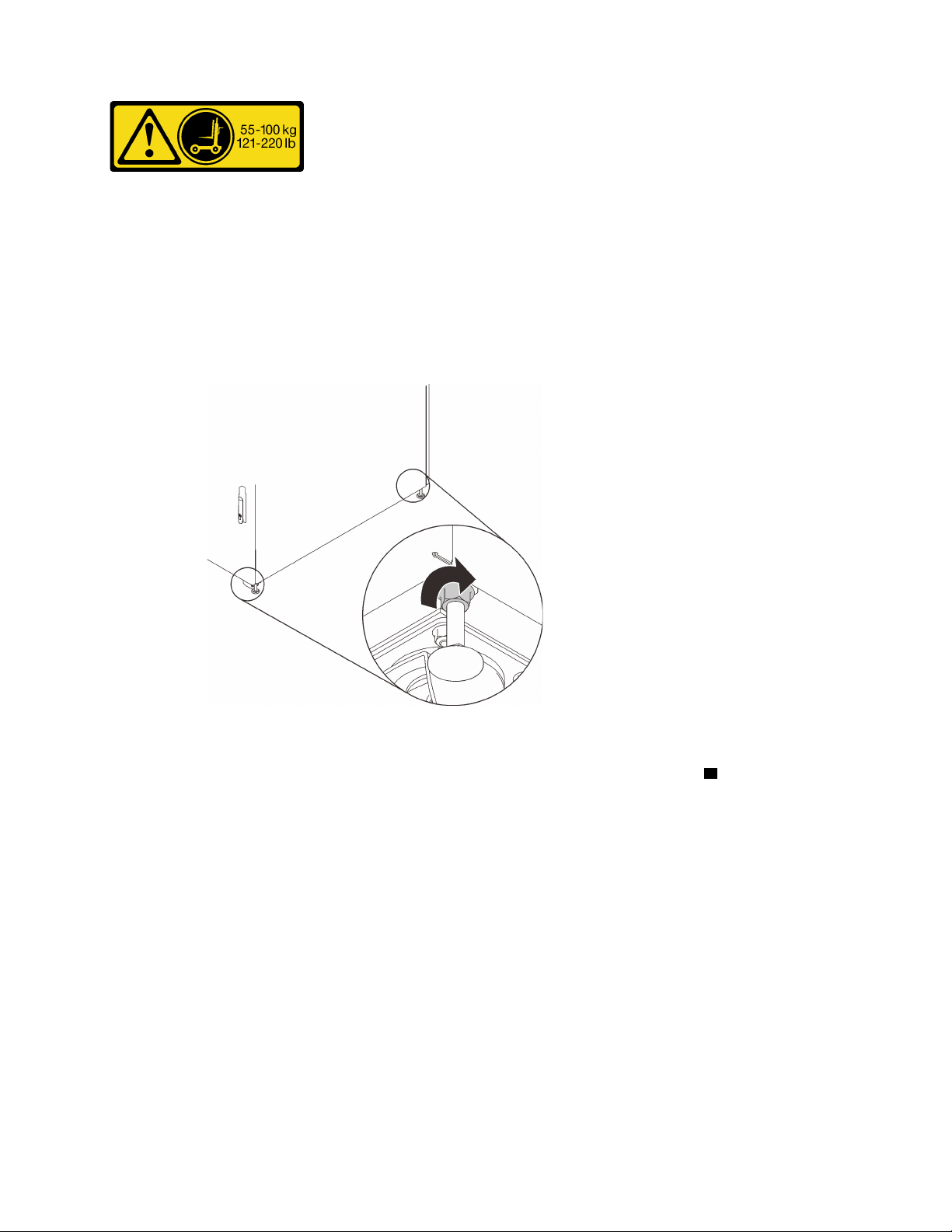

Chapter 4. Moving the rack cabinet
S037
C UTION:
The weight of this part or unit is more than 55 kg (121.2 lb). It takes specially trained persons, a lifting
device, or both to safely lift this part or unit.
ttention - Tip hazard.
Important:
• The task in this section requires more than two people.
• The cabinet could be easily tipped. Move it with extreme caution.
W RNING: Failure to follow these instructions could result in equipment damage, severe injuries, or
death.
Before moving the rack cabinet, complete the following steps:
1. Unlock and open both doors by pulling up the handle and turning it clockwise.
© Copyright Lenovo 2020 7

Figure 4. Opening the door
2. Remove the four shipping brackets that secure the cabinet to the pallet.
Figure 5. Removing shipping rackets
Two options are available when moving the cabinet:
Casters
S037
8ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet User Guide

C UTION:
The weight of this part or unit is more than 55 kg (121.2 lb). It takes specially trained persons, a lifting
device, or both to safely lift this part or unit.
Complete the following steps to move the cabinet to the designated site:
Step 1. Make sure the leveling feet are all up. If not, complete the following procedure on each of the
leveling feet.
a. Loosen the nut that fixes the leveling foot.
Figure 6. Loosening the nut
b. Insert the open end of the combination wrench in the hardware box (see 4 in “Hardware box”
on page 5) into the screw above the leveling foot, and turn it counterclockwise until it no longer
makes contact with the floor.
Note: Make sure to shorten the cabinet feet enough to allow the cabinet to slide on the ramp
without getting stuck.
Chapter 4.Moving the rack cabinet 9

Figure 7. Adjusting the rack ca inet feet
Step 2. Make sure the ramp board is lowered and balanced, and then push the cabinet from the rear until it
reaches the designated site.
Figure 8. Sliding the ca inet down from the pallet
Notes:
• Make sure that more than two people are handling the cabinet while sliding it down from the
ramp board.
• Do not stand in the path of the cabinet.
Crane lifter
10 ThinkSystem Micro DataCenter 6U Acoustic 1200mm Deep Rack Cabinet User Guide
