Lenovo ThinkCentre TIO22 Gen3 Touch User manual

ThinkCentre TIO22Gen3Touch
User Guide
Machine Types: 10R0

First Edition (May 2017)
© Copyright Lenovo 2017.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights
to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.
Product numbers
10R0-PAR1-WW

Contents ii
Contents
Safety information ............................................................. iii
General Safety guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Chapter 1. Getting started .......................................................1-1
Shipping contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Locating connectors and controls on your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Setting up your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Assembling your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Connecting cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Turning on your monitor and computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Chapter 2. Adjusting and using your monitor .........................................2-1
Adjusting the full-function monitor stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Camera Swivel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Installing the monitor driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Comfort and accessibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Arranging your work area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Positioning and viewing your monitor: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Quick tips for healthy work habits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Accessibility information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Adjusting your monitor image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Using the user controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Using the OSD controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Using the USB connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Using the Wake on touch Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Touch Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Selecting a supported display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Understanding power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
Caring for your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Chapter 3. Reference information ..................................................3-1
Disassembling your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Monitor specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Manual image setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Manually installing the monitor driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Installing the monitor driver in Windows 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Installing the monitor driver in Windows 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Getting further help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Service information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Product numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Getting further help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Service parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Appendix A. Service and Support ................................................. A-1
Registering your option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Online technical support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Telephone technical support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Appendix B. Notices ........................................................... B-1
Recycling information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Disposing of Lenovo computer components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Turkish statement of compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
Power cords and power adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

iii
Safety information
General Safety guidelines
For tips to help you use your computer safely, go to:
http://www.lenovo.com/safety
Before installing this product, read the Safety Information.
ííí

Chapter 1. 1-1
Chapter 1. Getting started
This User’s Guide provides detailed operation instructions for the user. For quick instruction
overview, please see the Setup Poster for brief information.
Shipping contents
The product package should include the following items:
• AC Power Adapter
• Flat Panel Monitor
• Information Flyer
• Monitor Stand
• Monitor Base
• Power Cord
• Reference and Driver CD

Chapter 1. 1-2
***Your monitor supports the following Tinys that can be installed in your monitor:
ThinkCentre M53, M83 √√
ThinkCentre M600, M700, M900 √√
ThinkCentre Chromebox X √
ThinkCentre M73, M93 √X
ThinkCentre M900x, M910x, M910,
M715
√√
ThinkCentre M715 √√
Before you install your Tiny into your monitor, ensure that the Tiny is listed above.
Install your computer into the TIO22Gen3Touch
2When using "ALT+P" to power on Tiny, please Connect a Lenovo keyboard the USB port
shown as above on the rear of computer
3Press ALT+P on the keyboard to power on the computer and TIO22Gen3Touch.
Note 1: ThinkCentre M53, M83, M600, M700, M900, M900x, M910x, M910, M715 Tiny may
also be powered on with the TIO22Gen3Touch power button. (See Figure 2)
Note 2: When connect many cables to ThinkCentre M910x w/Gxf, it is recommended to do
cable management or open lift door.
Note 3: Some ThinkCentre M93&M73 can't be powered on with the TIO22Gen3Touch, please
press ALT+P on the keyboard to power on computer.
(2)
1
1

Chapter 1. 1-3
Locating connectors and controls on your monitor
Front view
Rear view
1. Volume Down 2. Volume Up
3. Exit 4. Modes switchLeft shift button
5. Brightness control / Right shift button 6. Menu-opening buttonSelection button
7. Power button
1. Security-lock slot 2. AC power adapter connector
3. DisplayPort connector 4. USB 3.0 connector
1
7
2345 6 7
123
4

Chapter 1. 1-4
Setting up your monitor
This section provides information on how to set up your monitor.
• Assembling your monitor
• Connecting cables
• Turning on your monitor and computer
Note: Before setting up your monitor, ensure that you have read and understood the “Safety
information” on page iii.
Assembling your monitor
To assemble your monitor, follow the four parts below one by one:
Part 1: Install the full-function monitor stand.
Part 2: Install the Tiny.
Part 3: Install the rear Wi-Fi antenna (optional).
Part 4: Install the Kensington-style cable lock (optional).
Part 1: Install the full-function monitor stand.
Note: The full-function monitor stand includes one monitor stand and one stand base.
1. Place a soft, clean towel or cloth on the desk or surface. Hold the sides of your monitor
and gently lay it down so that the screen is against the surface and the cover is facing up.
2. Insert the three metal studs on the base into the corresponding holes in the stand. Then,
tighten the screw as shown to secure the stand.
3. Insert the two metal tabs on the stand into the corresponding holes on the rear of the
monitor. Then, pivot the stand downward until it clicks into position.
1
2

Chapter 1. 1-5
Part 2: Install the Tiny.
1. Press the decorative cover 1 as shown to remove it. Then, press the button 2 to open the
cable cover.
Note: Keep the decorative cover for future use.
2. With the Lenovo logo facing you, insert your Tiny into the computer bay until it rests on
the stoppers.
3. Press the computer from the front until it completely snaps into position.
Note: Make sure the Tiny is aligned with the back cover.
1
2

Chapter 1. 1-6
4. Tighten the screw to secure the Tiny.
Part 3: Install the rear Wi-Fi antenna (optional).
1. Pivot the cable cover as shown to the open position. Then, press the decorative cover 2
from the inner side of the cable cover to remove the decorative cover.
2. Screw the rear Wi-Fi antenna to the antenna connector on the rear of the computer. Then,
adjust the angle of the antenna to 90 degrees.
2
1
1
2

Chapter 1. 1-7
3. Pivot the cable cover as shown to the closed position.
Part 4: Install the Kensington-style cable lock (optional).
With the key of the Kensington-style cable lock, attach the lock to the security-lock slot on the
rear panel of your computer as shown. The lock secures your monitor to a desk, table, or other
non-permanent fixture. It also blockVthe Tiny so that the Tiny cannot be removed from the
monitor

Chapter 1. 1-8
Connecting cables
After assembling your monitor, you must connect cables correctly to use the monitor and
computer. Your monitor can be used with either the Tiny installed in the monitor or an external
desktop/laptop computer. To connect cables, do one of the following:
1. If you use the Tiny installed in the monitor, connect the ac power adapter cable and power
cord that comes with the monitor. First connect the ac power adapter cable to the ac power
adapter connector on the monitor.Then, connect one end of the power cord to the ac power
adapter and the other end to a properly-grounded electrical outlet.
Note: When usLQJ ThinkCentre M900x, M910x, M910 or M715 it is recommended to
match 135W adapter which bundled with Tiny for better experience.
2. Use a DisplayPort cable of this type as shown. Connect one end of the DisplayPort cable
to the DisplayPort connector on the monitor and the other end to a DisplayPort connector
on the computer. To locate the DisplayPort connector on the monitor, see "Locating
connectors and controls on your monitor"on page 1-3.

Chapter 1. 1-9

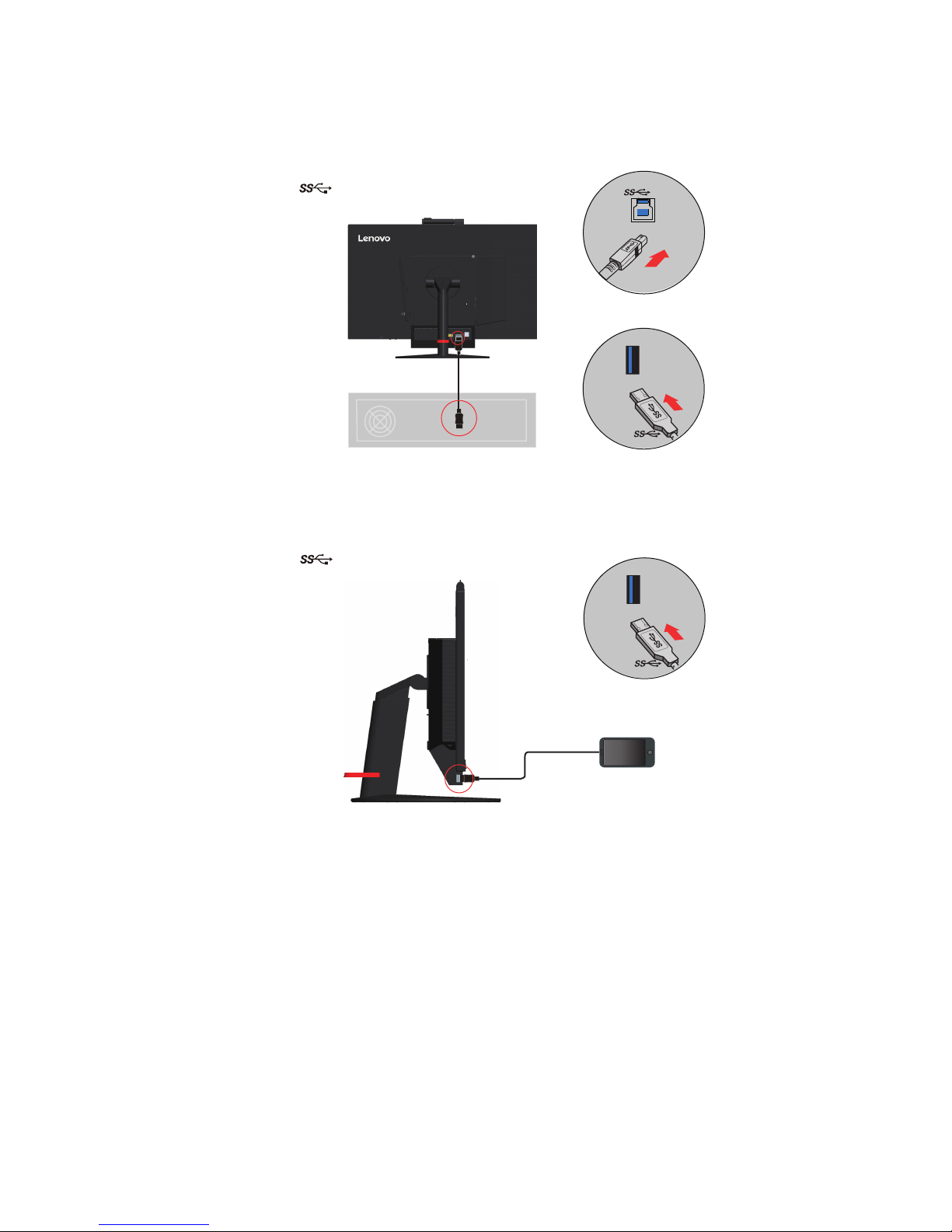

3. Use a type B-to-type A USB cable as shown. Connect type B connector of this cable to the
USB 3.0 upstream connector on the monitor. Then, connect type A connector of the cable
to a USB connector on the computer. To locate the USB 3.0 upstream connector on the
monitor, see "Locating connectors and controls on your monitor"on page 1-3.
4. Connect one end of the USB cable to the USB downstream terminal on the side of the
monitor, and connect the other end of the USB cable to an appropriate USB port on your
device.
Note: The USB downstream port does not provide power while the monitor switch is off.

Chapter 1. 1-10
5. User is able to manage the on-screen configurations including applications, menu items
and so on with the touch screen. For information on how to utilize touch screen, please
see: "Touch Screen"on page 2-13
Note: If external system is attached to TIO22Gen3Touch with dual monitors in extended
mode.TIO22Gen3Touch need to set as main screen..
6. To initiate the monitor driver, insert the Reference and Driver CD, click Install driver, and
follow the on-screen instructions.

Chapter 1. 1-11
Turning on your monitor and computer
To turn on your monitor and computer, do one of the following:
• If you only have the Tiny installed in the monitor, press the power button on the monitor
to turn on your monitor and computer. To locate the power button, see"Locating
connectors and controls on your monitor"on page 1-3.
• If you only have the external desktop/laptop computer connected to the monitor, press the
power button on the monitor to turn on your monitor. Then, press the power button on the
computer to turn on your computer. To locate the power button, see"Locating connectors
and controls on your monitor"on page 1-3.
• If you have both the Tiny installed in the monitor and the external desktop/laptop
computer connected to the monitor, do one of the following:
• If you use the Tiny, press the power button on the monitor to turn on your monitor and
computer. To locate the power button, see "Locating connectors and controls on your
monitor"on page 1-3.
• If you use the external desktop/laptop computer, press the mode-switching button on
the monitor to select the DP mode so that the monitor is turned on. Then, press the
power button on the computer to turn on your computer. To locate the mode-switching
button, see "Locating connectors and controls on your monitor"on page 1-3.
Note: When both the Tiny and the external desktop/laptop computer are working, you can
press the mode-switching button to switch between the two computers. When you select the
AIO mode, you will use the Tiny. When you select the DP mode, you will use the external
desktop/laptop computer.
When you switch between the AIO mode and the DP mode, ensure that no data is being
transmitted between your computer and any USB device that is connected to your monitor. If
you switch between the two modes while the USB data is being transmitted, the transmission
will be interrupted and loss of data may result.
When you switch between the AIO mode and the DP mode the following is required to wake
your computer from sleep or hibernation:
• DP mode to AIO mode. If the Tiny installed in your monitor is in sleep or hibernation
mode, press the power button of the monitor to wake up the Tiny.
• AIO mode to the DP mode. If the external desktop/laptop computer is in sleep or
hibernation mode, press the power button of the external desktop/laptop computer to
wake up it.
Note: When you switch between AIO mode and DP mode, the keyboard and mouse that are
connected to your monitor are also switched.

Chapter 2. 2-1
Chapter 2. Adjusting and using your monitor
This section will give you information on adjusting and using your monitor.
Adjusting the full-function monitor stand
You can use the full-function monitor stand to adjust the monitor to your comfortable position.
1. The following illustration shows that you can adjust the monitor at an angle of -5° to the
front and 30° to the rear.
2. The following illustration shows that you can turn the monitor at an angel of 45° to the left
and 45° to the right.
-5 30 -
5
30
-45 45

Chapter 2. 2-2
3. The following illustration shows that you can adjust the height of the full-function monitor
stand within a length of 110 mm.
Note: Before you adjust the height, ensure that you pull out the latch that secures the stand
and read the instructions on the label of the latch.
4. The following illustration shows that you can rotate clockwise the monitor at an angel of
-5° to the left and 90° to the right.
Note: Adjust the screen position before rotating the monitor screen. (Make sure that the
monitor screen ascent to its highest point,.
110mm
2
1
-5°~90°

Chapter 2. 2-3
Camera Swivel
Please see the illustration below for an example of camera swivel ran.
0
120
direction of lens
direction of lens

Chapter 2. 2-4
Speakers
Your monitor has integrated 2*2W speakers which can support audio transmitted over the DP
video input as well as USB audio. When you select the DP mode, the USB3.0 cable is required
to connect to the system. When you select the AIO mode, the USB3.0 cable is not needed.
Speaker volume is adjusted using controls on the front of the monitor.
Note: When a Headphone or Speaker connected to Tiny audio port, the monitor speaker would
not mute until the audio playback device is switched.

Chapter 2. 2-5
Wall Mounting (Optional)
Refer to the instructions that come with the base mounting kit. To convert your LCD display
from a desk-mounted to a wall-mounted display, do the following:
Step 1: Verify that the Power button is turned Off, then disconnect the power cord.
Step 2: Lay the LCD display face down on a towel or blanket.
Step 3: Remove the base and stand from the monitor.
Step 4: Attach the mounting bracket from the VESA compatible wall mounting kit (100mm
x100mm distance), the type of VESA mounting screw is M4 x 10 mm.
Step 5: Attach the LCD display to the wall, and follow the instructions in the wall-mounting
kit.
For use only with UL Listed Wall Mount Bracket with minimum weight/load: 8kg
Installing the monitor driver
To enjoy a better monitor performance, it is recommended that you install the monitor driver before using
the monitor.
To install the monitor driver, do one of the following:
• If the optical drive is available, insert the CD that comes with the monitor into the optical
drive. Then, follow the instructions on the screen.
• If the optical drive is not available, download the driver from the Lenovo Web site at
http://support.lenovo.com/docs/TIO22Gen3Touch. Then, follow the instructions in 4."The
following illustration shows that you can rotate clockwise the monitor at an angel of -5° to
the left and 90° to the right."on page 2-2.
VESA hole
