LG ABQ48GM3A4 User manual

INSTALLATION MANUAL
Ceiling Concealed Duct
ABNQ36GM3A4, ABQ48GM3A4
ZBNQ18GM1A0, ZBNQ24GM1A0
ZBNQ36GM3A0, ZBNQ36LM3A0
ZBNQ48GM3A0, ZBNQ48LM3A0, ZBNQ60GM3A0
AIR
CONDITIONER
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it thoroughly.
www.lg.com
Copyright © 2014 - 2022 LG Electronics Inc. All Rights Reserved.
MFL67939906
Rev.05_062022
ENGLISH
BAHASA INDONESIA
TIẾNG VIỆT
ภาษาไทย

• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air
conditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the
air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
TIPS FOR SAVING ENERGY
ENGLISH
TIPS FOR SAVING ENERGY
2

3
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments.
• Compliance with national gas regulations shall be observed (for R32)
• Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized
assessment specification. (for R32)
• Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be carried out
under the supervision of the person competent in the use of flammable refrigerants. (for R32)
• Ducts connected to an appliance shall not contain an ignition source. (for R32)
Installation
• Always perform grounding.
- Otherwise, it may cause electrical shock.
• Don’t use a power cord, a plug or a loose socket which is damaged.
- Otherwise, it may cause a fire or electrical shock.
!
ENGLISH
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or
incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.
WARNING
This indicates that the failure to follow the instructions can cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can cause the minor injury or damage to
the product.
This symbol is displayed to indicate matters and operations that can cause risk.
Read the part with this symbol carefully and follow the instructions in order to avoid risk.
!
!
!
SAFETY INSTRUCTIONS
The following symbols are displayed on indoor and outdoor units.
Read the precautions in this manual
carefully before operating the unit.
This appliance is filled with
flammable refrigerant (for R32)
This symbol indicates that the
Operation Manual should be read
carefully.
This symbol indicates that a service
personnel should be handling this
equipment with reference to the
Installation Manual.

• For installation of the product, always contact the service center or a professional installation
agency.
- Otherwise, it may cause a fire, electrical shock, explosion or injury.
• Securely attach the electrical part cover to the indoor unit and the service panel to the outdoor
unit.
- If the electrical part cover of the indoor unit and the service panel of the outdoor unit are not
attached securely, it could result in a fire or electric shock due to dust, water, etc.
• Always install an air leakage breaker and a dedicated switching board.
- No installation may cause a fire and electrical shock.
• Do not keep or use flammable gases or combustibles near the air conditioner.
- Otherwise, it may cause a fire or the failure of product.
• Ensure that an installation frame of the outdoor unit is not damaged due to use for a long time.
- It may cause injury or an accident.
• Do not disassemble or repair the product randomly.
- It will cause a fire or electrical shock.
• Do not install the product at a place that there is concern of falling down.
- Otherwise, it may result in personal injury.
• Use caution when unpacking and installing.
- Sharp edges may cause injury.
• Do not turn on the breaker or power under condition that front panel, cabinet, top cover, control
box cover are removed or opened.
- Otherwise, it may cause fire, electric shock, explosion or death.
• Keep any required ventilation openings clear of obstruction.(for R32)
• Mechanical connections shall be accessible for maintenance purposes.(for R32)
Operation
• Do not share the outlet with other appliances.
- It will cause an electric shock or a fire due to heat generation.
• Do not use the damaged power cord.
- Otherwise, it may cause a fire or electrical shock.
• Do not modify or extend the power cord randomly.
- Otherwise, it may cause a fire or electrical shock.
• Take care so that the power cord may not be pulled during operation.
- Otherwise, it may cause a fire or electrical shock.
• Unplug the unit if strange sounds, smell, or smoke comes from it.
- Otherwise, it may cause electrical shock or a fire.
• Keep the flames away.
- Otherwise, it may cause a fire.
• Take the power plug out if necessary, holding the head of the plug and do not touch it with wet
hands.
- Otherwise, it may cause a fire or electrical shock.
• Do not use the power cord near the heating tools.
- Otherwise, it may cause a fire and electrical shock.
• Do not open the suction inlet of the indoor/outdoor unit during operation.
- Otherwise, it may electrical shock and failure.
ENGLISH
SAFETY INSTRUCTIONS
4

SAFETY INSTRUCTIONS
ENGLISH
5
• Do not allow water to run into electrical parts.
- Otherwise, it may cause the failure of machine or electrical shock.
• Hold the plug by the head when taking it out.
- It may cause electric shock and damage.
• Never touch the metal parts of the unit when removing the filter.
- They are sharp and may cause injury.
• Do not step on the indoor/outdoor unit and do not put anything on it.
- It may cause an injury through dropping of the unit or falling down.
• Do not place a heavy object on the power cord.
- Otherwise, it may cause a fire or electrical shock.
• When the product is submerged into water, always contact the service center.
- Otherwise, it may cause a fire or electrical shock.
• Take care so that children may not step on the outdoor unit.
- Otherwise, children may be seriously injured due to falling down.
• Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer. (for R32)
• Do not pierce or burn. (for R32)
• Be aware that refrigerants may not contain an odour. (for R32)
• When mechanical connectors are reused indoors, sealing parts shall be renewed.(for R32)
• When flared joints are reused indoors, the flare part shall be re-fabricated.(for R32)
• Controls intended to be adjusted during installation or in normal use shall be provided with an
indication for the direction of adjustment. (Note : An indication of + and – is considered to be
sufficient.)
• Periodic (more than once/year) cleaning of the dust or salt particles stuck on the heat exchanger
by using water.
• Dismantling the unit, treatment of the refrigerant oil and eventual parts should be done in
accordance with local and national standards.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
CAUTION
Installation
• Install the drain hose to ensure that drain can be securely done.
- Otherwise, it may cause water leakage.
• Install the product so that the noise or hot wind from the outdoor unit may not cause any
damage to the neighbors.
- Otherwise, it may cause dispute with the neighbors.
• Always inspect gas leakage after the installation and repair of product.
- Otherwise, it may cause the failure of product.
• Keep level parallel in installing the product.
- Otherwise, it may cause vibration or water leakage.
• Do not install the unit in potentially explosive atmospheres.
• The appliance shall be stored so as to prevent mechanical damage from occurring. (for R32)
!

6SAFETY INSTRUCTIONS
ENGLISH
• Refrigerant tubing shall be protected or enclosed to avoid damage. (for R32)
• Flexible refrigerant connectors (such as connecting lines between the indoor and outdoor unit)
that may be displaced during normal operations shall be protected against mechanical damage.
(for R32)
• The installation of pipe-work shall be kept to a minimum. (for R32)
• A brazed, welded, or mechanical connection shall be made before opening the valves to permit
refrigerant to flow between the refrigerating system parts. (for R32)
• Pipe-work shall be protected from physical damage.
Operation
• Avoid excessive cooling and perform ventilation sometimes.
- Otherwise, it may do harm to your health.
• Use a soft cloth to clean. Do not use wax, thinner, or a strong detergent.
- The appearance of the air conditioner may deteriorate, change color, or develop surface flaws.
• Do not use an appliance for special purposes such as preserving animals vegetables, precision
machine, or art articles.
- Otherwise, it may damage your properties.
• Do not place obstacles around the flow inlet or outlet.
- Otherwise, it may cause the failure of appliance or an accident.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring
rules.
• The different positions of switches on stationary appliances and the different positions of
controls on all appliances shall be indicated by figures, letters or other visual means. This
requirement also applies to switches which are part of a control. If figures are used for
indicating the different positions, the off position shall be indicated by the figure 0 and the
position for a higher value, such as output, input, speed or cooling effect, shall be indicated by a
higher figure. The figure 0 shall not be used for any other indication unless it is positioned and
associated with other numbers so that it does not give rise to confusion with the indication of
the off position. (NOTE For example, figure 0 may be used on a digital programming keyboard.)
• Unless it is obviously unnecessary, switches which may give rise to a hazard when operated
shall be marked or placed so as to indicate clearly which part of the appliance they control.
Indications used for this purpose shall, wherever practicable, be comprehensible without a
knowledge of languages or national standards.
• Servicing shall be performed only as recommended by the manufacturer.

TABLE OF CONTENTS
ENGLISH
7
2TIPS FOR SAVING ENERGY
3SAFETY INSTRUCTIONS
8INTRODUCTION
8Features
9INSTALLATION OF INDOOR
9Selection of the best location
9Ceiling dimension and hanging bolt location
13 Wiring Connection
15 Indoor Unit Drain Piping
15 Drain test
16 Heat insulation

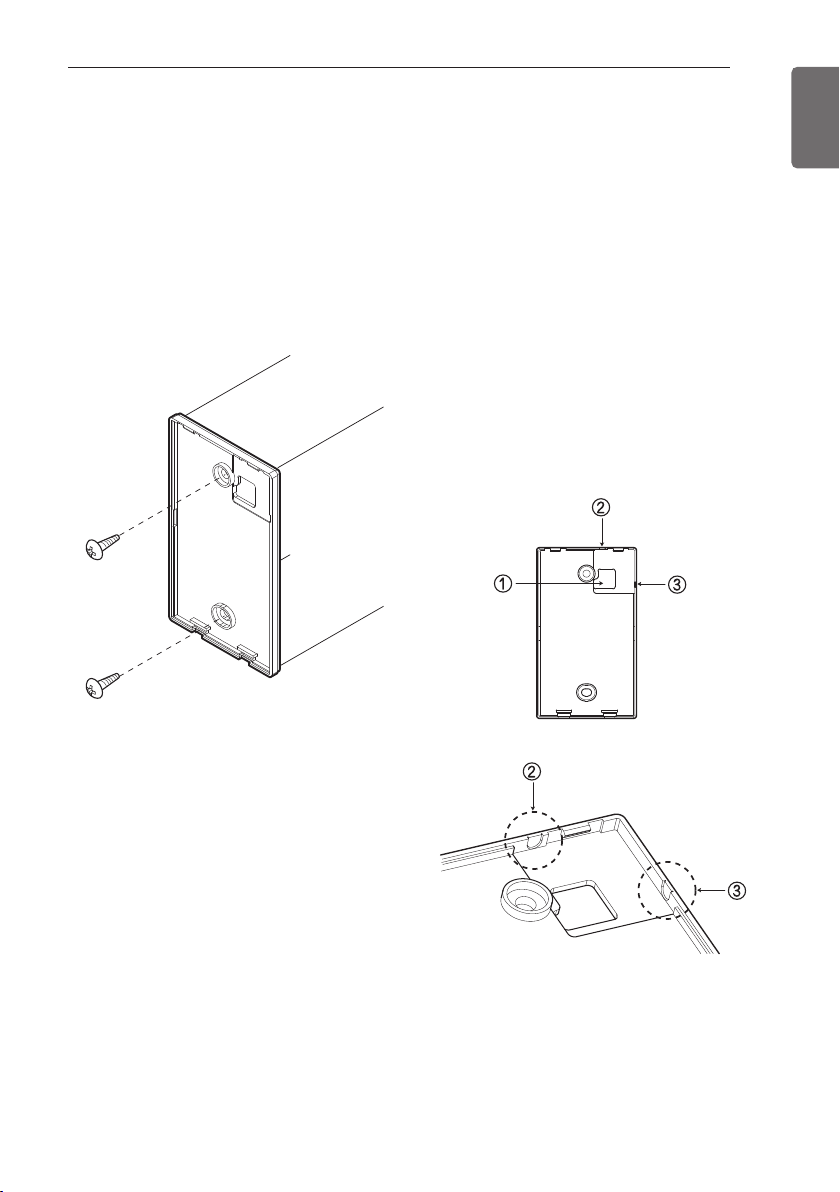

17 REMOTE CONTROLLER INSTALLATION
18 Group Control
20 OPTIONAL OPERATION
20 Installer Setting - Test Run Mode
21 Installer Setting - Setting Address of Central Control
22 Installer Setting - Thermistor
23 Installer Setting - Remote Controller Master/Slave Setup
24 Installer Setting - Celsius / Fahrenheit Switching
25 Installer Setting - E.S.P.
26 Installer Setting - Static Pressure Step Setting
32 Installer Setting - Auto ESP
35 DIP SWITCH SETTING
TABLE OF CONTENTS

8INTRODUCTION
ENGLISH
Remote
Controller
Air inlet vents
Air outlet
vents
• Screws for fixing panels are attached to decoration panel.
Features
INTRODUCTION
Name Washer for hanging
bracket
Clamp
(Tie Wrap)
Insulation for
fitting
Quantity 8 EA 4 EA 1 set
Shape for gas pipe
for liquid pipe

ENGLISH
9
INSTALLATION OF INDOOR
Confirm the positional relationship between
the unit and suspension bolts.
- Installation the ceiling opening to clean the
filter or service under the product.
Top view
Unit: mm
Front view
Unit: mm
Front
Inspection hole
600 x 600
Control box
1 000
20 or more
Air outlet vents
Air inlet vents
600 600
C
E
G
D
F
I
A
J
B
H
Drain hole
(Unit:mm)
Ceiling dimension and hanging
bolt location
Install the unit above the ceiling correctly.
Position of suspension Bolt
- Apply a joint-canvas between the unit and
duct to absorb unnecessary vibration.
- Apply a filter Accessory at air return hole.
CASE 1
Selection of the best location
Install the air conditioner in the location that
satisfies the following conditions.
- The place shall easily bear a load exceeding
four times the indoor unit’s weight.
- The place shall be able to inspect the unit as
the figure.
- The place where the unit shall be leveled.
- The place shall easily connect with the
outdoor unit.
- The place where the unit is not affected by
an electrical noise.
- The place where air circulation in the room
will be good .
- There should not be any heat source or
steam near the unit
INSTALLATION OF INDOOR
Model
ZBNQ18GM1A0
ZBNQ24GM1A0
ZBNQ36GM3A0
ZBNQ36LM3A0
ZBNQ48GM3A0
ZBNQ48LM3A0
ZBNQ60GM3A0
Chassis M1 M2 M3
Dimension
A 933.4 1 283.4 1 283.4
B 971.6 1 321.6 1 321.6
C 619.2 619.2 619.2
D 700 700 700
E303030
F 270 270 360
G 15.2 15.2 15.2
H 858 1 208 1 208
I 201.4 201.4 291.4
J 900 1 250 1 250

10
ENGLISH
INSTALLATION OF INDOOR
- Install the unit leaning to a drainage hole side
as a figure for easy water drainage.
Position of console Bolt
- A place where the unit will be leveled and
that can support the weight of the unit.
- A place where the unit can withstand its
vibration.
- A place where service can be easily
performed.
CASE 2 Select and mark the position for
fixing bolts
- Drill the hole for set anchor on the face of
ceiling.
- Insert the set anchor and washer onto the
suspension bolts for locking the suspension
bolts on the ceiling.
- Mount the suspension bolts to the set
anchor firmly.
- Secure the installation plates onto the
suspension bolts (adjust level roughly) using
nuts, washers and spring washers.
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4 (Local
supply)
X 4
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4 (Local
supply)
X 4
1 Set anchor
Old building New building
2 Plate washer
3 Spring washer
4 Nut
5 Suspension
bolts
CAUTION
!
Tighten the nut and bolt to prevent unit
falling.

ENGLISH
11
INSTALLATION OF INDOOR
Caution for gradient of unit and
drain piping
Lay the drain hose with a downward
inclination so water will drain out.
- Always lay the drain with downward
inclination (1/50 to 1/100). Prevent any
upward flow or reverse flow in any part.
- 5mm or thicker formed thermal insulator
shall always be provided for the drain pipe.
- Upward routing not allowed
- Install the P-Trap (or U-Trap) to prevent a
water leakage caused by the blocking of
intake air filter.
Ceiling
Ceiling
1~3 mm
Drain hole
Drain pump unuse
Drain pump use Drain hole
• Install declination of the indoor unit is
very important for the drain of the duct
type air conditioner.
• Minimum thickness of the insulation for
the connecting pipe shall be 5 mm.
• The unit must be horizontal or declined
to the drain hose connected when
finished installation.
CAUTION
!
Drainage holeMake sure to be closed.
Unit
Drainage pipe
(Local supply)
Thermal insulator
(Local supply)
INCORRECT
CORRECT
U-Trap
B
C
A ≥ 70 mm
B ≥ 2C
C ≥ 2 x SP
SP = External Pressure
(mmAq)
Ex) External Pressure
= 10 mmAq
A ≥ 70 mm
B ≥ 40 mm
C ≥ 20 mm
A

12 INSTALLATION OF INDOOR
ENGLISH
- The appliance shall be installed, operated and stored in a room with a floor area larger than the
minimum area.
- Use the graph of table to determine the minimum area.
- m : Total refrigerant amount in the system
- Total refrigerant amount : factory refrigerant charge + additional refrigerant amount
- Amin : minimum area for installation
Minimum floor area(for R32)
0
100
200
300
400
500
600
Amin (m2)
m (kg)
0 1.224 2 3 4 5 6 7 8
Floor standing
Wall mounted
Ceiling mounted
Floor location
m (kg) Amin (m2)
< 1.224 -
1.224 12.9
1.4 16.82
1.6 21.97
1.8 27.80
2 34.32
2.2 41.53
2.4 49.42
2.6 58.00
2.8 67.27
3 77.22
3.2 87.86
3.4 99.19
3.6 111.20
3.8 123.90
4 137.29
4.2 151.36
4.4 166.12
Floor location
m (kg) Amin (m2)
4.6 181.56
4.8 197.70
5 214.51
5.2 232.02
5.4 250.21
5.6 269.09
5.8 288.65
6 308.90
6.2 329.84
6.4 351.46
6.6 373.77
6.8 396.76
7 420.45
7.2 444.81
7.4 469.87
7.6 495.61
7.8 522.04
Wall mounted
m (kg) Amin (m2)
< 1.224 -
1.224 1.43
1.4 1.87
1.6 2.44
1.8 3.09
2 3.81
2.2 4.61
2.4 5.49
2.6 6.44
2.8 7.47
3 8.58
3.2 9.76
3.4 11.02
3.6 12.36
3.8 13.77
4 15.25
4.2 16.82
4.4 18.46
Wall mounted
m (kg) Amin (m2)
4.6 20.17
4.8 21.97
5 23.83
5.2 25.78
5.4 27.80
5.6 29.90
5.8 32.07
6 34.32
6.2 36.65
6.4 39.05
6.6 41.53
6.8 44.08
7 46.72
7.2 49.42
7.4 52.21
7.6 55.07
7.8 58.00
Ceiling Mounted
m (kg) Amin (m2)
< 1.224 -
1.224 0.956
1.4 1.25
1.6 1.63
1.8 2.07
2 2.55
2.2 3.09
2.4 3.68
2.6 4.31
2.8 5.00
3 5.74
3.2 6.54
3.4 7.38
3.6 8.27
3.8 9.22
4 10.21
4.2 11.26
4.4 12.36
Ceiling Mounted
m (kg) Amin (m2)
4.6 13.50
4.8 14.70
5 15.96
5.2 17.26
5.4 18.61
5.6 20.01
5.8 21.47
6 22.98
6.2 24.53
6.4 26.14
6.6 27.80
6.8 29.51
7 31.27
7.2 33.09
7.4 34.95
7.6 36.86
7.8 38.83

INSTALLATION OF INDOOR
ENGLISH
13
Wiring Connection
• Open the control box cover and connect the
Remote controller wiring and Indoor power
wires.
• Remove the control box cover for electrical
connection between the indoor and outdoor
unit.
• Use the cord clamper to fix the wiring.
CAUTION
!
The connecting wiring connected to the
indoor and outdoor unit should be complied
with the following specifications (This
equipment shall be provided with a wiring
set complying with the national regulation).
20 mm
GN/YL
NORMAL
CROSS-SECTIONAL
AREA 0.75 mm
2
If the supply wiring is damaged, it must be
replaced by a special wiring or assembly
available from the manufacturer of its
service agent.
Wiring Connection
Connect the wires to the terminals on the
control board individually according to the
out door unit connection.
Ensure that the color of the wires of outdoor
unit and the terminal No. are the same as
those of indoor unit respectively.
1(L) 2(N) 3
Connected to outdoor unit
or B.D. unit.
Rated current of
appliance A.
Nominal
cross-sectional area
mm2
≤0.2
> 0.2 and ≤3
> 3 and ≤6
> 6 and ≤10
> 10 and ≤16
> 16 and ≤25
> 25 and ≤32
> 32 and ≤40
> 40 and ≤63
Tinsel cord
0.5
0.75
1.0 (0.75)
1.5 (1.0)
2.5
4
6
10
NOTE For supply cords supplied with
multi-phase appliances, the nominal
cross-sectional area of the conductors is
based on the maximum cross-sectional
area of the conductors per phase at the
supply cord connection to the appliance
terminals.
• The feature may be changed according to
the type of model.

14 INSTALLATION OF INDOOR
ENGLISH
CAUTION
!
The Power cord connected to the unit
should be selected according to the
following specifications.
Precautions when laying power wiring
Use round pressure terminals for
connections to the power terminal block.
When none are available, follow the
instructions below.
• Do not connect wiring of different
thicknesses to the power terminal
block. (Slack in the power wiring may
cause abnormal heat.)
• When connecting wiring which is the
same thickness, do as shown in the
figure below.
WARNING
!
Make sure that the screws of the terminal
are free from looseness.
Round pressure terminal Power wiring

INSTALLATION OF INDOOR
ENGLISH
15
Feed water
Flexible drain hose
(accessory)
Main
drain pipe
Glue the join
t
Drain test
- Connect the main drain pipe to the exterior
and leave it provisionally until the test comes
to an end.
- Feed water to the flexible drain hose and
check the piping for leakage.
- When the test is complete, connect the
flexible drain hose to the drain port on the
indoor unit.
1Remove the Air Filter.
2Check the drainage.
- Spray one or two glasses of water upon
the evaporator.
- Ensure that water flows drain hose of
indoor unit without any leakage.
Air outlet vents
Air filters
Maintenance
drain port
Upward
routing
not allowed
Pipe clamp
Indoor unit
Indoor Unit Drain Piping
- Drain piping must have down-slope (1/50 to
1/100): be sure not to provide up-and-down
slope to prevent reversal flow.
- During drain piping connection, be careful
not to exert extra force on the drain port on
the indoor unit.
- The outside diameter of the drain connection
on the indoor unit is 32 mm.
Piping material: Polyvinyl chloride pipe VP-25
and pipe fittings
- Be sure to execute heat insulation on the
drain piping.
- Install the drain raising pipes at a right
angle to the indoor unit and no more than
300 mm from the unit.
Heat insulation material: Polyethylene foam
with thickness more than 8 mm.

16 INSTALLATION OF INDOOR
ENGLISH
Indoor unit
Thermal insulator
(accessory)
Fastening band
(accessory)
Refrigerant
piping
Heat insulation
1Use the heat insulation material for the refrigerant piping which has an excellent heat-
resistance (over 120 °C).
2Precautions in high humidity circumstance:
This air conditioner has been tested according to the "KS Standard Conditions with Mist" and
confirmed that there is not any default. However, if it is operated for a long time in high humid
atmosphere (dew point temperature: more than 23 °C), water drops are liable to fall. In this
case, add heat insulation material according to the following procedure:
- Heat insulation material to be prepared... Adiabatic glass wool with thickness 10 to 20 mm.
- Stick glass wool on all air conditioners that are located in ceiling atmosphere.
• Normal conditions: Temperature of 30 °C, relative humidity of 85 %
• Unfavorable conditions: Temperature of 30 °C, relative humidity of 90 % (humid places such as
bathrooms, swimming pools, etc.: air supply and exhaust fan installation)
Applies to
Insulation material standard
(mm)
(besides normal conditions
for residential use)
Insulation material
Standard (mm) - residential Insulation material
standard (mm)
(unfavorable
conditions)
If installed in an
air-conditioned
place (CASE 1)
(ex: bedroom, living
room, etc.)
If installed in a
non-air-conditioned
place (CASE 2)
(ex: hallway,
outdoors, etc.)
Refrigerant piping
dimensions (mm)
EPDM EPDM EPDM EPDM
Gas piping
6.35
9.52
12.7
15.88
19.05
22.22
25.40
28.58
31.75
38.1
44.45
19
19
19
19
19
19
19
19
19
25
25
13
13
13
13
13
13
19
19
19
19
19
19
19
19
19
19
19
19
19
19
25
25
19
25
25
25
25
32
32
32
32
32
32
Liquid
piping
6.35
9.52 9 9 9 9
12.7~44.45 13 13 13 13

REMOTE CONTROLLER INSTALLATION
ENGLISH
17
1Please fix tightly using provided screw
after placing remote controller setup board
on the place where you like to setup.
- Please set it up not to bend because poor
setup could take place if setup board
bends.
Please set up remote controller board fit
to the reclamation box if there is a
reclamation box.
2Can set up Wired remote controller cable
into three directions.
- Setup direction: the surface of wall
reclamation, upper, right
- If setting up remote controller cable into
upper and right side, please set up after
removing remote controller cable guide
groove.
* Remove guide groove with long nose.
①Reclamation to the surface of the wall
②Upper part guide groove
③Right part guide groove
REMOTE CONTROLLER INSTALLATION

18 REMOTE CONTROLLER INSTALLATION
ENGLISH
3Please connect indoor unit and remote
controller using connection cable.
4Please use extension cable if the distance
between wired remote controller and
indoor unit is more than 10 m.
5Please fix remote controller upper part into
the setup board attached to the surface of
the wall, as the picture below, and then,
connect with setup board by pressing
lower part.
- Please connect not to make a gap at the
remote controller and setup board’s
upper and lower, right and left part.
When separating remote controller from
setup board, as the picture below, after
inserting into the lower separating hole
using screw driver and then, spinning
clockwise, remote controller is separated.
- There are two separating holes. Please
individually separate one at a time.
- Please be careful not to damage the
inside
components when separating.
Group Control
1When installing more than 2 units of air
conditioner to one wired remote controller,
please connect as the right figure.
- If it is not event communication indoor
unit, set the unit as slave.
- Check for event communication through
the product manual.
2 When controlling multiple indoor units with
event communication function with one
remote controller, you must change the
master/slave setting from the indoor unit.
- Indoor units, the master/slave
configuration of the product after
completion of indoor unit power ‘OFF’
and then ‘ON’ the power after 1 minutes
elapsed sign up.
Wall
Side
Wall
Side
<Connecting order>
Wall
Side
Wall
Side
<Separating order>
CAUTION
!
When installing the wired remote controller,
do not bury it in the wall. (It can cause
damage in the temperature sensor.)
Do not install the cable to be 50 m or above.
(It can cause communication error.)
• When installing the extension cable, check
the connecting direction of the connector
of the remote controller side and the
product side for correct installation.
• If you install the extension cable in the
opposite direction, the connector will not
be connected.
• Specification of extension cable: 2547
1007 22# 2 core 3 shield 5 or above.
Please check if connector
is normally connected.
Connecting
cable
Indoor
Unit
side
GND
GND
12 V
Signal wire
Signal wire

REMOTE CONTROLLER INSTALLATION
ENGLISH
19
- For ceiling type cassette and duct
product group, change the switch setting
of the indoor PCB.
- For wall-mount type and stand type
product, change the master/slave setting
with the wireless remote controller.
(Refer to wireless remote controller
manual for detail)
* When installing 2 remote controllers to
one indoor unit with event
communication function, set the
master/slave of the remote controller.
(Refer to remote controller master/slave
selection)
When controlling the group, some
functions excluding basic operation
setting, fan level Min/Mid/Max, remote
controller lock setting and time setting
may be limited.
3When installing more than 2 wired remote
controllers to one air conditioner, please
connect as the right picture.
- When installing more than 2 units of
wired remote controller to one air
conditioner, set one wired remote
controller as master and the others all as
slaves, as shown in the right picture.
- You cannot control the group as shown in
the right for some products.
- Refer to the product manual for more
detail.
GND
12 V
B Y R B Y R
MASTER SLAVE
Signal wire GND
12 V
Signal wire
- No. 3 Off
- No. 3 On
#3 switch OFF: Master
(Factory default setting)
#3 switch ON: Slave
- When controlling in groups, set the
master/slave of the remote controller.
Refer to Installer setting section on how to
set master/slave for more detail.
<When simultaneously connecting
2 sets of wired remote controller>

20 OPTIONAL OPERATION
ENGLISH
TEMP
FAN
SPEED
OPER
MODE
When pressing the button and
button simultaneously for more than 3
seconds, the system will be entered into the
installer setting mode.
- After entering into the installer setting
mode, select the test run mode code value
by pressing the button.
* Test run mode code value : 01
1
When pressing the button, the test
operation mode will be performed, and it is
displayed as shown in the left figure.
2
When pressing the button and
button simultaneously for more than 3
seconds after the setting has been
completed, the setting mode will be
released.
- If there isn’t any button input for more than
25 seconds, the installer setting mode will
also be released.
3
When approx. 18 minutes are elapsed after
starting of the test oper-mode, the system
will be stopped automatically and converted
to the standby state.
- If any button is inputted during the test run
mode, the test run mode will be forced to
be released.
4
OPER
MODE
OPER
MODE
OPER
MODE
OPER
MODE
What is the test run mode??
- This means the operation of the product under the cooling, strong wind, and Comp on state
without performing room temperature control in order to confirm the installed state during the
product installation.
Installer Setting - Test Run Mode
After installing the product, you must run a Test Run mode.
For details related to this operation, refer to the product manual.
OPTIONAL OPERATION
