LG LP1014WNR User manual

OWNER’S MANUAL
AIR CONDITIONER
Please read this manual carefully before operating
your air conditioner and retain it for future reference.
www.lgappliances.com
TYPE PORTABLE AIR CONDITIONER
MODEL LP1014WNR

INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
Basic Safety Precautions . . . . . . . . . . . . . . . . . . .3 - 6
Electrical Safety
CARE AND CLEANING
Before Calling for Service
TROUBLESHOOTING
Product Registration Information
Water Drainage
Storing the Air Conditioner
WARRANTY
Window Vent Panel and Extensions
Installation in Vertical Sliding Windows
Installation in Casement Style Windows . . . . . . .18,19
INSTALLATION INSTRUCTIONS
Selection of Installation Location
Attaching the Hose and Diffuser
PARTS AND FEATURES
Key Parts and Components . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . 22
Cleaning the Case. . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cleaning the Air Filter . . . . . . . . . . . . . . . . . . . . . . . 21
HOW TO USE
Before Using Your Air Conditioner
Control Panel and Remote
. . . . . . . . . . . . . . . . 11,12
Preparing for Installation
. . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . 14
. . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . 23,24
. . . . . . . . . . . . . . .25
2
Congratulations on your purchase
and welcome to the LG family.
Your new LG Air Conditioner
combines high-efficiency operation
with portable convenience.
If you follow the operating and care
instructions in this manual, your air
conditioner will provide you with
many years of reliable service.
THANK YOU!
. . . . . . . . . . . . 9, 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . 16,17
. . . . . . . . . . . . . . . . . . . . . . . . . . . .20

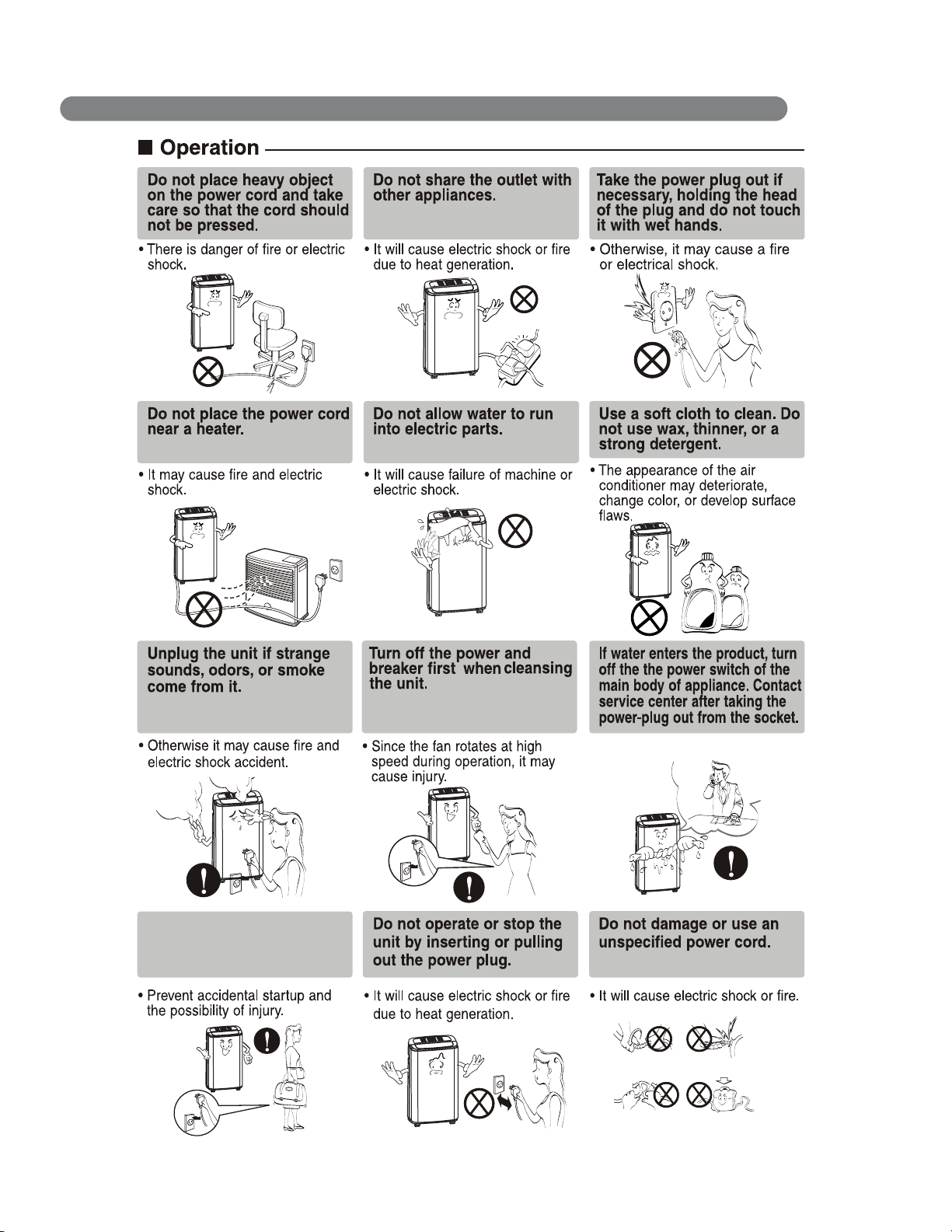

IMPORTANT SAFETY INSTRUCTIONS
3
EnglishEnglish
Do not store flammables like
gasoline benzene thinner
etc. near the air conditioner.
BASIC SAFETY PRECAUTIONS

IMPORTANT SAFETY INSTRUCTIONS
4
Unplug the unit when not
using it for a long time.
Wax
Thinner

IMPORTANT SAFETY INSTRUCTIONS
5
EnglishEnglish
When gas leaks, open the
window for ventilation before
operating the unit.
Hold the plug by the head
it out.
（not the cable）when taking
For inner cleaning, contact an Authorized Service Center or a dealer.
Do not use harsh detergent that causes corrosion or damage on the unit.
Harsh detergent may also cause failure of product, fire, or electric shock.
Do not use this appliance for
special purposes such as
cooling pets foods，
precision
machinery，or objects of art
，

IMPORTANT SAFETY INSTRUCTIONS
6
If the liquid from the battery gets onto your skin
or clothers，
wash it well with clean water. Do
not use the remote if the battery has leaked.
y
If you eat the liquid from the battery,brush
your teeth and see doctor.Do not use the
remote if the battery has leaked.
y
ELECTRICAL SAFETY
WARNING
Electrical Shock Hazard
Failure to follow these instructions can result
in death, fire, or electrical shock.
•This unit must be properly grounded.
•Do not, under any circumstances, cut or
remove the ground prong.
•If you do not have a properly grounded
outlet, or if there is any doubt that the outlet
is not properly grounded, a qualified
electrician should check the outlet and
circuit, and, if necessary, install a properly
grounded outlet.
•This air conditioner must be plugged
into a grounded 60 Hz, 120 VAC outlet
protected by a 15 amp time delay fuse
or circuit breaker.
•This air conditioner must be installed in
accordance with national wiring codes.
•Do not alter or modify the plug or cord
of this air conditioner. If the power cord
becomes worn or damaged, the cord should
only be replaced by a qualified service
technician using genuine replacement parts.
•Do not use an extension cord.

7
English
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
For additional safety,
the power cord
features an integrated
circuit breaker. Test
and reset buttons are
provided on the plug
case.
The circuit breaker
should be tested
periodically by
pressing the TEST
button then the RESET button. If the TEST
button does not cause the circuit breaker to trip,
or if the RESET button will not stay engaged,
unplug the air conditioner immediately and
contact your LG service technician.
INTEGRATED CIRCUIT BREAKER
Test
Reset
ELECTRICAL SAFETY
Due to potential safety hazards, the use of
an adapter plug is strongly discouraged.
For temporary connections, use only a
UL-listed adapter. Ensure that the large slot
in the adapter is aligned with the large slot
in the outlet.
To prevent damage to the adapter’s ground
terminal, hold the adapter in place while
plugging in or unplugging the air conditioner.
• Attaching the adapter ground terminal to
the wall receptacle cover screw does not
ground the appliance unless the cover
screw is metal and not insulated, and the
wall receptacle is grounded through the
house wiring.
• Frequent connection and disconnection
can damage the ground terminal on the
adapter. Never use a broken or damaged
adapter.
SAVE THESE INSTRUCTIONS
PREFERRED
GROUNDING METHOD
Ensure proper
ground exists
before use.
TEMPORARY GROUNDING
METHOD
Ensure proper
ground exists
before use.

8
PART S AND FEATURES
KEY PARTS AND COMPONENTS
8
1
2
3
5
SWIVELING CASTERS
INFRARED REMOTE CONTROLLER
Swiveling casters allow you to move the air conditioner easily
on most floor surfaces.
The remote controller allows you to adjust the temperature
and operate most functions of the air conditioner
from across the room.
AIR DISCHARGE
HOSE
Use the di
AND DIFFUSER
Use the diffuser and hose to connect the air conditioner to the
window installation kit to vent exhaust air outside.
CONTROL PANEL AND DISPLAY
Easy-to-read digital display shows the set temperature and
indicator lights show the operating mode. Simple push buttons
make changing settings quick and easy.
The direction of air can be controlled wherever you want to cool
by adjusting the horizontal louver.
8
6BOTTOM DRAIN PORT
Before moving the air conditioner, drain the internal water
in the collection tank completely by using bottom drain port.
7AIR FILTER
The horizontal direction is adjusted by moving the lever to the left
or right.
Touching the horizontal louvers adjusts the air direction up or
down.
2
1
4
3
5
Dry
4INTEGRATED HANDLES
Integrated handles provide a convenient grip when lifting the
air conditioner.
7
6

Refer to the Installation Instructions included in
this manual before using the air conditioner.
Once the air conditioner has been properly
assembled and installed:
Plug the power cord into its own dedicated
properly grounded outlet.
Do not plug
other
it could overload the outlet and create a
e hazard.
Make sure the air conditioner and cord is
positioned where it does not create a
tripping hazard and will receive adequate
ventilation. Do not place it directly next to
furniture or objects that could block the
vent openings.
Make sure that any items that could be
blown over or damaged by the airflow from
the fan are out of the airflow path.
PREPARING FOR OPERATION
1
2
appliances into the same outlet;
fire
3
•Do not remain in the direct airflow from the air
conditioner for extended periods of time.
•When used at the same time as stoves,
fireplaces, and other combustion devices,
make sure there is a sufficient flow of fresh air
into the room. Do not use in tightly enclosed
spaces with these types of devices.
•This air conditioner is intended for household
use as a consumer comfort appliance. Do not
use it as a precision climate control system,
or for purposes such as cooling precision
equipment, food, pets, plants, artwork, etc.
Such items could be damaged.
•Do not bend the hose downward when
window installation kit is not applied. It may
cause failure of air conditioner or performance
deterioration.
IMPORTANT:
Remove and store packing materials for reuse.
Remove any shipping tape before using the
air conditioner. If the tape leaves behind any
adhesive, rub a small amount of liquid dish
soap onto it and wipe with a damp cloth. Do
NOT use sharp instruments, alcohol, thinners,
or abrasive cleaners to remove adhesive.
They could damage the finish.
UNPACKING THE AIR CONDITIONER
BEFORE USING YOUR AIR CONDITIONER
HO W TO US E
9
English

BEFORE USING YOUR AIR CONDITIONER
INSERTING BATTERIES IN THE REMOTE
Before using your remote, install the provided
AAA batteries.
Press and glide the battery cover on the back
of the remote, then you can remove the cover.
Insert two new alkaline AAA batteries into
the battery compartment, being sure to note
the proper polarity.
Reattach the battery cover.
NOTE :
Use only alkaline batteries. Do not use
rechargeable batteries.
When replacing batteries, always replace both
batteries with new batteries. Do not mix old
and new batteries.
If the air conditioner will not be used for an
extended period of time, remove the batteries
from the remote.
HO W TO USE
10
Be sure to note
proper polarity!
1
2
3
English
CAUTION
• Iftheliquidfromthebatteriesgetsontoyourskinorclothes,washitwellwithcleanwater.
Do not use the remote if the batteries have leaked.
• Ifyoueattheliquidfromthebatteries,brushyourteethandseedoctor.
The chemicals in batteries could cause burns or other health hazards.
