LG Multi V S User manual

ENGLISH
INSTALLATION MANUAL
AIR
CONDITIONER
Please read this installation manual completely before installing the product.
Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
Please retain this installation manual for future reference after reading it
thoroughly.
MFL67798011
Rev.03_060320
www.lg.com
Copyright © 2013 - 2020 LG Electronics Inc. All Rights Reserved.

• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air
conditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the
air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
TIPS FOR SAVING ENERGY
2
ENGLISH
TIPS FOR SAVING ENERGY

3
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product
WARNING
It can result in serious injury or death when the directions are ignored
CAUTION
It can result in minor injury or product damage when the directions are ignored
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, property damage, personal injury and/or death.
Installation
• Have all electric work done by a licensed electrician according to "Electric Facility Engineering
Standard" and "Interior Wire Regulations" and the instructions given in this manual and always
use a special circuit.
- If the power source capacity is inadequate or electric work is performed improperly, electric
shock or fire may result.
• Ask the dealer or an authorized technician to install the air conditioner.
- Improper installation by the user may result in water leakage, electric shock, or fire.
• Always ground the product.
- There is risk of fire or electric shock.
• Always intstall a dedicated circuit and breaker.
- Improper wiring or installation may cause fire or electric shock.
• For re-installation of the installed product, always contact a dealer or an Authorized Service
Center.
- There is risk of fire, electric shock, explosion, or injury.
• Do not install, remove, or re-install the unit by yourself (customer).
- There is risk of fire, electric shock, explosion, or injury.
• Do not store or use flammable gas or combustibles near the air conditioner.
- There is risk of fire or failure of product.
• Use the correctly rated breaker or fuse.
- There is risk of fire or electric shock.

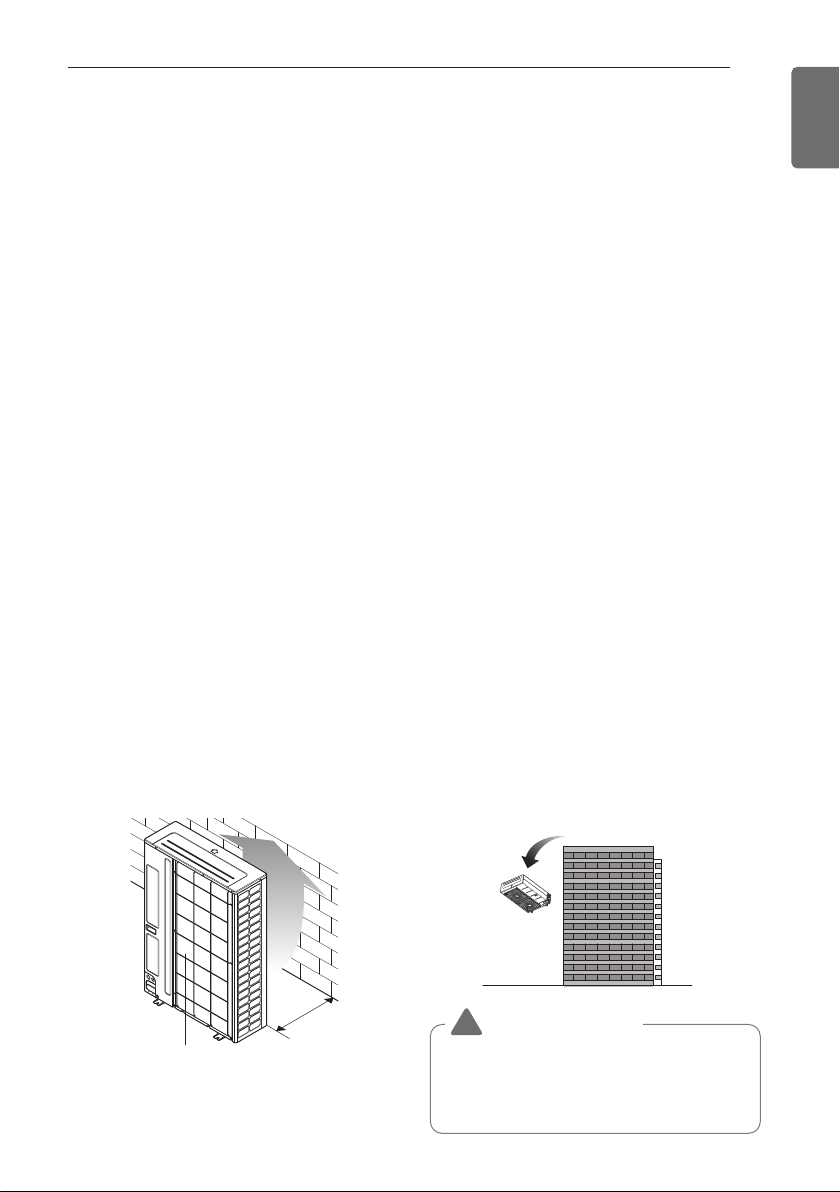

• Prepare for strong wind or earthquake and install the unit at the specified place.
- Improper installation may cause the unit to topple and result in injury.
- While installing the product on the rooftop, maintain sufficient distance from the edge to
prevent falling down from the building.
• Do not install the product on a defective installation stand.
- It may cause injury, accident, or damage to the product.
!
!
!

• Use a vacuum pump or Inert(nitrogen) gas when doing leakage test or air purge. Do not
compress air or Oxygen and do not use Flammable gases. Otherwise, it may cause fire or
explosion.
- There is the risk of death, injury, fire or explosion.
• When installing and moving the air conditioner to another site, do not charge it with a
different refrigerant from the refrigerant specified on the unit.
- If a different refrigerant or air is mixed with the original refrigerant, the refrigerant cycle may
malfunction and the unit may be damaged.
• Do not reconstruct to change the settings of the protection devices.
- If the pressure switch, thermal switch, or other protection device is shorted and operated
forcibly, or parts other than those specified by LGE are used, fire or explosion may result.
• Ventilate before operating air conditioner when gas leaked out.
- It may cause explosion, fire, and burn.
• Securely install the cover of control box and the panel.
- If the cover and panel are not installed securely, dust or water may enter the outdoor unit
and fire or electric shock may result.
• If the air conditioner is installed in a small room, measures must be taken to prevent the
refrigerant concentration from exceeding the safety limit when the refrigerant leaks.
- Consult the dealer regarding the appropriate measures to prevent the safety limit from being
exceeded. Should the refrigerant leak and cause the safety limit to be exceeded, harzards
due to lack of oxygen in the room could result.
Operation
• Do not damage or use an unspecified power cable.
- There is risk of fire, electric shock, explosion, or injury.
• Use a dedicated power cable for this appliance.
- There is risk of fire or electrical shock.
• Be cautious that water could not enter the product.
- There is risk of fire, electric shock, or product damage.
• Do not touch the power switch with wet hands.
- There is risk of fire, electric shock, explosion, or injury.
• When the product is soaked (flooded or submerged), contact an Authorized Service Center.
- There is risk of fire or electric shock.
• Be cautious not to touch the sharp edges when installing.
- It may cause injury.
• Take care to ensure that nobody could step on or fall onto the outdoor unit.
- This could result in personal injury and product damage.
• Do not open the inlet grille of the product during operation. (Do not touch the electrostatic filter, if the
unit is so equipped.)
- There is risk of physical injury, electric shock, or product failure.
IMPORTANT SAFETY INSTRUCTIONS
4
ENGLISH

IMPORTANT SAFETY INSTRUCTIONS 5
ENGLISH
CAUTION
Installation
• Always check for gas (refrigerant) leakage after installation or repair of product.
- Low refrigerant levels may cause failure of product.
• Do not install the product where the noise or hot air from the outdoor unit could damage the
neighborhoods.
- It may cause a problem for your neighbors.
• Keep level even when installing the product.
- To avoid vibration or water leakage.
• Do not install the unit where combustible gas may leak.
- If the gas leaks and accumulates around the unit, an explosion may result.
• Use power cables of sufficient current carrying capacity and rating.
- Cables that are too small may leak, generate heat, and cause a fire.
• Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a
consumer air conditioner, not a precision refrigeration system.
- There is risk of damage or loss of property.
• Keep the unit away from children. The heat exchanger is very sharp.
- It can cause the injury, such as cutting the finger. Also the damaged fin may result in degradation of
capacity.
• When installting the unit in a hospital, communication station, or similar place, provide sufficient
protection against noise.
-
The inverter equipment, private power generator, high-frequency medical equipment, or radio communication
equipment may cause the air conditioner to operate erroneously, or fail to operate. On the other hand, the air
conditioner may affect such equipment by creating noise that disturbs medical treatment or image
broadcasting.
• Do not install the product where it is exposed to sea wind (salt spray) directly.
- It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins,
could cause product malfunction or inefficient operation.
Operation
• Do not use the air conditioner in special environments.
- Oil, steam, sulfuric smoke, etc. can significantly reduce the performance of the air conditioner or damage its
parts.
• Do not block the inlet or outlet.
- It may cause failure of appliance or accident.
• Make the connections securely so that the outside force of the cable may not be applied to the
terminals.
- Inadequate connection and fastening may generate heat and cause a fire.
• Be sure the installation area does not deteriorate with age.
- If the base collapses, the air conditioner could fall with it, causing property damage, product failure, or
personal injury.
•
Install and insulate the drain hose to ensure that water is drained away properly based on the installation
manual.
- A bad connection may cause water leakage.
!

6IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
• Be very careful about product transportation.
- Only one person should not carry the product if it weighs more than 20 kg.
- Some products use PP bands for packaging. Do not use any PP bands for a means of transportation. It is
dangerous.
- Do not touch the heat exchanger fins. Doing so may cut your fingers.
- When transporting the outdoor unit, suspending it at the specified positions on the unit base. Also
support the outdoor unit at four points so that it cannot slip sideways.
• Safely dispose of the packing materials.
-
Packing materials, such as nails and other metal or wooden parts, may cause stabs or other injuries.
- Tear apart and throw away plastic packaging bags so that children may not play with them. If children play
with a plastic bag which was not torn apart, they face the risk of suffocation.
• Turn on the power at least 6 hours before starting operation.
- Starting operation immediately after turning on the main power switch can result in severe damage to
internal parts. Keep the power switch turned on during the operational season.
• Do not touch any of the refrigerant piping during and after operation.
- It can cause a burn or frostbite.
• Do not operate the air conditioner with the panels or guards removed.
- Rotating, hot, or high-voltage parts can cause injuries.
• Do not directly turn off the main power switch after stopping operation.
- Wait at least 5 minutes before turning off the main power switch. Otherwise it may result in water
leakage or other problems.
•
Auto-addressing should be done in condition of connecting the power of all indoor and outdoour units. Auto-
addressing should also be done in case of changing the indoor unit PCB.
• Use a firm stool or ladder when cleaning or maintaining the air conditioner.
- Be careful and avoid personal injury.
• Do not insert hands or other objects through the air inlet or outlet while the air conditioner is powered
on.
- There are sharp and moving parts that could cause personal injury.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

7
2TIPS FOR SAVING ENERGY
3IMPORTANT SAFETY INSTRUCTIONS
8INSTALLATION PROCESS
9OUTDOOR UNITS INFORMATION
10 ENVIRONMENT-FRIENDLY ALTERNATIVE REFRIGERANT R410A
11 SELECT THE BEST LOCATION

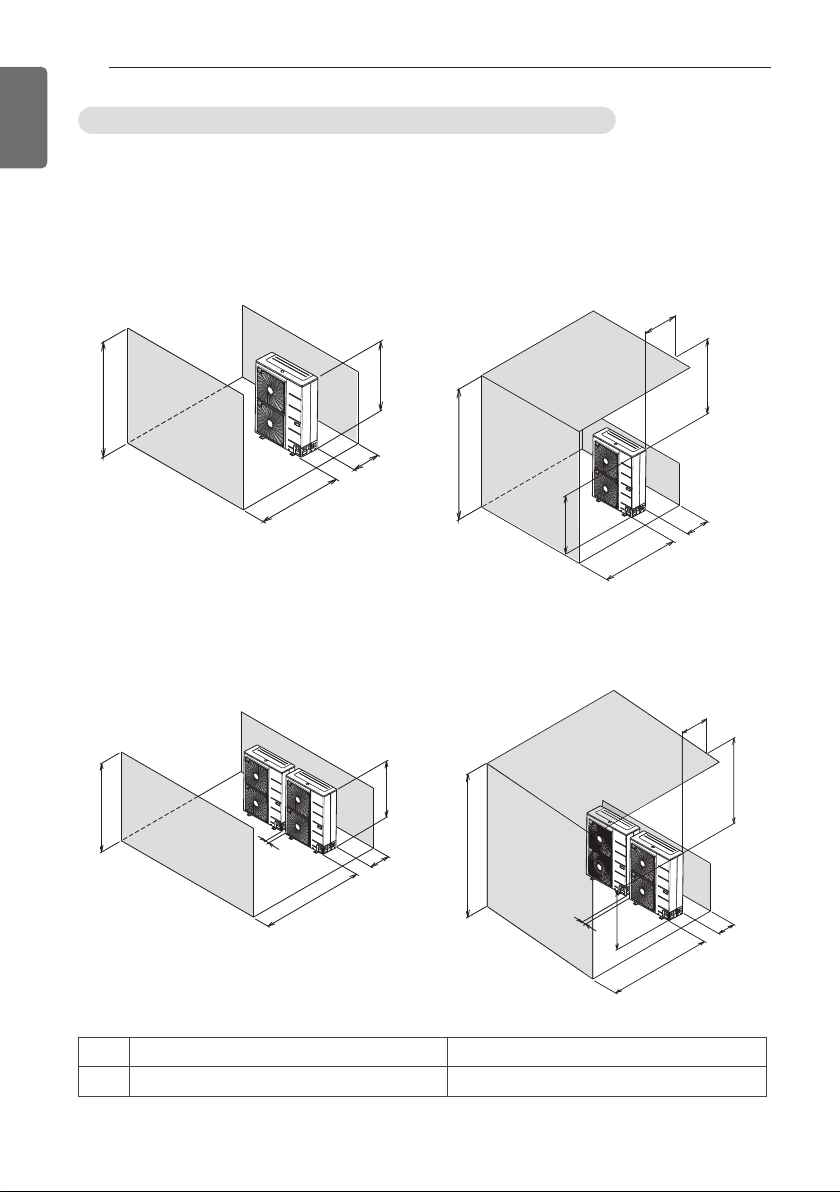

12 INSTALLATION SPACE
16 Collective / Continuous Installation for roof top use
18 LIFTING METHOD
19 INSTALLATION
19 The location of the Anchor bolts
20 Foundation for Installation
21 Preparation of Piping
24 Plumbing materials and storage methods
26 REFRIGERANT PIPING INSTALLATION
26 Precautions on Pipe connection / Valve operation
27 PIPE CONNECTIONS BETWEEN INDOOR AND OUTDOOR UNIT
27 Preparation Work
28 Pipe Drawing Out
30 Selection of Refrigerant Piping
31 Refrigerant piping system
40 Refrigerant charging
41 Distribution Method
42 Branch pipe Fitting
46 Leak Test and Vacuum drying
48 Vacuum Mode
49 Heat insulation of refrigerant piping
50 ELECTRICAL WIRING
50 Caution
52 Control box and connecting position of wiring
53 Communication and Power Cables
54 Wiring of main power supply and equipment capacity
54 Electric Characteristics
55 Field Wiring
59 Installation of IO Module(optional)
60 Checking the setting of outdoor units
61 Automatic Addressing
64 Group Number setting
65 Cool & Heat selector
66 Static pressure compensation mode
67 Night Low Noise Function
68 Setting the ODU address
69 Snow removal & rapid defrost
70 Target pressure adjusting
71 Self-Diagnosis Function
74 CAUTION FOR REFRIGERANT LEAK
74 Introduction
74 Checking procedure of limiting concentration
76 INSTALLATION GUIDE AT THE SEASIDE
TABLE OF CONTENTS
TABLE OF CONTENTS
ENGLISH

8INSTALLATION PROCESS
ENGLISH
The foundation must be level even
Outdoor unit foundation work
Avoid short circuits and ensure
sufficient space is allowed for service
Installation of outdoor unit
Refer to automatic addressing flowchart
Automatic addressing of indoor unit
In the final check for 24hours at 3.8 MPa(38.7 kgf/cm
2
) there must be no drop in pressure.
Leak test
Multiple core cable must not be used.
(suitable cable should be selected)
Electrical work
(connection circuits and drive circuits)
Make sure no gaps are left where
the insulating materials are joined
Heat insulation work
Make sure airflow is sufficient
Duct work
Adjust to downward gradient
Drain pipe work
Special attention to dryness,
cleanness and tightness
Refrigerant piping work
Check model name to make
sure the fitting is made correctly
Installation of indoor unit
Take account of gradient
of drain piping
Sleeve and insert work
Make connection clearly between outdoor, indoor, remote controller and option.
Preparation of contract drawings
Indicate clearly who will be responsible for switch setting.
Determination of division work
The vacuum pump used must have a capacity of reaching at least 5 torr, more than 1 hour
Vacuum drying
Recharge correctly as calculated in this manual. and record the amount of added refrigerant
Additional charge of refrigerant
Make sure there are no gaps left between the facing materials used on the ceiling
Fit facing panels
Run each indoor unit in turn to make sure the pipe work has been fitted correctly
Test run adjustment
Explain the use of the system as clearly as possible to your customer and make sure all relevant
documentation is in order
Transfer to customer with explanation
Preheat the crank case with the electrical heater for more than 6 hours.
CAUTION
!
• The above list indicates the order in which the individual work operations are normally
carried out but this order may be varied where local conditions warrants such change.
• The thickness of the piping should comply with the relevant local and national regulations
for the designed pressure 3.8 MPa.
• Since R410A is a mixed refrigerant, the required additional refrigerant must be charged in
its liquid state.(If the refrigerant is charged in its gaseous state, its composition changes
and the system will not work properly.)
INSTALLATION PROCESS

OUTDOOR UNITS INFORMATION 9
ENGLISH
Power Supply : 3 Ø, 380-415 V3N, 50 Hz / 3 Ø, 380 V3N, 60 Hz
Power Supply : 1 Ø, 220-240 V~, 50 Hz / 1 Ø, 220 V, 60 Hz
CAUTION
!
• Ratio of the connectable Indoor Units to the Outdoor: Within 50 ~ 160 %
• Ratio of running Indoor Units to the Outdoor: Within 10 ~ 100 %
• A combination operation over 100 % cause to reduce each indoor unit capacity.
OUTDOOR UNITS INFORMATION
Series 0 Series
Chasis U3
System(HP) 4 5 6 8
Refrigerant Precharged
Amount
kg 3 3 3 3.5
lbs 6.6 6.6 6.6 7.7
Piping
Connections
Liquid Pipes mm(inch) Ø 9.52(3/8) Ø 9.52(3/8) Ø 9.52(3/8) Ø 9.52(3/8)
Gas Pipes mm(inch) Ø 15.88(5/8) Ø 15.88(5/8) Ø 15.88(5/8) Ø 15.88(5/8)
Series 0 Series
Chasis U7
System(HP) 10 12 14
Refrigerant Precharged
Amount
kg 4.5 6 6
lbs 9.9 13.2 13.2
Piping
Connections
Liquid Pipes mm(inch) Ø 9.52(3/8) Ø 12.7(1/2) Ø 12.7(1/2)
Gas Pipes mm(inch) Ø 22.2(7/8) Ø 28.58(11/8) Ø 28.58(11/8)
Series 0 Series
Chasis U4 U3
System(HP) 4 5 6
Refrigerant Precharged
Amount
kg 1.8 3 3
lbs 4 6.6 6.6
Piping
Connections
Liquid Pipes mm(inch) Ø 9.52(3/8) Ø 9.52(3/8) Ø 9.52(3/8)
Gas Pipes mm(inch) Ø 15.88(5/8) Ø 15.88(5/8) Ø 19.05(3/4)
Series 5 Series
Chasis U4
System(HP) 5 6
Refrigerant Precharged
Amount
kg 2.4 2.4
lbs 5.3 5.3
Piping
Connections
Liquid Pipes mm(inch) Ø 9.52(3/8) Ø 9.52(3/8)
Gas Pipes mm(inch) Ø 15.88(5/8) Ø 19.05(3/4)

10 ENVIRONMENT-FRIENDLY ALTERNATIVE REFRIGERANT R410A
ENGLISH
CAUTION
!
• The wall thickness of the piping should comply with the relevant local and national
regulations for the designed pressure 3.8 MPa
• Since R410A is a mixed refrigerant, the required additional refrigerant must be charged in
its liquid state.
If the refrigerant is charged in its gaseous state, its composition changes and the system
will not work properly.
• Do not place the refrigerant container under the direct rays of the sun to prevent it from
exploding.
• For high-pressure refrigerant, any unapproved pipe must not be used.
• Do not heat pipes more than necessary to prevent them from softening.
• Be careful not to install wrongly to minimize economic loss because it is expensive in
comparison with R22.
The refrigerant R410A has the property of higher operating pressure in comparison with R22.
Therefore, all materials have the characteristics of higher resisting pressure than R22 ones and
this characteristic should be also considered during the installation.
R410A is an azeotrope of R32 and R125 mixed at 50:50, so the ozone depletion potential (ODP)
of R410A is 0. These days the developed countries have approved it as the environment-friendly
refrigerant and encouraged to use it widely to prevent environment pollution.
ENVIRONMENT-FRIENDLY ALTERNATIVE
REFRIGERANT R410A

SELECT THE BEST LOCATION 11
ENGLISH
1Select space for installing outdoor unit, which will meet the following conditions:
• No direct thermal radiation from other heat sources
• No possibility of annoying neighbors by noise from unit
• No exposition to strong wind
• With strength which bears weight of unit
• Note that drain flows out of unit when heating
• With space for air passage and service work shown next
• Because of the possibility of fire, do not install unit to the space where generation, inflow,
stagnation, and leakage of combustible gas is expected.
• Avoid unit installation in a place where acidic solution and spray (sulfur) are often used.
• Do not use unit under any special environment where oil, steam and sulfuric gas exist.
• It is recommended to fence round the outdoor unit in order to prevent any person or animal
from accessing the outdoor unit.
• If installation site is area of heavy snowfall, then the following directions should be observed.
- Make the foundation as high as possible.
- Fit a snow protection hood.
2Select installation location considering following conditions to avoid bad condition when
additionally performing defrost operation.
• Install the outdoor unit at a place well ventilated and having a lot of sunshine in case of
installing the product at a place with a high humidity in winter (near beach, coast, lake, etc).
(Ex) Rooftop where sunshine always shines.
• Performance of heating will be reduced and preheat time of the indoor unit may be
lengthened in case of installing the outdoor unit in winter at following location:
- Shade position with a narrow space
- Location with much moisture in neighboring floor.
- Location with much humidity around.
- Location where ventilation is good. It is recommended to install the outdoor unit at a place
with a lot of sunshine as possible as.
- Location where water gathers since the floor is not even.
3 When installing the outdoor unit in a place that is constantly exposed to a strong wind like a coast
or on a high story of a building, secure a normal fan operation by using a duct or a wind shield.
• Install the unit so that its discharge port faces to the wall of the building.
Keep a distance 500 mm or more between the unit and the wall surface.
• Supposing the wind direction during the operation season of the air conditioner, install the
unit so that the discharge port is set at right angle to the wind direction.
SELECT THE BEST LOCATION
Air inlet grille
700
[Unit : mm]
Turn the air outlet side toward the
building's wall, fence or windbreak screen.
WARNING
!
Fix the outdoor unit firmly with anchor bolt
or it may fall and hurt people. (refer to
‘Foundation for installation’)

12 INSTALLATION SPACE
ENGLISH
INSTALLATION SPACE
• The following values are the least space for installation. If any service area is needed for service
according to field circumstance, obtain enough service space.
• The unit of values is mm.
In case of obstacles on the suction side
1. Stand alone installation
2. Collective installation
500 or less
more
1 000 or
c
a
100 or
more 100 or
more
500 or less
more
1 000 or
150 or
more
150 or
more
c
b
100 or
more 200 or
more
1 000 or
more
c
500 or less
more
1 000 or
100 or
more
1 000 or
more
200 or
more
c
[Unit:mm]
U3, U4 U7
a 100 or more 200 or more
b 100 or more 300 or more
c 300 or more 350 or more

INSTALLATION SPACE 13
ENGLISH
In case of obstacles on the discharge side
1. Stand alone installation
a
500 or less
more
1 000 or
a
2. Collective installation
1 000 or more
100 or
more
500 or less
1 000 or more
1 000 or more
100 or
more
[Unit:mm]
U3, U4 U7
a 500 or more 700 or more

14 INSTALLATION SPACE
ENGLISH
In case of obstacles on the suction and the discharge side
Obstacle height of discharge side is higher than the unit
1. Stand alone installation
H
L
350 or
more
a
L
500 or less
1 000 or
more
H
350 or
more
1 000 or
more
2. Collective installation
L
H
350 or
more
1 000 or
more
100 or more
L
500 or less
1 000 or
more
H
350 or
more
1 250 or more
100 or more
L > H L > H
L > H L > H
[Unit:mm]
U3, U4 U7
a 500 or more 700 or more

INSTALLATION SPACE 15
ENGLISH
Obstacle height of discharge side is lower than the unit
1. Stand alone installation
2. Collective installation
H
L
350 or
more
1 500 or
more
100 or more
500 or less
more
1 000 or
H
L
350 or
more
1 500 or
more
100 or more
H
L
350 or
more
1 000 or
more
500 or less
more
1 000 or
H
L
350 or
more
1 000 or
more
L ≤HL≤H
L ≤HL≤H
[Unit:mm]

16 INSTALLATION SPACE
ENGLISH
Collective / Continuous Installation for roof top use
Space required for collective installation and continuous installation: When installing several units,
leave space between each block as shown below considering passage for air and people.
1. One row of stand alone installation
350 or
more
2 000 or
more
600 or
more
1 000 or
more
2. Rows of collective installation (2 or more)
• L should be smaller than H
L
350 or
more
3 000 or
more
H
600 or
more
1 500 or
more
100 or
more
L ≤H
[Unit:mm]

INSTALLATION SPACE 17
ENGLISH
Seasonal wind and cautions in winter
• Sufficient measures are required in a snow area or severe cold area in winter so that product
can be operated well.
• Get ready for seasonal wind or snow in winter even in other areas.
• Install a suction and discharge duct not to let in snow or rain.
• Install the outdoor unit not to come in contact with snow directly. If snow piles up and freezes
on the air suction hole, the system may malfunction. If it is installed at snowy area, attach the
hood to the system.
• Install the outdoor unit at the higher installation console by 50 cm than the average snowfall
(annual average snowfall) if it is installed at the area with much snowfall.
• Where snow accumulated on the upper part of the Outdoor Unit by more than 10 cm, always
remove snow for operation.
- The height of H frame must be more than 2 times the snowfall and its width shall not
exceed the width of the product. (If width of the frame is wider than that of the product,
snow may accumulate)
- Don't install the suction hole and discharge hole of the Outdoor Unit facing the seasonal
wind.

CAUTION
!
Be very careful while carrying the product.
• Do not have only one person carry product if it is more than 20 kg.
• PP bands are used to pack some products. Do not use them as a mean for transportation
because they are dangerous.
• Do not touch heat exchanger fins with your bare hands. Otherwise you may get a cut in
your hands.
• Tear plastic packaging bag and scrap it so that children cannot play with it. Otherwise
plastic packaging bag may suffocate children to death.
• When carrying in Outdoor Unit, be sure to support it at four points. Carrying in and lifting
with 3-point support may make Outdoor Unit unstable, resulting in a fall.
• Use 2 belts of at least 8 m long.
• Place extra cloth or boards in the locations where the casing comes in contact with the
sling to prevent damage.
• Hoist the unit making sure it is being lifted at its center of gravity.
• When carrying the suspended, unit pass the ropes between legs of base panel under the unit.
• Always lift the unit with ropes attached at four points so that impact is not applied to the unit.
• Attach the ropes to the unit at an angle of 40° or less.
• Use only accessories and parts which are of the designated specification when installing.
Air outlet grille Intake hole
Corner
Handle
Always hold the unit by the corners, as holding
it by the side intake holes on the casing may
cause them to deform.
Sub line
40° or less
A
WARNING
LIFTING METHOD
18 LIFTING METHOD
ENGLISH

INSTALLATION 19
ENGLISH
The location of the Anchor bolts
• Install at places where it can endure the weight and vibration/noise of the outdoor unit.
• The outdoor unit supports at the bottom shall have width of at least 100 mm under the Unit’s
legs before being fixed.
• The outdoor unit supports should have minimum height of 200 mm.
• Anchor bolts must be inserted at least 75 mm.
At least 100 mm
At least 100 mm
At least 100 mm
At least 100 mm
At least 100mm
At least 100 mm
Center of the Unit
For outdoor units should not
be supported only by the
corner supports.
Center of the Unit
a
be e
cd
U3, U4 U7
a 920 1 090
b 618 700
c 330 380
d 360 401
e 151 195
INSTALLATION
[Unit : mm]

Foundation for Installation
• Fix the unit tightly with bolts as shown below so that unit will not fall down due to earthquake
or gust.
• Use the H-beam support as a base support
• Noise and vibration may occur from the floor or wall since vibration is transferred through the
installation part depending on installation status. Thus, use anti-vibration materials (cushion pad)
fully (The base pad shall be more than 200 mm).
At least 200 mm
Unit : mm
200
75
75
200
100
ⒶThe corner part must be fixed firmly. Otherwise,
the support for the installation may be bent.
ⒷGet and use M10 Anchor bolt.
ⒸPut Cushion Pad between the outdoor unit and
ground support for the vibration protection in wide
area.
ⒹSpace for pipes and wiring (Pipes and wirings for
bottom side)
ⒺH-beam support
ⒻConcrete support
CAUTION
!
• Be sure to remove the Pallet(Wood Support) of the
bottom side of the outdoor unit Base Pan before
fixing the bolt. It may cause the unstable state of
the outdoor settlement, and may cause freezing of
the heat exchanger resulting in abnormal
operations.
• Be sure to remove the Pallet(Wood Support) of the
bottom side of the outdoor unit before welding.
Not removing Pallet(Wood Support) causes hazard
of fire during welding.
WARNING
!
• Install where it can sufficiently support the weight of the outdoor unit.
If the support strength is not enough, the outdoor unit may drop and hurt people.
• Install where the outdoor unit may not fall in strong wind or earthquake.
If there is a fault in the supporting conditions, the outdoor unit may fall and hurt people.
• Please take extra cautions on the supporting strength of the ground, water outlet
treatment(treatment of the water flowing out of the outdoor unit in operation), and the
passages of the pipe and wiring, when making the ground support.
• Do not use tube or pipe for water outlet in the Base pan. Use drainage instead for water
outlet. The tube or pipe may freeze and the water may not be drained.
Pallet(Wood Support)
- Remove before Installation
20 INSTALLATION
ENGLISH
