OWNER’S MANUAL
AIR
CONDITIONER
TYPE : WINDOW
EN ENGLISH
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
W051CE SSP

2TABLE OF CONTENTS
TABLE OF CONTENTS
3 SAFETY INSTRUCTIONS
3 IMPORTANT SAFETY INSTRUCTIONS
7 PRODUCT OVERVIEW
7 Exterior Parts
7 Interior Parts
8 INSTALLATION
8 Circuit Breaker Installation
11 OPERATION
11 Control Panel and Remote Control
12 Wireless Remote Control
13 Air Direction
13 Slinger Fan
8 Installation Overview
9 Unit Installation
9 How to Install the Unit
9 Space for Outside Air Flow
10 Drain Pipe
14 MAINTENANCE
14 Air Filter
15 TROUBLESHOOTING
15 Before Calling for Service
15 Normal Sounds You May Hear

3 EN
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or
CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce
the chance of injury, and tell you what may happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
injury to persons when using this product, follow basic precautions,
including the following:
INSTALLATION
●Before use, the appliance must be properly installed as described in this manual.
●Contact the authorized service technician for repair or maintenance of this unit.
●Contact the installer for installation of this unit.
●The air conditioner is not intended for use by young children or invalids without supervision.
●Keep any required ventilation openings clear of obstruction.
●Compliance with national gas regulations shall be observed.

4SAFETY INSTRUCTIONS
●When the power cord is to be replaced, replacement work shall be performed by authorized
personnel only using only genuine replacement parts.
and authorized personnel only.
●Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
●Always plug into a grounded outlet.
●Do not under any circumstances, cut or remove the third (ground) prong from the power cord.
●When installing or moving the appliance, be careful not to pinch, crush, or damage the power
cord.
●Plug in the power plug properly.
●Do not modify or extend the power cord.
●Do not start/stop operation by plugging/unplugging the power cord.
●If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified person in order to avoid a hazard.
●Do not turn on the circuit breaker or power under condition that front grille, cabinet, control box
are removed or opened. Otherwise, it may cause fire, electric shock, explosion or death.
●Use a dedicated circuit.
●Do not disassemble or modify the product.
●Adhere to all industry recommended safety procedures including the use of long-sleeved gloves
and safety glasses.
●Use care when unpacking and installing. The edges of the product may be sharp.
●Disconnect the power cord or circuit breaker before installing or servicing the appliance.
●Keep packaging materials out of the reach of children. These materials can pose a suffocation
risk to children.
●Store and install the product where it will not be exposed to temperatures below freezing or
exposed to outdoor weather conditions.
other appliance.
OPERATION
●Use this appliance only for its intended purpose.
●Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled,
or has missing or broken parts, including a damaged cord or plug.
●Repair or immediately replace all power cords that have become frayed or otherwise damaged.
Do not use a cord that shows cracks or abrasion damage along its length or at either end.
●Do not run cord under carpets or mats where it could be stepped on and damaged.
●Keep the cord out from under heavy objects like tables or chairs.
●Do not place the power cord near a heat source.
●Do not use an adaptor or plug the product into a shared outlet.
●Do not tamper with controls.
●If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance,
unplug it immediately, and contact an LG Electronics Customer Information Center.
straight out from the outlet.
●Do not grasp the power cord or touch the appliance controls with wet hands.

5
SAFETY INSTRUCTIONS
●If water enters the product, turn off the power at the main circuit, then unplug the product and call
for service.
●If the product has been submerged, contact an LG Electronics Customer Information Center for
instructions before resuming use.
●Unplug the product when unused for long periods.
●Unplug the product before cleaning.
●In the event of a gas leak (propane gas, etc.) do not operate this or any other appliance. Open a
window or door to ventilate the area immediately.
●This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
●The interior of the product must only be cleaned by a LG Electronics Customer Information
Center or a dealer.
●Do not use solvent-based detergent on the product. Doing so can cause corrosion or damage,
EN
GROUNDING INSTRUCTIONS
●The power cord of this appliance is equipped with a three-prong (grounding) plug. Use this with
a standard three-slot (grounding) wall power outlet to minimize the hazard of electric shock. The
sure the receptacle is properly grounded. DO NOT CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER PLUG.
●Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the
appliance unless the cover screw is metal, and not insulated, and the wall receptacle is grounded
to make sure the receptacle is properly grounded.
●Disconnect the power cord from the adapter, using one hand on each. Otherwise, the adapter
ground terminal might break. Do not use the appliance with a broken adapter plug.
- Situations when the appliance will be disconnected often; Do not use an adapter plug in these
situations. Unplugging the power cord frequently can lead to an eventual breakage of the
ground terminal. The wall power outlet should be replaced by a three-slot (grounding) outlet
instead.
ytefaslaitnetopfoesuaceB;yllanoisaccodetcennocsideblliwecnailppaehtnehwsnoitautiS-
hazards, we strongly discourage the use of an adapter plug.

6SAFETY INSTRUCTIONS
CAUTION
To reduce the risk of minor or moderate injury to persons, malfunction, or
damage to the product or property when using this product, follow basic
precautions, including the following:
INSTALLATION
●Take care when installing the product that exhaust or condensation does not damage nearby
property.
●Follow installation instructions exactly to avoid excessive vibration or water leakage.
OPERATION
●This appliance is not intended for use as a precision refrigeration system. Do not use it for special
purposes such as maintaining pets, food, precision machinery, or art objects.
●When installing or moving the appliance, be careful not to pinch, crush, or damage the power
cord.
●Make sure the air inlet and outlet are free from obstructions.
●Use a soft cloth to clean the appliance. Do not use waxes, thinners, or harsh detergents.
●Do not step on or place heavy objects on top of the appliance.
●Do not drink water drained from the appliance.
are used simultaneously.
●Remove the batteries if the remote control is not to be used for an extended period of time.
●Never mix different types of batteries, or old and new batteries for the remote control.
consult a doctor.
●Do not recharge or disassemble the batteries.
MAINTENANCE
●Never use strong cleaning agents or solvents when cleaning the air conditioner or spray water.
Use a smooth cloth.
●Do not install the appliance in an area where it is directly exposed to sea air (salt spray).
− Saline conditions are a cause of corrosion. (Particularly, corrosion of the condenser and
●Set up windbreak in front of the outdoor unit if installing it in coastal areas.
− Avoid direct exposure to salt winds.
− Install a firm and stiff concrete-wind shield that can withstand salt winds.
evaporator can damage the appliance or impair its performance.)

7
PRODUCT OVERVIEW EN
PRODUCT OVERVIEW

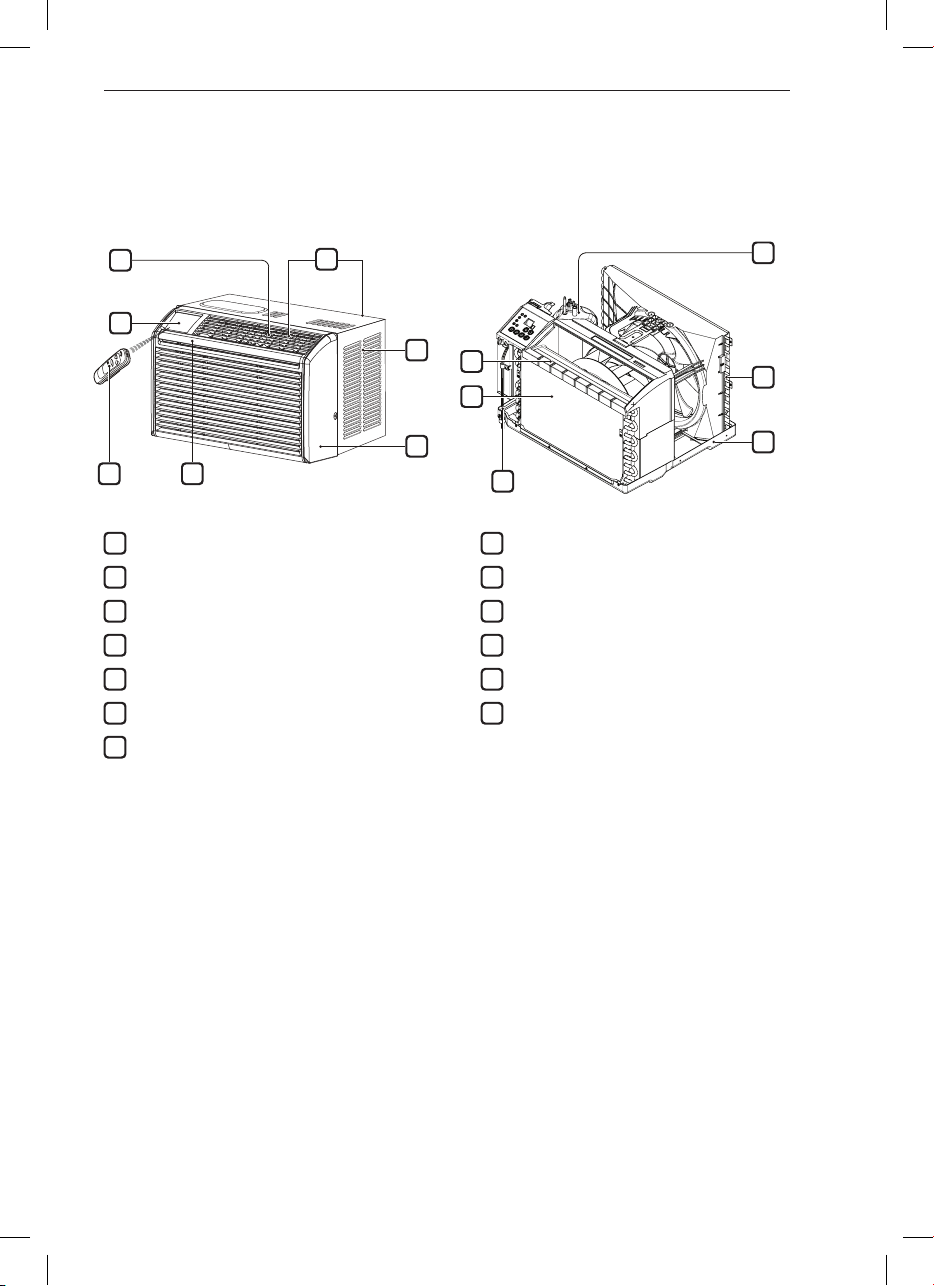

Exterior Parts Interior Parts
1Evaporator
2Air Guide
3
4
Compressor
5
6
Condenser
Base Pan
Power Cord
3
4
5
2
1
6

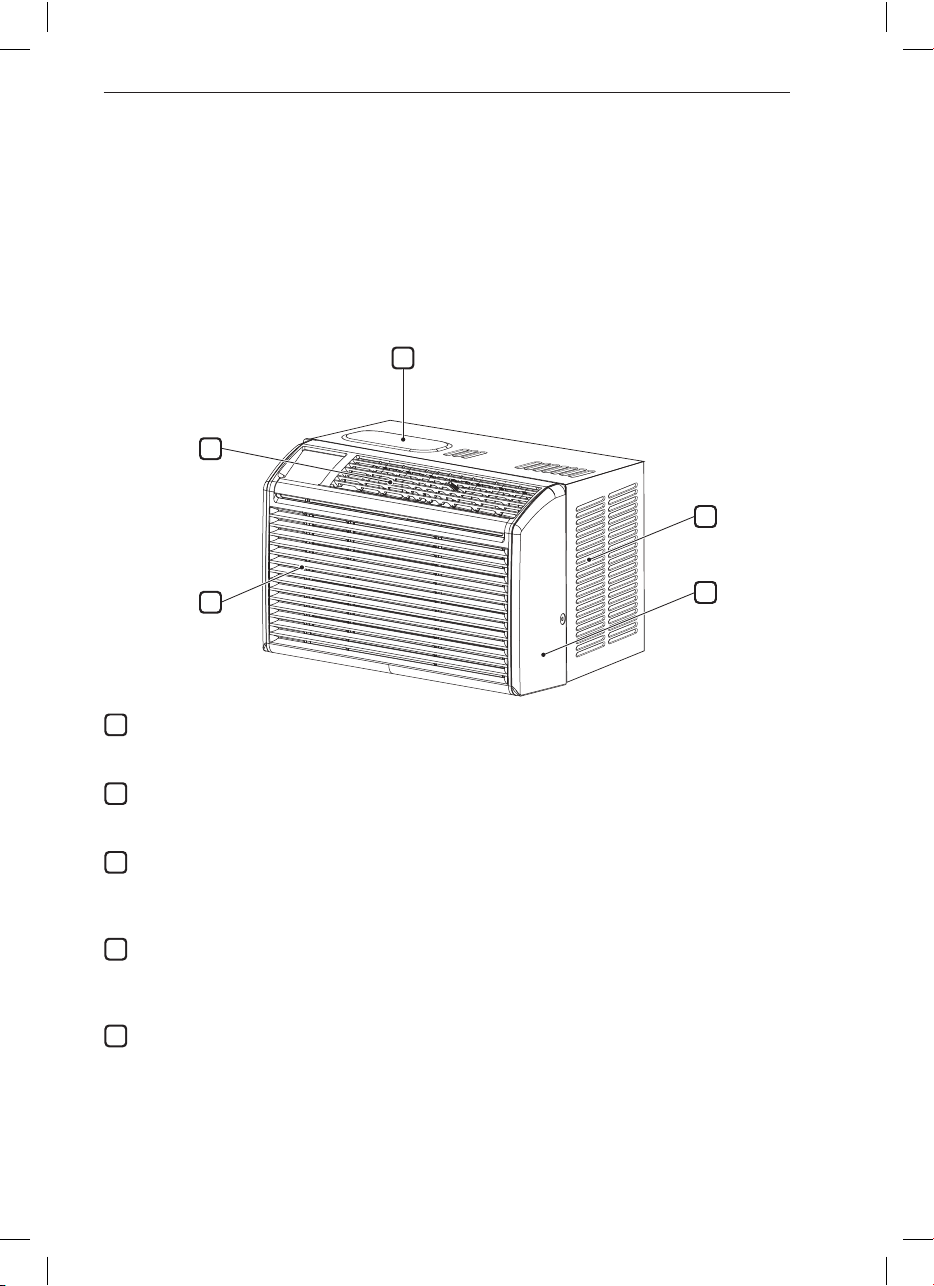

1Control Panel
2Remote Control
3Air Filter
4
5Cabinet
6
7
Front Grille
Air Outlet
Horizontal Air Deflector (Vertical Louver)
5
4
7
1
3
2
6

8INSTALLATION
Main Power source
Circuit Breaker
Use a circuit breaker
or time delay fuse.
Foam
Drain pipe
Circuit Breaker Installation
Installation Overview
Tools Needed
Phillips-head
screwdriver Flat-blade screwdriver LevelPencil
Tape measure Cutting knife Scissors
Read thoroughly and follow all directions provided.
A circuit breaker must be installed between the power source and the unit if the plug is not used
(see illustration below).
NOTE
●Use 15 A circuit breaker.
INSTALLATION

9
INSTALLATION EN
How to Install the Unit Space for Outside Air Flow
Unit Installation

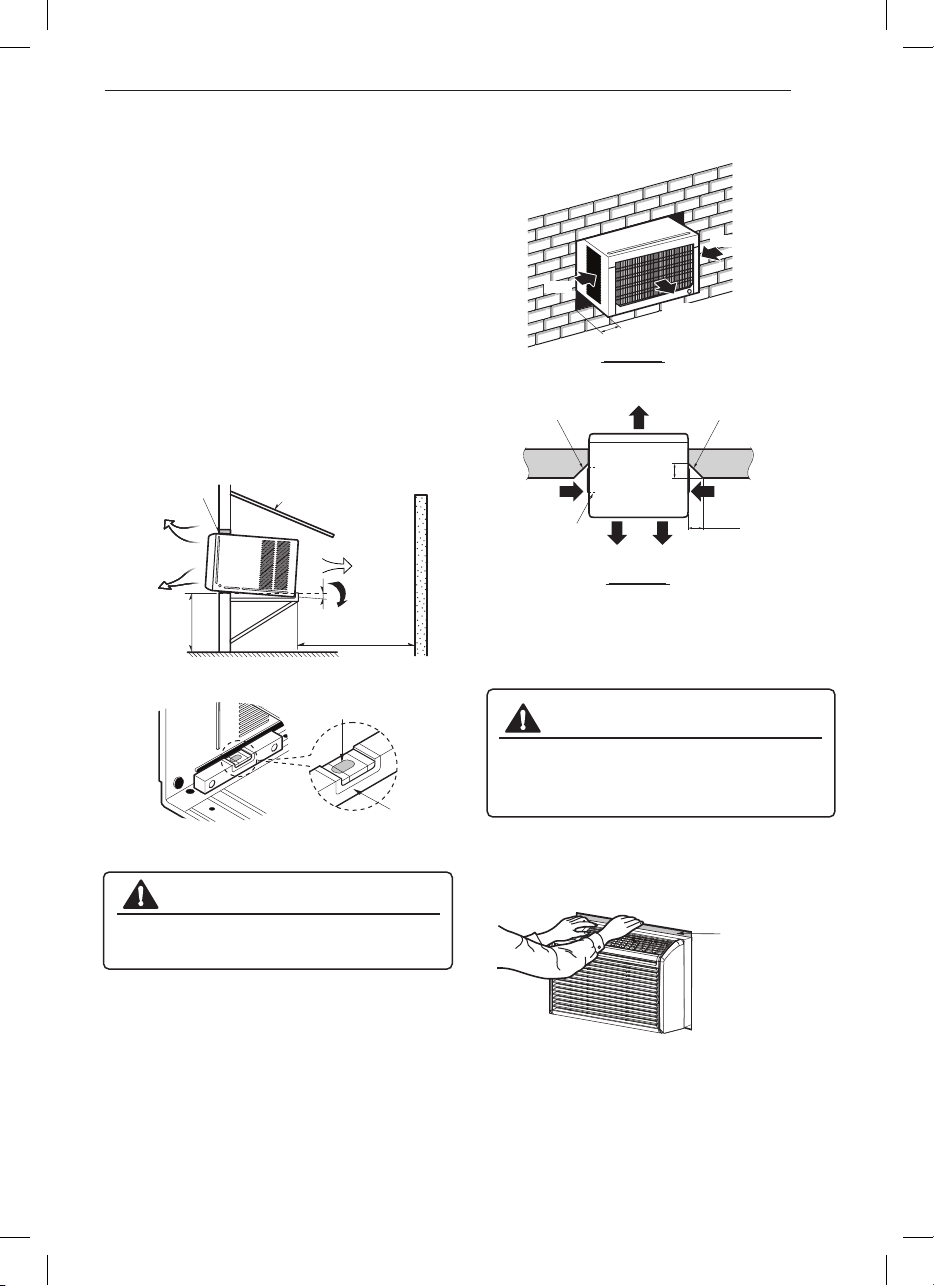

1Measure the space for installation to assure
a good fit. The air conditioner must be
2Avoid exposure to direct sunlight.
installed firmly into place to prevent vibration
and noise.
There must be at least 50 cm (20 in.) of
cleared space around the rear of the unit.
Obstacles restricting the airflow may reduce
the cooling efficiency of the unit.
3Remove all obstacles from the rear of the unit.
towards the outside to allow condensed water
to drain. (About 10~15 mm or 1/4 bubble with
Level)
4The unit should be installed with a slight tilt
Fence
Awning
Heat
radiation
Cooled air
CAUTION
●The external grille must be exposed outside
for air discharge.
10~15 mm
Over 50 cm
Foam
70-150 cm
Level
1/4 Bubble
100 mm minimum
AIR IN
AIR IN
AIR OUT
OPTION A
100 mm
100 mm
LOUVRE
FRONT
45°BRICK CUT AWAY
TO CLEAR LOUVRES
45°BRICK CUT AWAY
TO CLEAR LOUVRES
BRICK
WALL
AIR INAIR IN
BRICK
WALL
AIR OUT
TOP
VIEW
OPTION B
Stuff the foam between the top of the unit
and the wall to prevent air and insects from
getting into the room.
CAUTION
●The power cord must be connected to an
independent circuit. The green wire must
be grounded.
The Foam

10 INSTALLATION
Drain Pipe
In humid weather, excess water may cause the
base pan to overflow. To drain the water, remove
the drain cap and secure the drain pipe to the
rear hole of the base pan.
Press the drain pipe into the hole by pushing
down and away from the fins to avoid injury.
CAUTION
●Be careful when inserting the drain pipe.
Push away from the sharp fin area to avoid
slipping injuring yourself.
Hang
Drain Cap
Push
Drain Pipe

OPERATION

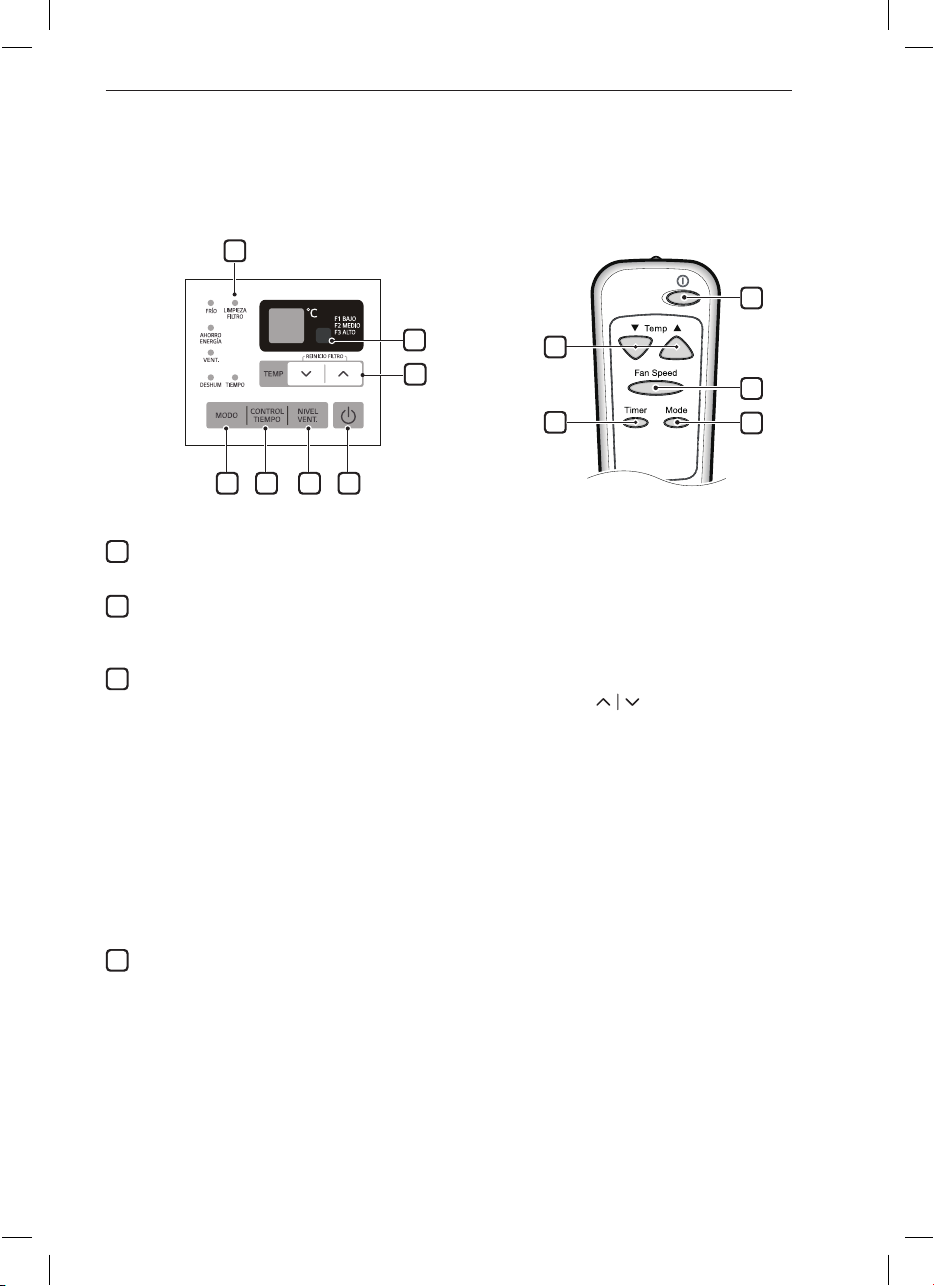

Control Panel and Remote Control
Remote Control
1Power
Press to turn the air conditioner ON or OFF.
2Fan Speed
Press to set the fan speed to Low (Bajo) (F1),
Medium (Medio) (F2) or High (Alto) (F3).
3Delay ON/OFF Timer
Delay ON - When the air conditioner is off,
set it to automatically turn on from 1 to 24
hours later, at its previous mode and fan
settings.
Delay OFF - When the air conditioner is on,
set it to automatically turn off from 1 to 24
hours later.
NOTE
●Each press of the Timer (Control Tiempo ) ,
button advances the timer by 1 hour. After
the last press the display returns to the
temperature setting.
4Operation Mode
Press the Mode (Modo) button to cycle
between 4 types of air conditioner operation:
Energy Saver (Ahorro Energía) / Cool (Frío) /
Fan (Vent.) / Dry (Deshum).
Cool (Frío)
Fan (Vent.) - In this mode the fan circulates
air but the compressor does not run. Use
the Fan Speed (Nivel Vent.) button to set
speed to High, Medium or Low. In this mode,
you cannot adjust the set temperature.
Dry (Deshum) - This mode is ideal for rainy
and damp days to dehumidify the room rather
than cooling it significantly. Humidity is
removed from the room by the combination
of compressor operation and the fan speed
fixed at Low. The compressor and fan turn
off once the set temperature is reached.
Fan speed cannot be adjusted in Dry (Deshum)
mode.
1
4
2
5
3
- This mode is ideal on hot days
to cool and dehumidify the room quickly. Use
the Temp buttons to set the desired
room temperature and use the Fan Speed
(Nivel Vent.)
button to set the desired fan
circulation speed.
Energy Saver (Ahorro Energía) - In this
the compressor and fan turn off when the
set temperature is achieved. Approximately
every 3 minutes the fan turns on to allow
the unit sensor to accurately determine if
more cooling is needed.
6
7
1234
5
11
OPERATION EN

Wireless Remote Control
Inserting Batteries
1Push out the cover on the back of the
remote control with your thumb.
2With the plus and minus poles facing as
marked, and insert two new AAA 1.5 V
batteries.
3Reattach the cover.
NOTE
●Two new batteries are supplied with the air
conditioner for use in the remote control.
●Do not use a rechargeable battery. Make sure
that the battery is new.
●In order to prevent discharge, remove the
battery from the remote control if the air
conditioner is not going to be used for an
extended period of time.
●Keep the remote control away from extremely
hot or humid places.
●To maintain optimal operation of the remote
control, the remote sensor should not be
exposed to direct sunlight.
5Temperature Control
The thermostat monitors room temperature
to maintain the desired temperature. The
thermostat can be set between 16 °C–30 °C
(60 °F–86 °F). Press or arrows to
increase or decrease temperature setting.
6Remote Control Sensor
Clean Filter
The Clean Filter (Limpieza Filtro) LED lights
up to notify you that the filter needs to be
cleaned. After cleaning the filter, press
Temp and together on the control
panel to turn off the Clean Filter (Limpieza
Filtro) light.
NOTE
control panel, not the remote control.
●
●
This feature is a reminder to clean the air
light turns on after 250 hours of operation.
filter for more efficient operation. The LED
The filter reset must be done using the
7
NOTE
●Auto Restart:If the air conditioner turns off due
to a power outage, it will restart automatically
once the power is restored, with the same
settings as were set before the unit turned off.
●Energy Saver (Ahorro Energía) : The unit
defaults to the Energy Saver (Ahorro Energía)
mode each time the unit is switched on except
in Fan (Vent.) mode or when power is restored
after an electrical power outage.
●The remote control will not function properly if
the AC infrared sensor is exposed to direct light
or if there are obstacles between the remote
controller and the air conditioner.
.
12 OPERATION

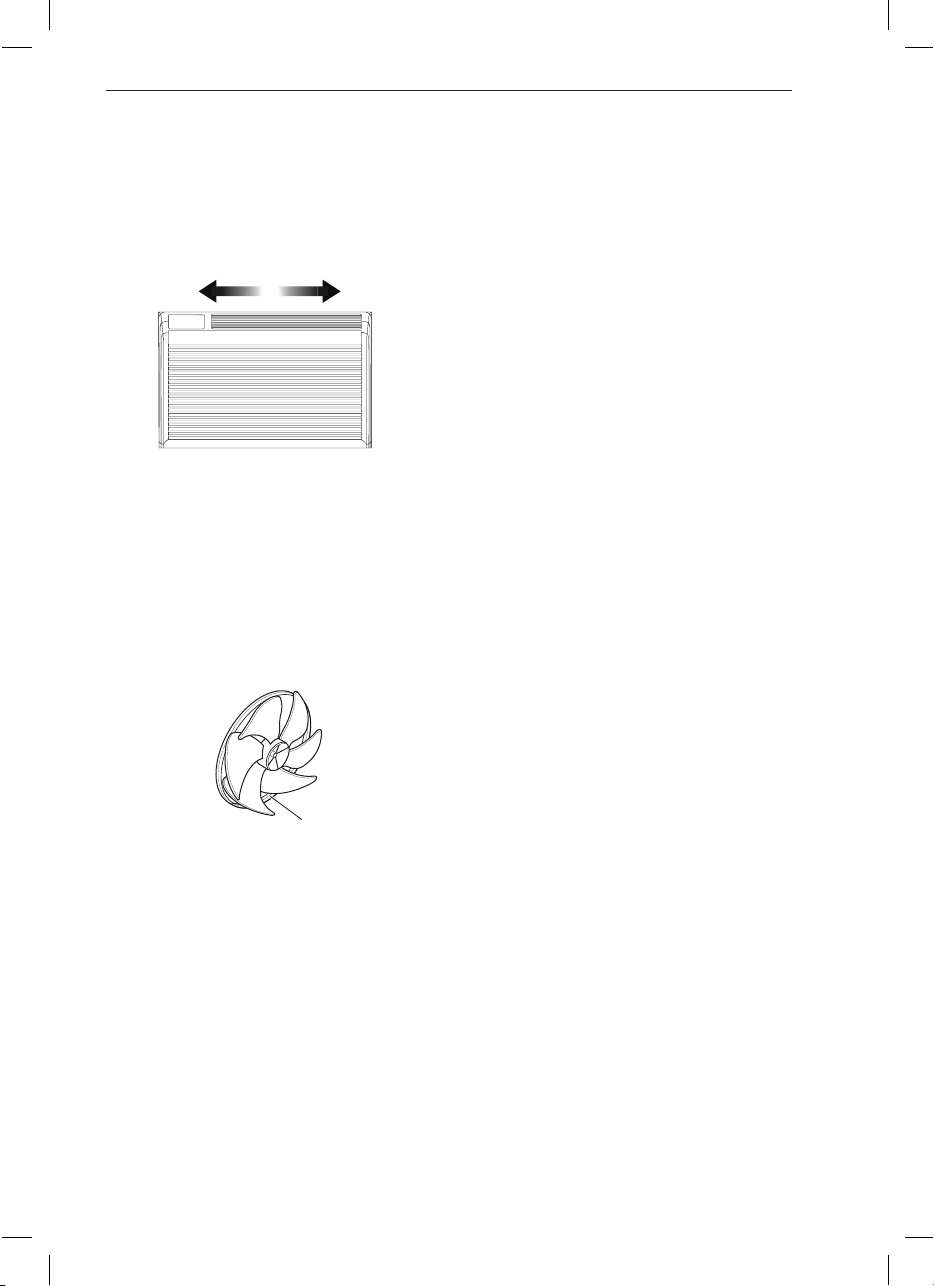

Slinger Fan
This air conditioner is equipped with a slinger
fan. (See drawing.)
The fan’s outer ring picks up the condensed
water from the base pan if the water level gets
high enough. The water is then picked up by the
fan and expelled through the condenser, making
the air conditioner more efficient.
Ring
Air Direction
Adjusting the air direction using the horizontal
air deflector control.
Using the control tabs, the air flow can be
directed to the left, right, straight ahead, or any
combination of these directions.
13
OPERATION EN

MAINTENANCE
WARNING
Before cleaning or performing maintenance,
disconnect the power supply and wait until
the fan stops.
Air Filter
Check the air filter at least twice a month to see
if cleaning is necessary. Trapped particles in the
filter can build up and block the airflow, reducing
cooling capacity and causing an accumulation of
frost on the evaporator.

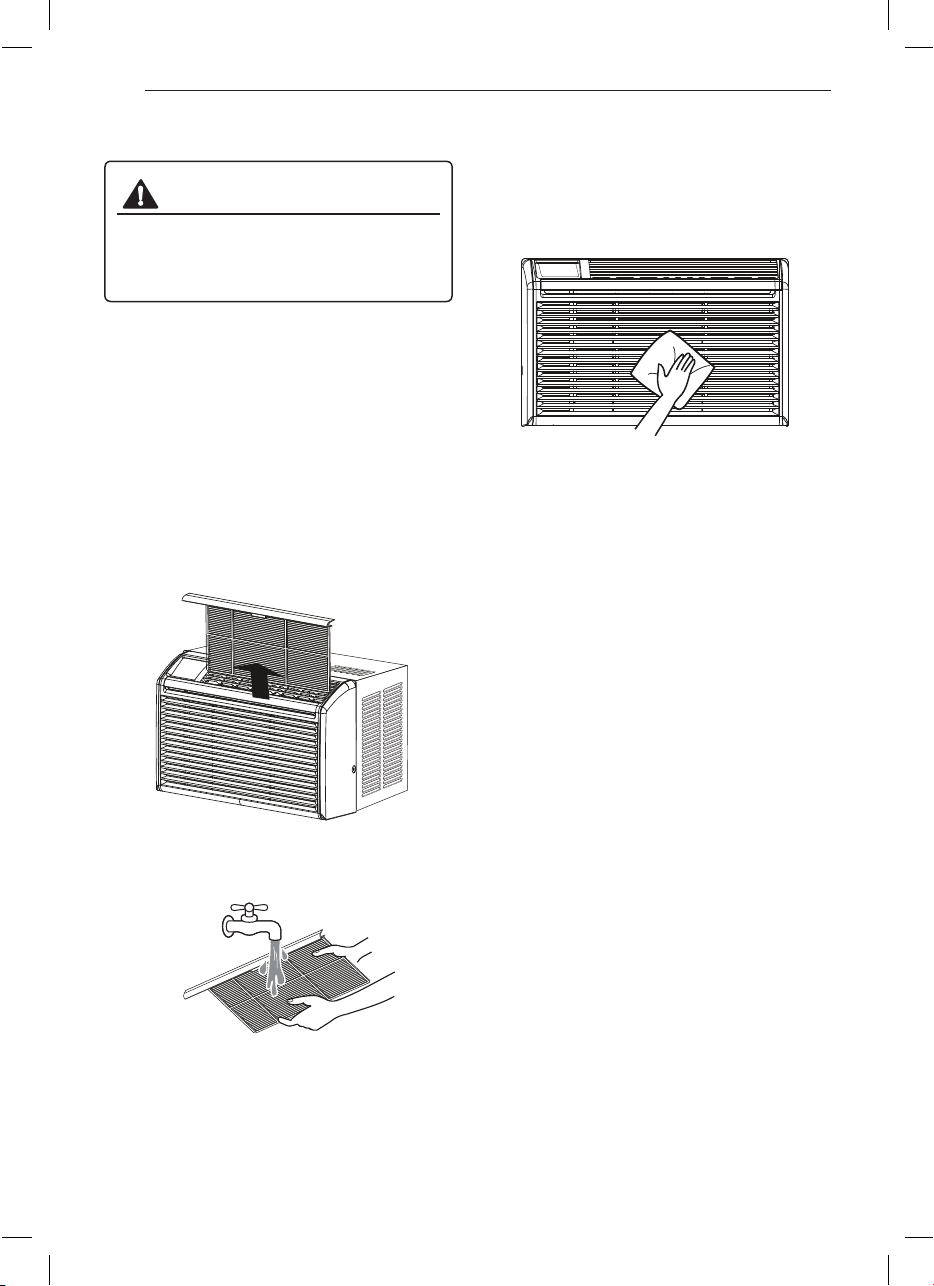

Cleaning the Air Filter
Cleaning the Air Conditioner
●Wipe the front grille and inlet grille with a cloth
dampened in a mild detergent solution.
●Wash the cabinet with mild soap or detergent
and lukewarm water, then polish using liquid
appliance wax.
NOTE
●
condenser coils (outside of unit) should be
To ensure continued peak efficiency, the
checked periodically and cleaned if clogged
with soot or dirt from outside air.
●For repair and maintenance, contact a
LG Electronics Customer Information Center.
Have your model number and serial number
available.
2Wash the filter using lukewarm water below
40 °C (104 °F).
Remove the air filter from the front grille by
pulling the filter forward and then up slightly.
3Gently shake the excess water from the
filter and replace.
1
14 MAINTENANCE

TROUBLESHOOTING
Before Calling for Service
The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems
at an early stage. If the appliance does not function properly or does not function at all, check the
following before you call for service.
Normal Sounds You May Hear
1High Pitched Chatter
2Sound of Rushing Air
At the front of the unit, you may hear the sound of rushing air being moved by the fan.
Today’s high efficiency compressors may have a high pitched chatter during the cooling cycle.
3Gurgle/Hiss
Gurgling or hissing noise may be heard due to refrigerant passing through evaporator during
normal operation.
4Vibration
Unit may vibrate and make noise because of poor wall or window construction or incorrect
installation.
5Pinging or Swishing
Droplets of water hitting condenser during normal operation may cause pinging or swishing
sounds.
1
2
3
5
4
TROUBLESHOOTING 15 EN

16 TROUBLESHOOTING
Airflow is restricted.
• Make sure there are no curtains, blinds, or furniture blocking the front of
the air conditioner.
Problem Possible Causes & Corrective Action
Air conditioner
does not start.
Air conditioner
freezing up.
Water drips
outside.
Air conditioner
does not cool as it
should.
The air conditioner is unplugged.
• Make sure the air conditioner plug is pushed completely into the outlet.
The fuse is blown/circuit breaker is tripped.
• Check the house fuse/circuit breaker box and replace the fuse or reset the
breaker.
restored, wait 3 minutes to restart the air conditioner to prevent ng of the
Power failure.
• If power failure occurs, turn the mode control to off. When power is
compressor overload.
The air filter is dirty.
• Clean the filter at least every 2 weeks. See the 'MAINTENANCE (Cleaning
the Air Filter)' section.
The cooling coils are iced over.
• Ice may block the air flow and obstruct the air conditioner from properly
cooling the room. Set the Fan Speed High at Fan or Cool mode.
The temp control may not be set correctly.
• Set the desired temperature to a level lower than the current temperature.
Cold air is escaping.
• Check for open fumace floor registers and cold air returns.
Cooling coils have iced up.
• See 'Air conditioner freezing up' below.
Hot, humid weather.
• This is normal.
room to cool down.
The room may have been hot.
• When the air conditioner is first turned on, you need to allow time for the

TROUBLESHOOTING 17 EN
Outside temperature extremely hot.
• Refer to installation instructions or check with installer.
Problem Possible Causes & Corrective Action
Water collects in
base pan.
Air conditioner
turns on and off
rapidly.
Water drips
indoors.
The air conditioner is not tilted to the outside.
• For proper water disposal, make sure the air conditioner slants slightly
Moisture removed from air and drains into base pan.
• This is normal for a short period in areas with little humidity; normal for
a longer period in very humid areas.
from the cabinet front to the rear.
Dirty air filter - air restricted.
• Clean air filter.
Noise when unit is
Room too cold.
cooling. Window vibration - poor installation.
• Refer to installation instructions or check with installer.
Air movement sound.
• This is normal. If too loud, set to lower FAN Speed.
Set temperature too low.
• Increase set temperature.
