1. INTRODUCTION
1. Introduction
2
This manual provides the information necessary to repair, calibration, description and download the features
of this model.
1. 1 Purpose
Toll fraud, the unauthorized use of telecommunications system by an unauthorized part (for example,
persons other than your company’s employees, agents, subcontractors, or person working on your
company’s behalf) can result in substantial additional charges for your telecommunications services.
System users are responsible for the security of own system. There are may be risks of toll fraud associated
with your telecommunications system. System users are responsible for programming and configuring
the equipment to prevent unauthorized use. The manufacturer does not warrant that this product is
immune from the above case but will prevent unauthorized use of common carrier
telecommunication service of facilities accessed through or connected to it. The manufacturer will not
be responsible for any charges that result from such unauthorized use.
1. 2 Regulatory Information
A. Security
B. Incidence of Harm
If a telephone company determines that the equipment provided to customer is faulty and possibly
causing harm or interruption in service to the telephone network, it should disconnect telephone
service until repair can be done. A telephone company may temporarily disconnect service as long as repair
is not done.
C. Changes in Service
A local telephone company may make changes in its communications facilities or procedure. If these
changes could reasonably be expected to affect the use of the phones or compatibility with the net work,
the telephone company is required to give advanced written notice to the user, allowing the user to take
appropriate steps to maintain telephone service.
D. Maintenance Limitation
Maintenance limitations on the phones must be performed only by the manufacturer or its authorized agent.
The user may not make any changes and/or repairs expect as specifically noted in this manual. Therefore,
note that unauthorized alternations or repair may affect the regulatory status of the system and may void any
remaining warranty.
1. INTRODUCTION

- 4 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
1. INTRODUCTION
1. Introduction
3
E. Notice of Radiated Emission
This model complies with rules regarding radiation and radio frequency emission as defined by local
regulatory agencies. In accordance with these agencies, you may be required to provide information such as
the following to the end user.
ATTENTION
H. Electrostatic Sensitive Devices
Boards, which contain Electrostatic Sensitive Device (ESD), are indicated by the
sign. information is ESD handling: Following
• Service personnel should ground themselves by using a wrist strap when exchange system boards.
• When repairs are made to a system board, they should spread the floor with anti-static mat which is
also grounded.
• Use a suitable, grounded soldering iron.
• Keep sensitive parts in these protective packages until these are used.
• When returning system boards or parts like EEPROM to the factory, use the protective package as
described.
A phone may interfere with sensitive laboratory equipment, medical equipment, etc. Interference from
unsuppressed engines or electric motors may cause problems.
G. Interference and Attenuation
F. Pictures
The pictures in this manual are for illustrative purposes only; your actual hardware may look slightly
different.
1. 2 Regulatory Information

2. PERFORMANCE
- 5 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
LG-D690n Product SPEC
3
1. Product Name
LG-D690N : WCDMA850/900/1900/2100+EGSM/GSM850/DCS/PCS
(HSDPA 21.1Mbps (Cat.14) / HSUPA 5.76Mbps (Cat.6) / GPRS Class 12 / EDGE Class 12
Downlink(Rx) Only)
2. Supporting Standard
Item Feature Comment
Supporting Standard WCDMA(FDD1,2,5,8)/
EGSM/GSM850/DCS1800/PCS1900
Frequency Range WCDMA(FDD1) TX : 1920 – 1980 MHz
WCDMA(FDD1) RX : 2110 – 2170 MHz
WCDMA(FDD2) TX : 1852.4– 1907.6 MHz
WCDMA(FDD2) RX : 1932.4 – 1987.6 MHz
WCDMA(FDD5) TX : 824 – 849 MHz
WCDMA(FDD5) RX : 869 – 894 MHz
WCDMA(FDD8) TX : 880 – 915 MHz
WCDMA(FDD8) RX : 925 – 960 MHz
EGSM TX : 880 – 915 MHz
EGSM RX : 925 – 960 MHz
GSM850 TX : 824 – 849 MHz
GSM850 RX : 869 – 894 MHz
DCS1800 TX : 1710 – 1785 MHz
DCS1800 RX : 1805 – 1880 MHz
PCS1900 TX : 1850 – 1910 MHz
PCS1900 RX : 1930 – 1990 MHz
Application Standard
WAP 2.0
3. Main Parts : Solution
Item
Part Name
Comment
AP Chip
MT6582 (MTK)
PMIC Chip
MT6323 (MTK)
RF Chip
MT6166 (MTK)
LG-D690n Product SPEC
3
1. Product Name
LG-D690N : WCDMA850/900/1900/2100+EGSM/GSM850/DCS/PCS
(HSDPA 21.1Mbps (Cat.14) / HSUPA 5.76Mbps (Cat.6) / GPRS Class 12 / EDGE Class 12
Downlink(Rx) Only)
2. Supporting Standard
Item
Feature
Comment
Supporting Standard WCDMA(FDD1,2,5,8)/
EGSM/GSM850/DCS1800/PCS1900
Frequency Range WCDMA(FDD1) TX : 1920 – 1980 MHz
WCDMA(FDD1) RX : 2110 – 2170 MHz
WCDMA(FDD2) TX : 1852.4– 1907.6 MHz
WCDMA(FDD2) RX : 1932.4 – 1987.6 MHz
WCDMA(FDD5) TX : 824 – 849 MHz
WCDMA(FDD5) RX : 869 – 894 MHz
WCDMA(FDD8) TX : 880 – 915 MHz
WCDMA(FDD8) RX : 925 – 960 MHz
EGSM TX : 880 – 915 MHz
EGSM RX : 925 – 960 MHz
GSM850 TX : 824 – 849 MHz
GSM850 RX : 869 – 894 MHz
DCS1800 TX : 1710 – 1785 MHz
DCS1800 RX : 1805 – 1880 MHz
PCS1900 TX : 1850 – 1910 MHz
PCS1900 RX : 1930 – 1990 MHz
Application Standard
WAP 2.0
3. Main Parts : Solution
Item Part Name Comment
AP Chip MT6582 (MTK)
PMIC Chip MT6323 (MTK)
RF Chip MT6166 (MTK)
2.1 Product Name
LG-D690 : WCDMA850/900/1900/2100+EGSM/GSM850/DCS/PCS
(HSDPA 21.1Mbps (Cat.14) / HSUPA 5.76Mbps (Cat.6) / GPRS Class 12 / EDGE Class 12 Downlink(Rx) Only)
2.2 Supporting Standard
2.3 Main Parts : Solution

2. PERFORMANCE
- 6 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2.4 HW Features
LG-D690n Product SPEC
4
4. HW Features
Item
Feature
Comment
Form Factor DOP type
Battery 1) Capacity
Standard : Li-Ion, 2940mAh
2) Packing Type : Changeable
Size Standard : 149.3x75.9x10.2
Weight 163g With Battery
Volume 87163.8 mm^3 Without Battery
PCB 10 STG Layers , 0.8t
Charging time 4.3hrs @ Power Off /
2940mAh
RX sensitivity WCDMA(FDD1) : -106.7 dBm
WCDMA(FDD8) : -103.7 dBm
EGSM : -105 dBm
GSM850 : -105 dBm
DCS 1800 : -105 dBm
PCS 1900 : -105 dBm
TX output
power WCDMA/ GSM/
GPRS
WCDMA : 22.5dBm/3.84MHz,+1/-3dBm
EGSM : 33 dBm
GSM850 : 32.7 dBm
DCS 1800 : 30 dBm
PCS 1900 : 30 dBm
Class3(WCDMA)
Class4 (EGSM)
Class4 (GSM850)
Class1 (PCS)
Class1 (DCS)
GPRS compatibility GPRS Class 12
EDGE compatibility EDGE Class 12 Downlink(Rx) Only
SIM card type Plug-In SIM
3V /1.8V
Display Main LCD(qHD)
TFT Main LCD(5. 5”,960 x 540)
Built-in Camera 13M AF / 1.3M VT
Status Indicator Yes(Red LED)
Keypad Function Key : 4
Back Key : 3
Function Key: Home,
Back, menu, SIM-
switch
Back Key : Volume
up, down, power key
ANT Main : Internal Fixed Type
System connector 5 Pin micro USB
Ear Phone Jack 3.5Phi, 4 Pole, Stereo
PC synchronization Yes
Memory NAND Flash : 8GByte
SDRAM : 1GByte LPDDR3
Speech coding FR, EFR, HR, AMR
Data & Fax Built in Data & Fax support
Vibrator Built in Vibrator
BlueTooth V4.0
MIDI(for Buzzer Function) 128 Poly
3000
3000

2. PERFORMANCE
- 7 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
LG-D690n Product SPEC
5
Music Player MP3,AAC,(e)AAC+,WMA,RA,WAV
Video Player
Playback : 30fps 1080p (H.264/263, MPEG4/2, WMV9,
VC1, VP8, DivX, XVID)
Recording : 30fps 1080p (H.264/263, MPEG4/8)
30fps 720p (Wi-Fi display)
Camcorder MPEG4/8
Voice Recording Yes
Speaker Phone mode
Support
Yes
Travel Adapter Yes In-box item
CDROM No
Stereo Headset Yes In-box item
Data Cable Yes In-box item
T-Flash(External Memory)
Yes
Specification
GSM WCDMA
Stand by current
(Sleep & Idle
Avg.)
Under 6mA @ P.P 5 Under 6mA @ DRX 7
Talk current Under 280 mA
@GSM Level 5
Under 600mA
@ Max Power Avg.
Under 230 mA
@ Tx -10dBm Avg.

2. PERFORMANCE
- 8 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2.5 SW Features
LG-D690n Product SPEC
6
5. SW Features
Item Feature Comment
RSSI 0 ~ 5 Levels
Battery Charging 0 ~ 20 Levels
Key Volume
0 ~ 7 Level
Audio Volume 0 ~ 15 Level
Time / Date Display Yes
Multi-Language Yes depending on build language
Quick Access Mode Phone / Messaging / Browser/
Applications
Phone / Contact / Messaging /
Applications
PC Sync Yes
Speed Dial Yes Voice mail center -> 1 key
Profile Yes not same with feature phone
setting
CLIP / CLIR Yes
Phone Book Name / Number / Email / Groups /
Postal addresses / Organizations / IM
/ Note / Nickname / Website / Event /
There is no limitation on the
number of items.
It depends on available memory
amount.
Last Dial Number Yes
Last Received Number Yes
Last Missed Number Yes
Search by
Number/Name Yes
Group Yes There is no limitation on the
number of items.
It depends on available memory
amount.
Fixed Dial Number Yes
Service Dial Number No
Own Number Yes My Profile (add/edit/delete are
supported)
Voice Memo Yes Support voice recorder
Call Reminder No
Network Selection
Automatic
Mute Yes
Call Divert Yes
Call Barring Yes
Call Charge (AoC) No
Call Duration
Yes
SMS (EMS) There is no limitation on the number
of items.
It depends on available memory
amount.
EMS does not support.
SMS Over GPRS No
EMS Melody / Picture
Send / Receive / Save No
MMS MPEG4
Send / Receive / Save
Yes Send / Receive : Yes
Save : depends on
content type
Support video content
type list
1. video/mp4

2. PERFORMANCE
- 9 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
LG-D690n Product SPEC
7
2. video/h263
3. video/3gpp2
video/3gpp
Long Message MAX 2000 characters The standard of Open vender
Cell Broadcast Yes
Download
Over the Web
Game No
Calendar Yes
Memo Yes There is no limitation on the
number of items.
It depends on available memory
amount.
World Clock Yes
Unit Convert No
Stop Watch Yes
Wall Paper Yes
WAP Browser No Support only web browser
based on webkit. WAP stack
and wml are not supported.
Download Melody /
Wallpaper
Yes Over web browser
SIM Lock No
SIM Toolkit Yes
MMS Yes LG MMS Client
EONS Yes
CPHS Yes V4.2
ENS No
Camera Yes 13M AF /
Digital Zoom : x4
JAVA No
Voice Dial No
IrDa No IrRC
Bluetooth
Yes
Ver. 4.0
FM radio Yes
GPRS Yes Class 12
EDGE Yes Class 12(Rx only)
Hold / Retrieve Yes
Conference Call Yes Max. 6
DTMF Yes
Memo pad No
TTY No
AMR Yes
SyncML No
IM
Yes
Google Hangout
Email Yes

2. PERFORMANCE
- 10 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
LG-D690n Product SPEC
8
6. HW SPEC
1) GSM transceiver specification
Item
Specification
Phase Error Rms : 5°
Peak : 20 °
Frequency Error GSM : 0.1 ppm
DCS/PCS : 0.1 ppm
EMC(Radiated Spurious Emission
Disturbance) GSM/DCS : < -28dBm
Transmitter Output power and
Burst Timing
GSM : 5dBm – 33dBm ± 2dB
DCS/PCS : 0dBm – 30dBm ± 2dB
Burst Timing <3.69us
Spectrum due to modulation out to
less than 1800kHz offset
200kHz : -36dBm
600kHz : -51dBm/-56dBm
Spectrum due to modulation out to
larger than 1800kHz offset to the
edge of the transmit band
GSM :
1800-3000kHz :< -63dBc(-46dBm)
3000kHz-6000kHz : <-65dBc(-46dBm)
6000kHz < : < -71dBc(-46dBm)
DCS :
1800-3000kHz :< -65dBc(-51dBm)
6000kHz < : < -73dBc(-51dBm)
Spectrum due to switching
transient
400kHz : -19dBm/-22dBm(5/0),
600kHz : -21dBm/-24dBm(5/0),
Reference Sensitivity – TCH/FS Class II(RBER) : -105dBm(2.439%)
Usable receiver input level range
0.012(-15 - -40dBm)
Intermodulation rejection – Speech
channels
± 800kHz, ± 1600kHz
: -98dBm/-96dBm (2.439%)
AM Suppression
-GSM : -31dBm
- DCS : -29dBm -98dBm/-96dBm (2.439%)
Timing Advance ± 0.5T
2) WCDMA transmitter specification
Item
Specification
Transmit Frequency Band1 : 1920 MHz ~ 1980 MHz
Band2 : 1852.4Mhz ~ 1907.6 MHz
Band5 : 824MHz ~ 849MHz
Band8 : 880MHz ~ 915MHz
Maximum Output Power +24 dBm / 3.84 MHz, +1 / -3 dB
Frequency Error
within ±0.1 PPM
Open Loop Power Control
Normal Conditions : within ±9 dB,
Extreme Conditions : within ±12 dB
Minimum Transmit Power < -50 dBm /3.84 MHz
Occupied Bandwidth < 5 MHz at 3.84 Mcps (99% of power)
Adjacent Channel Leakage
Power Ratio (ACLR)
> 33 dB @ ±5 MHz,
> 43 dB @ ±10 MHz
2.6 HW SPEC
1) GSM transceiver specication
2) WCDMA transmitter specication

2. PERFORMANCE
- 11 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
LG-D690n Product SPEC
9
Spurious Emissions
|f-fc| > 12.5 MHz
< -36 dBm / 1 kHz RW @ 9 kHz ≤ f < 150 kHz
< -36 dBm / 10 kHz RW @ 150 KHz ≤ f < 30 MHz
< -36 dBm / 100 kHz RW @ 30 MHz ≤ f < 1 GHz
< -30 dBm / 1 MHz RW @ 1 GHz ≤ f < 12.75 GHz
< -60 dBm / 3.84 MHz RW @ 880 MHz ≤ f ≤ 915 MHz
< -60 dBm / 3.84 MHz RW @ 1920 MHz ≤ f ≤ 1980 MHz
< -67 dBm / 100 kHz RW @ 925 MHz ≤ f ≤ 935 MHz
< -79 dBm / 100 kHz RW @ 935 MHz < f ≤ 960 GHz
< -71 dBm / 100 kHz RW @ 1805 MHz ≤ f ≤ 1880 MHz
< -41 dBm / 300 kHz RW @ 1884.5 MHz < f < 1919.6
MHz
Transmit Intermodulation < -31 dBc @ 5 MHz & < -41 dBc @ 10 MHz
when Interference CW Signal Level = -40 dBc
Error Vector Magnitude < 17.5 %, when Pout ≥ -20 dBm
Peak Code Domain Error < -15 dB at Pout ≥-20 dBm
3) WCDMA receiver specification
Item
Specification
Receive Frequency Band1 : 2110 MHz ~ 2170 MHz
Band2 : 1932.4 MHz ~ 1987.6 MHz
Band5 : 869 MHz ~ 894 MHz
Band8 : 925 MHz ~ 960MHz
Reference Sensitivity Level Band1 : BER < 0.001 when Îor = -106.7 dBm / 3.84 MHz
Band8 : BER < 0.001 when Îor = -103.7 dBm / 3.84 MHz
Maximum Input Level BER < 0.001 when Îor = -25 dBm / 3.84 MHz
Adjacent Channel Selectivity
(ACS)
ACS > 33 dB where BER < 0.001 when
Îor = -92.7 dBm / 3.84 MHz
& Ioac = –52 dBm / 3.84 MHz @ ±5 MHz
Blocking Characteristic BER < 0.001 when Îor = -103.7 dBm / 3.84 MHz
& Iblocking = -56 dBm / 3.84 MHz @ Fuw(offset) = ±10 MHz
or Iblocking = -44 dBm / 3.84 MHz @ Fuw(offset) = ±15 MHz
Spurious Response BER < 0.001 when Îor = -103.7 dBm / 3.84 MHz
& Iblocking = -44 dBm
Intermodulation BER < 0.001 when Îor= -103.7 dBm / 3.84 MHz
& Iouw1 = -46 dBm @ Fuw1(offset) = ±10 MHz
& Iouw2 = -46 dBm / 3.84 MHz @ Fuw2(offset) = ±20 MHz
Spurious Emissions < -57 dBm / 100 kHz BW @ 9 kHz ≤ f < 1 GHz
< -47 dBm / 1 MHz BW @ 1 GHz ≤ f ≤ 12.75 GHz
Inner Loop Power Control
In Uplink
Adjust output(TPC command)
cmd 1dB 2dB 3dB
+1 +0.5/1.5 +1/3 +1.5/4
0 -0.5/+0.5 -0.5/+0.5 -0.5/+0.5
-1 -0.5/-1.5 -1/-3 -1.5/-4
group(10equal command group)
+1 +8/+12 +16/+24
3) WCDMA receiver specication

2. PERFORMANCE
- 12 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
LG-D690n Product SPEC
10
4) HSDPA transmitter specification
Item
Specification
Transmit Frequency Band1 : 1920 MHz ~ 1980 MHz
Band2 : 1852.4Mhz ~ 1907.6 MHz
Band5 : 824MHz ~ 849MHz
Band8 : 880MHz ~ 915MHz
Maximum Output Power Sub-Test
1=1/15, 2=12/15 21~25dBm / 3.84 MHz
3=13/15 4=15/8 20~25dBm / 3.84 MHz
5=15/7 6=15/0 19~25dBm / 3.84 MHz
HS-DPCCH
Sub-
test
in table
C.10.1.4
Power
step
Power step slot
boundary
Power
step size,
P [dB]
Transmitter power
step tolerance [dB]
5
1 Start of
Ack/Nack
6 +/- 2.3
2 Start of CQI 1 +/- 0.6
3
Middle of CQI
0
+/- 0.6
4 End of CQI 5 +/- 2.3
Spectrum Emission Mask
Sub-Test : 1=1/15, 2=12/15, 3=13/15, 4=15/8, 5=15/7,
6=15/0
Frequency offset
from carrier △f Minimum requirement Measurement
Bandwidth
2.5 ~ 3.5 MHz -35-15×(△f-2.5)dBc 30 kHz
3.5 ~ 7.5 MHz -35-1×(△f-3.5)dBc 1 MHz
7.5 ~ 8.5 MHz -35-10×(△f-7.5)dBc 1 MHz
8.5 ~ 12.5 MHz
-49dBc
1 MHz
Adjacent Channel Leakage
Power Ratio (ACLR) Sub-Test : 1=1/15, 2=12/15, 3=13/15, 4=15/8, 5=15/7, 6=15/0
> 33 dB @ ±5 MHz
> 43 dB @ ±10 MHz
Error Vector Magnitude < 17.5 %, when Pout ≥ -20 dBm
5) HSDPA receiver specification
Item Specification
Receive Frequency Band1 : 2110 MHz ~ 2170 MHz
Band2 : 1932.4 MHz ~ 1987.6 MHz
Band5 : 869 MHz ~ 894 MHz
Band8 : 925 MHz ~ 960MHz
Maximum Input Level
(BLER or R), 16QAM Only Sub-Test : 1=1/15, 2=12/15, 3=13/15, 4=15/8, 5=15/7, 6=15/0
BLER < 10% or R >= 700kbps
4) HSDPA transmitter specication
5) HSDPA receiver specication

2. PERFORMANCE
- 13 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
6) WLAN 802.11b transceiver specication
LG-D690n Product SPEC
11
6) WLAN 802.11b transceiver specification
Item
Specification
Transmit Frequency 2400 MHz ~ 2472MHz ( CH1~CH11 )
Tx Power Level ≤ 20dBm under (Europe), ≤ 30dBm under (USA)
Frequency Tolerance within ±25 PPM
Chip clock Frequency
Tolerance within ±25 PPM
Spectrum Mask ≤ -30 @ fc-22MHz< f <fc-11MHz and fc+11MHz< f <fc+22MHz
≤ -50 @ f < fc-22MHz and f > fc+22MHz
Power ramp on/off time ≤ 2us
Carrier Suppression ≤ -15dB
Modulation Accuracy
(Peak EVM)
≤ 35%
Spurious Emissions < -36 dBm @ 30MHz ~ 1GHz
< -30 dBm above @ 1GHz ~ 12.75GHz
< -47 dBm @ 1.8GHz ~ 1.9GHz
< -47 dBm @ 5.15GHz ~ 5.3GHz
Rx Min input Sensitivity ≤ -76dBm(1Mbps,2Mbps,5.5Mbps,11Mbps) @ FER ≤ 8%
Rx Max input Sensitivity ≥ -10dBm(1Mbps,2Mbps,5.5Mbps,11Mbps) @ FER ≤ 8%
Rx Adjacent Channel
Rejection
≥ 35dB @FER ≤ 8%,
interference input signal -70dBm@fc±25MHz(11Mbps)

2. PERFORMANCE
- 14 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
7) WLAN 802.11g transceiver specication
LG-D690n Product SPEC
12
7) WLAN 802.11g transceiver specification
Item Specification
Transmit Frequency 2400 MHz ~ 2472MHz ( CH1~CH11 )
Tx Power Level ≤ 20dBm under (Europe), ≤ 30dBm under (USA)
Frequency Tolerance within ±25 PPM
Chip clock Frequency
Tolerance within ±25 PPM
Spectrum Mask ≤ -20 @ ±11MHz offset (9Mhz ~ 11MHz)
≤ -28 @ ±20MHz offset (11MHz ~ 20Mhz)
≤ -40 @ ±30MHz offset (20MHz ~ 30Mhz)
Transmitter constellation error
(rms EVM)
≤ -5dB
Spurious Emissions
< -36 dBm @ 30MHz ~ 1GHz
< -30 dBm above @ 1GHz ~ 12.75GHz
< -47 dBm @ 1.8GHz ~ 1.9GHz
< -47 dBm @ 5.15GHz ~ 5.3GHz
Rx Min input Sensitivity PER ≤ 10%
-82dBm@6Mbps, -81dBm@9Mbps, -79dBm@12Mbps
-77dBm@18Mbps, -74dBm@24Mbps, -70dBm@36Mbps
-66dBm@48Mbps, -65dBm@54Mbps
Rx Max input Sensitivity ≥ -20dBm(6,9,12,18,24,36,48,54Mbps) @ PER ≤ 10%
Rx Adjacent Channel
Rejection
PER ≤ 10%,
ACR ≥ 16dB@6Mbps, ACR ≥ 15dB@9Mbps,
ACR ≥ 13dB@12Mbps, ACR ≥ 11dB@18Mbps,
ACR ≥ 8dB@24Mbps, ACR ≥ 4dB@36Mbps
ACR ≥ 0dB@48Mbps, ACR ≥ -1dB@54Mbps
※ACR shall be measured by setting the desired signal's strength
3 dB above the rate-dependent
sensitivity specified in min input sensitivity

2. PERFORMANCE
- 15 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
8) WLAN 802.11n transceiver specication
LG-D690n Product SPEC
13
8) WLAN 802.11n transceiver specification
Item Specification
Transmit Frequency 2400 MHz ~ 2472MHz ( CH1~CH11 )
Tx Power Level ≤ 20dBm under (Europe), ≤ 30dBm under (USA)
Frequency Tolerance within ±25 PPM
Chip clock Frequency
Tolerance within ±25 PPM
Spectrum Mask
≤ -20 @ ±11MHz offset (9Mhz ~ 11MHz)
≤ -28 @ ±20MHz offset (11MHz ~ 20Mhz)
≤ -40 @ ±30MHz offset (20MHz ~ 30Mhz)
Transmitter constellation error
(rms EVM)
≤ -[email protected], ≤ -10dB@13Mbps, ≤ -13dB
@19.5Mbps,
≤ -16dB@26Mbps, ≤ -19dB@39Mbps, ≤ -22dB
@52Mbps,
≤ -[email protected], ≤ -28dB@65Mbps
Spurious Emissions
< -36 dBm @ 30MHz ~ 1GHz
< -30 dBm above @ 1GHz ~ 12.75GHz
< -47 dBm @ 1.8GHz ~ 1.9GHz
< -47 dBm @ 5.15GHz ~ 5.3GHz
Rx Min input Sensitivity
PER ≤ 10%
[email protected], -79dBm@13Mbps, -77dBm
@19.5Mbps
-74dBm@26Mbps, -70dBm@39Mbps, -66dBm
@52Mbps
[email protected]s, -64dBm@65Mbps
Rx Max input Sensitivity ≥ -20dBm(6.5,13,19.5,26,39,52,58.5,65Mbps)
@ PER ≤ 10%
Rx Adjacent Channel
Rejection
PER ≤ 10%,
ACR ≥ [email protected], ACR ≥ 13dB@13Mbps,
ACR ≥ [email protected]Mbps, ACR ≥ 8dB@26Mbps,
ACR ≥ 4dB@39Mbps, ACR ≥ 0dB@52Mbps
ACR ≥ -[email protected]ps, ACR ≥ -2dB@65Mbps
※ACR shall be measured by setting the desired
signal's strength 3 dB above the rate-dependent
sensitivity specified in min input sensitivity

2. PERFORMANCE
- 16 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
9) Bluetooth specication
LG-D690n Product SPEC
14
9) Bluetooth specification
Item Specification
Output Power DH5
PRBS9
-6 dBm <Nominal Power <+10 dBm
Peak Power <+23 dBm
Power Density DH5
PRBS9 +20 dBm @ 100 kHz BW
Frequency Range DH5
PRBS9 -30 dBm @ 100 kHz BW
Tx Output Spectrum
(20dB BW)
DH5
PRBS9 Δf =fH-fL <1 MHz
Tx Output Spectrum
(Adjacent Output Power)
DH5
PRBS9
<-20 dBm @M-N = 2
<-40 dBm @M-N = 3
Modulation Index
DH5
11110000 140 kHz <f1AVG <175 kHz
DH5
10101010
115 kHz <f2MAX
0.8 <f2MAX/≤ f1AVG
Initial Carrier Freq.
Tolerance
DH5
PRBS9 -75 kHz <ICFT <+75 kHz
Carrier Frequency Drift
DH1
10101010
-25 kHz <Freq. Drift <+25 kHz
-20 kHz/50us <Drift Rate <+20 kHz/50us
DH3
10101010
-40 kHz <Freq. Drift <+40 kHz
-20 kHz/50us <Drift Rate <+20 kHz/50us
DH5
10101010
-40 kHz <Freq. Drift <+40 kHz
-20 kHz/50us <Drift Rate <+20 kHz/50us
Out of Band Spurious
Emission
DH1
PRBS9 >20 dBc @ 30MHz < f < 12.75GHz
Sensitivity
(Single Slot Packet)
DH1
PRBS9 BER @ 0.1%, <-70 dBm
Sensitivity
(Multi Slot Packet)
DH5
PRBS9 BER @ 0.1%, <-70 dBm

2. PERFORMANCE
- 17 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
LG-D690n Product SPEC
15
9) Bluetooth specification (continued)
C/I Performance
DH1
PRBS9
< 11 dB ( Co-Channel, -60dBm@ BER0.1% )
< 0 dB (C/I @1MHz, -60dBm@ BER 0.1%)
<-30 dB ( C/I @2MHz, -60dBm@ BER 0.1% )
< -40 dB ( C/I @≥3MHz, -67dBm@ BER0.1% )
<-9 dB ( C/I @Image, -67dBm@ BER 0.1%)
<-20 (dB C/I @1MHz Image, -67dBm@ BER 0.1%)
Blocking Performance
DH1
PRBS9
<-67 dBm (-10dBm @ 30M ~2 GHz)
<-67 dBm (-27dBm @ 2 ~ 2.4 GHz)
<-67 dBm (-27dBm @ 2.5 ~ 3 GHz)
<-67 dBm (-10dBm @ 3 ~ 12.75 GHz)
Intermodulation
Performance
DH1
PRBS9
< -
64 dBm (Δf = +5MHz (CW), Δf = +10MHz (BT), BER @
0.1%)
< -64 dBm (Δf = -5MHz (CW), Δf = -1
0MHz (BT), BER @
0.1%)
Maximum Input Level DH1
PRBS9 > -20 dBm (BER @ 0.1%)
10) GPS receiver specification
Item
Specification
Receive Frequency
1574.42 MHz ~ 1576.42 MHz
Sensitivity Test
Success rate ≥60% @ -154 dBm
11) Signal Bar
Cell Power
[dBm] GSM WCDMA Comment
Bar 54-91 ±2dBm -86 ±2dBm
1. Call Connected &
CPIPH Level=-3.3
2. WCDMA: RSSI,
GSM: RSSI
Bar 43-96 ±2dBm -90 ±2dBm
Bar 32-99 ±2dBm -96 ±2dBm
Bar 21-103 ±2dBm -100 ±2dBm
Bar 10-105 ±2dBm -106 ±2dBm
9) Bluetooth specication (continued)
10) GPS receiver specication
11) Signal Bar

2. PERFORMANCE
- 18 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
12) Current Consumption
LG-D690n Product SPEC
16
12) Current Consumption
Specification
GSM WCDMA
Stand by current
(Sleep & Idle
Avg.)
Under 6mA @ P.P 5 Under 6mA @ DRX 7
BT Connected
Current Under 7.5mA @ P.P 5 Under 7.5mA @ DRX 7
Talk current Under 280 mA
@GSM Level 5
Under 600mA
@ Max Power Avg.
Under 230 mA
@ Tx -10dBm Avg.
Power Off Mode Under 300uA Under 300uA
-.Network Mode is measured at each Band Only state.
-.Current measured at LCD Off state.
13) Battery Usage Time
Item Specification Test condition
Standby Time
(WCDMA) Over 490 Hours DRX 7 @ BATT Capacity : 2940mAh
Standby Time
(GSM) Over 490 Hours EGSM P5 @ BATT Capacity : 2940mAh
Talk Time
(WCDMA) Over 12.5 Hours 10dBm @ BATT Capacity : 2940mAh
Talk Time
(GSM) Over 10.5 Hours EGSM, LV5 @ BATT Capacity : 2940mAh
Speaker(MP3) Over 15 Hours
Reference MP3 : ELT_Mode.mp3
-92dBm, Half Rate, Backlight Off, Volume Max.
Ear Phone(MP3) Over 15 Hours
-.Network Mode is measured at each Band Only state.
-.Current measured at LCD Off state.
13) Battery Usage Time
3000
3000
3000
3000

2. PERFORMANCE
- 19 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
14) Battery Icon Display
LG-D690n Product SPEC
17
14) Battery Icon Display
Battery Bar Specification Battery Bar Specification
Bar 20(Full) 98%이상Bar 9 -> Bar 8 43% -> 42%
Bar 20 -> Bar 19 98% -> 97% Bar 8 -> Bar 7 38% -> 37%
Bar 19 -> Bar 18 93% -> 92% Bar 7 -> Bar 6 33% -> 32%
Bar 18 -> Bar 17 88% -> 87% Bar 6 -> Bar 5 28% -> 27%
Bar 17 -> Bar 16 83% -> 82% Bar 5 -> Bar 4 23% -> 22%
Bar 16 -> Bar 15 78% -> 77% Bar 4 -> Bar 3 16% -> 15%
Bar 15 -> Bar 14 73% -> 72% Bar 3 -> Bar 2 13% -> 12%
Bar 14 -> Bar 13 68% -> 67% Bar 2 -> Bar 1 8% -> 7%
Bar 13 -> Bar 12 63% -> 62% Bar 1 -> Bar 0 3% -> 2%
Bar 12 -> Bar 11 58% -> 57% Power off 1%이하
Bar 11 -> Bar 10 53% -> 52% Low battery pop-up 15% , 5%, 0%
Bar 10 -> Bar 9 48% -> 47%
Power off voltage : SOC 1%(3.4V) ±0.1V
15) Basic Performance
Item Specification Target Test condition
DOU
(Day Of Usage) 1.0 1.0 LTE Profile Ver. 4.0 기준
Heat
Emmision
(ΔT) *
WCDMA Δ18℃Δ18℃WCDMA TX 23dBm
GSM Δ15℃Δ15℃GSM TX 33dBm(EGSM)
or 30dBm(DCS, PCS)
Handset
RLR
(Acoustic)
-10±3 dB
(Vol. Max) -10dB Torso type 3.3 Handset RLR
(Acoustic)
Earphone
RLR
(Ear
Acoustic)
-7±3 dB
(Vol. Max) -7dB Torso type 3.3 Earphone RLR
(Ear Acoustic)
15) Basic Performance
Power o voltage : SOC 1%(3.4V) ±0.1V

3. TROUBLE SHOOTING
- 20 - Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
3. TROUBLE SHOOTING
3. 1 RF Component
LGE Internal Use Only
4. TROUBLE SHOOTING
4.1 RF Component

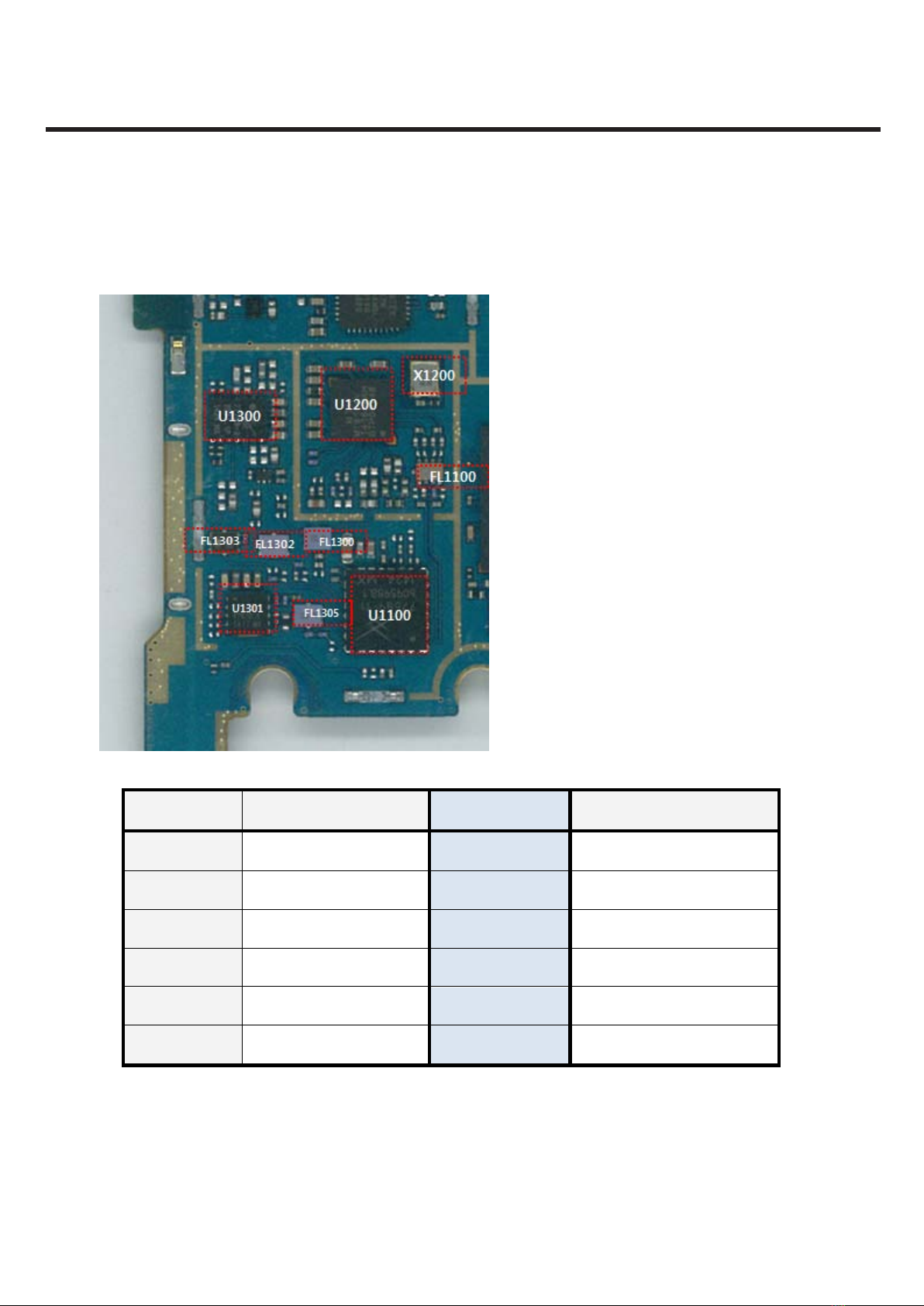

Reference Description Reference Description
U1100 FEM + GSM PAM X1200 XTAL
U1200 MT6166 FL1100 GSM QUAD Rx SAW Filter
U1300 WCDMA B2/5/8 PAM FL1300 WCDMA B5 Duplexer
U1301 WCDMA B1 PAM FL1302 WCDMA B8 Duplexer
U1602 WCDMA B2/B8 Dual PAM FL1303 WCDMA B2 Duplexer
FL1305 WCDMA B1 Duplexer
4.2 SIGNAL PATH
