LG GDK-186 User manual

(APR 2004/ISSUE 2.2)
GDK-186/100/34E/20W
& LDK-130/300/600
WOTS
Wireless Terminal User Guide
MODEL : GDC-345H (GAP)
LGE.

GDK-162/100/FPII/20W & LDK-24/100/300/300E WOTS
Wireless Terminal (GDC-345H) User Guide
REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES REMARK
2002.10
2002.11
2003.03
2003.09
2004.03
ISSUE 1.0
ISSUE 1.1
ISSUE 2.0
ISSUE 2.1
ISSUE 2.2
-. Initial Release
-. Added the notice of Ear-Mic.
-. Added the LDK-24 feature
-. Added the LDK-600 feature
-. Added Best Base selection function.
* This manual for GDC-345H GAP wireless terminal is applicable for printed date and can be
modified or updated due to production enhancement. If there is any question, please inquire of
UADS (Unit Application Detail Specification) of sale area about questions.
* Unauthorized copying or partial plagiarism is prohibited by law.
i

GDK-162/100/FPII/20W & LDK-24/100/300/300E WOTS
Wireless Terminal (GDC-345H) User Guide
백지
ii

GDK-162/100/FPII/20W & LDK-24/100/300/300E WOTS
Wireless Terminal (GDC-345H) User Guide
CONTENTS
1. GENERAL DESCRIPTION ......................................................................................................１
1.1 PURPOSE .............................................................................................................................１
1.2 CONTENTS ...........................................................................................................................１
1.3 PREPARATION ......................................................................................................................２
2. WIRELESS TERMINAL TOOL KIT .........................................................................................３
2.1 WIRELESS TERMINAL (GDC-345H).......................................................................................３
2.2 SINGLE-SLOT CHARGER (345H-SSC)...................................................................................４
2.3 BATTERY (1.2V RECHARGEABLE NIMH AAA SIZE 2 CELL)....................................................４
2.4 ADAPTER (330-HAP)............................................................................................................５
2.5 INSTALLATION(BATTERY AND BELT CLIP)............................................................................５
3. MAINTENANCE.......................................................................................................................６
3.1 WIRELESS TERMINAL (GDC-345H).......................................................................................６
3.2 CHARGER (345H-SSC) ........................................................................................................７
3.3 BATTERY (1.2V RECHARGEABLE NIMH AAA SIZE 2 CELL)....................................................７
4. USER INTERFACE..................................................................................................................８

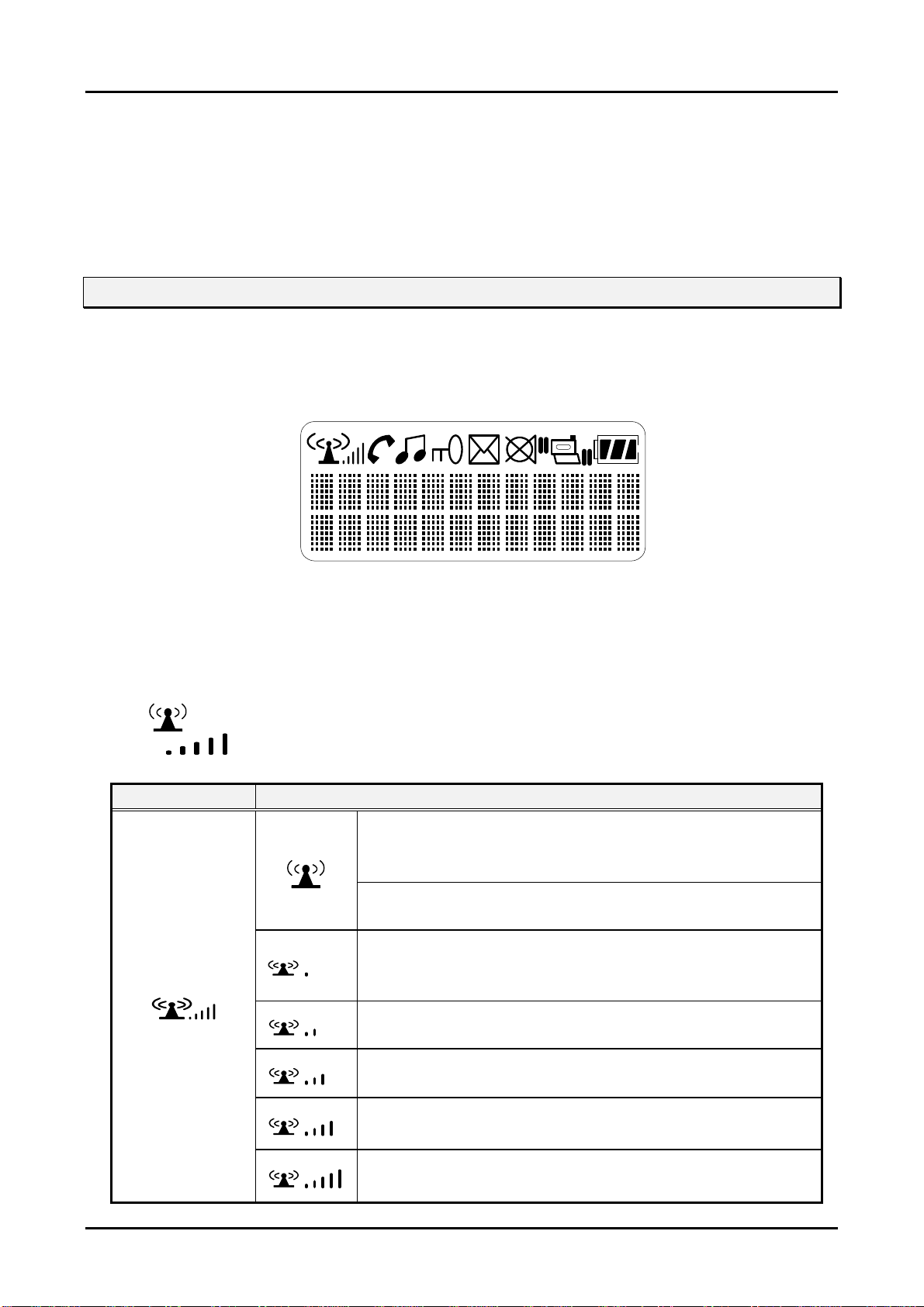

4.1 LCD DISPLAY.......................................................................................................................８
4.1.1 ANTENNA ICON & RSSI ICON .........................................................................................８
4.1.2 PHONE ICON.................................................................................................................９
4.1.3 KEY LOCK ICON...........................................................................................................９
4.1.4 MESSAGE ICON ...........................................................................................................９
4.1.5 MUTE ICON ...................................................................................................................９
4.1.6 BATTERY ICON ............................................................................................................９
4.1.7 TONE MODE ICON........................................................................................................９
4.1.8 SILENT MODE/VIBRATOR MODE ICON ......................................................................１０

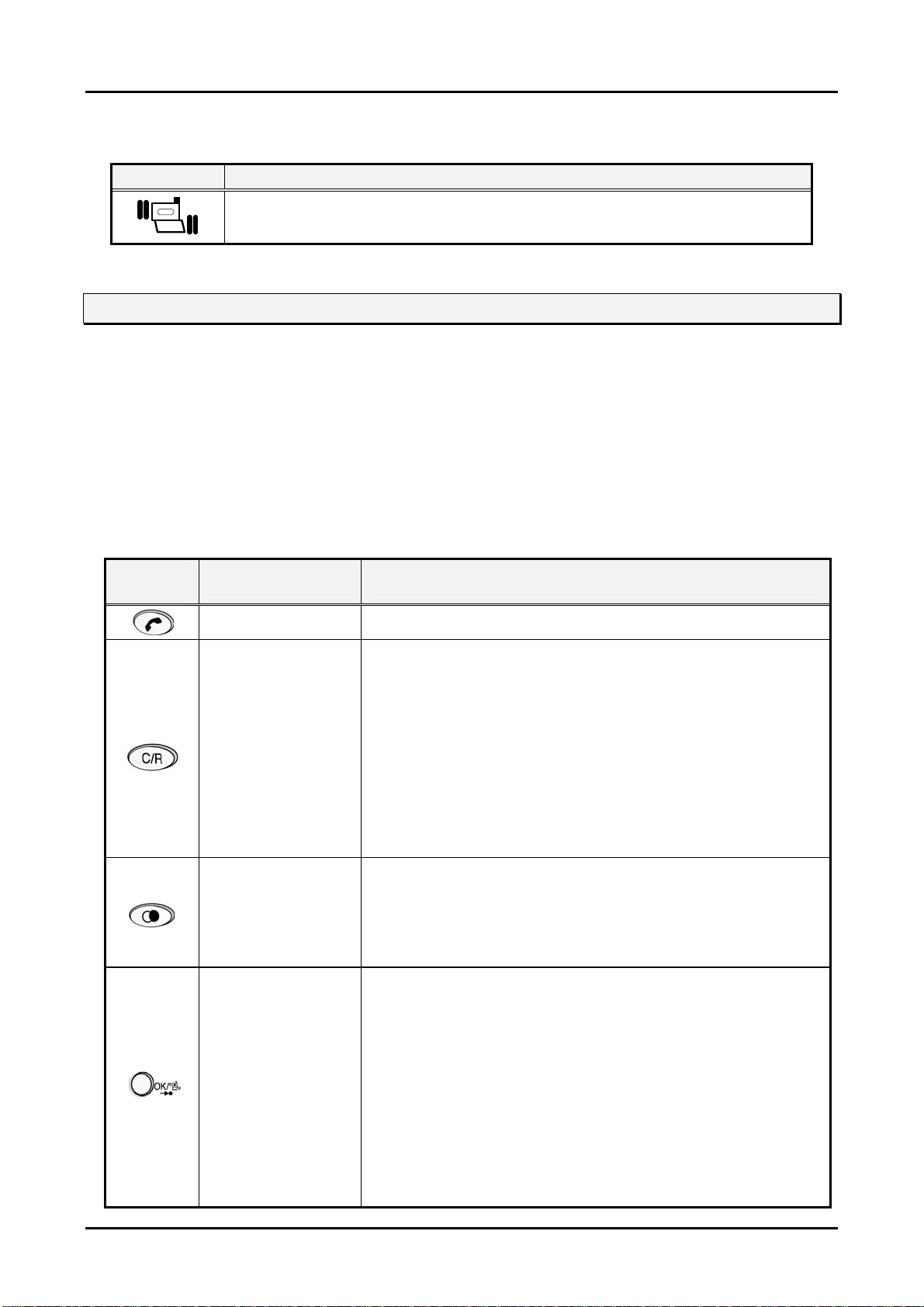

4.2 BUTTONS & FUNCTIONS ...................................................................................................１０
4.3 TONE................................................................................................................................１２
4.4 MESSAGE DISPLAY...........................................................................................................１３
4.5 CALL READY STATE..........................................................................................................１３
5. TELEPHONE FEATURES...................................................................................................１４
5.1 BASIC FEATURES..............................................................................................................１４
5.1.1 POWER ON/OFF........................................................................................................１４
5.1.2 CALL FUNCTION .........................................................................................................１４
i

GDK-162/100/FPII/20W & LDK-24/100/300/300E WOTS
Wireless Terminal (GDC-345H) User Guide
5.2 KEY SYSTEM FEATURES ...................................................................................................１５
5.2.1 CALL SERVICE FUNCTION...........................................................................................１５
5.2.2 KEY SYSTEM SUPPORT FUNCTION..............................................................................２３
5.3 DECT FEATURES .............................................................................................................４３
5.3.1 MOBILITY MANAGEMENT FUNCTION ............................................................................４３
5.3.2 WIRELESS TERMINAL SERVICE FUNCTION................................................................... ４５
6. INSTALLATION OF WIRELESS TERMINAL......................................................................５９
6.1 SYSTEM ID & AUTHENTICATION CODE ..............................................................................５９
6.2 SUBSCRIPTION .................................................................................................................６０
6.3 DE-SUBSCRIPTION - I........................................................................................................６４
6.4 DE-SUBSCRIPTION - II.......................................................................................................６５
6.5 AUTHENTICATION..............................................................................................................６８
6.6 CHANGE OF SUBSCRIBED SYSTEM.................................................................................... ６９
8. SPECIFICATIONS ...............................................................................................................７２
8.1 SYSTEM SPECIFICATION....................................................................................................７２
8.2 HAND-HELD TYPE WIRELESS TERMINAL (GDC-345H) SPECIFICATION............................... ７３
8.3 CHARGER(345-SSC) SPECIFICATION................................................................................ ７３
APPENDIX. A USER MENU TREE .........................................................................................７４
APPENDIX. B FUNCTION SHORT-KEY TABLE.................................................................... ７５
APPENDIX. C THE LCD MESSAGES RELATED TO A CALL...............................................８０
ii

GDK-162/100/FPII/20W & LDK-24/100/300/300E WOTS
Wireless Terminal (GDC-345H) User Guide
1. GENERAL DESCRIPTION
1.1 Purpose
The purpose of this manual is to give a user the right way to use a GDC-345H wireless terminal and its
accessories. This manual lists the matters that a user has to avoid for right use and explains the features
of the wireless terminal as a terminal of GDK-186/100/34E/20W & LDK-130/300/600 systems. The
features which are explained in this manual describe the user-interface for GDK & LDK series DECT key
system of local sale. Also it illustrates the specifications of the terminal and its accessories. The wireless
terminal, GDC-345H (GAP), is designed and manufactured for interface with GDK & LDK series DECT
key system and LGE doesn’t guarantee inter-operability between any other GAP system and GDC-345H
(GAP). Please, refer to ‘GDK & LDK System Installation Manual’ about applicable peripheral items.

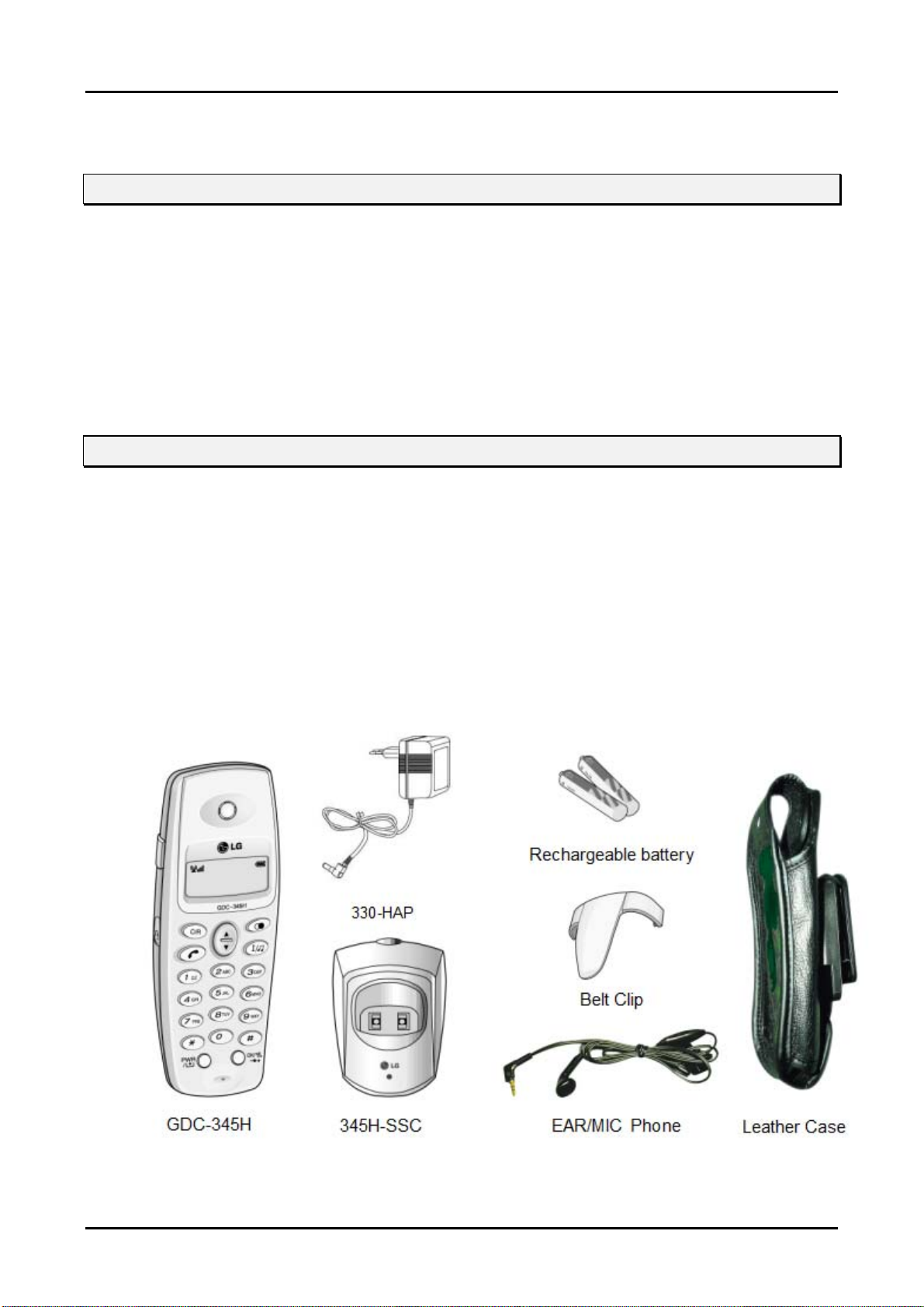

1.2 Contents
The wireless terminal tool kit contains the following items. Please be sure all of the listed items are
contained.
 Wireless Terminal User Guide : 1
 GDC-345H, Wireless Terminal : 1
 345H-SSC, Single-slot Charger : 1
 Standard Rechargeable Battery : 2 Cell
 330-HAP, AC/DC Adapter : 1
 Belt Clip : 1
 EAR/MIC Phone : Optional
 A leather case : Optional
Note ) The above figure is illustrative purpose only. The actual products may look different.
１

GDK-162/100/FPII/20W & LDK-24/100/300/300E WOTS
Wireless Terminal (GDC-345H) User Guide
1.3 Preparation
 Below table shows the maximum cell number, maximum registrable terminal number, and
maximum simultaneous wireless call number in different configurations of GDK-
186/100/34E/20W & LDK-130/300/600 system and the applicable S/W version of GDC-345H
handset. Please note that only one(1) WTIB(with WTIU) board can be installed in GDK-
186/100/34E/20W system, one(1) WTIB board can be installed in LDK-24 system, two(2)
WTIB(with WTIU) boards can be installed in LDK-130 system and three(3) WTIB(with WTIU)
board can be installed in LDK-300/600 system. (The WTIU board is not prepared in the GDK-
20W system.)
Items
System
Name
1. Board
Name
2. Max.
Cell Number
(Base Station
Num.
)
3. Channels/
Cell
4. Registrable
Max.
Terminal Number
5. Max.
Simultaneous
Wireless Call
6. Applicable
SW version
(GDC-345H)
WTIB 3 5 8~96 b
y
ste
p
8 15
GDK-186 With WTIU 6 5 8~96 by step 8 30 All version
WTIB 4 5 8~64 by step 8 16
GDK-100 With WTIU 8 5 8~64 by step 8 32 All version
WTIB 4 5 8~32 by step 8 16
GDK-34E With WTIU 8 5 8~32 by step 8 16 All version
MBU 1 4 20 4
GDK-20W WTIB 3 4 20 12 All version
LDK-24 WTIB 3 2 12 6 All version
WTIB
(MAX. 2) 4 ( x 2 ) 5 8~80 by step 8 32
LDK-130 With WTIU
(MAX. 2) 8 ( x 2 ) 5 8~80 by step 8 64 All version
WTIB
(MAX. 3) 4 ( x 3 ) 5 8~192 by step 8 48
LDK-300/600 With WTIU
(MAX. 3) 8 ( x 3 ) 5 8~192 by step 8 96 All version
 The wireless terminal should be subscribed before using it. (Please refer to ‘6. Installation of
Wireless Terminal’)
 A call may be failed even when free channels exist due to unexpected changes of radio
environment.
 When all channels are occupied, no more call can be made. In this case, a user should wait
until a channel becomes free.
 The S/W of a wireless terminal can be updated by the manufacturer.
 The working area of your hand-held type wireless terminal is limited to the domain of the
coverage area of a wireless system, which may be adjusted to a premise of an organization,
an office, or a company. Using a terminal outside of this area will bring unsatisfied results.
 A hand-held type wireless terminal is not specified as intrinsically safe. So do not use it in
hazardous area or intent.
 If a user doesn’t use matched configuration, the normal operation can’t be guaranteed.
 If you are out from the range of a base station for a long time with your handset power-
on, it may fail to find the base station again when you are in the range. In that case,
refresh the power of the handset or press “[MENU key] + [3]+ [OK key]”
２

GDK-162/100/FPII/20W & LDK-24/100/300/300E WOTS
Wireless Terminal (GDC-345H) User Guide
2. WIRELESS TERMINAL TOOL KIT

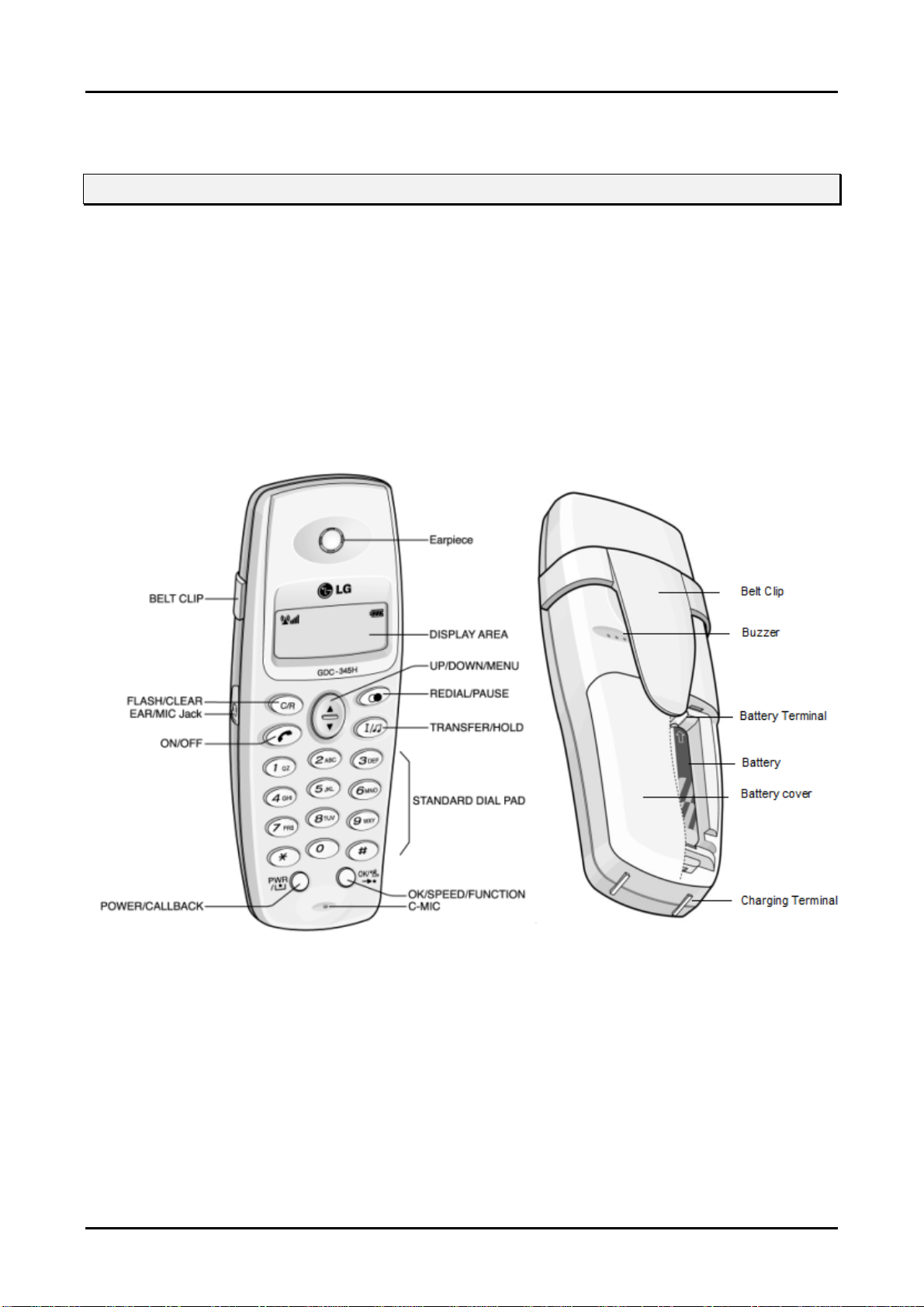

2.1 Wireless Terminal (GDC-345H)
The GDC-345H is a DECT business wireless terminal that communicates with a GDK-
186/100/34E/20W & LDK–130/300/600 WOTS (Wireless Office Telephone System) via radio
channels.
A cell is an area effected by the antenna of a fixed part of the system. A Cell of the same wireless
system is overlapped with other cells. The coverage area of a wireless system consists of these
cells. A user can make calls within this area. As a user moves, the effecting cell of the terminal will
be switched over.
 Hand-held Type Wireless Terminal : GDC-345H
The hand-held type wireless terminal (GDC-345H) is designed for ease and portable use.
Note:
The above and the following figures are just for illustrative purposes only. An actual product may look
different.
３

GDK-162/100/FPII/20W & LDK-24/100/300/300E WOTS
Wireless Terminal (GDC-345H) User Guide

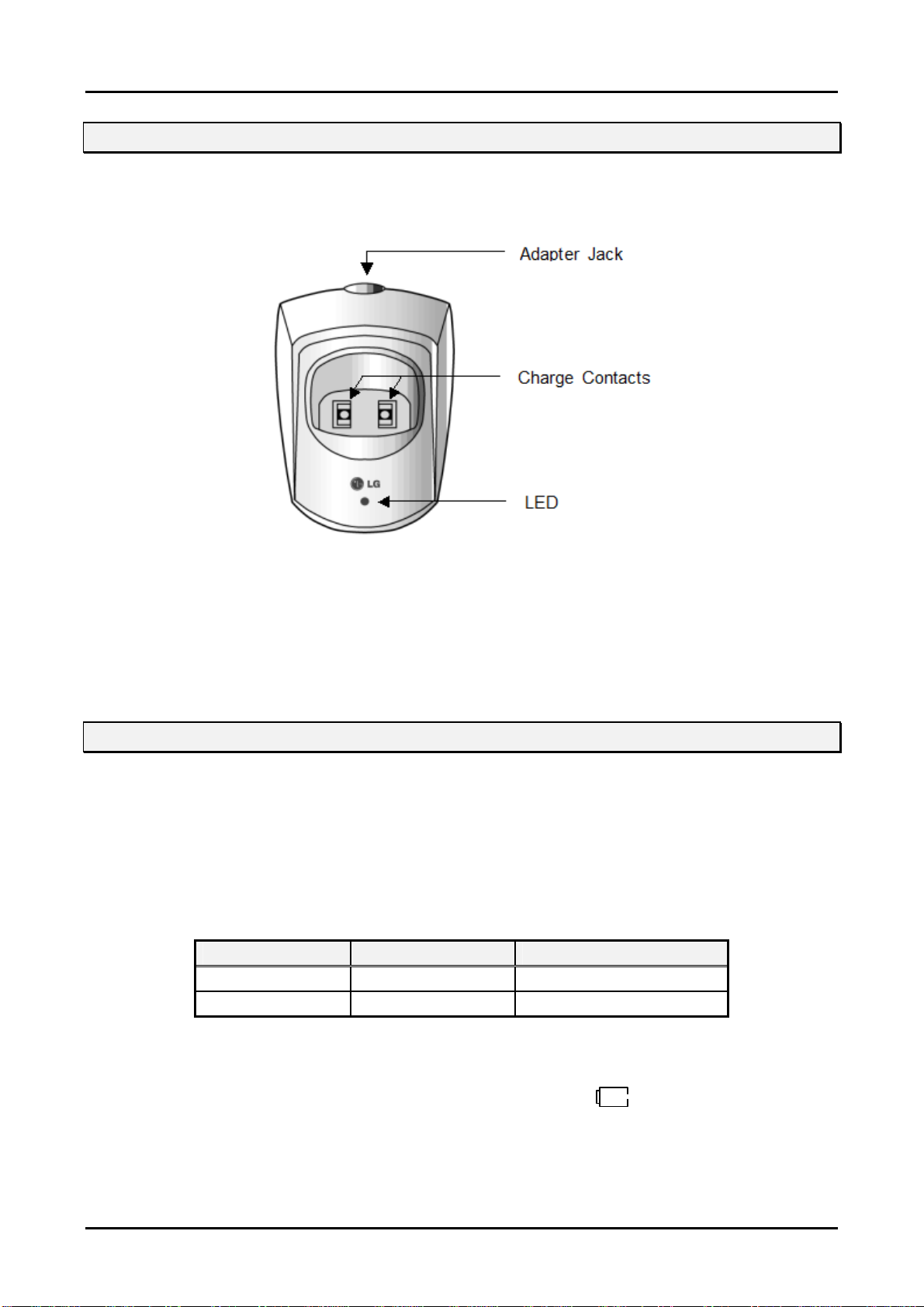

2.2 Single-slot Charger (345H-SSC)
A 345H-SSC is used as a charger of GDC-345H. It uses an AC 230V/50Hz adapter or a AC
220V/110V ~ 50/60Hz adapter, 330-HAP.
Single-slot Charger (345H-SSC)
The LED on the charger indicates that charging is in progress.
The battery is Nickel Metal Hydride(NiMH) type. To maintain the initial duration of the battery,
charge a fully discharged battery.
2.3 Battery (1.2V rechargeable NiMH AAA Size 2 cell)
A standard battery lasts 9 hours in talking mode and 50 hours in standby mode.
According to the charged state, temperature, environment and habits of using, or radio environment
of using place, the duration of a battery will be varied. If a user uses a battery according to the
described maintenance(in the next chapter), a full-charged battery guarantees the duration as
below table. Unless a user follows the maintenance guideline, the duration of a fully charged
battery is not guaranteed.
Bat. Type Rechargeable Full Charging Time
Talking Mode 9 hrs 10 ~ 12 hrs
Standby Mode 50 hrs 10 ~ 12 hrs
< Battery duration and charging time >
When a battery is almost consumed during a call or in an idle state (under 2.3V ± 0.1V), warning
tone will be heard once in every 20 second, and a low-battery icon( ) on the upper right corner
of the LCD will be blinking.
