95Li Summit Trainer
Assembly Instructions

Congratulations...
and welcome to the world of
The following Parts List and the step-by-step assembly procedures have been
assembled to make the set-up of the Summit Trainer as quick and easy as
possible.
Please take special note of the following important points prior to choosing a
location and beginning assembly of the Summit Trainer.

IMPORTANT SAFETY INSTRUCTIONS!
 DO NOT LOCATE THE SUMMIT TRAINER OUTDOORS, NEAR SWIMMING POOLS, OR IN AREAS OF HIGH
HUMIDITY.
 DO NOT OPERATE YOUR SUMMIT TRAINER IF IT HAS BEEN DROPPED, DAMAGED, OR EVEN PARTIALLY
IMMERSED IN WATER. IF THIS OCCURS, CONTACT LIFE FITNESS CUSTOMER SUPPORT SERVICES AT
THE NUMBER IN THE OPERATION MANUAL.
 DO NOT LOCATE THE SUMMIT TRAINER ANY CLOSER THAN 30 INCHES (76 CM ) TO A TELEVISION
SET.
 DO NOT LOCATE ADDITIONAL SUMMIT TRAINERS ANY CLOSER THAN 42 INCHES (107 CM) FROM
CENTER TO CENTER TO AVOID INTERFERENCE (CROSS TALK) BETWEEN HEART RATE MONITORS.
 DO KEEP THE AREA AROUND YOUR SUMMIT TRAINER CLEAR OF ANY OBSTRUCTIONS, INCLUDING
WALLS AND FURNITURE. ENSURE THAT THERE IS AT LEAST A 12 INCH (30CM) CLEARANCE IN FRONT
OF THE SUMMIT TRAINER.
 DO VERIFY THE CONTENTS OF THE DELIVERY CARTON AGAINST THE ACCOMPANYING PARTS LIST
PRIOR TO SETTING THE CARTONS AND SHIPPING MATERIAL ASIDE. IF ANY PARTS ARE MISSING,
CONTACT LIFE FITNESS CUSTOMER SUPPORT SERVICES AT THE NUMBER LISTED IN THE OPERATION
MANUAL. SAVE THE SHIPPING CARTONS IN CASE OF RETURN.
 DO READ THE ENTIRE OPERATION MANUAL PRIOR TO ATTEMPTING TO OPERATE THIS MACHINE AS
THIS IS ESSENTIAL FOR PROPER USE.
CONSIGNES DE SECURITE IMPORTANTES!
 NE PLACEZ PAS L'APPAREIL À L'EXTÉRIEUR, PRÈS D'UNE PISCINE OU DANS UN ENDROIT TRÈS
HUMIDE
 NE FAITES PAS FONCTIONNER L'APPAREIL S'IL EST TOMBÉ, S'IL A ÉTÉ ENDOMMAGÉ OU S'IL A ÉTÉ
 PARTIELLEMENT PLONGÉ DANS L'EAU. SI CELA S'EST PRODUIT, CONTACTEZ LE SERVICE APRÈS-VENTE
DE LIFE FITNESS AU NUMÉRO FOURNI DANS LE MANUEL D'UTILISATION
 NE PLACEZ PAS L'APPAREIL À MOINS DE 76 CM D'UN POSTE DE TÉLÉVISION
 NE PLACEZ PAS D'AUTRES APPAREILS DU MÊME TYPE À PROXIMITÉ. UN ESPACE D'AU MOINS 107 CM
DOIT ÊTRE OBSERVÉ ENTRE LES PARTIES CENTRALES DE DEUX APPAREILS AFIN D'ÉVITER LES
INTERFÉRENCES ENTRE LES CONTRÔLEURS DE RYTHME CARDIAQUE.
 MAINTENEZ LA ZONE AUTOUR DE L'APPAREIL LIBRE DE TOUTE OBSTRUCTION, Y COMPRIS MURS ET
MEUBLES. VEILLEZ À LAISSER UN DÉGAGEMENT D'AU MOINS 30 CM DEVANT L'APPAREIL
 VÉRIFIEZ SI L'EMBALLAGE CONTIENT TOUTES LES PIÈCES DE LA LISTE JOINTE AVANT DE LE METTRE
DE CÔTÉ. SI DES PIÈCES SONT ABSENTES, CONTACTEZ LE SERVICE APRÈS-VENTE DE LIFE FITNESS
AU NUMÉRO INDIQUÉ DANS LE MANUEL D'UTILISATION. CONSERVEZ L'EMBALLAGE AU CAS OÙ VOUS
DEVRIEZ RENVOYER L'APPAREIL.
 LISEZ LE MANUEL DE L'UTILISATEUR TOUT ENTIER AVANT D'ESSAYER DE FAIRE FONCTIONNER CET
APPAREIL. CECI EST INDISPENSABLE À SON UTILISATION CORRECTE.

TOOLS REQUIRED FOR ASSEMBLY...
Magnetic #2 Bit Phillips Screwdriver, T-27, T-40 and T-45 Torx Wrenches, 16mm Open End Wrench, 9/16” Open
End Wrench or Socket, 5mm, 6mm Hex Key Wrenches, Side Cutters
PARTS DESCRIPTION
1 Hex Button Head Screw Qty: 3
M8 – 1.25 x 25
0017-00101-1903
2 Rear Step Qty: 1
AK68-00136-0000
3 Handrail Upright Qty: 2
OK68-01032-0000
4 Hex Head Screw Qty: 2
3/8 - 16 x 1
0017-00101-1635
5 Hex Socket Head Screw Qty: 5
M8 – 1.25 x 22
0017-00101-1881
6 Flat Washer Qty: 3
16mm
0017-00104-0469
7 Console Support Assembly Qty: 1
AK62-00123-0000
8 Torx Socket Head Screw Qty: 12
M8 – 1.25 x 19
0017-00101-1791
9 Accessory Tray Qty: 1
OK62-01022-0000
10 Phillips Pan Head Screw Qty: 2
M4.2 – 0.70 x 10
0017-00101-1846
11 Console Assembly Qty: 1 12 Phillips Pan Head Screw Qty: 14
M4 – 0.70 x 19
0017-00101-1796
13 Console Support Cover Qty: 1
OK62-01023-0000
14 Cap: Console Support Qty: 1
OK62-01030-0000
15 Grommet Qty: 2
0017-00042-0754
16 Handrail Qty: 1
AK68-00206-0000
17 Torx Button Head Screw Qty: 4
1/4 - 20 x 5/8
0017-00101-1760
18 Left Back Bullhorn Cover Qty: 1
OK62-01011-0000
19 Right Back Bullhorn Cover Qty: 1
OK62-01010-0000
20 Torx Button Head Screw Qty: 4
M8 – 1.25 x 25
0017-00101-1805
21 Left User Arm Assembly Qty: 1
AK68-00143-0002
22 Right User Arm Assembly Qty: 1
AK68-00143-0001
23 Front Rocker Cover Qty: 2
OK62-01009-0000
24 Front Pivot Arm Cover Qty: 2
OK62-01012-0000
25 Rear Pivot Arm Cover Qty: 2
OK62-01013-0000
26 Left Bullhorn Cover Qty: 1
OK62-01008-0001
27 Right Bullhorn Cover Qty: 1
OK62-01007-0001
28 Phillips Pan Head Screw Qty: 2
M4.2 – .70 x 44
0017-00101-1854
29 Foot Cover Qty: 2
OK62-01003-0000
30 Flat Washer Qty: 2
0017-00104-0479
31 Endcap Qty: 2
OK61-01283-0001
This product is preconfigured to accept the addition of the Life Fitness Entertainment System. A POWER CABLE and
COAXIAL CABLE have been pre-installed. Please read both the product assembly instructions and Entertainment
Ready assembly instructions (included with the Life Fitness Entertainment System) prior to assembly.
Route the POWER CABLE and COAXIAL CABLE alongside the MAIN WIRE HARNESS where applicable.
When installing the Life Fitness Entertainment System, refer to the 95Xer or 95Xez procedures stated in the Life
Fitness Entertainment System installation instructions.

12)
10)
1” 2” 3” 4” 5”
8)
6)
17)
5)
1) 4)
20) 28)
30)

IMPORTANT!
DO NOT DISCARD THE SHIP KIT LOCATED ON TOP OF THE PEDALS. ALL NECESSARY COMPONENTS NEEDED TO
COMPLETE THE INSTALLATION ARE LOCATED IN THE SHIP KIT.
IMPORTANT!
NE JETEZ PAS LE KIT PLACÉ SUR LE DESSUS DES PÉDALE. IL CONTIENT TOUS LES ÉLÉMENTS
NÉCESSAIRES POUR L'INSTALLATION.
1. Open the top of the shipping carton.
2. Remove the documentation packet.
3. Remove the shipping sleeve.
4. Remove excess packaging. Knock down the sides of the
bottom tray and remove any corrugated shipping blocks.
5. Remove the HANDRAIL and set it aside.
6. Carefully cut the vertical bands securing the
MONOCOLUMN (A) assembly to the base pads.
7. Remove the tape, foam packaging and support block
located at the RECTANGULAR TUBE (B) and the
FRAME (C).

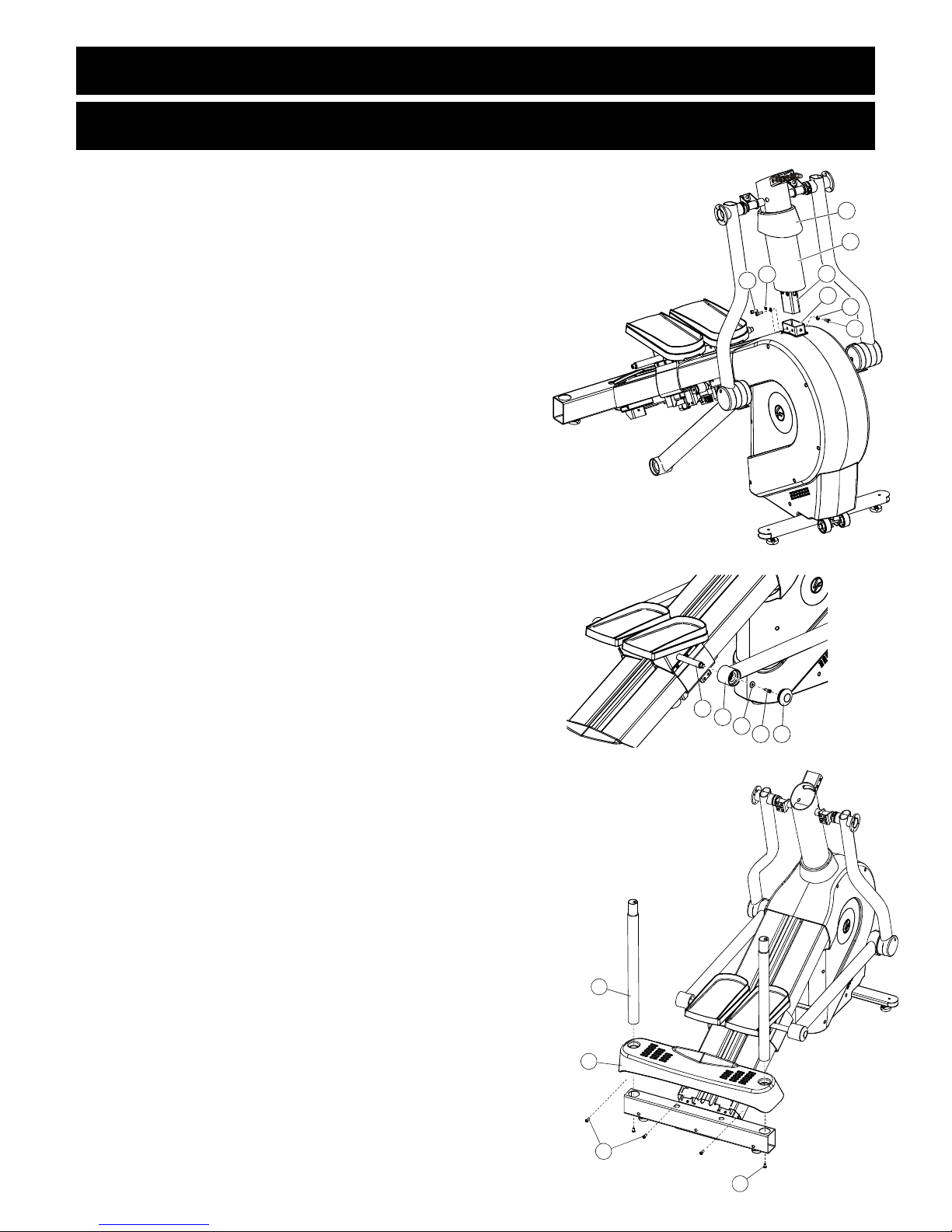

8. With the help of another person, carefully raise the
MONOCOLUMN (A) and insert the RECTANGULAR TUBE
(B) into the FRAME (C).
CAUTION: Do not pinch the WIRE HARNESSES or scratch
the paint when inserting the MONOCOLUMN into the
FRAME.
Secure the MONOCOLUMN to the FRAME using one
SCREW (5) and WASHER (6) from the front and two
SCREWS (5) and WASHERS (6) from the side. Tighten the
SCREWS to 20 –30 ft. lbs. Lower the HOUSING CAP (D).
9. Carefully cut the band securing the RIGHT CONTROL
LINK HUB (R) to the base pad. Lift the RIGHT CONTROL
LINK upward and align it onto RIGHT CONTROL LINK
SHAFT (S).
NOTE: Be sure the bearing within the RIGHT CONTROL
LINK HUB seats fully onto the stepped end of the RIGHT
CONTROL LINK SHAFT.
Secure the RIGHT CONTROL LINK HUB to the RIGHT
CONTROL LINK SHAFT using one SCREW (5) and
WASHER (30). Tighten the SCREWS to 20 –30 ft. lbs.
Install one ENDCAP (31) onto the RIGHT CONTROL LINK
HUB (E)
10. Repeat Step 9 to install the LEFT CONTROL LINK HUB.
11. Carefully tilt the unit upward from the rear and roll the unit
to the desired location for use.
12. Install the REAR STEP (2) using three BOLTS (1). Finger-
tighten the BOLTS.
13. Install the HANDRAIL UPRIGHTS (3) using one BOLT (4)
on each HANDRAIL UPRIGHT. Position the mounting
holes at the top of the HANDRAIL UPRIGHTS to face the
front of the unit. Tighten the BOLTS until snug.
D
A
B
6
5
C
6
5
SR30 531
3
1
4
2

14. Locate the CONSOLE BRACKET (7). Feed the
CONNECTORS (E & F) leading from the top of the
MONOCOLUMN (A) through the CONSOLE BRACKET as
shown.
Feed the HEART RATE CABLE CONNECTOR (G) marked
“LEFT”, located inside the MONOCOLUMN (A), outward
through the user left side hole of the MONOCOLUMN near
the BULLHORN MOUNTING BRACKET (H). Feed the
remaining HEART RATE CABLE CONNECTOR (J) through
the user right side hole of the MONOCOLUMN.
Feed the COAXIAL CABLE (K) and POWER CORD (L)
leading from the top of the MONOCOLUMN (A) through the
top of the CONSOLE BRACKET as shown. Secure the
CONSOLE BRACKET to the MONOCOLUMN using six
SCREWS (8). Tighten the SCREWS securely.
NOTE: If the entertainment option will not be used, carefully
gather the COAXIAL CABLE (K) and POWER CORD (L)
and insert them into the CONSOLE BRACKET.
15. Locate and insert the ACCESSORY TRAY (9) into the
MONOCOLUMN (A) as shown. Secure the ACCESSORY
TRAY to the CONSOLE BRACKET (7) using two SCREWS
(10). Tighten the SCREWS securely. Do not over tighten
the SCREWS.
16. Locate and position the DISPLAY CONSOLE (11) near the
ACCESSORY TRAY (9). Connect all CONNECTORS (E &
F) leading from the CONSOLE BRACKET (7) to the rear of
the DISPLAY CONSOLE. Mount the DISPLAY CONSOLE
using four SCREWS (12). Tighten the SCREWS securely.
Do not over tighten the SCREWS.
17. Locate and attach the CONSOLE SUPPORT COVER (13)
using two SCREWS (12). Tighten the SCREWS securely.
Do not over tighten the SCREWS.
18. Locate and install the CONSOLE SUPPORT CAP (14) . Be
sure the CONSOLE SUPPORT CAP snaps securely in
place.
19. Locate and install one GROMMET (15) in each square hole
between the yellow inserts in the BULLHORN MOUNTING
BRACKETS (H).
20. Locate the HANDRAIL (16). Position the rear tubes of the
HANDRAIL over the HANDRAIL UPRIGHTS (3) and lower
the HANDRAIL onto the HANDRAIL UPRIGHTS. Carefully
rest the front of the HANDRAIL against the
MONOCOLUMN (A). Secure the HANDRAIL to the
HANDRAIL UPRIGHTS using four SCREWS (17). Tighten
the SCREWS securely.
21. Locate the LEFT and RIGHT BACK BULLHORN COVERS
(18 & 19). Place the BACK BULLHORN COVERS between
the HANDRAIL (16) and BULLHORN MOUNTING
BRACKETS (H) as shown. Route the HEART RATE
WIRES (M) from the HANDRAIL downward inside the
BACK BULLHORN COVERS and to the front of the unit.
Connect the HEART RATE WIRES to those leading from
the front of the MONOCOLUMN. Be sure the
CONNECTORS are fully seated.
22. Secure the front of the HANDRAIL (16) to the BULLHORN
MOUNTING BRACKETS using four SCREWS (20). Tighten
the SCREWS securely.
K L
11
9
F
E
7
14
12
13
8
10
A
J
H
G
16
317
20
18
H
15 M
19

23. Tighten the three BOLTS of the REAR STEP (2) securely.
24. Tighten the two BOLTS of the HANDRAIL UPRIGHTS (3)
securely.
25. Locate and install the USER ARMS (21 & 22) using three
SCREWS (8) each. Tighten the SCREWS securely.
NOTE: Orient the USER ARMS so the bends at the
HANDGRIPS face the front of the unit as shown.
26. Locate one FRONT ROCKER COVER (23). Position the
RIGHT BACK BULLHORN COVER (18) over the user side
of the ROCKER ARM SHAFT (N) making sure that it seats
fully over the BULLHORN MOUNTING BRACKET (H). Place
the FRONT ROCKER COVER over the opposite side of the
ROCKER ARM SHAFT in the same manner. Secure the
COVERS using two PHILLIPS PAN HEAD SCREWS (12).
Tighten the SCREWS securely. Do not over-tighten the
SCREWS.
27. Locate and attach the RIGHT BULLHORN COVER (27) to
the base of the BULLHORN using one SCREW (28). Tighten
the SCREW securely. Do not over-tighten the SCREW. Slide
the GASKET (O) down to the bullhorn base above the
BULLHORN COVER.
12
28
26
23
18
O
N
22
8
21

28. Locate one FRONT PIVOT ARM COVER (24) and one
BACK PIVOT ARM COVER (25). Position the BACK PIVOT
ARM COVER over the user side of the ROCKER ARM (P)
making sure that it interlocks with the RIGHT BACK
BULLHORN COVER (18). Place the FRONT PIVOT ARM
COVER over the opposite side of the ROCKER ARM in the
same manner. Secure the COVERS using two PHILLIPS
PAN HEAD SCREWS (12). Tighten the SCREWS securely.
Do not over-tighten the SCREWS.
29. Repeat steps 22 through 24 to install the LEFT ROCKER
COVER (23), PIVOT ARM COVERS (24 & 25), and
BULLHORN COVER (26).
NOTE: The left PIVOT ARM COVERS are reversed front
and back. The SCREWS will be installed from the rear.
30. Locate the two FOOT COVERS (29). Align the COVERS
with the ends of the STABILIZER BARS (Q). Insert the
post on the underside of the FOOT COVERS into the
mounting holes on the top of each STABILIZER. Press the
FOOT COVERS firmly into position.
31. Position the unit into the desired location for use. Properly
level the unit according to the instructions in the Operation
Manual.
Physical Dimensions:
95Li
Length 68 inches / 172.7 centimeters
Width 33 inches / 83.8 centimeters
Height 73 inches / 185.4 centimeters
Weight 345 pounds / 156.5 kilograms
12
24
25 P
18
Q
29

PRE-OPERATION CHECKLIST
 Ensure that all fasteners are tight.
 Make sure the SUMMIT TRAINER is properly leveled and stable.
(Refer to the Operation Manual)
 Ensure that the Leveler Jam Nuts are tight.
(Refer to the Operation Manual)
 Read the entire Operation manual before using the Summit Trainer.
LISTE DES VÉRIFICATIONS À EFFECTUER AVANT LA MISE EN MARCHE
 Vérifiez si tous les dispositifs de fixation sont serrés
 Vérifiez si l'APPAREIL D'EXERCICE POLYVALENT est de niveau et stable.
(Référez-vous au manuel d'utilisation.)
 Vérifiez si les contre-écrous des vérins de mise à niveau sont serrés.
(Référez-vous au manuel d'utilisation.)
 Lisez le manuel d'utilisation dans son intégralité avant d'utiliser l'appareil d'exercice polyvalent.
Before attempting to operate your Total Body Trainer, it is imperative that you familiarize yourself with the contents of
the Operation Manual. If your Total Body Trainer does not respond as described in the Operation Manual, contact the
nearest Life Fitness service center as listed in the Operation Manual.
Life Fitness Customer Support Services
[phone] or [phone]
Prior to your call, please be sure you have located and noted the
MODEL NUMBER & SERIAL NUMBER.
The Model & Serial number information of your Life Fitness Total Body Trainer is listed on a label
located on the rear stabilizer.
©2006 Life Fitness, a division of Brunswick Corporation. All rights reserved. Life Fitness is a trademark of Brunswick Corporation.
MO51-00K68-A005 09.06
