Life Gear 20560 User manual

Streamline Plus, Magnetic Upright Bike
Owner’s Manual
Model# 20560
The specifications of this product may vary from this photo and are subject to change without
notice. 2014, Dec.

1
TABLE OF CONTENTS
WARRANTY 1
SAFETYINSTRUCTIONS 2
OPERATING INSTRUCTIONS 3
COMPUTEROPERATION 3
PARTSLIST 5
HARDWAREPACKINGLIST 6
OVERVIEWDRAWING 7
ASSEMBLY INSTRUCTIONS 8
TROUBLE SHOOTING GUIDE 10
WARM UPAND COOL DOWN ROUTINE 11
ONE YEAR LIMTED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing, free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is extended only to the original owner and is not transferable.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

2
SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following safety
instructions when using this equipment: Read all instructions before using this
equipment.
1. Read all the instructions in this manual and do warm up exercises before using this
equipment.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercise of every
position of the body is necessary. Refer to Warm Up and Cool Down Routine page.
After exercise, relaxation of the body is suggested for cool-down.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that might catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult an Authorized
Service Representative.
6. Do not use the equipment outdoors.
7. This equipment is for household use only.
8. Only one person should be on the equipment while in use.
9. Keep children and pets away from the equipment while in use. This machine is
designed for adults only. The minimum free space required for safe operation is not
less than two meters.
10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
11. The maximum weight capacity for this product is 110kgs.
WARNING:Before beginning any exercise program consult your physician.
This is especially important for the persons who are over 35 years old or who have
pre-existing health problems. Read all instructions before using any fitness
equipment.
CAUTION:Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.

3
OPERATING INSTRUCTIONS
1. Operate according to your own condition.
2. Adjusting the tension control knob:
To increase the load, turn the tension control knob in a clockwise direction.
To decrease the load, turn the tension control knob in a counterclockwise direction.
3. Adjusting the rear stabilizer end cap:
Turn the rear stabilizer end cap on the rear stabilizer as needed to level the bike.
4. Adjusting the seat post:
Turn the round knob in a counterclockwise direction until it can be pulled out. Pull out
the round knob and then slide the seat post up or down direction to the suitable position.
Lock the seat post in place by releasing the round knob and sliding the seat post up or
down slightly until the round knob "pops" down into the locked position. For added
safety, tighten the round knob in a clockwise direction.
NOTE: When adjusting the height of seat post, the maximum insert depth mark
line cannot higher than the edge of seat post cover.
5. Sitting pose: sit on the seat cushion when exercising, please tighten the pedaling straps
and hold the handlebar with hands, adjust your posture according to your exercise
speed and intensity.
COMPUTER OPERATION
HOW TO INSTALL THE BATTERIES:
1. Remove the battery cover at the rear of computer.
2. Place two "SIZE-AA" or "UM-3" batteries into the battery
housing.
3. Insure batteries are correctly positioned and battery springs are
proper contact with batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partial segment appear, remove
batteries and wait 15 seconds before reinstalling.
6. Removing batteries will erase the memory of computer.
FUNCTIONS AND OPERATIONS:
AUTO ON /OFF: When you start to exercise or press MODE button on the computer, the
computer will turn on. If you leave the equipment for 4 minutes, the power will turn off
automatically.
SCAN: Press MODE button until the arrow points to SCAN; the computer will automatically
scan the function every 5 seconds.

4
TIME: Press MODE button until the arrow points to TIME; the computer will display your
elapsed workout time in minutes and seconds.
SPEED: Press MODE button until the arrow points to SPEED; the computer will display the
current training speed.
CAL (CALORIES): Press MODE button until the arrow points to CAL; the computer will
display the total accumulated calories burned during workout.
(PULSE): Press MODE button until the arrow points to PULSE and then hold both two
hands on handlebar grip sensors, the screen will display your current heart rate figures and
a heart symbol. To ensure the pulse readout is more precise, please always hold on to the
handlebar grip sensors with two hands instead of just with one hand only when you try to test
your heart rate figures.
DIST (DISTANCE): Press MODE button until the arrow points to DIST; the computer will
display the accumulative distance traveled during workout.
ODO (ODOMETER): Press MODE button until the arrow points to ODO; the computer will
display the total accumulative distance.
RESET: Press MODE button for over 4 seconds, all function values will reset to zero except
the ODO function.

5
PARTS LIST
No. Description Qty No. Description Qty
001 Main Frame 1 034 Cap Nut M10 2
002 Handlebar Ø25x1.5 1 035 Bolt M10x57 2
003 Handlebar Post 70x30x1.5 1 036 Big Curve Washer Ø10 2
004 Rear Stabilizer Ø50x1.5x380 1 037 Curve Washer Ø8 7
005 Flywheel Ø230 1 038 Washer Ø8 7
006 Front Stabilizer Ø50x1.5x430 1 039 Bolt M8x10 1
007 Tension Control Knob
0325-BC65000-0101 1 040 Pan Head Phillips Self Tapping Screw ST4.2x25 8
008 Round Knob M16x1.5 1 041 Pan Head Phillips Self Drilling
Screw ST4.2x25 4
009 Belt PJ 330J6 1 042 Locknut M8 3
010 Computer HR-1577 1 043 Bolt M8x20 1
011 Nut M10x1 2 044 Pressing Belt Wheel 1
012 Bushing 1 045 Bearing 6000zz 2
013 Left Cover 540x366x74 1 046 Bolt M6x10 1
014 Right Cover 540x366x78 1 047 Bolt M5x10 4
015 Screw ST2.9x10 2 048 Bolt M5x20 1
016 Ring 1 049 Axle Sleeve 7/8” 1
017 Axle Sleeve 15/16” 1 050 Handlebar Foam Grip
Ø30xØ24x460 2
018 Nut 7/8" 1 051 Screw ST4.2x20 2
019 Belt Pulley with Crank 240J6 1 052 Transport Wheel Ø23xØ6x32 2
020 Left Foot Pedal YH-30X 1 053 Hand Pulse Sensor with Wire
L=750mm 2
021 Right Foot Pedal YH-30X 1 054 Washer Ø6 2
022 Axle Bush 2 055 Nylon Nut M6 2
023 Ball Bearing 2 056 Bolt M6x48 2
024 Bolt M8x15 7 057 Handlebar Post Cover 1
025 Seat Post 60x20x1.5 1 058 Seat Post Cover 1
026 Sensor with Wire L=750mm 1 059 Middle Section Sensor Wire
L=1000mm 1
027 Seat Cushion DD-982AT 1 060 Tension Cable L=1150mm 1
028 Front Stabilizer End Cap
Ø50x1.5 2 061 Handlebar End Cap Ø25 2
029 Rear Stabilizer End Cap Ø50x1.5 2 062 Spring Washer Ø8 4
030 U Bracket 2 063 Bolt M8x10 4
031 Adjustable Bolt M6x36 2 064 Cover Cap Ø50x1.2t 1
032 Hex Nut M6 2 065 Cover Cap Ø50x10t 1
033 Spring Washer Ø6 2

6
HARDWARE PACKING LIST
Wrench/Phillips Screwdriver
S13, S14, S15
1 PC
A
llen Wrench 6mm
1 PC
(34) Cap Nut M10
2 PCS (35) Bolt M10x57 2 PCS (36) Big Curve Washer Ø10 2 PCS
Multi Hex Tool
1 PC

7
OVERVIEW DRAWING
21
14
19
19
22 23
5
9
39
44
11
45
46
54
40
40
41
33
32 31
30
1
29
4
29
24
62
37
34
36
18 17 22
16
23
13
41
20
41
7
27
25
8
58
12
43
11
30
31
33
32
28
28
26
6
35
56
52
55
52
56
15
50
50
61
2
51
53
61
53
59
60
37
51
24
3
47
48 54
59
24
63
38
26
38
42
57
49
62
10
63
64
65

8

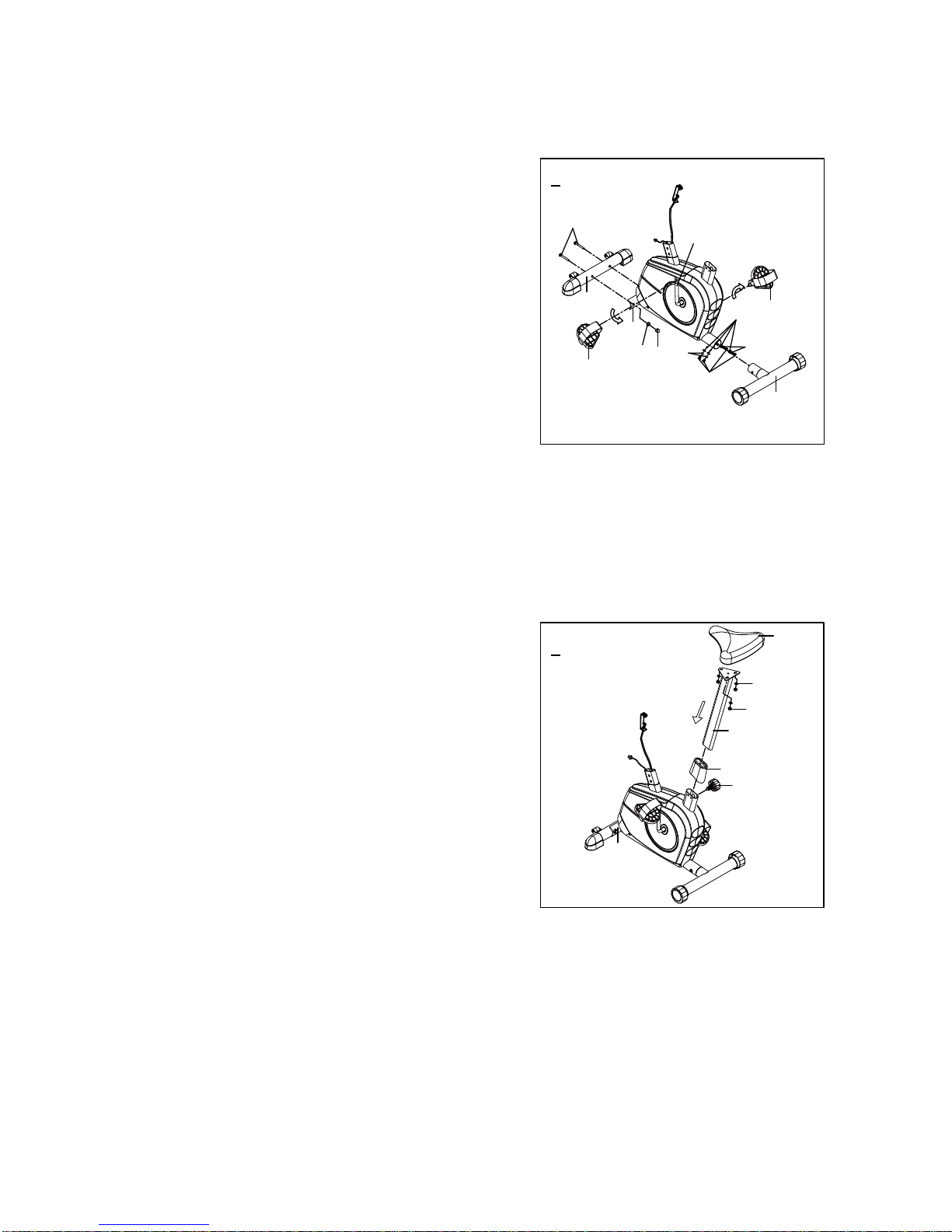

ASSEMBLY INSTRUCTIONS
1. Install the Front/Rear Stabilizers and Foot
Pedals.
Attach the Front Stabilizer (6) onto the front curve
plate of the Main Frame (1) with two M10 Cap Nuts
(34), M10x57 Bolts (35), and Ø10 Big Curve
Washers (36).
Remove four M8x15 Bolts (24), Ø8 Spring Washers
(62), and Ø8 Curve Washers (37) from the rear tube
of the Main Frame (1). Then attach the Rear
Stabilizer (4) onto the rear tube of the Main Frame (1)
with four M8x15 Bolts (24), Ø8 Spring Washers (62),
and Ø8 Curve Washers (37) that were removed.
Connect the Left Foot Pedal (20) to the left Crank
(19). Thread it into the crank assembly in the counterclockwise direction by the tool
provided.
Connect the Right Foot Pedal (21) to the right Crank (19) by threading it in the clockwise
direction.
NOTE: The Left and Right Foot Pedals (20, 21) and Crank (19) are marked with “L” & “R”
(left and right).
2. Install the Seat Cushion and Seat Post.
Remove three M8 Locknuts (42) and Ø8 Washers
(38) from underneath of the Seat Cushion (27).
Then attach the Seat Cushion (27) onto the triangle
plate of Seat Post (25) with three M8 Locknuts (42)
and Ø8 Washers (38) that were removed.
Slide the Seat Post Cover (58) onto the tube of the
Main Frame (1).
Insert the Seat Post (25) into the bushing on the tube
of the Main Frame (1) and then attach the Round
Knob (8) onto the tube of the Main Frame (1) by
turning it in a clockwise direction to lock the Seat
Post (25) in the suitable position.
Adjusting the seat post:
Turn the Round Knob (8) in a counterclockwise direction until it can be pulled out. Pull out
the Round Knob (8) and then slide the Seat Post (25) up or down direction to the suitable
position. Lock the Seat Post (25) in place by releasing the Round Knob (8) and sliding the
Seat Post (25) up or down slightly until the Round Knob (8) "pops" down into the locked
position. For added safety, tighten the Round Knob (8) in a clockwise direction.
NOTE: When adjusting the height of seat post, the maximum insert depth mark line
cannot higher than the edge of seat post cover.
4
6
35
20
1
34
36
21
19
24
62
37
62
1
27
38
42
25
8
58
1
2

9
3. Install the Handlebar Post and Tension Control
Knob.
Remove one M8x15 Bolt (24), Ø8 Curve Washer
(37), four Ø8 Washers (38), and M8x10 Bolts
(63) from the tube of the Main Frame (1).
Slide the Handlebar Post Cover (57) up from the
bottom end of the Handlebar Post (3).
Insert the Tension Cable (60) through into the bottom
hole of Handlebar Post (3) and pull it out from the
square hole of Handlebar Post (3). Connect the
Sensor Wire (26) from the Main Frame (1) to the
Middle Section Sensor Wire (59) from the Handlebar
Post (3).
Insert the Handlebar Post (3) onto the tube of the Main Frame (1) and secure with one
M8x15 Bolt (24), Ø8 Curve Washer (37), four Ø8 Washers (38), and M8x10 Bolts (63) that
were removed. Be careful not to pinch the cables inside the Handlebar Post (3) when
turning the M8x10 Bolts (63).
Slide the Handlebar Post Cover (57) down onto the tube of the Main Frame (1).
Remove the M5x20 Bolt (48) and Ø6 Washer (54) from the Tension Control Knob (7). Put
the cable end of resistance cable of Tension Control Knob (7) into the spring hook of Tension
Cable (60) as shown in drawing A of figure 3. Pull the resistance cable of Tension Control
Knob (7) up and force it into the gap of metal bracket of Tension Cable (60) as shown in
drawing B of figure 3. Attach the Tension Control Knob (7) onto the Handlebar Post (3) with
the M5x20 Bolt (48) and Ø6 Washer (54) that were removed.
4. Install the Handlebar and Computer.
Remove two M8x15 Bolts (24) and Ø8 Curve
Washers (37) from the Handlebar Post (3).
Insert the Hand Pulse Sensor Wires (53) into the
hole on the Handlebar Post (3) and then pull them
out from the top end of the Handlebar Post (3).
Attach the Handlebar (2) onto the Handlebar Post (3)
with two M8x15 Bolts (24) and Ø8 Curve Washers
(37) that were removed.
Remove four M5x10 Bolts (47) from the Computer
(10). Connect the Hand Pulse Sensor Wires (53)
and Middle Section Sensor Wire (59) to the wires
that come from the Computer (10). Then attach the
Computer (10) onto the top end of the Handlebar Post (3) with four M5x10 Bolts (47) that
were removed.
AB
7
3
48
54
60
59
63
37
57
7
60
60
7
1
38
24
38
63
59
60 26
3
1
3
2
24
37
10
59
53
47
4

10
TROUBLE SHOOTING GUIDE
1. Verify that all the bolts and nuts are locked properly and the turning parts should be
turned freely without damaged parts.
2. Clean the equipment with soap and slightly damp cloth only. Please do not use any
solvent to clean the equipment.
Problem Potential Cause Corrections
Base is unstable. 1. Floor is not flat or there is
small object under the front
or rear stabilizer.
2. The rear stabilizer end caps
on the rear stabilizer have
not been leveled when
adjusting.
1. Remove the object.
2. Adjust the rear stabilizer end
caps.
Handlebar or seat
post is shaking. The bolts or round knob is loose. Tighten the bolts or round knob.
Loud noise from
the moving parts. The interval of the parts is improper tighten. Open the covers to adjust.
No resistance
when riding the
upright bike.
1. The interval of the magnetic
resistance increases.
2. Tension control knob is
damaged.
3. Belt slips.
4. The bearing set is damaged.
1. Open the covers to adjust.
2. Change the tension control
knob.
3. Open the covers to adjust.
4. Change the bearing set.

11
WARM UP AND COOL DOWN ROUTINE
Agood exercise program consists of a warm-up, aerobic exercise, and a cool down. Do the
entire program at least two to three times a week, resting for a day between workouts. After
several months you can increase your workouts to four or five times per week.
AEROBIC EXERCISE is any sustained activity that sends oxygen to your muscles via your
heart and lungs. Aerobic exercise improves the fitness of your lungs and heart. Aerobic
fitness is promoted by any activity that uses your large muscles eg: legs, arms and buttocks.
Your heart beats quickly and you breathe deeply. An aerobic exercise should be part of
your entire exercise routine.
The WARM-UP is an important part of any workout. It should begin every session to
prepare your body for more strenuous exercise by heating up and stretching your muscles,
increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
COOL DOWN at the end of your workout, repeat these exercises to reduce soreness in tired
muscles.
HEAD ROLLS
Rotate your head to the right for one count,
feeling the stretch up the left side of your neck,
then rotate your head back for one count,
stretching your chin to the ceiling and letting
your mouth open. Rotate your head to the left
for one count, then drop your head to your chest
for one count.
SHOULDER LIFTS
Lift your right shoulder toward your ear for one
count. Then lift your left shoulder up for one
count as you lower your right shoulder.

12
SIDE STRETCHES
Open your arms to the side and lift them until
they are over your head. Reach your right arm
as far toward the ceiling as you can for one
count. Repeat this action with your left arm.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach
behind you and pull your right foot up. Bring
your heel as close to your buttocks as possible.
Hold for 15 counts and repeat with left foot.
INNER THIGH STRETCH
Sit with the soles of your feet together and your
knees pointing outward. Pull your feet as close
to your groin as possible. Gently push your
knees toward the floor. Hold for 15 counts.

13
HAMSTRING STRETCHES
Extend your right leg. Rest the sole of
your left foot against your right inner
thigh. Stretch toward your toe as far as
possible. Hold for 15 counts. Relax
and then repeat with left leg.
CALF/ACHILLES STRETCH
Lean against a wall with your left leg in front of
the right and your arms forward. Keep your
right leg straight and the left foot on the floor;
then bend the left leg and lean forward by
moving your hips toward the wall. Hold, then
repeat on the other side for 15 counts.
TOE TOUCHES
Slowly bend forward from your waist, letting
your back and shoulders relax as you stretch
toward your toes. Reach as far as you can and
hold for 15 counts.
