Life Gear HERACLES User manual

HERACLES
Magnetic Upright Bike
ITEM NO.: 20065
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
priornotice.
2017, March.

1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
PARTS LIST ------------------------------------------------------------------------------- 4
HARDWARE LIST & ASSEMBLY COMPONENT -------------------------------- 6
TOOLS -------------------------------------------------------------------------------------- 6
EXPLODED VIEW ----------------------------------------------------------------------- 7
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8
OPERATING THE COMPUTER ------------------------------------------------------ 16
HOW TO MOVE THE BIKE ------------------------------------------------------------ 17
ADJUSTMENTS -------------------------------------------------------------------------- 18
MAINTENANCE -------------------------------------------------------------------------- 19
TROUBLESHOOTING ------------------------------------------------------------------ 19
WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 20

2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of
purchase is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment. Read all instructions before using
this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are
recommended.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that may catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. Do not use the equipment outdoors.
7. This equipment is for household use only. It is not a commercial model.
8. Only one person at a time should use this equipment.
9. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
10. Care should be taken in mounting or dismounting the equipment.
11. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. This machine is designed for adults use only. The
minimum free space required for safe operation is not less than two meters.
12. The maximum weight capacity for this product is 110 kg.
WARNING: Before beginning any exercise program consult your
physician. This is especially important for people who are over 35 years old or who
have pre-existing health problems. Read all instructions before using any fitness
equipment. Do not operate this exercise equipment without properly fitted guards,
as the moving parts can present a risk of serious injury if exposed.
CAUTION: Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.

4
PARTS LIST
No. Description Qty No. Description Qty
001 Main Frame 1 028 Wheel Cap Ø50 2
002 Handlebar 1 029 Rear Stabilizer End Cap Ø50 2
003 Handlebar Post 1 030 Axle Ø17x90 1
004 Rear Stabilizer Ø50x1.5Tx554 1 031 Bearing 6203Z 2
005 Flywheel Ø180x25 1 032 Wave Washer Ø17 1
006 Front Stabilizer Ø50x1.5Tx360 1 033 Nylon Nut M6 1
007 Tension Control Knob 1 034 Cap Nut M10 4
008 Seat Post Knob M16 1 035 Carriage Bolt M10x57 4
009 Belt 290/J4 1 036 Curve Washer Ø10 4
010 Computer 1 037 Curve Washer Ø8 6
011 Magnetic Bracket 1 038 Flat Washer Ø8 4
012 Seat Post Bushing Ø50xØ38D 1 039 Hexagon Head Bolt M8x20 1
013 Left Cover 1 040 Cross Recessed Pan Head
Tapping Screw ST4.2x25 7
014 Spring 65Mn/Ø10x50vδ1.0 1 041 Tension Spring Ø20x39xδ3.2 1
015 Cross Recessed Pan Head
Tapping Screw ST2.9x9.5 2 042 Nylon Nut M8 4
016 Flat Washer Ø23xØ35x2.0 1 043 Hexagon Head Bolt M6x20 1
017 Bearing Nut I 7/8” 1 044 Idler Arm 1
018 Hexagon Nut 7/8” 1 045 Bearing 6000Z 2
019 Belt Pulley with Crank 1 046 Big Curve Washer Ø5 1
020 Left Foot Pedal (1/2)" 1 047 Spacer Ø21xØ15.2x3.0 1
021 Right Foot Pedal (1/2)" 1 048 Flat Washer Ø40x2.8 1
022 Bearing Cup Ø55.6x16 2 049 Handlebar End Cap Ø22 2
023 Ball Bearing Ø44.5 2 050 Handlebar Foam Grip
Ø21xØ27x500 2
024 Hexagon Socket Pan Head Cap
Bolt M8x15 6 051 Cross Recessed Pan Head Tapping Screw ST4.2x20 2
025 Seat Post 1 052 Circlip Ø10 1
026 Sensor with Wire (L=350 mm) 1 053 Hand Pulse Sensor with Wire
(L=600 mm) 2
027 Seat Cushion (DD-98-2) 1 054 Tension Cable (L=700 mm) 1

5
PARTS LIST
No. Description Qty No. Description Qty
055 Hexagon Nut M6 1 061 Right Cover 1
056 Flat Washer Ø5xØ9x0.8T 2 062 Cross Recessed Pan Head Self
Drilling Tapping Screw ST4.2x25 4
057 Cross Recessed Pan Head Bolt
M5x45 1 063 Cross Recessed Pan Head Bolt M5x10 2
058 Bearing Nut II 15/16” 1 064 Flat Washer Ø10xØ20x2.0 1
059 Extension Sensor Wire
(L=750 mm) 1 065 Flat Washer Ø8xØ24x2 1
060 Crank Cover 2

6

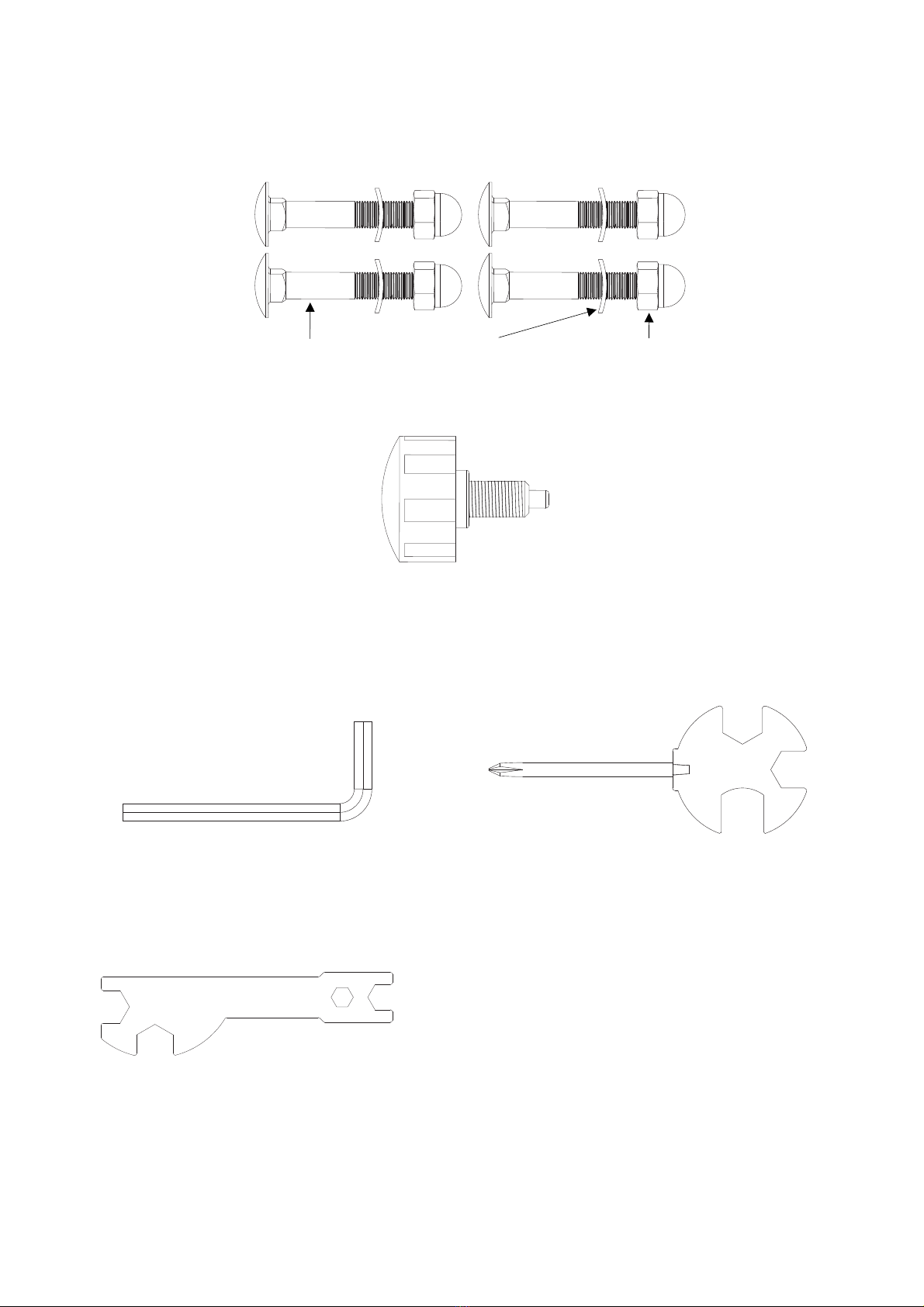

HARDWARE LIST & ASSEMBLY COMPONENT
TOOLS
Allen Wrench S6
1 PC
Multi Hex Tool with Phillips Screwdriver
1 PC
Multi Hex Tool
1 PC
(8) Seat Post Knob
1 PC
(35) Carriage Bolt
4 PCS
(36) Curve Washer
4 PCS
(34) Cap Nut
4 PCS

7
EXPLODED VIEW
35
16
18
58
48
21
61
60
23
17
22
22
23
19
20
40
38
42
25
27
34
36
31
32
5
65
39
10
59 12
30
31
8
13
60
24 37
26
54
55
43
14
33
29
9
15
49
53
56
51
50
50
4
64
42
44
41
45 52
46
57
7
11
28
34
36
35
6
47
40
62
62
1
2
3
24
37
63
40
62
29
28
49
53
59
26
35
35
62

8
ASSEMBLY INSTRUCTIONS
STEP 1
Position the Rear Stabilizer (4) behind the Main Frame (1) and align bolt holes.
Attach the Rear Stabilizer (4) onto the rear curve of the Main Frame (1) with two Carriage
Bolts (35), two Curve Washers (36), and two Cap Nuts (34). Tighten cap nuts with the Multi
Hex Tool provided.
Hardware:
35
4
34
36
1
34
36
35
35
4
34
36
1
(35) Carriage Bolt
2 PCS
(36) Curve Washer
2 PCS
(34) Cap Nut
2 PCS

9
STEP 2
Position the Front Stabilizer (6) in front of the Main Frame (1) and align bolt holes.
Attach the Front Stabilizer (6) onto the front curve of the Main Frame (1) with two Carriage
Bolts (35), two Curve Washers (36), and two Cap Nuts (34). Tighten cap nuts with the Multi
Hex Tool provided.
Hardware:
1
34
36
35 6
35
34
36
1
34
36
35
6
1
34 36
35
6
(35) Carriage Bolt
2 PCS
(36) Curve Washer
2 PCS
(34) Cap Nut
2 PCS

10
STEP 3

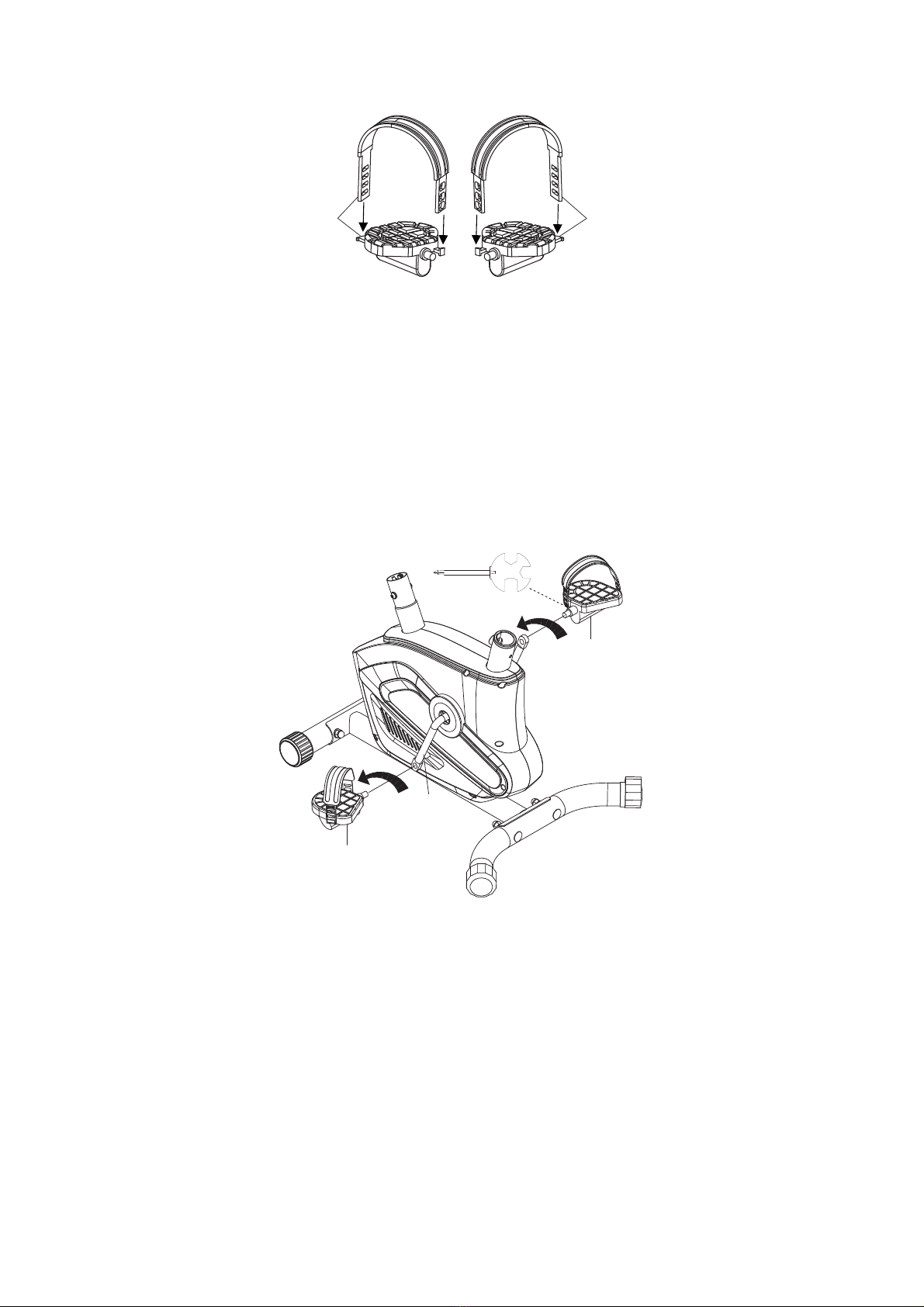

The Foot Pedals, Pedal Shafts and Pedal Straps are marked with the letter R for the
Right and L for the Left.
Select the Right Foot Pedal Strap (21) which has R marked on the side of the strap. Snap
the three hole end of the strap onto the inside edge of the Right Foot Pedal (21). Snap the
other end of the strap onto the outside edge of the Right Foot Pedal (21). Select
adjustment holes which allow your foot to be easily removed from the foot pedal.
Use the same procedure to snap the Left Foot Pedal Strap (20) onto the Left Foot Pedal
(20).
STEP 3-1
The Cranks and Foot Pedals are marked with the letter R (Right) and L (Left) to denote
the side of the upright bike they are on.
Insert the pedal shaft of Left Foot Pedal (20) into threaded hole in the left Crank (19). Turn
the pedal shaft by hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the
threads.
Tighten the pedal shaft of Left Foot Pedal (20) with the Multi Hex Tool with Phillips
Screwdriver provided.
Insert pedal shaft of Right Foot Pedal (21) into threaded hole in right Crank (19). Turn the
pedal shaft by hand in the clockwise direction until snug. Tighten pedal shaft of Right Foot
Pedal (21) with the Multi Hex Tool with Phillips Screwdriver provided.
21
20
21
20
19

11

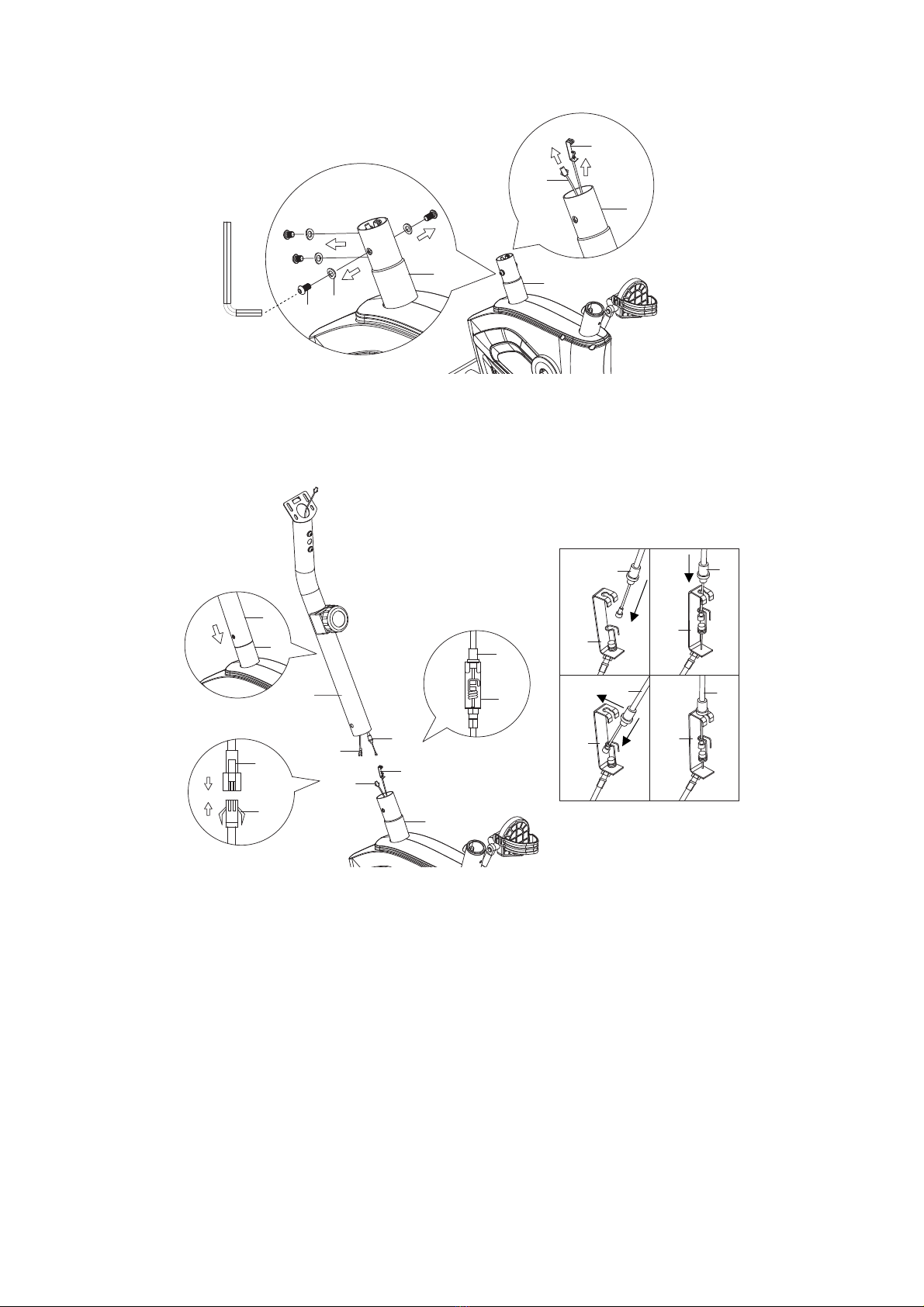

STEP 4
Remove four Hexagon Socket Pan Head Cap Bolts (24) and four Curve Washers (37) from
the tube of the Main Frame (1). Remove bolts with the Allen Wrench provided.
Pull both Tension Cable (54) and Sensor Wire (26) out from the tube of the Main Frame (1).
STEP 5
It is recommended to have a second person assist with this step. One person should hold
the Handlebar Post (3) in place while the other person to connect the wires.
Put the cable end of resistance cable of Tension Control Knob (7) into the cable lock of
Tension Cable (54), see Figure A.
Pull the resistance cable of Tension Control Knob (7) up and force it into the slot of metal
bracket of Tension Cable (54), see Figure B.
Insert the metal fitting on the resistance cable of Tension Control Knob (7) into the hole at the
end of the slot in the metal bracket of Tension Cable (54), see Figure C.
Connect the resistance cable of Tension Control Knob (7) to Tension Cable (54) complete,
see Figure D.
Connect the Sensor Wire (26) from the Main Frame (1) to the Extension Sensor Wire (59)
from the Handlebar Post (3).
Insert the Handlebar Post (3) onto the tube of the Main Frame (1) and align bolt holes.
24 37
26
54
1
1
1
59
26
3
7
1
54
26
59
7
54
3
1
A
B
C
D
54
54 54
7
7
7
7
54

12

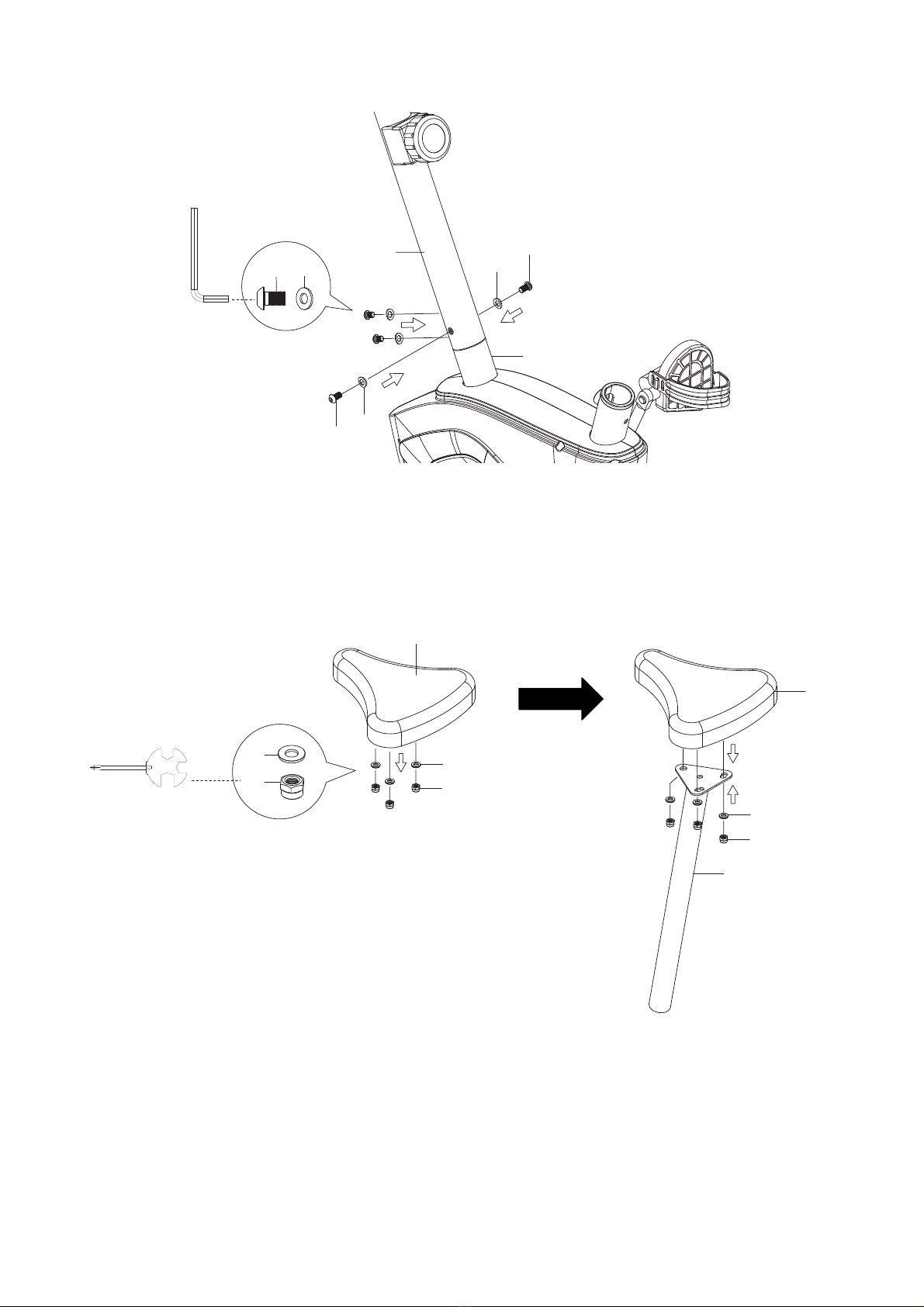

STEP 6
Attach the Handlebar Post (3) onto the tube of the Main Frame (1) with four Hexagon Socket
Pan Head Cap Bolts (24) and four Curve Washers (37) that were removed. Tighten bolts
with the Allen Wrench provided.
STEP 7
Remove three Nylon Nuts (42) and three Flat Washers (38) from underside of the Seat
Cushion (27). Remove nylon nuts with the Multi Hex Tool with Phillips Screwdriver
provided.
Guide bolts on underside of the Seat Cushion (27) through holes on top of the Seat Post (25),
attach with three removed Nylon Nuts (42) and Flat Washers (38). Tighten nylon nuts with
the Multi Hex Tool with Phillips Screwdriver provided.
24 37
3
1
24
37
37
24
38
42
27
38
42
38
42
25
27

13
STEP 8
Insert the Seat Post (25) into the Seat Post Bushing (12) of the Main Frame (1).
Attach the Seat Post Knob (8) onto the tube of the Main Frame (1) by turning it in a
clockwise direction to tighten the Seat Post (8) in the suitable position.
STEP 9
Remove two Hexagon Socket Pan Head Cap Bolts (24) and two Curve Washers (37) from
the Handlebar Post (3). Remove bolts with the Allen Wrench provided.
25
8
1
25
1
12
25
1
8
24
37
3
3

14
STEP 10
A. Insert the Hand Pulse Sensor Wires (53) from the Handlebar (2) through into the hole on
the Handlebar Post (3).
B. Pull Hand Pulse Sensor Wires (12) out from the top end of the Handlebar Post (3).
Attach the Handlebar (2) onto the Handlebar Post (3) with two Hexagon Socket Pan
Head Cap Bolts (24) and two Curve Washers (37) that were removed. Tighten bolts
with the Allen Wrench provided.
STEP 11
Remove two Cross Recessed Pan Head Bolts (63) from the Computer (10). Remove bolts
with the Multi Hex Tool with Phillips Screwdriver provided.
A
B
24
37
2
53
53
59
2
3
3
24
37
2
3
10
63

15
STEP 12
It is recommended to have a second person assist with this step. One person should hold
the Computer (10) in place while the other person to connect the wires.
A. Connect the Hand Pulse Sensor Wires (53) and Extension Sensor Wire (59) to the wires
that come from the Computer (10).
B. Tuck wires into the Handlebar Post (3).
C. Attach the Computer (10) onto the top end of the Handlebar Post (3) with two Cross
Recessed Pan Head Bolts (63) that were removed. Tighten bolts with the Multi Hex
Tool with Phillips Screwdriver provided.
A
C
B
2
53
59
10
63
2
53 59
10
3
3
10
63 3
59
53
3

16
OPERATING THE COMPUTER
USING YOUR COMPUTER
The computer can be activated by pressing the button or by
pedaling. If you leave the equipment idle for 4-5 minutes, the
power will turn off automatically.
BUTTON FUNCTIONS:
Press the button to select the functions of the computer.
Press and hold the button for 2-3 seconds to reset all data values to zero except the
ODO (ODOMETER) data values.
COMPUTER FUNCTIONS:
SCAN: Automatically scans each function in sequence.
TIME: Displays your elapsed workout time in minutes and seconds.
SPEED: Displays the current training speed.
DIST (DISTANCE): Displays the cumulative distance travelled during workout.
CAL (CALORIES): Displays approximate amount of calories burned during workout.
(This data is a rough guide for comparison of different exercise sessions and should not be
used in medical treatment).
ODO (ODOMETER): Displays the total accumulative distance travelled.
PULSE: Displays your current heart rate figures after you grip the handlebar pulse sensors
with both your hands during exercise. To ensure the pulse readout is more precise, please
always hold on to the handlebar pulse sensors with two hands instead of just with one hand
only when you try to test your heart rate figures.
HOW TO INSTALL THE BATTERIES:
1. Remove the battery cover on the back of the computer.
2. Place two size AAA batteries into the battery housing.
3. Insure batteries are correctly positioned and battery springs are in proper contact with
batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partial segment appears, remove batteries and wait 15
seconds before reinstalling.

17
HOW TO MOVE THE BIKE
This upright bike has a pair of Wheel Caps on the front stabilizer. To move the upright bike,
stand in front of the bike, firmly grasp on the Handlebar with both hands and tip the upright
bike forward to move.
CAUTION: It is suggested you always use the aid of a second person when moving
the bike.
Handlebar
Wheel Cap

18
ADJUSTMENTS
Adjusting the Tension Control Knob
To increase the tension, turn the tension control
knob in a clockwise direction.
To decrease the tension, turn the tension control
knob in a counterclockwise direction.
Adjusting the Rear Stabilizer End Cap
Turn the rear stabilizer end cap on the rear
stabilizer as needed to level the upright bike.
Adjusting the Seat Height
Turn the seat post knob in a counterclockwise
direction until it can be pulled out. Pull out the
seat post knob and then slide the seat post up or
down direction to the suitable position. Lock the
seat post in place by releasing the seat post knob
and sliding the seat post up or down slightly until
the seat post knob "pops" down into the locked
position. For added safety, tighten the seat post
knob in a clockwise direction.
NOTE: Do not set the seat post height any
higher than the marked line.
Tension Control Knob
Rear Stabilizer End Cap
Seat Post Knob

19
MAINTENANCE
Cleaning
The upright bike can be cleaned with a soft clean damp cloth. Do not use abrasives or
solvents on plastic parts. Please wipe your perspiration off the upright bike after each use.
Be careful not to get excessive moisture on the computer display panel as this might cause
an electrical hazard or electronics to fail.
Please keep the upright bike, especially the computer console out of direct sunlight to
prevent screen damage.
Please inspect all assembly bolts, nuts, screws, and pedals on the machine for proper
tightness every week.
Storage
Store the upright bike in a clean and dry environment away from children.
TROUBLESHOOTING
PROBLEM: The upright bike wobbles when in use.
SOLUTION: Turn the adjustable leveler on the rear stabilizer end cap as needed to level the
upright bike.
PROBLEM: There is no display on the computer console.
SOLUTION: Remove the computer console and verify the wires that come from the
computer console are properly connected to the wires that come from the handlebar post.
SOLUTION: Check if the batteries are correctly positioned and battery springs are in proper
contact with batteries.
SOLUTION: The batteries in the computer console may be dead. Replace with new
batteries.
PROBLEM: There is no heart rate reading or heart rate reading is erratic / inconsistent.
SOLUTION: Make sure that the wire connections for the hand pulse sensors are secure.
SOLUTION: To ensure the pulse readout is more precise, please always hold on to the
handlebar grip sensors with both hands instead of just with one hand when you try to test
your heart rate figures.
SOLUTION: Avoid gripping the hand pulse sensors too tight. Try to maintain moderate
pressure while holding onto the hand pulse sensors.
PROBLEM: The upright bike makes a squeaking noise when in use.
SOLUTION: The bolts may be loose on the upright bike. Please inspect all of the bolts and
tighten any loose bolts.
If the above troubleshooting section does not fix the problem, discontinue use the
upright bike.
PLEASE CONTACT YOUR LOCAL DEALER FOR
SUPPORT.
