Life Gear 26690 User manual

TRANSPORT PC
PRO MAGNETIC RECUMBENT BIKE
ITEM NO.: 26690
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo, subject to change without notice.
2013, Oct.

1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
PARTS LIST ------------------------------------------------------------------------------- 4
HARDWARE PACKING LIST --------------------------------------------------------- 6
TOOLS -------------------------------------------------------------------------------------- 6
OVERVIEW DRAWING -----------------------------------------------------------------7
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8
OPERATING THE COMPUTER ------------------------------------------------------ 16
ADJUSTMENTS -------------------------------------------------------------------------- 23
MAINTENANCE -------------------------------------------------------------------------- 21
TROUBLESHOOTING ------------------------------------------------------------------ 21
WARM UPAND COOL DOWN ROUTINE ----------------------------------------- 22

2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of
purchase is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment. Read all instructions before using
this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are
recommended.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that may catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. Do not use the equipment outdoors.
7. This equipment is for household use only. It is not a commercial model.
8. Only one person at a time should use this equipment.
9. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
10. Care should be taken in mounting or dismounting the equipment.
11. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. This machine is designed for adults use only. The
minimum free space required for safe operation is not less than two meters.
12. The maximum weight capacity for this product is 110 kgs.
WARNING:Before beginning any exercise program consult your physician.
This is especially important for the people who are over 35 years old or who have
pre-existing health problems. Read all instructions before using any fitness
equipment.
CAUTION:Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.

4
PARTS LIST
No. Description Qty No. Description Qty
001 Computer (XLG-903SPGM) 1 027 Rear Stabilizer 1
002 Washer Ø20xØ8x1.5t 6 028 Rear Stabilizer End Cap 2
003 Bolt M6x10 1 029R Right Foot Pedal (YH-30X) 1
004 Screw ST4.2x20mm 5 029L Left Foot Pedal (YH-30X) 1
005 Front Handlebar Foam Grip
Ø33xØ27x500 2 030 Cover Cap Ø40xØ25x10 2
006 Wire Plug Ø12.1 3 031 Screw ST4.2x25mm 11
007 Front Handlebar 1 032 Phillips Self Tapping Screw
ST4.2x25mm 8
008A Front Decorative Cover for Front
Post 1 033R Right Shroud 1
008B Rear Decorative Cover for Front
Post 1 033L Left Shroud 1
009 Screw ST2.9x16mm 8 034 Crank Cover 2
010 Hand Pulse Sensor Extension
Wire C (350mm) 2 035 Nut M10x1.25 2
011 Hand Pulse Sensor Extension
Wire B (1000mm) 1 036R Right Crank 1
012 Computer Extension Wire C
(1000mm) 1 036L Left Crank 1
013 Front Post Ø76x1.5 1 037 Spring Clip Ø17 2
014 Bolt M8x45 2 038 Belt Pulley Ø260J6 1
015 Front Handlebar T-Knob M8x75 1 039 Screw ST2.9x12mm 2
016 Spacer Ø12x1.5x50 1 040 Sensor with Wire (750mm) 1
017 Front Main Frame 1 041 Belt Pulley Shaft 1
018 Bolt M8x15mm 16 042 Bolt M6x15mm 4
019 Curve Washer Ø8 4 043 Washer Ø10xØ5x1.0t 4
020 Front Post Cover 1 044 Motor 1
021R Front Right Stabilizer End Cap 1 045 Belt PJ390 J6 1
021L Front Left Stabilizer End Cap 1 046 Motor Tension Cable 1
022 Nylon Nut M6 6 047 Nut M10x1.0 2
023 Transport Wheel Ø45x19 2 048 Eyebolt M6x36 2
024 Hexagon Head Bolt M6x40 2 049 Tension Bracket 2
025 Bolt M8x90mm 2 050 Spring Washer Ø6 2
026 Front Stabilizer Ø76x1.5 1 051 Nut M6 2

5
PARTS LIST
No. Description Qty No. Description Qty
052 Flywheel Ø250 1 071 Round Knob M16 1
053 Washer Ø16xØ8x1.5t 11 072 Bushing 2
054 Nylon Nut M8 1 073 Bolt M8x30mm 2
055 Idle Wheel 1 074 Rear Handlebar Round End Cap 2
056 Idle Wheel Bracket 1 075 Hand Pulse Sensor with Wire
(750mm) 2
057 Bolt M8x18mm 1 076 Rear Handlebar Foam Grip
Ø27xØ33x600 2
058 Spring Ø18x92xØ3 1 077 AC Adapter 1
059 Screw ST4.8x20mm 2 078 Rear Handlebar 1
060R Right Rear Main Frame Cover 1 079 Washer Ø6xØ18x1.5t 9
060L Left Rear Main Frame Cover 1 080 Bolt M6x15 8
061 Hand Pulse Sensor Extension
Wire A (1000mm) 1 081 Seat Cushion 1
062 Bearing 6003ZZ 2 082 Back and Seat Support Bracket 1
063 Adjustable Leveler M10 2 083 Backrest and Seat Support Bracket
End Cap 1
064 Nut M10 2 084 Back Cushion 1
065 Carriage Bolt M8x90mm 2 085 Computer Extension Wire A
(600mm) 2
066 Seat Sliding Tube 1 086 Computer Extension Wire B
(350mm) 1
067 Rear Main Frame 1 087 Hand Pulse Sensor Extension Wire
D (600mm) 2
068 Washer Ø20xØ8x2.0t 6 088 Nut M12 1
069 Cap Nut M8 4 089 Power Supply Wire 1
070 Triangle Knob M12 1

6
HARDWARE PACKING LIST
TOOLS
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
1 PC
Allen Wrench S6
1 PC
(4) Screw ST4.2x20mm
1 PC (9) Screw ST2.9x16mm 8 PCS
(25) Bolt M8x90mm
2 PCS (65) Carriage Bolt M8x90mm
2 PCS
(68) Washer Ø20xØ8x2.0t
6 PCS (69) Cap Nut M8
4 PCS
(14) Bolt M8x45
2 PCS
(53) Washer Ø16xØ8x1.5t
2 PCS

7

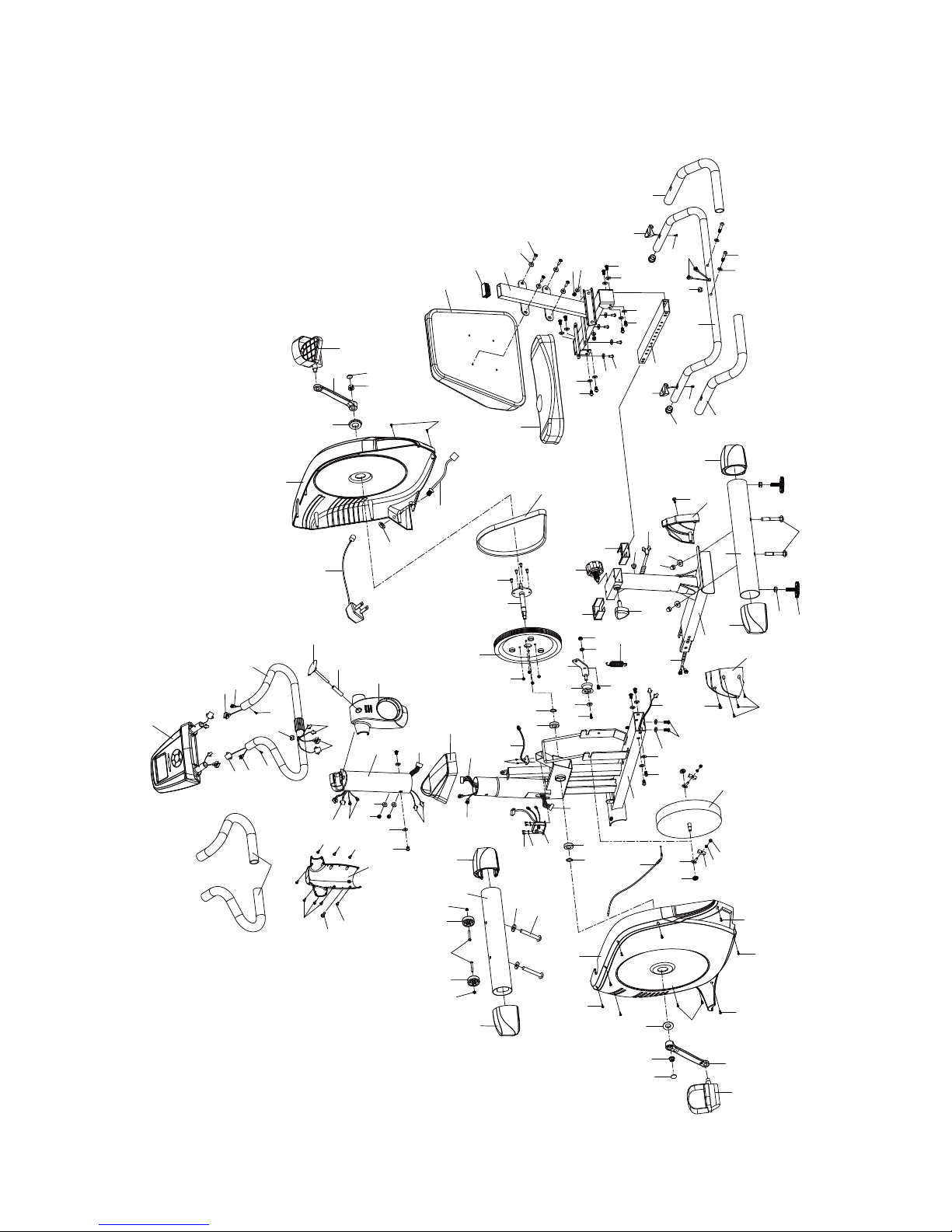

OVERVIEW DRAWING
15
16
64
18
13
20
17
21L
26
7
5
21R
22 23 24 22
25
29L
31
31
30
32
33L
39
40
44
33R
30
29R
84
83
80
82
28
63 65
28
31
61
72
6
67
69
60R
76
78
64
60L
58
57
56
73
18
52
47
51
66
4
80
81
32
27
53
55
68
59
74
75
59
48
49
50
18
68
54
79
79
1
22
34 35
36L
34
35
36R
38
41
42
32
43
45
10
86
86
19
10
85
85
87
87
85 87
88
89
46
72
61
11 12
11
75
8A
4
9
9
53
53
6
70
71
8B
37 62
23
32
31
2
62 37
18
75
76
4
77
379
53
69
68 14
12
19
18
53
18
4

8
ASSEMBLY INSTRUCTIONS
1. Rear Main Frame Installation
Remove two M8x30mm Bolts (73), four M8x15mm Bolts (18), and six Ø20xØ8x1.5t
Washers (2) from the Rear Main Frame (67). Remove bolts with the S6 Allen Wrench
provided.
Connect the Hand Pulse Sensor Extension Wire A (61) from the Rear Main Frame (67)
to the Hand Pulse Sensor Extension Wire B (11) from the Front Main Frame (17).
Attach the Rear Main Frame (67) into the Front Main Frame (17) with two M8x30mm Bolts
(73), four M8x15mm Bolts (18), and six Ø20xØ8x1.5t Washers (2) that were removed.
Tighten bolts with the S6 Allen Wrench provided.
Allen Wrench S6
Tool:
17
61
73
18 11
2
67

9

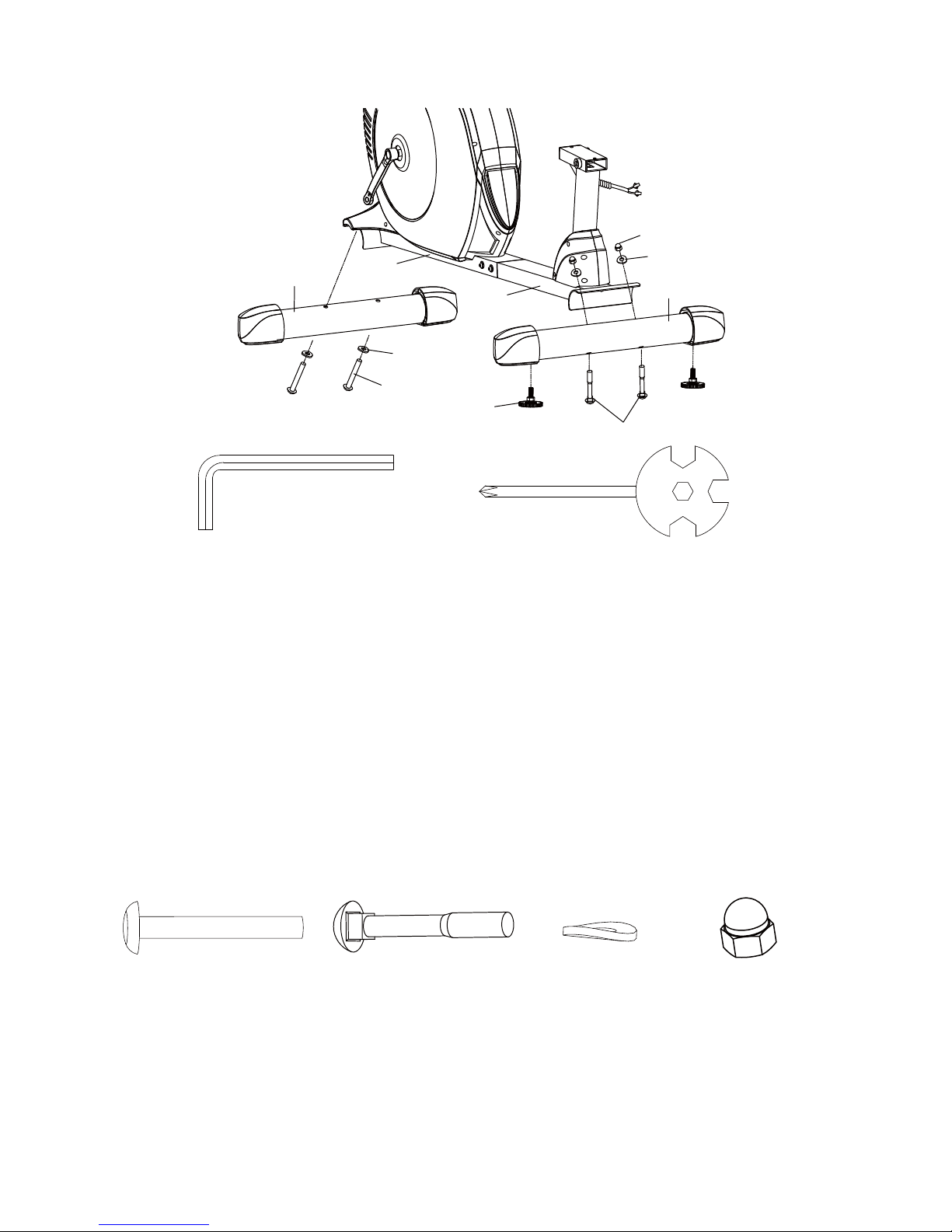

2. Front and Rear Stabilizers Installation
Position the Front Stabilizer (26) in front of Front Main Frame (17) and align bolt holes.
Attach the Front Stabilizer (26) onto the front curve of the Front Main Frame (17) with two
M8x90mm Bolts (25) and two Ø20xØ8x2.0t Washers (68). Tighten bolts and washers with
the S6 Allen Wrench provided.
Position the Rear Stabilizer (27) behind the Rear Main Frame (61) and align bolt holes.
Attach the Rear Stabilizer (27) onto the rear curve of the Rear Main Frame (61) with two
M8x90mm Carriage Bolts (65), two Ø20xØ8x2.0t Washers (68), and two M8 Cap Nuts (69).
Tighten cap nuts and bolts with the Multi hex Tool with Phillips Screwdriver provided.
Install two M10 Adjustable Levelers (63) onto the Rear Stabilizer (27).
Hardware:
Tool:
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Allen Wrench S6
26
25
68
63
65
69
27
68
17
67
(25) Bolt M8x90mm
2 PCS (65) Carriage Bolt M8x90mm
2 PCS
(68) Washer
Ø20xØ8x2.0t
4 PCS
(69) Cap Nut M8
2 PCS

10

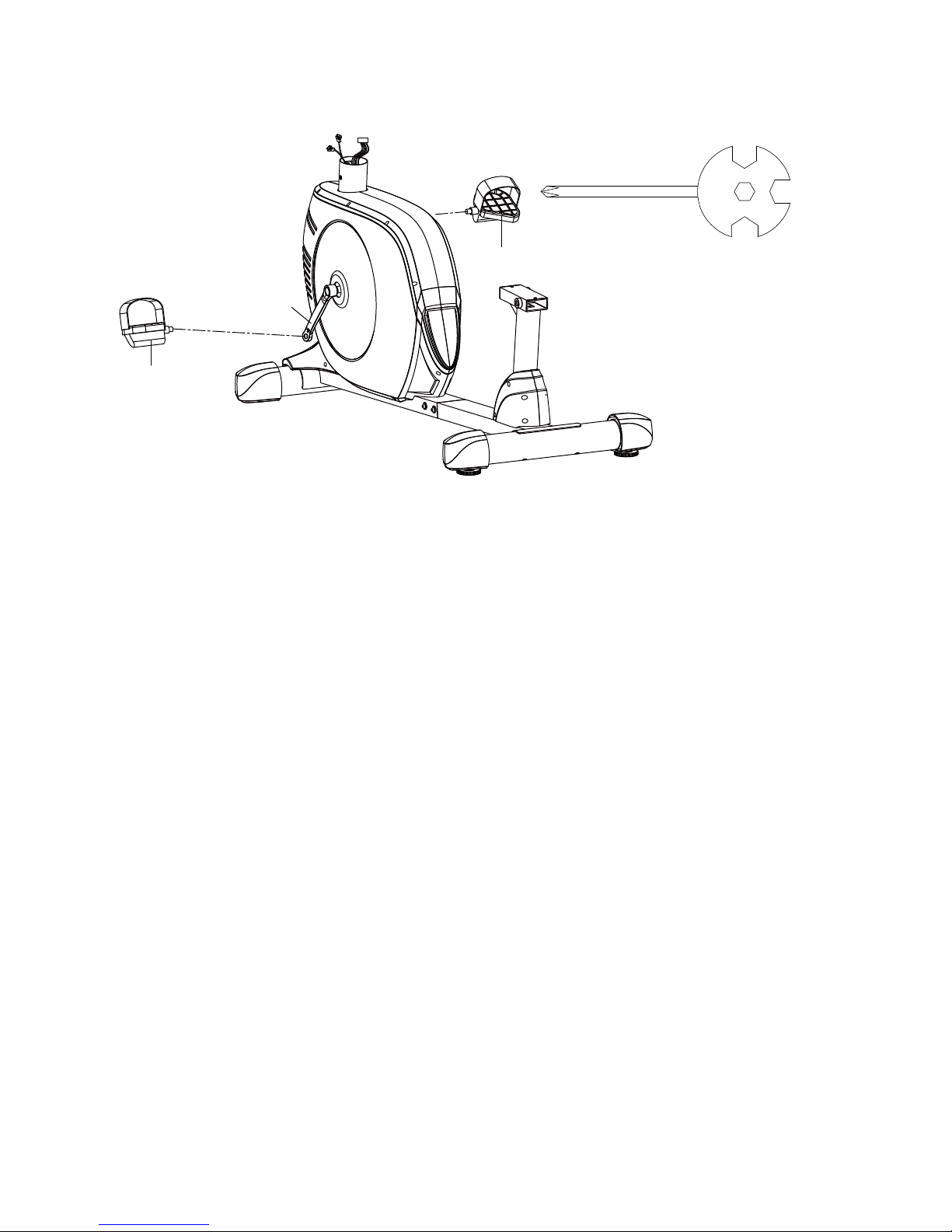

3. Right and Left Foot Pedals Installation
The Cranks, Foot Pedals, Pedal Shafts and Pedal Straps are marked “R” for Right and
“L” for Left.
Insert the pedal shaft of Left Foot Pedal (29L) into threaded hole in the Left Crank (36L).
Turn the pedal shaft by hand in the counter-clockwise direction until snug.
Note: DO NOT turn the pedal shaft in the clockwise direction, doing so will strip the
threads.
Tighten the pedal shaft of Left Foot Pedal (29L) with the Multi Hex Tool with Phillips
Screwdriver provided.
Insert pedal shaft of Right Foot Pedal (29R) into threaded hole in Right Crank (36R).
Turn the pedal shaft by hand in the clockwise direction until snug.
Tighten pedal shaft of Right Foot Pedal (29R) with the Multi Hex Tool with Phillips
Screwdriver provided.
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:
29L
36L
29R

11

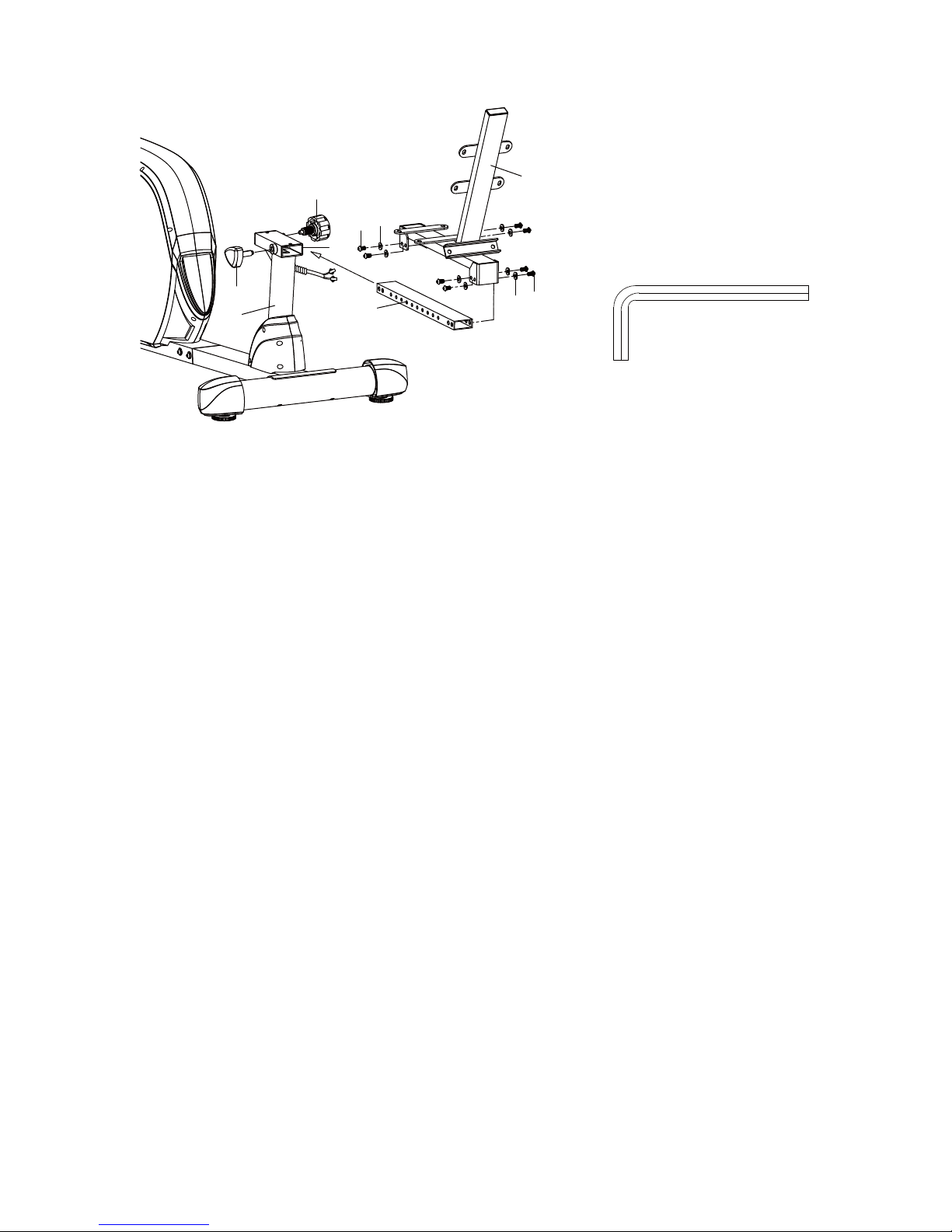

4. Seat Sliding Tube and Back/Seat Support Bracket Installation
Remove eight M8x15mm Bolts (18) and eight Ø16xØ8x1.5t Washers (53) from the Back
and Seat Support Bracket (82) and Seat Sliding Tube (66). Remove bolts with the S6 Allen
Wrench provided.
Insert the Seat Sliding Tube (66) into the Bushings (72) of the Rear Main Frame (67).
Attach the Seat Sliding Tube (66) to the Back and Seat Support Bracket (82) with eight
M8x15mm Bolts (18) and eight Ø16xØ8x1.5t Washers (53) that were removed. Tighten
bolts with the S6 Allen Wrench provided.
Adjust the seat position and insert the Round Knob (71) and Triangle Knob (70). Turn the
Round Knob (71) and Triangle Knob (70) in the clockwise direction to tighten.
Allen Wrench S6
Tool:
82
66 18
53
53
70
71
18
67
72

12

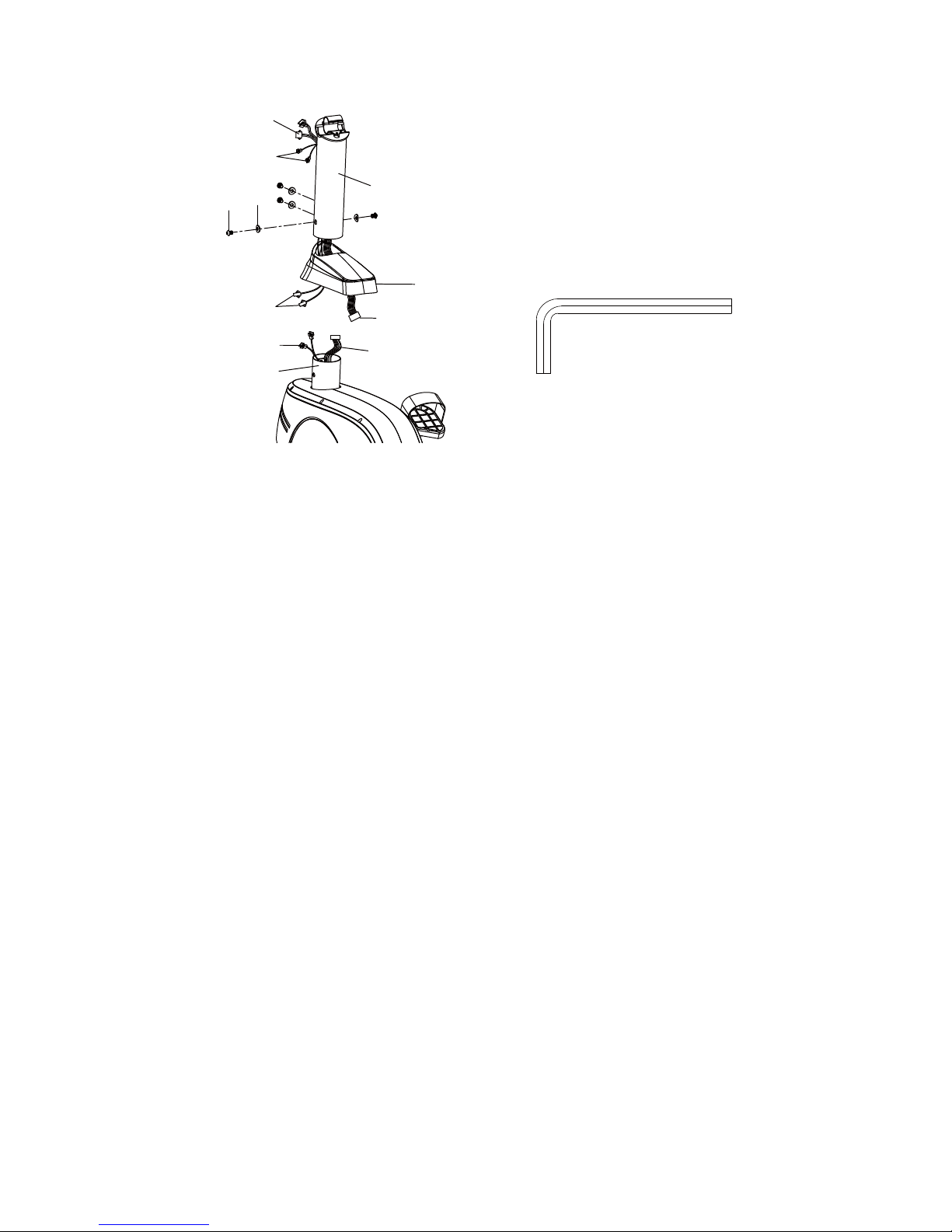

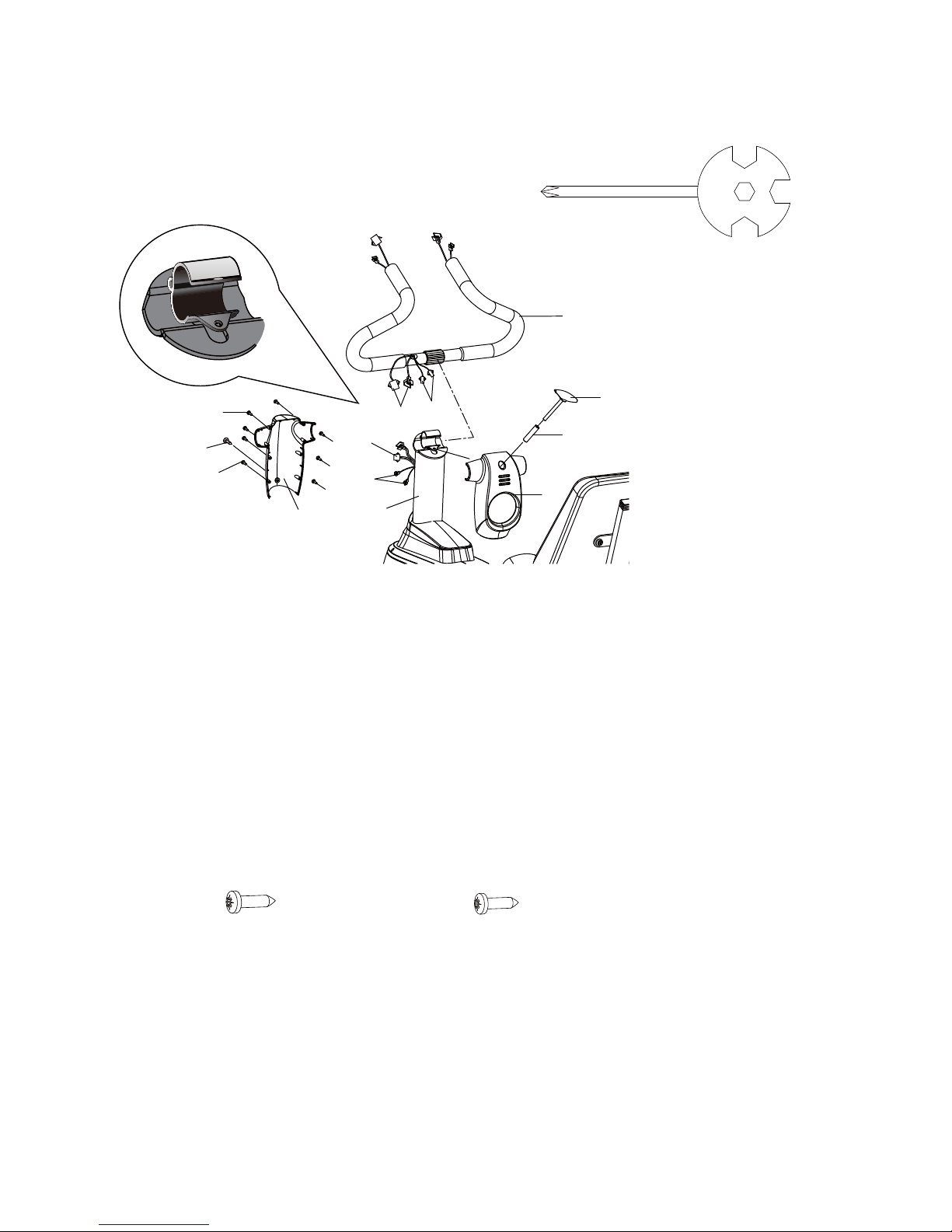

5. Front Post and Front Post Cover Installation
Remove four M8x15mm Bolts (18) and four Ø8 Curve Washers (19) from the Front Main
Frame (17). Remove bolts and curve washers with the S6Allen Wrench provided.
Slide the Front Post Cover (20) up to the Front Post (13).
Connect the Hand Pulse Sensor Extension Wire B (11) and Computer Extension Wire C (12)
from the Front Main Frame (17) to the Hand Pulse Sensor Extension Wires C (10) and
Computer Extension Wire B (86) from the Front Post (13).
Insert the Front Post (13) onto the tube of the Front Main Frame (17) and secure with four
M8x15mm Bolts (18) and four Ø8 Curve Washers (19) that were removed. Tighten bolts
and curve washers with the S6 Allen Wrench provided.
Slide the Front Post Cover (20) down to the Front Post (13).
Allen Wrench S6
Tool:
18 13
20
10
86
86
19
10
11 12
17

13
6. Seat/Back Cushions and Rear Handlebar Installation
Remove eight M6x15 Bolts (80) and eight Ø6xØ18x1.5t Washers (79) from the back of the
Seat and Back Cushions (81, 84). Remove bolts with the Multi Hex Tool with Phillips
Screwdriver provided. Then attach the Seat and Back Cushions (81, 84) onto the Back
and Seat Support Bracket (82) with eight M6x15 Bolts (80) and eight Ø6xØ18x1.5t Washers
(79) that were removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver
provided.
Attach the Rear Handlebar (78) onto the Back and Seat Support Bracket (82) with two
M8x45 Bolts (14), two Ø20xØ8x2.0t Washers (68), two Ø16xØ8x1.5t Washers (53), and two
M8 Cap Nuts (69). Tighten bolts and cap nuts with the Multi Hex Tool with Phillips
Screwdriver and S6 Allen Wrench provided.
Connect the Hand Pulse Sensor Wires (75) from the Rear Handlebar (78) to the Hand Pulse
Sensor Extension Wire A (61) from the Rear Main Frame (67).
Hardware:
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:
84
80
82
80
81
79
79
61
67
78
75
68 14
53
69
Allen Wrench S6
(68) Washer
Ø20xØ8x2.0t
2 PCS
(69) Cap Nut M8
2 PCS
(14) Bolt M8x45
2 PCS (53) Washer Ø16xØ8x1.5t
2 PCS

14
7. Front Handlebar and Front/Rear Decorative Covers for Front Post Installation
Place the Front Handlebar (7) through clamp on the top end of the Front Post (13).
Connect the Computer Extension Wires A (85) and Hand Pulse Sensor Extension Wires D
(87) from the Front Handlebar (7) to the Computer Extension Wire B (86) and Hand Pulse
Sensor Extension Wires C (10) from the Front Post (13). Hold the Front Handlebar (7) in
desired position and fasten Front/Rear Decorative Covers for Front Post (8A, 8B), M8x75
Front Handlebar T-Knob (15), and Ø12x1.5x50 Spacer (16) onto clamp and tighten
Front/Rear Decorative Covers for Front Post (8A, 8B) with one ST4.2x20mm Screw (4) and
eight ST2.9x16mm Screws (9). Tighten screws with the Multi Hex Tool with Phillips
Screwdriver provided.
NOTE: M8x75 Front Handlebar T-Knob should be tightly secured before using.
Hardware:
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:
15
16
7
85 87
8B
10
86
13
8A
4
9
9
(4) Screw ST4.2x20mm
1 PC (9) Screw ST2.9x16mm 8 PCS

15
8. Computer Bracket and Computer Installation
Remove two ST4.2x20mm Screws (4) from the Front Handlebar (7). Remove screws with
a Multi Hex Tool with Phillips Screwdriver provided.
Connect the Computer Extension Wires A (85) and Hand Pulse Sensor Extension Wires D
(87) from the Front Handlebar (7) to the wires that come from the Computer (1).
Attach the Computer (1) onto the top end of the Front Handlebar (7) with two ST4.2x20mm
Screws (4) that were removed. Tighten screws with a Multi Hex Tool with Phillips
Screwdriver provided.
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․
9. AC Adapter Installation
Plug one end of the AC Adapter (77) into the power jack of the Power Supply Wire (89) on
the front of the Right Shroud (33R). Before plugging in, make sure to check carefully
the specifications on the Adapter. Plug the other end of the AC Adapter (77) into the
electrical wall outlet.
Multi Hex Tool with Phillips Screwdriver
S10, S13, S14, S15
Tool:
1
4
7
85
85
87
87
4
77
89
33R

16
OPERATING THE COMPUTER
BUTTON FUNCTIONS:
START/STOP: Press the START/STOP button to start or stop training.
MODE: By holding the MODE button for two seconds the user can reset all values to 0.
Press the MODE button to change the function from PROGRAMS, TIME, DISTANCE, CAL,
TARGET, 10 intervals, GENDER, HEIGHT, WEIGHT, and AGE. The chosen function shall
flash. Please note that not all the functions can be selected in every program according to
the types of each program.
UP: Press the UP button to select or increase the functional values of PROGRAMS, TIME,
DISTANCE, TARGET, 10 intervals, GENDER, HEIGHT, WEIGHT, and AGE.
DOWN: Press the DOWN button to select or decrease the functional values of PROGRAMS,
TIME, DISTANCE, TARGET, 10 intervals, GENDER, HEIGHT, WEIGHT, and AGE.
BODY FAT: Press the BODY FAT button to select the PROGRAM 19.
RECOVERY: The Pulse Recovery is for personal orientation and compares the approximate
pulse rate before and after training. You will notice that your fitness will improve with
regular exercise. The Pulse Recovery feature is to be used directly after your workout. To
use this function:
1) Grip the handlebar sensors with both your hands during exercise.
2) Press the RECOVERY button.
3) The time will countdown from 60 to 0 seconds. Grip the handlebar sensors with both
your hands.
Note: If there is no pulse reading within 4 seconds reposition your hands on the Hand
Pulse Sensors.
4) Your personal fitness Pulse Recovery level will appear on the display. When countdown
is complete, the Pulse Recovery grade will be displayed.
Your ratings for Pulse Recovery are as follows:
F1.0 = Excellent F4.0 = Below Average
F2.0 = Good F5.0 = Not Good
F3.0 = Fair F6.0 = Poor

17

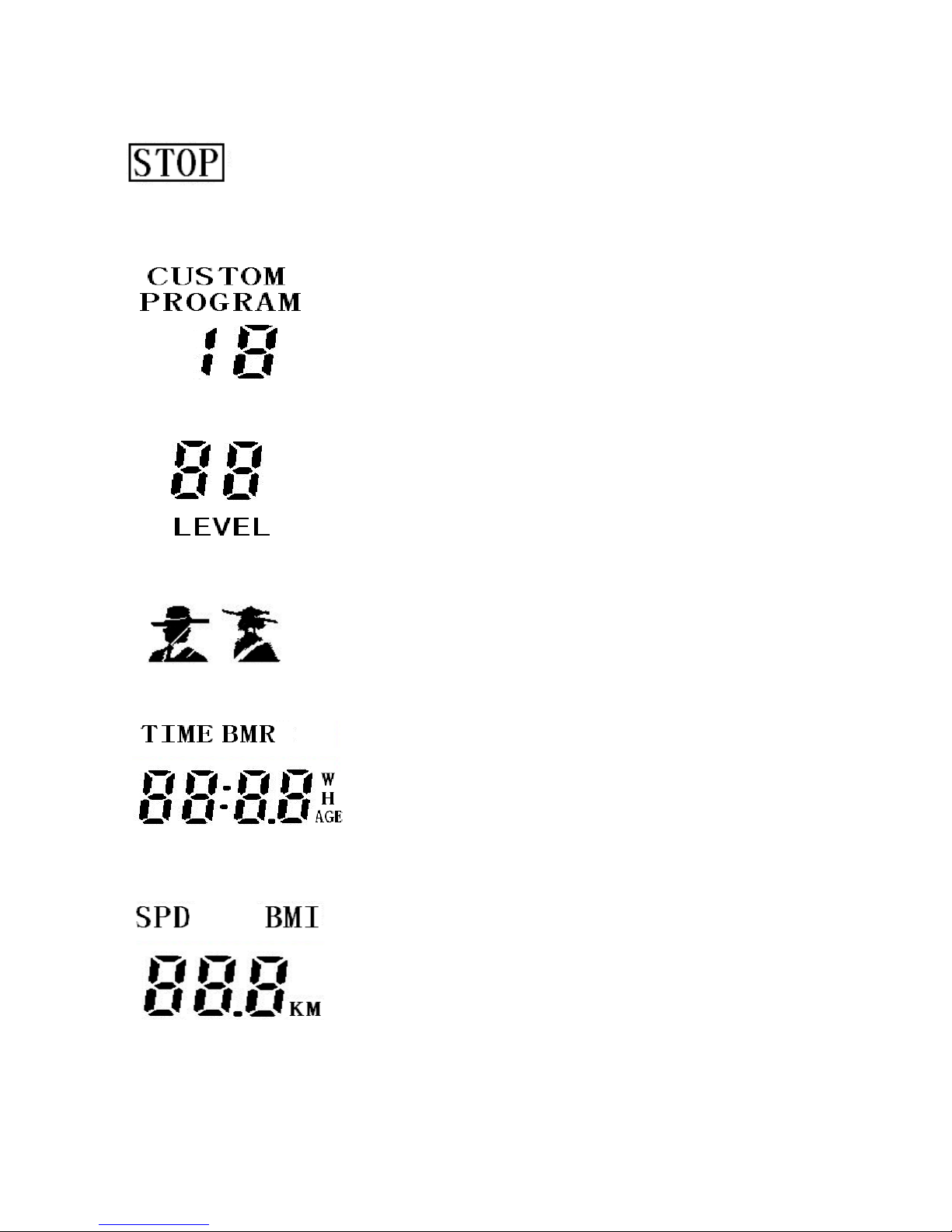

About Display:
STOP: Indicates the program selected has stopped. User is free to change the programs
and the value of functions applied.
PROGRAM: Indicates the programs selected from PROGRAM 0 to PROGRAM 19.
LEVEL: Indicates the level of loading selected from LEVEL 1 to LEVEL 16.
GENDER: Indicates the gender (Male or Female) selected.
TIME/BMR/HEIGHT/WEIGHT/AGE Display: Indicates only one functional value of TIME,
BMR, HEIGHT, WEIGHT, or AGE displayed depending on the programs.
SPEED K(M)/RPM/BMI Display: Indicates only one functional value of SPD, RPM, BMI, or
K(M) displayed depending on the programs.

18
DIST/FAT% Display: Indicates only one functional value of DIST (DISTANCE) or FAT%
displayed depending on the programs.
WATT/CAL Display: Indicates only one functional value of WATT or CAL displayed
depending on the programs.
T.H.R./PULSE Display: Indicates only one functional value of T.H.R (TARGET HEART
RATE) or PULSE displayed depending on the programs.
LOADING Profiles: There are 10 intervals of loading bars, and 8 bars in each interval.
Each intervals represents 3 minutes workout (without the change of TIME value), and each
bar represents 2 levels of loading.

19
Operating Ranges
Values Range (Count up) Count down Preset Increment (Decrement)
PROGRAM 0 ~ 19 19 ~ 0 1 1
LEVEL 1 ~ 16 16 ~ 1 N/A 1
GENDER Male, Female Male, Female Male N/A
TIME 0:00 ~ 99:59 99:00 ~ 5:00 0:00 1:00
HEIGHT (cm) 110.0 ~ 200.0 200.0 ~ 110.0 175.0 0.5
WEIGHT (kg) 10.0 ~ 200.0 200.0 ~ 10.0 70.0 0.2
AGE 10 ~ 99 99 ~ 10 30 1
DISTANCE 0.00 ~ 99.9 99.9 ~ 0.00 0.00 0.1
CALORIES 0.0 ~ 999 999 ~ 0.0 0.0 1.0
TARGET H.R. 60 ~ 200 200 ~ 60 N/A 1
WATT 30.0 ~ 350 350 ~ 30.0 200 1
Things You Should Know Before Exercising
The values calculated or measured by the computer are for exercise purpose only, not for
medical purpose.
Programs Selection:
There are 20 programs including 1 Manual Program, 9 Pre-set Programs, 4 User Setting
Programs, 1 WATT Control Program, 4 Heart Rate Control Programs, and 1 Body Fat
Program.

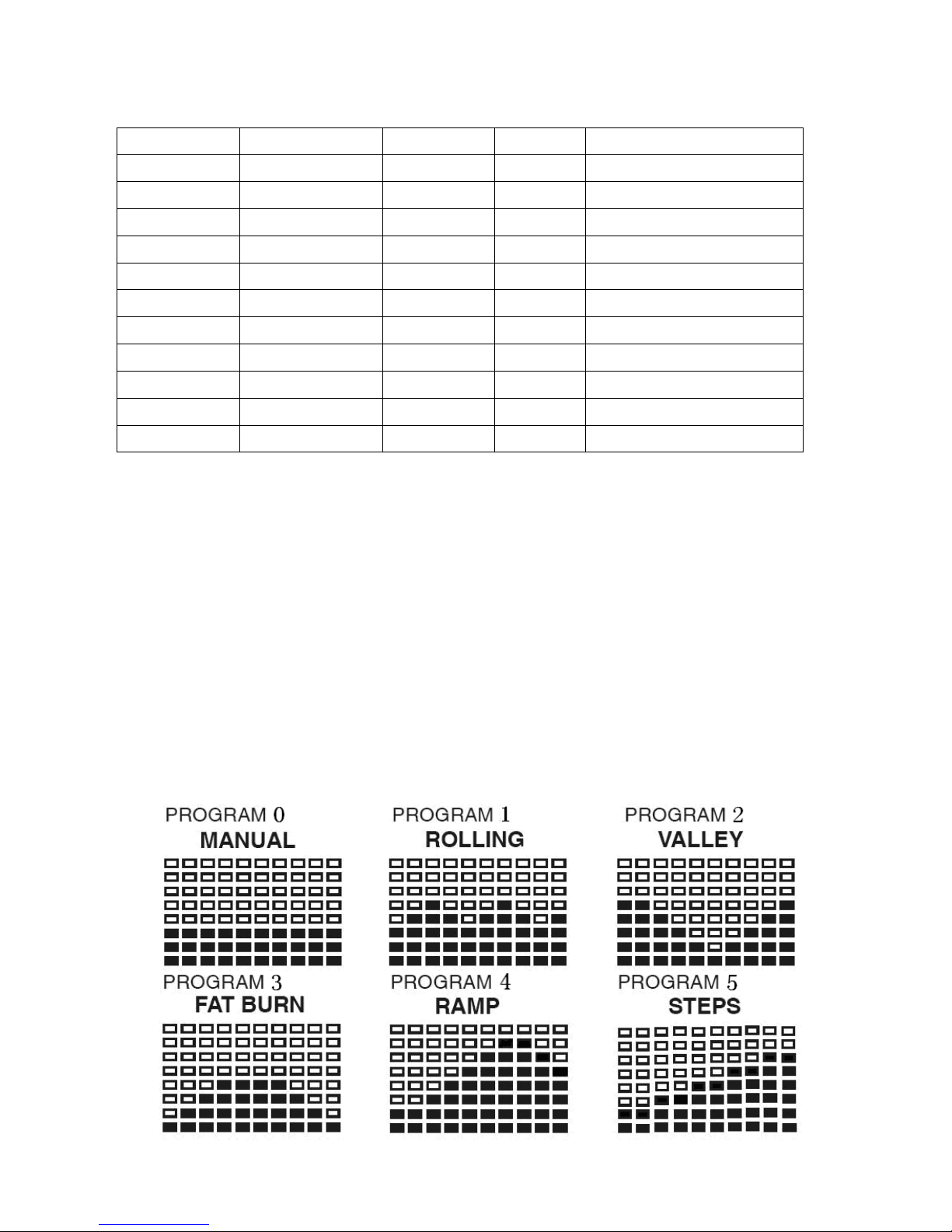

Program Graph:
Each graph shown is the profile of the loading in each interval. With the value of TIME
counting up, each interval is 3 minutes that all the columns make up 30 minutes. With the
value of TIME counting down, each interval is the value of setup TIME divided by 10. For
example, if the time value is setup to 40 minutes, each interval will be 40 minutes divided by
10 intervals (40/10=4). Then, each interval will be 4 minutes. The following graphs are all
the profiles in the computer.
