Life Gear 30680HP User manual

MAGNETIC ROWER
ITEM NO: 30680HP
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo, subject to change without notice.
2017, March

1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
PARTS LIST ------------------------------------------------------------------------------- 4
HARDWARE LIST ----------------------------------------------------------------------- 5
TOOLS ------------------------------------------------------------------------------------- 5
OVERVIEW DRAWING ---------------------------------------------------------------- 6
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 7
STORAGE --------------------------------------------------------------------------------- 11
MAINTENANCE -------------------------------------------------------------------------- 11
OPERATING THE COMPUTER ------------------------------------------------------ 12
OPERATING THE PULSE COMPUTER ------------------------------------------- 13
ADJUSTMENTS -------------------------------------------------------------------------- 14
HOW TO ROW ---------------------------------------------------------------------------- 15
WARM UP AND COOL DOWN ROUTINE ----------------------------------------- 16

2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of purchase
is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment. Read all instructions before using
this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are
recommended.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that may catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. This equipment is not suitable for therapeutic use.
7. Do not use the equipment outdoors.
8. This equipment is for household use only. It is not a commercial model.
9. Only one person at a time should use this equipment.
10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
11. Care should be taken in mounting or dismounting the equipment.
12. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. This machine is designed for adults use only. The
minimum free space required for safe operation is two meters.
13. The maximum weight capacity for this product is 110 kgs.
WARNING: Before beginning any exercise program consult your physician.
This is especially important for the people who are over 35 years old or who have
pre-existing health problems. Read all instructions before using any fitness
equipment.
CAUTION: Read all instructions carefully before operating this product.
Keep this Owner’s Manual for future reference.

4
PARTS LIST
No. Description Qty No. Description Qty
001 Main Frame 1 033 Plate 26x23.5x2.5t 3
002 Front Stabilizer 1 034 Bolt M6x10 6
003 Front Stabilizer End Cap 2 035 Sensor with Wire 30cm 1
004 Stabilizer End Cap 4 036 Sensor Holder 1
005 Plastic Cap for Foot Pedal 2 037 Screw M3x10 2
006 Pulley Ø40 5 038 Bolt M5x10 1
007 Bearing 6900RS 7 039 Extension Sensor Wire 40cm 1
008 Bearing Pipe 10x8x2.5Tx8T 10 040 L Type Plate 2
009 Bolt M8x35 7 041 Rear Stabilizer Support Tube 1
010 Nylon Locknut M8 12 042 Bolt M8x15 4
011 Fixed Plate 1 043 Aluminum Beam Rear Cover 1
012 Hexagon Nut M10 2 044 Knob 1
013 Nut M10 2 045 Washer Ø17xØ8.5x1.5T 1
014 Flywheel 1 046 Rear Stabilizer 1
015 Tension Strap Wheel 1 047 Bumper Stopper □23x20 4
016 Flywheel Axle Ø10x143 1 048 Hexagon Socket Head Cap Bolt
M8x20 4
017 Elastic Belt 1620mm 1 049 Seat 1
018 Tension Strap 1 050 Bolt M6x15 4
019 Handlebar 1 051 Seat Slide Plate 1
020 Handlebar Foam Grip Ø22x187.5 2 052 Magnet 5x10x2t 1
021 Handlebar End Cap Ø22 2 053 Magnet Box 1
022 Handlebar Plastic Cover 1 054 Screw M3x10L 2
023 Adjustable Leveler 1 055 Bolt M8x30 6
024 Tension Strap Pulley Ø40x34 1 056 Seat Carriage Roller 6
025 Bearing Pipe 10x8x4Tx3T 2 057 Bearing Pipe for Seat 6
026 Bolt M8x55 1 058 Washer Ø21xØ10.5x1.5T 4
027 Bolt M8x20 4 059 Right Cover 1
028 Tension Control Knob 1 060 Left Cover 1
029 Bolt M5x10 1 061 Screw M4x25 4
030 Screw M4x14 2 062 Screw M4x20 6
031 Aluminum Beam Bushing 1 063 Screw M4x16 (Galvanization) 1
032 Aluminum Beam 900mm 1 064 Computer TZ-1104 1

5
PARTS LIST

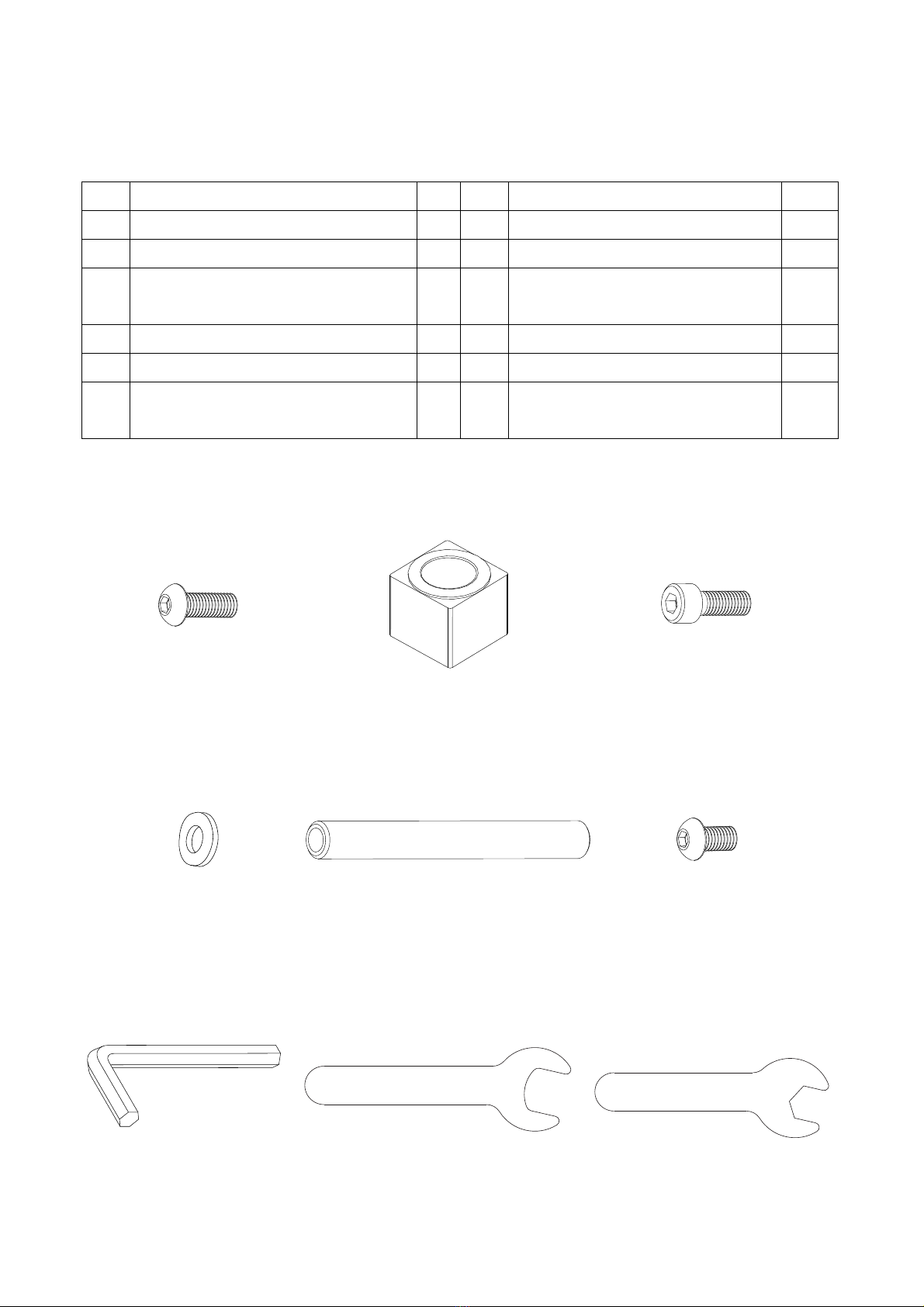

HARDWARE LIST
TOOLS
No. Description Qty No. Description Qty
065 Foot Pedal 2 071 Nylon Locknut M6 2
066 Foot Pedal Strap 2 072 Pulse Computer 1 Set
067 Foot Pedal Pivot Axle
Ø13x111mm 2 073 Screw M4x16 (Black) 4
068 Bolt M8x15 4 074 Washer Ø12xØ5x1.0T 2
069 Tension Eyebolt 2 075 Hand Pulse Sensor 2
070 Tension Bracket 2 076 Hand Pulse Sensor Wire
L=185mm 2
(9) Bolt M8x35
2 PCS
(47) Bumper Stopper
□23x20
2 PCS
(48) Hexagon Socket
Head Cap Bolt M8x20
2 PCS
(58) Washer
Ø21xØ10.5x1.5T
4 PCS
(67) Foot Pedal Pivot Axle
Ø13x111mm
2 PCS
(68) Bolt M8x15
4 PCS
Allen Wrench
2 PCS
Open-Ended Flat Wrench
1 PC
Open-Ended Flat Wrench
1 PC

6

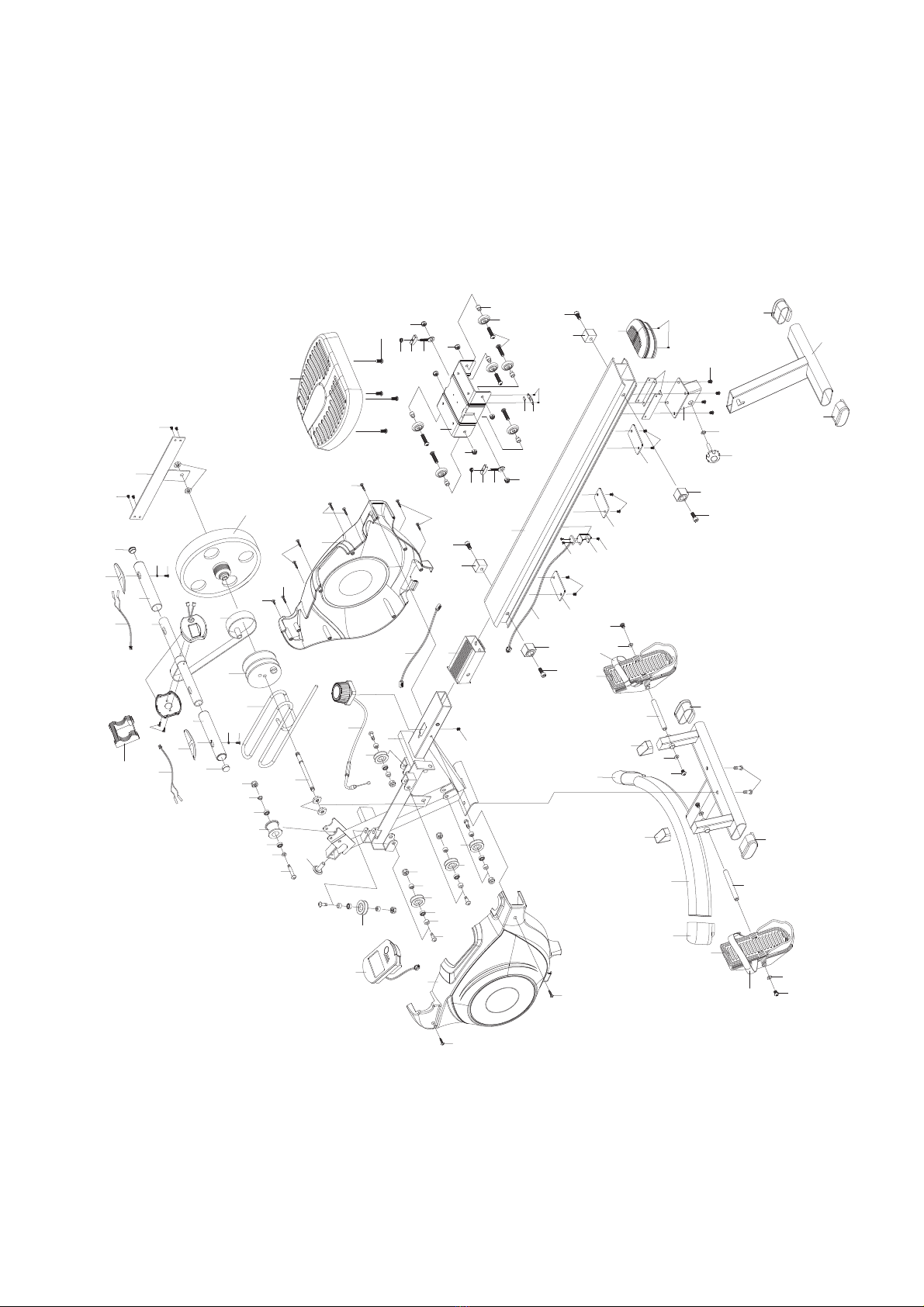

OVERVIEW DRAWING
1
2
3
4
5
6
7
8
8
9
10
6
6
6
6
11
12
13
14
15
16
17
18
19
20
21
21
22
23
7
25
25
26
10
7
27
28
29
9
31
32
34
33
34
33
34
33
35
36
37
38
39
41
42
40
43
44
45
46
48
47
47
48
48
47
47
48
49
50
51
52
53
54
55
56
57
10
61
59
61
60
62
62
62
64
65
65
66
66
58
68
58
68
5
67
67
58
68
4
4
4
3
27
30
24
69
70
71
10
10
10
69
70
71
72
73
75
76
75
76
74
73
20
74
73
61
63
61

7
ASSEMBLY INSTRUCTIONS
Step 1

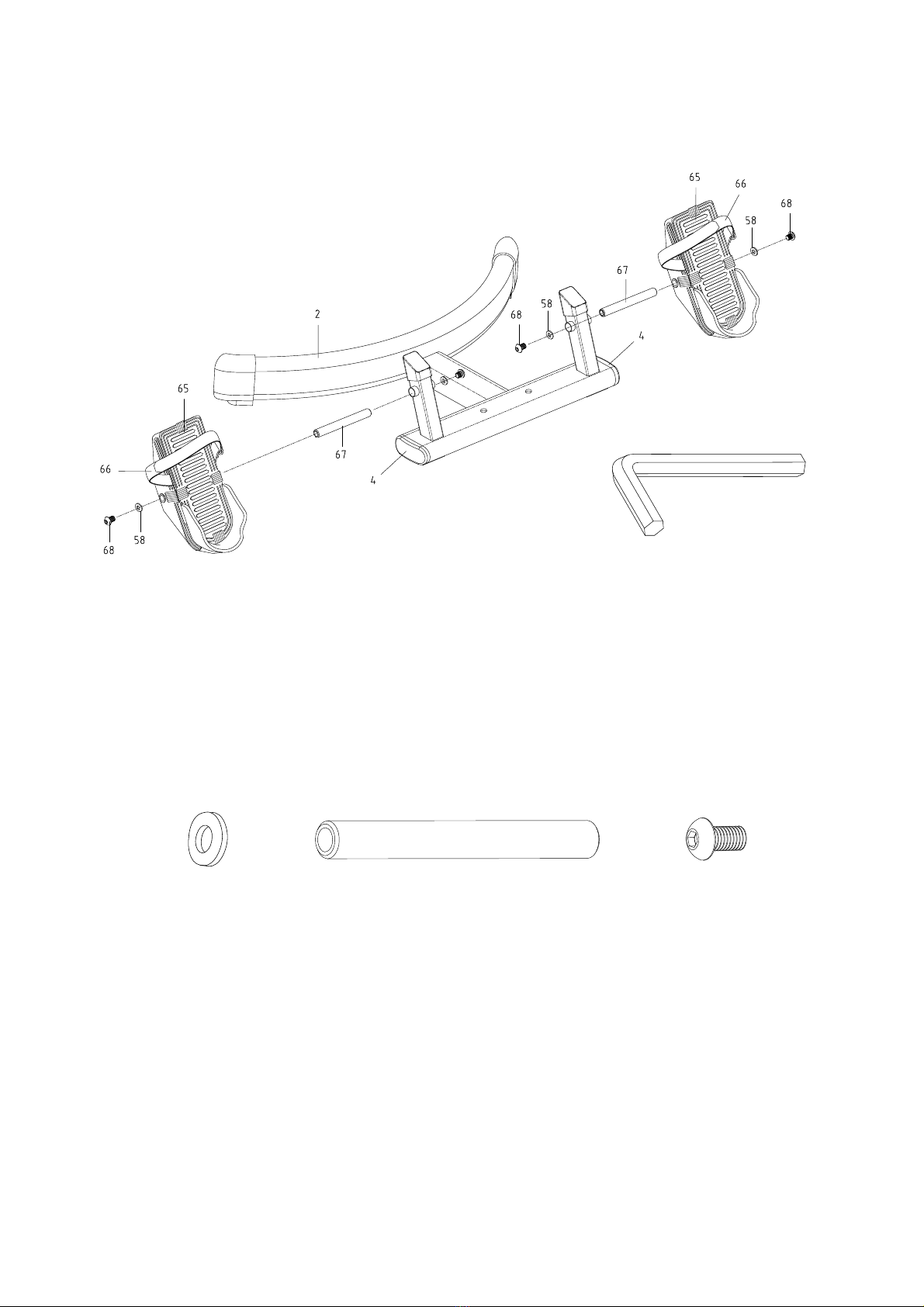

Position the Foot Pedal (65) onto the Front Stabilizer (2) and align bolt holes.
Insert the Foot Pedal Pivot Axle (67) through into the holes on the Foot Pedal (65) and Front
Stabilizer (2). Secure with two Ø21xØ10.5x1.5T Washers (58) and two M8x15 Bolts (68).
Tighten bolts with two Allen Wrenches provided.
Repeat above steps to install the other Foot Pedal (65) onto the Front Stabilizer (2).
Hardware:
Tool:
Allen Wrench
2 PCS
(58) Washer
Ø21xØ10.5x1.5T
4 PCS
(67) Foot Pedal Pivot Axle
Ø13x111mm
2 PCS
(68) Bolt M8x15
4 PCS

8
Step 2
Keep the Main Frame (A1) with the Styrofoam.

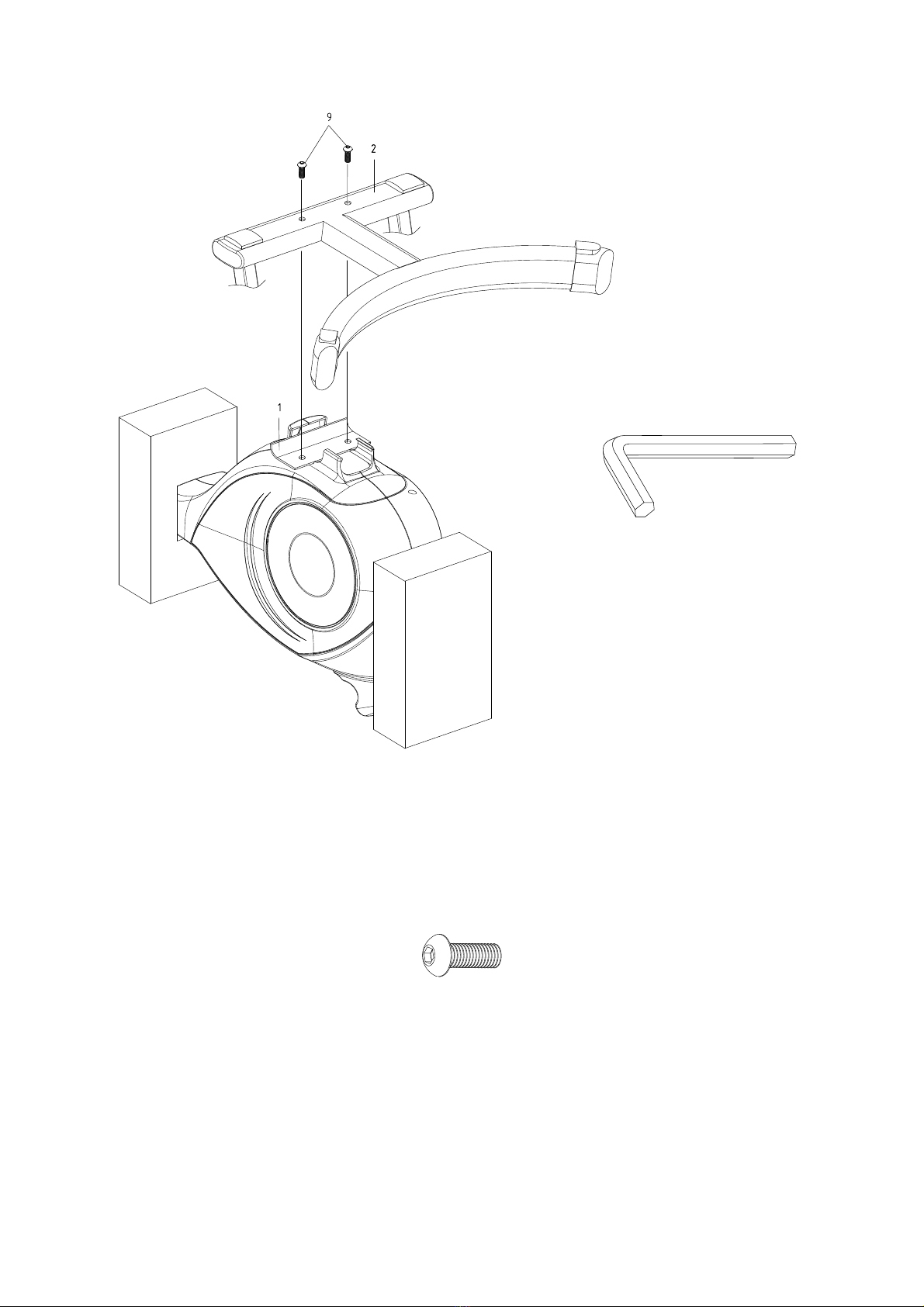

Attach the Front Stabilizer (2) onto the Main Frame (1) with two M8x35 Bolts (9). Tighten
bolts with the Allen Wrench provided.
Hardware:
(9) Bolt M8x35
2 PCS
Tool:
Allen Wrench

9
Step 3

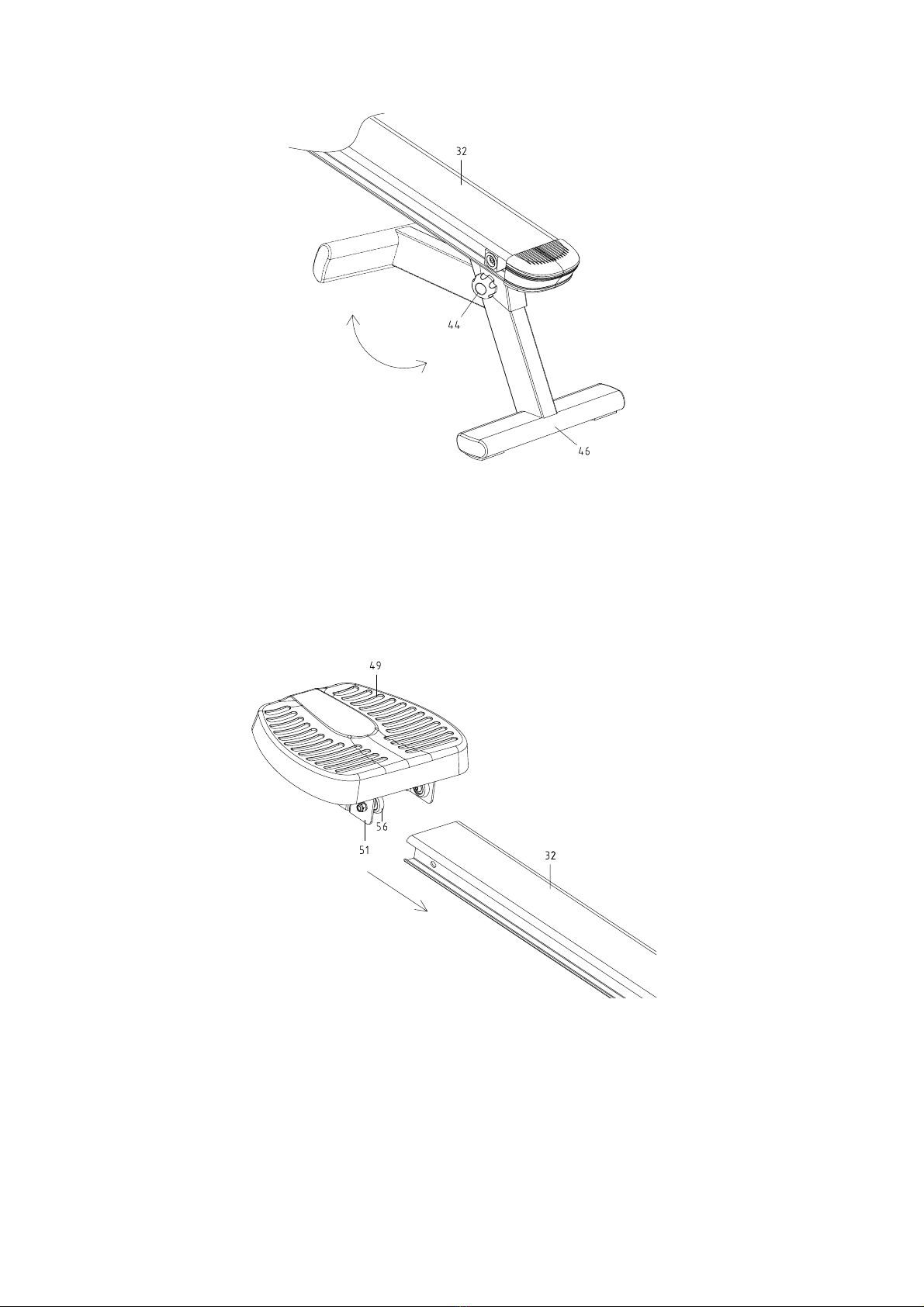

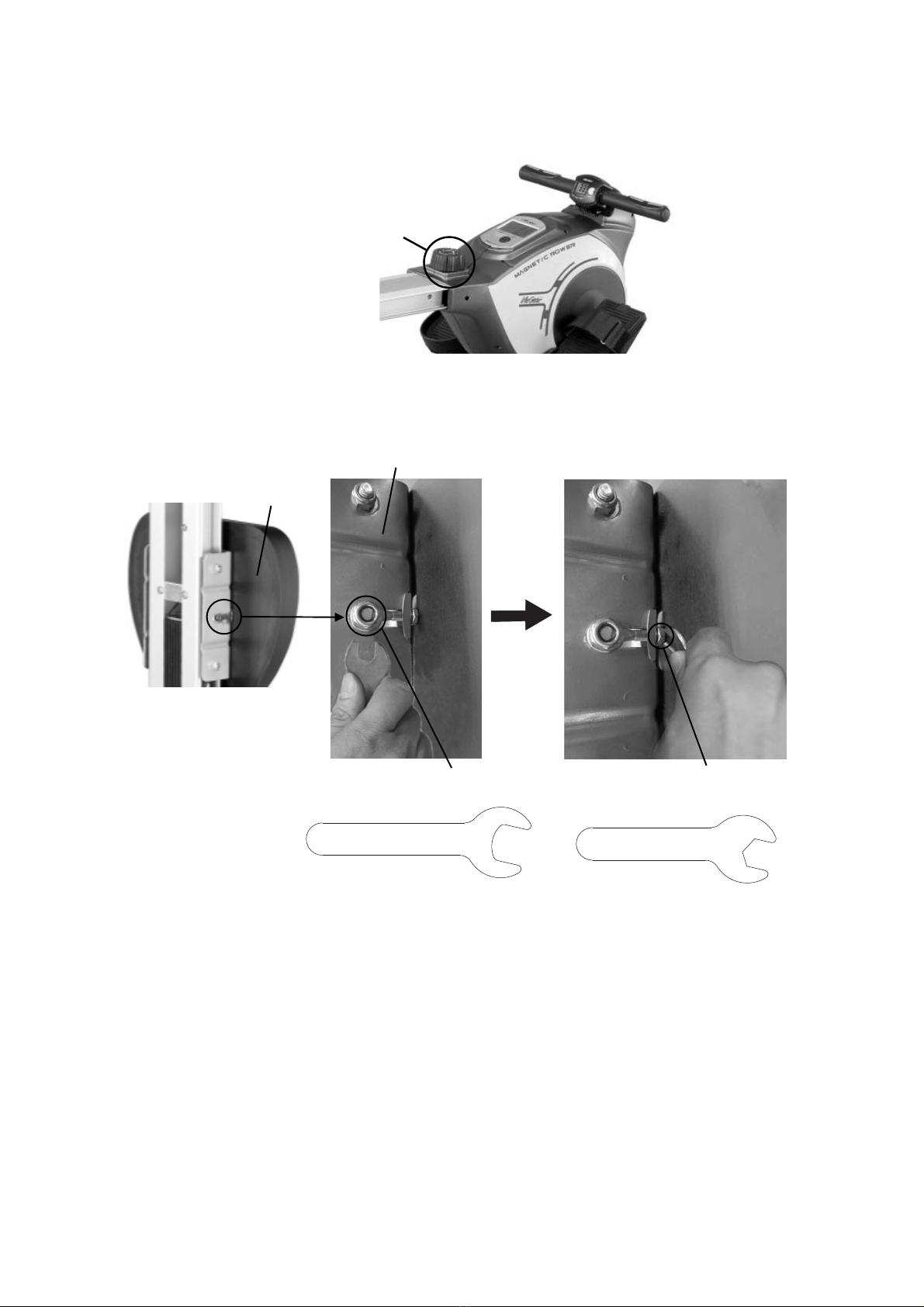

Turn the Knob (44) in a counterclockwise direction until the Rear Stabilizer (46) can be
pushed down. Lock the Rear Stabilizer (46) in place by tightening the Knob (44) in a
clockwise direction.
Step 4
Slide the Seat Slide Plate (51) with Seat Carriage Rollers (56) to the slide tracks of the
Aluminum Beam (32).

10
Step 5

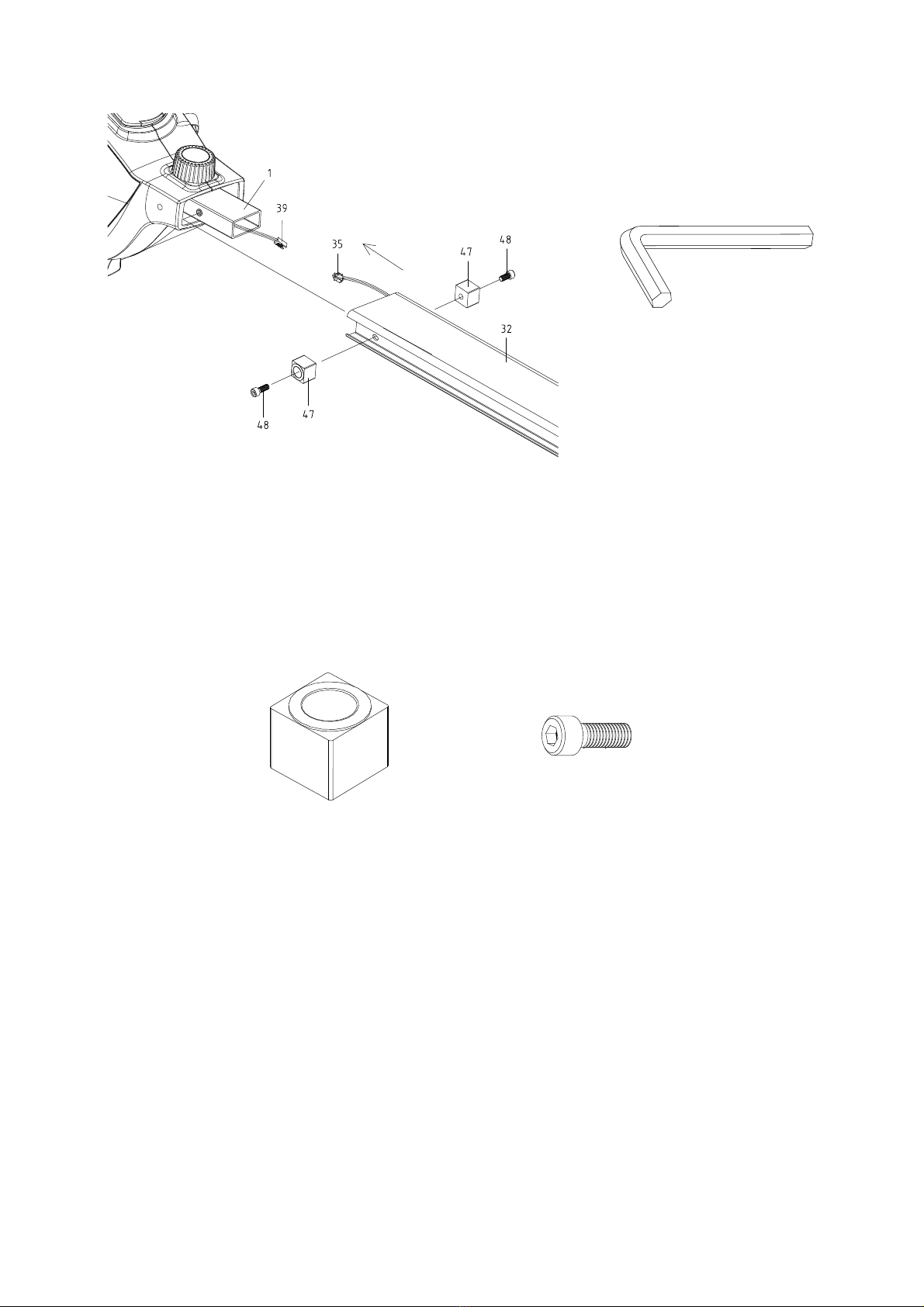

Connect the Sensor Wire (35) from the Aluminum Beam (32) to the Extension Sensor Wire
(39) from the Main Frame (1).
Attach the Aluminum Beam (32) onto the tube of the Main Frame (1) with two □23x20
Bumper Stoppers (47) and two M8x20 Hexagon Socket Head Cap Bolts (48). Tight bolts
with the Allen Wrench provided.
Hardware:
Make sure that all parts are properly tightened before using the
equipment.
(47) Bumper Stopper
□23x20
2 PCS
(48) Hexagon Socket
Head Cap Bolt M8x20
2 PCS
Tool:
Allen Wrench

11
STORAGE
Before lifting the rower up into the vertical storage position please roll the seat forward
to the front bumper stoppers. Then lift the rower up in the vertical storage position.
Turn the Knob (44) in a counterclockwise direction until the Rear Stabilizer (46) can be
pushed down. Lock the Rear Stabilizer (46) in place by tightening the Knob (44) in a
clockwise direction.
Store the rower in a clean and dry environment away from children.
MAINTENANCE
The rower can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents
on plastic parts. Please wipe your perspiration off the rower after each use. Be careful
not to get excessive moisture on the computer display panel as this might cause an electrical
hazard or electronics to fail.
Please keep the rower, especially the computer console out of direct sunlight to prevent
screen damage.
Please inspect all assembly bolts, nuts, screws, and pedals on the machine for proper
tightness every week.

12
OPERATING THE COMPUTER
SPECIFICATIONS:
TIME ---------------------------------------------------- 0:00-99:59 MIN: SEC
COUNT ------------------------------------------------ 0-9999 STROKE(S)
TOTAL COUNT -------------------------------------- 0-9999 STROKE(S)
CALORIE ---------------------------------------------- 0.0-999.9 KCAL
COUNT/MIN ------------------------------------------ 0-999 STROKE(S)
USING YOUR COMPUTER
The computer can be activated by pressing the button or by rowing. If you leave the
equipment idle for 256 seconds, the power will turn off automatically.
BUTTON FUNCTIONS:
Press the button to select the function of the computer.
Press and hold the button for 2 seconds to reset all data values to zero except the TOTAL
COUNT data values.
COMPUTER FUNTIONS:
SCAN: Automatically scans each function in sequence with change every 6 seconds.
TIME: Displays your elapsed workout time in minutes and seconds.
COUNT: Displays the number of strokes you have taken.
TOTAL COUNT: Displays the accumulated the number of strokes.
CALORIE: Displays approximate amount of calories burned during workout.
(This data is a rough guide for comparison of different exercise sessions and should not be
used in medical treatment).
COUNT/MIN: Displays the number of stroke per minute.

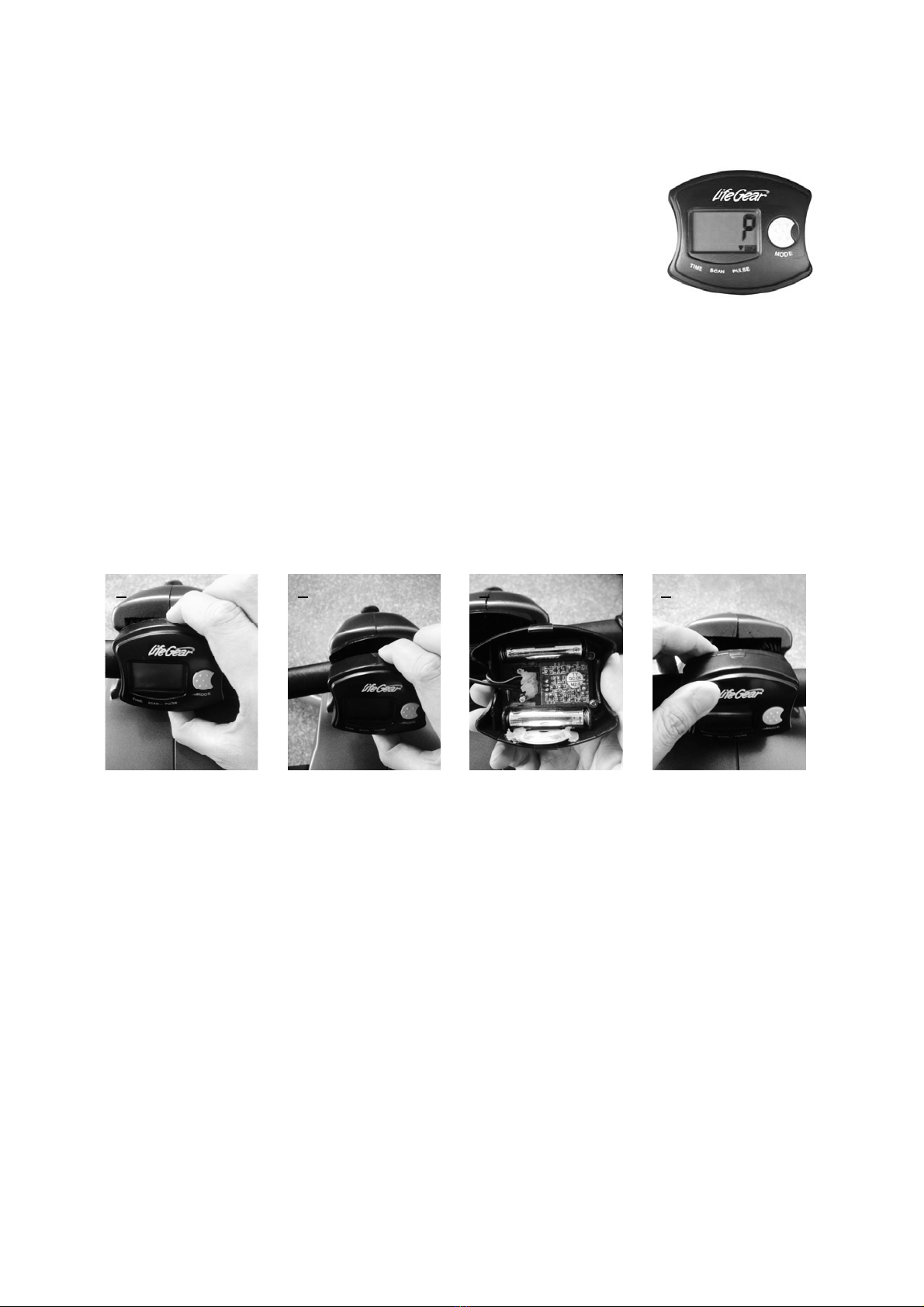

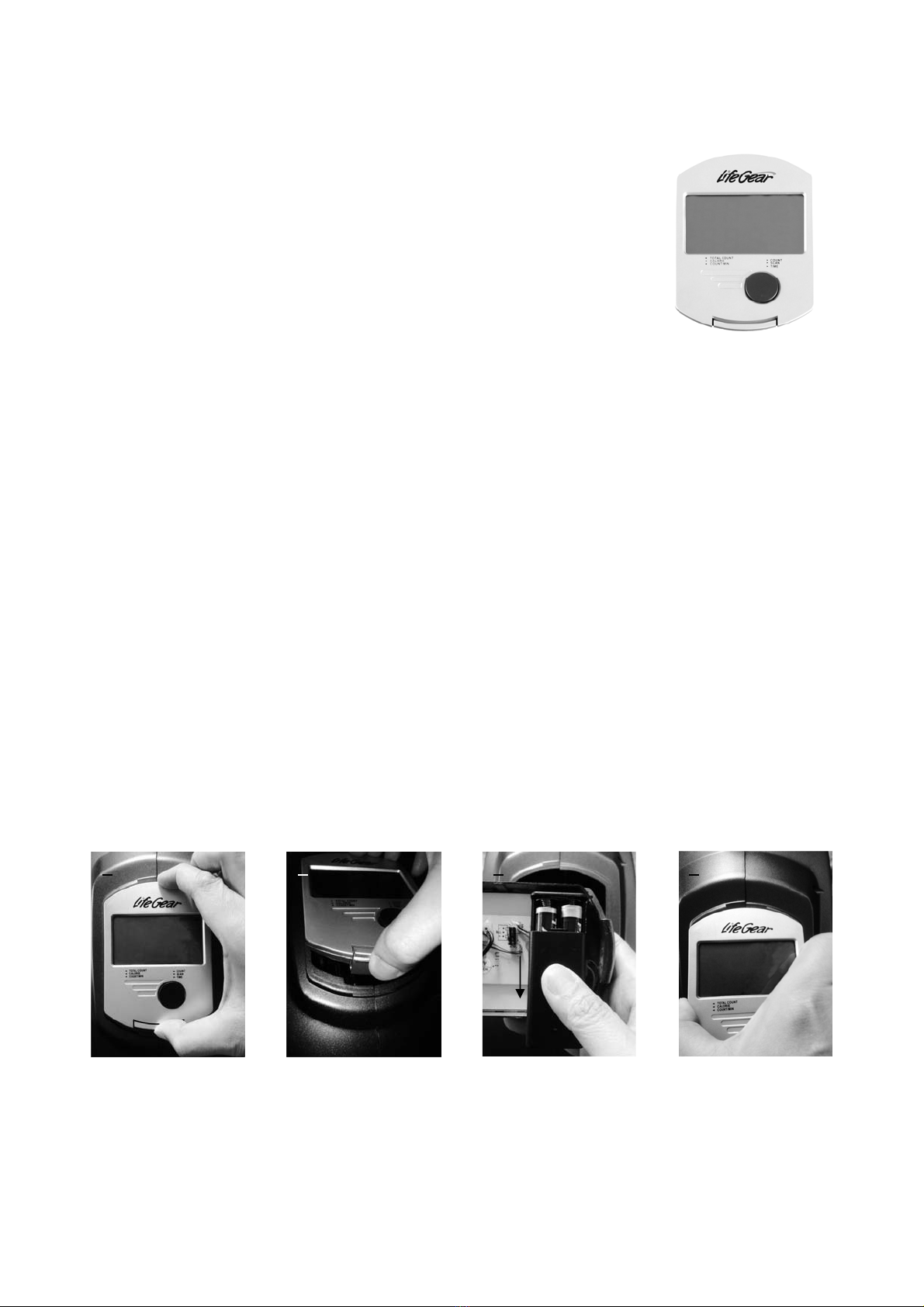

HOW TO INSTALL THE BATTERIES:
Push the tip of
the computer.
Remove the
computer from
the console.
Remove the
battery cover and
place two size AA
batteries into the
battery housing.
Re-install the
battery cover and
press the
computer into
position on the
console.
1 2 3 4

13
OPERATING THE PULSE COMPUTER
USING YOUR COMPUTER
The computer can be activated by pressing the MODE button or
by gripping the hand pulse sensors. If you leave the equipment
idle for 256 seconds, the power will turn off automatically.
BUTTON FUNCTIONS:
Press the MODE button to select the function of the computer.
Press and hold the MODE button for 5 seconds to reset all data values to zero.
COMPUTER FUNTIONS:
SCAN: Automatically scans each function in sequence with change every 6 seconds.
TIME: Displays your elapsed workout time in minutes and seconds.
PULSE: Displays the current heart rate in beats per minute.
HOW TO INSTALL THE BATTERIES:
Push both top
and bottom tips
of the pulse
computer.
Remove the pulse
computer from the
handlebar.
Place two size
AAA batteries
into the battery
housing.
Place the pulse
computer back
on.
1 2 3 4

14
Tension Control Knob
ADJUSTMENTS
Adjusting the Tension Control Knob
To increase the tension, turn the tension control knob in a clockwise direction.
To decrease the tension, turn the tension control knob in a counterclockwise direction.
Adjusting the M8/M6 Nylon Locknuts on the Seat Slide Plate
If it is difficult to slide the seat onto the aluminum beam, first you need to make sure that the
M8 Nylon Locknut can be turned freely. To do this, use the Open-Ended Flat Wrench to
turn the M8 Nylon Locknut counterclockwise direction until it can be turned freely. Then
turn the M6 Nylon Locknut counterclockwise direction with the Open-Ended Flat Wrench to
adjust the position of the seat carriage roller lower. Repeat above steps for the other side
of M8 and M6 Nylon Locknuts.
If the seat rocks on the aluminum beam, first you need to make sure that the M8 Nylon
Locknut can be turned freely. To do this, use the Open-Ended Flat Wrench to turn the M8
Nylon Locknut counterclockwise direction until it can be turned freely. Then turn the M6
nylon locknut clockwise direction with the Open-Ended Flat Wrench to tighten the seat
carriage roller. Repeat above steps for the other side of M8 and M6 Nylon Locknuts.
M6 Nylon Locknut
Seat Slide Plate
Seat
M8 Nylon Locknut
Tool:

15

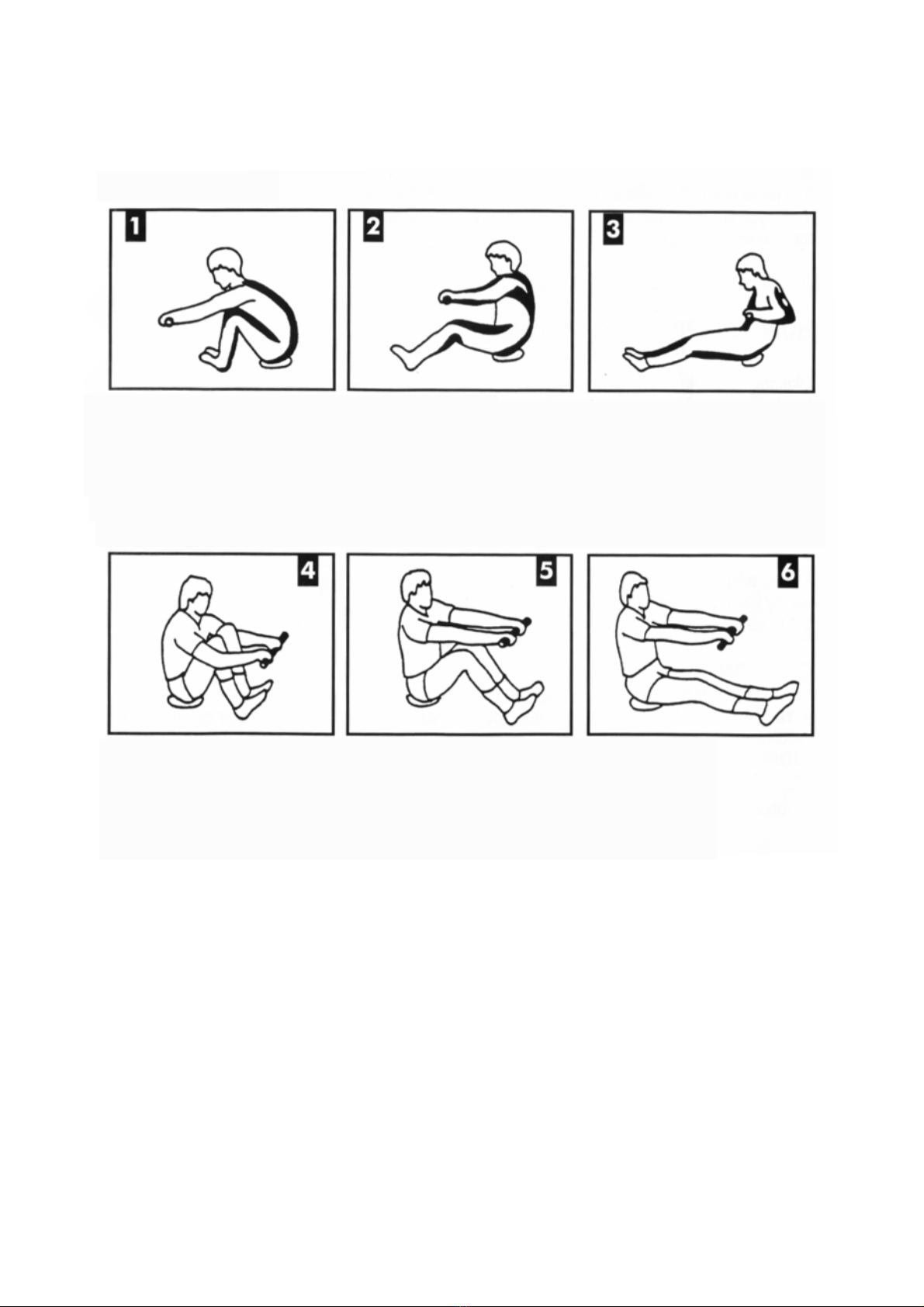

HOW TO ROW
Push yourself
backwards, straight
your back and legs at
the same time.
Continue movement
until you are leaning
slightly backwards,
bending the arms at
the same time.
Return to 1 and repeat.
Use your legs to push your body back while
keeping your arms and back straight, slowly
return to starting position and repeat.
This exercise will help
tone and strengthen
the muscles in your
legs and back. With
your back straight and
arms outstretched,
bend your legs until
the row arms are in
the starting position 4.
Take up the initial
position leaning
forward, knees bent
and arms straight.
ALTERNATIVE EXERCISE
LEG ONLY ROWING

16
WARM UP AND COOL DOWN ROUTINE
The WARM-UP is an important part of any workout. The purpose of warming up is to
prepare your body for exercise and to minimize injuries. Warm up for two to five minutes
before aerobic exercising. Warming up should prepare your body for more strenuous
exercise by heating up and stretching your muscles, increasing your circulation and pulse
rate, and delivering more oxygen to your muscles.
COOL DOWN at the end of your workout, repeat these exercises to reduce soreness in tired
muscles. The purpose of cooling down is to return the body to its resting state at the end of
each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to
return to the heart.

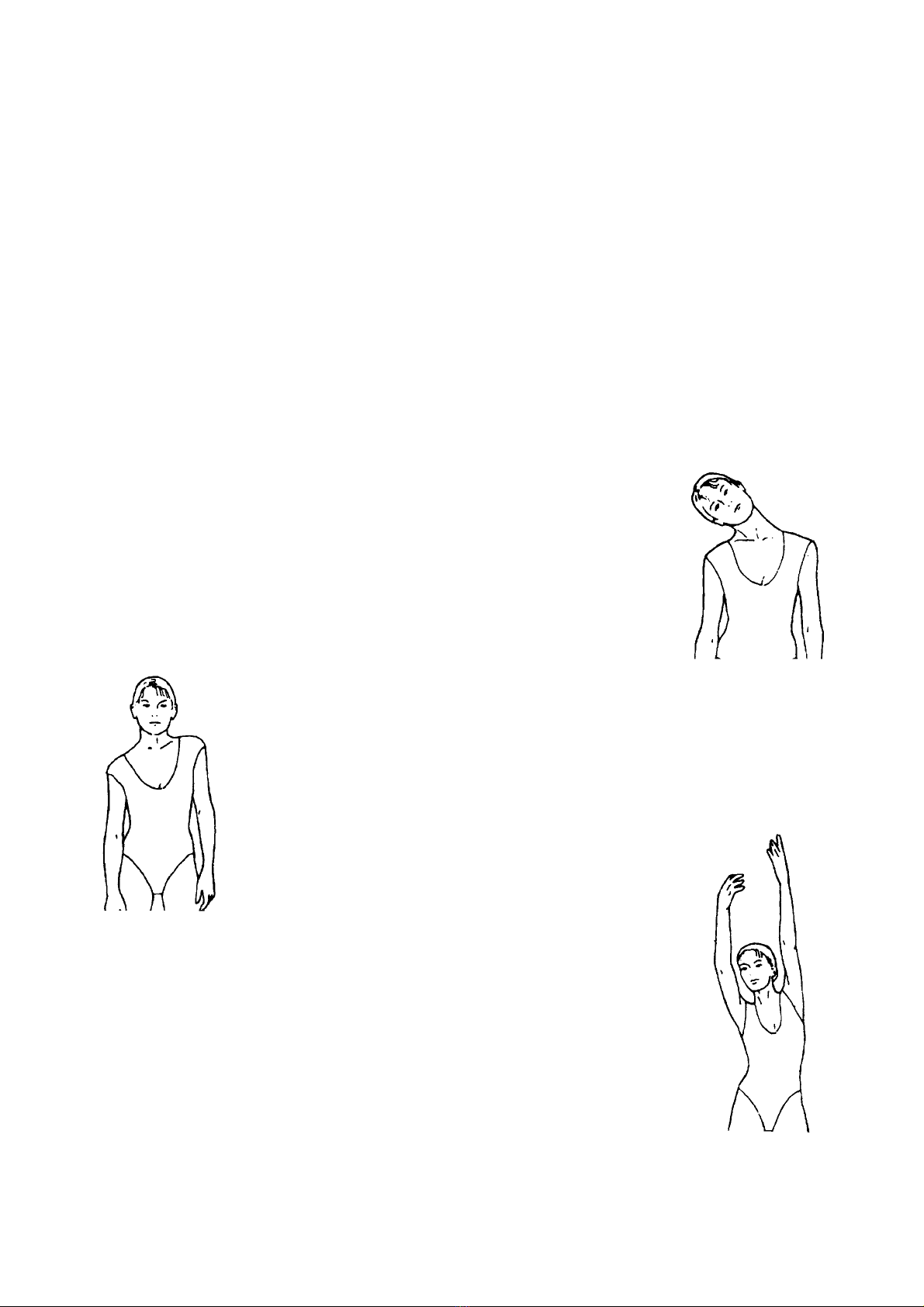

HEAD ROLLS
Rotate your head to the right for one count, you should feel a
stretching sensation up the left side of your neck. Then rotate your
head back for one count, stretching your chin to the ceiling and
letting your mouth open. Rotate your head to the left for one count,
then drop your head to your chest for one count.
SHOULDER LIFTS
Lift your right shoulder toward your ear for one count. Then lift your left
shoulder up for one count as you lower your right shoulder.
SIDE STRETCHES
Open your arms to the side and lift them until they are over your head.
Reach your right arm as far toward the ceiling as you can for one
count. Repeat this action with your left arm.

17

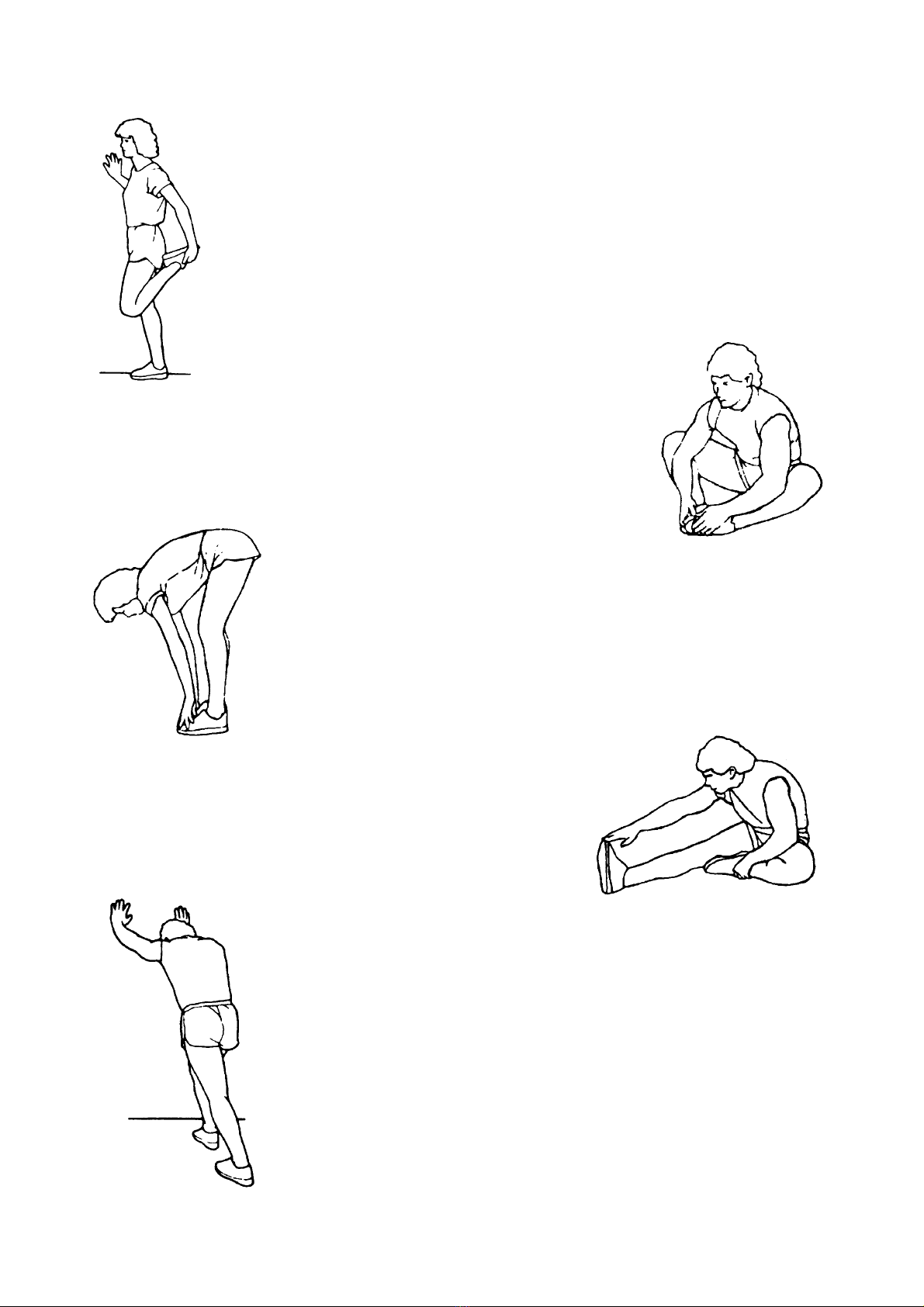

QUADRICEPS STRETCH
With one hand against a wall for balance, reach behind you and pull
your right foot up. Bring your heel as close to your buttocks as
possible. Hold for 15 counts and repeat with left foot.
HAMSTRING STRETCHES
Extend your right leg. Rest the sole of your left foot
against your right inner thigh. Stretch toward your toe as
far as possible. Hold for 15 counts. Relax and then
repeat with left leg.
CALF/ACHILLES STRETCH
Lean against a wall with your left leg in front of the right and
your arms forward. Keep your right leg straight and the left foot
on the floor; then bend the left leg and lean forward by moving
your hips toward the wall. Hold, then repeat on the other side
for 15 counts.
TOE TOUCHES
Slowly bend forward from your waist, letting your back and
shoulders relax as you stretch toward your toes. Reach as far as
you can and hold for 15 counts.
INNER THIGH STRETCH
Sit with the soles of your feet together and your knees pointing
outward. Pull your feet as close to your groin as possible.
Gently push your knees toward the floor. Hold for 15 counts.
