Foldable Oxy Cycle Sync
Item No: 16080
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change
without prior notice. 2016, May

1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
EXPLODED VIEW ----------------------------------------------------------------------- 4
PARTS LIST ------------------------------------------------------------------------------- 5
ASSEMBLY PART ----------------------------------------------------------------------- 5
ASSEMBLY INSTRUCTIONS -------------------------------------------------------- 6
FOLDING STORAGE ------------------------------------------------------------------- 10
ADJUSTMENTS -------------------------------------------------------------------------- 11
MAINTENANCE -------------------------------------------------------------------------- 12
WORKOUT PRINCIPAL ---------------------------------------------------------------- 12
EXERCISES ------------------------------------------------------------------------------- 13
WARM UP AND COOL DOWN ROUTINE ---------------------------------------- 15

2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that
it has been installed and operated in accordance with LifeGear's Owner's Manual.
LifeGear's obligation under this warranty is limited to replacing or repairing free of charge,
any parts which may prove to be defective under normal home use. This warranty does
not include any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of
purchase is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

3
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions carefully before operating this product. Retain this owner’s
manual and keep all original purchase receipt for future reference.
1. Consult your physician before beginning this or any other exercise program.
2. Do not operate the unit in a wet or moist environment.
3. Close supervision is necessary when the unit is used by, on, or near children, invalids
or disabled persons.
4. Use the unit only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
5. Never operate the unit if it is not working properly, if it has been damaged.
6. If you experience any irregular physical conditions such as dizziness, severe muscle
or joint pain, pain in the chest, stop exercising and consult with your physician
immediately.
7. Keep children and pets away from the unit while in use.
8. Place the unit on a level and non-slip surface.
9. Keep hands and feet away from any moving parts. Do not insert any object into any
openings.
10. Perform 3 to 5 minutes of warm-up and stretching before beginning your exercise.
11. Never exercise to exhaustion.
12. Do not stand on the unit, only exercise in seated position.
13. Keep a minimum safety clearance during operation. The unit is designed as a home
use exercise device. Users must have full control of their muscles to operate this unit.
14. Exercise equipment is to be regularly inspected for maintenance for loose or broken
parts.
15. Wear comfortable and suitable clothing when using the unit. Do not use the unit
barefoot or in socks. Always wear appropriate, enclosed athletic footwear. Never
wear loose or baggy clothing.
16. Each exercise should be performed in a controlled manner and always begin
exercises slowly.
17. Do not use outdoors. For indoors household use only.
18. Have the unit serviced by a qualified service technician. DO NOT ATTEMPT TO
SERVICE THE UNIT YOURSELF.
WARNING: The unit is designed for seated position use on a flat and
stable surface.

4
1
1
1
1
2
6
29
3
3
4
4
4
5
8
9
10
11
11
11
12
12
13
14 15
16 13
18
6
17
18
20
19
21
22
23
24
25
26
7
27
28
3
4
5
7
3
4
5
7
9
4
8
9
10
11
13 14 15
28
11
16 13
9
11
11
10 4828
4
8
10
28
11
6
EXPLODED VIEW

5
PARTS LIST
ASSEMBLY PART
No. Description Qty No. Description Qty
001 Base Frame End Cap 4 016 Small Tension Block 2
002 Base Frame 1 017 Knob M8x30 1
003 Nylon Nut M8 4 018 Tension Control Knob M8x15 2
004 Washer Ø8.5xØ18x1.5T 8 019 Screw M4x15 1
005 Plastic Washer Ø8.5xØ20x2T 6 020 Velcro Strap 1
006 Rectangular Plastic End Cap
□20x40 3 021 Arm Exercise Support Tube 1
007 Hexagon Socket Pan Head Cap
Bolt M8x60 3 022 Hexagon Socket Pan Head Cap Bolt M8x55 1
008 Hexagon Socket Pan Head Cap
Bolt M8x15 4 023 Height Slide Tube 1
009 Pedal Strap 4 024 Spring Knob M16 1
010 Pedal 4 025 Height Adjustment Tube 1
011 C Clip Ø11xØ14x1.0T 8 026 Bushing 1
012 Crank Ø12 2 027 Washer Ø5.5xØ16x1.0T 1
013 Crank Cover 4 028 Pedal Round End Cap
Ø25.4xØ22.4x17 4
014 Tension Plate 2 029 Leg Exercise Support Tube 1
015 Big Tension Block 2
(18) Tension Control Knob
2 PCS

6
21
25

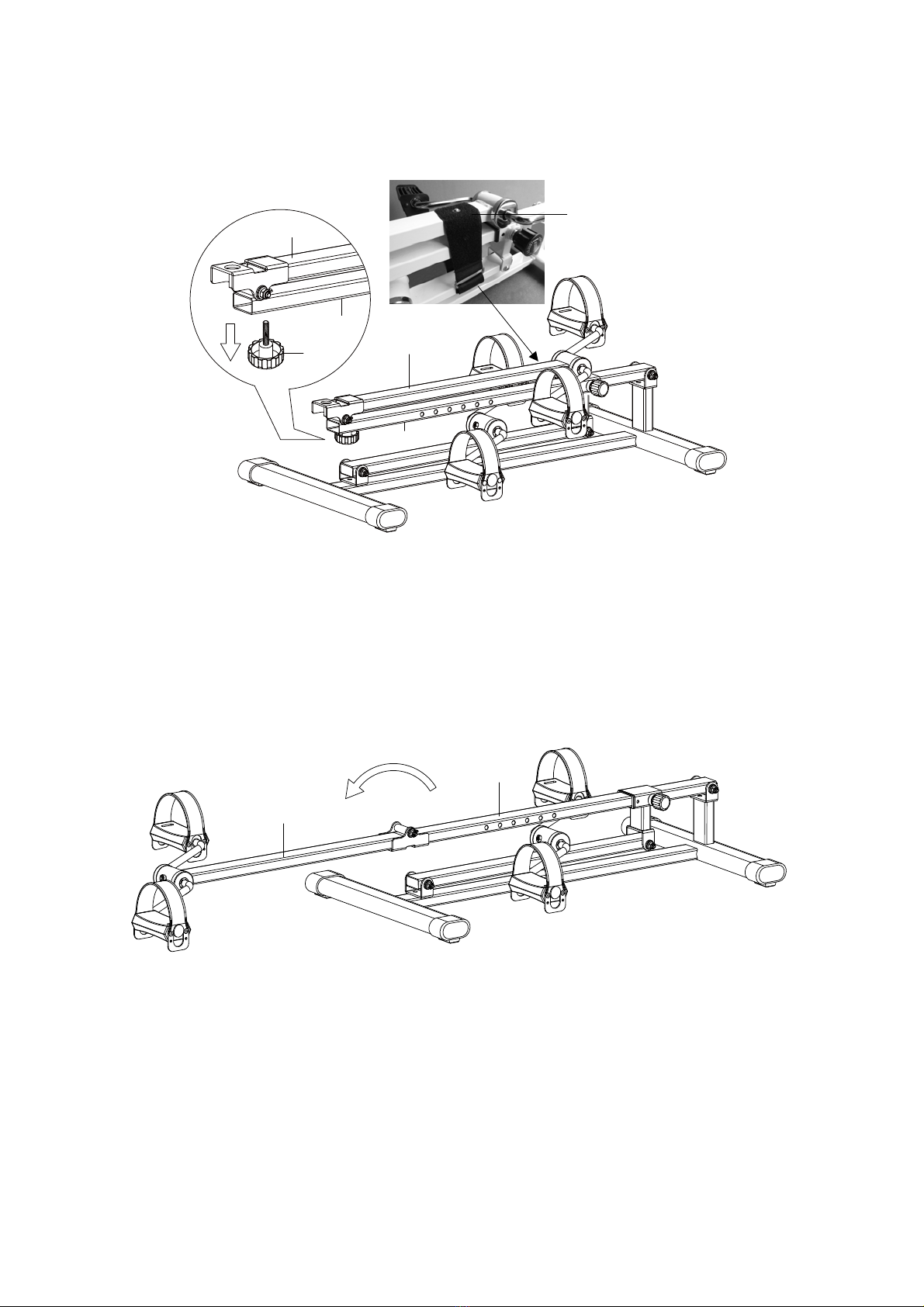

ASSEMBLY INSTRUCTIONS
STEP 1
Undo the Velcro Strap and then remove the Knob (17) from the Height Adjustment Tube
(25).
STEP 2
Unfold the Arm Exercise Support Tube (21) toward the rear of the unit.
21
17
25
21
25
Velcro Strap

7

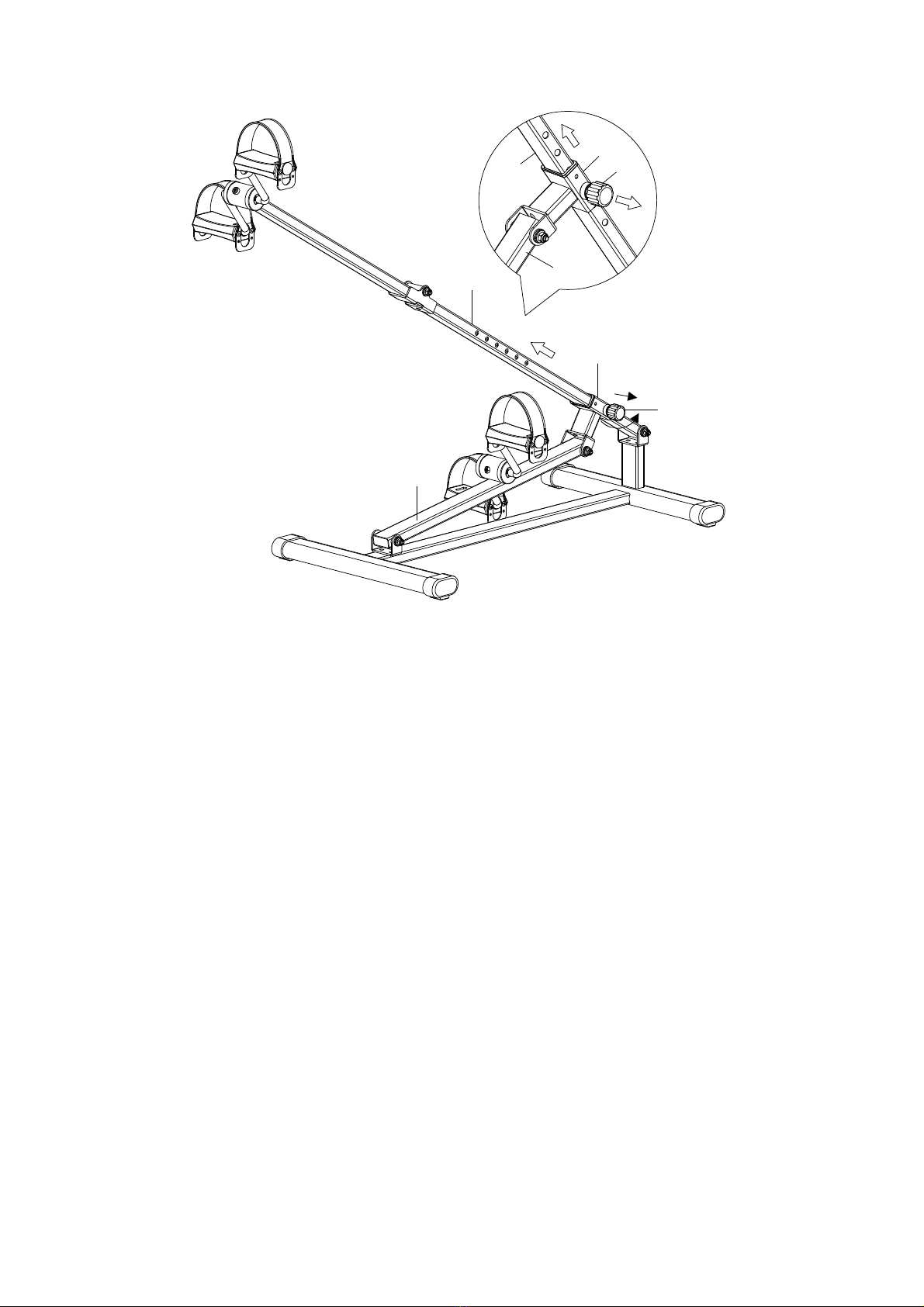

STEP 3
Turn the Spring Knob (24) in a counterclockwise direction until it can be pulled out. Pull
out the Spring Knob (24) and then slide the Height Slide Tube (23) up to the suitable
position. Lock the Height Slide Tube (23) in place by releasing the Spring Knob (24) and
sliding the Height Slide Tube (23) up or down slightly until the Spring Knob (24) "pops"
down into the locked position. For added safety, tighten the Spring Knob (24) in a
clockwise direction.
25
29
24
23
24
23
25
29

8
STEP 4
Secure the Arm Exercise Support Tube (21) to the Height Adjustment Tube (25) using the
Knob (17) that was removed from the Height Adjustment Tube (25). Secure the Arm
Exercise Support Tube (21) in place by turning the Knob (17) clockwise.
17
25
21
17

9
STEP 5
Insert both Tension Control Knob (18) into the holes on the Arm Exercise Support Tube
(21) and Leg Exercise Support Tube (29). Turn the Tension Control Knob (18) clockwise
to tighten.
To increase the resistance, turn the Tension Control Knob (18) in a clockwise direction.
To decrease the tension, turn the Tension Control Knob (18) in a counterclockwise
direction.
18
18
29
21
18
21
18
29
Assembly Part:
(18) Tension Control Knob
2 PCS

10

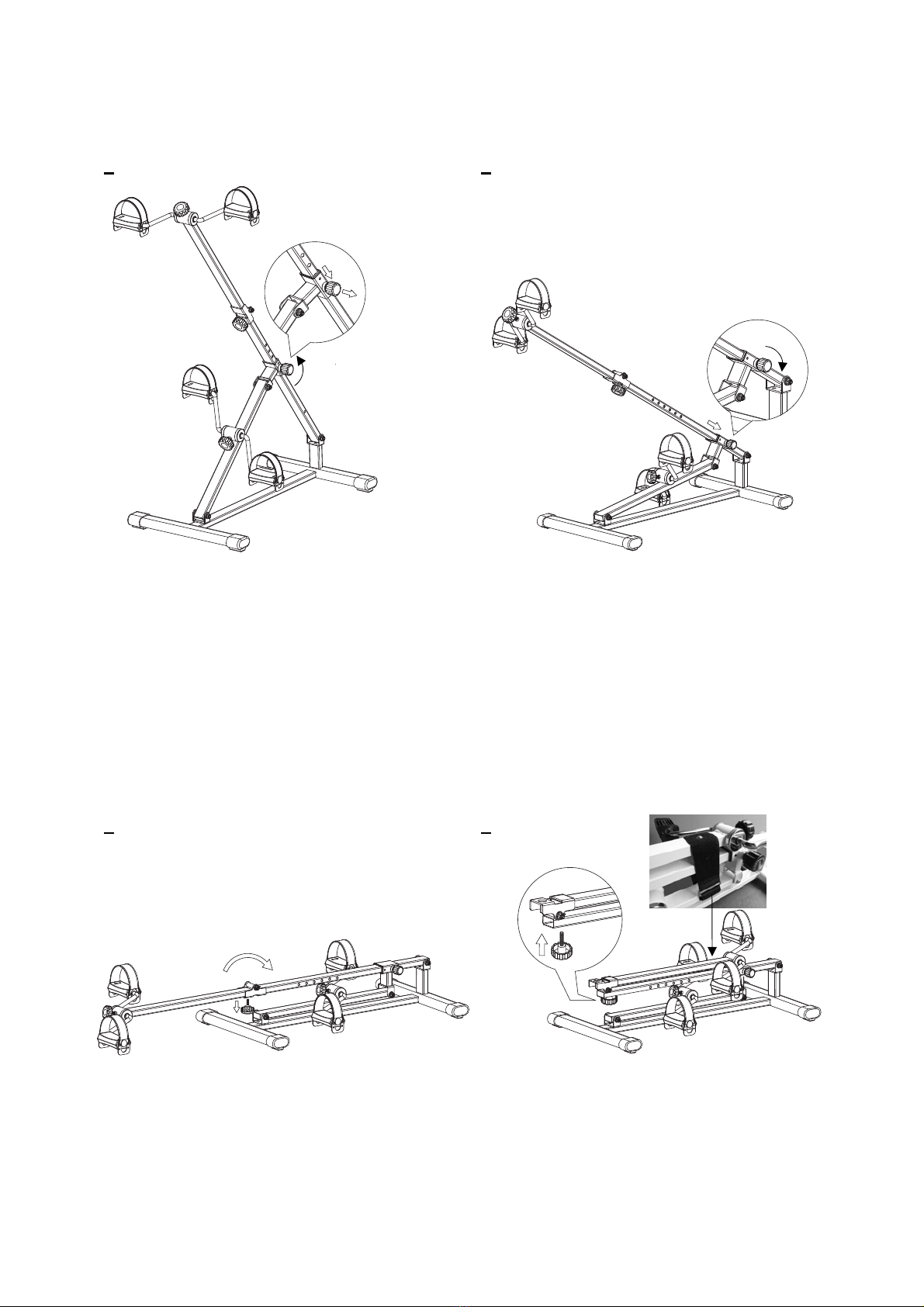

Turn the spring knob in a counterclockwise
direction until it can be pulled out.
1 2
Pull out the spring knob and then slide
the height slide tube down to the last
adjustment hole on the height
adjustment tube. Lock the height
slide tube in place by releasing the
spring knob and sliding the height
slide tube up or down slightly until the
spring knob "pops" down into the
locked position. For added safety,
tighten the spring knob in a clockwise
direction.
3
Remove the knob and then fold the arm
exercise support tube toward the front of the
unit.
Insert the knob into the hole on the
height adjustment tube. Turn the
knob clockwise to tighten.
Secure both arm exercise support
tube and leg exercise support tube by
simply wrapping the Velcro straps
around them.
4
FOLDING STORAGE

11
ADJUSTMENTS
Adjusting the Tension Control Knob
To increase the resistance, turn the
tension control knob in a clockwise
direction.
To decrease the tension, turn the
tension control knob in a
counterclockwise direction.
Adjusting the Arm Pedals Height
Turn the spring knob in a
counterclockwise direction until it can
be pulled out. Pull out the spring knob
and then slide the height slide tube up
or down direction to the suitable
position. Lock the height slide tube in
place by releasing the spring knob and
sliding the height slide tube up or down
slightly until the spring knob "pops"
down into the locked position. For
added safety, tighten the spring knob in
a clockwise direction.
Height Adjustment Tube
Spring Knob
Height Slide Tube
Tension Control Knob
Tension Control Knob

12
MAINTENANCE
CLEANING
After each exercise, ensure that the unit is wiped down and any sweat is removed
from the unit.
The unit can be cleaned with a soft cloth, mild soap and water. Wipe the equipment down
with a damp cloth and dry completely. Do not use abrasives or solvents.
INSPECTION
Inspect the frames for rust or other damage. Make sure the welds on the unit are solid
and all bolts and nylon nuts are properly tight and installed correctly.
STORAGE
Store the unit in a clean and dry indoor environment. Never leave or use the unit outdoors.
WORKOUT PRINCIPAL
1. Personal goals includes shaping, strengthening, available time, present fitness level,
rehabilitation previous injuries, cardiovascular exercising, etc... By using this product
correctly and on a regular basis, you can achieve your goals.
2. Available time is a major element in determining what we do in our daily lives. If you
can only exercise for 15 minutes, develop a 15 minute program with the unit.
3. Exercising and working out on the unit should be an enjoyable part of your daily life.
4. Focus on the exercises. No matter what your present level of fitness, you can
complete each exercise in a short range of time and sense the increase level of
strength and endurance.
5. Always start exercising slowly to warm up muscles.
6. The design of the unit allows you to exercise your muscles with natural and efficient
movements.
The Overload Principal
In order for you to strengthen your body, you must develop a series of exercise workouts
each day. When you work out on a regular basis, your body (specifically your muscles),
adjust to the new level of workout. This is called increasing local metabolic efficiency. As
a result, your muscles work better and you get stronger. If you keep working at the same
level of metabolic efficiency, you can’t improve muscle efficiency. So from time to time you
need to increase the frequency and/or duration of the exercise. Thus, in order to improve
your fitness level, you must progressively increase your work load to reach your personal
goal.

13
EXERCISES
How to use your Oxy Cycle Sync
When using the unit, the proper way to exercise is to set the desired tension by turning the
Tension Control Knob, and then pedaling to get the best results.
Pedaling at excessive speeds or applying excessive force will damage the product or may
cause injury to persons. Please begin exercise at a slow pedaling speed.
Routine
People vary in how they adapt to repetitive exercise. In developing an exercise routine,
pay attention to how you feel, especially after an exercise is completed. You may feel tired
but you should not feel exhausted. When you first start exercising, the principal muscles
you use will ache slightly, especially the next day. However, they should not hurt to cramp.
No matter what the recommended exercise routine, never exercise beyond the point of
discomfort.
For the first two weeks, you should begin with 5-10 minutes once a day at a slow pedaling
speed. After the first two weeks, you can increase the exercise time to 15-20 minutes as
you become more accustomed to the exercise. The pedaling speed can also be increased
once you have adapted to the device. Longer periods of exercise will result in greater
gains for you.
Leg Exercise
Place the unit on a level and non-slip surface and sit comfortably in a chair, the unit
directly in front of you. The knee joint should not be flexed less than 90 degrees. Wear
rubber soled shoes when on the pedals. Barefooted use of the unit is not recommended.
Leg exercise works with passive motion to increase tone of the quadriceps muscles
(muscles in the thigh) and circulate blood flow to the entire lower leg and foot.
WARNING
Do not stand on the unit to exercise, only exercise in a seated position. Make sure
the seat does not move or pivot. Do not sit in a chair with casters.

14
Arm Exercise
Adjusting the arm pedals height and sit comfortably in a chair, so that user can easily
reach the arm pedals without hyper extending (over straightening) the elbow joint.
Arm exercise allows the user to exercise the muscles of the arm (biceps, triceps, deltoids
and the smaller muscles of the forearms).
Leg and Arm Exercise
The unit can be operated via arm and leg to improve upper body strength and tone-up
arms and legs at the same time.

15
WARM UP AND COOL DOWN ROUTINE
The WARM-UP is an important part of any workout. The purpose of warming up is to
prepare your body for exercise and to minimize injuries. Warm up for two to five minutes
before aerobic exercising. It should begin every session to prepare your body for more
strenuous exercise by heating up and stretching your muscles, increasing your circulation
and pulse rate, and delivering more oxygen to your muscles.
COOL DOWN at the end of your workout, repeat these exercises to reduce soreness in
tired muscles. The purpose of cooling down is to return the body to its resting state at the
end of each exercise session. A proper cool-down slowly lowers your heart rate and
allows blood to return to the heart.
HEAD ROLLS
Rotate your head to the right for one count, you should feel a
stretching sensation up the left side of your neck. Then rotate your
head back for one count, stretching your chin to the ceiling and
letting your mouth open. Rotate your head to the left for one count,
then drop your head to your chest for one count.
SHOULDER LIFTS
Lift your right shoulder toward your ear for one count. Then lift your
left shoulder up for one count as you lower your right shoulder.
SIDE STRETCHES
Open your arms to the side and lift them until they are over your head.
Reach your right arm as far toward the ceiling as you can for one
count. Repeat this action with your left arm.

16
QUADRICEPS STRETCH
With one hand against a wall for balance, reach behind you and pull
your right foot up. Bring your heel as close to your buttocks as
possible. Hold for 15 counts and repeat with left foot.
HAMSTRING STRETCHES
Extend your right leg. Rest the sole of your left foot
against your right inner thigh. Stretch toward your toe
as far as possible. Hold for 15 counts. Relax and then
repeat with left leg.
CALF/ACHILLES STRETCH
Lean against a wall with your right leg in front of the left and
your arms forward. Keep your left leg straight and the right
foot on the floor; then bend the right leg and lean forward by
moving your hips toward the wall. Hold, then repeat on the
other side for 15 counts.
TOE TOUCHES
Slowly bend forward from your waist, letting your back and
shoulders relax as you stretch toward your toes. Reach as far as
you can and hold for 15 counts.
INNER THIGH STRETCH
Sit with the soles of your feet together and your knees pointing
outward. Pull your feet as close to your groin as possible.
Gently push your knees toward the floor. Hold for 15 counts.
