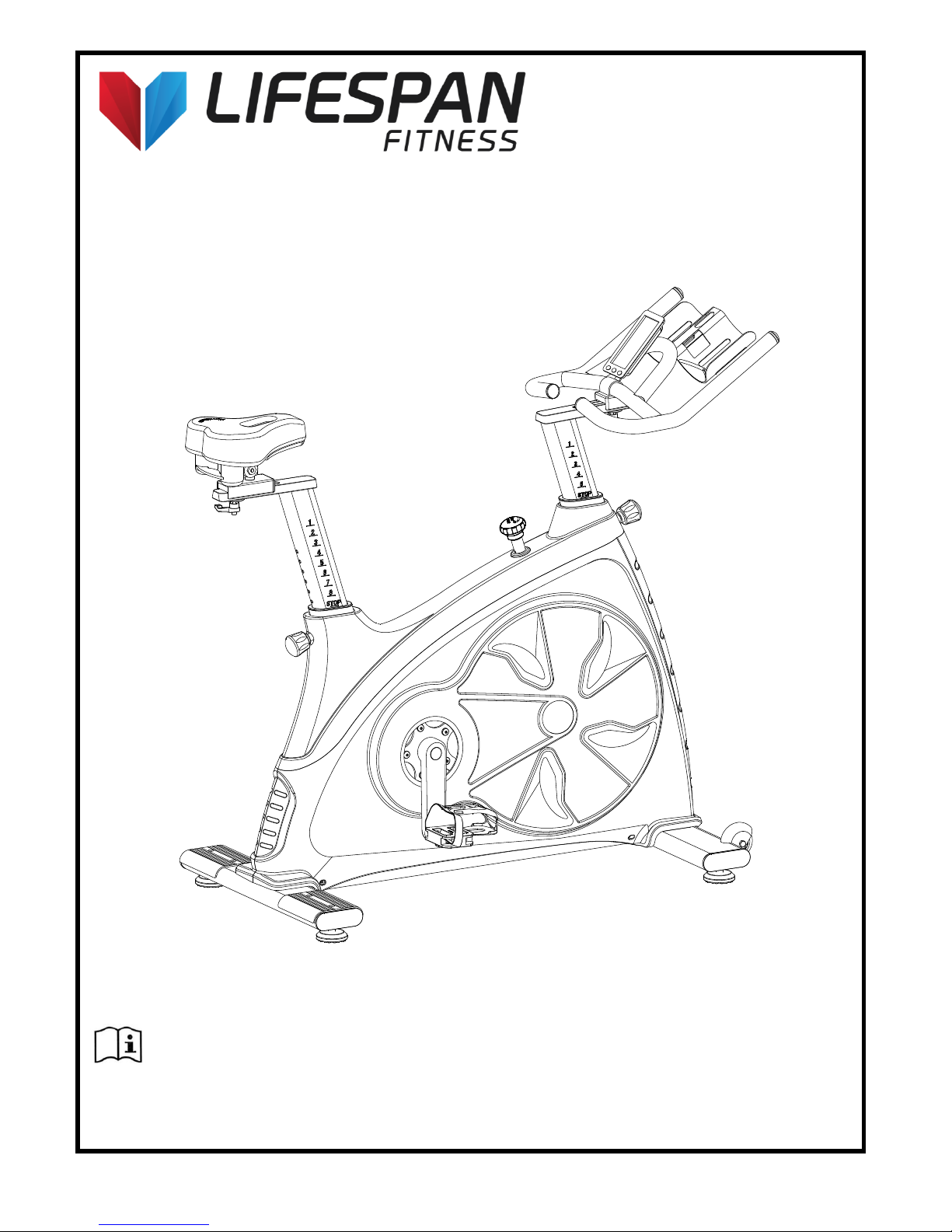

Life Span SP-950 User manual

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for
future reference.
SP-950 OWNER’S MANUAL

2
SP-950
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. EXPLODED DIAGRAM 5
3. PARTS LIST 6
4. ASSEMBLY INSTRUCTIONS 8
5. COMPUTER OPERATION 13
6. EXERCISE GUIDE 15
7. WARRANTY 17

3
SP-950
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this machine.
It is important your machine receives regular maintenance to prolong its useful life. Failing to
regularly maintain your machine may void your warranty.
Please keep this manual with you at all times
a. It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained and used properly.
Please note: It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions.
b. Before starting any exercise program you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk, or prevent you from
using the equipment properly. Your doctor’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
c. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If
you do experience any of these symptoms, you should consult your doctor before continuing with
your exercise program.
d. Keep children and pets away from the equipment. This equipment is designed for adult use only.
e. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 0.5 meters of free space all around it.

4
SP-950
f. Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assemble, stop immediately. Do not
use the equipment until the problem has been rectified.
g. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get
caught in the equipment or that may restrict or prevent movement.
h. This equipment is designed for indoor and family use only.
i. Care must be taken when lifting or moving the equipment so as not to injure your back.
j. Always keep this instruction manual and assembly tools at hand for quick reference.
k. The equipment is not suitable for therapeutic use.

5
SP-950
2. EXPLODED DIAGRAM

6
SP-950
3. PARTS LIST
NO NAME QUANTITY SPEC
1L PEDAL L 1 JD-304V L
1R PEDAL R 1 JD-304V R
2 END CAP3 4 120*40*35
3 BOLT 1 4 GB/T 70.2-2000 M10*30
4 REAR STABILIZER 1 WELDING
5 FLAT WASHER 4
GB/T 95-2002 10
6 FRONT COVER 2 160*128*3
7 BOLT `1 4 GB/845-85 ST4.2X19
8 BOLT 2 2
GB/T 5780-2000 M8*40
9 BEARING 4 608ZZ
10 VERTICAL SEAT POST 1 WELDING
11 BOLT 8 1 GB/T77-2007 M6*6
12 SEAT POST 1 WELDING
13 SEAT 1 DD-004
14 STOPPER 4 φ70*41/(M16X25)
15 FRONT STABILIZER 1 WELDING
16 MAIN FRAME 1 WELDING
17 HANDLEBAR POST 1 WELDING
18 HANDLE BAR 1 WELDING
19 L SHAPE KNOB 2 M10*25
20 FLAT WASHER 1 2 φ45*φ10.5*4
21 BOLT 1 2 GB/T 70.1-2000 M6*60
22 NUT 2 GB/T 889.1-2000 M6
23 NUT 2 M12X1.25 H=6
24 FLAT WASHER 2
GB/T 95-2002 12 ( H=2 )
25 PLASTIC SLEEVE 2 80*40
26 END CAP1 2 80*40*1.5
27 BOLT 1 5 GB/T 70.2-2000 M8*18
28 NUT 2 M12X1.25 H=8MM
29 CRANK END CAP 2 φ28*6.5
30 KNOB 1 φ60*113
31 NUT 7 GB/T 889.1-2000 M8
32 PLASTIC RING 1 φ40*φ35.2*37.2
33 LEFT CRANK 1 MT-338 M18*1.5 L
34 BOL T 3 1 GB/845-85 ST4.8X13
35 BEARING 2 6007ZZ( C&U)

7
SP-950
NO NAME QUANTITY SPEC
36 RIGHT CRANK 1 MT-338 M18*1.5T R
37 SENSOR 1 SR-202
38 NUT 1 GB/T 889.1-2000 M20*1.0 H=10
39 COMPUTER 1 JY-81577
40 BOLT 8 1 GB/T 70.1-2000 M6*12
41 BOLT 6 8 GB/T 845-1985 ST4.2*19
42 SHAPE KNOB 2 φ50*101 (M16*45)
43 PU WHEEL 2 φ69*23
44 CHAIN COVER 1 1123*107*717
45 CHAIN COVER 1 1123*101*717
46 AXIS 1 φ35*174
47 FLAT WASHER 1 1 GB/T 859-1987 6
48 ADJUSTING METAL 1 117*14.5*δ1.5
49 CHAIN COVER 1 887*101*498
50 BELT 1 5PK49
51 BELT WHEEL 1 φ200*24
52 TWIST THE FIXINGS 1 φ20.8*34
53 BLOCK 1 161*21*19
54 SPRING 1 1 φ18*62
55 NUT 2 GB/T 41-2000 M10
56 BOLT 6 4 GB/T 845-1985 ST4.2*19
57 FIXING NUT 2 27*M20*1（5mm）
58 Screw rod 1 Φ13.5*170
59 FIXING TUBE 1 φ25*φ20.2*48.2
60 BEARING 2 6004ZZ
61 FLYWHEEL 1 φ453*35
62 FLYWHEEL SHAFT 1 φ25*160
63 WASHER 2 3 φ20*φ14*2.0
64 DOMED NUT 1 GB/T 802-1988 M10
65 BOLT 2 2 GB/T 5780-2000 M5*10
66 FIXING NUT 1 1 M35*1.0
67 SHORT FIXING TUBE 1 φ40*φ35.5*14
68 EVA paddle 1 95*16*13
69 WOOLLY BLOCK 1 153*16*4
70 BOLT 2 2 GB/845-85 M6*16
71 SPRING WASHER 1 2 GB/T 859-1987 5

8
SP-950
4. ASSEMBLY INSTRUCTIONS
STEP 1: PREPARATION
A. Before assembling make sure that you will have enough space around the item.
B. Use the present tooling for assembling.
C. Before assembling please check whether all needed parts are available (at the above of this
instruction sheet you will find an explosion drawing with all single parts (marked with numbers) which
this item consists of.
STEP 2:
1. Attach the Front Stabilizer (pt.15) to the
Main Frame (pt.16) using two sets of Ø10
Flat Washers (pt.5) and bolt 1 (3).
2. Attach the Rear Stabilizer (pt.4) to the
Main Frame (pt.16) using two sets of Ø10
Flat Washers (pt.5) and bolt 1 (3)

9
SP-950
STEP 3:
1. Slide the Vertical Seat Post (pt.10) into
the seat post housing on the main frame
(pt.16). Then release the round nut and
slide the Seat Post (pt.12) into the Vertical
Seat Post (pt.10).
2. Secure the Seat Post (pt.12) with L shape
knob (pt.19) and Flat washer1 (pt.20)
Set the seat height by slackening the knurled
section of the Adjustment Knob (pt.42), pull the
knob back and then select the desired height.
Release the knob and retighten the knurled
portion.
3. Attach the Seat (pt.13) to the Seat Post
(pt.12) as shown, and tighten the bolts
around the screws under the seat.

10
SP-950
STEP 4:
1. Slide the Handlebar Post (pt.17) into the
handlebar post housing on the main
frame (pt.16).
Set the seat height by slackening the knurled
section of the Adjustment Knob (pt.42), pull
the knob back and then select the desired
height. Release the knob and retighten the
knurled portion.
2. Slide the Handlebar (pt.18) onto the
Handlebar Post (pt.17). Secure the
Handlebar (pt.18) with L shape knob
(pt.19) and Flat washer1 (pt.20)
ATTENTION: ENSURE THE HANDLEBAR IS
SECURED TIGHTLY
3. Attach the Computer (pt.39) onto the
Computer Holder, connect the plug
(A1&A2),
