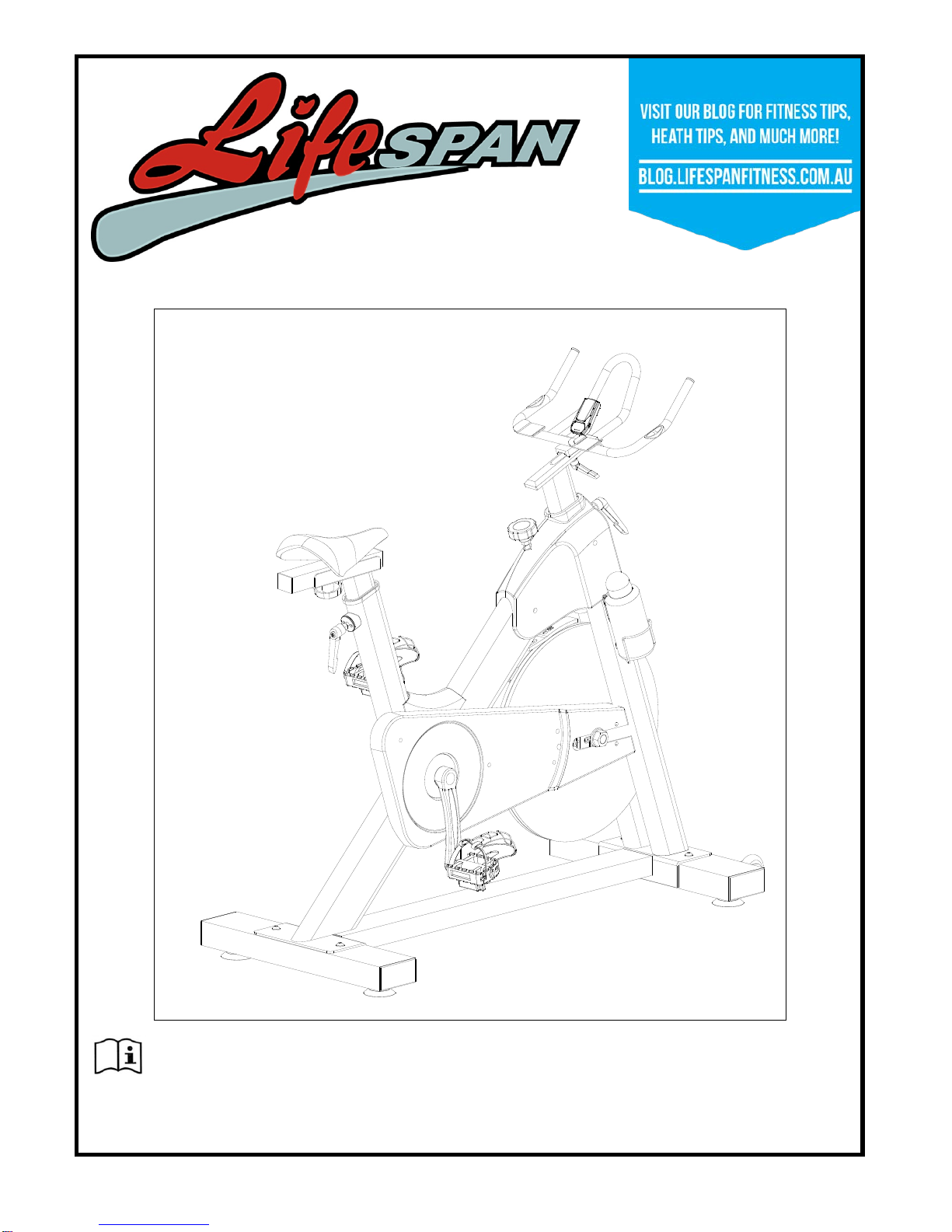

Life Span SP-870 User manual

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for
future reference.
SP-870 OWNER’S MANUAL

2
SP-870
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. EXPLODED DIAGRAM 5
3. COMPUTER OPERATION 6
4. ASSEMBLY INSTRUCTION 7
5. COMPUTER OPERATION 12
6. EXERCISE GUIDE 18
7. WARRANTY REGISTRATION 20

3
SP-870
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this machine.
It is important your spinning bike receives regular maintenance to prolong its useful life. Failing to
regularly maintain your spinning bike may void your warranty.
1. Keep children and pets away from the machine at all times. Do not leave unattended
children in the same room of the machine.
2. Handicapped or disabled persons should not use the machine without the presence of a
qualified health professional or physician.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Before beginning training, remove all within a radius of 2 meters from the machine. DO
NOT place any sharp objects around the Spinning Bike.
5. Position the machine on a clear, level surface away from water and moisture. Place mat
under the unit to help keep the machine stable and to protect the floor.
6. Use the machine only for its intended use as described in this manual. DO NOT use
any other accessories not recommended by the manufacturer.
7. Assemble the machine exactly as the descriptions in the instruction manual.
8. Check all bolts and other connections before using the machine for the first time and
ensure that the trainer is in the safe condition.
9. Hold a routine inspection of the equipment. Pay special attention to components which
are the most susceptible to wear off, i.e. connecting points and wheels. The defective
components should be replaced immediately. The safety level of this equipment can

4
SP-870
only be maintained by doing so. Please don't use the machine until it is repaired well.
10.NEVER operate the machine if it is not functioning properly.
11.This machine can be used for only one person’s training at a time.
12.Do not use abrasive cleaning articles to clean the machine. Remove drops of sweat
from the machine immediately after finishing training.
13.Always wear appropriate workout clothing when exercising. Running or aerobic shoes
are also required.
14.Before exercising, always do stretching first.
15.The power of the machine increases with increasing the speed, and the reverse. The
machine is equipped with adjustable knob, which can adjust the resistance.

5
SP-870
2. EXPLODED DIAGRAM

6
SP-870
3. PARTS LIST
No. Description Qty No. Description Qty
1 Saddle 1 24 Handlebar post 1
2 Saddle tube post 1 25 Sensor wire 1
3 Saddle join 1 26 Main frame 1
4 Washer d10*Φ20*2 1 27 U-post 1
5
Knob M10
1 28 Square end cap F38*38*1.5 2
6
Bushing PT80*40*1.5
2 29 Pulse pad 2
7L/R Pedal 2 30 Screw ST4.2*19 2
8L/R Crank 2 31 Washer d6*Φ12*1 2
9 Screw M8*65 4 32 Computer 1
10 Washer d8*Φ16*1.5 4 33 Computer support join 1
11 Square end cap J100*50*25 4 34 L knob M10*18 2
12 Foot pad join 4 35 Washer d10*Φ40*4 1
13 Rear stabilizer 1 36 L knob M10*25 1
14 Front stabilizer 1 37 Pulse wire 2
15 Roll wheel 2 38 Computer wire 1
16 Bolt M6*45 2 39 Screw M5*10 2
17 Washer d6*Φ12*1.5 4 40 Screw M5*10 4
18 Nylon nut M6 2 41 Wrench S6 1
19 Screw M5*16 2 42 Wrench S13-14-15 1
20 Washer d5*Φ10*1 2
21 Bottle holder 1
22 Bottle 1
23 Up-right post 1

7
SP-870
4. ASSEMBLY INSTRUCTIONS

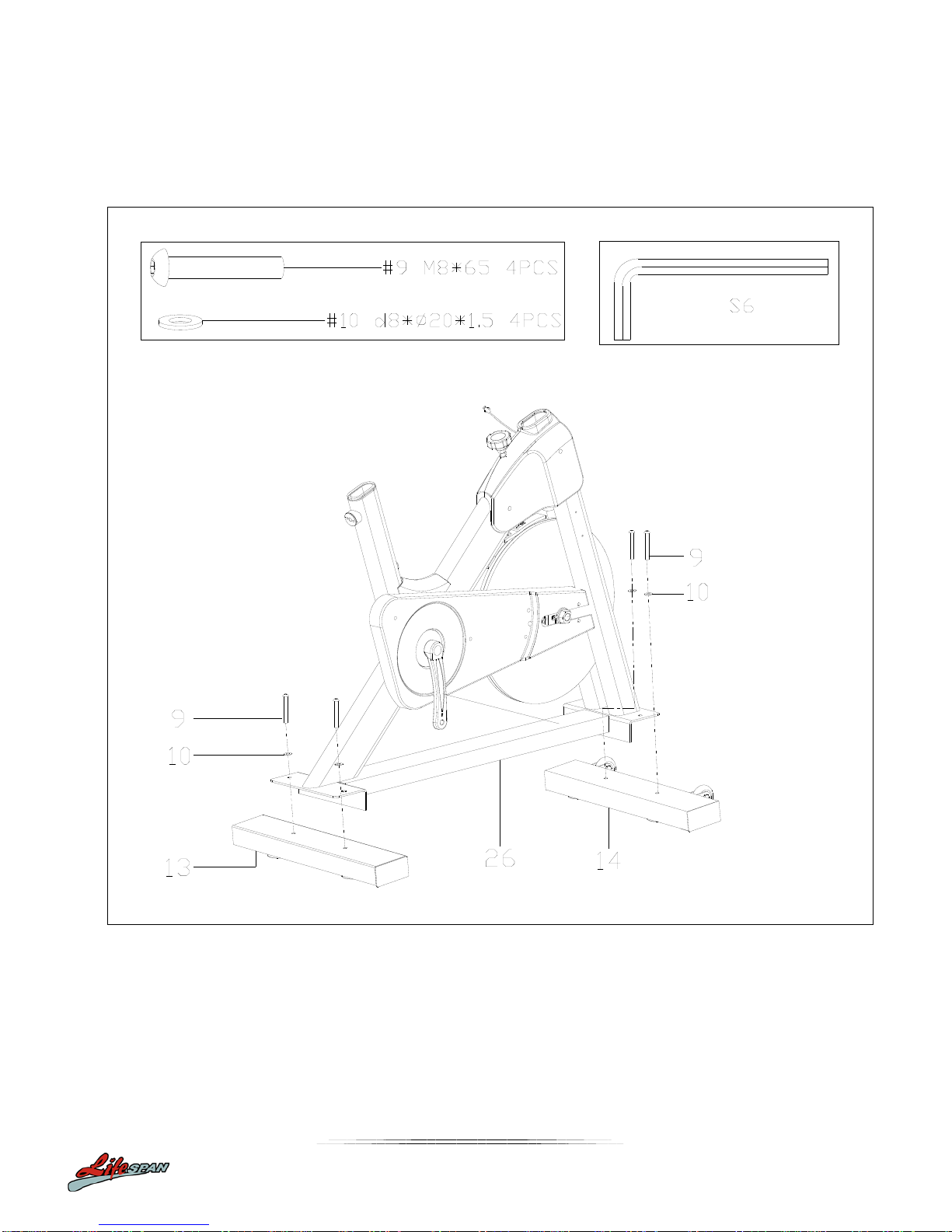

STEP 1
Secure the front stabilizer (14) and rear stabilizer (13) onto the main frame (26) with the screw (9) and
washer (10)

8
SP-870

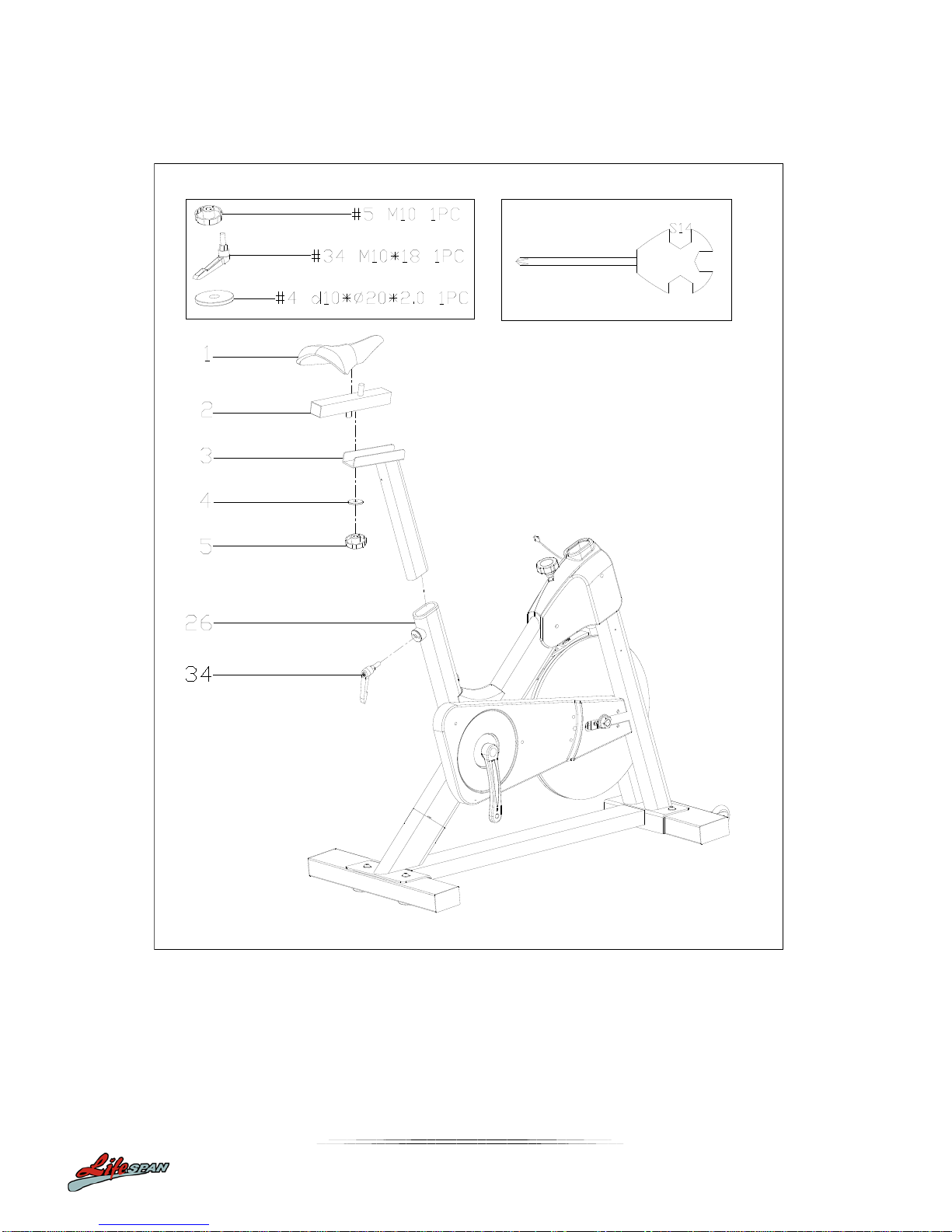

STEP 2:
1. Secure the saddle join (3) on the main frame (26) using the L knob (36)
2. Secure the saddle tube post (2) on the saddle join (3) using the nut (5) and washer (4)
3. Secure the saddle (1) on the saddle tube post (2)

9
SP-870

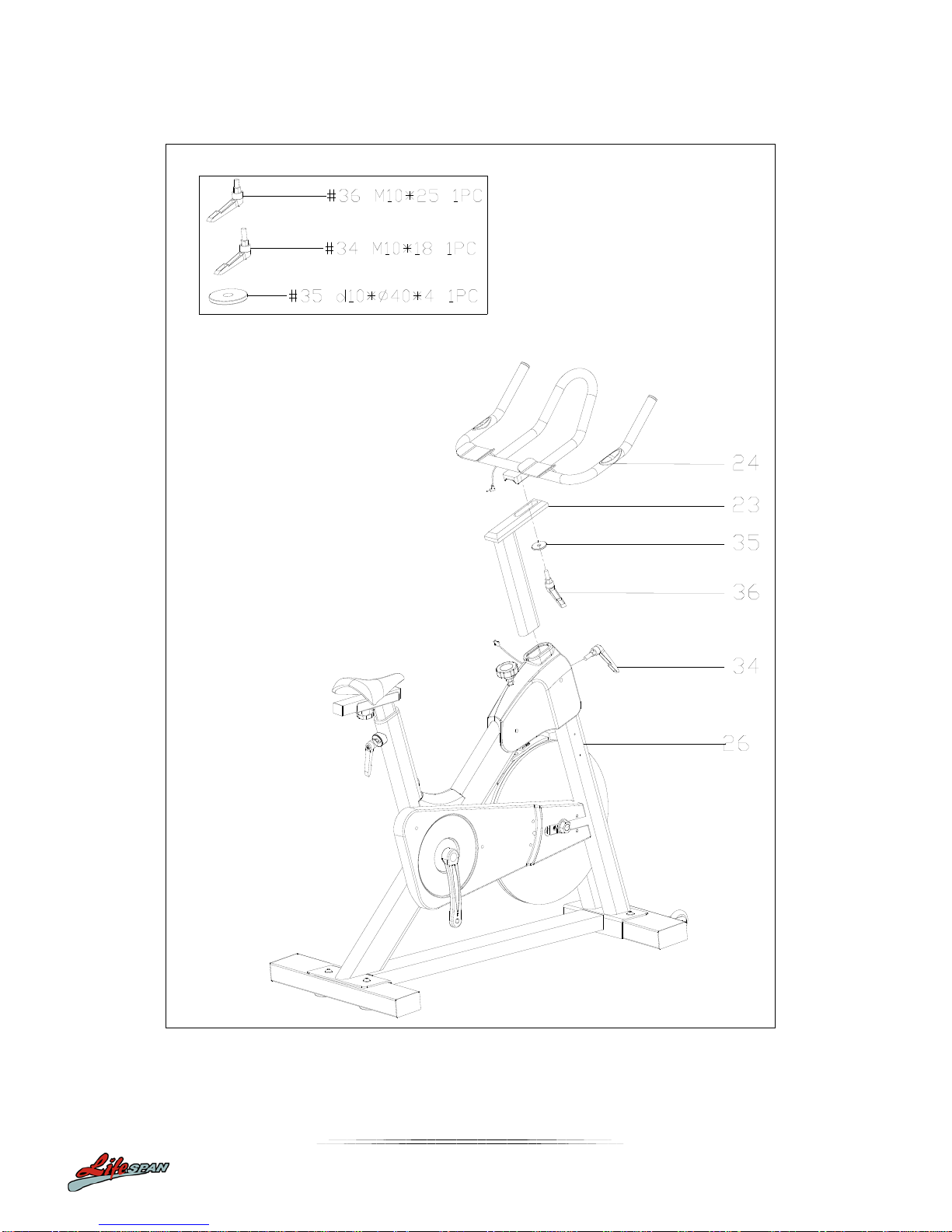

STEP 3:
1. Secure the up-right post (23) on the main frame (26) using the L knob (34)
2. Secure the handlebar post (24) on the up-right post (23) using the L knob (36) and washer (35)

10
SP-870

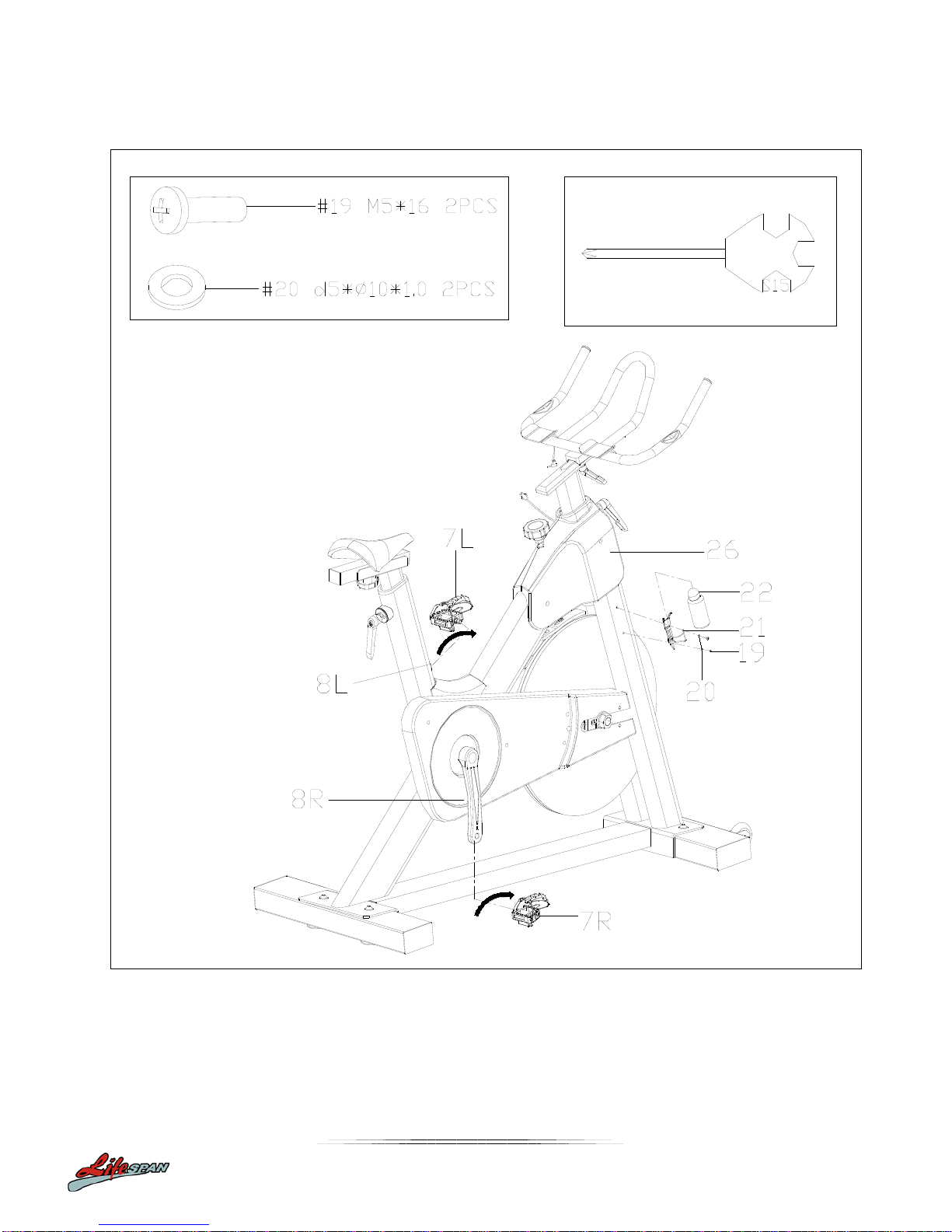

STEP 4:
1. Secure the pedal(7L/R) on each crank(8L/R) of the main frame
2. Secure the bottle holder (21) on the main frame (26) with the screw (19) and washer (20). Place
the bottle (22) into the bottle holder (21)

11
SP-870
STEP 5:
1. Secure the computer support join (39) on the handlebar post (24) by the screw (39)
2. Connect the computer wire (38) to the sensor wire (25), and then secure the computer (32) onto
the handlebar post (24) using the screw (40)
3. Insert the pulse wire (37) into the back of the computer (32)

12
SP-870
5. COMPUTER OPERATION
BUTTON FUNCTION
MODE: Press the "Mode" button for mode selection. This button also functions as an enter
button during setup.
SET: To set the value of TIME, DISTANCE, CALORIES and PULSE. You can hold the button
down to increase the value quickly. (The computer must be in stop condition.)
RESET: The user may press the "RESET" button to reset each function: Time, Distance,
Calorie, Pulse. Hold this button down for 2 seconds for total reset. (If batteries are replaces, all
values will reset to ZERO automatically.)
RECOVERY: Enable the heart rate recovery function after training.
FUNCTIONS
SCAN: Cycles through all functions from TIME, DISTANCE, CALORIES, PULSE,
RPM/SPEED.
RPM: Displays the Rotation Per Minute. The RPM and SPEED will rotate every 6 seconds
after exercise starts.
SPEED: Displays current training speed. Maximum speed is 99.9 KM/H.
TIME: Accumulates total workout time when no value is preset. Time will count up from 00:00
to maximum 99:59.
Count down: Press the SET button to set a preset time between 0:00 to 99:50. Time will count
down from the preset time to 00:00.

13
SP-870
DISTANCE: Accumulates total distance from 00:00 up to 99.99 KM when no value is preset.
Count down: Press the SET button to set a preset distance between 00:00 to 99.99 KM.
Distance will count down from the preset time to 00:00.
CALORIES: Accumulates calories burnt from 0 to 9999 calories when no value is preset.
Count down: Press the SET button to set a preset calorie goal between 0 and 9990. Calories
will count down from the preset value to 0.
(This data is a rough guide for comparison of different exercise sessions. It must not be used
for medical treatment purposes.)
PULSE: The user may preset pulse by pressing SET button. (This data is a rough guide for
comparison of different exercise sessions. It must not be used for medical treatment
purposes.)

14
SP-870
OPERATION ORDER
1. Install 2 x 1.5V UM-4 or AAA batteries. The screen will display in accordance with
(Picture A) and “Beep” at the same time. It will then enter to standby mode (Picture B).
2. Use the SET button to preset values for TIME/DISTANCE/CALORIES/PULSE. SET
alters the value for a specific category. MODE confirms a set value.
3. The values RPM/SPEED/TIME/DISTANCE/CALORIES/PULSE will start increasing as
soon as the sensor receives a signal that you are pedalling.
If preset values have been set, the monitor will ‘beep’ for 8 seconds once the function
counts down to 0. The function will then immediately count up from 0 if the workout is
continued. During this, press MODE to confirm and skip to the next set up option.
Picture A
Picture B

15
SP-870

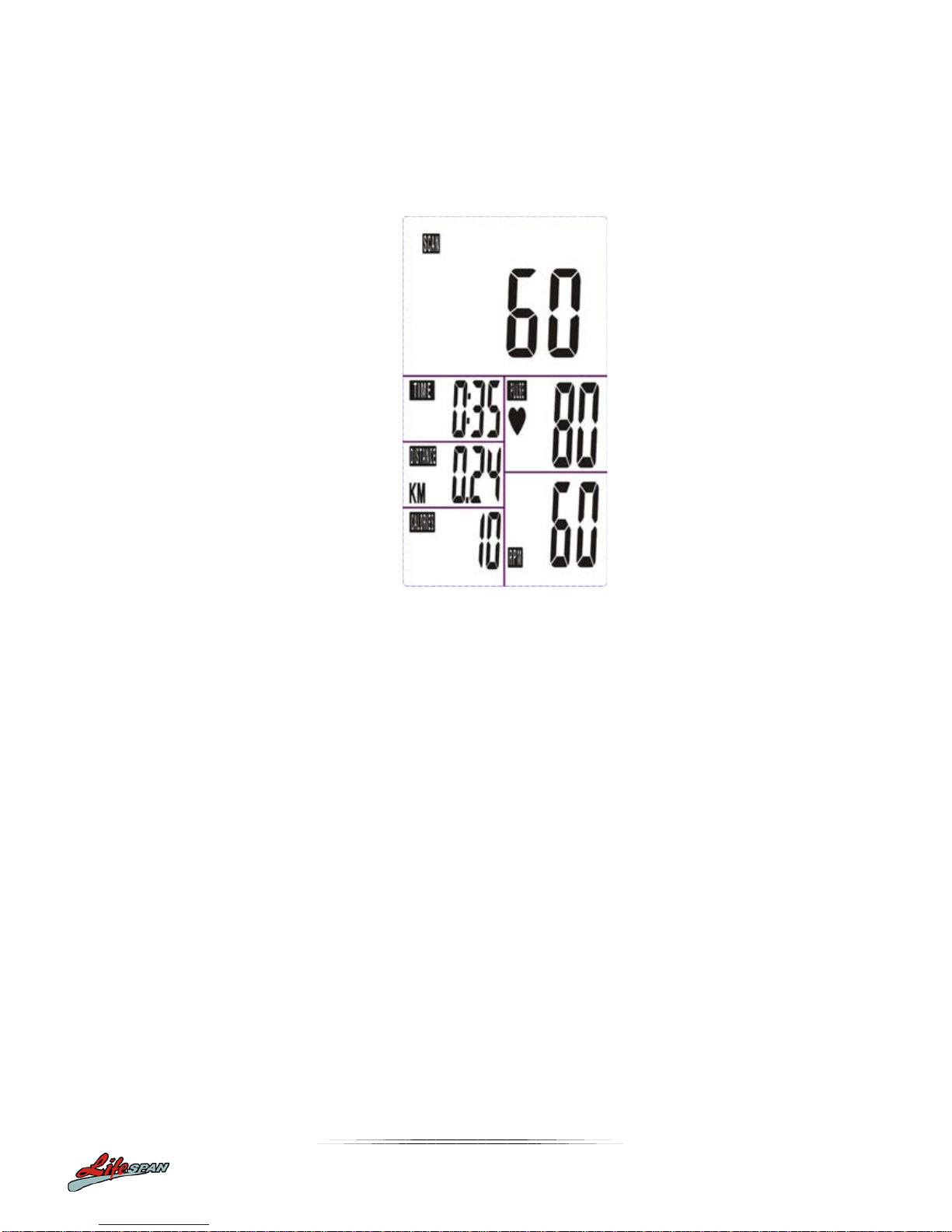

4. In SCAN mode as shown in Picture C,
RPM/SPEED/TIME/DISTANCE/CALORIES/PULSE will alternate every 6 seconds.
5. The MODE button may also be used to select a single function to be displayed on the
main display excluding RPM and SPEED. These two functions will always alternate
automatically.
Picture C

16
SP-870
6. RECOVERY
a. Press the "RECOVERY" button to activate the RECOVERY function. In this
function, only PULSE and TIME will display whilst other functions will be inactive.
The Sensor Input will not be available.
TIME will start to count down from "00:60". The Pulse signal will blink according
to the user's pulse. When countdown reaches "0", it will show F1~F6.
F1
Outstanding
F2
Excellent
F3
Above Average
F4
Average
F5
BelowAverage
F6
Poor
b. The LCD will display as follows: (RECOVERY start condition & end condition)

17
SP-870
c. If the countdown to 00:00 is not completed and there is no pulse signal, F6 will
show.
d. If you press the RECOVERY button prior to the countdown reaching 00:00, this
will end the function and no result will show.
NOTE
1. After being inactive for 4 minutes, the main screen will turn off and will display the clock
automatically.
2. If the computer displays abnormally, please re-install the battery and try again.
3. Battery Spec: 1.5V UM-4 or AAA (2PCS).

18
SP-870
6. EXERCISE GUIDE
PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important
especially if you are over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and
stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your
muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for
daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will
pump a lot fewer times per minute, reducing the wear and tear of your heart.
So as you can see, the fitter you are, the healthier and greater you will feel.
Warm-up
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases
your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

19
SP-870
Training Zone Exercise
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity
for maximum performance. Breathe regularly and deeply as you exercise-never hold your breath.
Cool Down
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of
stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise
problems.
Workout Guidelines

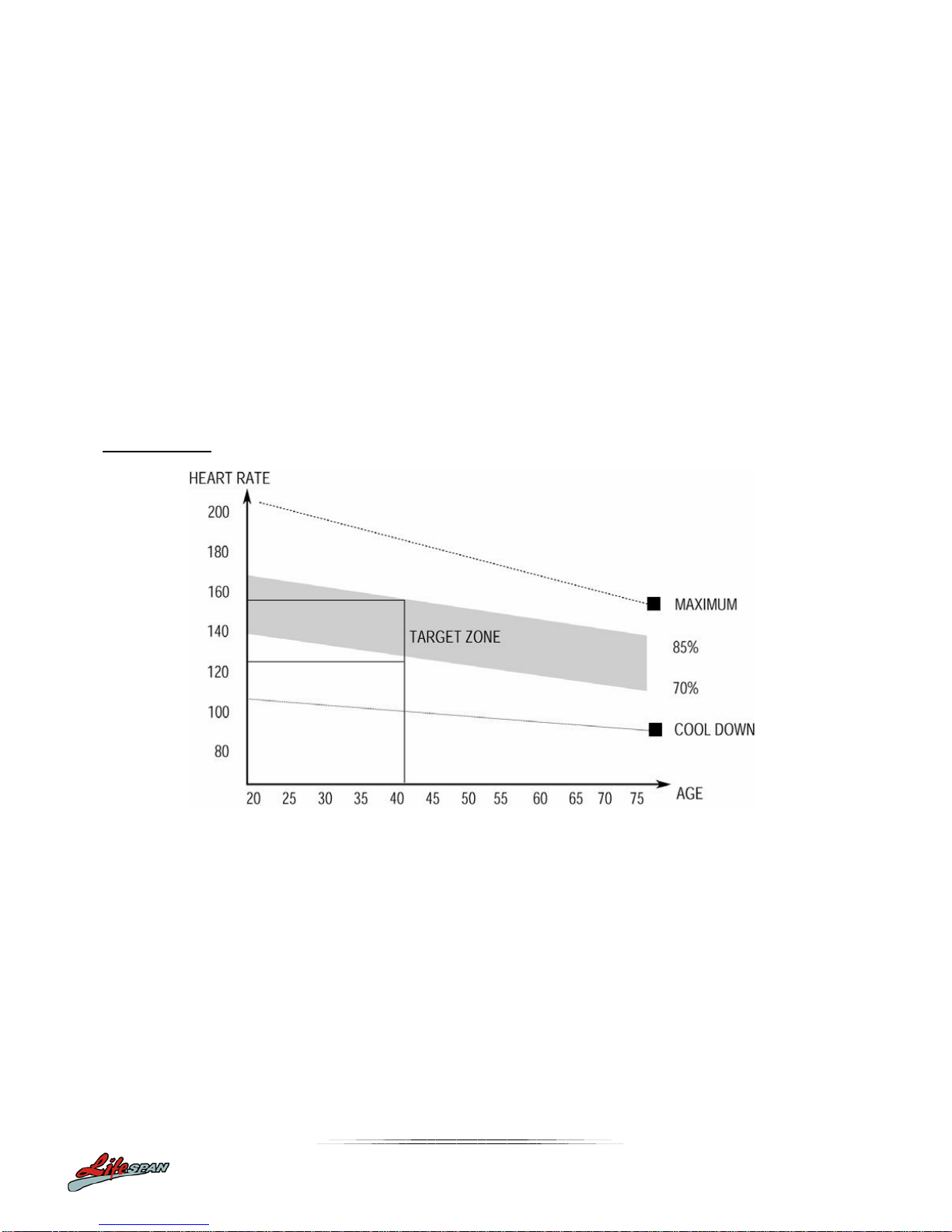

TARGET ZONE
THIS IS HOW YOUR PULSE SHOULD BEHAVE DURING GENERAL FITNESS EXERCISE.
REMEMBER TO WARM UP AND COOL DOWN FOR A FEW MINUTES.
The most important factor here is the amount of effort you put in. The harder and longer you work, the more
calories you will burn. Effectively this is the same as if you were training to improve your fitness, the
difference is the goal.

20
SP-870
7. WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with
guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanonline.com.au/Warranty-Policy
Please email us through [e-mail] for all warranty or support issues.
