Life Span BALANCE User manual

Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for
future reference.
BALANCE
OWNER’S MANUAL

2
BALANCE
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. IMPORTANT ELECTRICAL INFORMATION 4
3. IMPORTANT OPERATING INSTRUCTIONS 5
4. ASSEMBLY INSTRUCTIONS 6
5. FOLDING INSTRUCTIONS 10
7. GROUNDING METHODS 11
8. OPERATION GUIDE 12
9. EXERCISE GUIDE 15
10. MAINTENANCE GUIDE 17
11. EXPLODED DIAGRAM 21
12. PARTS LIST 22
13. TROUBLE SHOOTING GUIDE 25
14. WARRANTY 27
15. PROGRAM GUIDE 28

3
BALANCE
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this treadmill.
It is important your treadmill receives regular maintenance to prolong its useful life. Failing to
regularly maintain your treadmill may void your warranty.
Danger –To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to
cleaning and/or service work.
DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY
USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.
Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.
Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and
treadmill may result.
Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of
the treadmill and any fixed object.
Place your unit on a solid, level surface when in use
Never allow children on or near the treadmill.
When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should
you fall or move too far back on the treadmill.
Keep hands away from all moving parts.
Never operate the treadmill if it has a damaged cord or plug.
Keep the cord away from heated surfaces.
Do not operate where aerosol spray products are being used or where oxygen is being administered.
Sparks from the motor may ignite a highly gaseous environment.
Never drop or insert any object into any openings.

4
BALANCE
The treadmill is intended for in-home use only and not suitable for long time running.
To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug
from the outlet.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
Use the handrails provided; they are for your safety.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
Allowed temperature: 5 to 40 degrees.
Remove the safety key after use to prevent unauthorized treadmill operation.
2. IMPORTANT ELECTRICAL INFORMATION
WARNING!
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from any moving part of the treadmill including the elevation mechanism and transport
wheels.
NEVER remove any cover without first disconnecting AC power.
NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near a pool, or in any other high humidity environment.

5
BALANCE
3. IMPORTANT OPERATING INSTRUCTIONS
Be sure to read the entire manual before operating your machine.
Understand that changes in speed and incline do not occur immediately. Set your desired speed on
the computer console and release the adjustment key. The computer will obey the command
gradually.
Use caution while participating in other activities while walking on your treadmill, such as watching
television, reading, etc. These distractions may cause you to lose balance or stray from walking in
the centre of the belt; which may result in serious injury.
In order to prevent losing balance and suffering unexpected injury, NEVER mount or dismount the
treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the
belt during slow acceleration is proper after you have learned to operate this machine.
Always hold on to handrail while making control changes.
A safety key is provided with this machine. Remove the safety key will stop the walking belt
immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.
Do not use excessive pressure on console control keys. They are precision set to function properly
with little finger pressure.

6
BALANCE
4. ASSEMBLY INSTRUCTIONS
PART LIST
NO.
DES.
Specification
Nos.
NO.
DES.
Specification
Nos.
1
Main Frame
1
39
Lock washer
8
2
5
Strengthening
Pipe
1
88
6#Allen Wrench
6mm
1
21
Basic right cover
1
89
Allen Wrench
S=13\14\15mm
1
22
Basic left cover
1
90
5#Allen Wrench
5mm
1
61
Bolt
M10*60
2
79
Safety lock
1
63
screw
ST4.2*19
4
95
Bolt
M8*48
2

7
BALANCE
44
Lock washer
10
2
STEP 1:
STEP 2:
STEP 3:
1. Open the carton
2. Extract the parts listed above
3. Place the Main Frame (#1) onto level
ground
1. Use the #5 Allen wrench to pull up the
M8*45 screw (60), lock the console
frame onto the left & right Upright.
Note: Whilst erecting the uprights, make sure
the upright does not press against and
damage the wires inside the upright tubes.
Keep holding the upright and computer by
hand so they do not fall down and cause
injury
1. Using the #5 Allen Wrench, loosen
the M8 * 45 screws (60) from the left
and right upright tubes.

8
BALANCE
STEP 4:
STEP 5:
1. Use the 5# Allen wrench (90), M8*48
screw (95) and lock washer (39) to lock
the left upright onto the base frame.
2. Use 6# Allen wrench (88), M8*48 screw
(61) and lock washer (44) to lock the left
upright onto the base frame.
3. Repeat the above to assemble the right
upright
NO.95 is for M8
NO.61 is for M10
1. Use the #5 Allen wrench, M8*55 screw
(58) and lock washer (39) to fix the
computer bracket onto both uprights
(3\4).

9
BALANCE
STEP 6:
1. Use wrench screw driver and
ST4.2*19 screw (63) to fix the base
right cover (21) onto the left upright
and base.
2. Use wrench screw driver and
ST4.2*19 screw (63) to fix the base
left cover (22) onto the right upright
and base.

10
BALANCE
5. FOLDING INSTRUCTIONS
Folding:
Unfolding:
Erect the base frame using position A until
you hear the click sound emitted when the
air pressure bar B is locked into the round
tube.
Whilst supporting position A with our
hand, gently push the marked area on
the air pressure bar with your foot.
The base frame will descend
automatically. (Please keep people and
any pets away the machine during
descent)

11
BALANCE
7. GROUNDING METHODS
This product must be grounded. In the event of malfunction or breakdown, grounding reduces the
risk of electric shock. This product is equipped with a cord with an equipment-grounding conductor
and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
DANGER
Improper connection of the equipment-grounding conductor can result in risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly
grounded.
Do not modify the plug provided with the product –if it will not fit the outlet; have a proper outlet installed by
a qualified electrician.

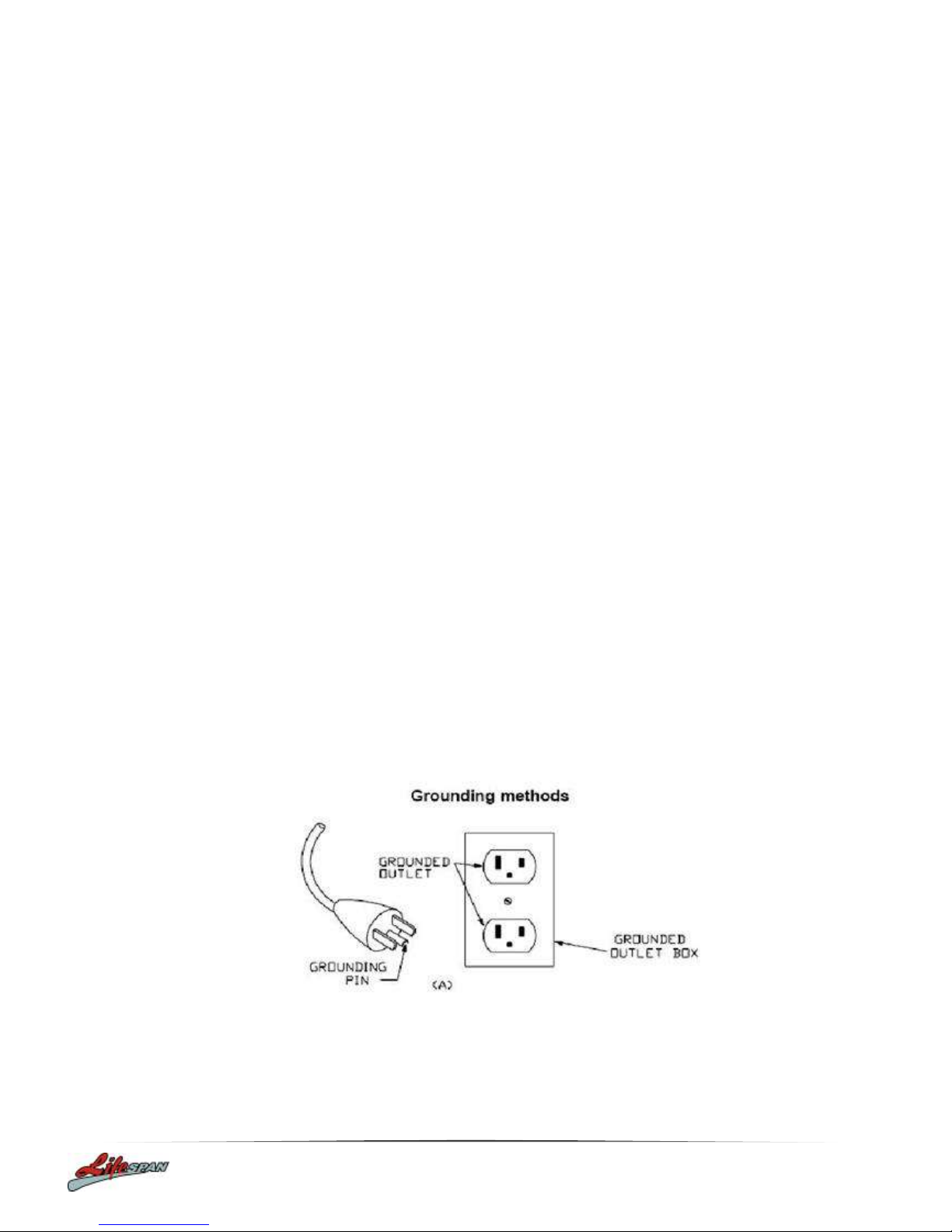

This product is for use on a nominal 240-volt circuit and has a grounding plug that looks like the plug
illustrated in sketch A in following figure. Ensure the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product.

12
BALANCE
8. OPERATION GUIDE
1. OVERVIEW
2. BUTTON FUNCTIONS
PROGRAM Button Cycles from manual mode to “P1” to “P99”.
MODE Button Cycles through the manual modes: “TIME” = timer countdown, “DIS” =
distance countdown and “CAL” = calorie countdown)
Power key: Power on/off
Start button: Starts the treadmill motor.
Stop button: Stops the treadmill motor.
Fast+: Increase running speed. Increase set value during input stage.
Slow-: Decrease running speed. Decrease set value during input stage.
Incline +: Increase incline gradient.
Incline -: Decrease incline gradient.
Speed select buttons; Fast speed adjustment (3, 6, 9, 12, 15)
Incline select buttons: Fast incline adjustment (2, 4, 6, 8, 10)

13
BALANCE
3. PROGRAM DESCRIPTIONS
Manual mode programs: normal mode, time countdown, distance countdown, calorie countdown
mode
Preset programs: 99 preset speed programs: P1,-P99.
4. START DESCRIPTION
Place safety key onto the front panel and turn on the power switch. The LCD window will turn on after 1.5
seconds and a buzzer will sound.
5. MANUAL MODE OPERATION
To enter manual mode, turn the power switch and the treadmill will enter directly into manual mode.
Normal mode: computer counts up beginning with all values set to 0
Timer countdown: press the MODE button to enter the time countdown mode, the time display will show
0:00 adjust desired workout time with speed arrow buttons. Time setting range: 5:00-99:00.
Distance countdown: cycle modes using the MODE button to enter the distance mode, the range display will
show 0.0; adjust desired workout distance with speed arrow buttons. Distance setting range is 0.5-99.0 km.
Calorie countdown: cycle modes using the MODE button to enter the calorie mode, the calorie display will
show 0.0; adjust desired workout calories with speed arrow buttons. Calorie setting range is 10-999 calories
kcal.
Press START to begin and STOP to smoothly bring the machine to a stop.

14
BALANCE
6. AUTOMATIC PROGRAM MODE OPERATION
Select desired program number using the PROGRAM button. The default program time is 30 minutes. The
time setting range: 5:00-99:00.Adjust to desired value using speed arrow buttons.
Press START to begin program and STOP to smoothly bring the machine to a stop.
During the program you can adjust speed using the speed arrow buttons.
Each program is divided into eight segments with each segment being 1/8th of the total program time. The
end of each segment is signaled by a “beep” emitted by the machine.
7. SLEEP FUNCTION
The treadmill automatically enters sleep mode after 10 minutes of inactivity. Press any key on the
display to wake the treadmill.
8. SAFETY FEATURES
If the safety key is removed in any state, the motor will stop immediately and the speed window will display
“OFF”. The machine will almost emit three “beeps”.
9. VALUE DISPLAY RANGES
Initial
Initial value
setting
Setting range
Display range
Time(minutes: seconds)
0:00
00:00
5:00-99:00
0:00~99:59
Speed(km/hour)
0.0
N/A
N/A
1.0－22
Distance(km)
0.00
0.00
0.5－99.9
0.0－99.9
Heart rate (beats/min)
P
N/A
N/A
40－199
Calories(kcal)
0
0
10-999*
0－999

15
BALANCE
9. EXERCISE GUIDE
PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important
especially if you are over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and
stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your
muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for
daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will
pump a lot fewer times per minute, reducing the wear and tear of your heart.
So as you can see, the fitter you are, the healthier and greater you will feel.
Warm-up
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases
your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

16
BALANCE
Training Zone Exercise
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity
for maximum performance. Breathe regularly and deeply as you exercise-never hold your breath.
Cool Down
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of
stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise
problems.
Workout Guidelines
TARGET ZONE
THIS IS HOW YOUR PULSE SHOULD BEHAVE DURING GENERAL FITNESS EXERCISE.
REMEMBER TO WARM UP AND COOL DOWN FOR A FEW MINUTES.
The most important factor here is the amount of effort you put in. The harder and longer you work, the more
calories you will burn. Effectively this is the same as if you were training to improve your fitness, the
difference is the goal.

17
BALANCE
10. MAINTENANCE INSTRUCTIONS
Reasonable cleaning/lubricating should be made to extend the life time of this unit. Performance is
maximized when the belt and mat are kept as clean as possible.
WARNING: THE MAT/DECK FRICTION MAY PLAY A MAJOR ROLE IN THE FUNCTION AND LIFE OF
YOUR TREADMILL AND THAT IS WHY WE RECOMMEND YOU CONSTANTLY LUBRICATE THIS
FRICTION POINT TO PROLONG THE USEFUL LIFE OF YOUR TREADMILL. FAILING TO DO THIS
MAY VOID YOUR WARRANTY.
WARNING: UNPLUG POWER CORD BEFORE MAINTENANCE
WARNING: STOP TREADMILL BEFORE FOLDING
1. General Cleaning
Use a soft, damp cloth to wipe the edge of the belt and the area between the belt edge and frame. A
mild soap and water solution along with a nylon scrub brush will clean the top of the textured belt.
This task should be done once a month. Allow to dry before using.
On a monthly basis, vacuum underneath your treadmill to prevent dust build up. Once a year, you
should remove the black motor shield and vacuum out dirt that may accumulate.
2. General Care
Check parts for wear before use.
Pay particular attention to the fixing knobs and make sure they are tight.
Always replace the mat if worn and any other defective parts.

18
BALANCE
If in doubt do not use the treadmill and contact our helpline.
TAKE CARE TO PROTECT CARPETS AND FLOOR in case of leakages. This product is a machine that
contains moving parts which have been greased / lubricated and could leak.
3. Belt/Deck/Roller Lubrication
The mat/deck friction may play a major role in the function and life of your treadmill and that is why we
recommend you constantly lubricate this friction point to prolong the useful life of your treadmill. Lubrication
is provided with this unit. You should apply lubrication after approximately the first 50 hours of operation. We
recommend lubrication of the deck according to the following timetable:
oLight use (less than 3 hours per week) every 6 months
oMedium use (3-5 hours a week) every 3 months
oHeavy use (more than 5 hours per week) every 6-8 weeks
See below procedures for lubricating:
1. Use a soft, dry cloth to wipe the area between the belt and deck.
2. Spread lubricant onto the inside surface of belt and deck evenly (make sure the machine is turned
off and power is disconnected).
3. Periodically lubricate the front and rear rollers to keep them at their peak performance. If the
treadmill belt/deck/roller is kept reasonably clean it is possible to expect over 1200 hours before
relubricating is necessary.
4. How to check the running mat for proper lubrication:
1. Disconnect the main power supply.
2. Fold the treadmill up into the storage position.
3. Feel the underside surface of the running mat.
If the surface is slick when touched, then no further lubrication is needed.
If the surface is dry to the touch, apply a suitable silicone lubricant.
We recommend that you use a silicone based spray to lubricate your Lifespan treadmill. This can be
purchased directly from us or any hardware store.

19
BALANCE
5. Belt Tension Adjustment
It is very important for joggers and runners in order to provide a smooth, steady running surface.Adjustment
must be made from the right and left rear roller in order to adjust tension with the Allen Key provided in the
parts package. The adjustment bolt is located at the end of the rails as noted in the diagram below:
Note: Adjustment is through small hold of end cap.
Tighten the rear roller only enough to prevent slippage at the front roller. Turn both the right and left bolt
clockwise one full turn and inspect for proper tension. When an adjustment is made to the belt tension, you
must also make a tracking adjustment to compensate for the change in belt tension.
DO NOT OVER TIGHTEN - Over tightening will cause belt damage and premature bearing failure.
This may also cause reduced motor performance and excessive roller wear.
NOTE: When properly tightened, the sides of the belt can be raised approximately 2-3 inches off the board.
Left Bolt
Right Bolt

20
BALANCE
6. Belt Tracking Adjustment:
This treadmill is designed to keep the belt reasonably centred while in use. It is normal for some belts to drift
near one side while the belt is running with no one on it. After a few minutes of use, the belt should have a
tendency to centre itself. If during use, the belt continues to move toward one side, adjustments are
necessary. The procedures are below:
1. Set speed at approximately 3.5km/h.
2. Check the side the belt shifts to.
If the belt shifts to right, tighten the right bolt and loosen the left bolt by using 6mm Allen Key, until the belt is
centred itself; If belt shifts to left, tighten the left bolt and loosen the right bolt by using a 6mm Allen Key, until
the belt is centred. When adjusting the belt using the 6 mm Allen Key, it is important to adjust the belt in half
turn increments. Over adjusting the belt can cause damage to the mat.
If belt drifts to the LEFT If belt drifts to the RIGHT
