Lifetime 2129 Quick start guide

WARNING
To ensure your safety, do not
attempt to assemble the table
without reading and following
all instructions and warnings
carefully.
®
VISIT THE LIFETIME WEB SITE:
WWW.LIFETIME.COM
6-PERSON ROUND
PICNIC TABLE
MODEL #2129
ASSEMBLY INSTRUCTIONS AND OWNER’S
MANUAL
Save this instruction in the event that the manufacturer
has to be contacted for replacement parts.
INSTRUCTION #1017715 11/03/2006
Copy

2
RA
1. Adjustable Wrench
2. 5/16” Wrench
3. Phillips Screwdriver

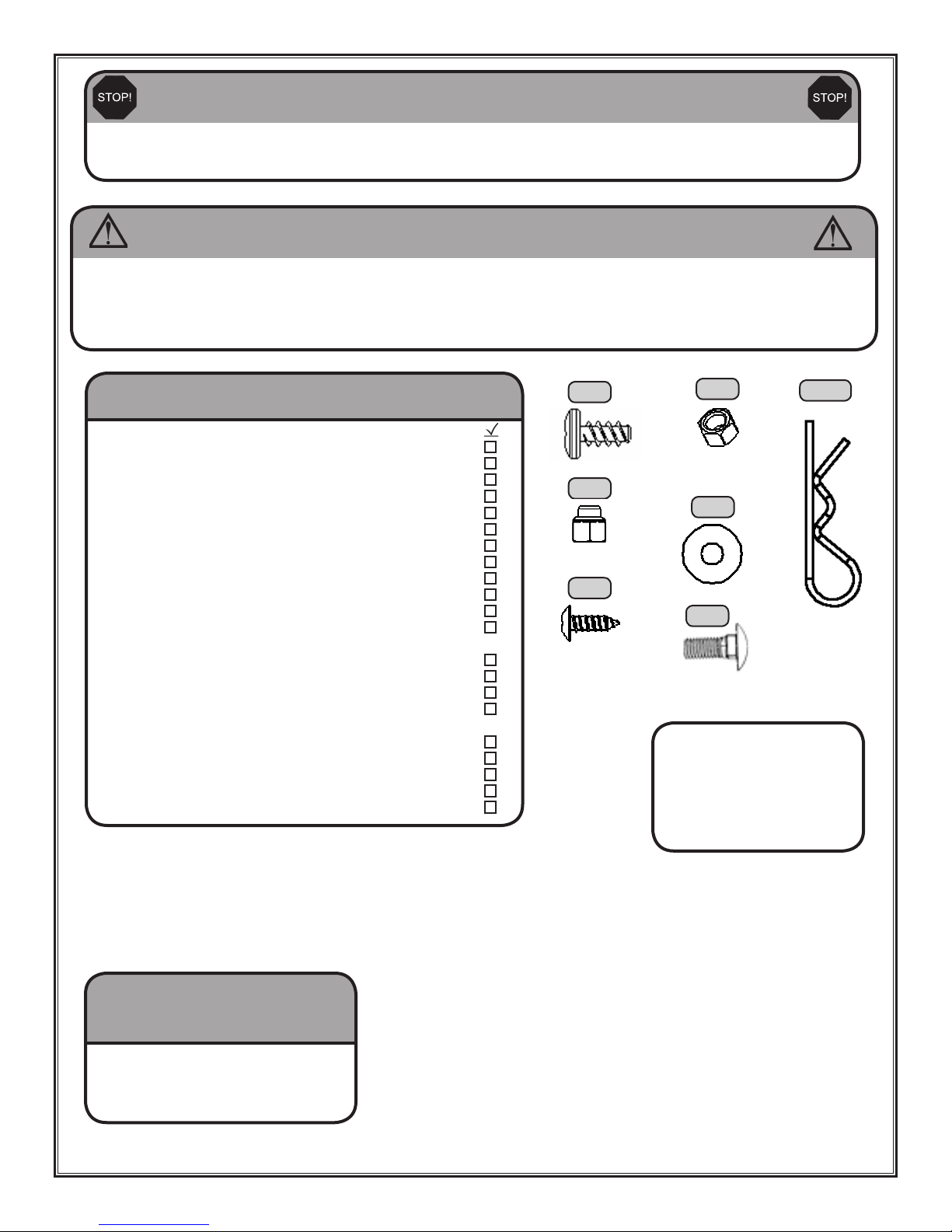

BEFORE BEGINNING ASSEMBLY
A. Identify and inventory all parts using the checklist boxes on the Parts List.
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.
• Proper and complete assembly and use is essential for proper operation and to reduce the risk of injury.
• 2 people are required for assembly.
• If technical assistance is required, contact the manufacturer.
• Most injuries are caused by misuse and/or failure to follow instructions.
RC
RD
BD
RE
BB
TWO ADULTS ARE NECESSARY TO
COMPLETE ASSEMBLY!!
If two or more people are
sitting at the table at the
same time, we recommend
they sit across the table from
each other to prevent pos-
sible tipping of the table.
ID Part # Description Qty
AA 1007361 Table Top (1003645) 1
AB 1007365 Bench (1003635) 3
AC ZP97506 Table Leg 3
AD ZP97606 Center Table Leg Brace 3
AE ZP97706 Bench Leg 3
AF ZP97806 Bench Frame 3
AG ZP97906 Bench Leg Pivot 3
AH 1007362 Footcap 6
AI 1008729 Plug, Umbrella Hole 1
AJ 1007363 Bench Leg Cap 6
AK 1019483 Support Brace 1 3
AL 1019484 Support Brace 2 3
Table Frame Hardware (1020883)
RA BS03300 1/4” x 1/2” Screw 6
RC 1004700 5mm Cap Nut 12
RD 1004641 5mm Flat Washer 3
RE 1008307 #8 x 1/2” Screw 21
Bench Frame Hardware (1020884)
RA BS03300 1/4” x 1/2” Screw 18
RE 1008307 #8 x 1/2” Screw 12
BA 1016552 5mm x 12.5mm Carriage Bolt 24
BB 1003781 M5 Centerlock Nut 24
BD 1013012 Cotter Key 3
PARTS LIST
Tools and Materials Required
For Assembly
(Not Included)
BA

3
1Footcaps on Table Legs
Turn a Table Leg (AC) upside down. Place a Footcap (AH) on
the bottom of each leg. Secure the each Footcap with two (2) #8
x 1/2” Screws (RE). Repeat for remaining two legs.
1a

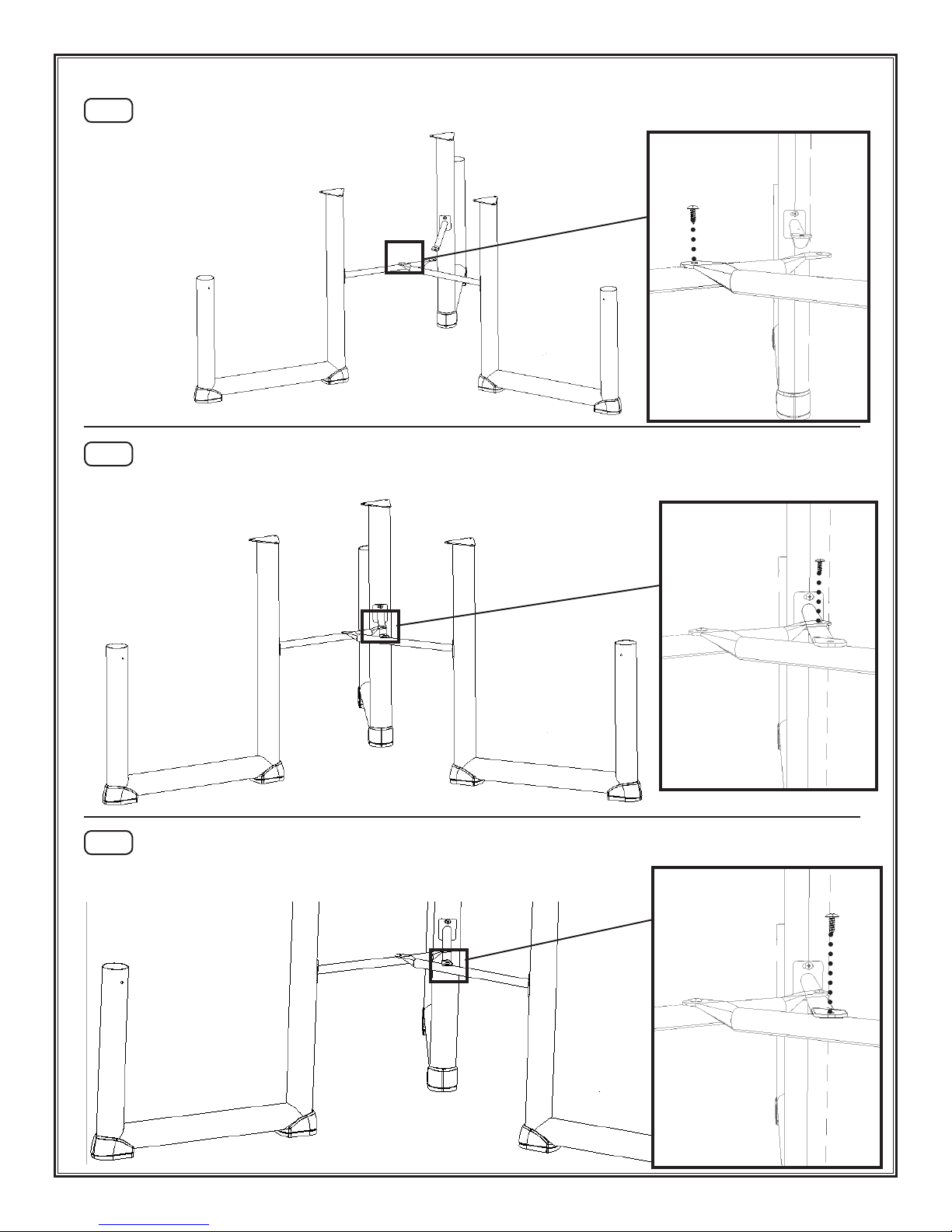

2Assemble Legs
Turn Table Legs right side up. Attach one (1) Center Leg Brace
(AD) to each table leg as shown. Ensure the end of brace angles
upwards. Secure with two (2) #8 x 1/2” Screws (RE). Repeat for
remaining Legs.
Completely tighten both Screws, then loosen them one (1) full
2a
Stand Table Legs assemblies in circle with braces pointing in
towards the center.
2b
Hardware Bag:
1020883
Screwdriver
RE (12)
Hardware Bag:
1020883
Screwdriver
RE (9)
Step 1 Hardware
Step 2 Hardware
RE
RE
AD
RE
AH
AC
AH
RE
Note: Completely tighten both
Screws (RE), then loosen them one
(1) full turn.

4
2c
Move Clockwise and stand between the next pair of legs. Line up the end hole on the right brace with
the middle hole on the left brace as shown. Secure with one (1) #8x 1/2” Pan Head Screw (RE).
2d
Move Clockwise and stand between the last pair legs. Line up the end hole on the right brace with the
middle hole on the left brace as shown. Secure with ine (1) #8 x 1/2” Pan Head Screw (RE). Set aside
assembly.
2e
Note: The Center Leg Braces are joined together always in a Right over Left format.
RE
RE
RE
Note: Do not completely tighten the
Screws (RE) yet.
Note: Do not completely tighten the
Screws (RE) yet.
Note: Do not completely tighten the
Screws (RE) yet.
While standing between two legs, line up the end hole on the right brace with the middle hole on the
left brace as shown. Secure with one (1) #8 x 1/2” Pan Head Screw (RE).

5
Two sets of three (3) Support Braces (AK & AL) come with your picnic
table. Set AK comes with two bolts next to each other (one of the bolts is
gold colored). Set AL comes with two bolts about 12” from each other.

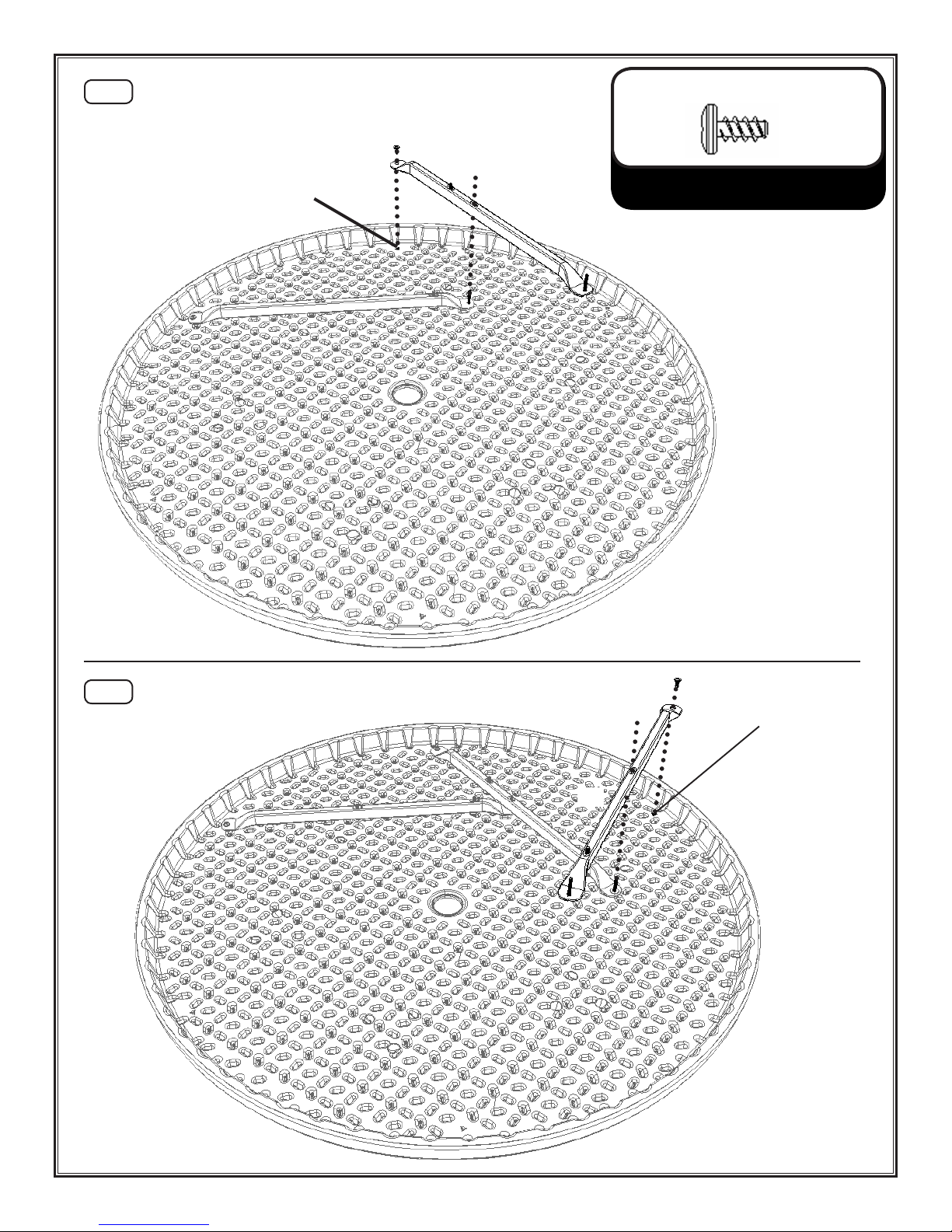

3Support Braces to Table Top
3a
Underside of Table
AK
RA
Pilot Hole
AL
Gold Colored Bolt
AK
Hardware Bag:
1020883
Screwdriver
Step 3 Hardware
RA (1)
Note: Do not completely tighten the Screw (RA) yet.
Place a Support Brace (AK) onto the underside of the Table Top and lightly secure the Brace with one
1/4” x 1/2” Screw (RA).

6
AL
RA
Pilot Hole
AK
RA
Pilot Hole
3b
3c
Underside of Table
Underside of Table
Hardware Bag:
1020883
Screwdriver
Step 3 Hardware
RA (2)
Note: Do not completely tighten
the Screw (RA) yet.
Note: Do not completely tighten the Screw (RA) yet.

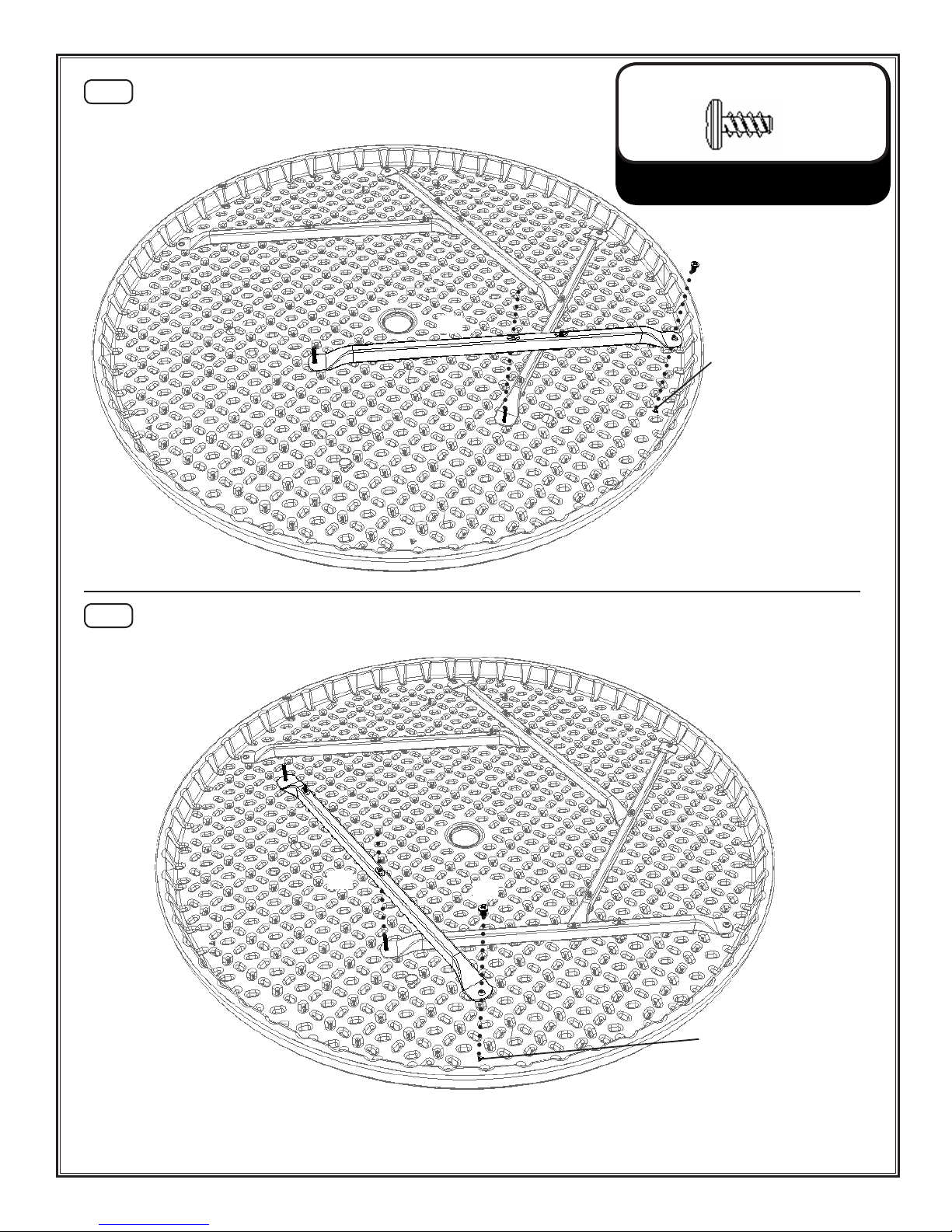

Place a Support Brace (AL) over Support Brace (AK) and lightly
secure the Brace to the Table Top with one (1) 1/4” x 1/2” Screw
(RA).

7
AL
RA
Pilot Hole
AK RA
Pilot Hole
3d
3e
Underside of Table
Underside of Table
Hardware Bag:
1020883
Screwdriver
Step 3 Hardware
RA (2)
Note: Do not completely tighten the Screw (RA) yet.
Note: Do not completely tighten the Screw (RA) yet.

8
RC
Underside of Table
RD
RC
RC
RD
RD

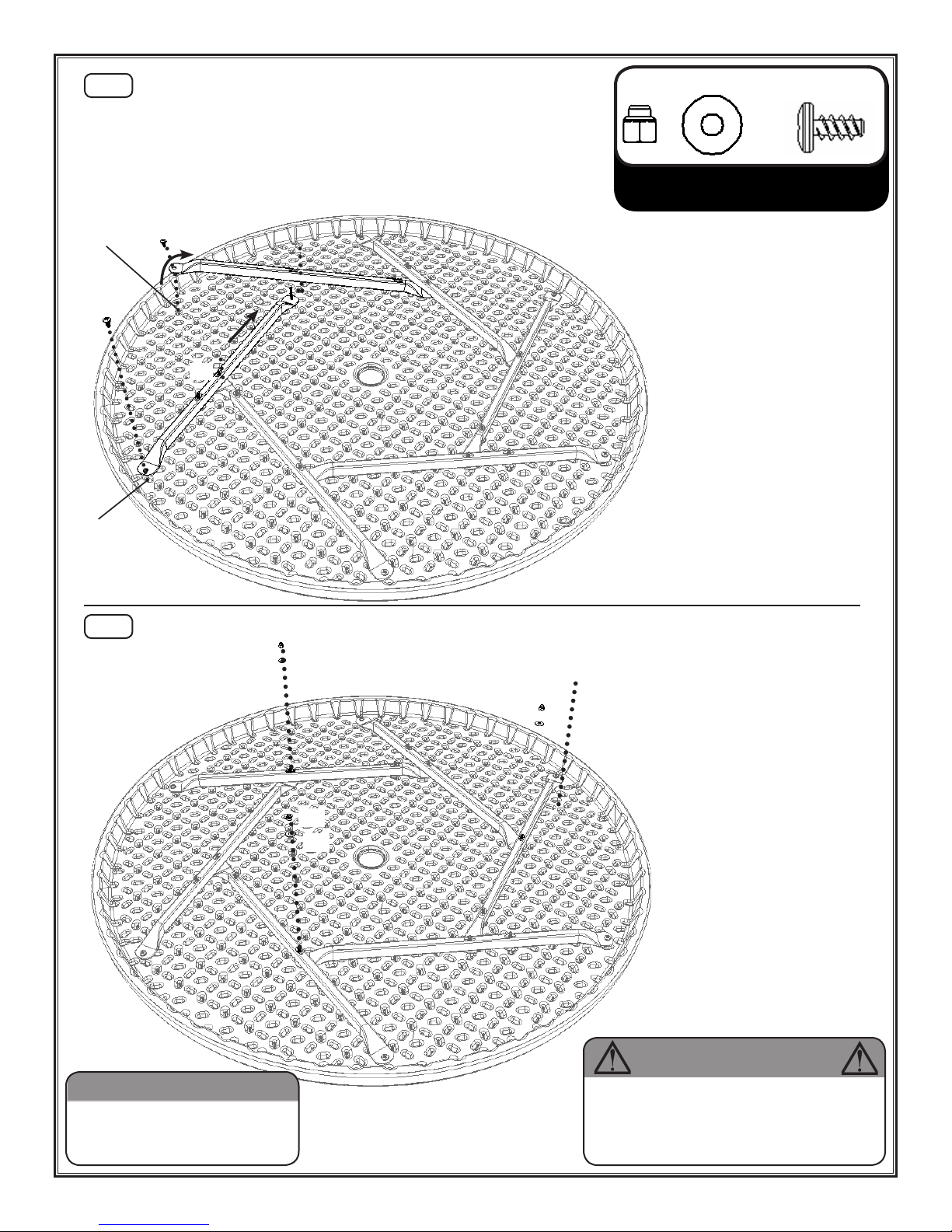

Secure Support Braces AL to AK using three (3) 5mm Washers and three (3) 5mm Cap Nuts.
WARNING
Do not overtighten the Cap Nut. If the end of
the Bolt breaks through the plastic cap, call our
Customer Service Department at the number
on Page One. Exposed threads on the end of
the Bolt may cause serious injuries.
CAUTION
Do not overtighten Screws (RA).
Overtightening may damage
parts and void warranty.
3f
3g
AL
RA
Pilot Hole
Pilot Hole
RA
Underside of Table
Hardware Bag:
1020883
Screwdriver
Adjsutable Wrench
Step 3 Hardware
RC (3) RD (3)
RA (1)
Completely tighten all Screws (RA).
Remove the rst 1/4” x 1/2” Screw (RA) and gently tilt the Support
Brace (AK) and slide the last Support Brace (AL) into place.
Replace the rst 1/4” x 1/2” Screw (RA) into the rst Support Brace (AK).
Finally, secure the last Support Brace (AL) to the Table Top.
Completely tighten all Cap Nuts (RE).

9
With the Table Top facing top down on the ground, align the Leg
assembly (Step 2) over the three sets of bolts on the Support
Brace assembly. Fasten the Leg assembly to the Support Braces using
nine (9) 5mm Cap Nuts (AC). Tighten all hardware (including the Center
Braces from Step 2). Stand the Table upright.
4
4a
Legs to Support Braces
Note the set of three bolts.
Hardware Bag:
1020883
Adjustable Wrench
RC (9)
Step 4 Hardware

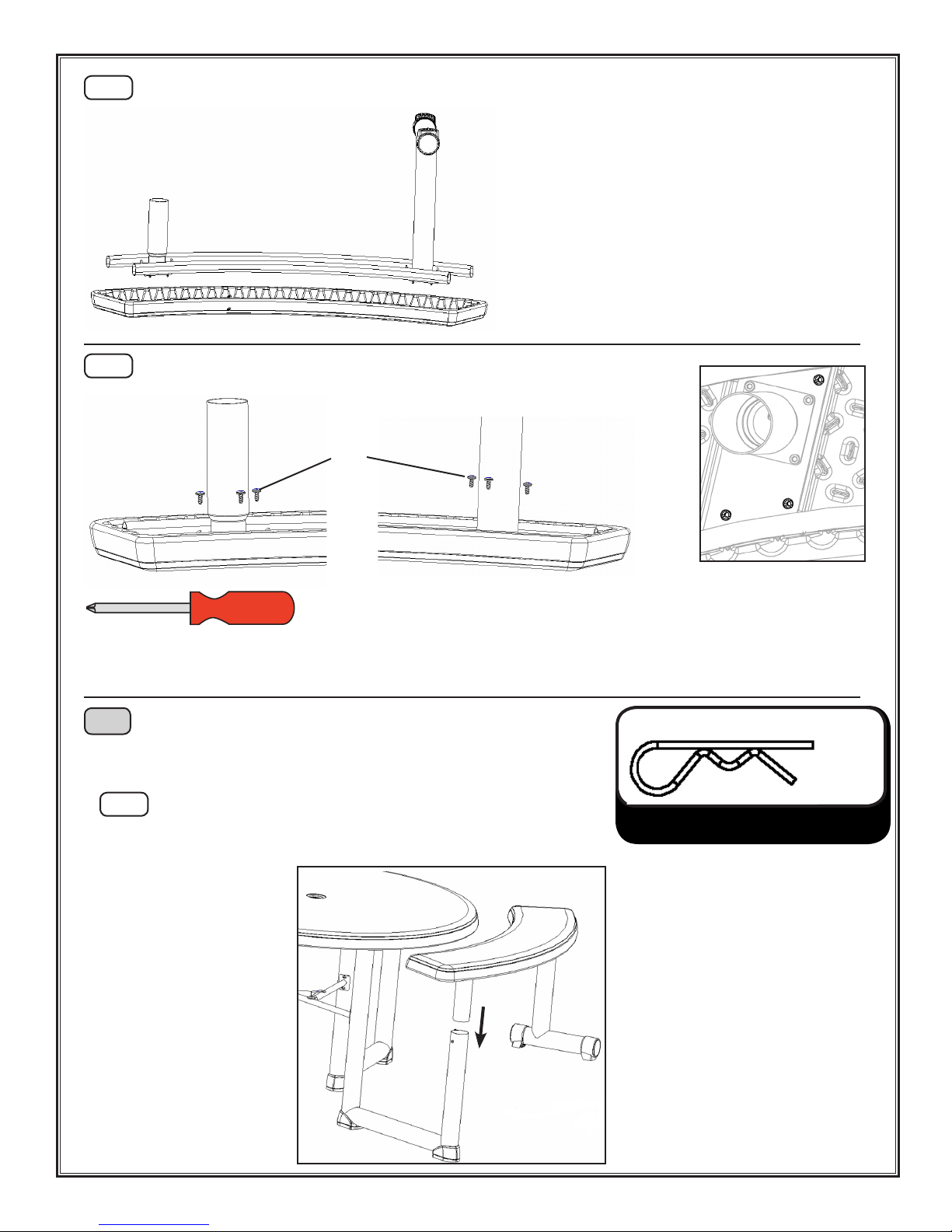

5Assemble Benches
(Repeat This Step for all 3 Benches)
5a Turn a Bench Leg (AE) upside-down and fasten a Bench
Leg Cap (AJ) on each end of the foot. Secure each Cap
to the legs with two (2) #8 x 1/2” Screws (RE).
RE
AJ
AE
AJ
WARNING
Do not overtighten the Cap Nut. If the end
of the Bolt breaks through the plastic cap,
call our Customer Service Department at
the number on Page One. Exposed threads
on the end of the Bolt may cause serious
injuries.
Hardware Bags:
1020884
Screwdriver
Step 5 Hardware
RE (12)

10
5c Line up a bench leg with the right side of the Bench Frame (AF). Secure to frame with four (4) 5mm x
12.5mm Carriage Bolts (BA) and four (4) M5 Centerlock Nuts (BB).
5b Lay a Bench Frame (AF) top-side down, with curved
edges pointing away from you.
Note: The tab on the frame
must line up with the hole in
the Bench Leg plate.
AF
Bench Leg
Frame
BB
BA
5d Line up a Bench Leg Pivot (AG) piece with the left side of the
bench seat frame. Secure to frame with four (4) 5mm x 12.5mm
Carriage Bolts (BA) and four (4) Centerlock Nuts (BB).
Note: The tab on the frame
must line up with the hole in
the Bench Pivot plate.
Bench Leg
Frame
BA
BB
Hardware Bags:
1020884
Screwdriver
Adjustable Wrench
BB (24) RA (18)
Step 5 Hardware
BA (24)

11
5e Lay a Bench (AB) top-side down, with curved side pointing away from you. Lay Bench Frame inside the
Bench and line up holes. Repeat for all three benches.
5f Fasten the Bench Frame to the Bench with six (6) 1/4” x 1/2” Screws (RA).
Note: Ensure that the
holes line-up with the pilot
holes in the Bench.
Only use a hand
screwdriver on this
step
RA
Insert a Bench assembly into the table leg. Ensure the bench is
fully inserted into the leg.

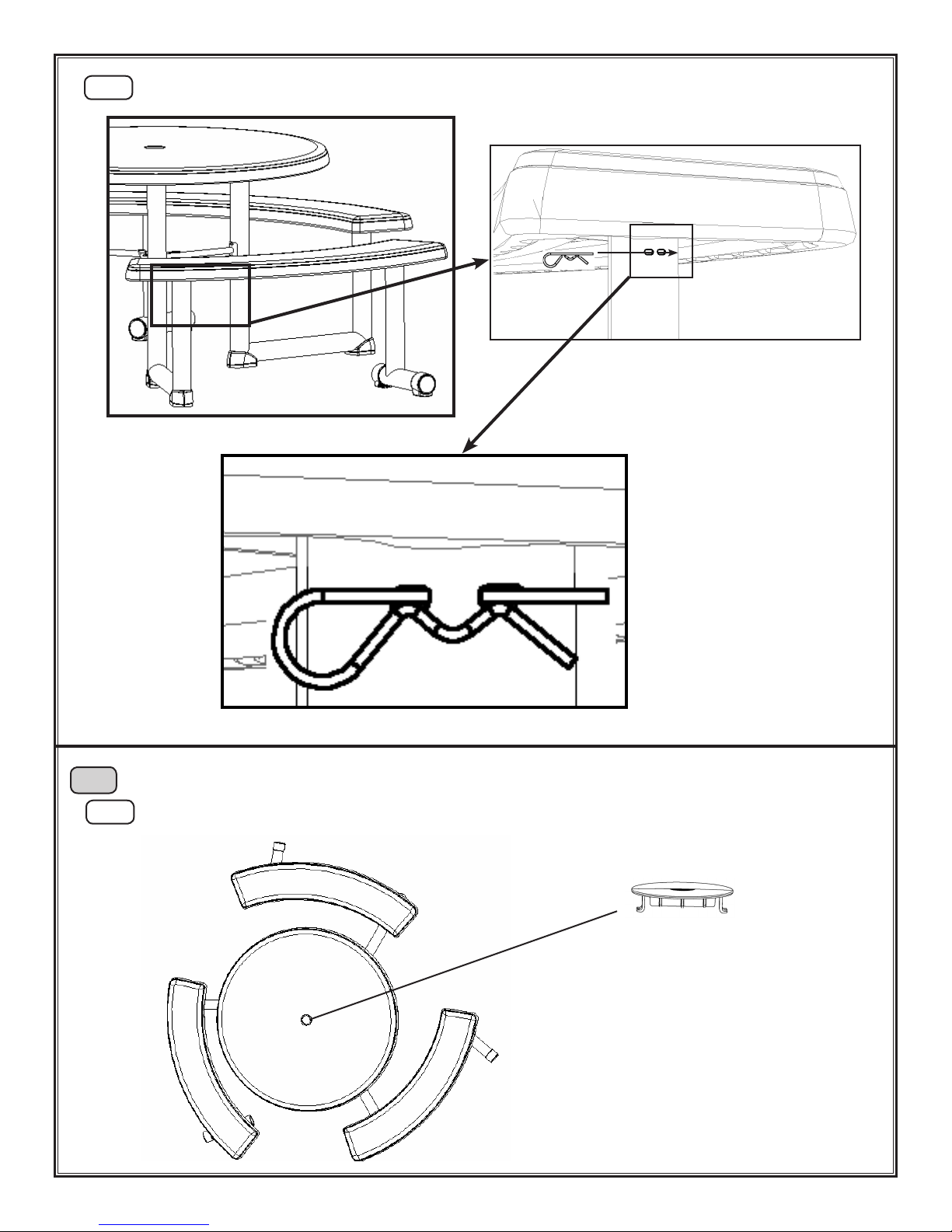

6Attach Bench to Table
6a
(Repeat Steps 6a and 6b for all 3 Benches)
Hardware Bag:
1020884
Step 6 Hardware
BD (3)

12
If the Umbrella Hole Plug is not already installed, snap it into the hole at the center of the table.
7Insert Umbrella Hole Plug
7a
AI
Insert a Cotter Key (BD) through the two holes in the leg of the bench to help prevent the bench from
pulling out of the Table Leg.
6b
BD
BD

13
PICNIC TABLE CARE INSTRUCTIONS
Congratulations on your Lifetime purchase. By following the instructions below, your new Lifetime table should
provide you with years of service and enjoyment.
Cleaning and Care
The polyethylene tabletop and benches are stain- and solvent-resistant. To clean, use a mild soap and a soft-
bristled brush. Abrasive cleaning materials may scratch the plastic and are not recommended. Repair scratches
or rust spots on the metal frame by sanding the affected area lightly; using a rust-preventative spray primer; and
nally, spraying with a high-gloss spray enamel paint. Avoid placing a direct heat source on or near the table
surface unless using a heat barrier.
• Surface may be hot if left in sun. • Do not place a direct heat
source on or near the surface unless using a heat barrier •
Do not stand on table or benches. • Do not sit on table • Do
not tip table on edge or bench may fall and cause injury •
Lift table by the tabletop • Do not lift table by the benches •
Failure to comply with these warnings could result in serious
personal injury
WARNING
• La surface peut etre chaude en cas d’exposition au soleil.
• Ne placez pas de source de chaleur directement sur ou
près de la table sans utiliser de quoi protéger la table de
la chaleur • Ne pas se mettre debout sur la table ou sur les
bancs • Ne vous reposez pas sur le tableau • Ne mettez
pas la table sur le bord ou les bancs peut tomber et peut
causer des blessures • soulevez la table par le panneau
de la table • Ne soulevez pas le table par les bancs • Le
non respect de ces mises en gardes pourrait entrainer des
blessures graves
• La supercie puede estar caliente si se ha dejado expuesta
al sol. • No coloque una fuente directa de calor sobre la
supercie de la mesa o cerca de la misma sin usar una
protección contra el calor • No se pare sobre la mesa ni
sobre los bancos • No se siente sobre la mesa • No ponga
la mesa en el borde o el banco puede caer y puede ser
causa lesiones personales • Levante la mesa por el tablero
de la mesa • No levante la mesa por los bancos • El no
respetar estas advertencias puede ser causa de serias
lesiones personales
WATCH FOR PINCH POINTS
EVITEZ LES RISQUES DE PINCEMENT
CUIDESE DE LOS PUNTOS DE PUNZANTES
#1008736
ADVERTENCIA
AVERTISSEMENT

14
PICNIC TABLE
10-YEAR LIMITED FACTORY WARRANTY
LIFETIME PRODUCTS, INC. RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF
PARTS ARE UNAVAILABLE OR OBSOLETE.
1. Lifetime Picnic Tables are warranted to the original purchaser to be free from defects in material or
workmanship for a period of ten years from the date of original retail purchase. The word “defects” is dened as
imperfections that impair the use of the product. Defects resulting from misuse, abuse or negligence will void this
warranty. This warranty does not cover defects due to alteration or accident. This warranty does not cover damage
caused by vandalism, rusting, “acts of nature” or any other event beyond the control of the manufacturer.
2. This warranty is nontransferable and is expressly limited to the repair or replacement of defective product. If
the product is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts
at no cost to the purchaser. Shipping charges to and from the factory are not covered and are the responsibility of
the purchaser.
3. This warranty does not cover scratching, scufng or other cosmetic damage that may result from normal
use of the product. In addition, defects resulting from intentional damage, negligence or unreasonable use will void
this warranty.
4. Liability for incidental or consequential damages is excluded to the extent permitted by law. While every
attempt is made to embody the highest degree of safety in all products, freedom from injury cannot be guaranteed.
The user assumes all risk of injury resulting from the use of this product. All merchandise is sold on this condition,
and no representative of the company may waive or change this policy.
5. This warranty is in lieu of all other warranties expressed or implied, including warranties of merchantability
or tness for use. Neither Lifetime Products, Inc. nor any representative assumes any other liability in connection
with this product.
ALL WARRANTY CLAIMS MUST BE ACCOMPANIED BY A SALES RECEIPT.
REPORT PRODUCT DEFECTS IN WRITING TO:
Lifetime Products, Inc., PO Box 160010 Cleareld, UT 84016-0010
or call 1(800) 225-3865
