Lift Tech Marine AC MANUAL GEN 2 User manual

Operating the AC Motor:
When the lift is going “up” the gear head should be going clockwise. When the lift is going
“down” the gear head should be going counterclockwise. If it’s the opposite direction this
means your lift was let down too far and is backwound. To x this, let the lift down, when
it runs out of cable it will wind itself up correctly and start going up. If you have a remote
control and the lift is going down while pressing up or going up while pressing down this is
the reason why. Please follow the steps above to x it.
Pendant:
We offer an optional 15-foot or 20-foot pendant that can be purchased and plugged
directly into your motor. Pendant works without the key.
Off-Season Storage:
We recommend our storage cover for your motor if you are going to leave it sit outside
during the winter months. Our storage cover will breathe and let moisture out while your
not using your motor. If you decide to cover the motor with a bag instead, make sure not
to seal it completely or condensation can develop and the warranty will be void.
Power Outage:
In case of a power outage, use the provided back up bit on the end of the shaft with your
drill. Visit our website to watch a video on how to use the back up bit.
Power Requirements for AC:
All power used on your dock or lift needs to be GFI Protected at the shoreline.
Extension Cords must be 12/3 and under 150 feet. Circuit Breaker 20 AMPS GFI.
Maintenance:
Our motors are self-lubricating and do not need any maintenance.
Website:
Go to www.lifttechmarine.com for more information, troubleshooting and how to videos.
We would like to take this opportunity to say thank you. We value you, as a
customer. Should you ever have an issue please give us a call at 218-454-0682 or
send us an email at [email protected]

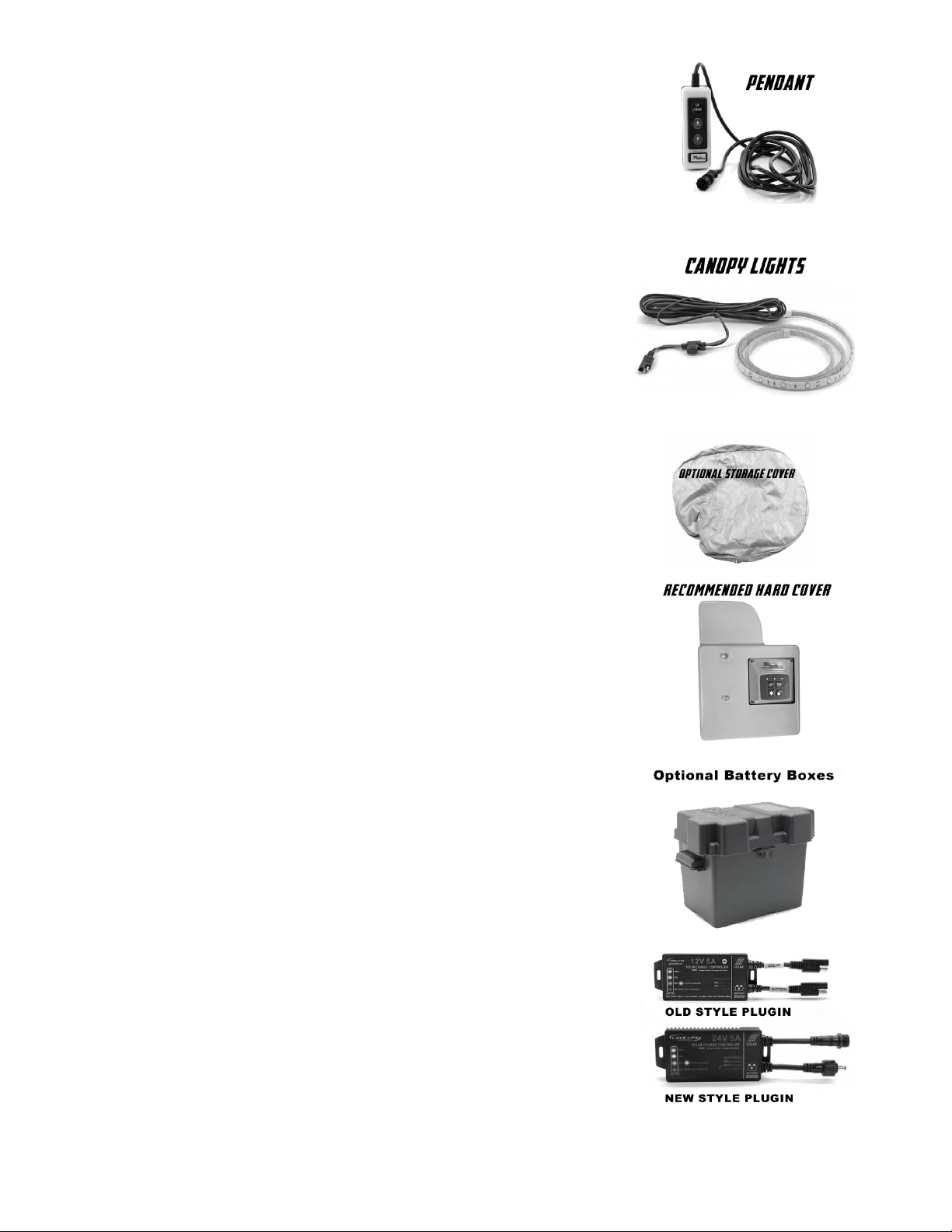

Optional Pendant for AC and DC Manual Motors Only:
Comes with 15 feet of wire and plugs directly into the
control box. The control box is already wired for it. Just
remove the small black nipple cap. Key is not required
when using pendant.
Optional Canopy Light for AC/DC Remote and
Autostop Motors Only:
Five feet of Super Bright White LED Lights. Can turn
on and off with control panel or remote controlls. Will
automatically shut off at 7 minutes.
Storage Cover:
We recommend our storage cover for your motor if you are
going to leave it sit outside during the winter months. Our
storage cover will breathe and let out moisture.
Recomended Hard Plastic Cover:
Helps protect the motor all summer long from rain and
other elements. Covers up the spinning gear head for
extra safety. Back of cover is left open so it doesn’t create
condensation. Cover ts Vertical and Horizontal units. Will
not t the PWC or Wheel Drive motor.
Plastic Battery Boxes for DC Units Only.
Plastic battery box that will t Group 24 and 27 series deep
cycle batteries. If your battery leaks for any reason, it will
help protect the boat from getting battery acid on it.
Charge Control Regulators For DC Units Only.
Perfect to keep your batteries from being over charged.
Over charged batteries can lead to problems and possible
battery explosion.
More infomation can be found at www.lifttechmarine.com

SEND THIS FORM AND YOUR RECEIPT TO :
CUST[email protected]
OR MAIL TO:
LIFT TECH MARINE
7958 HASTINGS ROAD
BAXTER, MN 56425
Warranty Card
*ALL WARRANTY CARDS MUST BE FILLED OUT WITHIN THE TIME FRAME AND HAVE A COPY OF
THE ORIGINAL PURCHASE RECEIPT TO BE VALID.
CIRCLE PRODUCT PURCHASED:
AC-PWC DC-PWC AC-WHEEL DRIVE DC-WHEEL DRIVE AC MANUAL DC MANUAL
AC REMOTE DC REMOTE AC AUTOSTOP DC AUTOSTOP
WINCHBOX AC MANUAL WINCHBOX AC REMOTE WINCHBOX DC MANUAL
WINCHBOX DC REMOTE WINCHBOX AC AUTOSTOP WINCHBOX DC AUTOSTOP
PURCHASED FROM:____________________________________________________
DATE OF PURCHASE:_______________
NAME: _____________________________________________________________
ADDRESS: __________________________________________________________
EMAIL:______________________________ PHONE:_________________________
LIFT TECH MARINE WARRANTS OUR MOTOR FROM DEFECTS IN MATERIALS AND
WORKMANSHIP UNDER NORMAL USE FOR A PERIOD OF 2 YEARS FROM THE DATE OF
PURCHASE. DURING THE WARRANTY PERIOD, LIFT TECH MARINE WILL REPAIR THE MOTOR IF
DEFECTIVE. THE WARRANTY IS LIMITED TO THE PURCHASER AND IS NOT TRANSFERABLE. THIS
WARRANTY IS VOID IF THE PRODUCT IS MODIFIED OR ALTERED BY ANYONE OTHER THAN LIFT
TECH MARINE, LLC.
FIND MORE INFROMATION ONLINE AT WWW.LIFTTECHMARINE.COM
*Must be filled out and sent to us
within 60 days of purchase along
with a copy of the original receipt
for warranty to be valid.
