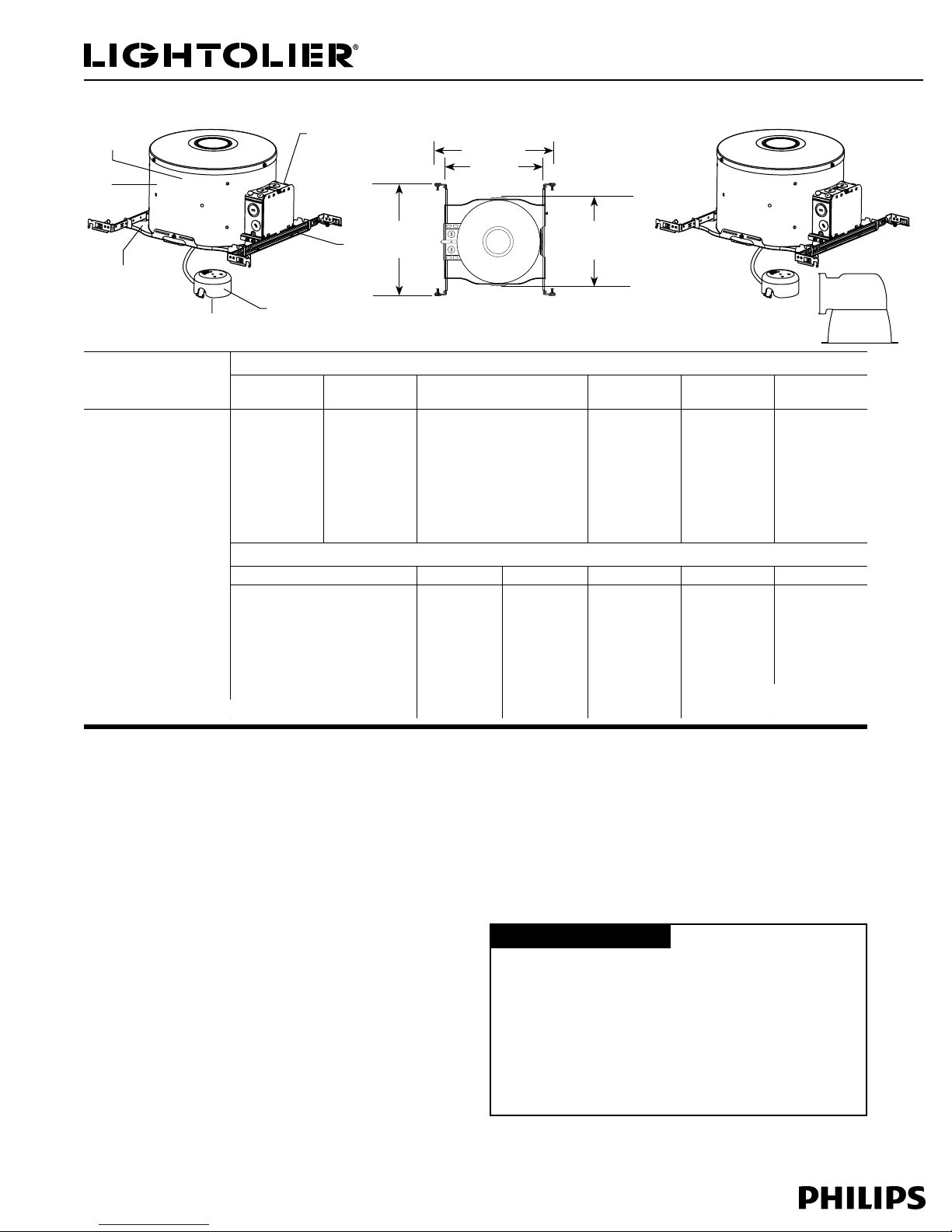

Performance Recessed CFL Downlighting 1101FDIC
Page 1 of 1 6 ¾" Aperture, 1 Light, Compact Fluorescent, IC AirSeal® , Frame-In Kit
1
2
3
4
5
6
7
Reflector Trim
Frame-in Kit
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe™
Frame-In Kit
Uniframe™Compact Fluorescent Performance Series Reflector Trims
Horizontal
Open
Horizontal Wall
Wash - Single
Horizontal Wet Location
Lensed / Diffused
Horizontal
Cross Blade
1101FDICMX1**
(Advance Mark 10- 120V)
1101FDICMX2**
(Advance Mark 10- 277V)
26w Quad/Triple
GX24q-3 Base
120v – 0.26amp max
277v – 0.11amp max
32w Triple
GX24q-3 Base
120v – 0.32amp max
277v – 0.14amp max
42w Triple
GX24q-4 Base
120v – 0.41amp max
277v – 0.18amp max
1101HCL
1101HCD
1101HWH
1101HCLSW
1101HCDSW
1101HWHSW
Clear Lens Fresnel
1101HCLC 1101HCLF
1101HCDC 1101HCDF
1101HWHC 1101HWHF
Opal Lens
1101HCLO
1101HCDO
1101HWHO
1101HACB
1101HWHCB
Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)
Cone Satin Cone Bafe Wall Wash Wet Location Cross Blade
1112* 1145
1113* 1146 / 1146CD
1113BK* 1143
1113WH 1144 / 1144CD
1113CD*
1108*
1110*
1105*
1105BNM
1105WH
1176
1176WH
1195
1196
1196CD
1121
1124
1134
1177SH
1178SH
1190
1132
Features
1. Housing: .028" (#21ga.) aluminum. UL listed for direct contact with thermal
insulation. AirSeal® housing minimizes air leakage to less than 2 CFM at 1.57
PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3) and
Washington State Energy Code (Section 502.4) and reduces heat loss and
condensation in ceiling. Access door for inspection of junction box.
2. Mounting Frame: .032 (#22 ga.) galvanized steel. Accommodates ceilings
up to 1 1/2" thick. 3/8" deep integral lip. Locks into position along length
of mounting bars with locking screw and bendable slot. Four slots are
positioned 90° apart to simplify alignment. Push-in/twist-out roto-clips hold
reflector flush to ceiling.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in) .032" (#22 ga.) galvanized steel. UL
listed for maximum of 8 (#12 ga.) 90°C through branch circuit conductors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16"
to 24" O.C. joist spacing. Bars can accommodate 12" O.C joist spacing after
a slight field modification (see Instruction Sheet). Features integral self
tapping phillips screws for secure attachment to wood or metal construction.
Attaches to T-bar ceilings without the need of accessories.
5. Ballast: Mounted inside housing. 120V or 277V UL Listed Electronic Dimming
Ballast, end of lamp life protection, class “P” thermally protected, class “A”
sound rating.
6. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18
AWM leads to ballast.
7. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to
reflector trim by spring clip for precise optic alignment.
Options & Accessories
Extra-Thick Ceiling
Mounting Ring: 1967B - 1 1/4" to 2" thick ceilings
Labels
cULus Listed (Type I.C., Suitable for Damp Location), I.B.E.W.
Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.
AirSeal® is a registered trademark of Lightolier
Top View
Overall Length
Ceiling Opening: 6 15/16"
Overall Width
10 3/8"
13 Min.
24" Max.
16 3/8"
12 1/4"
Height: 7 1/4"
*Add NM sufx to catalog number
for Natural Metal ange and nish.**Add N to catalog number for preset nails.
