LG Series
ARCHITECTURAL LED EDGE-LIT EXIT
Page 1 of 2
Job Information Type:
Job Name:
Cat. No.:
Notes:
Features
Illumination: Illumination of
the exit panel is accomplished
with the use of high-brightness
LEDs in an optical array
offering even illumination.
Average exit legend
illumination level is 25 fl
(79 cd/m2). Panel is available
in 6” or 8”, UL and NFPA
compliant lettering without a
change to the housing parts.
Housing: All housing
components are premium die-
cast aluminum construction. A
range of finishes are available
(see ordering information on
back). A bar hanger bracket
kit is standard for recessed
applications. The exit panel is
manufactured from high-impact
acrylic and silk-screened using
computer generated artwork.
All artwork meets UL and
NFPA standards for exit
signage. Universal self-stick
chevrons are standard. Panel
is available in 6” and 8” "EXIT"
legend heights. Universal
mounting configurations
include recessed ceiling mount,
surface ceiling mount, surface
end mount and surface wall
mount.
Operating Temperature
Range:
32°F (0°C) to 104°F (40°C)
Diagnostic Electronics
(standard): 120/277 VAC
dual voltage input with surge
protection is standard on all
AC models. For emergency
operation, the charging system
is microprocessor driven with
software embedded diagnostic
routine and temperature
compensation. 120/277 VAC
input, surge protection,
brownout, AC lockout and low
voltage disconnect features are
standard.
Self-Testing Diagnostics
(optional): The diagnostic/
charging platform with self-
testing mode automatically
runs a one-minute self-test
every 30 days and a 30-minute
test on the sixth and twelfth
month. A one-minute or
90-minute test may be initiated
via the push to test switch on
the unit or by activating the
appropriate test command on
the optional IR test device.
Electrical Specifications:
AC Only Red:
3.8 W (120 VAC), PF 0.96
3.8 W (277 VAC), PF 0.91
AC Only Green:
4.0 W (120 VAC), PF 0.95
4.0 W (277 VAC), PF 0.90
Self-Powered Red:
4.7 W (120 VAC), PF 0.95
4.8 W (277 VAC), PF 0.97
Self-Powered Green:
4.7 W (120 VAC), PF 0.95
4.7 W (277 VAC), PF 0.99
Code Compliance
UL 924 and UL damp location
listed. NFPA 101, NEC, BOCA,
OSHA and IBC illumination
standards. Meets ADA
specifications for wall mounted
lighting fixtures. Certified
to the California Energy
Commission in accordance
with California law. NEMA
Premium certified.
Warranty
Five-year full electronics
warranty. Five-year full plus
five-year prorated battery
warranty.

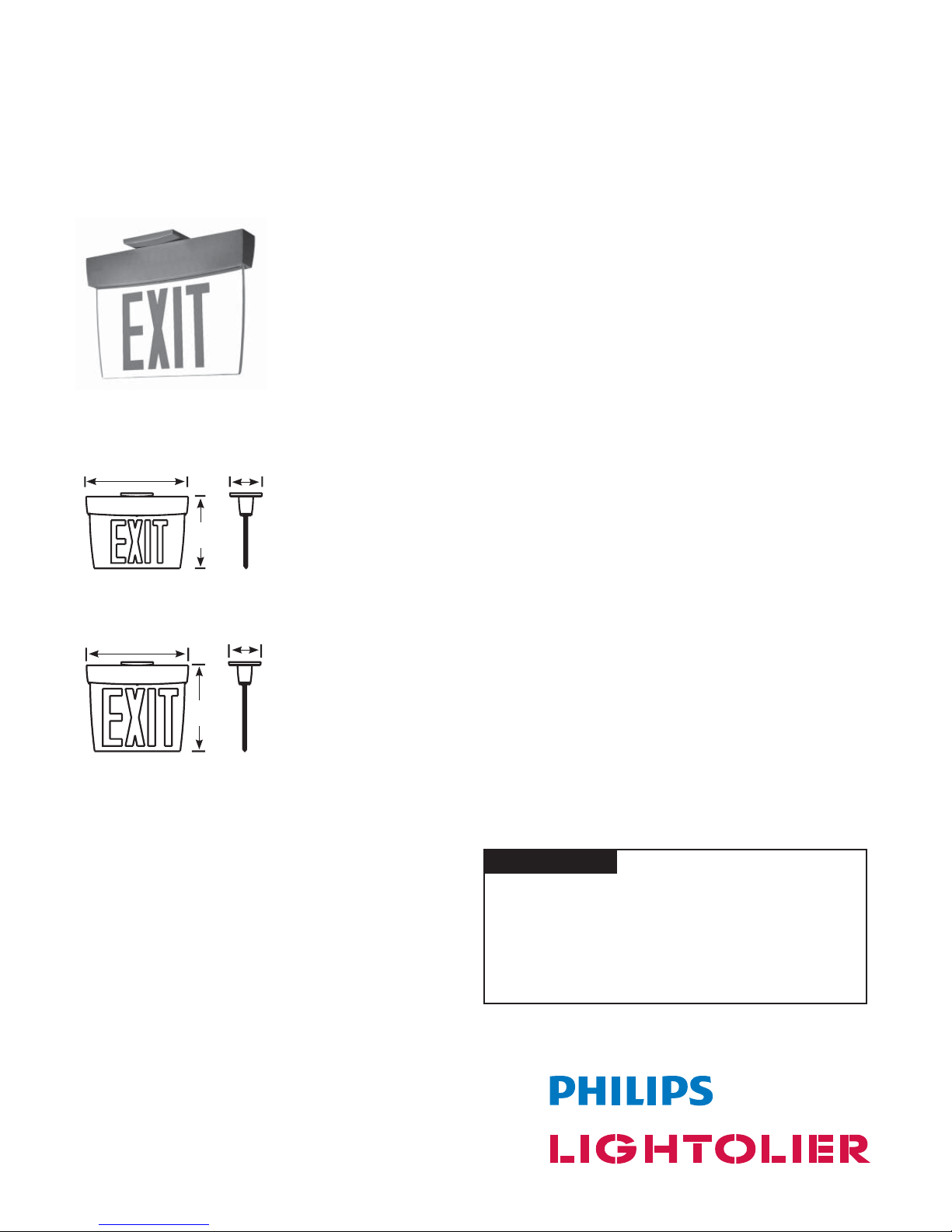

14.25"
(36.19 cm)
LGN1RCBRSD2
4.5"
(11.43 cm)
10.1"
(25.43 cm)
14.25"
(36.19 cm)
4.5"
(11.43 cm)
12.01"
(30.51 cm)
6" Surface Ceiling Mount
8" Surface Ceiling Mount

LG Series
ARCHITECTURAL LED EDGE-LIT EXIT
Page 2 of 2
Philips Lightolier
e: [email protected]
t: [phone]
w: www.lightolier.com
LG Series August 10, 2011
Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2011.All rights reserved.
Job Information Type:
Ordering Information
Series
LG =
Architectural
Edge-Lit Exit
Blank = AC Only
SD2 = Diagnostic
Electronics
(required with
nickel cadmium
models)
Model Designator1
Note
1) For self-testing models refer to options.
2) Some options may impact the UL listing. Consult factory for specifics.
3) Required model number for units with back boxes installed on the job.
4) Order when panels are not required at time of installation. Consult factory for edge-lit panel order number.
5) Clear background only available on single face.
2CKT1 = Two-Circuit 120/120 VAC (AC-only models)
2CKT2 = Two-Circuit 277/277 VAC (AC-only models)
BF = Buzzer/Flasher (self-powered models only)
BZ = Buzzer (self-powered models only)
DC = 12-48 VDC Input (AC only models)
EX = Special Input Transformer (specify voltage &
frequency)2
FA = Fire Alarm Activated Flasher
FL = Flasher (self-powered models only)
LBB = Unit-Less Backbox3
NY8 = 8" Letters
T= Self-Testing Diagnostics (non-audible)
TA = Audible Self-Testing Diagnostics
SW = Special Wording (consult factory)2
Factory Installed Options
Accessories (order as a separate item)
SDREMOTE = Infrared Remote Test Device
BBKIT = Backbox Rough-In Kit** (must order remainder of
product with LBB suffix)
BBKITDC = Backbox Rough-In Kit with DC Option
BBKIT2CKT1 = Backbox Rough-In Kit with 2CKT1 Option
BBKIT2CKT2 = Backbox Rough-In Kit with 2CKT2 Option
PKIT12W = Pendant Kit, 12” White Finish*
PKIT12B = Pendant Kit, 12” Black Finish*
A= AC Only
N= Nickel
Cadmium
Battery
A= Brushed
Aluminum
B= Black
W= White
N= Nickel
G= Gunmetal
BR = Ornamental
Bronze
AC = Aged Copper
VG = Velvet Green
GR = Granite
PA = Painted
Aluminum
Housing Finish
LG
1= Single
2= Double
X= Less
Panel4
# of Faces
RC = Red/Clear5
GC = Green/Clear5
RW = Red/White
GW = Green/White
RM = Red/Mirror
GM = Green/Mirror
Letter/Background
*Custom pendant lengths and colors available, consult factory.
**BBKIT supplied with a clear coat finish for installation above a finished ceiling
17.25"
(43.81 cm)
4.0"
(10.16 cm)
17.25"
(43.81 cm)
4.0"
(10.16 cm)
6" Recessed Ceiling Mount
8" Recessed Ceiling Mount
14.74"
(37.44 cm)
4.5"
(11.43 cm)
14.74"
(37.44 cm)
4.5"
(11.43 cm)
6" Surface End Mount
8" Surface End Mount
14.25"
(36.19 cm)
2.49"
(6.325 cm)
14.25"
(36.19 cm)
2.49"
(6.325 cm)
6" Surface Wall Mount
8" Surface Wall Mount
7.28 "
(18.49 cm)
9.28"
(23.57 cm)
10.1"
(25.43 cm)
12.01"
(30.51 cm)
11.11"
(28.22 cm)
13.11"
(33.3 cm)
11.11"
(28.22 cm)
13.11"
(33.3 cm)
10.1"
(25.43 cm)
12.01"
(30.51 cm)
