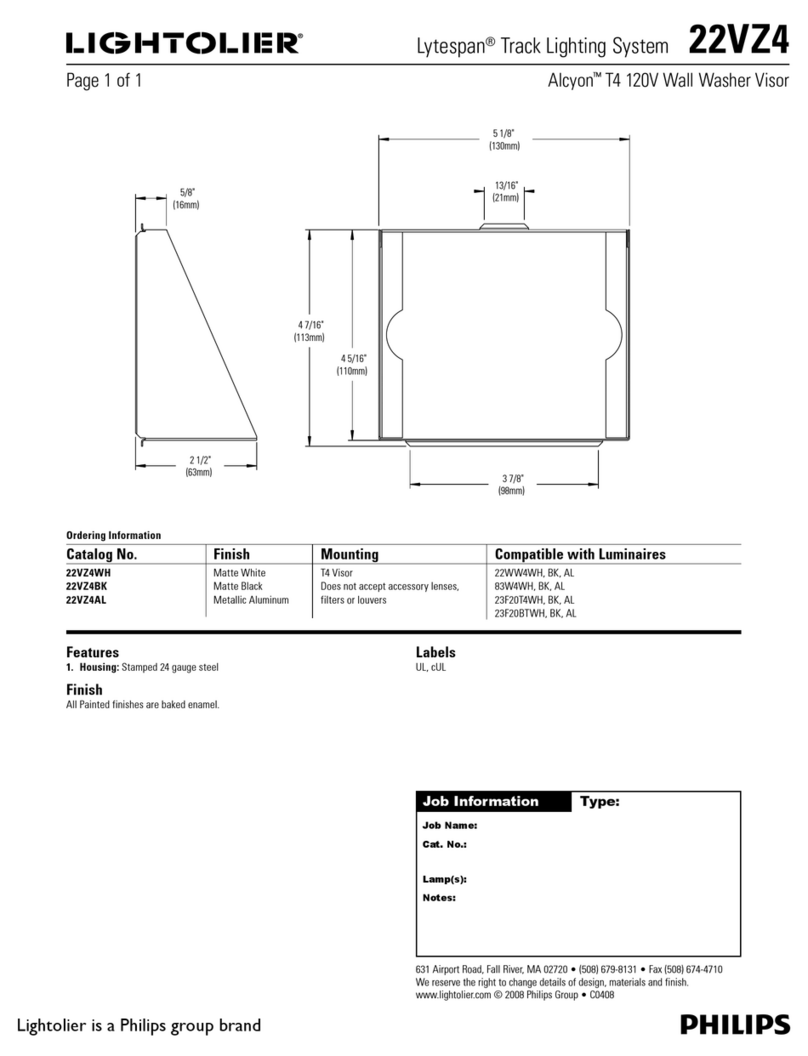

Lightolier Lytespan 22VZ4 User manual

Lightolier

Lightolier Lytespan 22VZ4 User manual

Lightolier 1101HCB User manual

Lightolier

Lightolier 1101HCB User manual

Lightolier SLOITED GRID CEILING CLIPS User manual

Lightolier

Lightolier SLOITED GRID CEILING CLIPS User manual

Lightolier mounting frame for insulated celing User manual

Lightolier

Lightolier mounting frame for insulated celing User manual

Lightolier Lytecaster 1104F18ESR User manual

Lightolier

Lightolier Lytecaster 1104F18ESR User manual

Lightolier Concept Elegance Lens User manual

Lightolier

Lightolier Concept Elegance Lens User manual

Lightolier Lytespan 8273B User manual

Lightolier

Lightolier Lytespan 8273B User manual

Lightolier Lytecaster 1152 User manual

Lightolier

Lightolier Lytecaster 1152 User manual

Lightolier Lytecaster 1102TH1R User manual

Lightolier

Lightolier Lytecaster 1102TH1R User manual

Lightolier 1004F13ESR User manual

Lightolier

Lightolier 1004F13ESR User manual

Lightolier 1003R User manual

Lightolier

Lightolier 1003R User manual

Lightolier AF2FR User manual

Lightolier

Lightolier AF2FR User manual

Lightolier Lytespan ATTACHMENT User manual

Lightolier

Lightolier Lytespan ATTACHMENT User manual

Lightolier POWER EXTENSION CONNECTOR User manual

Lightolier

Lightolier POWER EXTENSION CONNECTOR User manual

Lightolier Lytespan MHT4RS User manual

Lightolier

Lightolier Lytespan MHT4RS User manual

Lightolier 1001HL User manual

Lightolier

Lightolier 1001HL User manual

Lightolier IS_CD7-STEM Instruction Manual

Lightolier

Lightolier IS_CD7-STEM Instruction Manual

Lightolier ZYLINDER GLAS Guide

Lightolier

Lightolier ZYLINDER GLAS Guide

Lightolier IS-CL User manual

Lightolier

Lightolier IS-CL User manual

Popular Accessories manuals by other brands

Quincy lab 140AE-1 operating manual

Quincy lab

Quincy lab 140AE-1 operating manual

HomePro ZIR000 user manual

HomePro

HomePro ZIR000 user manual

DOL 20SCR Technical user guide

DOL

DOL 20SCR Technical user guide

RAB Smart Task installation manual

RAB

RAB Smart Task installation manual

Kemppi KMS 300 quick guide

Kemppi

Kemppi KMS 300 quick guide

Stearns 57,500 Series Installation and service instructions

Stearns

Stearns 57,500 Series Installation and service instructions

iGuzzini TWILIGHT COPENAGHEN manual

iGuzzini

iGuzzini TWILIGHT COPENAGHEN manual

Adelaide Annexe & Canvas Avan Deluxe installation guide

Adelaide Annexe & Canvas

Adelaide Annexe & Canvas Avan Deluxe installation guide

OHAUS 5000 instruction manual

OHAUS

OHAUS 5000 instruction manual

HOME8 WLS1300 quick start guide

HOME8

HOME8 WLS1300 quick start guide

MAXBOTIX MaxSonar quick start guide

MAXBOTIX

MAXBOTIX MaxSonar quick start guide

ioSmart iSmart56 Installation and user guide

ioSmart

ioSmart iSmart56 Installation and user guide

Focusrite Scarlett 18i8 user guide

Focusrite

Focusrite Scarlett 18i8 user guide

Velleman ED38105 user manual

Velleman

Velleman ED38105 user manual

JumpSport SkyBounce user manual

JumpSport

JumpSport SkyBounce user manual

Prima-Temp PRIYA Instructions for use

Prima-Temp

Prima-Temp PRIYA Instructions for use

Tefcold BC85I-BC85I W user manual

Tefcold

Tefcold BC85I-BC85I W user manual

Vaisala WMS302 user guide

Vaisala

Vaisala WMS302 user guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0310
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lytespan® Track Lighting System  23C39MR
Page 1 of 2 Alcyon HID 39W CMH MR16 Cylinder
Ordering Information
Catalog No.  Finish  Mounting  Lamps
23C39MRAL  Aluminum For use with Lytespan Radius, Basic and Advent 39W MR16 GX10 Base Ceramic Metal Halide
23C39MRBK  Black Track. Not compatible with extension wands or
23C39MRWH  White slope ceiling adapters. For monopoint applications
refer to spec sheet 6172.
Features
1.  Track Attachment Fitting: Locking lever for mechanical/
electrical connection.
2.  Brass Contact: Extends for connection to second circuit (Advent track only).
3.  Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.
Position may be locked using an allen key.
4.  Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position
may be locked using an allen key.
5.  Fixture Housing: Die cast aluminum
6.  Ballast Housing: Molded polycarbonate
7.  On/Off Switch: Rocker switch to disconnect power to the ballast.
8.  Accessory Cartridge: Hinged and captive; retaining ring included. Inside
painted black to reduce glare.
9.  Safety Locking Lever: Locks ballast housing to track.
Finish
All Painted finishes are baked enamel.
Accessories
Accessory Holder: Integral
Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.
Lens: AF25, ADF25 Series
Louver: AL25HC
Electrical
Electronic Ballast
Input Voltage: 120V, 50/60Hz
Power Factor: .9
Input Power: 45W
Max. Input Current: 0.40A
ANSI Code: C(M)130
Do not use on dimming circuit.
Labels
UL, cUL
7 13/16"
[199 mm]
3 7/8"
[98 mm]
6 5/8"
[168 mm]
1 1/2"
[38 mm]
7"
[178 mm]
1/4"
[6 mm]
6 5/16"
[160 mm]
3 5/16"
[84 mm]
3 1/16"
[ 78 mm]
1 1/16"
[27 mm]
1 15/16"
[50 mm] 2
7
9
6
8
5
4
3
1
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0310
Lytespan® Track Lighting System  23C39MR
Page 2 of 2 Alcyon HID 39W CMH MR16 Cylinder
5,500 10,000
GE CMH39MR16/930FL
25°
16,000 10,000
GE CMH39MR16/930SP
12°
  D  FC  L  W   D  C  FC  L  W   D  C  FC  L  W   D  C  FC  L  W
Lamp 
Beam Spread CBCP Rated
(To 50% CBCP) Life (Hrs.)
Aiming Angle:  0°  30° Horizontal  30° Vertical  45° Vertical 
L Beam length D Distance
W Beam Width A Aiming Angle
C Distance to center beam FC Footcandles
L and W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manu-
facturers for availability and performance.
CBCP = Center Beam Candle Power.
6' 1.7' 397 1.8' 1.5'
8' 2.9' 143 3.0' 2.6'
10' 4.0' 73 4.2' 3.6'
12' 5.2' 44 5.4' 4.6'
3' 5.2' 76 6.2' 2.7'
4' 6.9' 43 8.3' 3.5'
5' 8.7' 28 10.4' 4.4'
6' 10.4' 19 12.5 5.3'
3' 1.0' 1945 0.9' 0.6'
4' 2.0' 486 1.9' 1.3'
5' 3.0' 216 2.8' 1.9'
6' 4.0' 122 3.7' 2.5'
6' 344 1.8' 1.8'
8' 153 2.7' 2.7'
10' 86 3.5' 3.5'
12' 55 4.4' 4.4'
8' 1.7' 1155 0.8' 0.7'
10' 2.9' 416 1.4' 1.2'
12' 4.0' 212 2.0' 1.7'
14' 5.2' 128' 2.5' 2.2'
3' 5.2' 222 2.6' 1.3'
4' 6.9' 125 3.5' 1.7'
5' 8.7' 80 4.3' 2.1'
6' 10.4' 56 5.2' 2.5'
3' 1.0' 5657 0.4' 0.3'
4' 2.0' 1414 0.9' 0.6'
5' 3.0' 629 1.3' 0.9'
6' 4.0' 354 1.7' 1.2'
8' 1000 0.8 0.8'
10' 444 1.3' 1.3'
12' 250 1.7' 1.7'
14' 160 2.1' 2.1'
3,000 10,000
GE CMH39MR16/930W
40°
6' 3.5' 54 6.1' 5.0'
8' 4.6' 30 8.1' 6.7'
10' 5.8' 19 10.2' 8.4'
12' 6.9' 14 12.2' 10.1'
2' 3.5' 94 9.7' 2.9'
3' 5.2' 42 14.5' 4.4'
4' 6.9' 23 19.3' 5.8'
5' 8.7' 5 24.2' 7.3'
2' 2.0' 265 3.4' 2.1'
3' 3.0' 118 5.0' 3.1'
4' 4.0' 66 6.7' 4.1'
5' 5.0' 42 8.4' 5.1'
6' 83 4.4' 4.4'
8' 47 5.8' 5.8'
10' 30 7.3' 7.3'
12' 21 8.7' 8.7'
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reflector "warms" the beam to 2700K.
