Lightolier Lytecaster 1113T User manual

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • G0711
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lytecaster®Recessed Downlighting 1113T
Page 1 of 2 6 3/4" Aperture Low Profile Open Reflector Reflector Trim
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Fluorescent
Frame-In Kit Installation Type Lamping Height
1113TCL 1102T1 Non-IC 2 Lamp 13W Twin Tube 3 7/8”
Clear Specular 1102TH1 Non-IC Compact Fluorescent 3 7/8”
1102TH2 Non-IC (Gx23) 2 Pin Base 3 7/8”
1113TGD 1102TM1 Non-IC Emergency 3 7/8”
Gold Specular 1102TM2 Non-IC Emergency 3 7/8”
1102TH1R Non-IC 3 7/8”
1102T13U Non-IC 2 Lamp 13W Quad Tube 3 7/8”
Compact Fluorescent
(G24q-1) 4 Pin Base
1102T18U Non-IC 2 Lamp 18W Quad Tube 3 7/8”
Compact Fluorescent
(G24q-2) 4 Pin Base
1102T26U Non-IC 2 Lamp 26W Quad Tube 3 7/8”
Compact Fluorescent
(G24q-3) 4 Pin Base
1113T/1102T Series
Features
1. Reflector: Hydroformed aluminum, 18 ga.; white gloss finish on inside and
trim flange.
2. Cone: Hydroformed aluminum, specular finish.
3. Frame-In Kit: (1102T1 standard frame shown; other frames listed above.)
See Frame-In Kit specification sheet for more details.
Options & Accessories
Lytegems: See 1300 Series or 1400 Series
Specification Sheets.
Accessory Cones: 1550 - Matte Black Step Baffle
1550 - CL, GD, BK, BA, BG, WH, CD
Retaining Clips: 1955 - For installing in existing ceiling
Extra Wide Flange Trim Ring: 1954 - 8-7/8” O.D.
Plaster Ring: 1961
Labels
UL (Suitable for Damp Locations and wall), I.B.E.W.

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • G0711
Lytecaster®Recessed Downlighting 1113T
Page 2 of 2 6 3/4" Aperture Low Profile Open Reflector Reflector Trim
Job Information Type:
CERTIFIED TEST REPORTED NO. 0149FR
COMPUTED BY LSI PROGRAM **TEST-LITE**
RECESSED LYTECASTER DOWNLIGHT
6 1/2” DIA. APERTURE, SPECULAR CLEAR CONE
TWO 26W QUAD TUBE 2 PIN LAMPS. LUMEN RATING = 1800 LMS.
TESTED ACCORDING TO IES PROCEDURES.
TEST DISTANCE EXCEEDS FIVE TIMES THE
GREATEST LUMINOUS OPENING OF
LUMINAIRE.
ZONE LUMENS % LAMP % LUMINAIRE
0–30 609 16.92 37.23
0–40 1018 28.29 63.23
0–60 1553 43.16 95.47
0–90 1610 44.73 100.00
40–90 592 16.45 36.77
60–90 56 1.58 3.53
90–180 0 0.00 0.00
0–180 1610 44.73 100.00
** EFFICIENCY = 44.7% **
ZONAL LUMENS AND PERCENTAGES

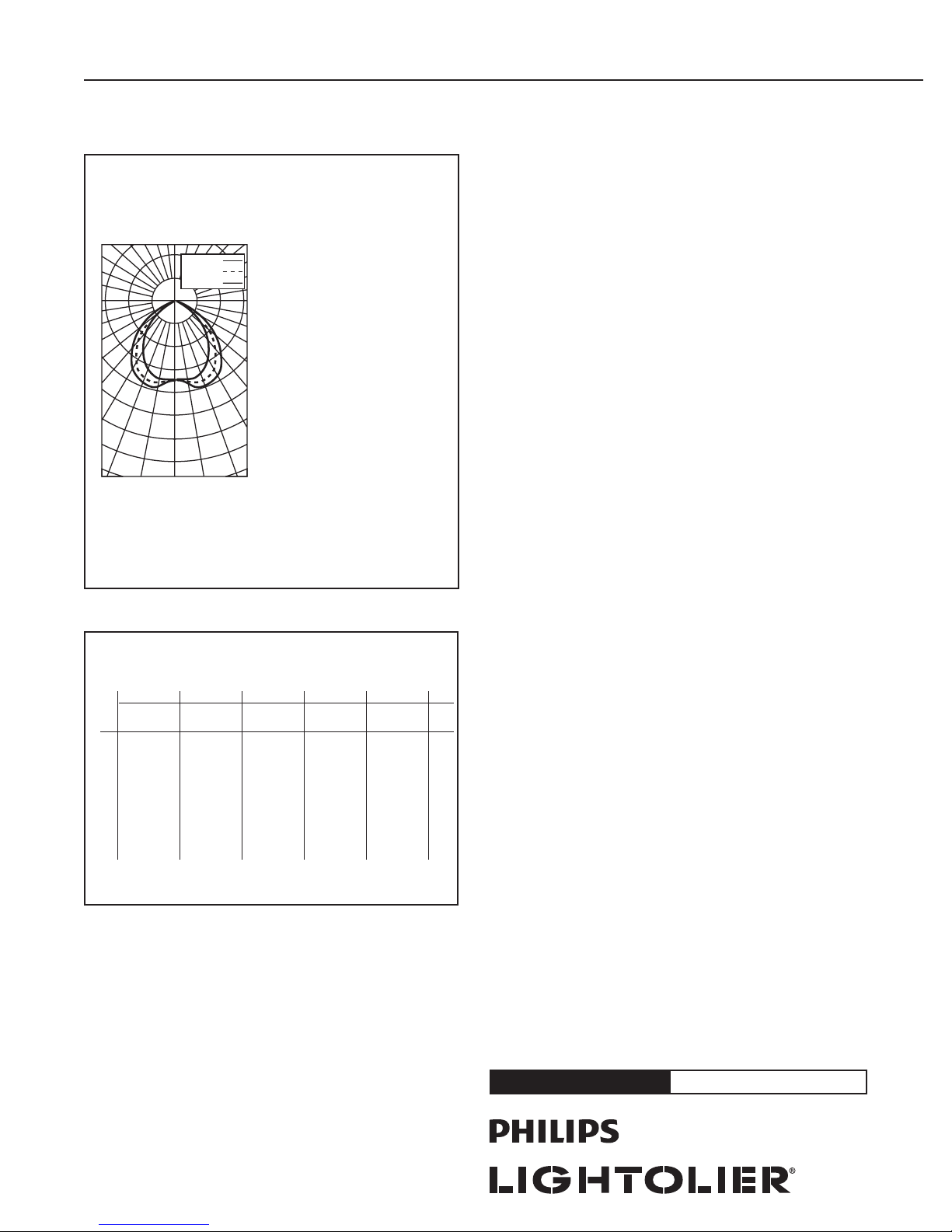

CANDLEPOWER SUMMARY
ANGLE ALONG 22.5 45 67.5 ACROSS LUMENS
0 685 685 685 685 685
5 588 685 684 690 708 33
10 690 694 702 720 742
15 689 700 730 759 789 103
20 683 704 754 774 818
25 681 710 754 759 800 171
30 677 707 726 735 757
35 626 674 695 585 697 211
40 649 602 623 623 645
45 433 488 510 522 543 191
50 301 344 363 374 390
55 168 209 216 216 209 97
60 71 93 98 94 89
65 23 36 38 36 34 21
70 8 13 10 10 10
75 6 7 7 6 5 4
80 4 6 7 7 4
85 4 4 8 8 4 3
90 4 5 7 8 4
SPACING RATIO = 1.5
ACROSS
45
ALONG
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50 30 10 0
0
.41
.37
.33
.30
.27
.24
.21
.19
.17
.15
ROOM CAVITY RATIO
20% FLOOR CAVITY REFLECTANCE
Conversion factors: 18W Quad Tube, C.U. x 1.0
13W Twin Tube, C.U. x 1.2
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10
1 .49 .47 .46 .48 .47 .45 .46 .45 .44 .44 .43 .43 .43 .42 .41
2 .45 .43 .41 .44 .42 .40 .42 .41 .39 .41 .40 .39 .40 .39 .38
3 .42 .38 .36 .40 .38 .36 .39 .37 .35 .38 .36 .35 .37 .35 .34
4 .37 .34 .32 .37 .34 .32 .36 .33 .32 .35 .33 .31 .34 .32 .31
5 .34 .31 .29 .34 .31 .29 .33 .30 .28 .32 .30 .28 .31 .29 .28
6 .31 .28 .26 .31 .28 .25 .30 .27 .25 .29 .27 .25 .29 .27 .25
7 .28 .26 .23 .28 .25 .22 .27 .24 .22 .27 .24 .22 .26 .24 .22
8 .26 .22 .20 .25 .22 .20 .25 .22 .20 .24 .22 .20 .24 .21 .20
9 .23 .20 .18 .23 .20 .18 .23 .20 .18 .22 .19 .18 .22 .19 .17
10 .21 .18 .16 .21 .18 .16 .20 .18 .16 .20 .17 .16 .20 .17 .15
% WALL REFLECTANCE
400
800
1200
