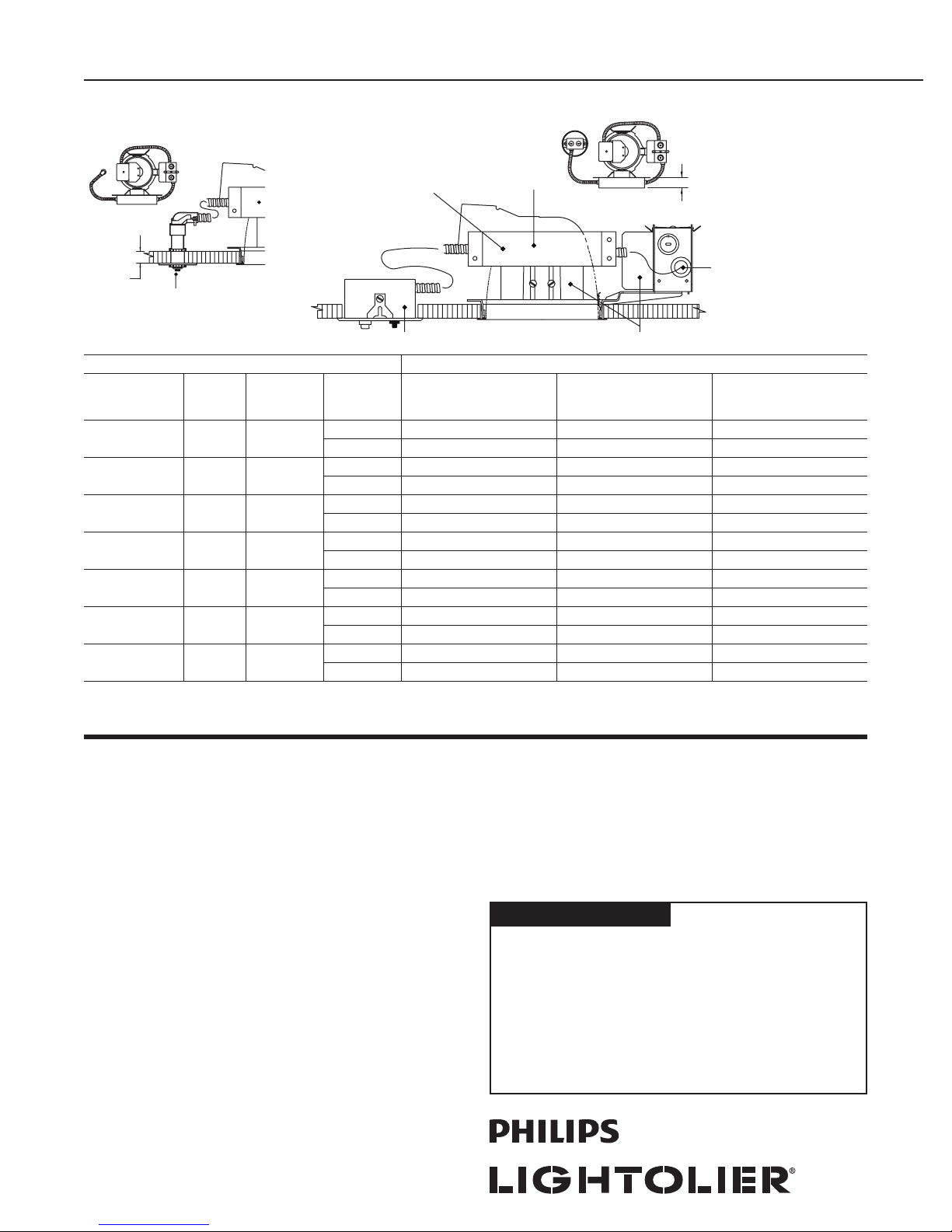

Calculite®Recessed Fluorescent Downlight FA-EM
Page 1 of 1 Emergency Lighting Battery Pack Fluorescent Accessory
Add 1 1/2” to standard
Frame-In Kit
(This side only)
Top View
1
2
45
3
FAEM1T
FAEM2T
FAEM3E
1 1/2” Max.
Ceiling Thk.
Top View
4
FAEM4E
Features
General Description: Accessory Kit attaches in the field to standard compact
fluorescent downlights to provide emergency downlighting from readily available
modular components.
1. Battery Pack: Provides 90 minute emergency lighting when AC power fails.
Fully encased, long-life nickel cadmium; may be replaced from below; charges
from 120 and 277VAC. Meets National Electrical and Life Safety Codes.
2. Battery Pack Support Bracket: Snaps onto Frame-In Kit mounting bracket.
3. Stab-In Connectors: Ballast and lamp leads stab into quick connector
simplifying installation and service.
4. Test Switch and Charge Light: (FAEM1T, FAEM2T, FAEM3E) Included in
easy-to-install recessed switch box. May be remoted to closet or cabinet (up
to 50’ away) if desired. Matte white, 4 1/2” diameter canopy.
FAEM4E Includes one piece test switch and charge light with 2 3/4” dia.
matte white cover plate; installs in ceiling or in optional reflectors (consult
factory).
5. Frame-In Kit/Reflector Trim: Use standard Calculite compact fluorescent
Frame-In Kit and Reflector Trim as desired.
Labels
UL Listed for indoor dry locations. Not approved for Chicago Plenum
Compatibility Matrix Lumen Output with Battery Pack
Lamp Base Ballast Specify 1-Light Fixture 2-Light Fixture
Both Lamps On
2-Light Fixture
One Lamp On
13W Quad, 4-pin G24q-1 Electronic FAEM3E 350 425 ---
FAEM4E 350 400 ---
18W Quad, 4-pin G24q-2 Electronic FAEM3E 475 575 ---
FAEM4E 350 550 ---
26W Quad, 4-pin G24q-3 Electronic FAEM3E 600 700 ---
FAEM4E 425 --- 425
18W Triple, 4-pin GX24q-2 Electronic FAEM3E 300 525 ---
FAEM4E 350 550 ---
26W Triple, 4-pin GX24q-3 Electronic FAEM3E 450 725 ---
FAEM4E 425 --- 425
32W Triple, 4-pin GX24q-3 Electronic FAEM3E 575 750 ---
FAEM4E 600 --- 600
42W Triple, 4-pin GX24q-4 Electronic FAEM3E 750 --- 750
FAEM4E 750 --- 750
FAEM3E is only compatible to wire both lamps on up to 2-32W.
FAEM4E is only compatible to wire both lamps on up to 2-18W.
