ProSpec™120V/277V Track Lighting 37109
Page 1 of 2 Mini HID, Cylinder, 20W T4 CMH

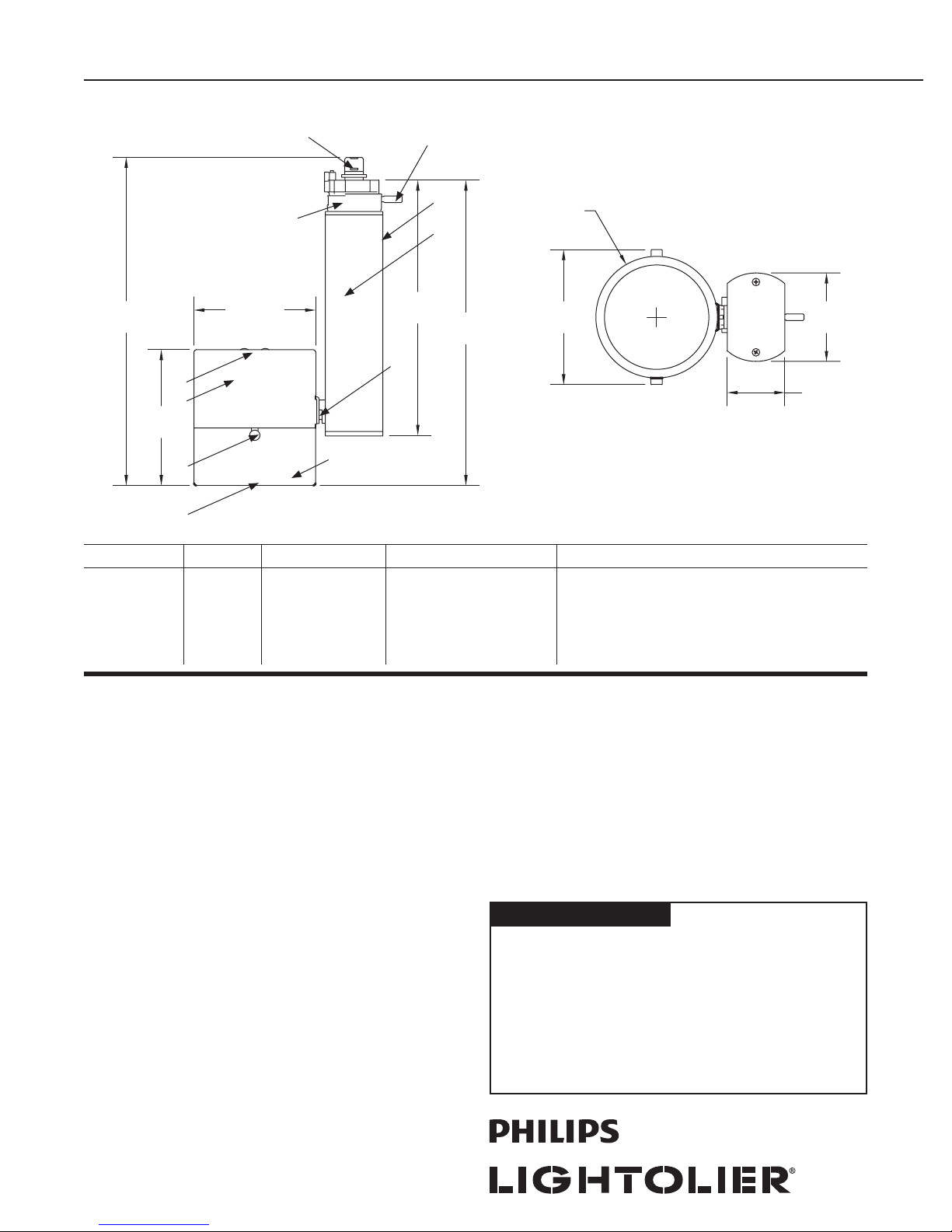

Features
1. Track Attachment Fitting: Molded polycarbonate, rotates into track.
2. Locking Lever: Steel pin. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum.
4. Ballast Housing: Extruded aluminum housing with die-cast aluminum
end caps.
5. Ballast: Electronic HID.
6. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical
rotation with tensioned mounts for controlled aim.
7. Lamp Housing: 0.04" (1.02mm) aluminum.
8. Lampholder: GU6.5 base ceramic body socket with nickel-plated contacts.
18 AWG leads with fiberglass outer sleeve (inside of housing).
9. Protective Glass: 0.13" (3.18mm) tempered glass.
10.Cover Housing: 0.04" (1.02mm) aluminum.
11. Knobs: Painted steel knurled knob secures cover to housing.
Accessories
Holder: 8195, holds one accessory
Diffusion/ Special Filters: AF25 series
Color Filters: ADF25 series
Accessories not requiring 8195 holder
AL35HC HEX Cell Louver
ALF35FR Frosted Softening Lens
Electrical
Electronic Ballast (Thermally Protected)
Input Voltage: 120V/277V Total Harmonic Distortion: <10%
Power Factor: >0.99 ANSI Code: M (C) 156
Input Power: 24W Do not use on dimming circuit
Max Input Current: 0.20A@120V/0.09A@277V
Finish
All painted finishes are baked powder or enamel.
Markings
UL, cUL
8 5/8
[219 mm]"
3 27/32
[97 mm]"
9 9/32
[235 mm]"
7 7/32
[183 mm]"
3 7/16
[87 mm]" 2 1/2
[64 mm]"
1 5/8
[41 mm]"
3 13/16
[97 mm]"
3 7/16
[ 87 mm]"
Catalog No. Finish Mounting Lamp Reflectors (Sold Separately)
37109WH
37109BK
White
Black
ProSpec®120V/277V
track systems only.
20W T4 CMH (M156) GU6.5 Base
Not included
24MHT4RS Clear spot reflector
24MHT4RNF Clear narrow flood reflector
24MHT4RF Clear flood reflector
24MHT4RSCCZ Champagne Bronze spot reflector
24MHT4RNFCCZ Champagne Bronze narrow flood reflector
24MHT4RFCCZ Champagne Bronze flood reflector
12
35
4
6
7
8
9
11
10

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0709
ProSpec™120V/277V Track Lighting 37109
Page 2 of 2 Mini HID, Cylinder, 20W T4 CMH
8558 9000
GE CMH20T/GU6.5
14°
Lamp
Beam Spread CBCP Rated
(To 50% CBCP) Life (Hrs.)
Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical
L Beam length DDistance
W Beam Width AAiming Angle
CDistance to center beam FC Footcandles
Land W are the outer points where the candle
power drops to 50% of the maximum. FC are the
initial footcandles at the center of the beam.
Lamp data shown is typical. Consult lamp manu-
facturers for availability and performance.
CBCP = Center Beam Candle Power.
D FC L W D C FC L W D C FC L W D C FC L W
10' 5.8' 115 2.3' 2.0'
12' 6.9' 80 2.8' 2.4'
14' 8.1' 59 3.3' 2.8'
16' 9.2' 45 3.7' 3.2'
5' 5.0' 251 1.8' 1.2'
6' 6.0' 175 2.1' 1.5'
7' 7.0' 128 2.5' 1.7'
8' 8.0' 98 2.8' 2.0'
4' 6.9' 139 2.9' 1.4'
5' 8.7' 89 3.6' 1.7'
6' 10.4' 62 4.3' 2.1'
7' 12.1' 45 5.0' 2.4'
10' 178 1.7' 1.7'
12' 123 2.1' 2.1'
14' 91 2.4' 2.4'
16' 69 2.8' 2.8'
Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reector "warms" the beam to 2700K.
D FC L W D C FC L W D C FC L W D C FC L W
10' 5.8' 115 2.3' 2.0'
12' 6.9' 80 2.8' 2.4'
14' 8.1' 59 3.3' 2.8'
16' 9.2' 45 3.7' 3.2'
5' 5.0' 251 1.8' 1.2'
6' 6.0' 175 2.1' 1.5'
7' 7.0' 128 2.5' 1.7'
8' 8.0' 98 2.8' 2.0'
4' 6.9' 139 2.9' 1.4'
5' 8.7' 89 3.6' 1.7'
6' 10.4' 62 4.3' 2.1'
7' 12.1' 45 5.0' 2.4'
10' 178 1.7' 1.7'
12' 123 2.1' 2.1'
14' 91 2.4' 2.4'
16' 69 2.8' 2.8'
