Lightolier ProSpec Track Lighting FIXTURE User manual

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTRUCTION SHEET NO.
IS:26556MPC
0798 Page 1 of 2
INSTALLATION INSTRUCTIONS FOR ATTACHING AND OPERATING
ProSpec™TRACK LIGHTING FIXTURE. FOR PIPE CLAMP MOUNT.
LIGHTOLIER a GENLYTE company.
631 Airport Road, Fall River, MA 02720
Pipe clamp will fit on the following Pipes:
Round pipe from 3/4” to 1 1/2” nominal pipe size.
NOTE: 3/4” pipe has an actual outside diameter of 1.05”.
1 1/2” nominal pipe has actual outside diameter of 1.90”
1. Loosen CLAMP SCREW enough to allow pipe to fit in
CLAMP.
2. Hang FIXTURE on pipe.
3. Tighten CLAMP SCREW to pipe.
4. Wrap SAFETY CABLE around pipe. Bend “S” HOOK closed
around CABLE.
NOTE: The proper LAMP should be installed into the
FIXTURE prior to energizing. See instructions below.
INSTRUCTIONS FOR ATTACHING FIXTURE TO A
PIPE (Fig. 1)
CAUTION:
• Turn off power at fuse box before plugging fixture into outlet.
• Fixture temperature is extremely high during operation. Use heat resident gloves or other heat resistant materials to pro-
tect hands when adjusting or handling the fixture during operation.
• Do not install fixture near combustible materials.
• Fixture is not for residential use.
The following lamps may be used in the FIXTURE:
Fixture Cat. No. 26556M, WHPC, BKPC
Lamp 12 Volt PAR 56 Screw Terminal
120 to 240 Watt
1. Holding SNOOT loosen ACCESS KNOB a few turns until
SNOOT opens.
2. Screw SPADE TERMINALS into LAMP TERMINALS.
3. Align 3 LAMP BOSSES with 3 RING NOTCHES. Align
LAMP SCREW TERMINALS with LAMP ALIGNMENT
BRACKET. Push LAMP into FIXTURE until LAMP SPRINGS
hold LAMP.
NOTE: The 3 LAMP BOSSES must sit in the 3 RING
NOTCHES after the LAMP is installed.
4. Removing LAMP: Snap LAMP out of LAMP SPRINGS.
Unscrew LAMP TERMINALS.

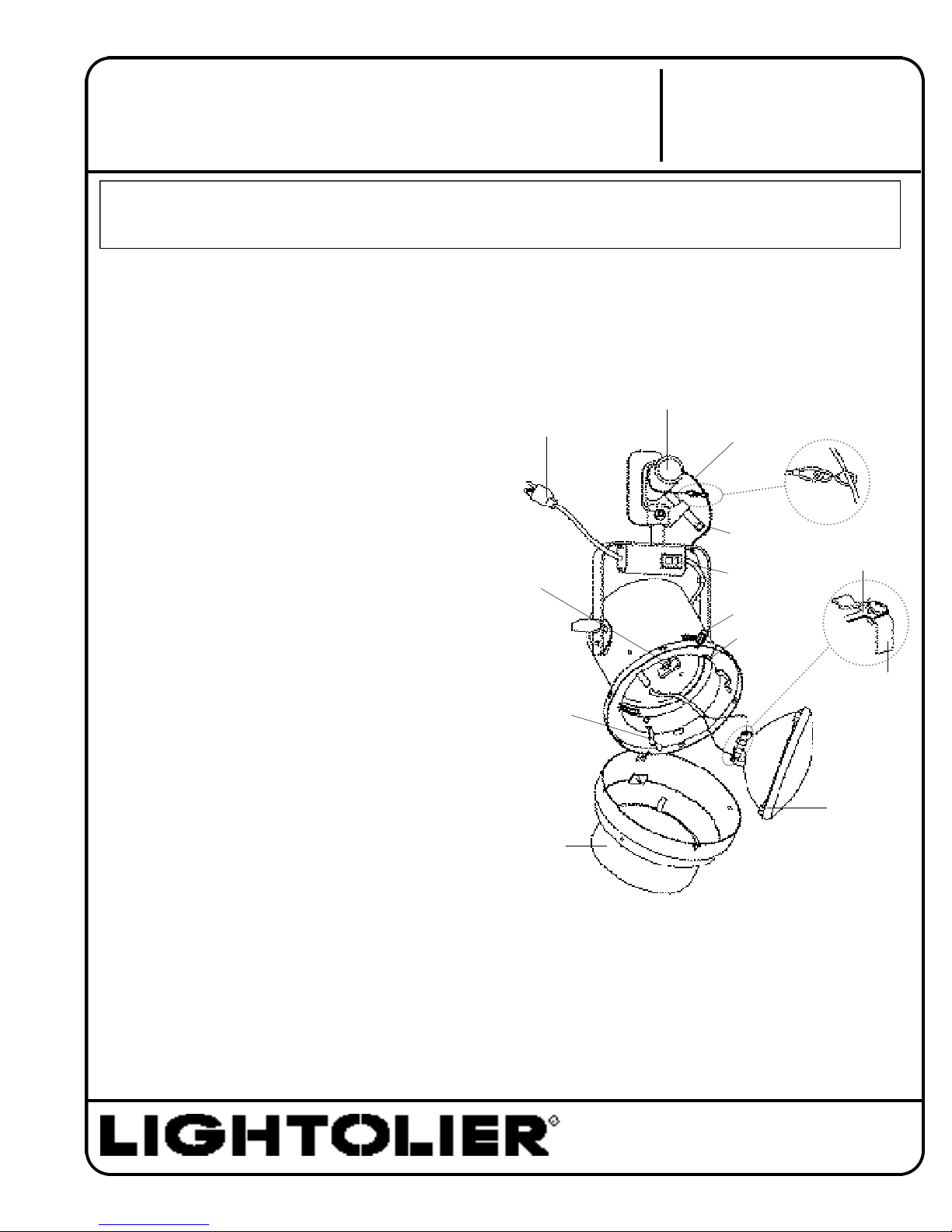

LAMPING & USING ACCESSORIES (Fig. 1)
LAMP BOSS
SNOOT
ACCESS KNOB
LAMP ALIGNMENT
BRACKET
LAMP SPRING
PIPE
SPADE TERMINAL
RING NOTCH
LAMP TERMINAL
SWITCH
CLAMP SCREW
SAFETY CABLE
“S” HOOK
MALE PLUG
Fig. 1

LIGHTOLIER a GENLYTE company.
631 Airport Road, Fall River, MA 02720
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTRUCTION SHEET NO.
IS:26556MPC
0798 Page 2 of 2
CLOSE SNOOT OVER LAMP (Fig. 2)
1. Rotate SNOOT until SLOT mates with ACCESS KNOB.
2. Tighten ACCESS KNOB to secure SNOOT.
FIXTURE OPERATION (Fig. 3)
Plug MALE PLUG into a grounded female receptacle. Receptacle
must provide 120V AT 60 Hz. Turn LAMP on or off by activating
the switch.
SETTING HORIZONTAL ROTATION
1. Loosen LOCKING SCREW.
2. Turn FIXTURE to desired horizontal position.
3. Tighten LOCKING LEVER.
SETTING VERTICAL ROTATION
1. Loosen SIDE KNOB.
2. Turn FIXTURE to desired vertical position. The FIXTURE
adjust 90° in the vertical direction.
Do not force past the adjustability limits.
3. Tighten SIDE KNOB.
SETTING LAMP ROTATION
1. Loosen LAMP ADJUSTMENT KNOB a few turns.
2. Drive LAMP ADJUSTMENT KNOB in 180° slot.
3. Tighten LAMP ADJUSTMENT KNOB after LAMP is in
desired position.
SETTING ACCESSORY ROTATION
1. Loosen ACCESSORY KNOB a few turns.
2. Rotate SNOOT to desired position. SNOOT rotates 360°.
3. Tighten ACCESSORY KNOB.
LOCKING SCREW
ACCESS KNOB
ACCESSORIES
ACCESSORY SPRING
CROSSBLADE
SLOT
SNOOT
Fig. 2
Fig. 3
HORIZONTAL ROTATION
LOCKING
SCREW
VERTICAL ROTATION
SIDE KNOB
ACCESSORIES ROTATION
ACCESSORIES KNOB
LAMP ADJUSTMENT
KNOB
180° SLOT
LAMP ROTATION
ACCESSORIES (Fig. 2)
1. With SNOOT open accessories can be installed or removed.
2. INSTALLING ACCESSORIES: Push accessory(s) into SNOOT
snapping them into ACCESSORY SPRINGS.
NOTE: There must always be (1) accessory or clear glass
installed in the SNOOT for safety reasons. This FIXTURE
takes (2) accessories maximum with or without CROSSBLADE.
3. REMOVING ACCESSORIES: Push ACCESSORIES out of
ACCESSORIES SPRING. Push one ACCESSORY SPRING
against SNOOT if accessory is difficult to remove.
CROSSBLADE may be removed. Pull CROSSBLADE out of
SNOOT.
SNOOT
FEMALE
RECEPTACLE
