The CMG176/178 series Day&Night Wide Dynamic Range Ultrahigh Resolution
camera introduces supremacy in video quality. This compact yet full functional
color DSP camera use high sensitive 1/3" Vertical Double-Density interline
transfer CCD. The camera achieves superb quality color images at 600TV lines
resolution. With ultralow light levels of 0.0002 Lux and enhanced noise reduction
technology, it enables noise-free, clear image monitoring day and night.
By adopting a diagonal 6mm(1/3") 410,000(NTSC) pixel, 470,000(PAL) pixel
CCD, the camera produces clear picture quality with a horizontal resolution of
600TV lines for color.
For images with high contrast between bright and dark areas from difficult
lighting conditions such as backlighting, this camera selectively illuminates
darker areas while decreasing the light level for brighter areas to even out the
overall brightness.
The high-performance DSP chip effectively removes low-light gain noise and
afterimage to provide clear images even in dark environments.
Equipped with a maximum X256 sens-up capacity and low luminance levels of
0.0002Lux, the camera achieves excellent performance in processing images
especially in very low light conditions.
The camera automatically identifies when it is either day or night time and
switched accordingly. During daylight the camera will switch to color to obtain
excellent image clarity, while at night the camera will switch to monochrome to
obtain improved picture definition.
FEATURES
ULTRAHIGH RESOLUTION
WIDE DYNAMIC RANGE(WDR)
3D DIGITAL NOISE REDUCTION
SENS-UP(X256) / LOW LUMINANCE LIGHT
DAY&NIGHT(IR CUT REMOVABLE)
1

2
Since the camera detects motion without any additional external sensor, you
can monitor activity more efficient.
The EIS function compensates for any camera movement, to produce more
stable pictures.
The HSBLC function that effectively blocks strong light sources such as
headlights. It provides optimum performance in recognizing vehicular license
plates and objects at night.
This camera provides an on screen display(OSD) setup menu where all
advanced functions can be selected and setup via OSD.
Privacy zones prevent objects and areas such as windows and doors which
are within the camera's viewing range but not in the scope of surveillance,
8 masking areas per screen simultaneously.
Built-in continuous digital zooming control, X1 to X10.
Color-temperature is adjusted automatically to produce clean, natural and rich
color images. ATW, AWC, INDOOR and OUTDOOR modes are available to
obtain most suitable selection.
MOTION DETECTION
ELECTRONIC IMAGE STABILIZER(EIS)
HIGHLIGHT SUPPRESS BACK LIGHT COMPENSATION(HSBLC)
ON SCREEN DISPLAY CONTROL(OSD)
PRIVACY ZONE
DIGITAL ZOOM
WHITE BALANCE

PART DESCRIPTION
3
DAY NIGHT
DAY NIGHT

AC100 ~ 240V
CMG178
CMG176
4
VIDEO
AUDIO
POWER
DC VS
NO
COM
NC
D/N EXT.
GND
13
VIDEO
AUDIO
AC24V / DC 12V
POWER
NO
COM
NC
D/N EXT.
GND
DC VS
NO
COM
NC
D/N EXT.
GND
12

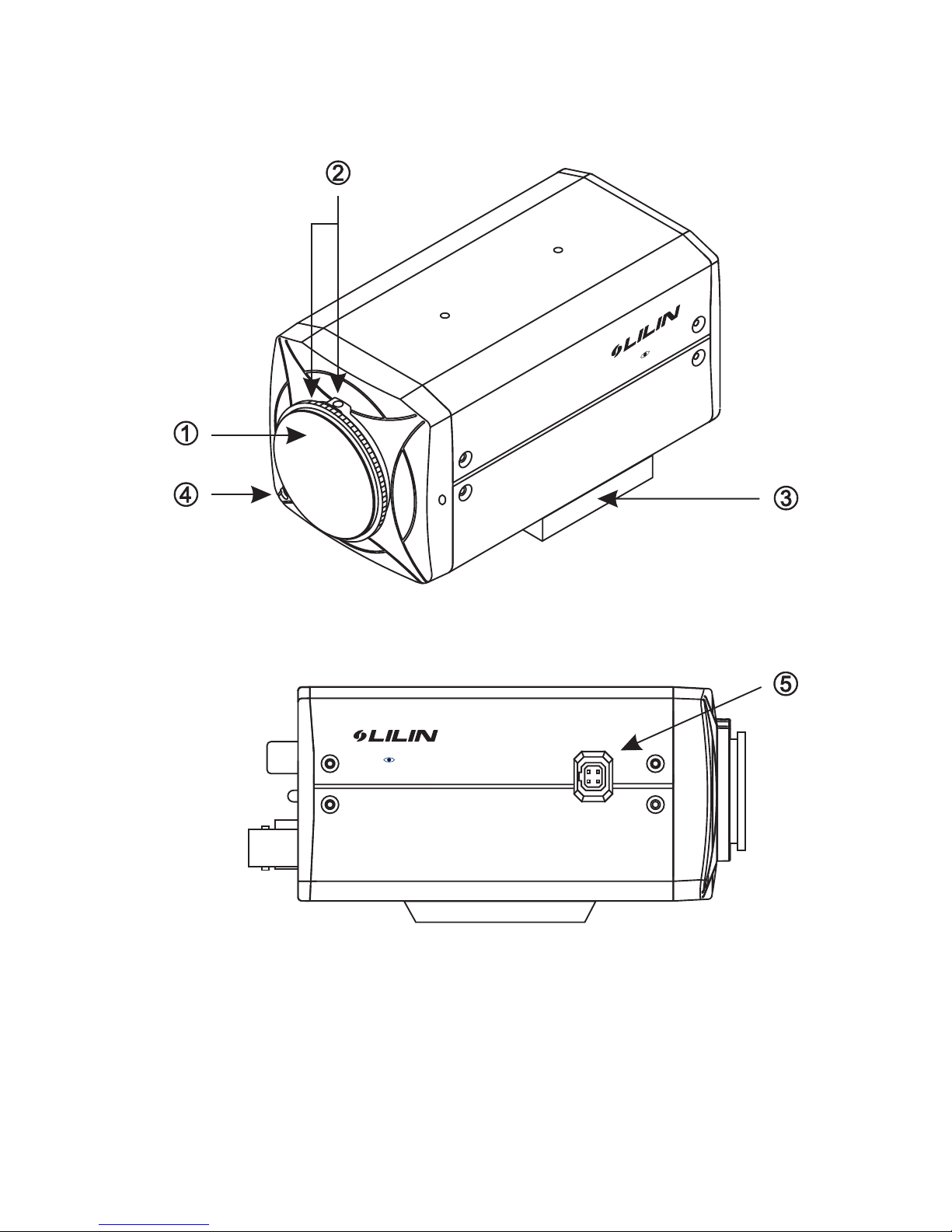

LENS MOUNT CAP
FOCAL LENGTH ADJUSTMENT RING AND LOCKING SCREW
CAMERA MOUNTING BRACKET
MICROPHONE
AUTO IRIS CONNECTOR(4PIN SOCKET)
POWER LED
AUDIO OUTPUT RCA CONNECTOR
AUDIO IRIS LENS SELECTION SWITCH(DC/VS)
Prevent damages to the image sensor and to keep dust away.
Use this ring to adjusts the back-focal distance or picture focus. Rotate this ring
clockwise or counterclockwise for a CS-mount lens.
Use the locking screw to lock the focal length.
The mounting bracket mounted underneath the main body can be mounted to
either the top or bottom of the camera using the attached screws(M2.6x5.0).
Built-in highly sensitive capacitive microphone.
Supplies power and control signals to an auto iris lens(jack not supplied).
Power ON/OFF indicator.
Audio signal output.
Switch for selecting the control signal for auto iris lens.
DC: For auto iris lenses controlled by DC (Direct drive) signals.
VS: For auto iris lenses controlled by Video signals.
1
2
3
4
5
5
6
7
8
When you use auto iris lens, do not set the level on the lens to too low, Color/Mono may
not change over automatically.
NOTE

VIDEO OUTPUT CONNECTOR
EXTERNAL DEVICE CONNECTORS
USER OSD SETTING
Composite video signal output.

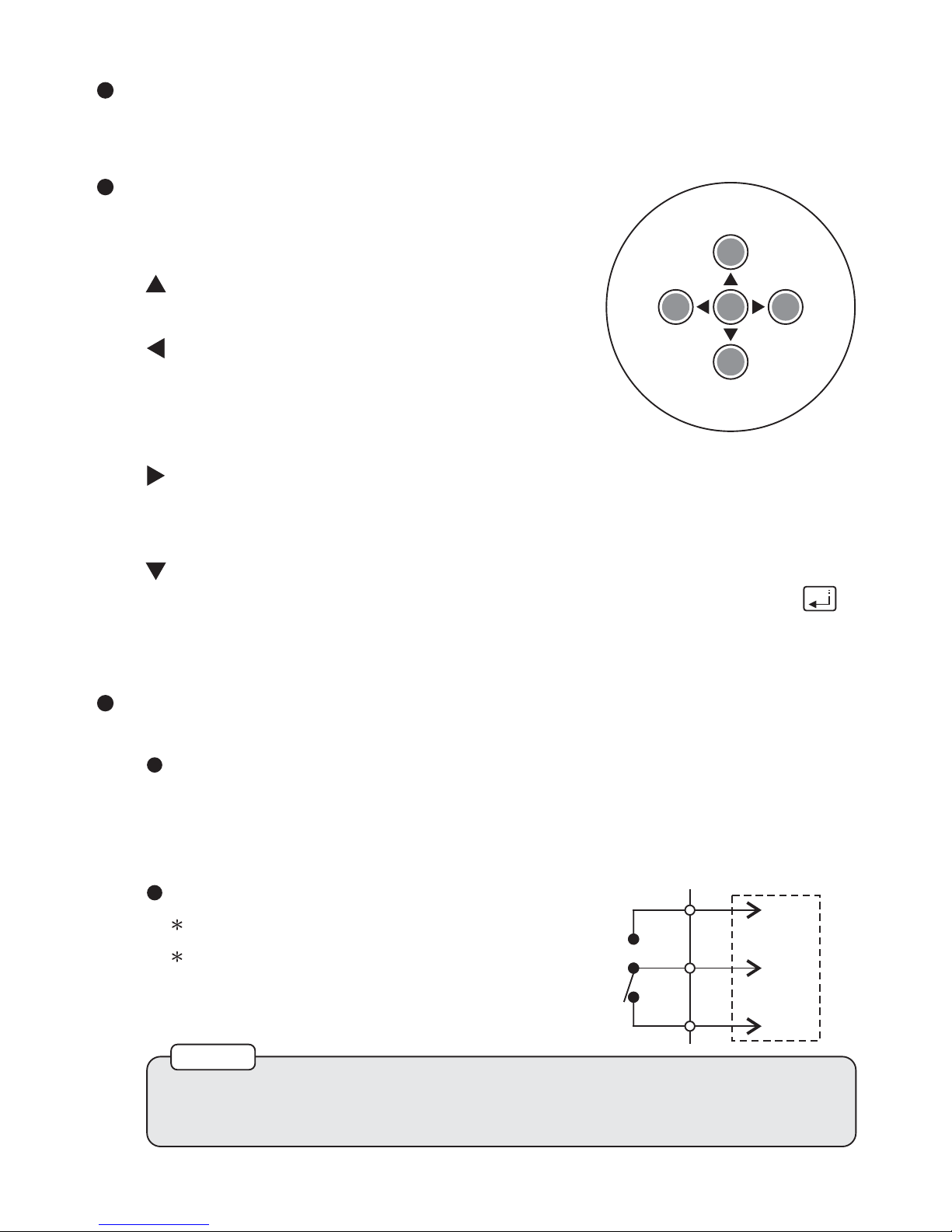

Setting switches and Functions.
1. (UP)
2. (LEFT)
3. (RIGHT)
4. (DOWN)
5. SET : Executes selections and displays a submenu for an item with the
mark.
1. NO(Normal Open) & COM(Common) & NC(Normal Close)
Alarm Connection
Connect to the alarm input of an external device such as a buzzer or lamp
to this connector. When the camera detects motion, the alarm output signal
is supplied to the connected external device.
Contact Ratings
Maximum load current is 500mA.
Don't connect any system or device that
has over 80Vp-p(DC60V) bias voltage on
the contact connector.
9
10
11
6
: Press to move the cursor upwards
or to select items.
: Press to move the cursor to the left
and to select or adjust the parameters
of the selected item. The parameters
changes each time this button is pressed.
: Press to move the cursor to the right and to select or adjust the
parameters of the selected item. The parameters changes each
time this button is pressed.
: Press to move the cursor downwards or to select items.
If you use the NO&COM&NC connectors, you should set the MOTION DET option
to ON on the CAMERA SETTING menu, and select a ON on the TRIGGER option.
NOTE
External
Device
NO
COM
NC
RIGHTLEFT
DOWN
UP
SET

2.D/NEXT.&GND
The camera will be triggered to switch between DAY(Color) or NIGHT
(Monochrome) mode by external device. Please refer to Page19.
DAY Mode
When you supply the HIGH(+3V~+5V) Potential, the DAY/NIGHT function
is set to DAY mode.
NIGHT Mode
When you supply the LOW(0V) Potential, the DAY/NIGHT function is set
to NIGHT mode.
External
Device

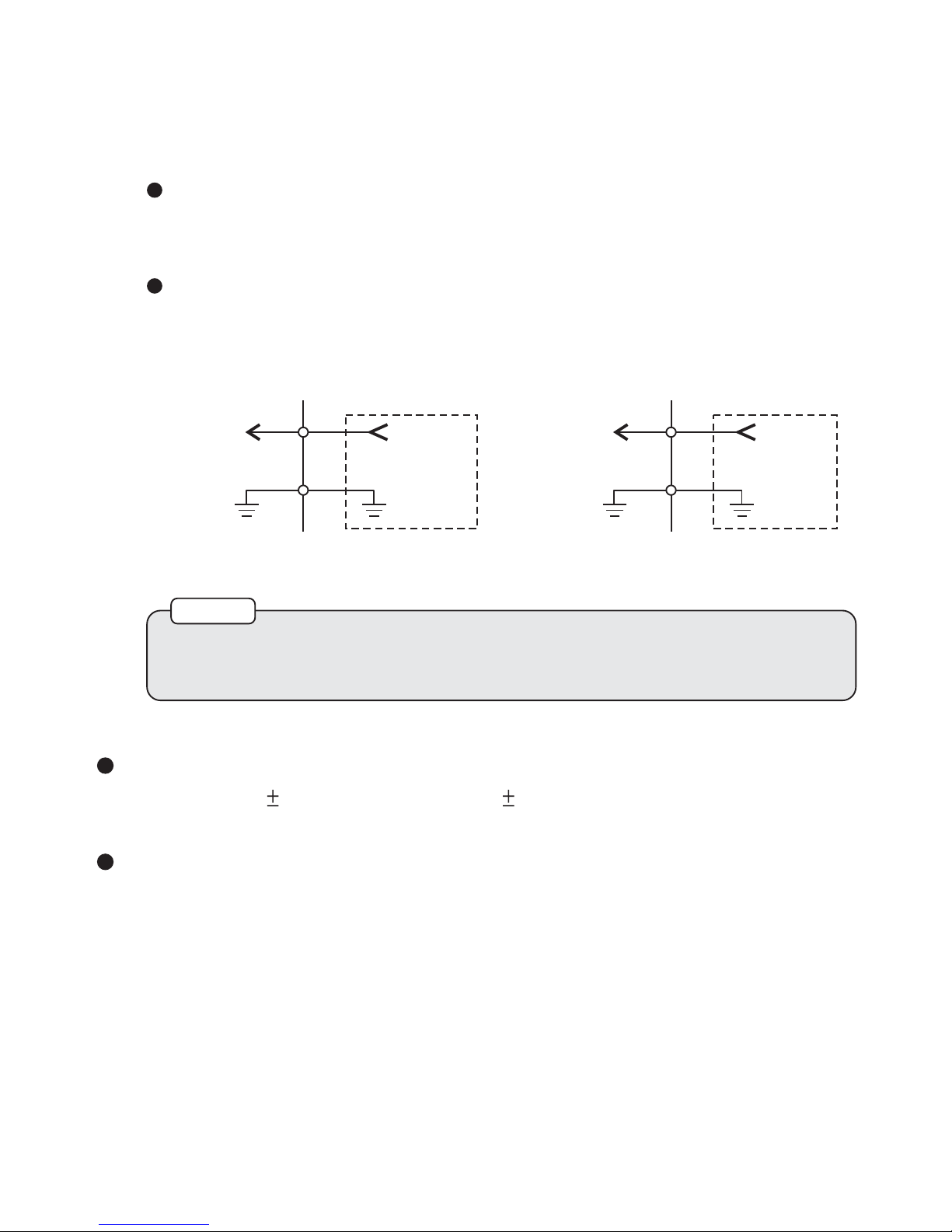

D/N EXT. 0V
GND GND
NIGHT Mode
External
Device
D/N EXT. +3V~+5V
GND GND
DAY Mode
If you use the D/N EXT. connectors, you should set the DAY/NIGHT option to EXT
on the CAMERA SETTING menu.
NOTE
AC24V/DC12V COMPATIBLE INPUT TERMINAL
AC INPUT
AC24V(AC24V 10%) or DC12V(DC12V 10%, Non-Polarity input) power input.
AC(AC100~240V) power input.
12
13
7

INSTALLATION

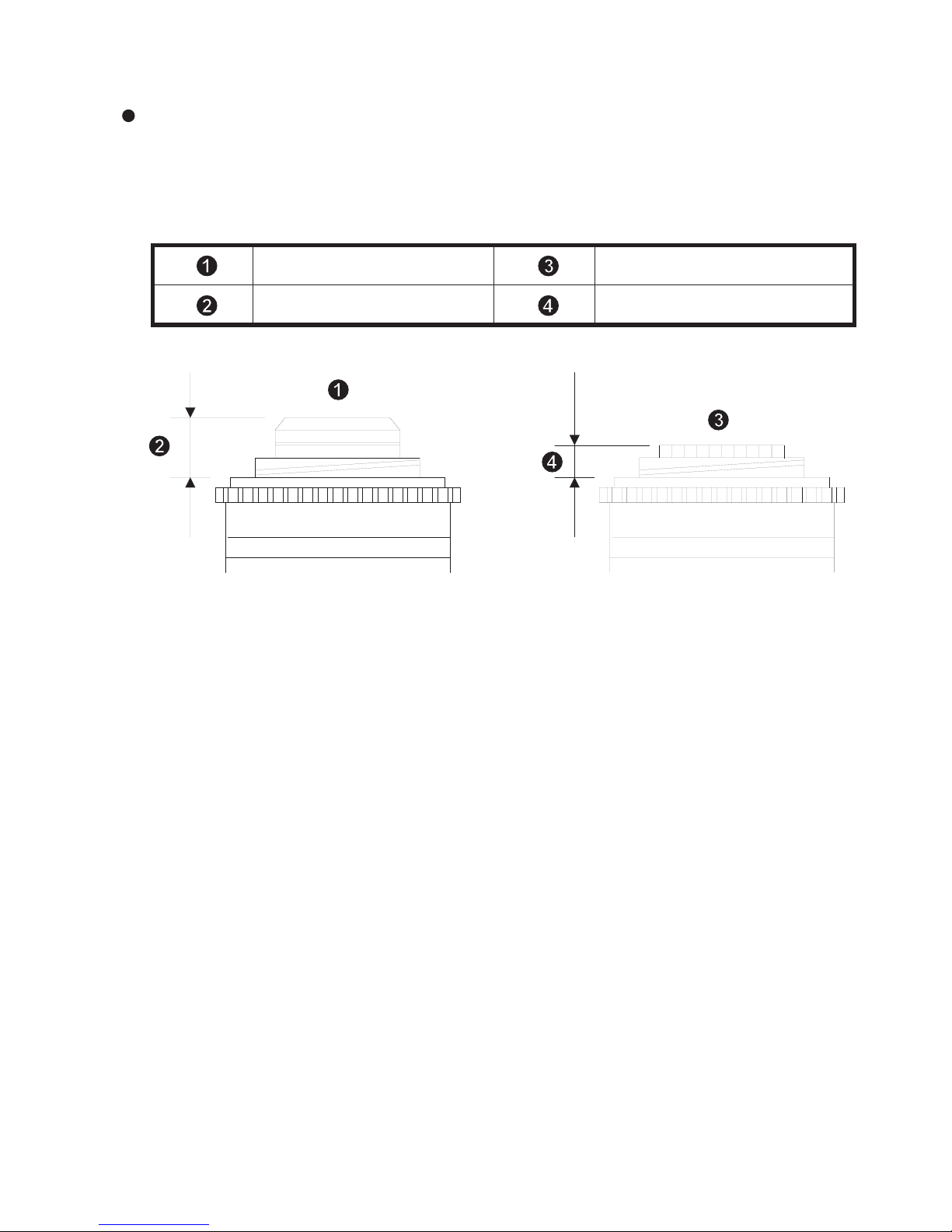

ThelensmustbeeitheraCorCSmount type. The protrusion behind the
mounting surface must be within the following limits:
SUITABLE LENSES
C - mount lens CS - mount lens
9mmorless 4mmorless
8

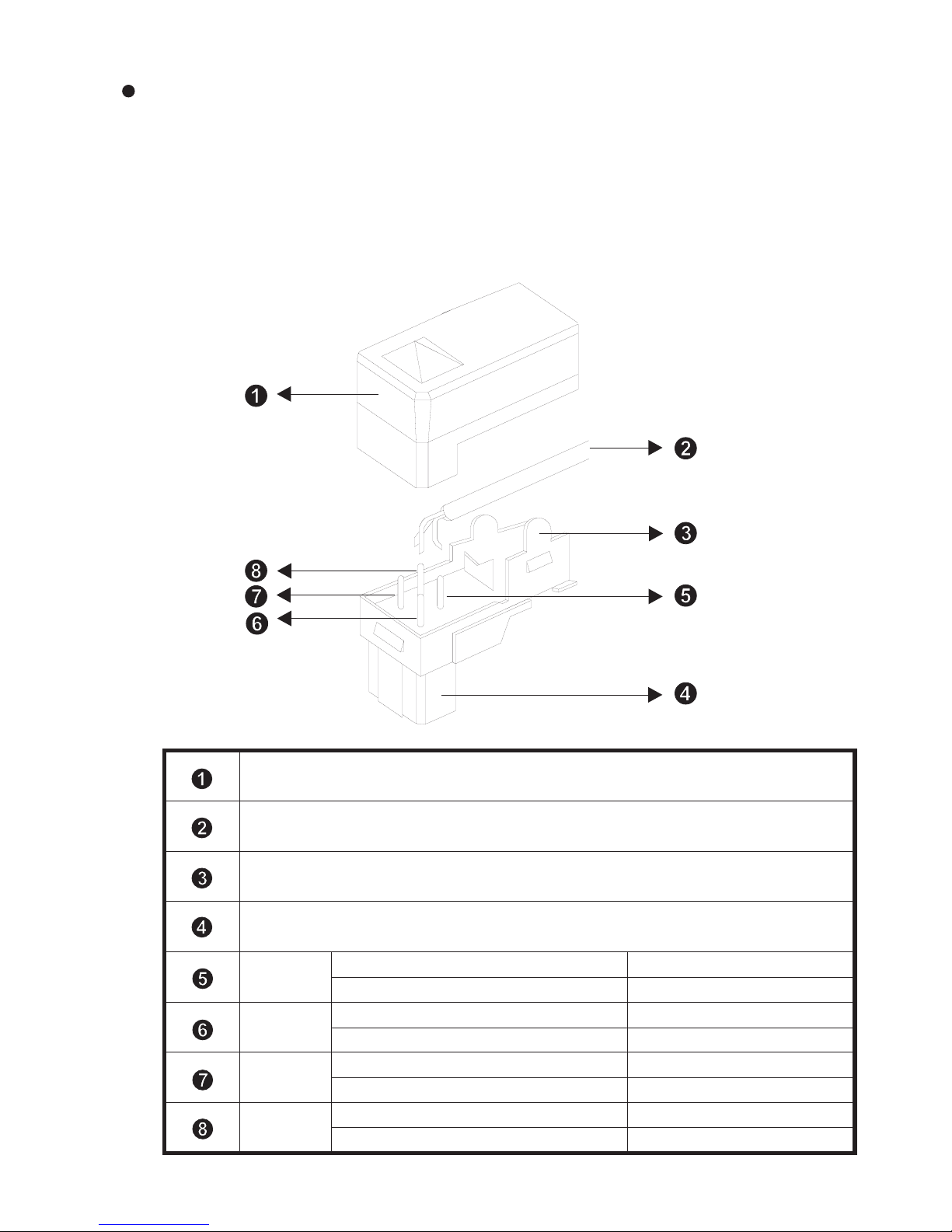

The camera is supplied with a plug to fit the AUTO IRIS connector. To connect
an auto iris lens, first replace the plug on the lens cable with the supplied plug.
Solder the lens cable to the pins of the supplied plug (For cable pin
assignment, refer to the instruction manual for the lens.).
CHANGING THE PLUG ON AN AUTO IRIS LENS CABLE
Cover
Lens cable
Rib (If the cable is thick, cut this off.)
Plug (Unit accessory)
Pin 4
Pin 2
Pin 1
Pin 3
Video signal drive
Direct drive (DC)
Video signal drive
Direct drive (DC)
Video signal drive
Direct drive (DC)
Video signal drive
Direct drive (DC)
Ground
Drive -
Vcc
Control +
Not used
Control -
Video signal
Drive +
9

FITTING THE LENS
Remove the lens mount cap.
Screw in the C mount ring(not supplied), unit it is secured. When using a
CS mount lens skip step2.
Screw in the lens, unit it is secured.
Insert the lens plug in the AUTO IRIS connector, when fitting a manual-
iris lens, skip step4.
Adjust the focal length by turning the focal length adjustment ring.
(Using hexagon screw driver, loose and tighten the screw.)
1
2
3
4
5
CAUTION
Keep the lens mount cap on the camera when not attaching a lens.
10
DAY NIGHT

1. The mounting base can be attached to either the top or bottom of the
camera.
2. Tighten the screw to attach the mounting base. Please refer to the
following drawing.
FITTING THE CAMERA
Connect to the power supply.
Please refer to the right drawing.
CONNECTION OF POWER SUPPLY CABLE (AC24V or DC12V)
AC24V ( 10%)
or
DC12V ( 10%)
AC24V / DC12V
NOTE
Make sure to use AC24V or DC12V
(Non-Polarity input) power supply.
11
DAY NIGHT
DAY NIGHT

CAMERA
SETTING
CAMERA ID
EXPOSURE
MOTION DET
3D-DNR
WHITE BAL
DAY/NIGHT
12
CONFIGURATION OF THE MENU
OFF/1~255
PUSH
ALC
OFF
OFF/LOW/MIDDLE/HIGH
ZONE NUMBER
ATW
DAY
COLOR TEMP
ELC
ON
ZONE STATE
HEIGHT(12~100)
WIDTH(16~100)
MOVE Y(20~80)
MOVE X(20~80)
SENSITIVITY(0~100)
TRIGGER
TRIG TYPE
AWC
NIGHT
AUTO
EXT
RED(-100~100)
DWELL TIME(1~15SEC)
MANUAL
BLUE(-100~100)
WDR/BLC
BRIGHTNESS(0~100)
AGC
SHUTTER
SENS-UP
OFF/A.FLK/(1/160~1/90000)/(X512~X2)/AUTO
OFF
OFF
WDR
AUTO
BLC
HSBLC
WDR LIMIT(1~7)
SENS-UP LIMIT(X2~X256)
BLC LIMIT(1~7)
AREA SETTING
GRAY SCALE
GRAY/D.GRAY/BLACK
USER SCALE(0~5)
MASK OFF/ON
OFF/LOW/MIDDLE/HIGH
INDOOR/OUTDOOR
AREA 1/2/3/4
OFF/ON
OFF/ON
NO/NC

PRIVACY
RESET
EXIT
SPECIAL
OFF
D-ZOOM
CAMERA REBOOT
OFF
OFF
INT
ON
D-EFFECT
FACTORY RESET
COMMUNICATION
SHARPNESS(0~68)
STABILIZER
COLOR
SYNC
USER TITLE
LANGUAGE
ON
ON
LL
MASK NUMBER
DISPLAY
COLOR
HEIGHT(4~100)
WIDTH(4~100)
MOVE Y(20~80)
MOVE X(20~80)
AREA 1/2/3/4/5/6/7/8
OFF/ON
GRAY/WHITE/BLACK
13
ZOOM(X1.1~X10)
PAN(-100~100)
TILT(-100~100)
OFF/V-FLIP/MIRROR/ROTATE
OFF/ON
OFF/ON
PHASE(0~359)
ENG

SETTING MENU AND FUNCTIONS
To Open and Exit the Menu screen
1. Press "SET" button.
The Menu screen appears on the monitor.
Check the current settings on the menu.
2. Use or button to select the [EXIT] then
use or button to select a mode.
RET: Return to the previous.
TOP: Return to the CAMERA SETTING
menu screen.
END: Exit the setup menu.
CAMERA SETTING
CAMERA ID
EXPOSURE
WHITE BAL
DAY/NIGHT
MOTION DET
3D-DNR
PRIVACY
SPECIAL
RESET
EXIT
OFF
ALC
ATW
AUTO
OFF
MIDDLE
OFF
CAMERA ID
You can use the camera identification(CAMERA ID) to assign a number to the
camera.
1. Select [CAMERA ID] option on the [CAMERA SETTING] menu.
2. Use or button to select a CAMERA ID(OFF, 1~255).
The setup menu will be disappear after save the current setting value.
NOTE
CAMERA SETTING
CAMERA ID
EXPOSURE
WHITE BAL
DAY/NIGHT
MOTION DET
3D-DNR
PRIVACY
SPECIAL
RESET
EXIT
OFF
ALC
ATW
AUTO
OFF
MIDDLE
OFF
14
