Lincoln QUICKLUB 203 User manual

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 1 from 32
QUICKLUB®
Pump Model 203
10011327

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
Page 2 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
All rights reserved.
Any duplication of this Owner Manual, in its entirety or in part,
by whatever means is prohibited without the prior consent in
writing of Lincoln GmbH & CO. KG.
Subject to modifications without prior notification.
© 2002 by
LINCOLN GmbH & Co. KG
Postfach 12 63
D-69183 Walldorf
Phone: [phone]
Fax: [phone]

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 3 from 32
Fields of Applications of the QUICKLUB Progressive Central Lubrication Pumps
Industry - Machines - Commercial Vehicles -
Building Machinery - Agricultural Machines Pump Type
Pump
QUICKLUB 203
Reservoir
2 l -2XN2),2XNFL2), 2YN3), 2XNBO1), 2YNBO3)
4 l -4XNBO1), 4YNBO3)
8 l - 8XNBO1), 8YNBO3)
1) Filling from the top or bottom
2) Filling only from the bottom
3) Filling only from the top
4 l, 8 l with lockable reservoir lid (option)
Low-level control (option)for all reservoir sizes
available, on request
Control
Without control unit for 12/24 VDC or 120, 230 VAC
Integrated control units (V10-V13) 4) for 12/24 VDC
Integrated control units (V10-V13)4) for 120, 230
VAC
Integrated control unit with metering device monitor-
ing (M 00 - 23) 4)
External control units
- PSG 01 (Commercial vehicles)
- PSG 02 (Industry)
Control H4)
Control V10 - ADR4)
Control H - ADR4)
4)See the respective model designation on the pump nameplate e.g. P203 - 2XN - 1K6 - 24 - 1A1.10 - V10

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
Page 4 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Table of Contents
Page
Fields of applications of QUICKLUB progressive
central lubrication pumps ................................................ 3
Introduction ...................................................................... 5
Safety instructions ........................................................... 6
Installation ....................................................................... 8
Specifications for the installation of electric equippment ... 8
Pump installations – Areas of risk...................................... 9
Pump types ..................................................................... 10
Identificatiom Code - Pump Models 203........................ 11
Description....................................................................... 12
Electric connections ......................................................... 12
The QUICKLUB 203 central lubrication pump................... 13
Low-level control (optional) ......................................... 13
Mode of operation ........................................................... 14
Pump elements with fixed Lubricant output ...................... 14
Suction phase ............................................................. 14
Delivery phase ............................................................ 14
Check valve ................................................................. 15
Arrangement of the pump elements............................. 15
Page
Setting for the lubricant output on an adjustable
pump element ....................................................................15
Retrofit adjustment of max. lubricant output.................16
Adjusting of small lubricant output................................17
Pressure relief valve ..........................................................17
Return line connection ......................................................18
Control unit ........................................................................18
Low-level control (optional) ...............................................19
Low-level for grease.....................................................19
Low-level for oil ............................................................20
Measures for contact protection ..................................20
Maintenance, repair and tests........................................ 21
Maintenance ..................................................................... 21
Pump filling.................................................................. 21
Repair ........ ....................................................................... 21
Tests................................................................................. 22
Operational test/To trigger an additional
lubrication.................................................................... 22
To check the pressure relief valve............................... 22
Troubleshooting.............................................................. 23
Technical data................................................................. 24
Torques ............................................................................ 24
Weights ............................................................................ 24
Connection diagram Pump without control unit................ 25
Dimensions ...................................................................... 26
Lubricants ....................................................................... 32
Further information can be found in the following manuals:
Technical Description for ‘‘Electronic Control Units” of the pump model 203
Technical Description Progressive Metering Devices for Grease and Oil, model SSV
Printed Circuit Board 236-13862-1 - Model V10-V13
Printed Circuit Board 236-13857-1 - Model H
Printed Circuit Board 236-13870-1 - Model M 00 - M 15
Printed Circuit Board 236-13870-1 - Models M 16 - M 23
Control unit 236-13860-2 Model PSG02
Installation Instructions
Parts Catalog Pump 103 and 203

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 5 from 32
Introduction
Explanation of Symbols Used
The following description standards are used in this manual:
Safety Instructions
Structure of safety instructions:
Pictogram
Signal word
Danger text
- Danger note
- How to avoid danger
The following pictograms are used in this manual and are
combined with the corresponding signal words:
1013A94 4273a00 6001a02
- ATTENTION
- CAUTION
- WARNING
- ATTENTION
- CAUTION
- WARNING
- NOTE
- IMPORTANT
The signal words give the seriousness of danger if the follow-
ing text will be not observed:
ATTENTION refers to faults or damages on
machines.
CAUTION refers to bad damages and possi-
ble injuries.
WARNING refers to possible dangerous inju-
ries.
NOTE refers to improvements in handling
of systems.
IMPORTANT refers to considerable disadvan-
tages in handling of systems.
Example:
1013A94
ATTENTION!
When making use of other than the origi-
nal spare parts, serious damage may
affect your device.
Therefore, for the operation of your device
always use original spare parts made by
Lincoln GmbH & Co. KG.
Furthermore, you will find the following text symbols in this
manual:
Listing
- Subpoint
Procedural instruction
User's Responsibility
To ensure the safe operation of the unit, the user is responsi-
ble for the following:
1. The pump / system shall be operated only for the in-
tended use (see next chapter "Safety Instructions") and
its design shall neither be modified nor transformed.
2. The pump / system shall be operated only if it is in a
proper functioning condition and if it is operated in accor-
dance with the maintenance requirements.
3. The operating personnel must be familiar with this Owner
Manual and the safety instructions mentioned within and
observe these carefully.
The correct installation and connection of tubes and hoses, if
not specified by Lincoln GmbH & Co. KG, is the user's re-
sponsibility. Lincoln GmbH & Co. KG will gladly assist you
with any questions pertaining to the installation.
Environmental Protection
Waste (e.g. used oil, detergents, lubricants) must be dis-
posed of in accordance with relevant environmental regula-
tions.
Service
The personnel responsible for the handling of the pump /
system must be suitably qualified. If required, Lincoln GmbH
& Co. KG offers you full service in the form of advice, on-site
installation assistance, training, etc. We will be pleased to
inform you about our possibilities to support you purposefully.
In the event of inquiries pertaining to maintenance, repairs
and spare parts, we require model specific data to enable us
to clearly identify the components of your pump / system.
Therefore, always indicate the part, model and series number
of your pump / system.

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
Page 6 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Safety Instructions
Appropriate Use
Use the 203 pump only for dispensing lubricants in cen-
tralized lubrication systems.The pump is designed for in-
termittent operation.
General Safety Instructions
Lincoln-QUICKLUB - centralized lubrication systems
- are state of the art;
- can be assembled for safe operation.
Incorrect use may result in bearing damage caused by
poor or over-lubrication.
Unauthorized modifications or changes to an installed
system are not admissible. Any modification must be
subject to prior consultation with the manufacturer of the
lubrication system.
Regulations for Prevention of Accidents
Adhere to the regulations for prevention of accidents which
are effective in the country where the system is to be used.
Operation, Maintenance and Repair
Repair should only be performed by authorized and in-
structed personnel who are familiar with the regulations.
Lincoln QUICKLUB central lubrication pumps must only be
operated with a fitted safety valve.
Lincoln QUICKLUB central lubrication pumps must be
regularly refilled with clean lubricant.
4273a00
CAUTION!
High Voltage!
In the case of pumps which are filled
from the reservoir cover, switch off
the power supply before filling in the
lubricant..
1013A94
ATTENTION!
Risk of bursting if the reservoir is
overfilled!
When filling the reservoir by means of
pumps with a large delivery volume
do not exceed the max. filling mark.
Lincoln QUICKLUB centralized lubrication systems oper-
ate automatically. However, a regular check (about every
two weeks) should be made to ensure that lubricant is
actually reaching all the lubrication points.
Defective printed circuit boards shall be suitably packed
and returned to the factory.
Dispose of used or contaminated lubricants in accordance
with the legislation concerning the environment.
The manufacturer of the centralized lubrication system will
not accept any liability
- for damages due to the use of greases which are not or
only conditionally pumpable in centralized lubrication
systems
- for damage caused by insufficient lubricant and irregular
pump refilling;
- for damage caused by the use of contaminated lubri-
cants
- for damage caused by an environmentally incompatible
disposal of used or contaminated lubricants.

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 7 from 32
Safety Instructions, continuation
Installation
Any safety equipment already fitted to the vehicle or the
machine:
- should not be modified or made ineffective;
- should only be removed for the purpose of fitting the
system;
- must be replaced afterwards.
Keep QUICKLUB centralized lubrication systems away
from sources of heat. Adhere to the operating temperature.
Use only original LINCOLN spare parts (see Parts Catalog)
or parts approved by LINCOLN.
Adhere to:
- the installation instructions of the vehicle or machine
manufacturer as regards all drilling and welding proce-
dures.
- the specified minimum distances between the bore holes
and the upper/lower rim of the frame or between two
bore holes.
The manufacturer of the centralized lubrication system will
not accept any liability for:
- damage caused by unauthorized modification of the
system components;
- damage caused by the use of unapproved spare parts.
6001a02
IMPORTANT
Only for use in commercial vehicles.
1. The ADR QUICKLUB central lubrication pump complies
with the design regulations of annex B of the act governing
the road haulage of hazardous materials valid for Europe
(ADR1)) and that valid for the Federal Republic of Ger-
many (GGVS2))
2. Moreover, the pump and its electrical equipment comply
with the regulations of annex B.2 (ADR / GGVS regula-
tions for electrical equipment) according to Rn 220000 in
conjunction with the transport units mentioned in Rn
10251.
3. The ADR central lubrication pump is in conformity with the
protection class IP 54.
6001a02
CAUTION!
It is not allowed to use the pump in other
potentially explosive fields.
4. Install the ADR QUICKLUB 203 pump, the metering
devices, lines and tube fittings as well as the electrical
connection parts in accordance with the Installation In-
structions. Use only original LINCOLN parts.
5. After completion of the proper installation and commis-
sioning, the installation of the system must be certi-
fied by means of a stamp and signature of the spe-
cialized workshop or expert. For this purpose, use the
form attached to the Operating Instructions (pump 203).
6. If the pump and the installation do not comply with the
construction regulations of ADR and GGVS, the type ap-
proval is no longer valid.
7. The Operating Instructions along with the certificate duly
filled in must be added to the vehicle papers. It is to be
submitted at the inspection in accordance with § 6, clause
4 GGVS.

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
Page 8 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Installation
Specifications for the installation of electric equipment for ADR-application in
comercial vehicles
4244a99
Fig. 1 Measures of protection for electric lines
1 - Conductor insulation 3 - Frame
2 - Conductor 4 - Coating
Lines
- must be fixed by means of clamps or strips to prevent
them from rubbing, sagging or getting loose,
- must be protected from shocks, stone impact and heat,
- other than in a fixed installation, must be sufficiently
flexible in spite of their covering.
The electric circuits can optionally be interrupted by single-
or double -pole disconnecting switches.
In case of single-pole disconnecting switches, the negative
conductor must be able to be interrupted.
For avoidance of short-circuits, please note the following:
current return lines must be insulated
they must be connected to the vehicle frame (MASS 31)
below the driver’s cab.
housings and connectors must be of protection class IP 54
according to DIN 40050
plastic tubes must be of polyamide, tube coverings must be
of polyurethane according to DIN VDE 0250 (only use
original Lincoln ADR tubes).
Mounting of the Pump – Areas of Risk
According to paragraph 9.7.8 of the ADR directive, vehicles
with hazardous goods type FL are divided into zones, ac-
cording to the EX prescriptions, see Fig. 26.
These are the correspondences:
- tank inside zone 0,
- fitting cabinet zone 1
- shut-off devices zone 1
- venting devices zone 1
Zone 2 is located around zones 0 and 1.
The installation of the centralized lubrication system is
allowed outside of zones 0, 1 and 2, only, whereby the
extension is not determined in the ADR directive.

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 9 from 32
Installation, continuation
Mounting of the Pump – Areas of Risk, continuation
4332a01

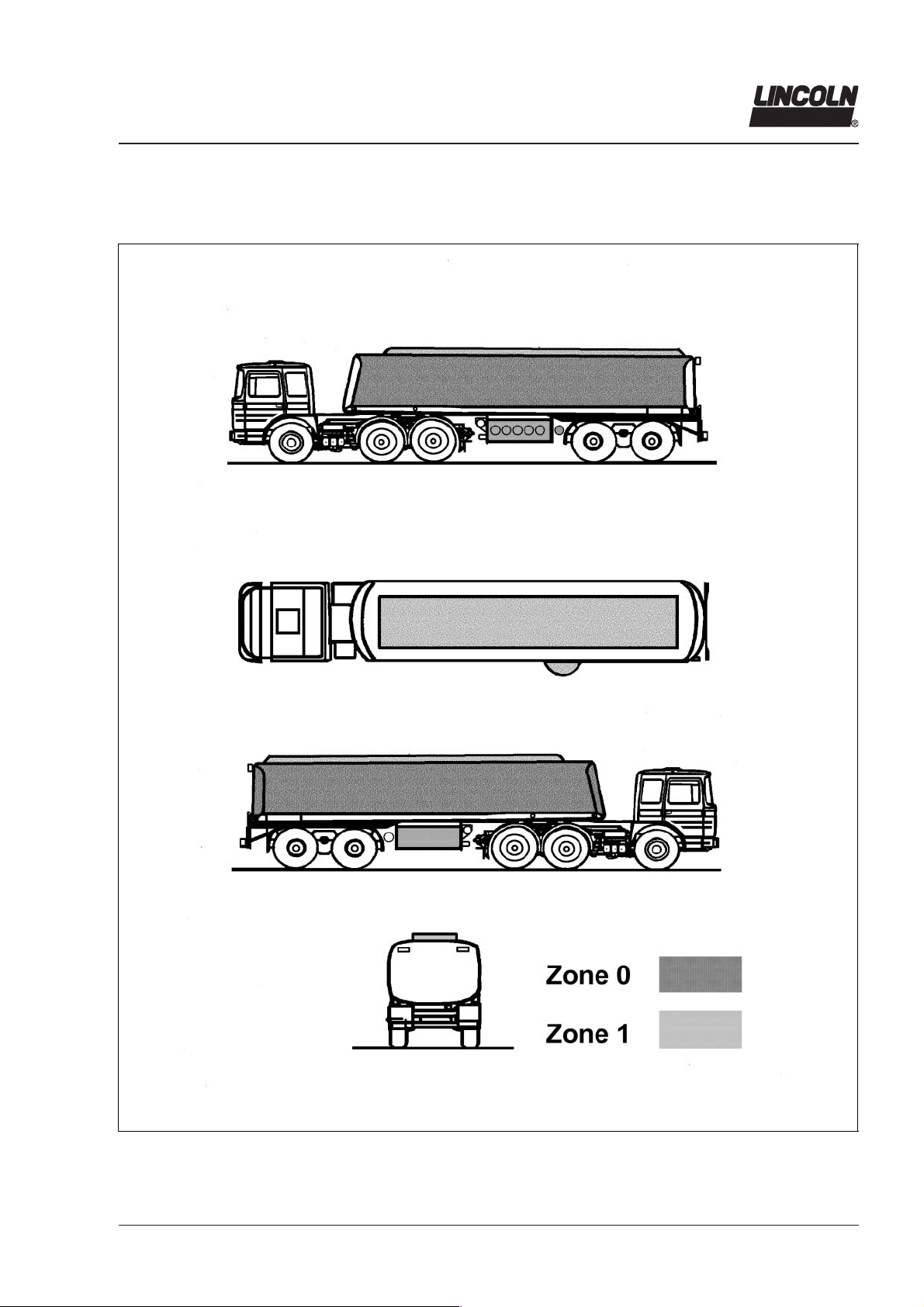

Fig. 2 Areas of risk on vehicles with hazardous goods

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
Page 10 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Pump Types
1173a95

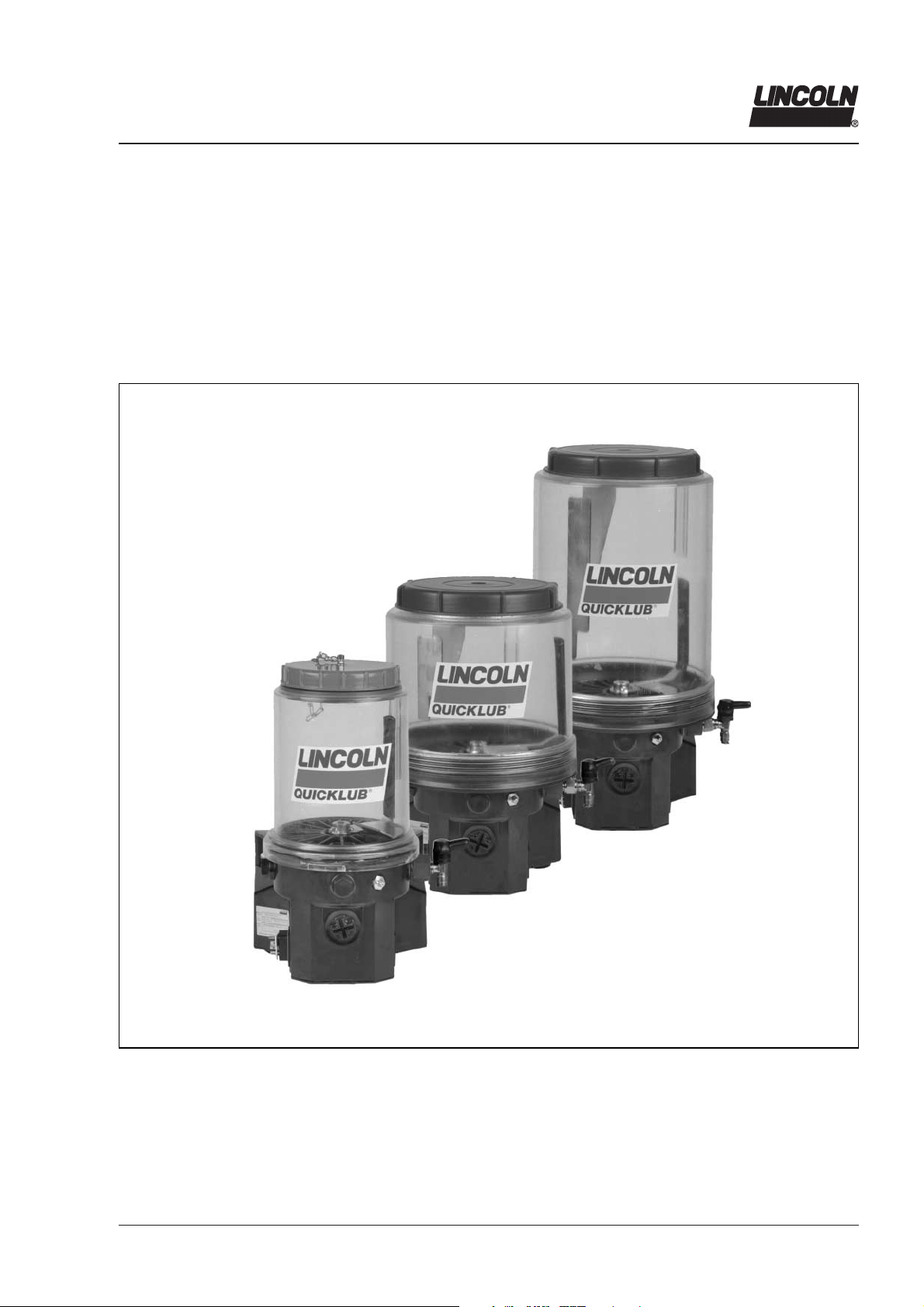

Fig. 3 The different types of pump 203
Pumps 203
The 203 pumps differ from each other only in the design and
reservoir size as well as in the type of the electric connection
(different plugs with or without electric cable).
Reservoir sizes:
2 l transparent plastic reservoir
4 l transparent plastic reservoir
8 l transparent plastic reservoir
Electric connection
For the industrial applications, the pumps are only
equipped with plugs.
The pumps model 203 used in commercial vehicles are
equipped with a 10 m electric cable.
All other data such as:
motor voltage
version of the control unit
remote control for triggering an additional lubrication
cycle (2A1)
design and number of pump elements
design and number of safety valves
filling type
use of return line connections
low - level control (option)
can be learnt from the pump t
y
pe desi
g
nation code.
Control unit models 203
The following control units can be used for the 203 pumps:
(refer to the respective Technical Description)
a) external control units
PSG 01
PSG 02 (Industry)
b) integrated control units
with adjustable pause and operating times, V10-V131)
with adjustable pause and operating times, V10-V131) for
alternate current 120, 230 VAC, separate owner manual
with metering device monitoring (microprocessor control),
M 00 - M 231)
c) integrated control unit (trailers)
with fixed time of availability (6 hours) and adjustable
operating time, H1)
1) Refer to the designation on the pump nameplate.
Example: P203 -2XNBO - 1 K6 - 24 - 2A1.10 - V10
Also refer to the designation code on page 6.

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 11 from 32
Identification Code - Pump Models 203
Examples of model designations
P203 - 2 - X - N - 1 - K6 - 24 - 1A - 1. - 01 - V10
P203 - 4 - X - L - 1 - K7 - 24 - 2A - 1. - 10 - V12
P203 - 2 - X - N - 1 - K6 - 12 - 1A - 8. - 00
P203 - 2 - X - N - 1 - K6 - 24 - 2A - 1. - 11 - V10- ADR
P203 - 2 - Y - N - BO - 2 - K5 - 24 - 1A - 1. - 01
6001a02
NOTE
Any pumps combinations other the above
standard pumps can be composed and or-
dered in accordance with the valid model
identification code. P203 - 4 - X - L - BO - 1 - K6 - 24 - 2A - 4. - 12 - M00
Basic pump model for grease or oil
with 1-3 outlets and 12 VDC or 24 VDC motor
Reservoir design
2 = 2 l transparent plastic reservoir
4 = 4 l transparent plastic reservoir
8 = 8 l transparent plastic reservoir
X = Reservoire for grease
Y = Reservoire for oil
N = Standard design
L = Low - level control
without designation = Standard reservoire (2 Litre)
BO = Filling from top
FL = Flat-type reservoire (2 Litre)
Pump elements
1-3 = Number of the use elements
K 5 = Piston diameter = 5 mm
K 6 = Piston diameter = 6 mm
K 7 = Piston diameter = 7 mm
KR = Pump element, adjustable, piston-Ø = 7 mm
C7 = Piston diameter = 7 mm 3)
Motor
12 V DC oder 24 VDC (DC motor)
AC = 94 - 265 VAC (47 - 63 Hz) with 24 VDC direct current motor5)
(see documentation P203 with power supply unit for 94 - 265 VAC)
Number of electric connecting possibilities (on pump housing only)
- 1A = 1. connection for power supply, on the left
- 2A = 1A (on the left)
and
2. connection (2 A - on the right) for illuminated pushbutton
(external additional lubrication, not possible with variant AC) and/ or
external low-level control
(with or without control p.c.b. V10-V13, possible with variant AC)****
or second connection (2 A – on the right) for piston detector (for M00-M23 control
p.c.b.) also see table on page 10
Type of connection
- 1 = cube-type plug, acc. to DIN 43650, type of construction A 1)
- 4 = AMP - flanged plug (microprocessor M00 - M23)
- 8 = PG - cable gland
- 9 = AMP-
p
lu
g,
wire to wire
Connection outside the pump
- 00 = without socket-outlet, without cable
- 01 = with socket-outlet, without cable l5)
- 10 = with 10 m cable
- 11 = with 10 m ADR cable
- 12 = with 10 m cable, 4 - wire (microprocessor M00 - M07)
- 13 = with 10 m cable, 5 - wire
(
micro
p
rocessor M08 - M23
)
Control p. c. b. s. 12V / 24 V
V10 -V13 -with adjustable pause and operating time
V10 -V13 - ADR with adjustable pause and operating time 2)
M 00 ...M 23* - with microprocessor control (various
adjustments - see combinations of the jumper - positions) 1)
H - for trailer or semitrailers
H - ADR for trailers and semitrailers 2)
No designation: Pump without control p. c. b.
1) Not in conjunction with Hirschmann plugs (type of connection 1)
2) For transport of hazard materials
3) C 7 = Designation of pump elements for supplying of paste for chisel (C = chisel), C 5 or C 6 on reques
4) Low-level control for oil; connection of the low-level control is not provided (only 1A; 2A only for illuminated push-button).
5) Pump with supply voltage 230 VAC only available with connection type 01, with or without control panel V 10 - V 13

Subject to change without notice
Owner Manual Technical Description
2.1A-30001-F03
Page 12 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
External Lamp
Low-level control
2A1.01/2A1.10
2A1.01
2A1.01/2A1.10
2A1.01
2A1.01/2A1.10
separate plug on
lid of reservoir
-----
Connecting plug,
on the right
Piston detector
1 or 2 piston detector(s)
1 or 2 piston detector(s)
Operating time
-----
-----
2A1.01/2A1.10
-----1)
2A1.01/2A1.10
-----1)
-----1)
Fault/low-level control/
readiness for service
2A4/9.12
2A4/9.13
1)
possible on the control p.c.b. only
- 1A8.00-PG- cable gland without cable
- 1A8.XX-PG- -cable gland with cable (option,OEM)
Connecting plug, on the right
Illuminated push button
Trigger additional
lubrication
-----
-----
2A1.01/2A1.10
-----1)
2A1.01/2A1.10
-----1)
-----1)
Operating time
2A4/9.12
2A4/9.13
Illuminated push button
Trigger additional
lubrication
2A4/9.12
2A4/9.13
- 2A4.12-AMP-plug, 4-wires
- 2A4.13-AMP-plug, 5-wires
- 2A9.12-AMP-plug, wire to wire, 4-wires
- 2A9.13-AMP-plug, wire to wire, 5-wires
Connecting plug, on the left
Power supply
1A1.01/1A1.10
1A1.01
1A1.01/1A1.10
1A1.01
1A1.01/1A1.10
1A1.01
1A1.10
Connecting plug, on the left
Power supply
2A4/9.12
2A4/9.13
Description: Electric connectionsfor pump 203
for exampleP203-2XN-1K6-24-......-V10
Printed circuit boards
V10-V13, V20-V23, H
possible connections
Activity/display
Pump
without p. c. b. VDC
without p. c. b. VAC
with p. c. b. V...
for grease, VDC
with p. c. b. V...
for grease, VAC
with p. c. b. V...
for oil, VDC
with p. c. b. V...
for oil, VAC
with p. c. b. H
for grease, VDC
Printed circuit boards
M00-M23
possible connections
Activity/display
Pump
with p. c. b. M00-M07 for
grease or oil, VDC
with p. c. b. M08-M23 for
grease or oil, VDC
- 1A1.01-cube-type plug, left without cable
- 1A1.10-cube-type plug, left with cable
- 2A1.01-cube-type, right without cable
- 2A1.10-cube-type, right with cable

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 13 from 32
Description, continuation
00002618b
Fig. 4 Pump components
1 - Reservoir
2 - Pump element
3 - Safety valve
4 - Filling nipple, system
Emergency lubrication
possible
5 - Plug 2A1
6 - Filling nipple, pump
7 - Printed circuit board
8 - Plug 1A1
9 - Return line connection
The QUICKLUB 203 central lubrication
pump
is a compact multiline pump consisting of the following
components:
- Housing with integrated motor
- Reservoir with stirring paddle
- Printed circuit board
- Pump element
- Pressure relief valve
- Filling nipple
- Electrical connection parts
can drive up to 3 pump elements
operates according to lubrication cycles (pause and oper-
ating times)
can be equipped with a low-level control
can supply up to 300 lubrication points depending on the
line lengths
is designed for the automatic lubrication of the connected
lubrication points
is designed for the delivery of greases up to NLGI 2 at
temperatures from - 25° C to 70° C or of mineral oils of at
least 40 mm²/s (cST)
can be used at low temperatures down to - 40° C.
During the operating time the pump dispenses lubricant to the
connected lubrication points via one or several metering de-
vices.
1006a93
Fig. 5 QUICKLUB central lubrication pump, 2 l reservoir
Low-level control (optional)
The pump model 203 can be equipped with a low-level
control.
The following versions are available:
- Low-level control in conjunction with printed circuit
boards
V10-V13 1)
- Low-level control in conjunction with printed circuit board
M00-M23 1)
- Low-level control for pumps without printed circuit
board.
When the reservoir is empty, the signal lamp flashes, thus
indicating the low level. Refer to the chapter Low-level
control, page 19.
1) The designation indicates the version of the printed circuit
board. It is part of the pump type designation code mentioned on
the nameplate of each pump. Example: P203 - 2XN - 1K6 - 24 -
1A1.10 - V10

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
Page 14 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Mode of Operation
20002068
Fig. 6 Pump element
1 - Piston
3 - Check valve 2 - Return spring
6001a02
NOTE
Pump elements with piston diameter C 7
must be used for supplying of chisel paste.
The design and the mode of operation are
the same as those of the pump elements
with piston diameter K 7.
Pump elements with fixed lubricant output
The electric motor drives the eccentric 1 (Fig. 5, 6).
During the operating time:
- piston 2 sucks in lubricant from the reservoir. Refer to Fig.
5.
- piston 2 dispenses the lubricant to the connected lubri-
cation points via the metering device. Refer to Fig. 6.
The following designs are available:
- Piston diameter, K5 ............................................. 5 mm
- Lubricant output................................approx. 2 cm³/min
- Piston diameter K6 (standard)............................. 6 mm
- Lubricant output............................approx.. 2.8 cm³/min
- Piston diameter, C7, K7....................................... 7 mm
- Lubricant output ...............................approx. 4 cm³/min
1003a95
Fig. 7 The pump element sucks in lubricant
1004a95
Fig. 8 The pump element dispenses lubricant
1 - Eccentric 2 - Piston 3 - Spring 4 - Check valve

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 15 from 32
Mode of Operation, continuation
1164b95
Fig. 9 Hydraulic diagram of the pump
Check valve
The check valve:
- closes the pressure line during suction stroke
- prevents the lubricant from flowing back to the housing or
reservoir
1 - Reservoir with stirring paddle
2 - Pump
3 - Check valve, spring-loaded
4 - Pressure relief valve
R - Return line
p - Pressure line
1163a95
Fig. 10 Arrangement of the pump elements
Arrangement of the pump elements
If several pump elements are to be installed, the installation
arrangement shown in Fig. 8 must be adhered to.
If there is only one pump element , it can be installed in any
position. Standard position is no. 3.
If there are two elements, install one in position 3 and the
other in position 1.
Pump element with adjustable lubricant output
4158a99
Fig. 11 Adjustable pumpelement
The mode of operation (suction and supply phase) is the
same as that of the pump elements with an invariable lu-
bricant output.
The lubricant outputs are adjustable from 0.04 to
0.18m3/stroke, or 0.7 to 3cm3/min.
The pump elements are factory-adjusted to the maximum
lubricant output; the adjusting dimensions “S” should be
29 ± 0.1 mm.

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
Page 16 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Mode of Operation, continuation
4159a98

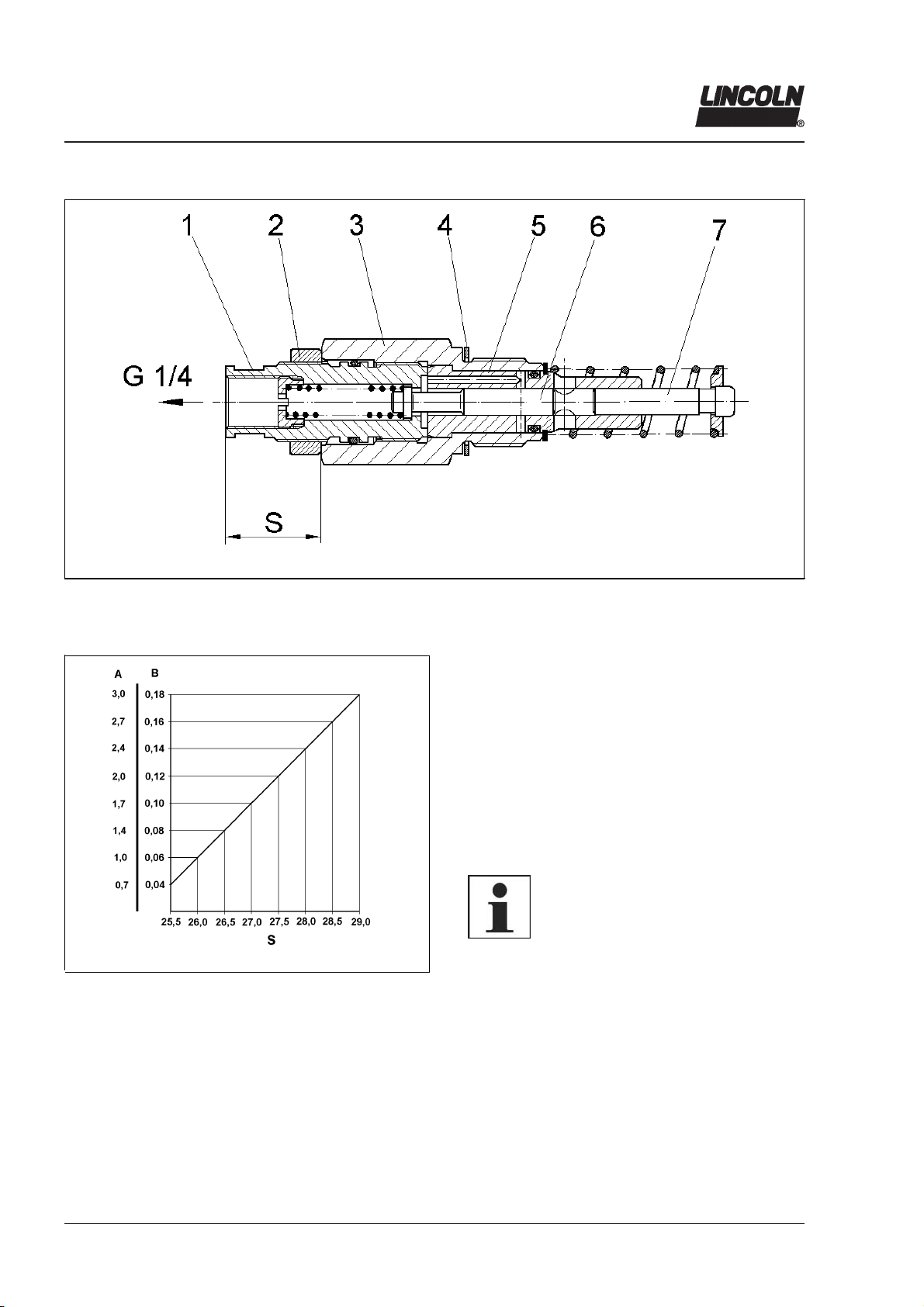

Fig. 12 Sectional view: adjustable element
1 - adjusting sindle SW 16
(with over flats)
2 - counternut SW 24
3 - pump element body
4 - gasket
5 - pump cylinder
6 - control piston
7 - delivery piston
S - dimension
4179a99
Fig. 13 Supply diagram
A - Lubricant output cm3/min
B - Lubricant output cm3/stroke
S - Dimension
Setting of adjustable pump elements
Unsrew the coupling nut for fixing the safety valve.
Loosen counter nut (2, Fig. 10) while holding in position
pump element body (3) by means of a seconf wrench.
Change the position of the adjusting spindel (1) by means
of a wrench.
The dimension “S” (see Fig. 10) for the desired lubricant
output can be ascertained by using the delivery diagram
shown in Fig. 11.
Retrofit adjustment of max. lubricant output
6001a02
NOTE
In order to ensure that the lubricant output
setting will be as excat as possible, first
the actual dimensions “S” of the max.
lubricant output must be ascertained as
follows. The measured difference from
the nominal value 29 must be considered
for all other settings values (e.g. ± 0.1).
Unsrew the adjusting spindle (1, Fig 10) from the pump
element body (3) until “S” is approx. 30 mm.
Srew counter nut (2) onto stop collar of the adjusting
spindle (1)
Screw adjusting spindle (1) with counter nut (2) into pump
element body (3) until stop.
1) All indications of positions refer to Fig. 10.

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 17 from 32
Mode of Operation, continuation
Adjusting of small lubricant outputs
Before the pump element can be adjusted to a small lu-
bricant output, the dimension “S” for max lubrcant output
must be ascertained, and the difference from the nominal
value 29 must be tranferred to any desired settings be-
tween 25.5 ... 28,.5.
Dimension “S” must be adjusted to the desired value in
accordance with the delivery diagramm (Fig. 11).
6001a02
NOTE
At maximum steeing “S” is 29 ±0.1 mm.
10022618a
Fig. 14 Pressure relief valve
Pressure Relief Valve
6001a02
IMPORTANT
Each pump element must be secured with
a pressure limiting valve.
The pressure relief valve
- limits the pressure build-up in the system
- opens at an overpressure of 250 or 350 bar depending
on the safety valve design.
If lubricant is leaking at the pressure relief valve, this indi-
cates that the system is malfunctioning.
6001a02
NOTE
Between a malfunction (blockage) and
the following fault indication (lubricant
leakage; monitoring intermittent LED
display on the control p.c.b. M00-M15)
there may be a longer time delay
The duration of the delay depends on the
type and length of the lines, the type of
lubricant, the ambient temperature and
other influences.
Despite existing fault monitoring devices a regular visual
and function control must be carried out on the lubrication
system.
00002626a
Pressure relief valve with grease return (optional)
If the system is blocked, grease will leak from the pressure
relief valve. This grease quantity is returned to the reser-
voir.
Fig. 15 Pressure relief valve with grease return

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
Page 18 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Mode of Operation, continuation
Pressure relief valve with grease return
00002629a

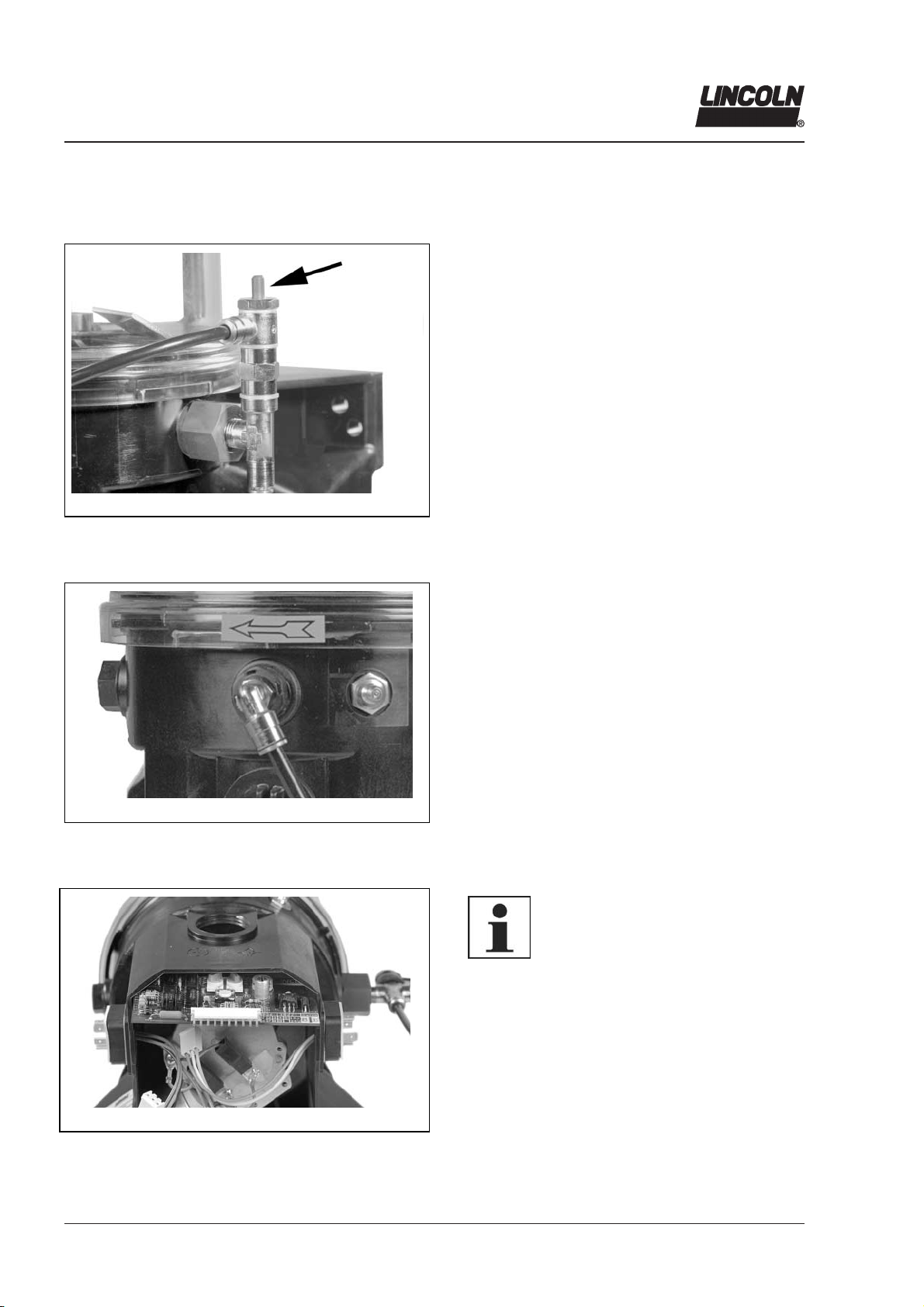

Fig. 16 Fault indication in the case of a blockage
In the case of a blockage in the system, the grease pushes
out the red pin at the pressure relief valve, thus indicating
that there is a fault.
Return Line Connection
10032618
Fig. 17 Return line connection
The lubricant quantities which cannot be dispensed by the
metering device must be returned to the pump via the re-
turn line connection (Fig. 15).
Control Unit
00002616
Fig. 18 Printed circuit board integrated in the housing
6001a02
NOTE
The present Technical Description de-
scribes the ”Pump model 203 without
control unit”. Information concerning the
design and operation of the individual
control units can be found in the respec-
tive Technical Descriptions.
If the pump is to be equipped with a control unit, it is pos-
sible to use an integrated printed circuit board or an ex-
ternal control unit.

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Page 19 from 32
Low-Level Control (optional)
Low-level control for grease
00002444

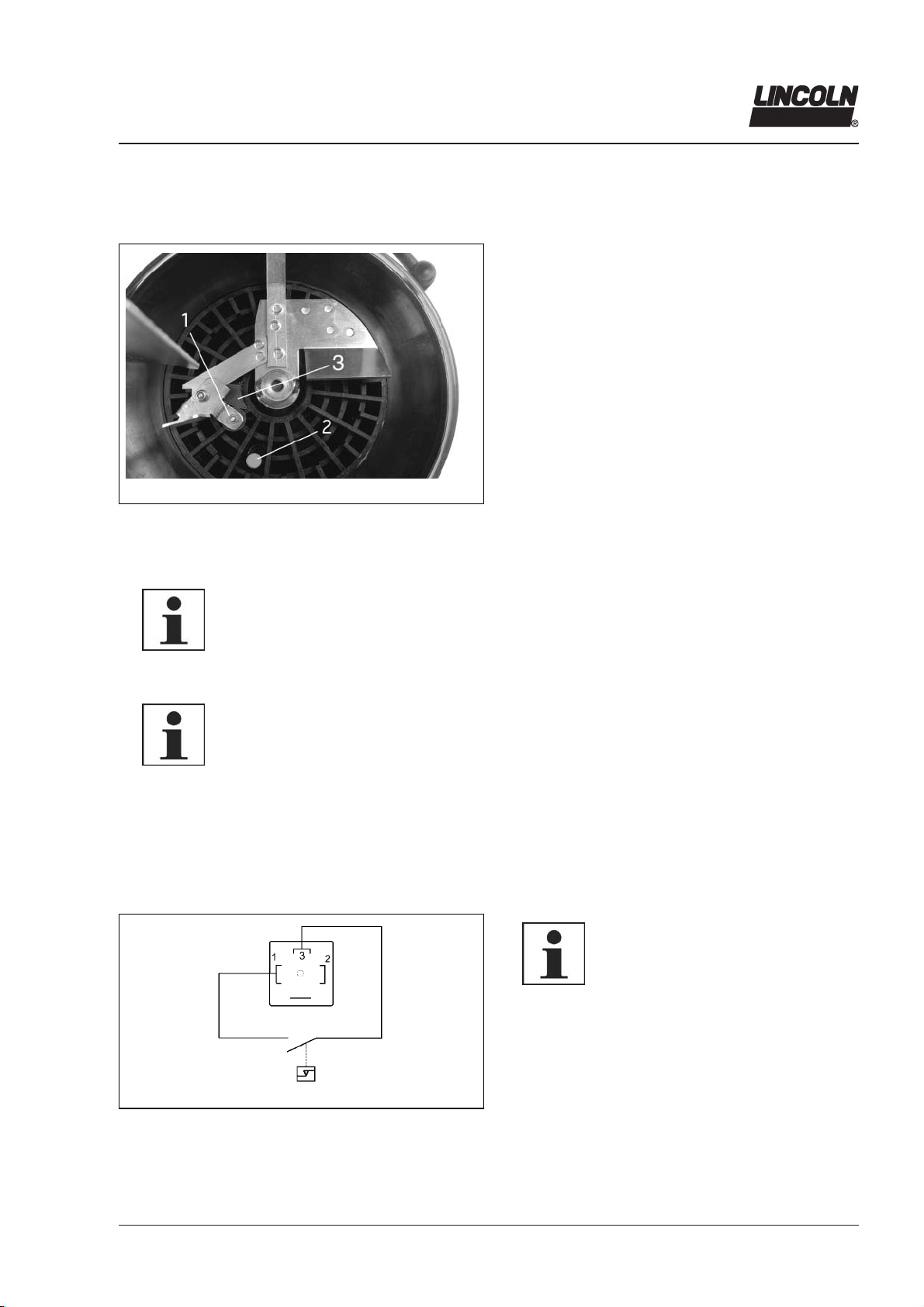

Fig. 19 Switching parts of the low-level control
1 - Guiding plate with round
solenoid 2 - Electromagnetic switch (at stirring paddle)
3 - Control cam
6001a02
NOTE
The above mentioned switching parts
must not be used with fluid grease. In this
case, use a float magnetic switch, see
below low-level control for oil.
6001a02
NOTE
The flashing signal starts only after the
solenoid has activated the electromag-
netic switch 6 times contact-free.
When the reservoir is filled
The stirring paddle rotates clockwise during the operating
time.
Due to the rotating motion of the stirring paddle in the
lubricant the pivoting guiding plate with the round solenoid,
item 11), is pressed backwards. The solenoid moves toward
the center of rotation of the stirring paddle. The electro-
magnetic switch item 21) cannot be activated.
Control cam item 31) guides the round solenoid with the
pivoting guiding plate automatically outwards, in the direc-
tion of the reservoir wall. After the lubricant has left the
control cam, it flows against the guiding plate, thus dis-
placing the solenoid again onto the center of rotation of the
stirring paddle.
1) All indications of positions refer to Fig. 17
When the reservoir is empty
During the rotating motion of the stirring paddle there is no
backpressure from the lubricant. The guiding plate with the
round solenoid no longer moves towards the center of ro-
tation of the stirring paddle. After control cam 3 has been
overtravelled, the solenoid remains in the outer position
and overruns electromagnetic switch 2. The solenoid ac-
tivates the electroma- gnetic switch contact-free, thus
triggering a low-level signal.
The flashing frequency in the case of printed circuit boards
236-13856-1 (F) and 236-13862-1 (V00-V03) and in the
case of pumps without control units depends on the motor
speed.
The flashing frequency in the case of printed circuit board
236-13870-1 (only M 00 - M 15) is:
0.5 second ”ON” - 0.5 second ”OFF”
M16 - M 23
The external relay drops out and the LED is extinguished once
the operating time has expired. The pump stops operating and
no longer restarts automatically.
Magnetic switch
The electromagnetic switch is activated contact-free and
with-out wear by the magnetic field of the magnetic fitted to the
stirring paddle.
4237a03
Fig. 20 Connection diagram
6001a02
NOTE
The life of the magnetic circuit breaker
strongly depends on the conditions under
which it is loaded. Since the data relative
to the maximum switching capacity refer
to strictly resistive loads, which cannot be
always guaranteed in practice, it is nec-
essary to take the corresponding contact
protection measures in the case of devi-
ating loads.
Technical data:
Maximum switching capacity: 60 VA
Maximum switching voltage: 230 V
Current switched: 3 A

Subject to change without notice
Owner Manual
Technical Description
2.1A-30001-F03
Page 20 from 32
LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel [phone] • Fax [phone]
Low-Level Control (optional), continuation
Low-level control for Oil
1202a99
Fig. 21 Connection diagram
Float magnetic switch
The electromagnetic switch is activated contact-free and
with-out wear by the magnetic field of the solenoid fitted to the
float.
6001a02
NOTE
The life of the magnetic circuit breaker
strongly depends on the conditions under
which it is loaded. Since the data relative
to the maximum switching capacity refer
to strictly resistive loads, which cannot be
always guaranteed in practice, it is nec-
essary to take the corresponding contact
protection measures in the case of devi-
ating loads.
Technical data:
Maximum switching capacity: 60 VA
Maximum switching voltage: 230 V
Current switched: 3 A
1201a95
Fig. 22 Contact protection measures
1 - Electromagnetic switch
2 - RC element
3 - Diode
4 - Load
