70m Cat.6 4x4 HDMI 18G Matrix
Extender
User Manual English
Benutzerhandbuch Deutsch
Manuel Utilisateur Français
Manuale Italiano
No. 38328
lindy.com

User Manual English
Safety Instructions
! WARNING !
Please read the following safety information carefully and always keep this document with
the product.
Failure to follow these precautions can result in serious injuries or death from electric
shock, fire or damage to the product.
Touching the internal components or a damaged cable may cause electric shock, which
may result in death.
This device is a switching type power supply and can work with supply voltages in the range 100 - 240
VAC For worldwide usability four different AC adapters are enclosed: Euro type, UK type, US/Japan type
and Australia/New Zealand type. Use the appropriate AC adapter as shown in the picture and ensure it
is firmly secured in place and does not detach by pulling before installing into a power socket.
To reduce risk of fire, electric shocks or damage:
▪Do not open the product nor its power supply. There are no user serviceable parts inside.
▪Only qualified servicing personnel may carry out any repairs or maintenance.
▪Never use damaged cables.
▪Do not expose the product to water or places of moisture.
▪Do not use this product outdoors it is intended for indoor use only.
▪Do not place the product near direct heat sources. Always place it in a well-ventilated place.
▪Do not place heavy items on the product or the cables.
▪Please ensure any adapters are firmly secured and locked in place before inserting into a wall socket
Instructions for Use of Power Supply
To connect the adapter
Slide the desired plug adapter into the power supply and rotate
clockwise until it locks into place.
To remove the adapter
Press the push button latch.
While pressed, rotate the adapter anticlockwise.

User Manual English
Introduction
Thank you for purchasing the 70m Cat.6 4x4 HDMI 18G Matrix Extender. This product has been designed
to provide trouble free, reliable operation. It benefits from both a LINDY 2-year warranty and free lifetime
technical support. To ensure correct use, please read this manual carefully and retain it for future
reference. The Lindy 70m Cat.6 4x4 HDMI 18G Matrix Extender is a high-performance, professional
solution for distribution of 4K HDMI signals to multiple displays using standard Cat.6 network cables from
4 separate HDMI sources.
Package Contents
▪70m Cat.6 4x4 HDMI 18G Matrix Extender
▪4 x Cat.6 HDMI Receiver
▪12VDC 2.5A Multi-country Power Supply (UK, EU, US & AUS), Barrel Size: 5.5/2.1mm
▪IR Remote with CR2025 Battery
▪4 x IR Emitter Cable, 1.5m
▪4 x Receiver Cable, 1.5m
▪RS-232 Male to Female Cable, 1.5m
▪3-Pin Phoenix Connector
▪10 x Mounting Ears.
▪Lindy Manual
Features
▪Distribute 4K HDMI signals to up to 4 displays in multiple locations from 4 different sources.
▪Supports resolutions up to 4K@60Hz, with additional support for HDR.
▪Features 4 HDMI outputs on the transmitter for local monitoring, which run simultaneously with the
extension output.
▪Supports Powerover Cat.6 (PoC)to the receivers,only a single power supply is required for operation.
▪4K to 1080p Downscaling on each output.
▪Advanced EDID Management
▪Push Button, IR, RS-232, LAN & Web-Gui Control
Specification
▪Supported Bandwidth: 18Gbps
▪Maximum Distance: 70m (229.66ft)
▪Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit with HDR Support
▪HDCP Support: 2.2
▪Supported Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus
(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
▪IR Support: 20~60KHz
▪CEC Support: Pass-through
▪Housing Material: Metal
▪Colour: Black
▪Operating Temperature: 0°C - 40°C (32°F - 104°F)
▪Storage Temperature: -20°C - 60°C (-4°F - 140°F)
▪Humidity: 20-90% RH (non-condensing)
▪ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
▪Power Consumption: 19.68W (Maximum)

User Manual English
Connectors
▪Transmitter Input: 4 x HDMI Type A (Female)
▪Transmitter Output: 4 x HDMI Type A (Female), 4 x RJ-45 (Female), 4 x 3.5mm IR (Female), RJ-45
LAN Control (Female), 3-Pin Phoenix Connector (Female)
▪Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
▪Receiver Output: HDMI Type A (Female)
Product Overview
Matrix Unit
Front Panel
▪Power Switch: Push the switch to power the matrix on or off.
▪Power LED: The LED will illuminate green once powered on.
▪IR: IR receiver eye for control from the IR remote.
▪Output 1 –4 Push Buttons & HDMI Source LED: Push the Output 1 –4 button the select the HDMI
Input connection for the corresponding output port. The corresponding input LED will illuminate.
Rear Panel
▪LAN: Connect to an active Ethernet connection with a Cat.6 cable for IP control.
▪RS-232: Connect to a PC or control system with the 9-pin RS-232 cable for RS-232 command control.
▪HDMI Output 1 –4: Connect to a HDMI display using HDMI cable.
▪Cat Output 1 –4: Connect to the Cat In Port of the receiver using Cat.6 or above cable.
▪IR Out 1 –4: Connect the IR emitter cable for control from the receiver side of the installation using
the IR receiver cables.
▪HDMI In 1 –4: Connect to an HDMI source device with an HDMI cable.
▪12VDC: Connect the 12V 1.25A Power Supply.
Receiver
▪HDMI Out: Connect to an HDMI display using HDMI cable.
▪Cat In: Connect to the Cat Out port of the matrix using Cat/6 or above cable.
▪Service: Reserved for Firmware Updates.
▪IR In: Connect the IR Receiver cable to control the source side of the installation.
▪12VDC: Connect a 12V 1.25A Power Supply. Please note the receiver can also be powered by the
matrix using PoC (Power over Cable).

User Manual English
Installation
Please follow the below instructions for installation.
Lindy advises using high-quality HDMI cables up to 3m in length on the input, and 3m in length on the
output. Cat.5e cabling canalso be used however this will impact themaximum distance possible, therefore
Cat.6 cable or above is recommended for use. Please ensure all devices are switched off prior to
installation.
1. Connect an HDMI display to the required receiver unit using HDMI cable.
2. Connect a Cat.6 or above network cable to the Cat In port of the receiver unit.
3. Connect the opposing end of the Cat.6 cable to one of the 4 Cat Out ports of the matrix.
4. For local HDMI distribution, connect up to 4 HDMIdisplays to the local HDMI Out ports of the matrix
unit.
5. Connect up to 4 HDMI source devices to the HDMI In of the matrix unit.
6. Connect the multi-country power supply to the DC jack of the matrix unit and plug into a mains
socket.
7. Switch on all devices. The Power LED of the matrix and receiver units will illuminate once power
has been supplied. Power is provided to the receivers over the network cable using PoC.
8. For additional infrared remote signal functionality, connect the included IR Extension Cables to the
matrix and receiver units, using the IR emitter cable with the IR Out port on the matrix and the IR
receiver with the IR in port of the receivers. Please ensure the emitter cable is in front of the IR port
that will be controlled, while the IR receivers are in line of sight of the IR remote.
Control
The matrix includes various methods of control above the push buttons on the main unit for simple content
distribution, or for integrating into control systems.
IR Control
1. Power on the matrix or put the matrix into standby mode.
2. Output 1: Press 1, 2, 3 or 4 to assign the HDMI Input to HDMI Output 1.
3. Output 2: Press 1, 2, 3 or 4 to assign the HDMI Input to HDMI Output 2.
4. Output 3: Press 1, 2, 3 or 4 to assign the HDMI Input to HDMI Output 3.
5. Output 4: Press 1, 2, 3 or 4 to assign the HDMI Input to HDMI Output 4.
6. < >: Select the previous or next HDMI Input.
IR Cable Pin Out

User Manual English
Web-Gui Control
Please follow the steps below to control the matrix via Web-Gui.
The default IP address is 192.168.1.100. The matrix’s IP address can also be found using RS-232 control.
Send the ASCII command “r ipconfig!” using a serial command tool. The following feedback will then be
shown. The IP address will vary, the below is an example only.
Connect a PC to the LAN port of the matrix using a UTP Cat.6 or above cable. Set the IP address to be in
the same network segment as the matrix.
Input the current IP address of the matrix in the browser of the PC. This will open the Web-Gui page.
Once into the Web-Gui, a login page will be shown.
Select the username from the list and enter the password. The default username and passwords are as
follows:
Username: User, Password: user
Username: Admin, Password: admin
Once entered, please select Login and the Status page will open.

User Manual English
Status Page
This page provides basic information about the extender, the current firmware version, and the network
settings of the device.
Video Page
The video page allows for simple switching functionality as well as creating, naming, and assigning certain
pre-set layouts.
Output: The matrixes output port. Select the source signal required from the Input drop down.
Input: Select the input source from the drop down for the corresponding output port.
Pre-sets Name: Rename the current layout. Please note the max character length is 12.
Pre-sets Set: Restore the settings of the last previously saved layout.
Pre-sets Save: Save the current layout.
Pre-sets Clear: Clear the currently saved layout.

User Manual English
Input Page
The input page allows for management of the input connections and the EDID settings.
Inputs: Input connection of the matrix.
Active: Indicates if the channel is connected to a source signal.
Name: The input channels name. This can be edited. Please note the max character length is 12.
EDID: Set current input channels EDID:
Set User EDID –Select the Browse button and select the bin file. If the wrong file is selected there will be
a prompt.
Please ensure the correct file is selected, then ensure the name of the file is correct. Select User 1 or User
2 and select Upload. Once successful a prompt will show.
To download the EDID file for the corresponding input channel, select from the Select EDID file drop down
list. Select Download to download the corresponding EDID file.
Output Page
The Output Page allows for management of both the HDM and Cat outputs including setting output
resolutions.
Outputs: Output channel of the matrix.
Name: The output channel’s name. This can be edited. Please note the max character length is 12.
Type: The output channel connection type.
Cable: This indicates the current connection statusof the output port. When a connection ismade between
the output port and a display, the indicator will be green. If not, this will remain grey.
Scaler Mode: Set the output resolution.
Stream: Turn the video output on or off.

User Manual English
CEC Page
This page allows for management of the CEC function.
Input Control: This allows for CEC functions that can be sent to the corresponding input device. Please
note the connected device must support CEC functionality.
Output Control: This allows for CEC functions that can be sent to the corresponding HDMI output device.
Please note the connected device must support CEC functionality.
Network Page
This page provides an overview and allows for management of the network settings.
Select Set Network Defaults. This will open a prompt.
Select OK to search for the IP address again.
Once the search has finished, the Login page will open again, and the default network setting is finalised.
Modify User Password:
Select User and enter the old password, new password, confirm password and then select Save. Once
the change has been confirmed a prompt will show.
Please note the password field cannot remain empty, remain the same as the old password and the new
password and confirm password must be identical.
Modify Network Setting:
Modify the Mode, IP Address, Gateway,Subnet Mask and Telnet Port and select Save tosave the settings
which take effect immediately. After any change are made, if the Mode is “Static”, it will switch to the
corresponding IP address. If the Mode is set to DHCP, it will automatically search and switch to the IP
address assigned by the connected router.

User Manual English

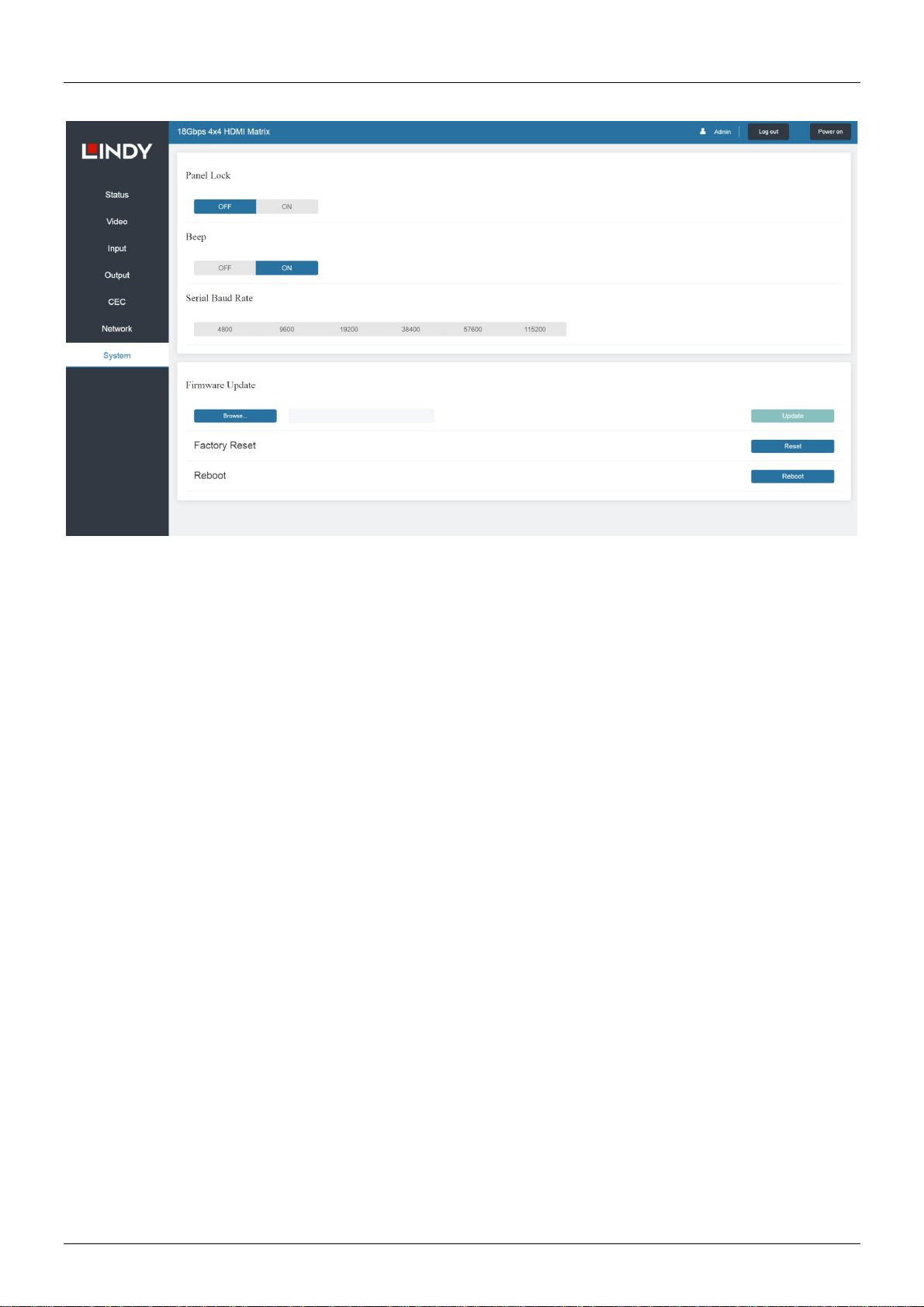

System Page
Panel Lock: Select On to lock the push buttons on the main unit. Select Off to unlock.
Beep: Select to turn the main units beep notification sound.
Serial Baud Rate: Select the appropriate value to set the serial baud rate.
Firmware Update: Click Browse and then select the firmware update file and click Update to complete the
firmware update.
Factory Reset: Select Reset to reset the matrix to its factory default settings.
Reboot: Select Reboot to reboot the matrix.
Please note: After a factory reset or reboot it will automatically switch to the login page.

User Manual English
RS-232 Control
Using a RS-232 phoenix connector to RS-232 Male cable, the matrix can also be controlled using RS-232
commands. Connect the phoenix connector to the matrix and connect the RS-232 male connection to a
RS-232 Female to USB cable. The USB connector can then be connected to a PC or laptop.
Open the serial command tool which can be found at your local Lindy website under Downloads.
The ASCII command list can be found below.
Serial Port Protocol.
Baud Rate: 115200
Data Bits: 8bit
Stop Bits: 1
Check Bit: 0
X –Parameter 1
Y –Parameter 2
! –Delimiter
Command Code
Function
Description
Feedback
Default Setting
Power
s power z!
Power on/off the
device, z=0~1
(z=0 power off, z=1
power on)
s power 1!
Power On
System Initializing…
Initialization Finished
FW Version x.xx.xx
Power on
r power!
Get current power
state
r power!
power on/power off
s reboot!
Reboot the device
s reboot!
Reboot…
Initialisation Finished
FW Version x.xx.xx

User Manual English
System Setup
help!
List all commands
help!
r type!
Get device model
r type!
Lindy 38328
r status!
Get device current
status
r status!
Get the unit all status:
power, beep, lock, in/
out connection, video/
audio crosspoint,
edid, scaler,hdcp,
network status
r fw version!
Get Firmware version
r fw version!
MCU BOOT: Vx.xx.xx
MCU APP : Vx.xx.xx
WEB GUI : Vx.xx
r link in x!
Get device model
r type!
hdmi input 1: connect
r link out y!
Get device current
status
r status!
hdmi output 1: connect
s reset!
Get Firmware version
r fw version!
Reset to factory
defaults
System Initializing...
Initialization Finished!
FW version x.xx.xx
s beep z!
Get the connection
status of the x input port
，x=0~4(0=all)
r link in 1!
beep on
beep off
r beep!
Get the connection
status of the y output
port, y=0~4(0=all)
r link out 1!
beep on / beep off
s lock z!
Reset to factory defaults
s reset!
panel button lock on
panel button lock off
r lock!
Enable/Disable buzzer
function, z=0~1(z=0
beep off, z=1 beep on)
s beep 1!
panel button lock
on/off
beep on
s save preset z!
Get buzzer state
r beep!
save to preset 1
s recall preset z!
Lock/Unlock front panel
button,z=0~1(z=0 lock
off,z=1 lock on)
s lock 1!
recall from preset 1
panel button lock
off
s clear preset z!
Get panel button lock
state
r lock!
clear preset 1
r preset z!
Save switch state
between all output port
and the input port to
preset z，z=1~4
s save preset
1!
video/audio crosspoint
s baud rate xxx!
Call saved preset z
scenarios，z=1~4
s recall preset
1!
Baudrate:115200
r baud rate!
Clear stored preset z
scenarios,z=1~4
s clear preset
1!
Baudrate:115200
s id z!
Get preset z infomation,
z=1~4
r preset 1!
id 888

User Manual English
Output Setting
s in x av out y!
Set input x to
output y，x=1~4
，y=0~4(0=all)
s in 1 av out 2!
input 1 -> output 2
ptp
r av out y!
Get output y
signal status
y=0~4(0=all)
r av out 0!
input 1 -> output 1
input 2 -> output 2
……
input 4 -> output 4
s hdmi y stream z!
Set output y
stream on/off,
y=0~4(0=all)
z=0~1(0:disable,1:
enable)
s hdmi 1 stream 1
!
s hdmi 0 stream 1
!
Enable hdmi
output 1 stream
Disable hdmi
output 1 stream
Enable hdmi all
outputs stream
Disable hdmi all
outputs stream
enable
s cat y stream z!
Set output y
stream on/off,
y=0~4(0=all)
z=0~1(0:disable,1:
enable)
s cat 1 stream 1 !
s cat 0 stream 1 !
Enable cat output
1 stream
Disable cat output
1 stream
Enable cat all
outputs stream
Disable cat all
outputs stream
enable
r hdmi y stream!
Get output y
stream status,
y=0~4(0=all)
r hdmi 1 stream!
Enable hdmi 1
stream
r cat y stream!
Get output y
stream status,
y=0~4(0=all)
r cat 1 stream!
Enable cat 1
stream
s hdmi y scaler z!
Set hdmi output y
port output scaler
mode，
y=0~4(0=all),
z=1~3(1=bypass,2
=4k-
>1080p,3=Auto)
s hdmi 1 scaler 1!
s hdmi 0 scaler 1!
hdmi output 1 set
to bypass mode
hdmi all outputs
set to bypass
mode
hdmi all outputs
set to bypass
mode
r hdmi y scaler!
Get hdmi output y
port output mode
y=0~4(0=all)
r hdmi 1 scaler !
hdmi output 1 set
to bypass mode
s cat y dsc mode
z!
set cat output y
port dsc mode
status
y=0~4(0=all)
z=1~3(1=Cat
cable distance
normal Mode,2=
Cat cable distance
35M Mode,3= Cat
cable distance
70M Mode)
s cat 1 dsc mode
2!
cat out 1 dsc
mode 2
Cat cable distance
35M Mode(35M)
r cat y dsc mode!
Get dsc mode of
cat out y,
y=0~4(0=all)
r cat 1 dsc mode!
cat out 1 dsc
mode 2

User Manual English
CEC Setting
s cec in x on!
set input x power
on by CEC,
x=0~4(0=all input)
s cec in 1 on!
input 1 power on
s cec in x off!
set input x power
off by CEC,
x=0~4(0=all input)
s cec in 1 off!
input 1 powe off
s cec in x menu!
set input x open
menu by CEC,
x=0~4(0=all input)
s cec in 1 menu!
input 1 open menu
s cec in x back!
set input x back
operation by CEC,
x=0~4(0=all input)
s cec in 1 back!
input 1 back
operation
s cec in x up!
set input x menu
up operation by
CEC, x=0~4(0=all
input)
s cec in 1 up!
input 1 menu up
operation
s cec in x down!
set input x menu
down operation by
CEC, x=0~4(0=all
input)
s cec in 1 down!
input 1 menu
down operation
s cec in x left!
set input x menu
left operation by
CEC, x=0~4(0=all
input)
s cec in 1 left!
input 1 menu left
operation
s cec in x right!
set input x menu
right operation by
CEC, x=0~4(0=all
input)
s cec in 1 right!
input 1 menu right
operation
s cec in x enter!
set input x menu
enter by CEC,
x=0~4(0=all input)
s cec in 1 enter!
iInput 1 menu
enter operation
s cec in x play!
set input x play by
CEC, x=0~4(0=all
input)
s cec in 1 play!
input 1 play
operation
s cec in x pause!
set input x pause
by CEC,
x=0~4(0=all input)
s cec in 1 pause!
input 1 pause
operation
s cec in x stop!
set input x stop by
CEC, x=0~4(0=all
input)
s cec in 1 stop!
input 1 stop
operation
s cec in x rew!
set input x rewind
by CEC,
x=0~4(0=all input)
s cec in 1 rew!
input 1 rewind
operation
s cec in x mute!
set input x
volume mute by
CEC, x=0~4(0=all
input)
s cec in 1 mute!
input 1 volume
mute
s cec in x vol-!
set input x
volume down by
CEC, x=0~4(0=all
input)
s cec in 1 vol-!
input 1 volume
down
s cec in x vol+!
set input x
volume up by
CEC, x=0~4(0=all
input)
s cec in 1 vol+!
input 1 volume up

User Manual English
s cec in x ff!
set input x fast
forward by CEC,
x=0~4(0=all input)
s cec in 1 ff!
input 1 fast
forward operation
s cec in x
previous!
set input x
previous by CEC,
x=0~4(0=all input)
s cec in 1
previous!
input 1 previous
operation
s cec in x next!
set input x next by
CEC, x=0~4(0=all
input)
s cec in 1 next!
input 1 next
operation
s cec hdmi out y
on!
set hdmi output y
power on by CEC,
y=0~4(0=all
output)
s cec hdmi out 1
on!
hdmi output 1
power on
s cec hdmi out y
off!
set hdmi output y
power off by CEC,
y=0~4(0=all
output)
s cec hdmi out 1
off!
hdmi output 1
power off
s cec hdmi out y
mute!
set hdmi output y
volume mute by
CEC, y=0~4(0=all
output)
s cec hdmi out 1
mute!
hdmi output 1
volume mute
s cec hdmi out y
vol-!
set hdmi output y
volume down by
CEC, y=0~4(0=all
output)
s cec hdmi out 1
vol-!
hdmi output 1
volume down
s cec hdmi out y
vol+!
set hdmi output y
volume up by
CEC, y=0~4(0=all
output)
s cec hdmi out 1
vol+!
hdmi output 1
volume up
s cec hdmi out y
active!
set hdmi output y
active source by
CEC, y=0~4(0=all
output)
s cec hdmi out 1
active!
hdmi output 1
active source

User Manual English
EDID Setting
s edid in x from z!
Set input x EDID
from default EDID
z,
x=0~4(0=all),z=1~
31
1:
1080p,
Stereo Audio 2.0
2: 1080p,
Dolby/DTS 5.1
3: 1080p,
HD Audio 7.1
4: 1080i,
Stereo Audio 2.0
5: 1080i,
Dolby/DTS 5.1
6: 1080i,
HD Audio 7.1
7: 3D,
Stereo Audio 2.0
8: 3D,
Dolby/DTS 5.1
9: 3D,
HD Audio 7.1
10: 4K2K30_444,
Stereo Audio 2.0
11: 4K2K30_444,
Dolby/DTS 5.1
12: 4K2K30_444,
HD Audio 7.1
13: 4K2K60_420,
Stereo Audio 2.0
14: 4K2K60_420,
Dolby/DTS 5.1
15: 4K2K60_420,
HD Audio 7.1
16: 4K2K60_444,
Stereo Audio 2.0
17: 4K2K60_444,
Dolby/DTS 5.1
18: 4K2K60_444,
HD Audio 7.1
19: 4K2K60_444,
Stereo Audio 2.0
HDR
20: 4K2K60_444,
Dolby/DTS 5.1
HDR
21: 4K2K60_444,
HD Audio 7.1
HDR
22: USER1
23: USER2
24: copy from
HDMI output 1
25: copy from
s edid in 1 from 1!
s edid in 0 from
1!
input 1
EDID:1080p,Stere
o Audio 2.0
all inputs
EDID:1080p,Ster
eo Audio 2.0
1080p,Stereo
Audio 2.0

User Manual English
HDMI output 2
26: copy from
HDMI output 3
27: copy from
HDMI output 4
28: copy from cat
output 1
29: copy from cat
output 2
30: copy from cat
output 3
31: copy from cat
output 4
r edid in x!
Get EDID status
of the input.
X, x=0~4(0=all
input)
r edid in 0!
input 1 EDID:
4K2K60_444,Ster
eo Audio 2.0
input 2 EDID:
4K2K60_444,Ster
eo Audio 2.0
input 3 EDID:
4K2K60_444,Ster
eo Audio 2.0
input 4 EDID:
4K2K60_444,Ster
eo Audio 2.0
r edid data hdmi y!
Get the EDID data
of the HDMI
output y port,
y=1~4
r edid data hdmi 1!
EDID : 00 FF FF
FF FF FF FF 00
………
hdmi output 1:
disconnect

User Manual English
Network Setting
r ipconfig!
Get the Current IP
Configauration
r ipconfig !
IP Mode: Static
IP: 192.168.1.72
Subnet Mask:
255.255.255.0
Gateway:
192.168.1.1
TCP/IP port=8000
Telnet port=10
Mac address:
00:1C:91:03:80:01
Mac address:
6C:DF:FB:0D:59:7
4
r mac addr!
Get network MAC
address
r mac addr!
Mac address:
00:1C:91:03:80:01
s ip mode z!
Set network IP
mode to static IP
or DHCP,
z=0~1 (z=0 Static,
z=1 DHCP )
s ip mode 0!
Set IP
mode:Static.
(Please use "s net
reboot!" command
or repower device
to apply new
config!)
r ip mode!
Get network IP
mode
r ip mode!
IP mode: Static
s ip addr
xxx.xxx.xxx.xxx!
Set network IP
address
s ip addr
192.168.1.100!
Set IP
address:192.168.1
.100
Please use "s net
reboot!" command
or repower device
to apply new
config!
DHCP on, Device
can't config
static address,
set DHCP off
first.
r ip addr!
Get network IP
address
r ip addr!
IP
address:192.168.1
.100
s subnet
xxx.xxx.xxx.xxx!
Set network
subnet mask
s subnet
255.255.255.0!
Set subnet
Mask:255.255.255
.0
(Please use "s net
reboot!" command
or repower device
to apply new
config!)
DHCP on, Device
can't config
subnet mask, set
DHCP off first.
r subnet!
Get network
subnet mask
r subnet!
Subnet
Mask:255.255.255
.0

User Manual English
s gateway
xxx.xxx.xxx.xxx!
Set network
gateway
s gateway
192.168.1.1!
Set
gateway:192.168.
1.1
(Please use "s net
reboot!" command
or repower device
to apply new
config!)
DHCP on, Device
can't config
gateway, set
DHCP off first.
r gateway!
Get network
gateway
r gateway!
Gateway:192.168.
1.1
s tcp/ip port x!
Set network
TCP/IP port
(x=1~65535)
s tcp/ip port 8000!
Set TCP/IP
port:8000
r tcp/ip port!
Get network
TCP/IP port
r tcp/ip port!
TCP/IP port:8000
s telnet port x!
Set network telnet
port(x=1~65535)
s telnet port 23!
Set Telnet port:23
r telnet port!
Get network telnet
port
r telnet port!
Telnet port:23
s net reboot!
Reboot network
modules
s network reboot!
Network reboot…
IP Mode: Static
IP: 192.168.1.72
Subnet Mask:
255.255.255.0
Gateway:
192.168.1.1
TCP/IP port=8000
Telnet port=10
Mac address:
00:1C:91:03:80:01
