Linksys WAG54G - Wireless-G ADSL Gateway Wireless... User manual

A Division of Cisco Systems, Inc.
®
Model No.
Model No.
Wireless Quick Installation Guide Wireless
1
Quick Installation Guide
Model No.
WAG54G (UK/EU)
ADSL Gateway
Wireless-G
Package Contents
• Wireless-G ADSL Gateway
• User Guide on CD-ROM
• Ethernet Network Cable
• Phone Cable
• Power Adapter
• Microfilterorsplitter(notsuppliedwith
all models)
• Quick Installation
GHz
2802.11g
4
,

2
1
In Step 1, you will connect the
Gateway to your ADSL line and to
the computers in your home or
business.
First, make sure that all the devices
that you’ll be working with are
powered down, including your PCs
and the Gateway.
AConnect one end of the
provided phone cable to the
wall jack with ADSL service.
NOTE: To avoid interference,
you may need to place
a microfilter or splitter
between the phone
cable and wall jack.
Contact your service
provider for more
information.
BConnect the other end of the
phone cable to the LINE port
that is on the back of the
Gateway. (Figure B)
CConnect one end of the
provided Ethernet cable to
your PC’s Ethernet adapter
(Figure C1). Connect the other
end of the cable to one of the
Ethernet ports on the back of
the Gateway (Figure C2).
Repeat this process for every
PC that you want to connect to
the Gateway.
Connect the ADSL Gateway
B
C1
C2

3
If you are connecting more
than four PCs to the Gateway,
you will also need to connect
a hub or switch to the
Gateway.
NOTE: If your PC’s Ethernet
adapter is not set up,
refer to the Ethernet
adapter’s user guide for
more information.
DConnect the power adapter to
the Gateway. Connect the
power adapter to the electrical
outlet. (Figure D)
ETurn on the Gateway. Then,
turn on the first PC that you
want to use to configure the
Gateway.
Proceed to Step 2: Configure the
ADSL Gateway.
D
IMPORTANT: Make sure you only
place the microfilter or splitter
between the phone and the wall
jack and not between the Gateway
and the wall jack. Otherwise your
ADSL will not connect.

4
2
In Step 2, you will configure your
Linksys Wireless-G ADSL Gateway to
be able to gain access to the
Internet through your Internet Service
Provider (ISP). You will need the setup
information provided by your ADSL
ISP. If you do not have this
information, please contact them
before proceeding.
The instructions from your ISP tell you
how to set up your PC for Internet
access. Because you are now using
the Gateway to share Internet
access among several computers,
you will use the setup information to
configure the Gateway instead of
your PC.
NOTE: You only need to
configure the Gateway
once using the first
computer you set up.
AOpen your web browser. (You
may get an error message at
this point. Continue following
these directions.) Enter http://
192.168.1.1 in the web
browser’s Address field. Press
the Enter key.

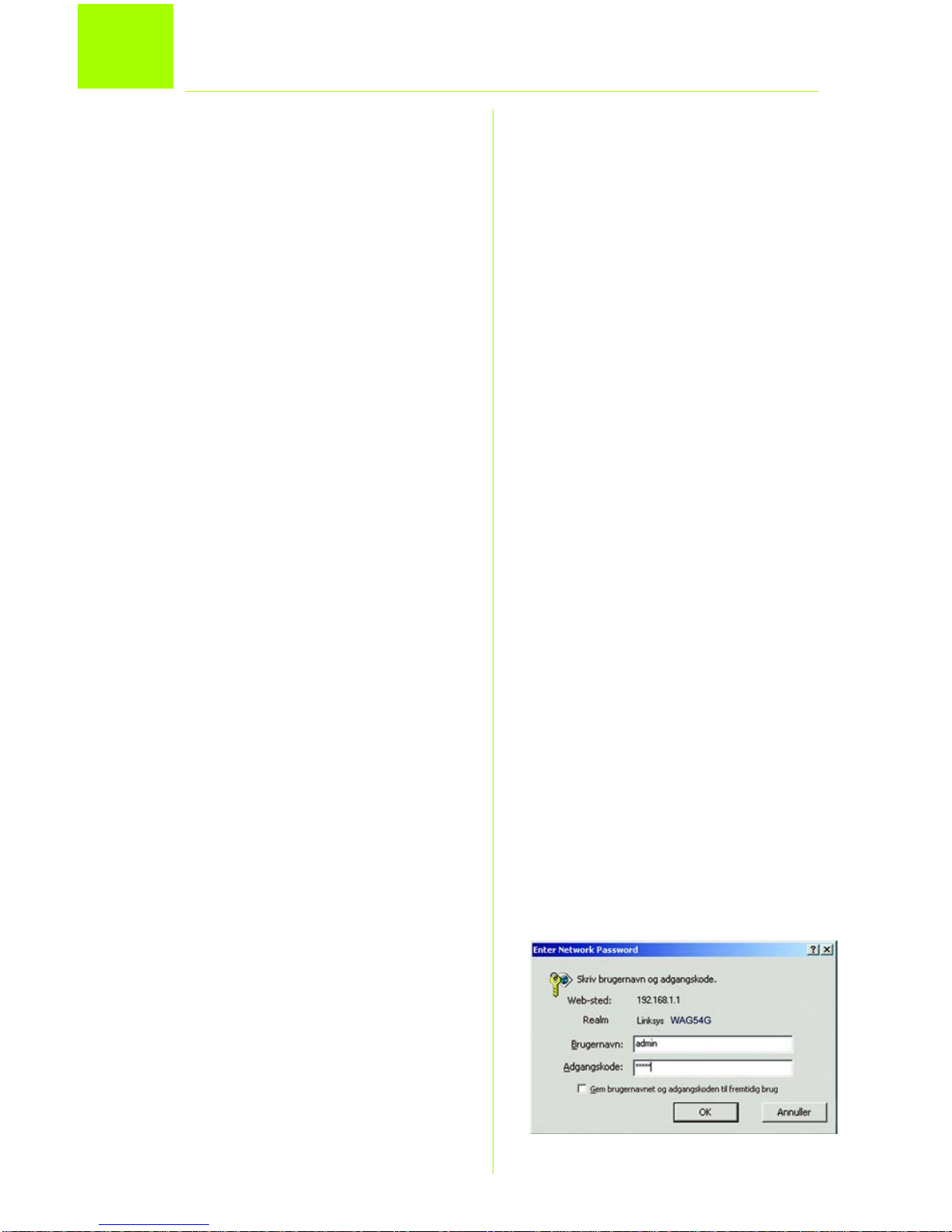

BAn Enter Network Password
window, shown in Figure B, will
appear (Windows XP users will
see a Connect to 192.168.1.1
window). Enter admin in
lowercase letters in the User
Name field, and enter admin
Configure the ADSL Gateway
B

5
in lowercase letters in the
Password field (admin is the
default user name and
password.) Then, click the OK
button.
CThe Basic Setup screen will
appear with the Setup tab
selected. (Figure C) Based on
the setup instructions from your
ISP, you may need to provide
the following information.
Virtual Circuit (VPI and VCI):
These fields consist of two
items: VPI (Virtual Path Identifier)
and VCI (Virtual Channel
Identifier). Your ISP will provide
the correct settings for each
field.
DEncapsulation: This Gateway
supports multiple settings for
the Encapsulation. The most
common Encapsulation
methods are described below.
All methods are included in the
User Guide (English only) on the
CD-ROM.
The settings required will
depend on the Encapsulation
chosen here. Your ISP will
provide the correct settings.
Model No.
C

6
Dynamic
1 RFC 1483 Bridged
Dynamic IP Address
If your ISP says that you are
connecting through a dynamic IP
address (Figure D1), perform these
steps:
aSelect RFC 1483 Bridged for
the Encapsulation.
bSelect Obtain an IP Address
Automatically for the IP Set-
ting.
cClick the Save Settings button
to save the settings.
Static IP Address
If your ISP says that you are
connecting through a static or fixed
IP address (Figure D2), perform these
steps:
aSelect RFC 1483 Bridged for
the Encapsulation.
bSelect Use the following IP
Address as the IP Setting.
cEnter the IP Address and the
Subnet Mask.
dEnter the Default Gateway
address.
Quick Installation
D1
Static
D2

7
PPPoE
PPPoA
eEnter the DNS in the Primary
and/or Secondary fields. You
need to enter at least one DNS
address.
fClick the Save Settings button
to save the settings.
2 RFC 2516 PPPoE or RFC 2364
PPPoA
If your ISP says that you are
connecting through PPPoE (Figure
D3) or PPPoA (Figure D4), or if you
normally enter a user name and
password to access the Internet,
perform these steps:
aSelect PPPoE or PPPoA as
appropriate for the
Encapsulation.
bIf you selected PPPoE, enter
the Service Name (if required).
cEnter the User Name.
dEnter the Password.
eSelect Keep Alive if you always
want to be connected to your
ISP, or select Connect on
Demand if you are charged
for the time that you are
connected to your ISP.
fClick the Save Settings button
to save the settings.
D3
D4

8
EIf you haven’t already done so,
click the Save Settings button
to save your Setup settings.
Close the web browser.
FFor Wireless Configuration:
Refer to the User Guide (English
only) for detailed instructions
on how to configure your
Gateway for your wireless
network. Linksys recommends
changing your wireless settings
from the defaults and enabling
the appropriate security
options.
GCongratulations! You’ve
successfully configured the
Gateway. Test the setup by
opening your web browser
from any computer and
entering: www.linksys.com/
registration
HIf you are unable to reach our
website, you may want to
review the installation and
configuration sections in this
Quick Installation or refer to the
Troubleshooting section of the
User Guide.
WAG54G-UK-V1.2-QIG-40113NC JL
Linksys is a registered trademark or trademark of
Cisco Systems, Inc. and/or its affiliates in the U.S.
and certain other countries. Copyright © 2004
Cisco Systems, Inc. All rights reserved.
For additional information or troubleshooting
help,refer tothe User Guide ontheCD-ROM or
the Technical Support Insert. You can also e-
mail for further support.
Website
http://www.linksys.com/international

A Division of Cisco Systems, Inc.
®
Modelnr.
Modelnr.
Trådløs Installationsvejledning Trådløs
1
Installationsvejledning
Modelnr.
WAG54G (DK)
ADSL-gateway
Trådløs-G
Pakkens indhold
• Trådløs-G ADSL-gateway
• Brugervejledning på cd-rom
• Ethernet-kabel
• Telefonledning
• Strømforsyning
• Mikrofilter eller fordeler (følger ikke
med alle modeller)
• Installationsvejledning
GHz
2802.11g
4
,

2
1
I trin 1 tilslutter du gatewayen til
ADSL-linjen og til computerne i dit
hjem/din virksomhed.
Kontroller først, at alle de involverede
enheder er slukket, herunder dine
pc'er og gatewayen.
ATilslut den ene ende af den
medfølgende telefonledning til
ADSL-vægstikket.
BEMÆRK: Det kan være
nødvendigt at placere
et mikrofilter eller en
fordeler mellem
telefonledningen og
vægstikket for at undgå
interferens. Kontakt din
tjenesteudbyder for at
få yderligere
oplysninger.
BTilslut den anden ende af
telefonledningen til LINE-porten
bag på gatewayen. (Figur B)
CTilslut den ene ende af det
medfølgende Ethernet-kabel til
pc'ens Ethernet-adapter
(Figur C1). Tilslut den anden
ende af kablet til en af Ethernet-
portene bag på gatewayen
(Figur C2). Gentag denne
fremgangsmåde for alle de
pc'er, du vil tilslutte til
gatewayen.
Tilslutning af ADSL-gatewayen
B
C1
C2
