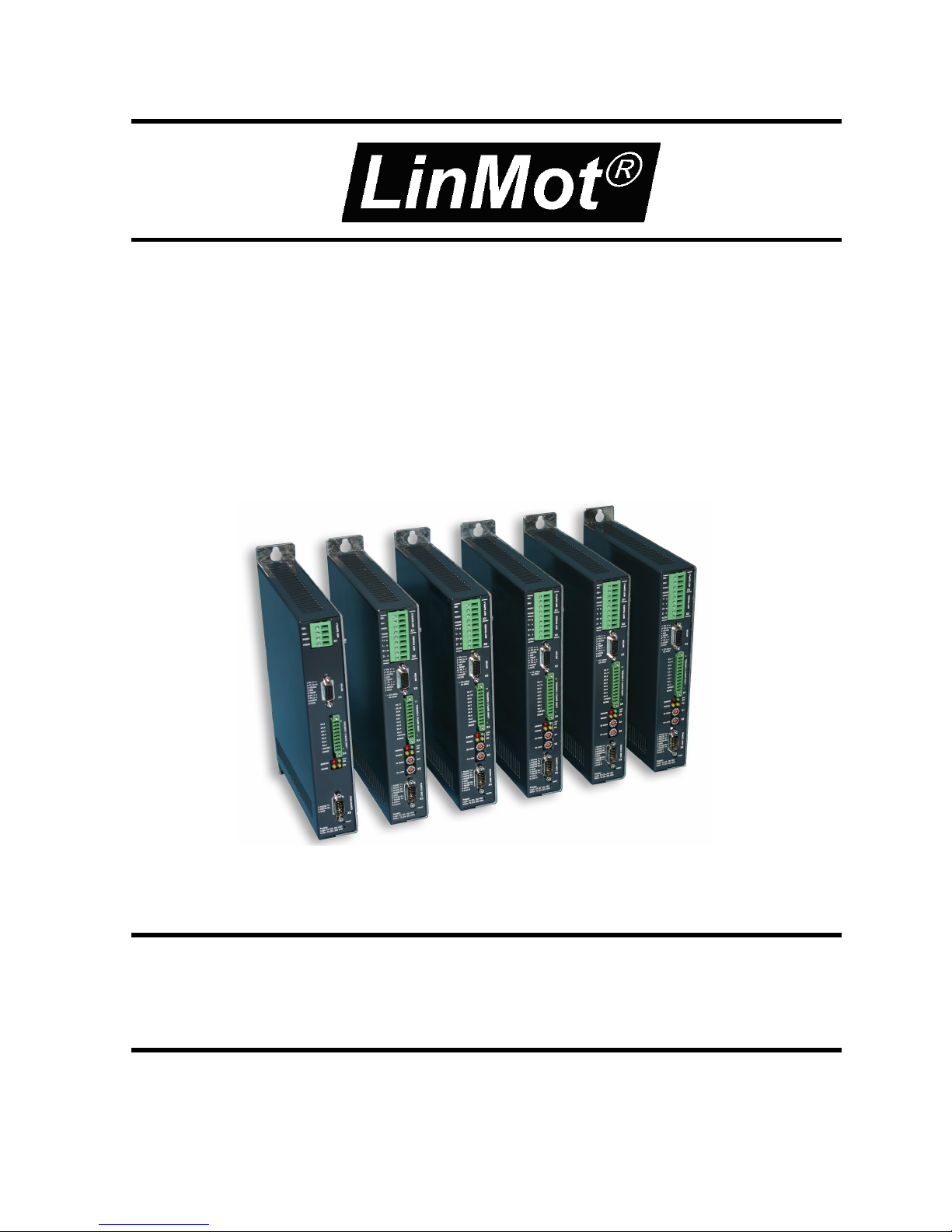

LinMot E1100 Series User manual

Documentation of the Master/Slave Application
for the following Drives:
-Series E1100
-Series E1200
-Series E1400
Master/Slave Application
User Manual

LinMot

Master/Slave Application
© 2016 NTI AG
This work is protected by copyright.
Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical, including
photocopying, recording, microfilm, storing in an information retrieval system, not even for didactical use, or translating, in whole
or in part, without the prior written consent of NTI AG.
LinMot® is a registered trademark of NTI AG.
Note
The information in this documentation reflects the stage of development at the time of press and is therefore without obligation.
NTI AG reserves itself the right to make changes at any time and without notice to reflect further technical advance or product
improvement.
Document version 3.19 / June 2016
Page 2/11 User Manual Master/Slave Application / 11/0 /2016 NTI AG / LinMot

Master/Slave Application
LinMot

Ta le of Content
1. INSTALLATION ON DRIVE................................................................................................4
2. SYSTEM OVERVIEW.........................................................................................................5
CONNECTING THE DRIVES.................................................................................................6
2.1 CONNECTING VIA COM / CONFIG CONNECTOR (X5)..............................................................6
2.2 CONNECTING VIA CMD CONNECTORS X /X8........................................................................
2.3 CONNECTING VIA MASTER ENCODER CONNECTORS X10/X11.................................................
2.4 CAN / RS485 TERMINATION...............................................................................................8
3. USING THE MASTER/SLAVE SW.....................................................................................9
4. MASTER SLAVE PARAMETERS....................................................................................10
5. RECONNECTION AFTER QUICK STOP / ERROR.........................................................10
6. CONTACT ADDRESSES.................................................................................................11
NTI AG / LinMot User Manual Master/Slave Application / 11/0 /2016 Page 3/11

LinMot

Master/Slave Application
1. Installation on Drive
For installing the MasterSlave firmware on the drive, start the LinMot-Talk software and press
the install firmware button . Choose the file “Firmware_Buildxxxxxxxx.sct” and press
“Open”. The wizard will guide you through the installation. When asking for the application
software choose “MasterSlave”
Press ok and follow the rest of the wizard.
Page 4/11 User Manual Master/Slave Application / 11/0 /2016 NTI AG / LinMot

Master/Slave Application
LinMot

2. System Overview
The Master/Slave application SW is an additional firmware part for the following features:
Current master motor with a maximum of three current slave motors to increase the
force. The current delay in all slaves is about 300us
Gantry master motor with a maximum of three gantry slave motors, which have the
same position setpoints. The setpoint delay for all slaves is about 300us.
If a synchronous communication mode is used, or if the cycle time of the used
fieldbus is short enough, it is recommended to realize the master gantry mode
within the PLC, because of higher flexibility and easier use (2 normal axis
instead of 1 master axis with attached slave information; especially in the error
handling case).
The Master/Slave application SW supports the Master/Slave communication link either over
the CAN bus (X /X8, X10/X11 or X5) or RS485 (X /X8 or X5).
If CAN bus interfaces (like CANopen or DeviceNet) are to be used for communication with
the drive, the RS485 based link has to be used for the Master/Slave application. For all other
interfaces the CAN bus link mode should be used, because the RS232 maintenance link on
X5 Connector is still available. The performance of both links CAN or RS485 is the same.
If the Master/Slave is linked over RS485, it is no longer possible to configure
or to debug the drive over RS232 (X5). LinMot-Talk configuration software
supports an USB to CAN converter (Part No. 0150-3134 ) for this purpose.
Although the Master/Slave application is available on E1100, E1200 and
E1400 drive series, drives from different series cannot be linked together.
NTI AG / LinMot User Manual Master/Slave Application / 11/0 /2016 Page 5/11

LinMot

Master/Slave Application
Connecting the Drives
Depending on the used drive types, there may be several possibilities to connect two drives
for use in a Master/Slave application:

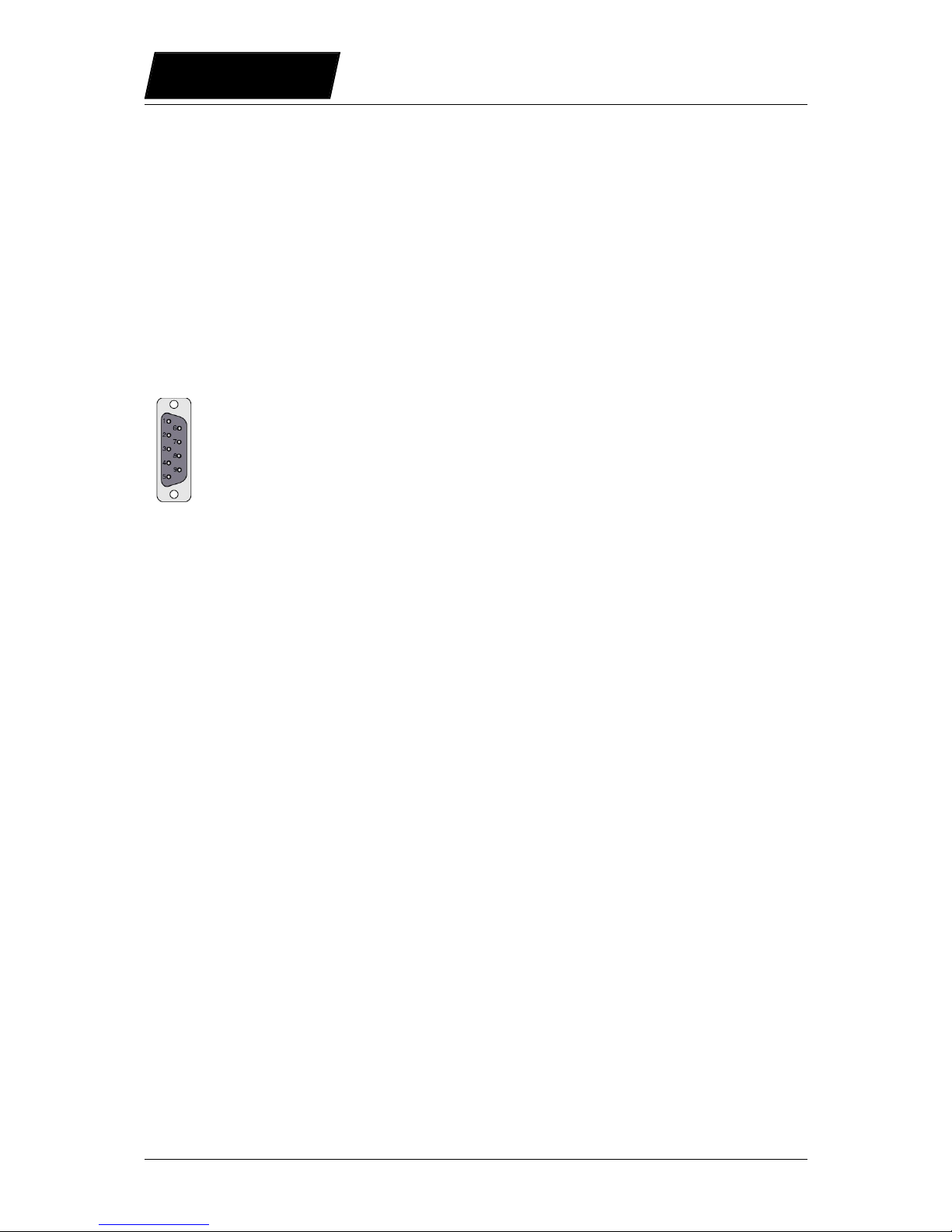

2.1 Connecting via COM / Config Connector (X5)
On X5 a connection is possible via RS485 or CAN is possible.
Pin assignment of X5 (DSUB 9 male):
Pin 1 RS-485 Y Pin 6 RS-485 B
Pin 2 RS-232 TX Pin RS-485 Z
Pin 3 RS-232 RX Pin 8 CAN L
Pin 4 RS-485 A Pin 9 CAN H
Pin 5 GND
RS485 Master/Slave Wiring on X5:
Master  Slave 1  Slave 2  Slave 3,4
Pin 4 RS-485 A ------ Pin 1 RS-485 Y ------ Pin 1 RS-485 Y ------ Pin 1 RS-485 Y
Pin 6 RS-485 B ------ Pin RS-485 Z ------ Pin RS-485 Z ------ Pin RS-485 Z
Pin 1 RS-485 Y ------ Pin 4 RS-485 A ------ Pin 4 RS-485 A ------ Pin 4 RS-485 A
Pin RS-485 Z ------ Pin 6 RS-485 B ------ Pin 6 RS-485 B ------ Pin 6 RS-485 B
CAN Master/Slave Wiring on X5:
Master  Slave 1  Slave 2  Slave 3,4
Pin 8 CAN L ------- Pin 8 CAN L ------- Pin 8 CAN L ------- Pin 8 CAN L
Pin 9 CAN H ------- Pin 9 CAN H ------- Pin 9 CAN H ------- Pin 9 CAN H
Page 6/11 User Manual Master/Slave Application / 11/0 /2016 NTI AG / LinMot

Master/Slave Application
LinMot


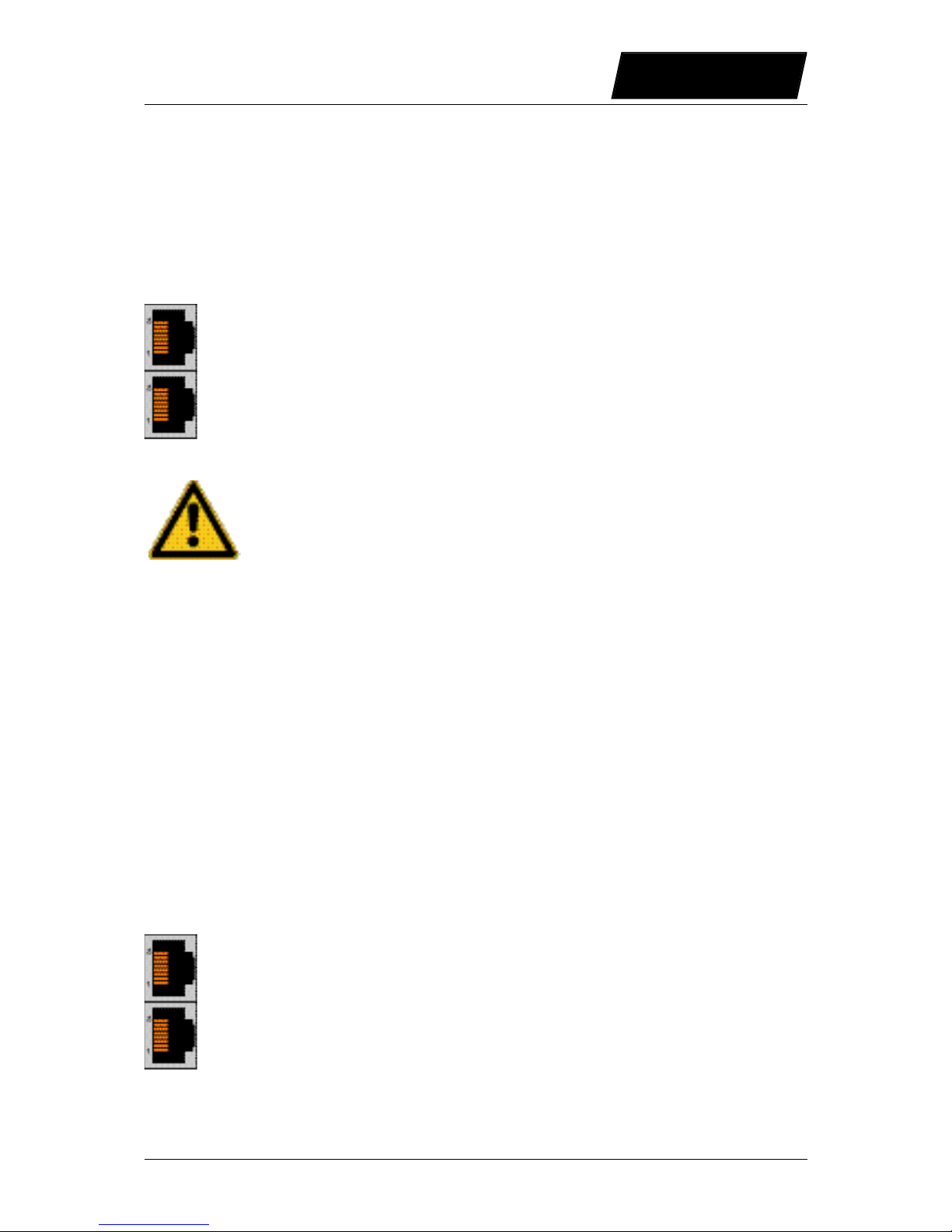

2.2 Connecting via CMD Connectors X7/X8
The CMD connector exists only on the E1130-DP(-HC/-XC), E1100-CO(-HC/-XC), E1100-
DN(-HC/-XC) and E1100-RS(-HC/-XC) drives, 2xRJ45 with 1:1 connected signals. Standard
twisted pairs: 1/2, 3/6, 4/5, /8. Over the X /X8 the Master/Slave communication can be
realized for CAN and RS485 link.
Pin assignment of X /X8:
When connecting via RS485, use a crossed Ethernet patch cable (Art. Nr.
0150-1853) between the master and first slave, and a normal patch cable 1:1
(Art. Nr. 0150-1852) between the slaves.
Master  Slave 1  Slave 2,3,4
Crossed patch cable Standard patch cables
Art. Nr. 0150-1853 Art. Nr. 0150-1852
Use Ethernet cables according the EIA / TIA 568A standard to loop through the CAN bus
over this connector (Art. Nr. 0150-1852).
2.3 Connecting via Master Encoder Connectors X1 /X11
With the E1100-GP(-HC/-XC), E1200 and the E1400 drives, the CAN bus is also available on
the two RJ45 connectors X10 (ME IN) and X11 (ME OUT) with 1:1 connected signals.
Use Ethernet cables according the EIA / TIA 568A standard to loop through the CAN bus
over this connector (Art. Nr. 0150-1852).
Over the X10/X11 connection only the CAN bus linked Master/Slave mode can be used (no
RS485)!
Pin assignment of X10/X11:
NTI AG / LinMot User Manual Master/Slave Application / 11/0 /2016 Page /11
Pin 1 RS485 A
Pin 2 RS485 B
Pin 3 RS485 Y
Pin 4/5 Ground
Pin 6 RS485 Z
Pin 7 CAN H
Pin 8 CAN L
Pin 1 A
Pin 2 /A
Pin 3 B
Pin 4 Z
PIN 5 /Z
Pin 6 /B
Pin 7 CAN H
Pin 8 CAN L

LinMot

Master/Slave Application
2.4 CAN / RS485 Termination
The CAN bus must be terminated by two 120 Ohm resistors at both ends of the bus line,
according the following scheme:
For easy installation, the LinMot drives have built in termination resistors, which have to be
activated on both ends of the CAN or RS485 bus.
For E1100 series:
For E1200 series:
For E1400 series:
S5.4: CAN termination on ME has to be considered.
Page 8/11 User Manual Master/Slave Application / 11/0 /2016 NTI AG / LinMot
The built in termination resistor for the CAN bus
can be activated by setting the dip switch “CAN
Term” to “ON”.
The built in termination resistor for the RS 485
bus can be activated by setting the dip switch
“RS485 Term” to “ON”.
Interface
CAN Term
RS485 Term
RS485/232
4
3
2
1
S3
On - Off
The built in termination resistor for the ME CAN
bus can be activated by setting the dip switch
“ME CAN Termination” to “ON”.
X4.4 Pull D wn 4k7
CMD RS485 Terminati n
CMD CAN Terminati n
ME CAN Terminati n
4
3
2
1
S5
On - Off

Master/Slave Application
LinMot

3. Using the Master/Slave SW
To install the Master/Slave application software start the LinMot-Talk software (if already
started and logged in then logout), click on the Install Firmware button and select the
installation script:
Firmware_VxSx_Buildxxxxxxxx.sct
Then choose the application “MasterSlave”
The same Master/Slave application SW has to be loaded to the master as well as the slave
drive(s).
Select the required serial link CAN or RS 485 (UPID 3EF h).
After the Master/Slave application SW has been installed, log in all slave drives and select
the correct Master/Slave mode (UPID 30D4h). The rest can be left as configured by default.
After power up the master drive tries to connect to its slave drives, when it succeeds to
connect to the slave(s), the application Warn Flag bit 15 vanishes and the connection state
(UPID 3A98h or 3A99h) changes to 1, which means ‘Data Exchange’.
The state of the slave drive can be monitored over the variables “Slave 0..2 State Var” (UPID
3B 0h, UPID 3B 2h, UPID 3B 4h,).
As the slave drive is in a streaming mode (current or position), in state 8 ‘Operation Enabled’
bit 5 ‘Motion Active’ is normally set and bit 6 ‘In Target Position’ is cleared in the Slave State
Var. Bit 8 ‘Homed ‘ indicates whether the slave drive has been correctly homed or not.
The slave state machine is controlled from the master, so if connecting a serial fieldbus link
to the slave drive for monitoring reasons, take care not to write to the slave’s control
word. So, with Profibus DP interface do not configure the control status module for any
slave, the status word can be watched by using a monitoring channel UPID 1D51h.
NOTE: Both master and slave(s) have to be configured by using the Motor Wizard.
NTI AG / LinMot User Manual Master/Slave Application / 11/0 /2016 Page 9/11

LinMot

Master/Slave Application
4. Master Slave Parameters
The Master/Slave drives have an additional parameter tree branch, which can be configured
with the distributed LinMot-Talk software. With these parameters, the Master/Slave
behaviour is set up. The software LinMot-Talk can be downloaded from
http://www.linmot.com under the section download, software & manuals.
Serial Link Selection selects the communication link between master and slave.
Master Slave Appl\ Serial Link Selection
CAN [0] Master/Slave communication over CAN bus
1Mbaud.
RS485[1] Master/Slave communication over RS485.
Master Slave Mode defines the master/slave behaviour of the drive.
Master Slave Appl\ Master Slave Mode
Disable [0] The drive runs without Master Slave behaviour.
Current Master[1] The drive acts as current master
Current Slave [2] The drive acts as current slave
Gantry Master [3] The drive acts as gantry master
Gantry Slave [4] The drive acts as gantry slave
Master Config In this section the further master configuration is done.
Master MACID The ID of the master drive, default = 1. Do not change this parameter.
Num er of Slaves The number of slaves, a maximum of three slaves is possible.
Slave Config In this section the further slave configuration is done.
Slave MACID The ID for all slave drives, default = 2. Do not change this parameter.
Slave Num er Every used slave has to be defined with a unique number (0-2,
allocation upwards)
Direction Choose ‘Normal’ if the slave motor has the same orientation as the
master motor, otherwise choose ‘Inverted’.
CAN Baud Rate In this section the CAN baud rate is configured.
Baud Rate The CAN baud rate is fixed to 1M baud by this parameter.
Parameter
Definition
5. Reconnection after Quick Stop / Error
After a quick stop or an error it is important to synchronize the position of the master and the
slave axis. In this case use the state ”Go to Initial Position”(see “State Machine” in the
document Usermanual_MotionCtrSW).
Page 10/11 User Manual Master/Slave Application / 11/0 /2016 NTI AG / LinMot

Master/Slave Application
LinMot

6. Contact Addresses
-----------------------------------------------------------------------------------------------------------------------------
SWITZERLAND NTI AG
Bodenaeckerstrasse 2
CH-895 Spreitenbach
Sales and Administration: [phone]
[email protected]
Tech. Support: [phone]
[email protected]
Tech. Support (Skype) : skype:support.linmot
Fax: [phone]
We : http://www.linmot.com/
-----------------------------------------------------------------------------------------------------------------------------
USA LinMot, Inc.
204 E Morrissey Dr.
Elkhorn, WI 53121
Sales and Administration: 8 -546-32 0
262- 43-2555
Tech. Support: 8 -804-0 18
262- 43-1284
Fax: [phone]
262- 23-6688
E-Mail: [email protected]
We : http://www.linmot-usa.com/
-----------------------------------------------------------------------------------------------------------------------------
Please visit http://www.linmot.com/ to find the distribution near you.
Smart solutions are…
NTI AG / LinMot User Manual Master/Slave Application / 11/0 /2016 Page 11/11
