Linus Lunch Rack User manual
REQUIRED TOOLS:
• 5mmHexWrench
• 4mmHexWrench
• 3mmHexWrench
• 8mmBoxWrench
[SEE FIGURE 1.]
INCLUDED HARDWARE:
• MountingBracket
• M3X12mmbolts(2)
• M4X15mmbolts(2)
• M4Locknuts(2)
• M4Washers(6)
[SEE FIGURE 2.]
• AttachMountingBrackettolunchrack
withM3X12mmbolts,washersandM4
Locknuts.Donottightendown.
[SEE FIGURE 3.]
• Removefrontbrakeusinga5mmHex
Wrench.
(Skipstepifthereisnofrontbrake.)
[SEE FIGURE 4.]
LUNCH RACK INSTALLATION
guide
FIGURE 1.
FIGURE 3.
FIGURE 2.
FIGURE 4.
M3X12mmBolts(2)
M4X15mmBolts(2)
• SlidebrakeboltthroughMountingBracket.
*Ifnofrontbrake,slidealargeboltthrough
MountingBracketthatwillthreadintoa
Locknut.(NotIncluded)
[SEE FIGURE 5.]
• Tightendownbrakeboltintofrontfork.
*Ifnobrakebolt,tightenLocknutontolarge
boltintofrontfork.
[SEE FIGURE 6.]
• Mountthelowerbracestotheforkbraze-ons
withM4X15mmboltsandM4washers
usingthe4mmHexWrench.
[SEE FIGURE 7.]
• LeveltheLunchRack.
[SEE FIGURE 8.]
• Tightenallbolts.
LunchRackisinstalled.
[SEE FIGURE 9.]

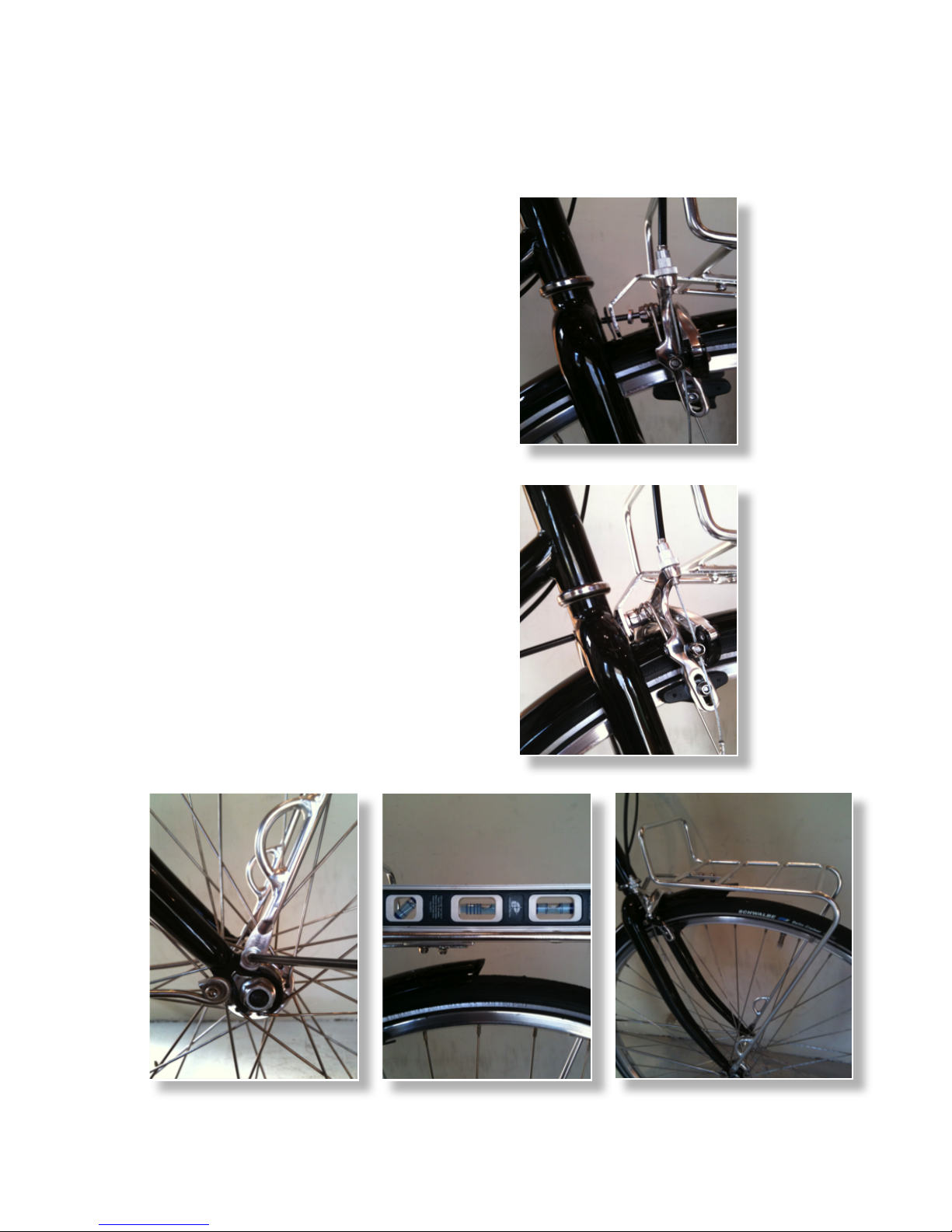

FIGURE 5.
FIGURE 6.
FIGURE 7. FIGURE 8. FIGURE 9.
