Rotary Beacon
Owner’s Manual
Rotary Beacon
Owner’s Manual

2
Table of contents
Powering your Rotary Beacon 3
Operating your Rotary Beacon 4
SC-2 wiring and operation 4
ASC or ASC2 wiring and operation 5
Maintenancing your Rotary Beacon 6
Replacing the lamp 7
Limited Warranty/Lionel Service 8
Congratulations on your purchase of the Lionel Rotary Beacon! This accessory features a rotating light with red and green lenses to divert low-flying aircraft. Your beacon oper-
ates best at 14 Volts (AC).
Congratulations!
The following Lionel marks are used throughout this Owner’s Manual and are protected under
law. All rights reserved.
Lionel®, LionChief™, LionChief Plus™, LEGACY™, FasTrack®,TrainMaster®, Odyssey®, RailSounds®,
CrewTalk™, TowerCom™, DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-
Traction®, CAB-1®Remote Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®, TMCC®,
Lionelville®, Wireless Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar
Celebration Series™, TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®,
Accessory Motor Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder
Controller™, ARC™, Track Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC
400™, Block Power Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel
Lines®, Joshua Lionel Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™,
Choo-Choo™, SensorTrack™, Plug-n-Play™, Imagineering™
Your Rotary Beacon should NEVER be operated with DC current! This type of damage
will void your warranty!
Note

3
Powering your Rotary Beacon
Your Rotary Beacon operates best at 14 volts (AC) and can be powered through track power or an external power source. To connect to an external power source, you will need a
transformer such as a CW-80 (available separately, 6-14198). If you wish to connect to a tra-
ditional FasTrack layout, make connections under the track piece of your choosing. If you
wish to connect to traditional tubular track, you will need a universal lock-on (available sep-
arately, 6-62900). You will also need 2 wires, one to connect to Power and one to connect to
Ground. See below for wiring.

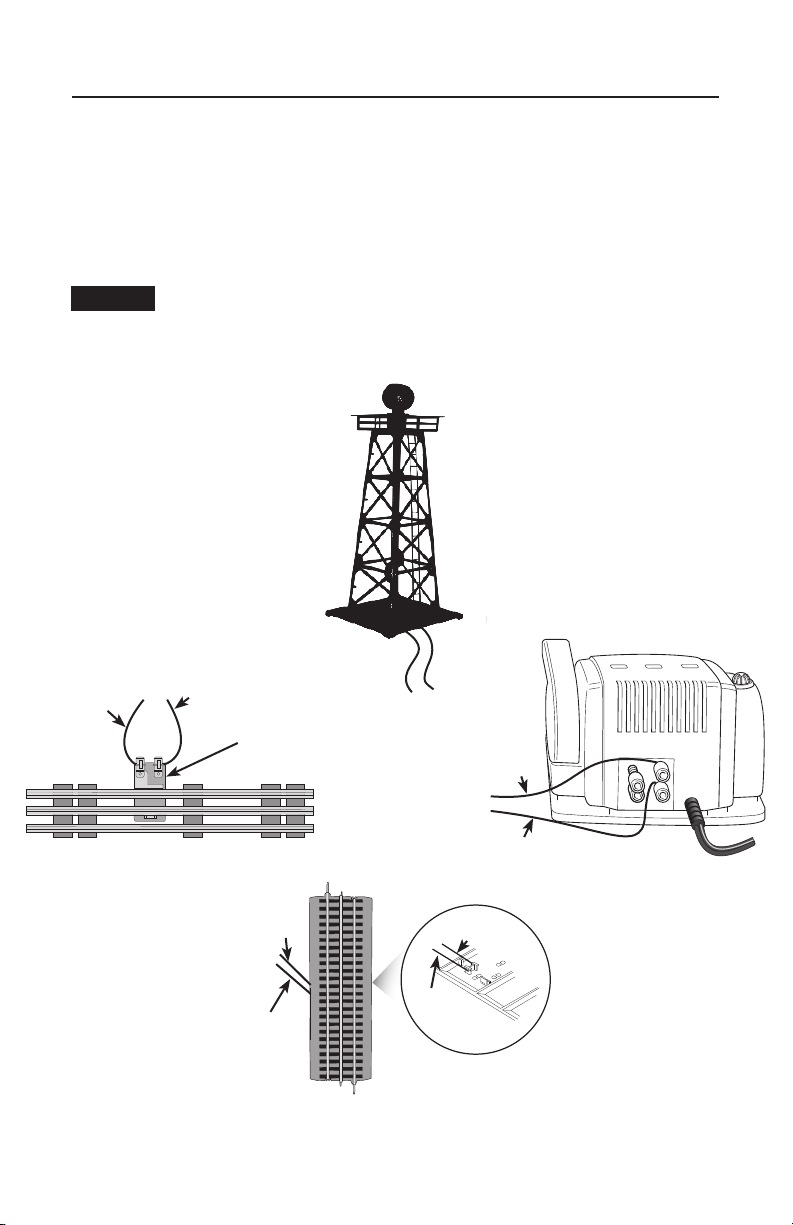

Figure 1. Connecting the beacon to your layout
You may find that in order to make the proper connections, the ends of the wires need
to be stripped back 1/4” to 3/8”. To strip the wires, use a pair of wire strippers or a
sharp knife. Only an adult should perform this task! Always use care when stripping
wires.
Caution
Ground
Power
Power
Power
Universal Lock-on
Power
FasTrack
Transformer
Tubular Track
Underside
U
120/60z
0~18VAC
AB
U
0~18VAC
TRACK ACCESSORY
Ground
Ground
Rotary Beacon
Ground
A

4
Operating your Rotary Beacon
To operate your Rotary Beacon, simply apply power to the track or transformer (if connect- ed using external power) and the beacon will rotate, alternating red and green lenses.
If you choose to power your beacon using TMCC or LEGACY, you will need either an SC-2
(available separately, 6-22980), an ASC (available separately, 6-14182), or an ASC2 (available
separately, 6-81639). See below for wiring.
Figure 3. Using an SC-2
Note Refer to your CAB-1, CAB-1L, or LEGACY manual for remote instructions.
SC-2 wiring and operation
Three wires are needed to connect your accessory to the SC-2 and a separate accessory trans- former. Refer to Figure 3.
1. Attach a wire to the transformer Common/Ground/U terminal and connect it to the COMM
(common) position on the SC-2.
2. Attach another wire to the accessory ON/OFF toggle position on the SC-2.
3. Finally, connect the last wire to the transformer Power/A terminal.
AUX2 will turn the beacon ON. The beacon will stop rotating when AUX2 is released.
ACC3 ACC4
ACC1 ACC2
Rotary Beacon
SC-2
Transformer
Connect to
Power/A
Connect to
Ground/U
and Comm

5
ASC or ASC2 wiring and operation
Three wires are needed to connect your accessory to the ASC or ASC2 and a separate accesso- ry transformer. Refer to Figure 4.
1. Attach a wire to the transformer Common/Ground/U terminal and connect it to the COMM
(common) position on the ASC or ASC2.
2. Attach another wire to the a numbered accessory terminal on the ASC or ASC2.
3. Finally, connect the last wire to the transformer Power/A terminal.
AUX2 will turn the beacon ON. The beacon will stop rotating when AUX2 is released.
ACC3 ACC4
ACC1 ACC2
Rotary Beacon
Transformer
ASC
Connect to
Power/A
Connect to Ground/U
and Comm

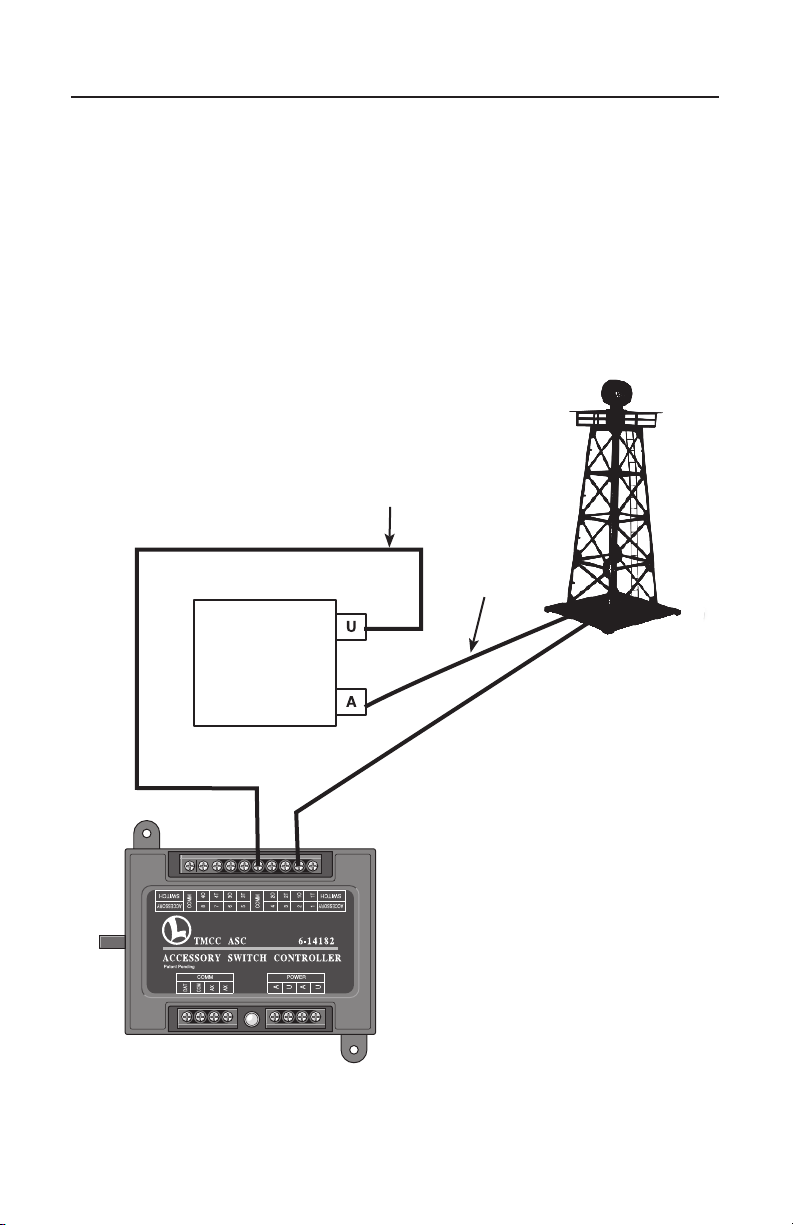

Figure 4. Using an ASC or ASC2

6
Servicing your Rotary Beacon
After an extended period of operation, the rotating action in your beacon may begin to slow, and the it will require lubrication with powdered graphite (available at any hard-
ware store). To lubricate, lift the lamp housing off the lamp socket and apply powdered
graphite sparingly to the flat washer around the base of the lamp socket.
The teeth on the driving washer, which is located on the underside of the lamp housing,
may eventually wear down. Replacement drive washers (Lionel part no. 600-2494-050) are
available from your Authorized Lionel Dealer or from Lionel Service. To replace, peel the worn
washer off the lamp housing, and install the new washer using rubber cement or mucilage.
Lamp housing
Washer
Put graphite here
Lamp
(part no. 600-2494-050)
Figure 5. Applying graphite to the beacon and changing the lamp

7
Replacing the lamp
To replace the lamp in your Rotary Beacon, gently lift the lamp housing off the lamp socket (see illustration above). Turn the lamp counterclockwise, then pull it straight up out of
the socket. Replace the lamp with Lionel part no. 600-0363-300, available from Lionel
Service.

©2015 LIONEL L.L.C., CONCORD, NC 28027
UNITED STATES OF AMERICA
PRINTED IN CHINA
Lionel Limited Warranty Policy & Service
T
his Lionel product, including all mechanical and electrical components, moving parts, motors and structural components, with the exception of LIGHT
BULBS, LED’s & TRACTION TIRES are warranted to the original owner-purchaser for a period of two years from the original date of purchase
against original defects in materials or workmanship when purchased through a Lionel Authorized Retailer*.
This warranty does NOT cover the following:
• Normal wear and tear
• Light bulbs or LED’s
• Defects appearing in the course of commercial use
• Damage resulting from abuse/misuse of the product
Transfer of this product by the original owner-purchaser to another person voids this warranty in its entirety. Modification of
this product in any way; visually, mechanically or electronically, voids the warranty in its entirety.
Any warranted product which is defective in original materials or workmanship and is delivered by the original owner-
purchaser (this warranty is non-transferrable) to Lionel LLC or any Lionel Authorized Service Station MUST be accompanied by
the original receipt for purchase (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired
or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is
not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available. In the
event a comparable model is not available the customer will be refunded the original purchase price (requires proof of purchase
from the Authorized Lionel Retailer* it was originally purchased). Lionel will pay postage both ways on all VISION products
during the warranty period. Transportation and shipping charges are not covered as part of this warranty.
NOTE: Products that require service that do not have a receipt from an LIONEL AUTHORIZED RETAILER* will be
required to pay for all parts required to repair the product (labor will not incur a charge) providing the product is not
older than 3 years from date of manufacture and is within 1 year from date of purchase. A copy of the original sales receipt
is required.
In no event shall Lionel LLC be held liable for incidental or consequential damages.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not
apply to you. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
Instructions for Obtaining Service
If service for this Lionel LLC product is required; bring the item, along with your DATED sales receipt and completed
warranty information (at the bottom of this page) to the nearest Lionel Authorized Service Station. Your nearest Lionel Service
Station can be found by calling 1-800-4-LIONEL or by accessing the website at www.lionel.com.
If you prefer to send your Lionel product directly to Lionel, for repair you must FIRST call 586-949-4100 extension 2 or
write to Lionel Customer Service, 6000 Victory Lane, Concord, NC 28027. Please have the 6-digit Lionel product number, the
date of original purchase, the dealer where the item was purchased and what seems to be the problem. You will receive a return
authorization (RA) number to ensure your merchandise will be properly tracked and handled upon receipt at Lionel LLC.
Once you have your Return Authorization (RA) number, make sure the item is packed in its original Styrofoam inner container
which is placed inside the original outer display box (this will help prevent damage during shipping and handling). This shipment
MUST be prepaid and we recommend that it be insured with the carrier of your choice.
Please make sure you have followed all of the above instructions carefully before returning any merchandise for service. You
may choose to have your product repaired by one of Lionel LLC’s Authorized Service Stations after its warranty has expired. A
reasonable service fee should be expected once the product warranty has expired.
Warranty Information
Please complete the information below and keep it, along with your DATED ORIGINAL SALES RECEIPT. You MUST
present this form AND your DATED SALES RECEIPT when requesting warranty service.
*A complete listing of Lionel Authorized retailers can be found by calling 1-800-4-LIONEL or by visiting our website at www.
lionel.com.
Products that are more than 3 years old, from date of manufacture, are not applicable for warranty coverage, even if they have
never been sold prior to this date. (Under no circumstance shall any components or labor be provided free of charge.)
