Litheli U1CR01100 User manual

Visit our website at: http://www.litheli.com
Operator's Manual
Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Save This Manual
40V CHARGER
U1CR01100
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please contact us: WWW.LITHELI.COM
Copyright 2019 Litheli. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of LITHELI.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
©
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 Item U1CR01100
FETY
Lithium Battery Safety Warnings
LITHIUM BATTERIES STORE
ALARGEAMOUNTOFENERGY AND
WILL VENT FIRE OR EXPLODE IF MISTREATED:
1. Keep
Battery Pack dry.
2. DO NOT DO ANY OF THE FOLLOWING
TO THE BATTERY PACK:
a. Open,
b. Drop,
c. Short-circuit,
d. Puncture,
e. Incinerate, or
f. Expose to temperatures greater than 104°F.
3. Charge Battery Pack only according
to its Charger’s instructions.
4. Inspect Battery Pack before every use;
do not use or charge if damaged.
Battery Charger Safety
1. SAVE THESE INSTRUCTIONS - This manual
contains important safety and operating
instruction for battery charger Mode
U1CR01100.
2. Before using battery charger, read all
instructions and cautionary markings on
battery charger, battery, and product using
battery.
3. CAUTION - To reduce risk of injury, charge
only li-ion type rechargeable batteries. Other
types of batteries may burst causing personal
injury and damage.
4. Do not charge or use appliance in rain, or
in wet locations.
5. Do not use battery-operated appliance in rain.
6. Remove or disconnect battery after use, before
servicing, cleaning or removing material from
the gardening appliance.
7. Do not dispose of battery in a fire. The cell may
explode. Check with local codes for possible
disposal instructions.
8. Do not open or mutilate the battery. Released
electrolyte is corrosive and may cause damage
to the eyes or skin. It may be toxic if swallowed.
9. Exercise care in handling batteries in order not
to short the battery with conducting materials
such as rings, bracelets, and keys. The battery
or conductor may overheat and cause burns.
WWW.LITHELI.COM
IMPORTANT SAFETY INSTRUCTIONS

Page 3
WWW.LITHELI.COM
Item U1CR01100

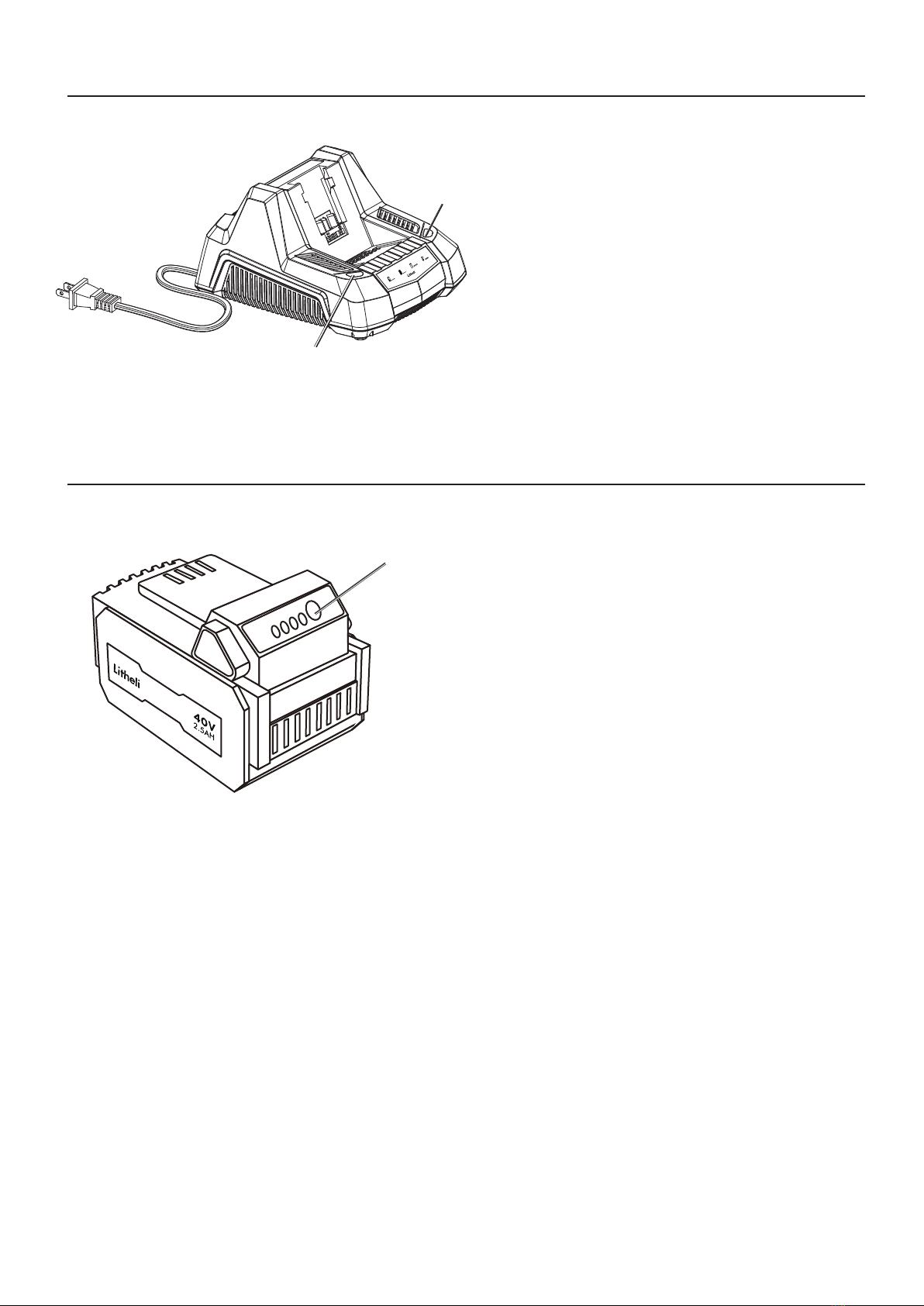

Charger Indicators
Battery Indicators
• Blinking Green - Ready to charge.
• Solid Red - Charging.
• Solid Green - Charged.
• Blinking Green and Red - Battery.
or Charger damaged.
• Solid Green and Red - Battery too hot,
charging will begin when Battery has cooled.
Press Battery Test button to
determine battery charge status.
• All Four Solid GreenLights - Full charge.
• Three Solid GreenLights - 75% charge.
• Two Solid GreenLights - 50% charge.
• One Solid GreenLight -25% charge.
• One Blinking GreenLight -Charge Battery.
Green
Light
Red
Light
Battery
Test
Button

Page 4 Item U1CR01100
WWW.LITHELI.COM
Specifications
Symbology
Double Insulated
VVolts
~Alternating Current
AAmperes
n0 xxxx/min. No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
WARNING marking concerning
Risk of Explosion.
Do not puncture, short, or open
battery packs and do not charge
damaged battery packs.
Do not throw the batteries in the
household waste, fire or water.
Do not expose the battery to sunlight for
a long time and do not place it on
radiators (max. 45 ° C).
Dispose of the batteries at a collection
point for old batteries, from where
they are taken to environmentally
friendly recycling.
Charge level indication.
Charge level indication.
Charger Input Rating 120VAC / 60Hz
Charger Output Rating 36VDC / 3.3A
Battery Type 40V Litheli Li-Ion

Page 5
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
Charging Battery Pack
1. Place Battery Charger on a dry, flat, fireproof
surface indoors.
Note: Allow battery to cool completely before
charging.
2. Examine Battery Pack. Do not charge a
cracked, open, or leaking Battery Pack, or
charge a non-recommended type of Battery
Pack.
3. Battery Pack is designed to fit this Charger
specifically. If Battery Pack does not fit
Charger properly, do not try to insert it.
Do
not force Battery Pack into the Charger.
4. Plug Charger into a grounded, 120VAC, 60Hz
receptacle. Green LED will blink, showing that
power is supplied to the charger.
5. Slide Battery Pack onto Charger. Red LED will
light continuously while charging.
Note: A fully discharged Battery Pack will take
about 1 hour to fully charge.
Note: While charging, Battery Pack and Charger
may become warm to the touch and the
Charger′s fan may come on. This is normal.
6. Green LED will light continuously when Battery
Pack is charged. Unplug Charger and remove
Battery Pack when finished.
7. Allow Battery Pack to cool completely before use.
WWW.LITHELI.COM
Item U1CR01100

Warranty
90-Day Money Back
You May Return Your Product For A Full Refund Within The First 90 Days Of Your Purchase.
3-Year Battery Warranty
Against Defects In Workmanship And Materials
Battery Must Be Used And Maintained In Accordance With The Directions And Regulations In The
Operator's Manual.
5-Year Tool Warranty
Against Defects In Materials, Parts Or Workmanship
Litheli At Its Own Discretion Will Repair Or Replace Any And All Parts Found To Be Defective
All Units Must Be Used And Maintained In Accordance With The Directions And Regulations In The
Operator's Manual.
Returning The Product
Contact Us At www.litheli.com For The Return Address, We Will Issue Replace/Refund Upon Receiving
Your Return.
Need An Extra Copy of The Operator's Manual? Visit www.litheli.com to Download it.
