5GB
List of
pictograms used...Page 6
Introduction.............Page 6
Intended use..................Page 6
Description of parts.......Page 7
Technical details............Page 7
Included items ...............Page 8
Safety
information..............Page 8
Safety advice
for installation.......Page 12
Installation...............Page 13
Mounting the
product on a cupboard ...Page 13
Mounting the
product on a wall..........Page 14
Operation .................Page 14
Cleaning
and care .....................Page 14
Disposal......................Page 15
Warranty...................Page 16

6 GB

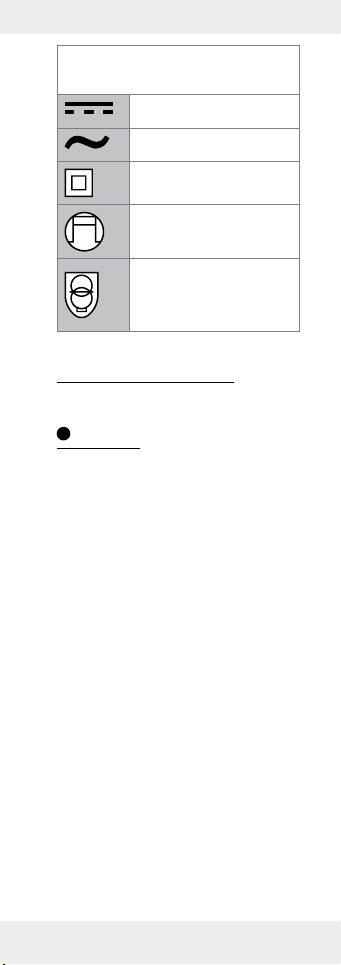

List of pictograms used
Direct current
Alternating current
Class II product
Independent
control unit
Short-circuit-proof safety
isolating transformer
LED Light Strip Set
Introduction
We congratulate you on the pur chase
of your new product. You have chose n
a high quality product. The instruc-
tions for use are part of the product.
They contain important information
concerning safety, use and disposal.
Before using the product, please
familiarise yourself with all of the
safety information and instructions
for use. Only use the product as de-
scribed and for the specified appli-
cations. If you pass t
he product on to
anyone else, pl
ease ensure that you
also pass on all the documentation
with it.
Intended use
This product is suitable for use in-
doors. This product is intended for

7GB
use in private, domestic enviroment
only and not for commercial pur-
poses. Other uses or modification
of the product shall be considered
as improper use and could lead to
injury or damage. The manufacturer
accepts no liability for loss or dam-
age arising from improper use.
Description of parts
1LED lightstrip
2Connection lead
3Fastening clip
4Dowel
5Screw
6Connector
7In-line switch
8Mains adapter
9Double-sided adhesive tape
Technical details
LED lightstrip +
Mains adapter:
Total power
consumption: approx. 3W
LED lightstrip:
Operating
voltage: 12V 2.3W
LEDs: 9 x 0.1W LED
Note: the LEDs
cannot be replaced.
LED lightstrip (Model No.
HG01183A) TÜV SÜD/GS certified

8 GB
Mains adapter:
Nom. voltage,
primary: 100–240V∼,
50–60Hz
Nom. voltage,
secondary: 12V ,
0.25A, 3W
Protection class: II/
Mains adapter
(Model No. YNQST120025VL)
TÜV SÜD/GS certified
Included items
3 LED Light Strip Sets
1 Mains adapter
3 Connection leads
6 Dowels
6 Fastening clips
6 Screws
6 Double-sided adhesive tapes
1 End cap
1 Operating instructions
Safety
information
DANGER OF
DEATH AND
ACCIDENTS FOR TODDLERS
AND CHILDREN! Never
leave children unsupervised with
the packaging material. The
packaging material represents
a danger of suffocation. Children
frequently underestimate the

9GB
dangers. Please keep children
away from the product at all
times.
This product is not a toy and
should not be played with by
children. Children are not able
to understand the dangers that
can occur when handling this
product.
This product can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental ca-
pabilities or lack of experience
and knowledge if they have be en
given supervision or instruction
concerning use of the product
in a safe way and understand
the hazards involved. Children
shall not play with the product.
Cleaning and user maintenance
shall not be made by children
without supervision.
Ensure that the product is in-
stalled by suitably experienced
or qualified persons only.
Check before installation that
the supporting surface is suita-
ble for the fastening clips and
the weight of the product. If
you have any questions about
the product or are unsure about
any of its aspects, please seek
the advice of an electrical
equipment specialist.
Do not pull on the product
lead. Ensure that it is positioned
to avoid creating a trip hazard.

10 GB
The product can be used on all
surfaces officially classified as
being of “normal flammability“.
Do not attach any other objects
to the product.
After use store the product in its
original packaging to avoid
causing unintentional damage.
Ensure that the product does
not present a trip hazard.
CAUTION! RISK OF OVER-
HEATING! Do not operate
the product while it is still in the
packaging or rolled up.
This product is only
intended for use
indoors.
Avoid the danger
of death from
electric shock!
Before use, ensure that the
mains voltage available is the
same as the required operating
voltage for the product
(100–240V∼).
Before connecting to the mains,
always check the product for
any damage.
Never use the product if you
find damage of any kind.
The connection lead cannot be
repaired! If the connection lead
is damaged, the product must
be taken out of use and dis-
posed of in the proper way.
This product does not contain
any parts which can be serviced

11GB
by the user. The LEDs cannot
be replaced.
Never open any of the electrical
parts or insert any kind of object
into them.
Protect the product from sharp
edges, mechanical loads and
hot surfaces.
Do not install with sharp fasten-
ers or nails.
Always remove the mains adap-
tor from the socket before install-
ing, dismantling or cleaning.
Never touch the mains adaptor
or the product with moist or wet
hands.
Only connect the lightstrip to
mains adaptor.
Use the product with only the
components described in these
operating instructions.
Disconnect the product from
the mains if you intend not to
use it for an extended period
(e.g. holiday).
LED lightstrip should only be re-
placed with the same type of
lightstrip which is supplied with
this product.
The product is only suited for
use with the included mains
adapter (YNQST120025VL).
Please note that the mains
adaptor continues to draw a
small amount of power even if
the product is turned off as long
as the mains adaptor is plugged
into a power outlet. To switch
the product off completely,

12 GB
unplug the mains adaptor from
the socket.
The LEDs are not replaceable.
If the LEDs fail at end of their
lives, the product must be re-
placed.
Safety advice
for installation
The product can be mounted with
the supplied fastening clips on
to all surfaces officially classi-
fied as being of “normal flam-
mability”.
CAUTION! RISK OF
ELECTRIC SHOCK! Ensure
that you do not strike any elec-
trical cables, gas or water pipes
in the vicinity of where you are
drilling. If necessary, check the
area using a suitable detector
before you drill.
Before installation, check whether
the substrate is suitable for the
fastening clips and can support
the weight of the product. If you
are unsure about any aspects
of this step, please seek the ad-
vice of an electrical equipment
specialist.
Do not use any sharp and/or
pointed objects, such as wire,
nails or clamps, to fasten the
product in place.
Avoid bending the product.
Otherwise the insulation could
be damaged.

13GB
Installation
The LED lightstrip 1can be con-
nected using a connection lead 2
(Fig. B) or without a connection lead
(Fig. C).
Mounting the product
on a cupboard
Note: Thoroughly clean the surface
on to which you intend to install the
product. The surface must be clean,
dry and free of grease. Otherwise
the self-adhesive tape 9may not
stick properly.
1. Using a pencil, mark the position
on the cupboard, shelf or cabin et
on to which you intend to attach
the LED lightstrip 1. If neces-
s
ary, use a spirit level as a guide.
2. Stick the double-sided adhesive
tape 9onto the LED lightstrip
1. Then pull the paper from
the self-adhesive tape 9on the
back of the LED lightstrip 1.
3. Position the self-adhesive tape
9on the markings and press
to fix it firmly into place (Fig. D).
4. Connect the LED lightstrip 1
to the mains adapter 8(Fig. F)
or connect the LED lightstrip 1
to the connection lead 2to
connect it to an additional light-
strip (Fig. B).

14 GB
Mounting the
product on a wall
1. Drill the fastening holes (Fig. E).
CAUTION! Ensure that you
do not damage any cables in
the wall.
2. Insert the dowels 4into the
drilled holes (Fig. E).
3. Fix the fastening clips 3to the
wall with the screws 5.
4. Connect the LED lightstrip 1
to the mains adapter 8
(Fig. F )
or connect the LED lightstrip 1
to the connection lead 2to
connect it to an additional light-
strip (Fig. B).
Operation
Insert the mains adapter 8into
the mains socket.
Press the “I” on the in-line switch
7to switch on the product.
Press the other side of the in-line
switch 7to switch off the
product.
Cleaning and care
CAUTION! RISK OF
ELECTRIC SHOCK!
First remove the mains
adaptor from the socket.

15GB
Do not use any solvents, petrol
or similar items. This would
damage the product.
Only a dry, lint-free cloth should
be used for cleaning.
Disposal
The packaging is made
entirely of recyclable
materials, which you may
dispose of at local recycling facilities.
The Green Dot is not valid for Ger-
many.
b
a
Observe the marking of
the packaging materials
for waste separation,
which are marked with abbreviations
(a) and numbers (b) with following
meaning: 1–7: plastics/20–22:
paper and fibreboard/80–98:
composite materials.
The product and pack-
aging materials are
recyclable, dispose of
it separately for better waste treat-
ment. The Triman logo is valid in
France only.
Contact your local refuse
disposal authority for
more details of how to
dispose of your worn-out product.

16 GB
To help protect the envi-
ronment, please dispose
of the product properly
when it has reached the end of its
useful life and not in the household
waste. Information on collection
points and their opening hours can
be obtained from your local authority.
Warranty
The product has been manufactured
to strict quality guidelines and meti-
culously examined before delivery.
In the event of product defects you
have legal rights against the retailer
of this product. Your legal rights are
not limited in any way by our war-
ranty detailed below.
The warranty for this product is
3 years from the date of purchase.
Should this product show any fault
in materials or manufacture within
3 years from the date of purchase,
we will repair or replace it – at our
choice – free of charge to you.
The warranty period begins on the
date of purchase. Please keep the
original sales receipt in a safe loca-
tion. This document is required as
your proof of purchase. This warranty
b
ecomes void if the product has be en
damaged, or used or maintained
improperly.

17GB
The warranty applies to defects in
material or manufacture. This war-
ranty does not cover product parts
subject to normal wear, thus pos-
sibly considered consumables (e.g.
batteries) or for damage to fragile
parts, e.g. switches, rechargeable
batteries or glass parts.

18 SK
Legenda použitých
piktogramov....... Strana 19
Úvod........................... Strana 19
Používanie v súlade
s určeným účelom ...... Strana 20
Popis častí................... Strana 20
Technické údaje ......... Strana 20
Obsah dodávky ......... Strana 21
Bezpečnostné
upozornenia........ Strana 22
Bezpečnostné
upozornenia
týkajúce sa
montáže .................. Strana 25
Montáž..................... Strana 26
Montáž skrinky........... Strana 26
Montáž na stenu........ Strana 27
Používanie ............ Strana 27
Čistenie a
údržba ...................... Strana 28
Likvidácia............... Strana 28
Záruka...................... Strana 29

19SK

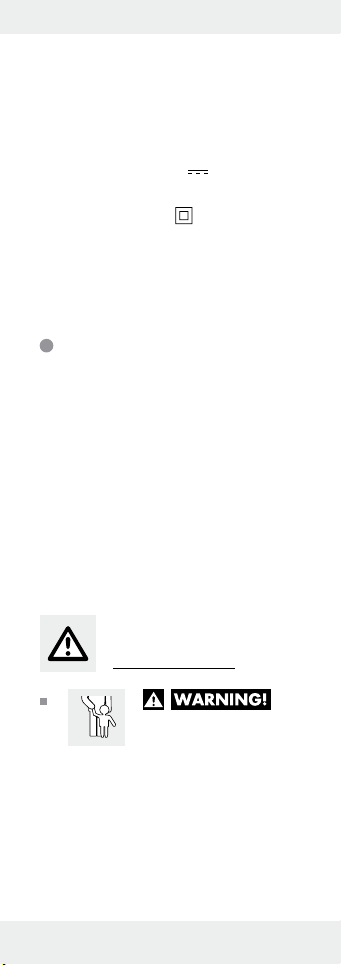

Legenda použitých
piktogramov
Jednosmerný prúd
Striedavý prúd
Trieda ochrany II
Nezávislý prevádzkový
prístroj
Skratuvzdorný
Bezpečnostný
transformátor
LED svetelné lišty
Úvod
Blahoželáme Vám ku kúpe Vášho
nového výrobku. Rozhodli ste sa
pre veľmi kvalitný výrobok. Návod
na obsluhu je súčasťou tohto výr obku.
Obsahuje dôležité upozornenia tý-
kajúce sa bezpečnosti, používania a
likvidácie. Skôr ako začnete výrobok
používať, oboznámte sa so všetkými
pokynmi k obsluhe a bezpečnosti.
Výrobok používajte iba v súlade s
popisom a v uvedených oblastiach
používania. V prípade postúpenia
výrobku ďalším osobám odovzdajte
aj všetky dokumenty patriace k vý-
robku.

20 SK
Používanie v súlade
s určeným účelom
Tento výrobok je určený na prevádz-
kovanie vo vnútorných priestoroch.
Výrobok je určený len na používanie
v súkromných domácnostiach, nie
na komerčné využitie. Iné používanie
výrobku alebo zmeny na výrobku
nie sú v súlade s určením a predsta-
vujú riziko poranenia alebo vzniku
vecných škôd. Výrobca nepreberá
ručenie za škody vzniknuté v dôsledku
používania v rozpore s určením.
Popis častí
1Svetelná lišta s LED-diódami
2Spojovací kábel
3Upevňovacia svorka
4Hmoždinka
5Skrutka
6Prípojka
7Šnúrový vypínač
8Sieťový adaptér
9Obojstranná lepiaca páska
Technické údaje
Svetelná lišta s LED diódami
+ Sieťový zdroj:
Príkon: cca. 3W
Svetelná lišta s LED diódami:
Prevádzkové
napätie: 12V 2,3W
LED: 9x 0,1W LED
