Livoo DOM297 User manual

Instruction manual
WWW.LIVOO.FR
Reference : DOM297
Version : 1.4
Stan electrical
barbecue

Instruction manual
1
Language : English
You have purchase a pro uct LIVOO bran an we thank you. We take great care in esign, ergonomics
an ease of use of our pro ucts. We hope that this pro uct will give you complete satisfaction.
This instruction manual is also available on our website www.livoo.fr
General Safety Instructions
PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE USING THE APPLIANCE AND SAVE IT FOR
ANY FURTHER NEED.
Incorrect operation or usage is likely to cause
amage to the appliance an injure the user.
Make sure that you follow all safety
instructions. Only use this appliance for the
purpose for which it has been esigne ; we
ecline all responsibility in the event of amage
ue to incorrect use or ba han ing.
1. Check that your main voltage correspon s to
that state on the appliance.

Instruction manual
2
2. The safety instructions o not by themselves
eliminate any anger completely an proper
acci ent prevention measures must always be
use .
3. Never leave the appliance unsupervise when
in use.
4. Keep the appliance an its cor out of reach
of chil ren less than 8 years.
5. Chil ren shall not play with the appliance.
6. Cleaning an use maintenance shall not be
ma e by chil ren unless they are ol er than 8
year an supervise .
7. This appliance can be use by chil ren age
from 8 years an above an persons with
re uce physical, sensory or mental
capabilities or lack of experience an
knowle ge if they have been given
supervision or instruction concerning use of
the appliance in a safe way an un erstan
the hazar s involve

Instruction manual
3
8. If the supply cor is amage , it must be
replace by the manufacturer, its service
agent or similarly qualifie persons in or er to
avoi a hazar (*).
9. Do not pass the cor over objects with sharp
e ges an keep it at a istance from, hot
objects an bare flames. Always pull on the
plug to isconnect it from the fee source
10.Make sure that the cor or the extension
cable is not at risk of being pulle
ina vertently nor of being toppe over by
anyone at the time of use
11.When you use an extension cable. make sure
that it is a apte to the appliance essential
consumption. Contrary to this, the extension
cable an / or the plug risks overheating.
12.Only use the appliance for omestic purposes
an in the way in icate in the instructions.
13.Never immerse the base of your appliance in
water or any other liqui for any reason

Instruction manual
4
whatsoever. Never place it into the
ishwasher.
14.In case the appliance acci entally falls into
water isconnect it imme iately. Have it
checke by an expert before re-using, if you
o not o this you run the risk of
electrocution.
15.Never try to open the casing yourself
16.Do not use the appliance if your han s are
amp if the oil is wet, or if the appliance itself
is amp
17.Do not touch the plug if your han s are amp
or wet
18.Never use the appliance near hot surfaces.
19.Never use accessories that are not
recommen e by the pro ucer. They coul
constitute a anger to the user an risk to
amage the appliance.
20.Never move the appliance by pulling the cor .
Make sure the cor cannot get caught in any

Instruction manual
5
way. Do not win the cor aroun the
appliance an o not ben it.
21.Place the evice on a flat, stable, heat-
resistant surface.
22.Unplug the appliance when not in use.
23.It is absolutely necessary to keep this
appliance clean at all times as it comes into
irect contact with foo .
24.Make sure the appliance is unplugge before
inserting, removing or cleaning one of the
accessories. It is absolutely necessary to
remove the accessories before cleaning them.
25.Let cool an keep out the accessories before
cleaning them
26.The appliance is not inten e to be operate
by means of external timer or separate
remote control system.
27.Keep this manual with the appliance. If the
appliance is to be use by a thir party, this
instruction manual must be supplie with it.
28.Never carry the appliance while still hot

Instruction manual
6
29.This appliance is inten e to be use in
househol an similar applications such as:
•staff kitchen areas in shops, offices an
other
working environments
•farm houses
•by clients in hotels, motels an other
resi ential type environments
•be an breakfast type environments
30.Warning: Do not use charcoal with this
appliance.
31.Always fill the grill pan with water before you
switch on the appliance. The water helps to
cool own the grill pan, re uces the buil up
of smoke, an also facilitates cleaning.
32.Ensure that the water level is kept between
the ‘Min.’ an ‘Max.’ markings at all times
uring use.
← — —Max. water level
in icator

Instruction manual
7
← — —Min. water level
in icator
The water level in icator can be foun insi e the
tank.
33.The appliance must not be use without
water
34.Regar ing the instructions for cleaning with
foo , thanks to refer to the below paragraph
of the manual surfaces in contact .
35.The appliance I suitable for in oor use.
(*) Competent qualifie electrician: after sales epartment of the pro ucer or importer or any person
who is qualifie , approve an competent to perform this kin of repairs in or er to avoi all anger. In
any case you shoul return the appliance to this electrician.

Instruction manual
8
Special measures
Warning
:
Caution hot surface!
Surfaces are liable to get hot uring use.
DO NOT OPERATE this pro uct near water
sources or flammable liqui s.
DO NOT CLEAN OR TOUCH the metals part of this
pro uct when it is still hot
DO NOT USE SHARP OBJECTS
● Caution: o not, un er any circumstances, cover the grill rack with aluminous foil, barbecue ishes
or other items, as the resulting buil -up of heat coul cause irreparable amage to the grill.
● When grilling foo with a high fat or moisture content, splashes are not always avoi able.
● Remember that the foo with a high fat or moisture content may ten to ignite or to splash.
● Always ensure that the water level is kept above the ‘Min.’ mark so a water uring the heating
to keep right level an ensure that it oes not come into contact with the heating element.
● Before the grill is use , always check that the heating element is correctly fitte in the grill pan an
safely locke .
● Do not connect the grill to mains power until the grill pan has been fille with water. The tray
salvage ealer of fat must be immerse an take care of not pour water on the heating element.
● Use only the supplie tray salvage ealer of fat .
● Ensure that the grill is not store out oors. Or in any other location where it might be subjecte to
extremes of temperature or high humi ity.
● No responsibility will be accepte if amage results from improper use, or if these instructions are
not complie with.
SPECIFICATIONS

Instruction manual
9
AC 220-240V 50Hz 2000W
DESCRIPTION & BARBECUE ASSEMBLY
Before using for the first time
Remove any packaging materials from the appliance.
Clean the tank, tray salvage ealer of fat an the grill pan
The tank must be fille with water up between MIN an MAX marking, never fill water on the
heating element, it will amage it. Plug the appliance.
Let the grill heat up for a moment without any foo , this will re uce the smell when first
switching on a new grill (a slight smell an a little smoke may be emitte -ensure sufficient
ventilation).
IMPORTANT TIPP
Do not forget to push the slot on thermostat to activate the heating process

Instruction manual
10

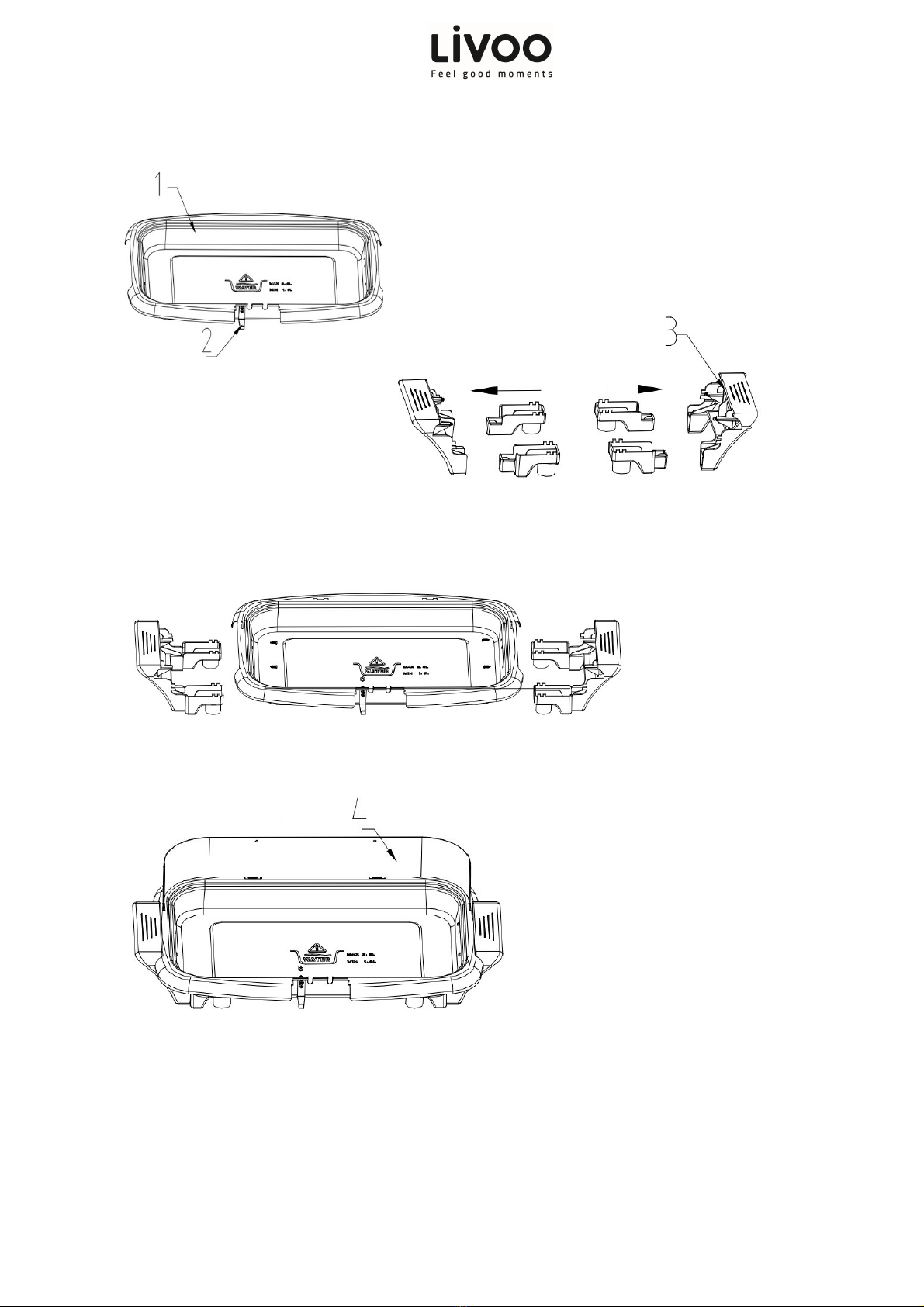

1. Tank
2. Metal hook
3. Han le + Base feet
Step 1: Insert the four base feet into the plastic han les accor ing to the same irection as showing above.
Step 2: Install the plastic han les on the two si es of the tank by four screws.
4. Win shiel
Step 3: Install the win shiel onto the tank same way as above.

Instruction manual
11

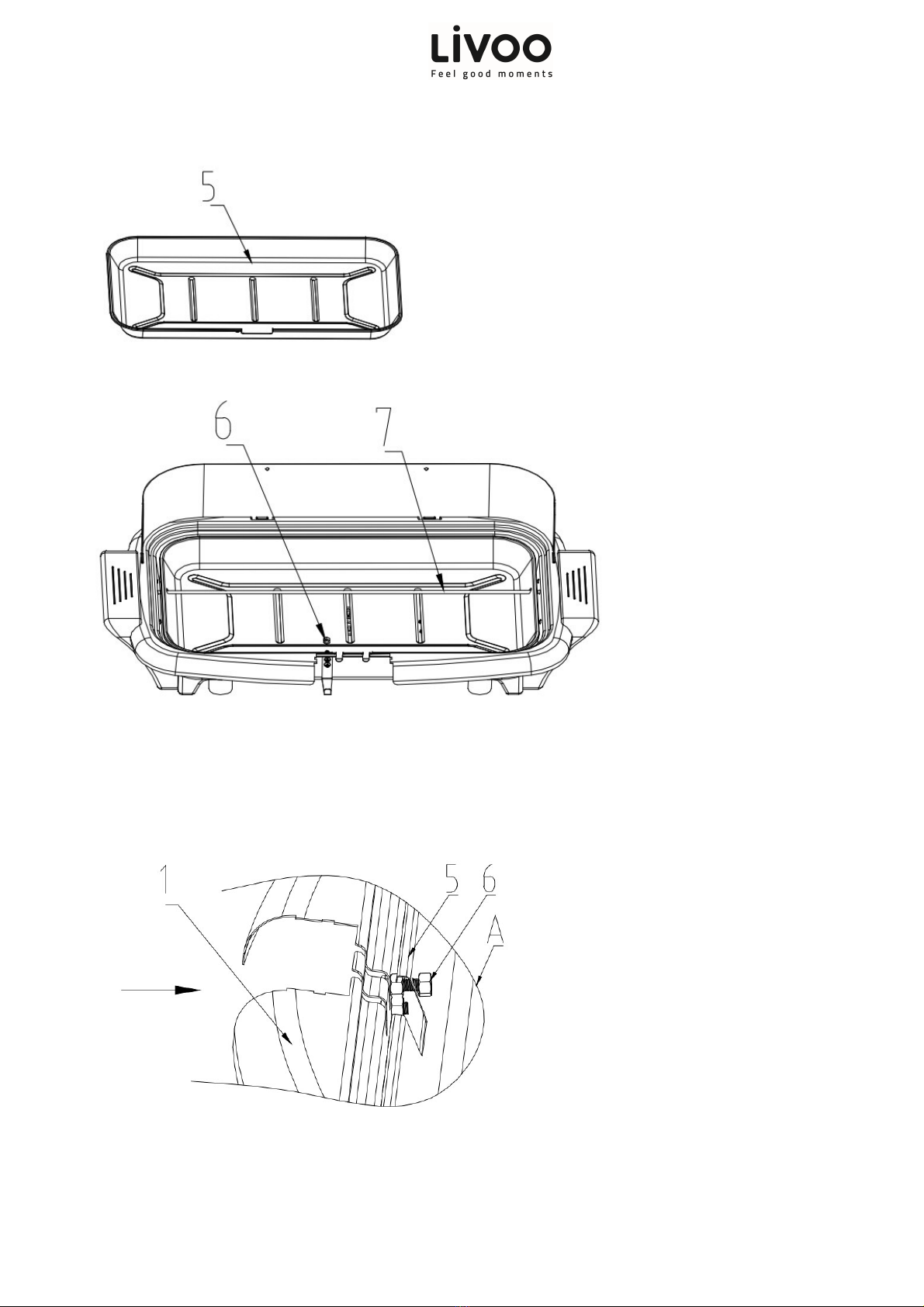

Step 4: Insert the metal pipe into the tray salvage ealer of fat (No.5).
Step 5: Insert each si e of the metal pipe (No.7) into the two small holes on the left & right si es of the tank
(No.1) in ivi ually.
Step 6: Insert the small hole on the groove part of the tray (No.5) into the stretche screw, an then fix the
screw by the nut (No.6).
5.
Tray salvage ealer of fat
6.
Nut
7.
Metal pipe

Instruction manual
12

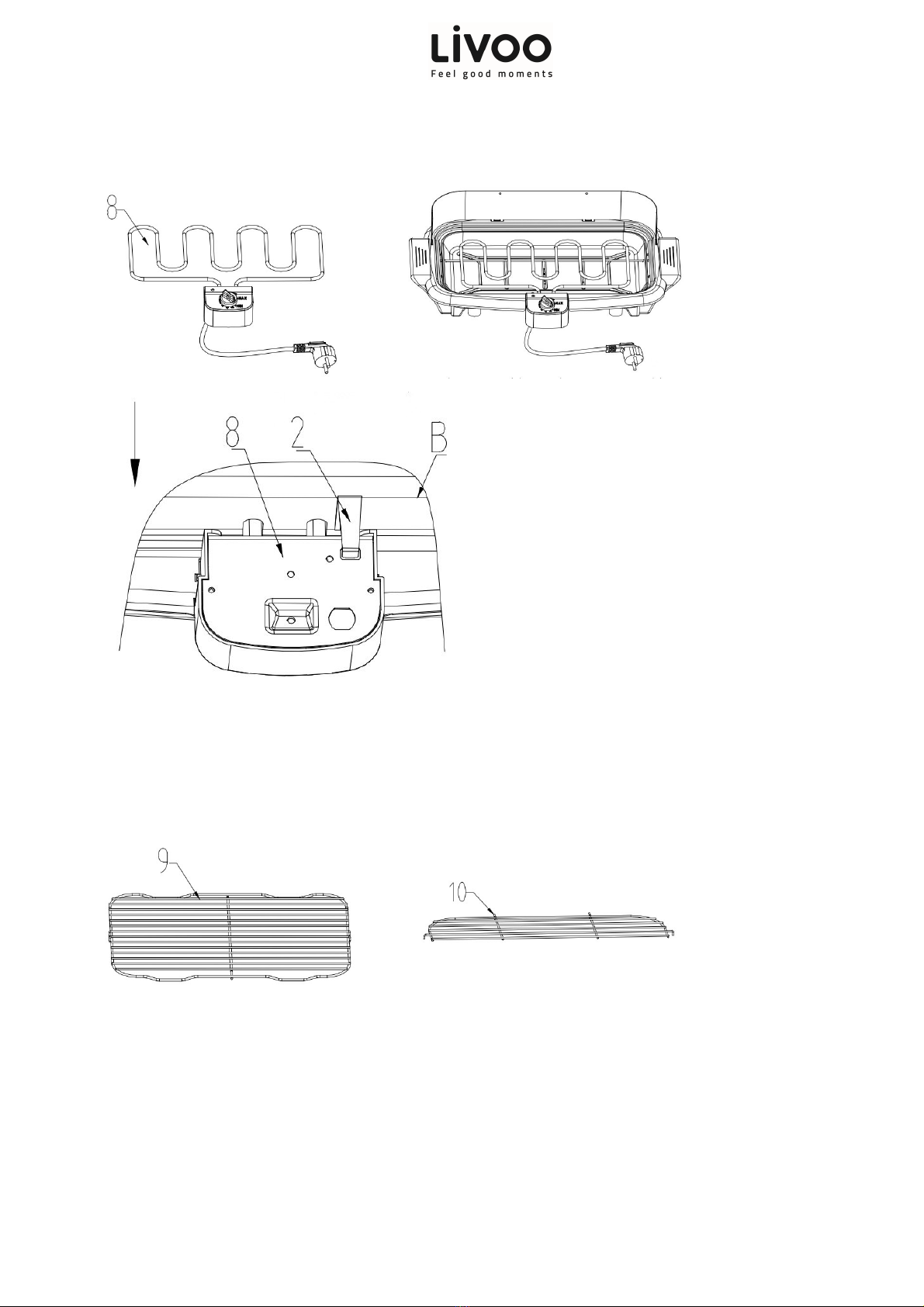

Step 7: Put the whole heating element (No.8) onto the base.
There is a small hole on the bottom si e of the heating element. Make sure that the metal hook (No.2) is
inserte insi e the hole completely.
9. Big gri
10. Small gri
8
. Heating Element

Instruction manual
13
Step 8: Put the big gri onto the BBQ.
Step 9: Put the small gri onto the win shiel .

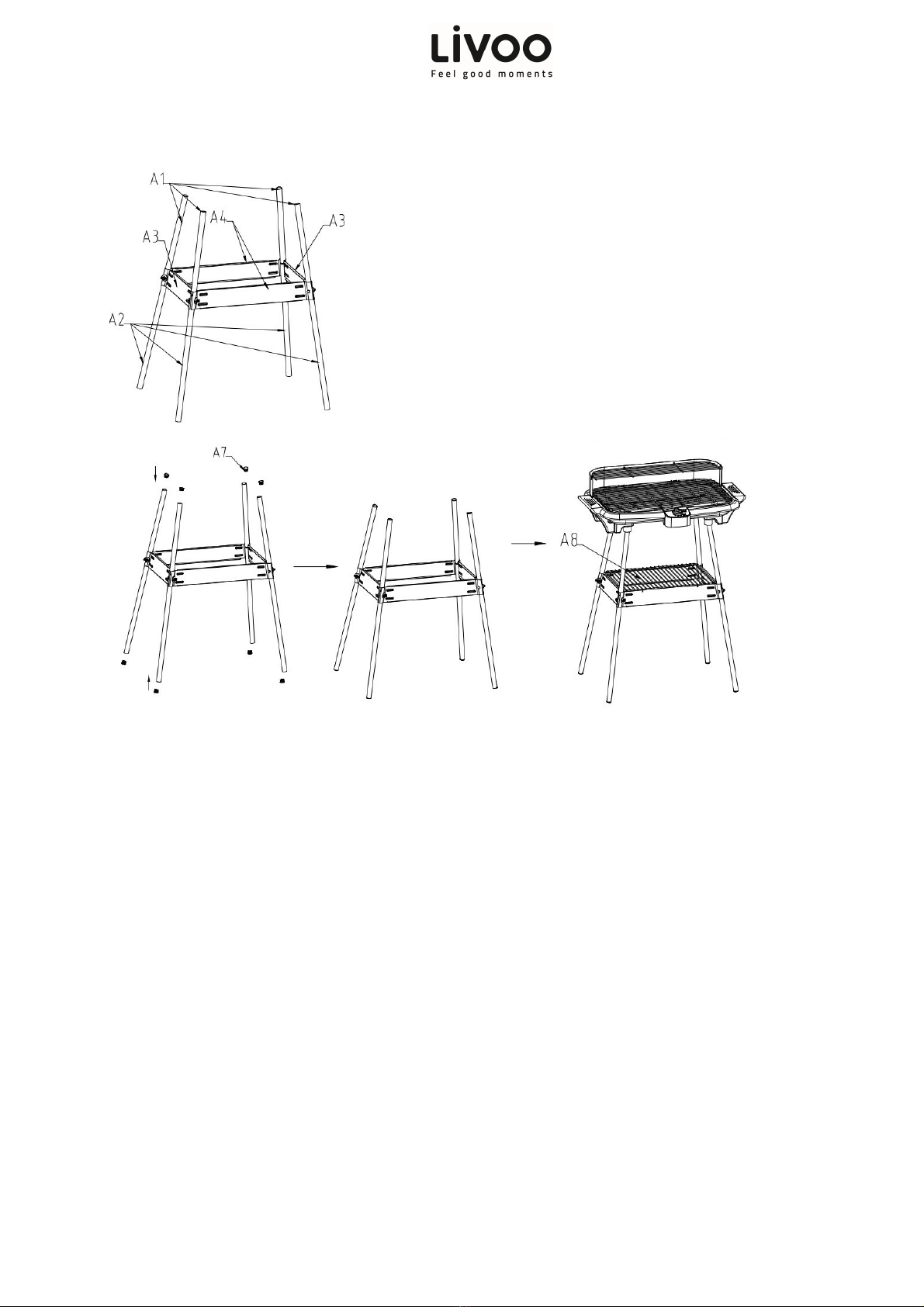

Stan Assembly:
A1.short leg A2.long leg A3.short metal shelf A4.long metal shelf A5.butterfly nut A6.M5 Screw
Step 1: Insert the short leg into the long leg, an ensure the hole on short leg can meet with hole on long leg
to make the black screw inserting successfully.
Step 2: Put the short metal shelf an long metal shelf on the two si es of the pipe’s hole (the irection for
short line of both metal shelf shall be always onwar ), an insert the black screw into holes an finally fixe
with the butterflyshape nut, same as above iagram shows.

Instruction manual
14
A7. Rubber sockets A8. Lower grill
Step 3: Get all four legs fixe as a complete stan , same as the iagram above.
Step 4: Insert the 8pcs of rubber socket into the hole of stan separately.
Step 5: Put the lower grill onto the stan an put the table BBQ onto the stan .
Step 6: Now you are rea y to use the Barbecue.
USE
1. The tank must be fille with water up between MIN an MAX marking, never fill water on
the heating element, it will amage it. Plug the appliance.
2. Set the thermostat control knob on the temperature MAX an after 5-10 minutes, heating
element is rea y. The in icator light turns on an off uring the heating, that’s normal.
3. The water in the tank will evaporate uring use. So you must to fill up water from time to
time. Be careful not to pour water on the heating element.
4. When you grilling the foo stuffs, you have to return them sometimes with a apte
accessories an you can choose the temperature you want.
5. The grill can also be use to keep the foo warm: by turning the thermostat control knob
back to a lower position or by using the keep warn grill of the win shiel .

Instruction manual
15
6. When grilling is finishe , turn the thermostat to “0” (off position) an isconnect the grill
from the mains supply socket.
CLEANING AND STORAGE
Caution:
Do not use wire brush or any abrasive items or liqui s to clean the appliance.
Always remove the plug from the socket before cleaning the barbecue
1. Ensure that the appliance has completely coole own
2. Then you shoul remove thermostat control knob an heating element from the tank, never
immerse them in water. Never switch the heating element on when it is not place onto the
appliance. 3. Clean the tank, tray salvage ealer of fat an the grill pan with warm soapy water
an ry afterwar s.
4. Use amp cloth to clean the heating element.
5. Do not use ishwasher
Storage
After cleaning, the grill shoul be store in oors in a ry location.

Instruction manual
16
Correct isposal of the unit
(Electrical an Electronic Equipment)
(Applicable in the European Union an the rest of Europe that have a opte separate collection
systems countries)
The European Directive 2012/19/EU on Waste Electrical an Electronic Equipment (WEEE), requires that ol househol
electrical appliances must not be ispose of in the normal househol waste stream. Ol appliances must be collecte
separately in or er to optimize the recovery an recycling of the materials they contain an re uce the impact on
human health an the environment. The symbol of the crosse out ustbin is marke on all pro ucts to remin the
obligations of separate collection.
Consumers shoul contact their local authority or retailer for information concerning the correct isposal of their
pro uct.
• Photo no contractual
• Worrie about the quality of his pro ucts the manufacturer reserves the right to make mo ifications without
a vance notice
LIVOO
BP 61071
67452 Mundolsheim - FRANCE
