Lloyd 402 Flexion Elevation User manual

CONTENTS
OPERATIONS PAGE
Safety and Maintenance.......................... 1 - 2
Head Rest Cushion................................. 3 - 8
Chest Cushion......................................... 9
Manual & Automatic Drops...................... 10 - 11
Pelvic Height Adjustment........................ 12
Foot Pedal Control.................................. 12
Electronic Height Adjustment (EHA)....... 13 - 14
Ankle Rest............................................... 15
PARTS / ASSEMBLY PAGE
Stationary Frame..................................... 16
Elevation Frame...................................... 17
Tilt Head Cushions.................................. 18
Deluxe Head Cushions........................... 19
PARTS / ASSEMBLY PAGE
Tilt Head I-Frame Assembly.................... 20
Deluxe Head I-Frame Assembly............. 21
Adjustable Chest Cushion....................... 22
Deluxe Chest Spring Breakaway............ 23
Adjustable Pelvic Cushion..................... 24
Ankle Rest Assembly................................... 25
Adjustable Height Ankle Rest.................. 26
Hydraulics Assembly............................... 27
Hydraulics Auto Drops............................ 28
Electrical.................................................. 29
Electrical - EHA & Auto Drops................. 30
Straight Drop Head................................. 31-32
Forward Motion Drop Head..................... 33-34
CBP Tilt Chest......................................... 35-36
CBP Drop Chest....................................... 37-38
Drop Chest.............................................. 39-40
Drop Pelvic.............................................. 41-42
Table Serial Number
02-08

WELCOME!!
Lloyd Table Company, a proud supporter of today’s chiropractors, has established the finest line of chiroprac-
tic tables in the world. Table products unique in versatility and function, designed to meet your needs.
Concerned for a safe working and treatment environment, Lloyd Table Company asks that you follow the safe-
ty tips below.
*Be aware of Caution and Warning labels posted throughout the table before operating
any functions.
*Everyone operating the table needs to read the manual and familiarize themselves
with all its functions before operating the table with patient on it.
*A patient should never be unattended, when lying on the table. NEVER LEAVE A
PATIENT ON THE TABLE UNATTENDED!
*The patient should be positioned at or near the center of the table with arms on the
armrest cushions.
*There should be no more than one operator at the controls.
*Check the tension on all drops before adjusting the patient. (See Page 7)
SAFETY
Page 1

MAINTENANCE
The following steps should be performed on a regular basis to maintain your Lloyd table in a smooth operating
condition and to assure its long life and top quality appearance.
*An initial inspection and periodic future inspections should be made to insure that nuts
and bolts have not loosened in shipping or during daily operations.
*Your Lloyd table should be lubricated every six months. Parts to be lubricated are all
pivot points, and metal to metal sliding mechanisms.
(DO NOT LUBRICATE FRICTION LOCKS)
*The cushions should be cleaned daily with a mild soap & warm water solution to
remove body oils. Rinsed & dried
*Chrome parts should be cleaned on a weekly basis for appearance.
*The hydraulic fluid recommended for the pump, is a lubriplate HO1 hydraulic oil, and
*Perform periodic inspections for oil leaks or drips.
Page 2

The following sections provide explanations on the operation of your Lloyd table. All references to right and
left, will be in relationship to your view, as you face table from the foot end. All references to the front will
refer to the head end of the table. Those to the rear will refer to the foot end.
Head Cushion
The head cushion is designed to provide a multitude of positions & operations through our Add On Paper
(AOP), Deluxe Headpiece and optional Total Dimension FlexionTM Headpieces.
Paper Hanger #2
Lock Handle #1
To raise the tilting headpiece:
1 Lift on the bottom front edges of the cushion.
2 Release when desired height is obtained, the cushion will automatically lock into position.
To lower the tilting headpiece:
1 Support the corner edge of the cushion.
2 Lift the Locking Handle (#1) to release.
3 Gently lower the cushion to the desired height.
4 Release the Lock Handle (#1) and then the cushion to lock.
Tilting Head Adjustment
Page 3

#5 Center Bar
#4 Paper Hanger
#2 Elevation Knob
#3 Face Opening
Lever
#1 Tilting Lock Handle
#6 Paper Cutting Bar
To Raise the tilting feature on the Deluxe Headpiece:
1. Lift on the bottom front edges of the cushion
2. Release at the desired height, the cushion will
automatically lock into position.
To Lower the tilting feature on the Deluxe Headpiece:
1. Support the front corner edge of the cushion.
2. Lift the Locking Handle (No. 1) to release
.
3. Gently lower the cushion to the desired height.
4. Release the lock handle first and then the cushion to lock.
WARNING: TO AVOID INJURIES WHEN RAISING OR LOWERING HEAD
CUSHIONS, BE SURE TO HAVE A PROPER HOLD ON THE CUSHION BEFORE
RELEASING THE ELEVATING HANDLE (NO. 2).
Page 4
Deluxe Headpiece

Deluxe Headpiece
To Elevate the Head Cushion
1. The head cushion is assisted by a gas shock in raising the cushion. With a hand
supporting the head cushion, turn the Elevation Knob (No. 2) on either side of the table
upward to unlock. When the desired height is determined simply release the Elevation Knob
(No. 2) to lock.
To Lower the Head Cushion
1. Turn the Elevation Knob upward to unlock. While unlocked push down on the cushion to
lower. When the desired height is determined simply rotate the Elevation Knob (No. 2)
down to lock.
Face Opening Adjustment
1. The Head Cushion’s face opening can be opened or closed to adjust for comfort with the Face
Opening Lever (No. 3). By Pushing slightly down on the Face Opening Lever, slide cushions to
adjust opening. The Face Opening Lever must be released in one of eight positions to lock the
cushions in place.
Paper Roll
The paper roll mounts conveniently inside the right-hand cushion.
Replacing the Paper Roll
1. Remove the paper hanger tension rod (No. 4) by compressing ends of the rod horizontally.
This will allow you to slide one end out, to remove the paper roll tube.
2. Slide a new paper roll on the tension rod so that it rolls off the bottom side. Compress the rod
ends horizontally and set inside the head cushion.
3. Swing the Center Bar (No. 5, Page 4) and Outside Cutting Bar (No. 6, Page 4) up. Route
paper over the cushions and down between the two outside cutting bars. Return both bars to
their original position.
4. Trim the paper by supporting the paper cutting bar with one hand and pulling the paper up
along the bar’s edge.
Page 5

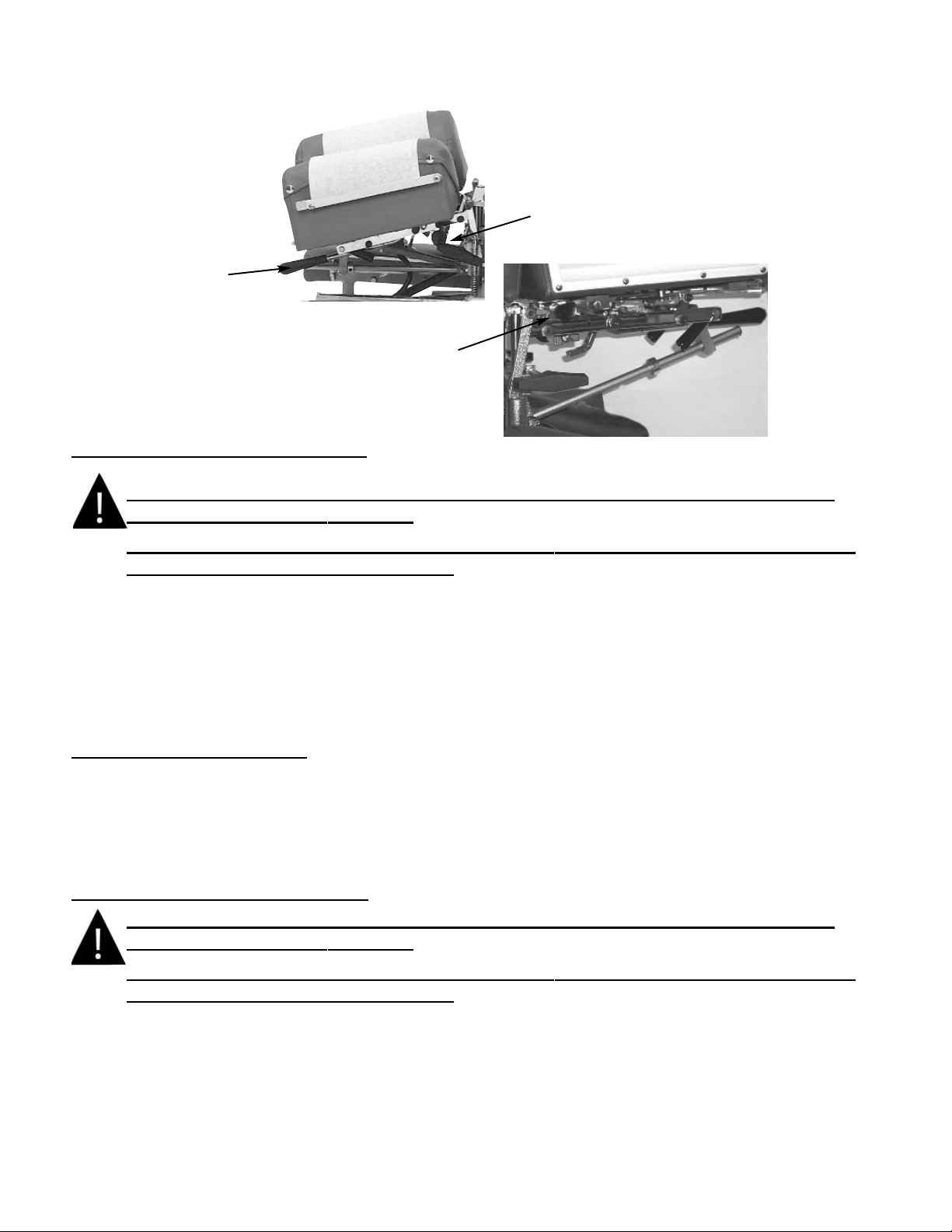

Deluxe Head with Drops
#7 Cocking Handle
#8 Tension Knob
#9 Selector Knob
(Right Side of Table)
Operating the Straight / Toggle Drop:
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED
BEFORE ADJUSTING A PATIENT.
NOTE - DROP SHOULD BE IN DOWN / DEACTIV
ATED POSITION BEFORE MOVING
SELECTOR KNOB (NO. 9) IN OR OUT.
1. To engage the Straight / Toggle Drop head, pull the selector knob (No. 9) out about
half an inch.
2. Push down on the Cocking Handle (No. 7) until the head cushion toggle drop is activated .
3. Once cocked, test the drop by pushing down on the cushion. If the cushion drops easily or too
hard, adjust the tension with the Tension Knob (No. 8).
Operating The Tension Knob:
1. The tension is adjusted by turning the tension knob (No. 8) in a clockwise and counterclock-
wise direction.
A. Clockwise - Increases tension
B. Counterclockwise - Decreases tension
Operating the Forward Motion Drop:
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED
BEFORE ADJUSTING A PATIENT.
NOTE - DROP SHOULD BE IN DOWN / DEACTIVATED POSITION BEFORE MOVING
SELECTOR KNOB (NO. 9) IN OR OUT.
1. The Selector Knob (No. 9) is to be pushed in, to engage the forward motion drop.
2. Push down on the Cocking Handle (No. 7) until the head cushion forward motion drop is
activated.
3. Once cocked, test the drop by pushing down on the cushion, and adjust the tension.
Page 6

Forward & Straight / Toggle Drop Operation Instructions
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED
BEFORE ADJUSTING A PATIENT.
NOTE - DROP SHOULD BE IN DOWN / DEACTIVATED POSITION BEFORE MOVING
SELECTOR KNOB (NO. 1) IN OR OUT.
1. To engage the Straight / Toggle Drop head, pull the selector knob (No. 1) out about
half an inch.
2. Push down on the Cocking Handle (No. 2) until the head cushion is cocked into its top
position.
3. Once cocked, test the drop by pushing down on the cushion. If the cushion drops too easily or
too hard, adjust the tension with the Tension Knob (No. 9).
Operating The Tension Knob:
1. The tension is adjusted by turning the tension knob (No. 9)
in a clockwise and counterclockwise direction.
A. Clockwise - Increases tension
B. Counterclockwise - Decreases tension
Operating the Forward Motion Drop:
1. The Selector Knob (No. 1) is to be pushed in, to engage the forward motion drop.
2. Push down on the Cocking Handle (No. 2) to raise the drop cushion to its cocked position.
3. Once cocked, test the drop by pushing down on the cushion. If the cushion drops too easily or
too hard, adjust the tension with the Tension Knob (No. 9).

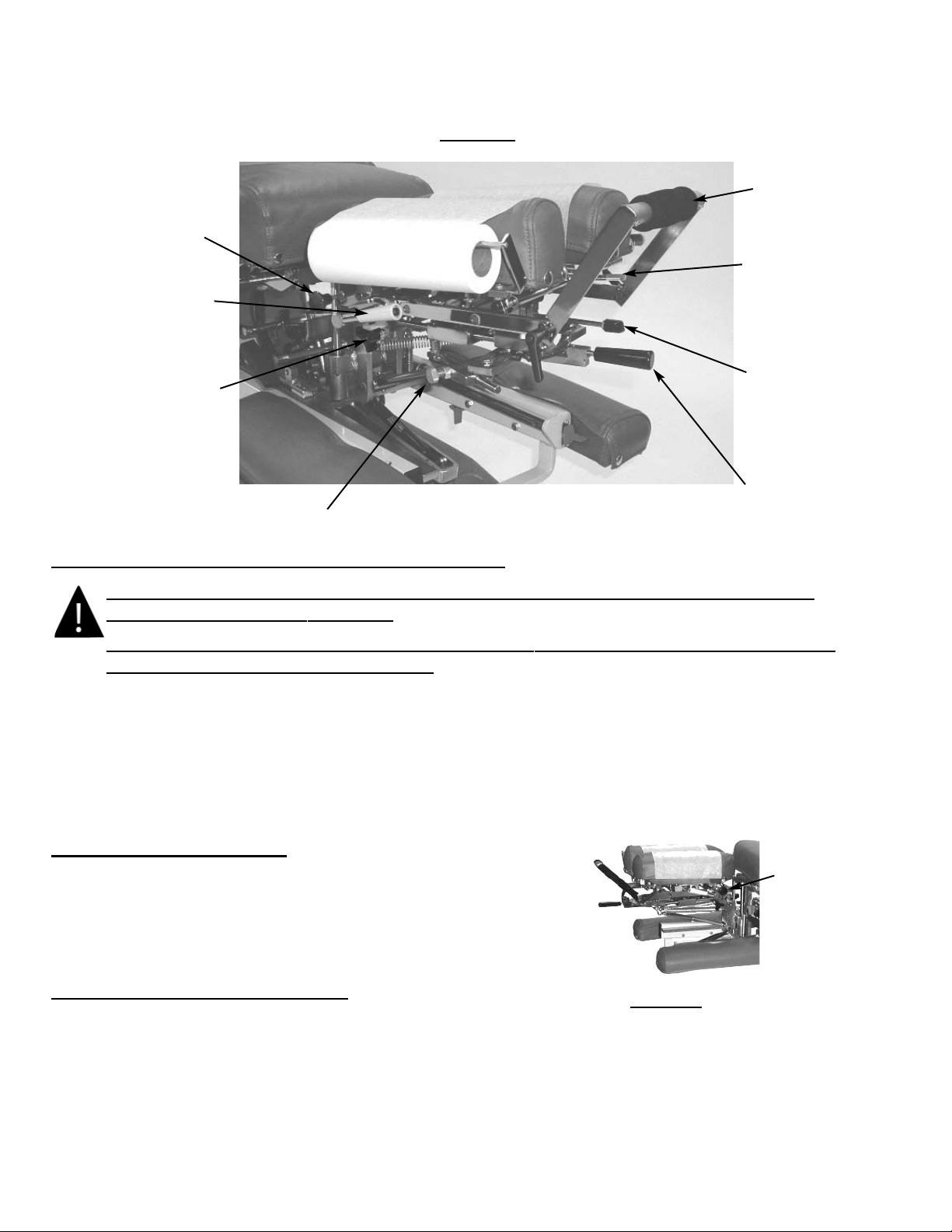

Optional - Total Dimension Flexion HeadTM
Left Side
#1 Selector Knob
#2 Cocking Handle
#4 Traction Release
Knob
#3 Lateral Side Bending
Release Knob
#8 Flexion Assist
Handle
#6 Rotation
Release Knob
#5 Flexion / Tilt
Knob
Page 7
#9 Tension
Knob
Right Side
#7 Face Opening
Lever

Optional - Total Dimension Flexion HeadTM
Page 8
Lateral Side Bending
1. To unlock the Lateral Side Bending Feature rotate the Lateral Side Bending Release Knob
(No. 3) clockwise (from left side of table).
2. Turn the Lateral Side Bending Release Knob (No. 3) counterclockwise to lock headpiece in
desired position (from left side of table).
CAUTION: MAKE SURE THE HEADPIECE IS LOCKED BEFORE ALLOWING A PATIENT
ON OR OFF THE TABLE.
Manual Traction
1. To unlock the manual traction feature simply pull and twist the Traction Release Knob (No. 4)
1/4 of a turn clockwise or counterclockwise.
2. When unlocked the headpiece will glide forward and backward.
3. To lock the manual traction twist the Traction Release Knob (No. 4) 1/4 turn counterclockwise
or clockwise.
Manual Flexion Distraction
1. To unlock the manual flexion distraction locate the Flexion / Tilt Knob (No. 5) pull forward and
twist 1/4 turn counterclockwise.
2. Gently apply pressure down using the Flexion Assist Handle (No. 8).
3. To lock the manual flexion distraction twist the Flexion / Tilt Knob (No. 5) 1/4 turn clockwise
and release to engage lock.
Tilting Feature
1. To unlock the Tilting feature locate the Flexion / Tilt Knob (No. 5) while supporting the head
cushion pull forward and twist counterclockwise.
2. Once the desired angle is obtained, lock the headpiece simply by twisting the
Flexion / Tilt Knob (No. 5) clockwise and release.
Rotation Feature
1. To unlock the Rotation feature locate the Rotation Release Knob (No. 6) Pull toward the head
of the table and twist 1/4 turn clockwise.
2. Gently move the headpiece with the Flexion Assist Handle (No. 8)
3. To lock the Rotation feature locate the Rotation Release Knob (No. 6) twist 1/4 turn counter
clockwise and release.
Face Opening Adjustment
1. The Head Cushion’s Face Opening can be opened or closed to adjust for the comfort with the
Face Opening Lever (No. 7). By pushing slightly down on the Face Opening Lever, slide side
to side adjusting the face opening. The Face Opening Lever must be released in one of the eight
positions to lock cushions in place.
Flexion Assist Handle
1. The Flexion Assist Handle (No. 8) has many functions including aiding with manual Cervical
Flexion Distraction, rotation, lateral side bending, and tilting the headpiece.
2. To adjust the Flexion Assist Handle to desired comfort twist the Flexion Assist Handle locking
Knobs on both sides of table. This will unlock the handle for adjustment. Twist in opposite
direction to lock.
WARNING: THE FOLLOWING CERVICAL OPERATIONS ARE ONLY TO BE
OPERATED BY A PROFESSIONAL PRACTITIONER, EDUCATED IN THE
PROCEDURE OF FLEXION-DISTRACTION AND TRACTION, ON THE SPINE.

Chest Cushion
The chest cushion is designed to accommodate patients with large or small abdomen and has the versatility of being a
stationary or floating cushion.
Standard - Adjustable Tilting Chest
Height Adjustment of Chest Cushion
1. Lift the rear corners of the cushion.
2. Release the cushion when the desired angle is reached and the cushion will automatically lock
into place.
Tilting Chest Cushion Down
1. Support the cushion at the rear corners.
2. Lift on the Adjustable Chest Handle (No. 1) to release the cushion.
3. Slide the cushion to desired angle.
4. Release the Adjustable Chest Handle (No. 1) first and then the cushion to lock into desired
height.
Optional Spring Breakaway Chest
To Engage Spring Breakaway Chest Cushion
1. Pull on Spring Breakaway Knob (No. 2) (facing the right side of the table) to unlock.
2. The resulting floating effect will allow the cushion to gently drop under pressure and spring
back when released.
To Lock the Spring Breakaway Cushion
1. Gently pull up on chest cushion to full horizontal position, then Push on Spring Breakaway
Knob (No. 2) (facing the right side of the table) to lock.
Page 9
#1 Adjustable Chest
Handle
#2 Spring Breakaway
Knob

Chest Cushion - Manual Drops
1 Cocking Handle
#2 Tension Control
Knob

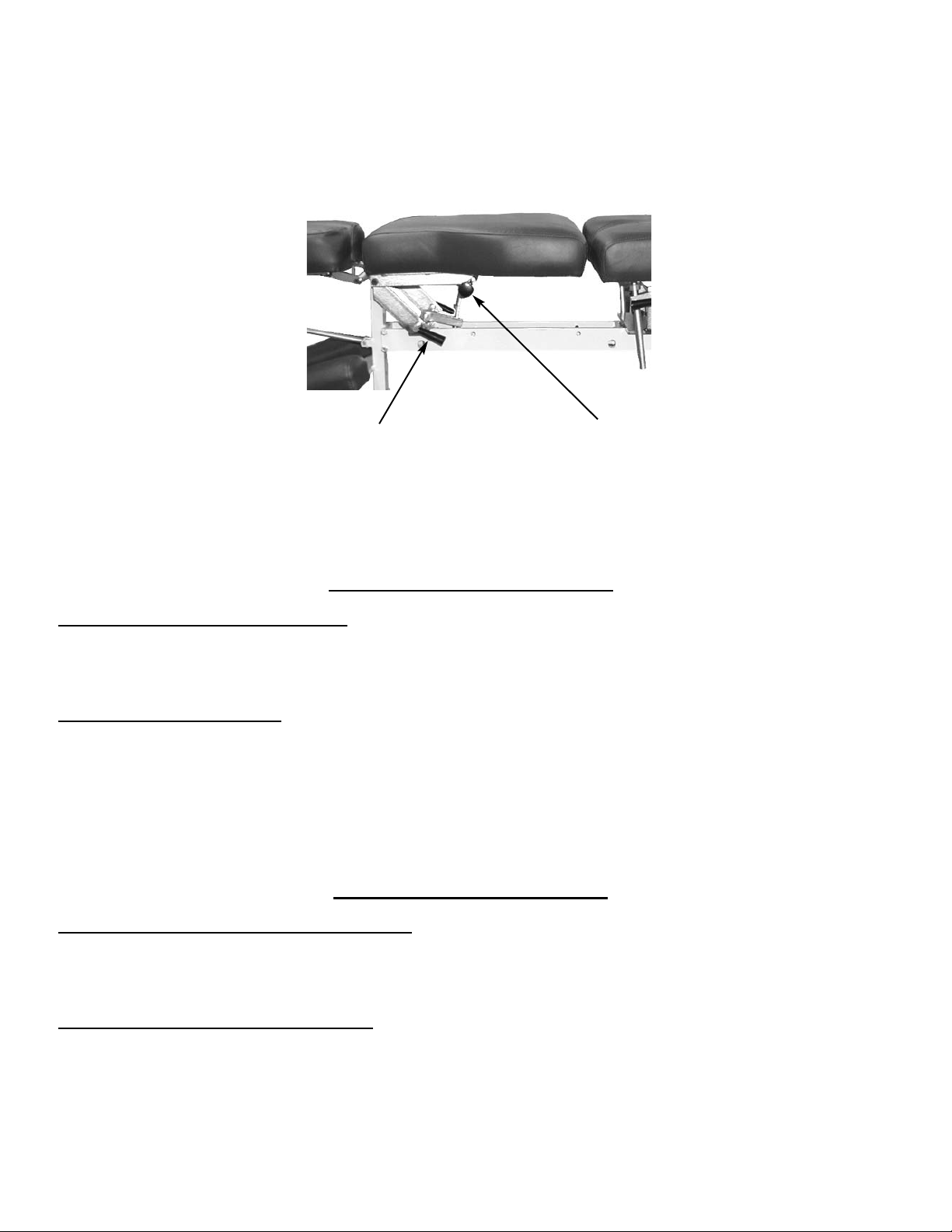

Chest & Lumbar Drop - Manual
Cocking the Drop Chest or Lumbar Cushion
1. Pull up on the Cocking Handle (No. 1) to cock the desired drop cushion.
2. Adjust the tension on drop by turning the Tension Control Knob (No. 2)
Right side: Clockwise - Decreases Tension Counterclockwise - Increase Tension
Left Side: Clockwise - Increase Tension Counterclockwise - Decrease Tension
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE
ADJUSTING PATIENT. KEEP FINGERS AWAY FROM BOTTOM OF CUSHION TO AVOID
PINCHING
#1 Cocking Handle
#2 Tension Control
Knob
Lumbar / Pelvic Drop - Manual
Cocking the Drop Lumbar / Pelvic Cushion
1. Pull up on the Cocking Handle (No. 1) to cock the cushion.
2. Adjust the tension by turning the Tension Control Knob (No. 2)
Right side: Clockwise - Decreases Tension Counterclockwise - Increase Tension
Left Side: Clockwise - Increase Tension Counterclockwise - Decrease Tension
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE
ADJUSTING PATIENT. KEEP FINGERS AWAY FROM BOTTOM OF CUSHION TO AVOID
PINCHING
Lumbar / Pelvic Drop
Page 10

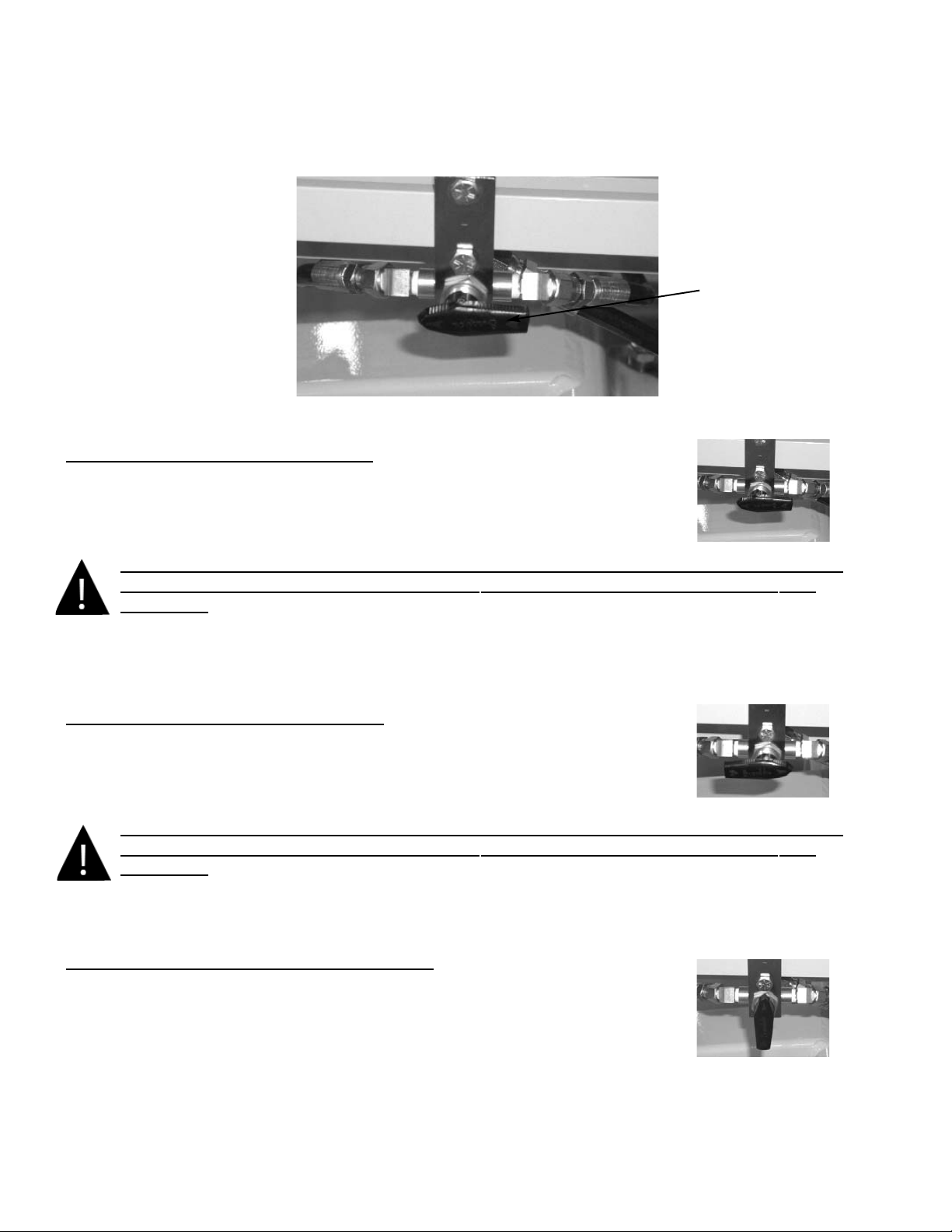

Automatic Cocking Drops
#1 Selector Knob
To Cock the Dorsal (Chest Cushion) Drop:
1. Rotate the Selector Knob (No. 1) towards the head of table to
select the Dorsal (Chest Cushion) drop.
2. Step on the white strip to activate the auto cocking drop.
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE
ADJUSTING PATIENT. KEEP FINGERS AWAY FROM BOTTOM OF CUSHION TO AVOID
PINCHING.
3. Adjust the tension on the drop by turning the Tension Control Knob (Refer to Page 10 for
Instructions).
To Cock the Lumber / Pelvic Cushion Drop:
1. Rotate the Selector Knob (No. 1) towards the foot end of table
to select the Lumbar / Pelvic drop.
2. Step on the white strip to activate the auto cocking drop.
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE
ADJUSTING PATIENT. KEEP FINGERS AWAY FROM BOTTOM OF CUSHION TO AVOID
PINCHING.
3. Adjust the tension on the drop by turning the Tension Control Knob (Refer to Page 10 for
Instructions)
To Cock All Drops - Dorsal, Lumbar / Pelvic Drops
1. Rotate the Selector Knob (No. 1) towards the Mid Section of table
to select the Dorsal, Lumbar / Pelvic drops.
2. Step on the white strip to activate the auto cocking drops.
Page 11

#1 Adjustable Pelvic
Lock Handle
Pelvic Height Adjustment
Raising - Lift the cushion by it’s front corners to the desired height. The Cushion will lock in place once
released.
Lowering - Support the cushion by slightly lifting up on a front corner. Next, lift the Adjustable Pelvic Lock Handle
(No. 1) up and allow the cushion to slide down to desired height. Once adjusted to a desired height, release the lock
handle and then the cushion to secure the height position.
Pelvic Height Adjustment
Directional Pedal
The directional pedals have the dual function of horizontally raising and lowering the table in ele-
vation. The directional pedals can be operated in manual and auto mode as described on page 13
under auto / manual.
Non - Corded Side - Lowers the table
Corded Side - Raises table
Foot Pedal Control
Page 12

Page 13

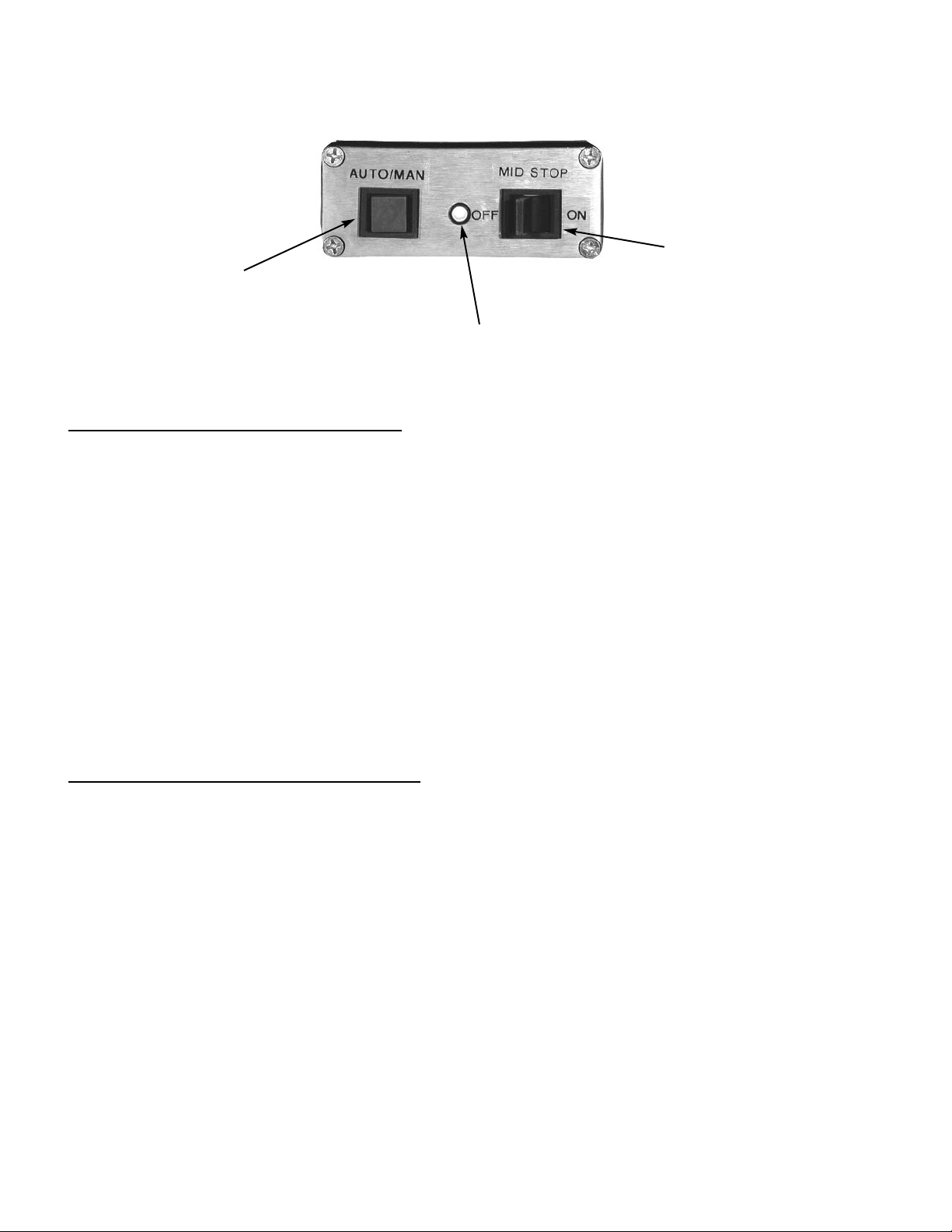

Optional - Electronic Height Adjustment (EHA)
#1 Auto / Manual
Button
# 2 Green
Indicator Light
#3 Mid - Level
On/Off Switch
To Activate Electronic Height Adjustment:
1. Push the Auto / Manual Button(No. 1) Button to activate EHA. Once the Auto / Manual
Button (No. 1) has been pressed note that the Green Indicator Light (No. 2) is now
illuminated.
2. Toggle the Mid - Level On/Off Switch(No. 3). Toggle the switch toward the foot end of the
table to activate the Mid-Level Stop. (If the Mid-Level Switch is “on” the table will stop at the programmed
middle setting)
Toggle the switch towards the head end of the table to turn off the Mid-Level Stop. (If the
Mid-Level Switch is “off” the table will elevate or lower without stopping at the programmed mid-
dle setting)
3. Depress foot pedal once until the programmed height is achieved.
To Turn “Off” Electronic Height Adjustment
1. Push the Auto / Manual Button(No. 1) Button to activate EHA. Once the Auto / Manual
Button (No. 1) has been pressed note that the Green Indicator Light (No. 2) is now
off.
2. When the EHA is off the table is in manual mode, press the foot pedal until desired height is
obtained and release pedal.

Page 14

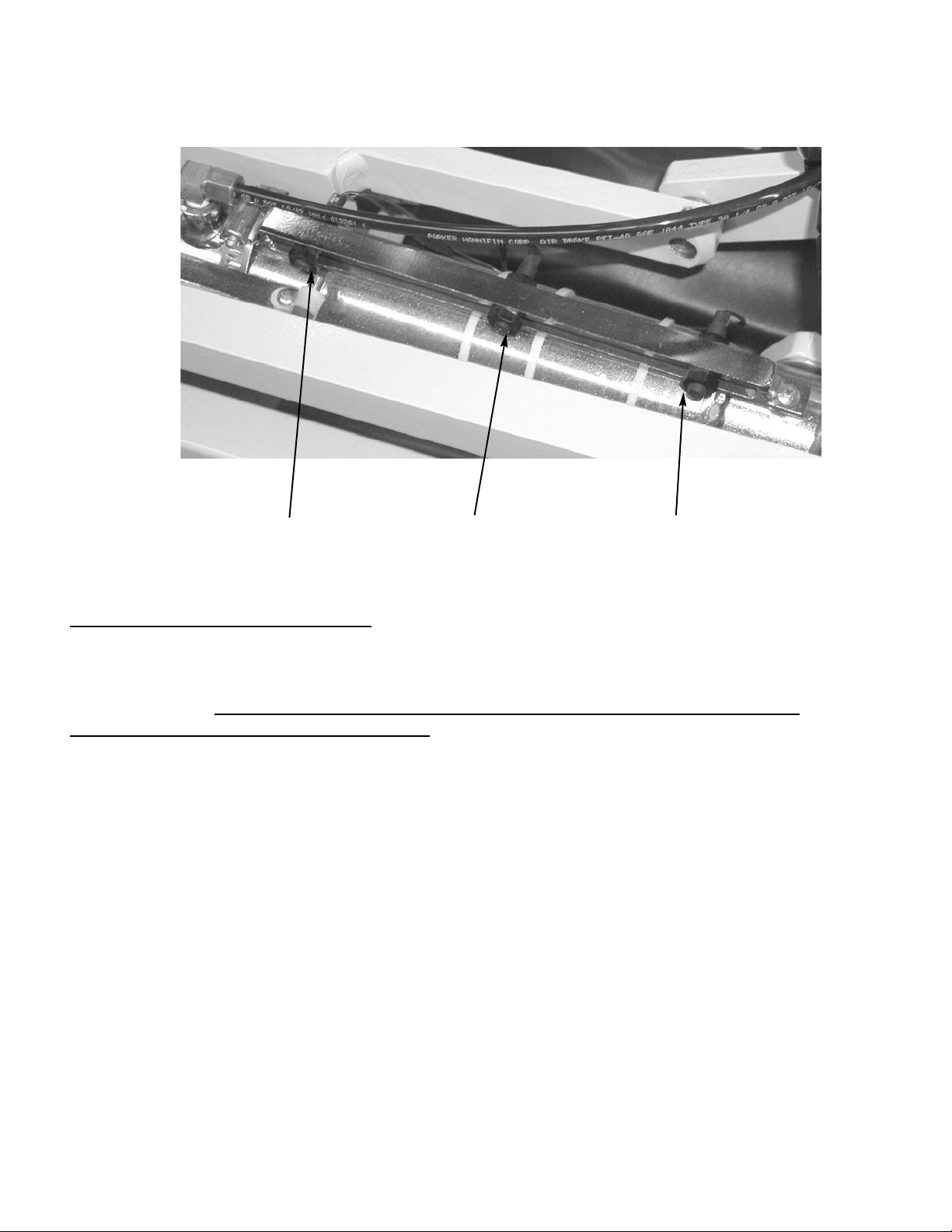

Electronic Height Adjustment (EHA)
#1 UpperLevel
Adjustment
#2 Mid-Level
Adjustment
#3 Lower Level
Adjustment
To Set Programmed Heights for EHA:
To Set Upper Level:
1. Loosen Nut on the Upper Level Adjustment (No. 1) and slide towards the head end of table
to increase height. CAUTION: BE CAREFUL NOT TO SET TO FAR FORWARD AS THIS
CAN CAUSE MOTOR TO KEEP RUNNING.
Slide towards the foot end of the table to decrease height. Once height
is obtained simply tighten nut to set level.
To Set Mid-Level:
1. Loosen Nut on the Mid-Level Adjustment (No. 2) and slide towards the head end of table to
increase height. Slide towards the foot end of the table to decrease height. Once height is
obtained simply tighten nut to set level.
To Set Lower-Level:
1. Loosen Nut on the Lower-Level Adjustment (No. 3) and slide towards the head end of table
to increase height. Slide towards the foot end of the table to decrease height. Once height is obtained sim-
ply tighten nut to set level.

Page 15

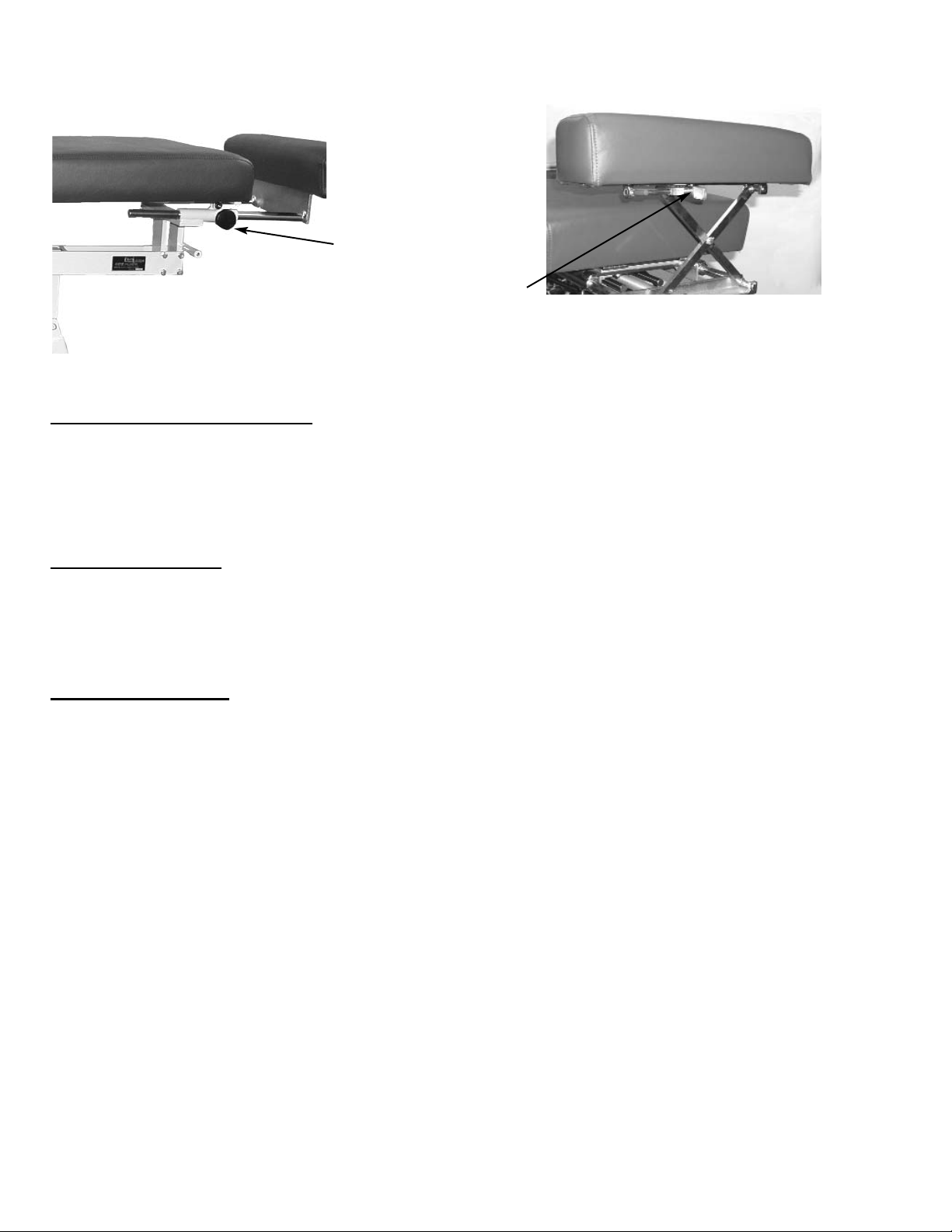

Ankle Rest
#1 Horizontal
Lock Knob
#2 Vertical
Lock Lever
Ankle Rest Horizontal Adjustment
To Extend or Retract the Ankle Rest
1. Loosen the Horizontal Lock Knob (No. 1) and slide the cushion to the desired length.
2. Once the cushion is adjusted, tighten the lock knob.
Optional Vertical Ankle Rest
To Raise the Ankle Rest
1. Simply lift on the sides of the Ankle Rest Cushion.
2. Once the desired height is obtained the cushion will automatically lock into position when
released.
To Lower the Ankle Rest
1. From the back end of the table, support the center of the Ankle Rest Cushion with the right
hand.
2. With left hand, slide the Vertical Lock Lever (No. 2) towards the left side to release lock.
3. Lower the cushion to desired height, and release the Vertical Lock Lever to lock into place.

402 STATIONARY FRAME ASSEMBLY
ITEM PART N0. DESCRIPTION QTY.
1 56232 402 FRAME ASSEMBLY 1
2 56226 CHEST FRAME ASSEMBLY 1
3 56218 UNION FRAME ASSEMBLY 1
4 20204 BOLT, SOCKET HEAD, 5/16 - 18 NC SHOU 3/8 X 3/4 2
5 21114 NUT, CAP, 5/16 - 18 NC 2
6 56231 ANKLE BRACKET ASSEMBLY 1
7 20199 BOLT, SOCKET HEAD, 5/16 - 18 NC SHOU 3/8 X 1/2 2
8 24181 LOCK KNOB 1
9 20542 BOLT, HEX HEAD, 1/2 - 20 NF X 2 1/4 - CHROMED 2
10 21310 NUT, CAP, 1/2 - 20NF 6
11 20215 BOLT, HEX HEAD, 5/16 - 18 NC X 3/4 12
12 54219 LEG, REAR POST 1
13A 30013 TRIANGULAR LEG PLATE (5 HOLE)(21” - 26” TABLE) 2
13B 30012 TRIANGULAR LEG PLATE (4 HOLE)(20” TABLE) 2
13C 30591 TRIANGULAR LEG PLATE (3 HOLE)(18” TABLE) 2
14 20520 BOLT, HEX HEAD, 1/2 - 20 NF X 1 3/4 4
15 54205 LEG, FRONT POST 1
16 20373 BOLT, ELEVATOR, 3/8 - 16 NC X 1 1/2 (PLASTIC) 4
17 21211 NUT, JAM, 3/8 - 16 NC 4
8
6
7
7
10
9
3
11
4
10
17
16
14
12
1
5
5
11
11
9
10
13
17
16
15
14
Page 16
2

1
2
12
44
7
4
3
5
13
8
10
20
20
13
6
15
4
18
7
3
13
20
14
15
18
20
13
17
16 14
15
402 ELEVATION BASE FRAME ASS’Y
ITEM PART N0. DESCRIPTION QTY.
1 54270 BASE FRAME ASS’Y 1
2 54278 TIE BAR 1
3 54145 CONNECTION PIN, ½ RD X 4 1/8 2
4 22888 BUSHING CAP 6
5 54155 ROCKER ARM (FRONT) 1
6 54303 ROCKER ARM (BACK) 1
7 20510 HEX HD BOLT, ½-20UNF X 1 ¼ 4
8 24414 END CAP 2
9 56241 LINKAGE ARM ASS’Y 12
10 30610 SLEEVE, ½ ID X 7/8 OD 2
11 21910 FLAT WASHER, ½ ID X 1 OD 4
12 22230 SET SCREW, 5/16-18 UNC X ¼ 3
13 56422 PIVOT STUD, ½-20 UNF X 1 5/8 4
14 21210 HEX NUT, 3/8-16UNC 4
15 20373 ELEVATOR BOLT, 3/8-16UNC 1 ½ 4
16 22679 CYLINDER PIN, ½ RD X 3 ½ 1
17 22640 COTTER PIN, 3/32 X 1.00 2
18 20912 WASHER, FLAT, PLASTIC, .516 ID X 1 1/2 OD 6
19 22110 SET SCREW, 1/4-20 UNC X 1/4 4
20 22886 BRASS BUSHING, ½ ID X 5/8 OD X 1 2
7
9
11
12
18
18
19
18
19
Page 17
