Lloyd GALAXY ULTIMATE User manual

CONTENTS
OPERATIONS PAGE
Safety and Maintenance............................... 1 - 2
Head Rest Cushion....................................... 3 - 7
Chest Cushion............................................... 8
Manual & Automatic Drops........................ 9 - 11
Head & Chest Extension / Retraction........ 11

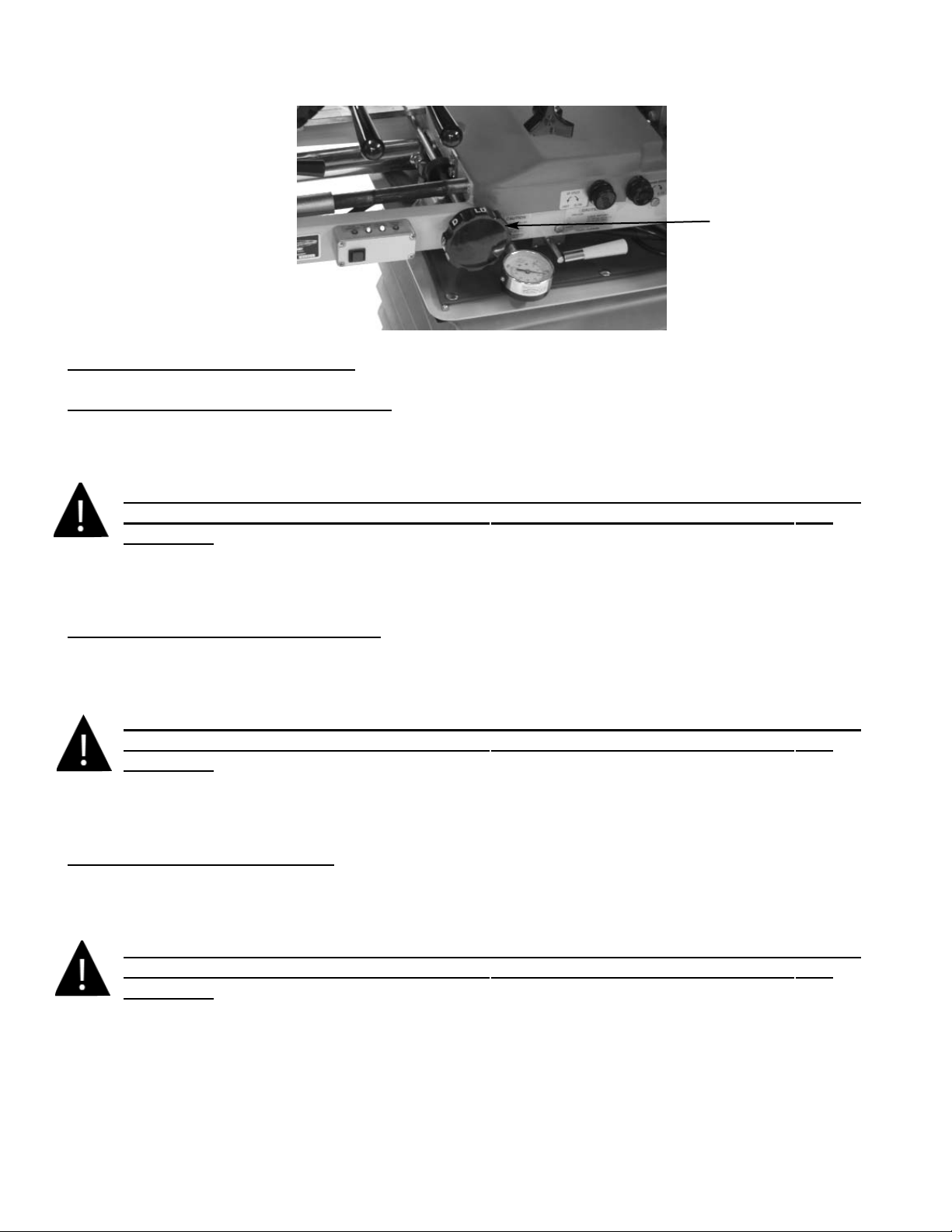

Pelvic Cushion - Flexion.............................. 12 - 16
Pelvic Lateral Side Bending........................ 16
Pelvic Rotation & Telescoping T-Bar......... 17
Ankle Rest & Lumbar Extension.............. 18

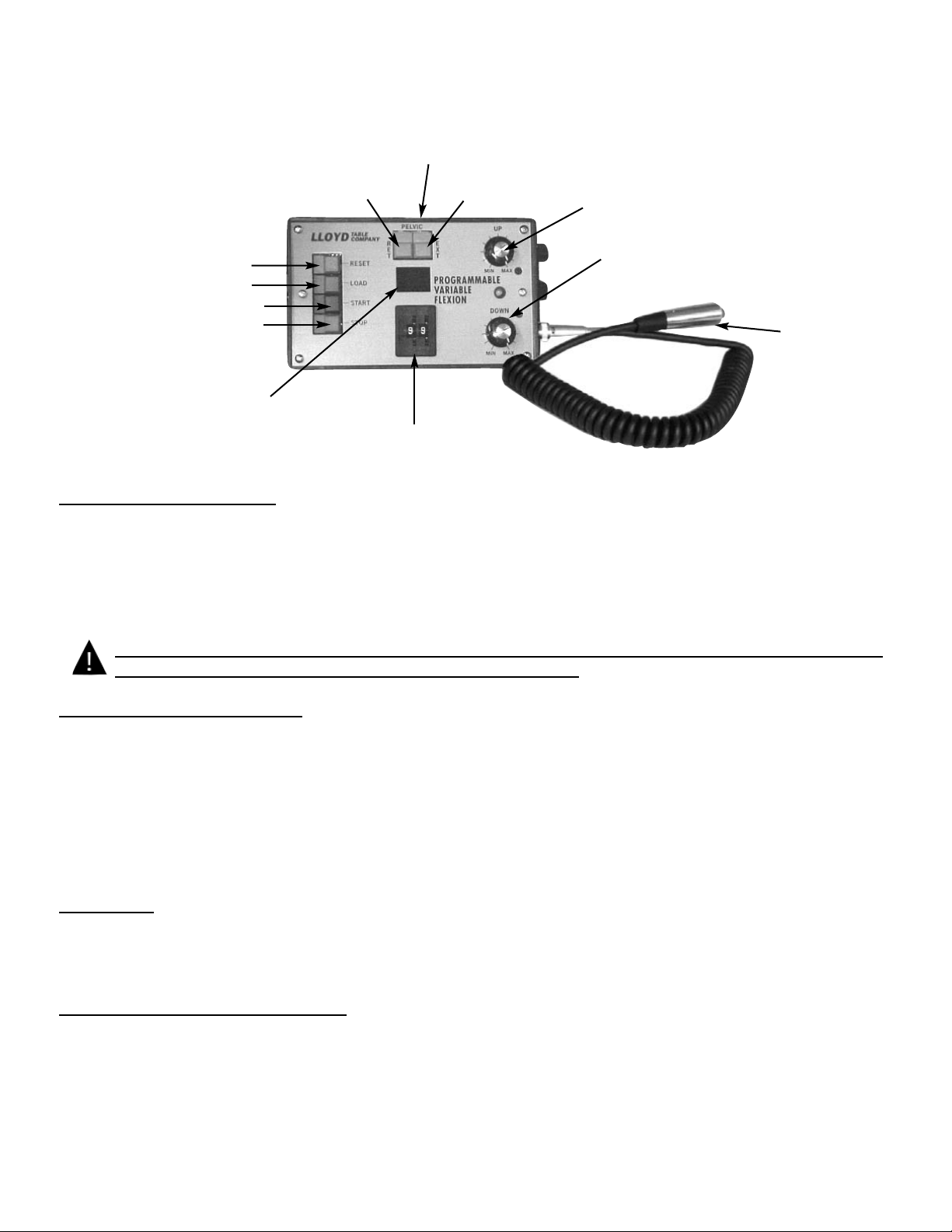

Control / Indicator Box............................... 19 - 20
Tilt Safeguard.............................................. 20

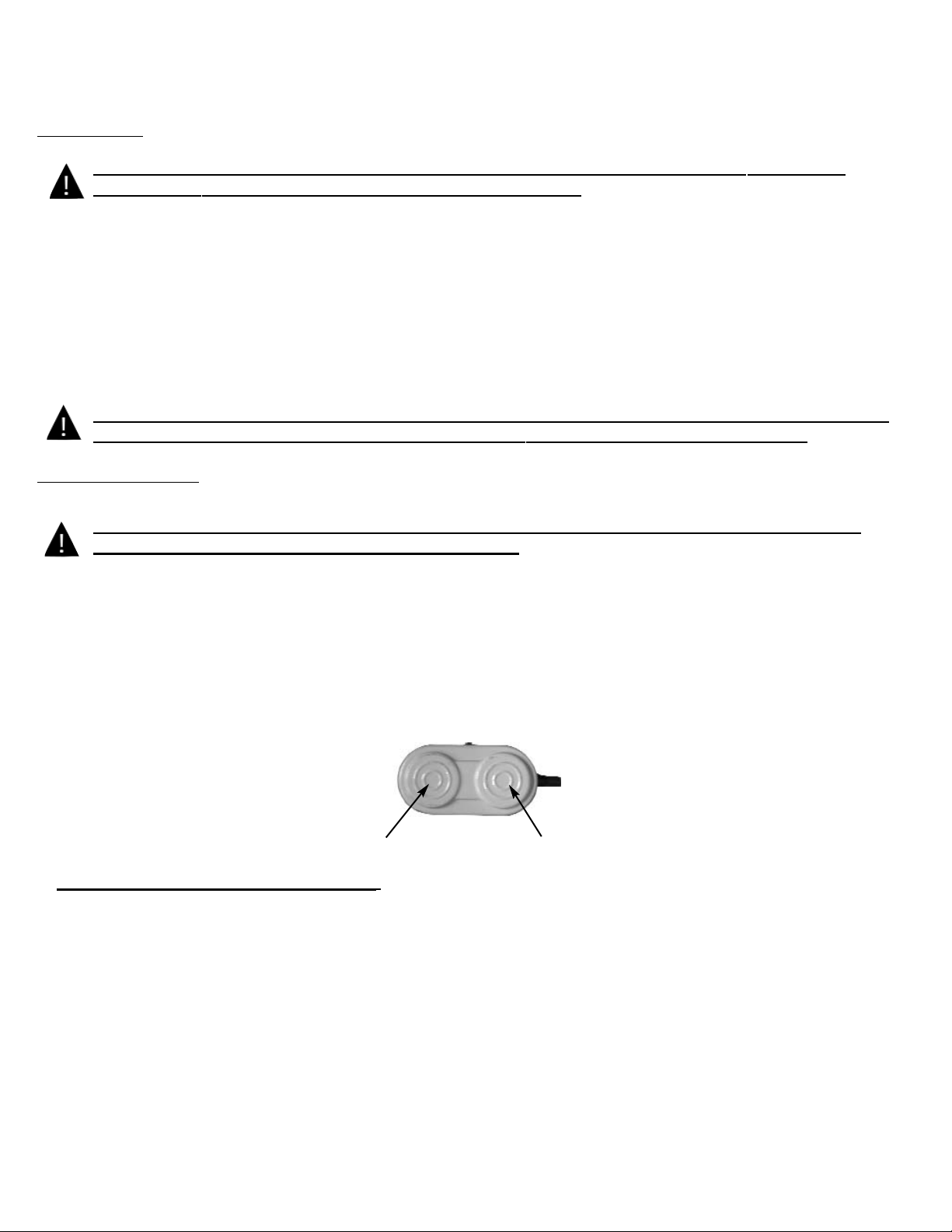

Foot Pedal Control...................................... 21
Master Power Switch & Fuse.................... 21
Height Select Panel..................................... 22
PARTS / ASSEMBLY PAGE
Tilt Frame.................................................... 23 - 24
Scissor Frame.............................................. 25
Base Frame................................................. 26
Deluxe Head Frame................................... 27
Deluxe Head Cushions.............................. 28
Deluxe Head I-Frame................................ 29-30
PARTS / ASSEMBLY PAGE
Chest Cushion Assembly........................... 31 - 32
T-Pelvic Cushion (Non-Rotation)............ 33
Telescoping T-Bar...................................... 34
Ankle Rest Adjustable Height.................. 35
Cover & Bellows........................................ 36
Hydraulics.................................................. 37-39
Manintenance Schedual............................ 40
Electrical Assembly................................... 41 - 42
Straight Drop Head................................... 43 - 44
Forward Motion Drop Head..................... 45 - 46
Flexion Head Cushion Assembly.............. 47 - 48
Flexion Head - Shuttle Assembly.............. 49 - 50
Flexion Head - Slide Frame....................... 51 - 52
Flexion Head Rotation Block..................... 53 - 54
T -Drop Chest Ass’y.................................... 55 - 56
Drop Chest & Lumbar................................ 57 - 58
Rotation Chest Frame Assembly............... 59 - 60
Rotation Chest Cushion Assembly............ 61 - 62
T -Drop Pelvic (Non Rotation).................. 63 - 64
T -Drp Pelvic (Rotation)............................ 65 - 66
Hydraulics - Auto Drops........................... 67 - 68
Electronic Diagrams.................................. 69 - 73
Table Serial Number

WELCOME!!
Lloyd Table Company, a proud supporter of today’s chiropractors, has established the finest line of chiropractic tables in the
world. Table products unique in versatility and function, designed to meet your needs.
Concerned for a safe working and treatment environment, Lloyd Table Company asks that you follow the safety tips below.
* Be aware of Caution and Warning labels posted throughout the table before operating any functions.
* Everyone operating the table needs to read the manual and familiarize themselves with all its functions before
operating table with patient on it.
* The McManis pelvic operation is only to be operated by a professional practitioner, educated in the procedure of
the flexion distraction and traction on the lower back and spine.
* A patient should never be unattended, when lying on the table. NEVER LEAVE A PATIENT ON THE TABLE
UNATTENDED!
Secure the pelvic cushion into all lock positions before allowing patient on or off the table.
(See pages __ to lock pelvic rotation, pelvic flexion, and pelvic side bending)
* The patient should be positioned at or near the center of the table with arms on the armrest cushions.
* There should be no more than one operator at the controls.
* The pressure gauge reading should never exceed 800 PSI or drop below 300 PSI
* Check the tension on all drops before adjusting the patient. (See Page 9)
SAFETY
Page 1

MAINTENANCE
The following steps should be performed on a regular basis to maintain your Lloyd table in a smooth operating condition
and to assure its long life and top quality appearance.
*An initial inspection and periodic future inspections should be made to insure that nuts and bolts have not
loosened in shipping or during daily operations.
*Your Lloyd table should be lubricated every six months. Parts to be lubricated are all frame pivot points
(diagram #1), and metal to metal sliding mechanisms.
(DO NOT LUBRICATE FRICTION LOCKS)
*The cushions should be cleaned daily with a mild soap & warm water solution to remove body oils.
Rinsed & dried. DO NOT USE VINYL CLEANERS TO CLEAN CUSHIONS!!
*Chrome parts should be cleaned on a weekly basis for appearance.
*The hydraulic fluid recommended for the pump, is a lubriplate HO1or hydraulic jack oil, and should be
checked on a yearly basis.
*Perform periodic inspections for oil leaks or drips.
*The fluid level in the pump’s reservoir tank should measure 1-3/4 of an inch from full.
This measurement is taken when the pelvic cushion is in the down position, the pressure gauge is released
back to zero, table is in lowest elevated position and fully shortened or retracted.
Page 2
Frame Pivot
Points
Frame Pivot
Points
DIAGRAM #1

The following sections provide explanations on the operation of your Lloyd table. All references to right and left, will be in
relationship to your view, as you face table from the foot end. All references to the front will refer to the head end of the
table. Those to the rear will refer to the foot end.
Head Cushion
The head cushion is designed to provide a multitude of positions & operations though our standard Deluxe Headpiece and
optional Total Dimension FlexionTM Headpieces.

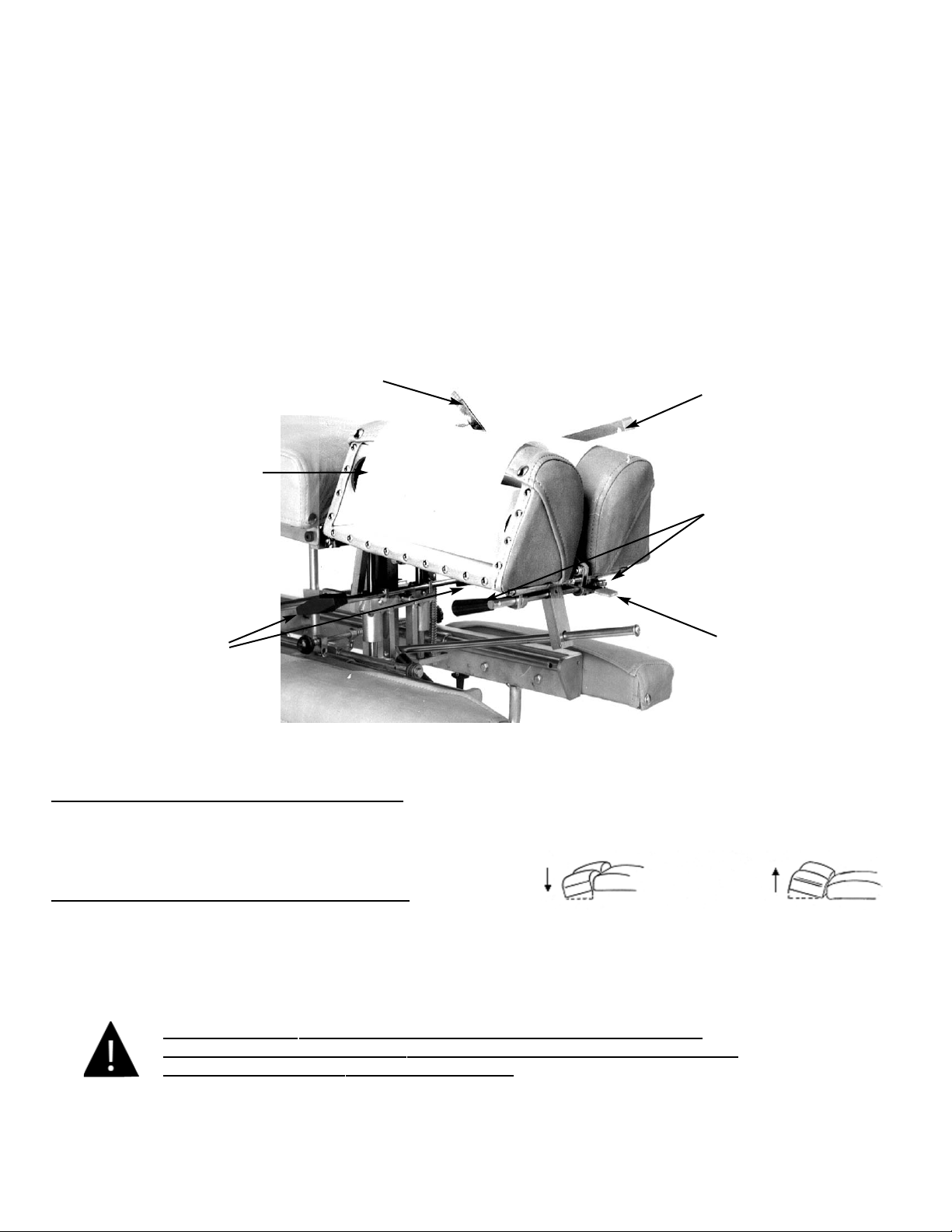

Standard Deluxe Headpiece
#5 Center Bar
#4 Paper Hanger
#2 Elevation Knob
#3 Face Opening
Lever
#1 Tilting Lock Handle
#6 Paper Cutting Bar
To Raise the tilting feature on the Deluxe Headpiece:
1. Lift on the bottom front edges of the cushion
2. Release at the desired height, the cushion will
automatically lock into position.
To Lower the tilting feature on the Deluxe Headpiece:
1. Support the front corner edge of the cushion.
2. Lift the Locking Handle (No. 1) to release.
3. Gently lower the cushion to the desired height.
4. Release the lock handle first and then the cushion to lock.
WARNING: TO AVOID INJURIES WHEN RAISING OR LOWERING HEAD
CUSHIONS, BE SURE TO HAVE A PROPER HOLD ON THE CUSHION BEFORE
RELEASING THE ELEVATING HANDLE (NO. 2).
Page 3

Standard - Deluxe Head
To Elevate the Head Cushion
1. The head cushion is assisted by a gas shock in raising the cushion. With a hand
supporting the head cushion, turn the Elevation Knob (No. 2) on either side of the table
upward to unlock. When the desired height is determined simply release the Elevation Knob
(No. 2) to lock.
To Lower the Head Cushion
1. Turn the Elevation Knob upward to unlock. While unlocked push down on the cushion to lower.
When the desired height is determined simply rotate the Elevation Knob (No. 2)
down to lock.

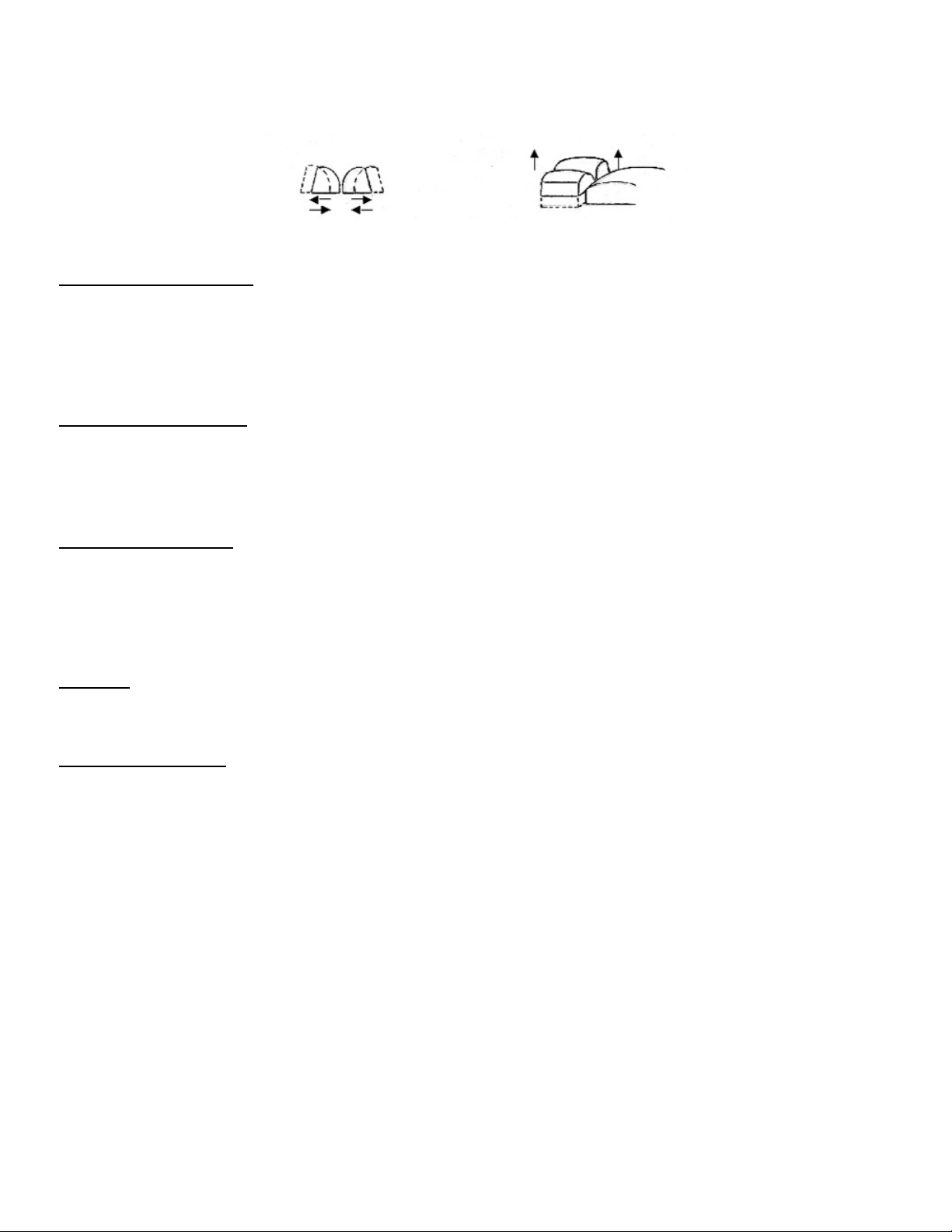

Face Opening Adjustment
1. The Head Cushion’s face opening can be opened or closed to adjust for comfort with the Face
Opening Lever (No. 3). By Pushing slightly down on the Face Opening Lever, slide side to
side adjusting the face opening. The Face Opening Lever must be released in one of eight
positions to lock the cushions in place.
Paper Roll
The paper roll mounts conveniently inside the right-hand cushion.
Replacing the Paper Roll
1. Remove the paper hanger tension rod (No. 4) by compressing ends of the rod horizontally.
This will allow you to slide one end out, to remove the paper roll tube.
2. Slide a new paper roll on the tension rod so that it rolls off the bottom side.
Compress the rod ends horizontally and set inside the head cushion.
3. Swing the Center Bar (No. 5, Page 3) and Outside Cutting Bar (No. 6, Page 3) up.
Route paper over the cushions and down between the two outside cutting bars. Return both bars
to their original position.
4. Trim the paper by supporting the paper cutting bar with one hand and pulling the paper up
along the bar’s edge.
Page 4

Optional - Deluxe Head with Drops
#7 Cocking Handle
#8 Tension Knob
#9 Selector Knob
(Right Side of Table)
Operating the Straight / Toggle Drop:
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE ADJUSTING A
PATIENT.
NOTE - DROP SHOULD BE IN DOWN / DEACTIVATED POSITION BEFORE MOVING SELECTOR KNOB
(NO. 9) IN OR OUT.
1. To engage the Straight / Toggle Drop head, pull the selector knob (No. 9) out about half an inch.
2. Push down on the Cocking Handle (No. 7) until the head cushion is cocked into its top position.
3. Once cocked, test the drop by pushing down on the cushion. If the cushion drops too easily or
too hard, adjust the tension with the Tension Knob (No. 8).
Operating The Tension Knob:
1. The tension is adjusted by turning the tension knob (No. 8) in a clockwise and counterclock-wise direction.
A. Clockwise - Increases tension
B. Counterclockwise - Decreases tension
Operating the Forward Motion Drop:
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE ADJUSTING A
PATIENT.
NOTE - DROP SHOULD BE IN DOWN / DEACTIVATED POSITION BEFORE MOVING SELECTOR KNOB (NO. 9)
IN OR OUT.
1. The Selector Knob (No. 9) is to be pushed in, to engage the forward motion drop.
2. Push down on the Cocking Handle (No. 7) to raise into its cocked position.
3. Once cocked, test the drop by pushing down on the cushion, and adjust the tension (see
above Operating the Tension Knob section).
Page 5

Optional - Total Dimension Flexion HeadTM
Left Side
#1 Selector Knob
#2 Cocking Handle
#4 Traction Release
Knob
#3 Lateral Side Bending
Release Knob
#8 Flexion Assist
Handle
#6 Rotation
Release Knob
#5 Flexion / Tilt
Knob
Forward & Straight / Toggle Drop Operation Instructions
CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE
ADJUSTING A PATIENT.
NOTE - DROP SHOULD BE IN DOWN / DEACTIVATED POSITION BEFORE MOVING
SELECTOR KNOB (NO. 9) IN OR OUT.
1. To engage the Straight / Toggle Drop head, pull the selector knob (No. 1) out about
half an inch.
2. Push down on the Cocking Handle (No. 2) until the head cushion is cocked into its top
position.
3. Once cocked, test the drop by pushing down on the cushion. If the cushion drops too easily or
too hard, adjust the tension with the Tension Knob (No. 9).
Operating The Tension Knob:
1. The tension is adjusted by turning the tension knob (No. 9)
in a clockwise and counterclockwise direction.
A. Clockwise - Increases tension
B. Counterclockwise - Decreases tension
Operating the Forward Motion Drop:
1. The Selector Knob (No. 1) is to be pushed in, to engage the forward motion drop.
2. Push down on the Cocking Handle (No. 2) to raise the drop cushion to its cocked position.
3. Once cocked, test the drop by pushing down on the cushion. If the cushion drops too easily or
too hard, adjust the tension with the Tension Knob (No. 9).
Page 6
#9 Tension
Knob
Right Side
#7 Face Opening
Lever

Optional - Total Dimension Flexion HeadTM
Page 7
Lateral Side Bending
1. To unlock the Lateral Side Bending Feature rotate the Lateral Side Bending Release Knob
(No. 3) clockwise (from left side of table).
2. Turn the Lateral Side Bending Release Knob (No. 3) counterclockwise to lock headpiece in
desired position (from left side of table).
CAUTION: MAKE SURE THE HEADPIECE IS LOCKED BEFORE ALLOWING A PATIENT ON OR OFF
THE TABLE.
Manual Traction
1. To unlock the manual traction feature simply pull and twist the Traction Release Knob (No. 4)
1/4 of a turn clockwise or counterclockwise.
2. When unlocked the headpiece will glide forward and backward.
3. To lock the manual traction twist the Traction Release Knob (No. 4) 1/4 turn counterclockwise
or clockwise.
Manual Flexion Distraction
1. To unlock the manual flexion distraction locate the Flexion / Tilt Knob (No. 5) pull forward and
twist 1/4 turn counterclockwise.
2. Gently apply pressure down using the Flexion Assist Handle (No. 8).
3. To lock the manual flexion distraction twist the Flexion / Tilt Knob (No. 5) 1/4 turn clockwise
and release to engage lock.
Tilting Feature
1. To unlock the Tilting feature locate the Flexion / Tilt Knob (No. 5) while supporting the head
cushion pull forward and twist counterclockwise.
2. Once the desired angle is obtained, lock the headpiece simply by twisting the
Flexion / Tilt Knob (No. 5) clockwise and release.
Rotation Feature
1. To unlock the Rotation feature locate the Rotation Release Knob (No. 6) Pull toward the head
of the table and twist 1/4 turn clockwise.
2. Gently move the headpiece with the Flexion Assist Handle (No. 8)
3. To lock the Rotation feature locate the Rotation Release Knob (No. 6) twist 1/4 turncounter
clockwise and release.
Face Opening Adjustment
1. The Head Cushion’s Face Opening can be opened or closed to adjust for the comfort with the
Face Opening Lever (No. 7). By pushing slightly down on the Face Opening Lever, slide side
to side adjusting the face opening. The Face Opening Lever must be released in one of the
eight positions to lock cushions in place.

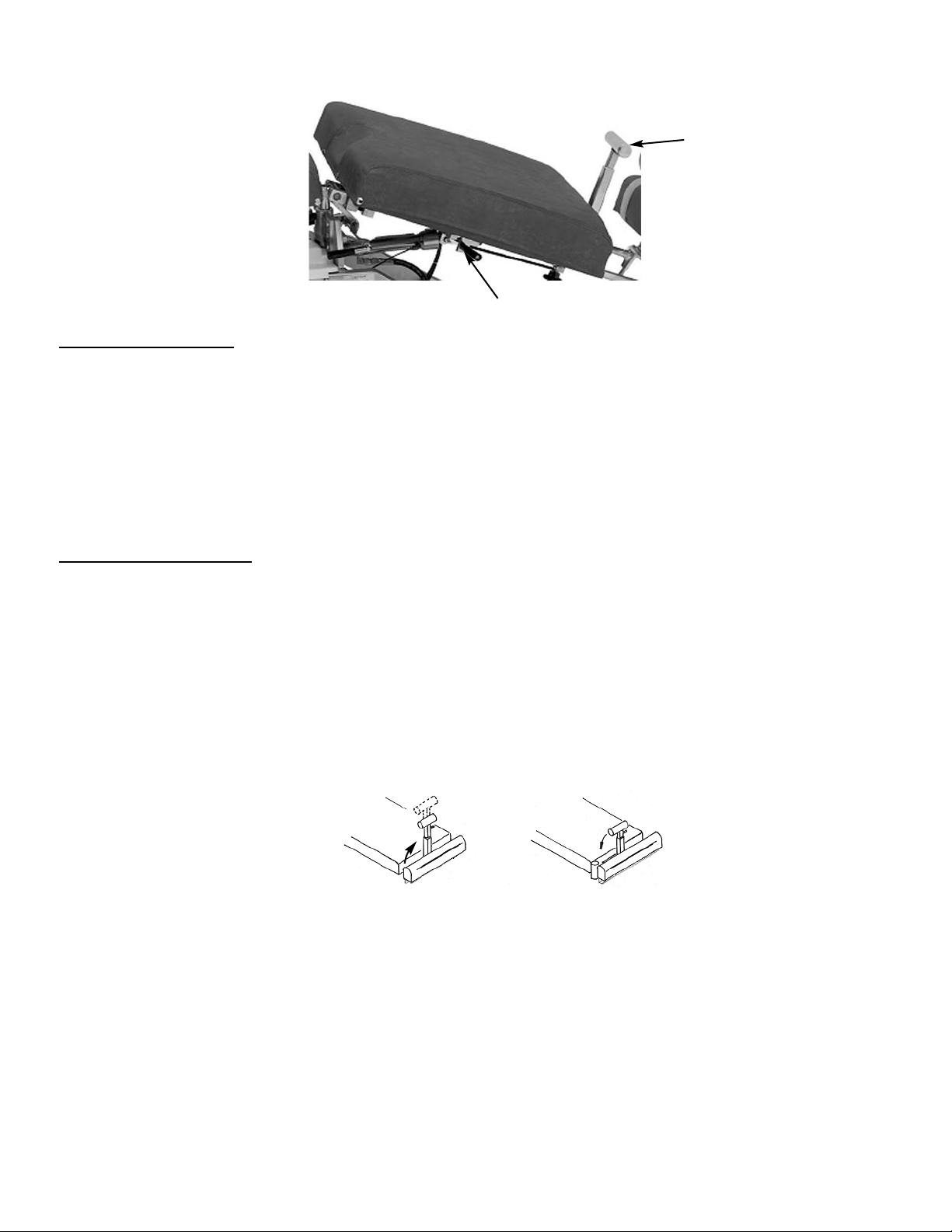

Flexion Assist Handle
1. The Flexion Assist Handle (No. 8) has many functions including aiding with manual Cervical
Flexion Distraction, rotation, lateral side bending, and tilting the headpiece.
2. To adjust the Flexion Assist Handle to desired comfort twist the Flexion Assist Handle locking
Knobs on both sides of table. This will unlock the handle for adjustment. Twist in opposite
direction to lock.
WARNING: THE FOLLOWING CERVICAL OPERATIONS ARE ONLY TO BE OPERATED BY A
PROFESSIONAL PRACTITIONER, EDUCATED IN THE
PROCEDURE OF FLEXION-DISTRACTION AND TRACTION, ON THE SPINE.
