LNS TRYTON 112 User manual

ENG

TRYTON 112 CNC
E-1
TABLE OF CONTENTS
INTRODUCTION
CHAPTER 1 :BASIC NOTIONS 1-1
Structure 1-2
Rights 1-4
Conformity declaration 1-5
Safety instructions 1-6
Safety devices 1-8
CHAPTER 2 :TECHNICAL DATA 2-1
Characteristics 2-2
Floor plans 2-3
Layout of elements 2-5
CHAPTER 3 :SETTING INTO OPERATION 3-1
Transportation 3-2
Mounting 3-5
Anchoring to the floor 3-6
Connecting 3-6
CHAPTER 4 :ELECTRICS 4-1
Electrical equipment 4-2
Electrical control cabinet 4-6
Diagrams 4-13
Interface 4-19
CHAPTER 5 :PNEUMATICS 5-1
Pneumatic equipment 5-2
Air filtering device 5-4
Pneumatic valves 5-6

TRYTON 112 CNC
CHAPTER 6 :HYDRAULICS 6-1
Hydraulic equipment 6-2
Hydraulic diagram 6-4
CHAPTER 7 :GENERAL DESCRIPTION 7-1
Barrel 7-2
Connector 7-4
Feeding pusher 7-5
Movable vise 7-6
Loading arm (option) 7-7
CHAPTER 8 :HANDLING 8-1
Remote control station 8-2
Powering up 8-7
Manual sequence 8-8
Automatic sequence 8-9
Settings 8-14
CHAPTER 9 :MALFUNCTIONS 9-1
Factors affecting performance 9-2
Maintenance 9-5
APPENDICES A-1
Appendix A :Ordering form A-2
Appendix B :LNS agencies A-3
Appendix C :Programming example A-5
Appendix D :Conversion table metric measurements / inches A-6
Appendix E :Conversion table for shaped material A-6

TRYTON 112 CNC
INTRODUCTION
The TRYTON 112 bar loader is a worthy successor to the Tryton SST, which became a
reference in its category and from which it has inherited the main qualities.
While integrating the latest technological innovations, it offers users arange of surprising
functions, while at the same time remaining simple to use and remarkably reliable.
The ergonomic and user-friendly remote control with aclear, integrated display facilitates
the handling of the magazine. Depending on the sequence under way, the magazine offers
theoperatoronlytheavailablefunctions,thusavoidinganyimproperhandlingand reducing
the time required to access the desired functions.
The hydraulic oil, contained inatank, isinjectedintothebarrelataconstant pressure which
can be adjusted according to the type of material to be loaded.
This oil pressure, on the one hand, provides the force necessary to push the piston and, on
the other, permits aconstant flow of oil from the compression chamber, through the piston,
and into the guidance tube where it hydrodynamically supports the rotating bar.
So there is no metal-on-metal friction. Noise and vibrations are eliminated at source.
The system can be setup for another range of diameters by a few simple operations (not
counting the start-up of the lathe).
According to the configuration chosen, the TRYTON 112 hydraulic bar-feeder can cover a
range of diameters from 1 to 12.7 mm.

TRYTON 112 CNC

CHAPTER 1 : BASIC NOTIONS 1 - 1
TRYTON 112 CNC
CHAPTER 1 : BASIC NOTIONS
1. STRUCTURE 1-2
1.1 Cross references 1-2
1.2 Captions 1-2
1.3 Symbols and terminology 1-3
2. RIGHTS 1-4
3. DECLARATION OF COMPLIANCE 1-5
4. SAFETY INSTRUCTIONS 1-6
5. SAFETY DEVICES 1-8
5.1 Description 1-8
5.2 Layout of the elements 1-8

1 - 2 CHAPTER 1 : BASIC NOTIONS
TRYTON 112 CNC
1. STRUCTURE
This manual consists of various chapters, each containing several points, paragraphs, etc.
Lists may be contained in paragraphs.
CThe page number is indicated in the top right-hand corner of the page.
CThe chapter number and title are indicated in the top left-hand corner of the page.
CThemodelof thebarfeedsystemis indicated in thebottomright-handcornerofthe page.
1.1 Cross-references
Each chapter generallycontains all of the information related to thedescription and settings
of the devices and elements represented therein.
Therefore, if a setting must be made while you are handling the system, please refer to the
chapter on the device to be set, for example: (see chapter *) or (see point *)
1.2 Captions
Whenever possible, the reference numbers contained in the instruction manual are shown
with the LNS ordering number of the indicated element.
To make it easier to place an order of supplies, aform has been included in the annex at the
end of this manual

CHAPTER 1 : BASIC NOTIONS 1 - 3
TRYTON 112 CNC
Note :
Example
1.3 Symbols and terminology
This sign recommends following the directions very closely
avoiding causing an incident that could result in injury, damage to
the equipment, or data loss.
This sign indicates that safety measures must be taken to avoid
possible electrical shocks or mishaps.
Note Located in the margin on the left side of the page, the notes stress
interesting points or comments, and provide useful advice for
optimal system operation.
Conditions : Indicates what conditions must be met to conduct the desired
operation.
Used in sequential diagrams, this sign indicates that the required
function has been accomplished.
Used in sequential diagrams, this sign indicates that the required
function has not been accomplished.

1 - 4 CHAPTER 1 : BASIC NOTIONS
TRYTON 112 CNC
2. RIGHTS
All rights reserved. Reproduction, recording or transmission of all, or any portion, of this
manual, in any form or through any means whatsoever, whether mechanical, photographic,
soundor other, without the express written authorization ofLNSSA,isprohibited.LNSSA
disclaims all responsibility for errors which may be contained in this manual and the
problems which may result therefrom.
LNS SA and its subsidiaries cannot be made responsible for the debts, losses, expenses, or
damage incurred, or suffered, by the buyer of this product, or a third party, following an
accident, incorrect use, or misuse, or stemming from modifications, repairs, or
transformations not authorized by LNS SA.
LNS SA and its subsidiaries cannot be held responsible for damage and problems arising
fromthe use ofoptionsandproducts otherthanLNSproducts, orproductsapprovedbyLNS
SA.
The names of the products indicated in this manual are registered trademarks.

CHAPTER 1 : BASIC NOTIONS 1 - 5
TRYTON 112 CNC
3. DECLARATION OF COMPLIANCE
(Directive 89/392/EEC, Article 4.2 and Appendix 1, Chapter B)
PROHIBITION OF PUTTING INTO OPERATION
Manufacturer :LNS SA
Address :Route de Frinvillier
CH-2534 Orvin
Declares that :
The TRYTON 112 automatic bar feed system
-Is designed to be incorporated into amachine, or to be assembled with other machines,
tocreateamachinecoveredbyDirective 89/392/EEC amended, and thatthefollowing
(parts/paragraphs)oftheharmonizedstandardshave beenapplied:EN 292, EN60204
1, EN 1088, EN 418, EN 60947, 89/336/EEC, 73/23/EEC.
-And furthermore declares that it is prohibited to put the machine into operation before
the machine into which it is to be inserted, or of which it will become apart, has been
examinedanddeclared inconformitywith theprovisionsofDirective 89/392/EEC and
the national laws transposing it, i.e. forming a whole including the machine to which
reference is being made in the present declaration.
Orvin, 03.01.2000
LNS SA
B. Brügger
Sales manager

1 - 6 CHAPTER 1 : BASIC NOTIONS
TRYTON 112 CNC
4. SAFETY INSTRUCTIONS
CDo not handle the equipment without having knowledge of the safety instructions and
the instructions for use. Safety instructions for the bar feed system, as well as the CNC
lathe, must be strictly observed.
CNon-qualified personnel, children, and persons under the influence of alcohol or
medication should not handle the equipment.
CLoose garments, long hair and jewelry can be dangerous.
CDo not remove any covers while the bar feeder or the machine is under electrical
power.
CDo not conduct any maintenance operations during the automatic cycle.
CDo not grasp moving or rotating objects, or nearby elements.
CIf certain safety shields or safety covers are removed to conduct maintenance, they
must be reinstalled as soon as the maintenance work is completed.
CNoservicingshouldbecarriedout ontheinterfaceor insidetheelectrical cabinetwhile
the bar feeder or the lathe is under electrical power.
CIt is strictly prohibited to jump wire or remove circuit breakers, main switches, and
especially safety switches.
CTo avoid anyharmto persons, or damage to components, use only the indicated points
for lifting and moving the bar feeder system. No one should be near the hanging load,
or within the operating range of the overhead hoist/crane, forklift, or any other means
used for lifting and transportation. Do not knock the bar feeder while moving it as this
could damage it.
CDo not move the bar feeder while it is electrically powered on.
CThe work area surrounding the bar feed system should always be clear of objects and
well lit. The presence of oil on the ground could cause falls; it is important to maintain
the floor clean on a regular basis.

CHAPTER 1 : BASIC NOTIONS 1 - 7
TRYTON 112 CNC
CDo not place the machine in adamp area and make sure that water or oil does not come
into contact with the electrical equipment.
CDo not open the clamping device (collet or chuck) of the lathe manually when the bar
feeder is in automatic mode (Interface).
CEach time the diameter is changed, also adapt spindle reduction tube. The use of
spindle reduction tubes is highly recommended for machining bars with diameters
smaller than the maximum capacity of the spindle.
CDo not attempt to recharge the batteries of the PLC.
CFor the use and maintenance of the bar feeder, use only parts provided by or
recommended by LNS.
CIf it is necessary to move the bar feeder once it has been originally installed, do not
reinstall it before first contacting LNS or its local representative.
CLNSdisclaimallresponsibilityforpossibleaccidents orpropertydamage causedwhen
safety instructions are not followed.

1 - 8 CHAPTER 1 : BASIC NOTIONS
TRYTON 112 CNC
5. SAFETY DEVICES
5.1 Description
The Tryton 112 bar feed system has been designed with afocus on maximum safety during
its handling and complies with all CE requirements.
Safety covers and devices make access to the moving parts of the bar feed system
impossible.Safetyswitches keep the bar feed systemfromoperating whentheseprotections
are open.
The design of the switches, as well as their insertion into the bar feed system, makes it
practically impossible to bypass them.
By pressing the emergency stop button located on the remote control, the functions of the
bar feed system and the lathe are immediately stopped
The LNS company, or its local representative, may not be held responsible
for possible accidents or property damage, whether caused directly or not,
by any means whatsoever, if certain safety devices have not been included.
5.2 Layout
Designation Description
AEmergency Stop push button
BMain access cover
SQ10 Safety switch for loading arm (in position switch)
SQ11 Safety switch for main access cover

CHAPITRE 2 : CHAPTER 2: TECHNICAL DATA 2 - 1
TRYTON 112 CNC
CHAPTER 2: TECHNICAL DATA
1. CHARACTERISTICS 2-2
2. FLOOR PLANS 2-2
2.1 Tryton 112 CNC 2-3
3. LAYOUT OF THE ELEMENTS 2-5

2 - 2 CHAPTER 2: TECHNICAL DATA
TRYTON 112 CNC
1. CHARACTERISTICS
Depending on the country and the standards in effect, certain technical data, such as the
power supply, may vary. Please see the technical card delivered with the device.
According to the lathe or screw-cutting machine to be equipped, the Tryton 112 bar-
feeder can be supplied in various configurations and models. Some features of the
devices vary according to the model.
Please refer to the data sheet of your Tryton 112 to see which model it is.
Tryton 112 CNC 3 meters 12'4 meters
Weight 600 Kg (1360 lbs) 700 Kg (1587 lbs) 770 Kg (1745 lbs)
Overall length 4863 mm (191.5") 5373 mm (211.5") 5863 mm (230.8")
Overall width 490 mm (19.3") 490 mm (19.3") 490 mm (19.3")
Height 1060 - 1470 mm
(41.7" - 57,9") 1060 - 1470 mm (41.7" - 57,9") 1060 - 1470 mm (41.7" - 57,9")
Centerline range 840 - 1250 mm
(33" - 49,2") 840 - 1250 mm (33" - 49,2") 840 - 1250 mm (33" - 49,2")
Loading arm (option) 450 mm (17,7") 450 mm (17,7") 450 mm (17,7")
Maximum bar stock length 3 200 mm (126") 3 710 mm (151,6") 4 200 mm (165,4")
Minimum remnant length 80 mm (3,1") 80 mm (3,1") 80 mm (3,1")
Maximum remnant length 230 mm (9") 230 mm (9") 230 mm (9")
Air pressure 5 Bar (75 Psi) 5 Bar (75 Psi) 5 Bar (75 Psi)
Main electrical power (Volts) 3 x 220 - 480
50 Hz - 60 Hz 3 x 220 - 480 50 Hz - 60 Hz 3 x 220 - 480 50 Hz - 60 Hz
Hydraulic oil ISO 100/25 liters ISO 100/25 liters ISO 100/25 liters
Barrel 5mm
(0,197") 7mm (0,276") 10mm (0,394") 12.7mm (0,5")
Minimum diameter (round) 1 mm
(0,039") 1 mm (0,039") 3 mm (0,118") 4 mm (0,157")
Maximum diameter (round) 5 mm
(0,197") 7 mm (0,276") 10 mm (0,394") 12.7 mm (0,5")
Number of guidance tubes 45 36 24 24
Some measurements can vary according to the type of feeder.

CHAPITRE 2 : CHAPTER 2: TECHNICAL DATA 2 - 3
TRYTON 112 CNC
2. FLOOR PLAN

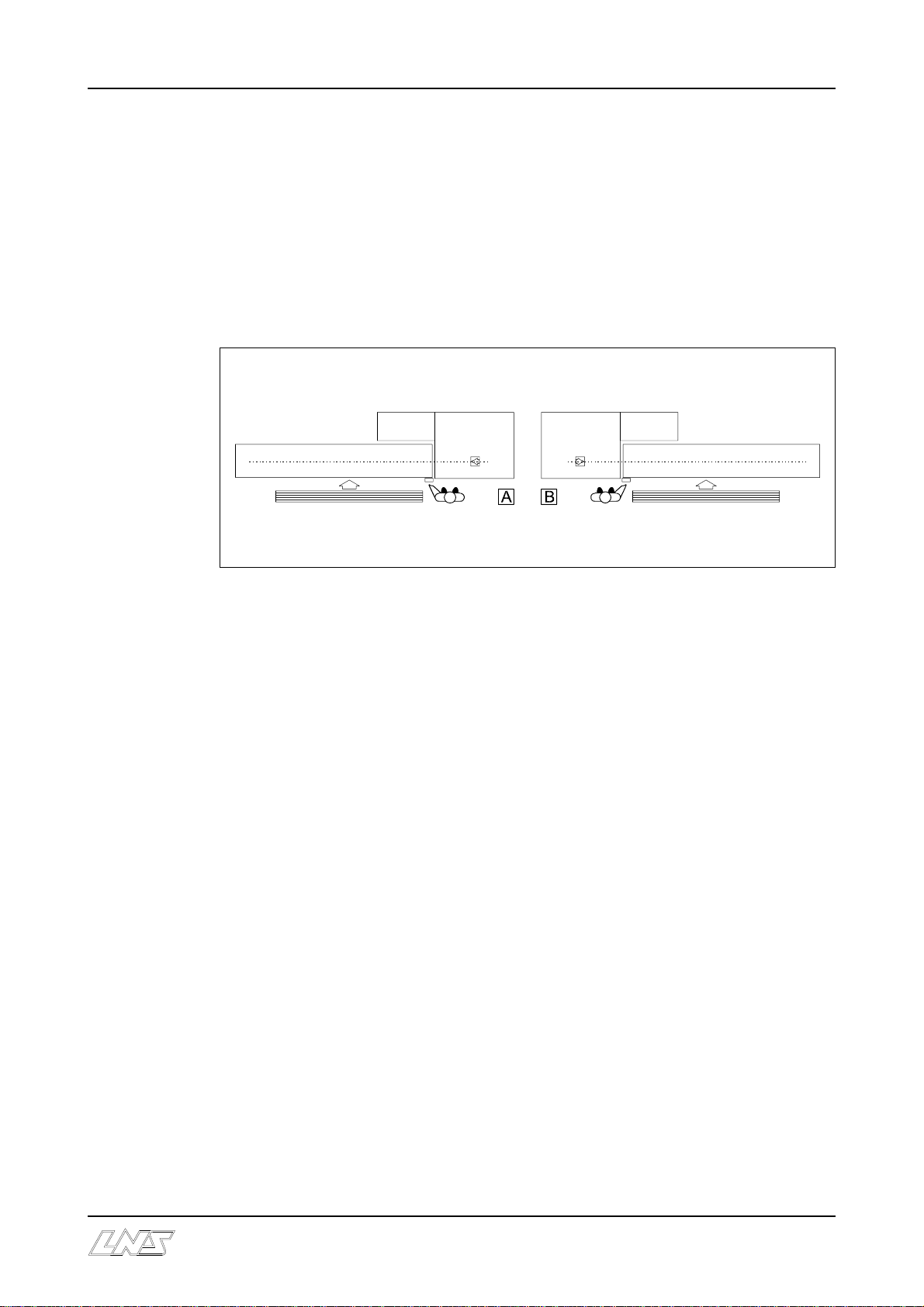

The following floor space plan indicate the most frequently used dimensions for placing
the bar feed system. Details on the dimensions of other parts or elements of the bar feed
system will be furnished upon request.
The plan shows a feeder with right-hand loading (B). The measurements of feeders with
left-hand loading (A) are the same. The views are merely reversed.
All measurements are in millimetres.

2 - 4 CHAPTER 2: TECHNICAL DATA
TRYTON 112
2.1 Tryton 112 CNC

CHAPITRE 2 : CHAPTER 2: TECHNICAL DATA 2 - 5
TRYTON 112 CNC
3. LAYOUT OF THE ELEMENTS
Designation Description
AConnector / Feeding pusher
BMovable vise
CMaterial presence monitor
DBarrel
EBarrel lock
FRemote control station
GMain access cover
HInterface plug (according to OEM requirements)
IPositioning stopper
JFront foot
KRear foot
LLoading arm (option)
MHydraulic tank
NIndexing motor
OAir filtering unit
PPneumatic / electrical cabinet
QConnector feed motor
RCable feed motor
SPulse generator
TMaterial support
UAccessory support (pushers, reduction tubes)
VStationary command
WBack stop
YFront stop

2 - 6 CHAPTER 2: TECHNICAL DATA
TRYTON 112

CHAPTER 3: SETTING INTO OPERATION 3 - 1
TRYTON 112 CNC
CHAPTER 3: SETTING INTO OPERATION
1. TRANSPORTATION 3-2
1.1 Description 3-2
1.2 Unpacking 3-2
1.3 Preparation for mounting 3-3
2. MOUNTING 3-5
2.1 Alignment 3-5
3. ANCHORING TO THE FLOOR 3-6
4. CONNECTING 3-6
