Welcome
About MediaNetwork
Your Loewe TV set is equipped with the Network Mediaplayer. This
enables you to play multimedia contents (photos, music files, videos),
which are provided by a media server in your home network (see also
page 17). The Network Mediaplayer can play data from different types
of memory media (e.g. PCs, Network Attached Storages (NAS), Internet
radio), depending on the type of media server used.
You can connect your TV set wired (Ethernet, PowerLine) to your home
network.
The Network Mediaplayer supports UPnP AV standard.
You will find more detailed information in the technical data on page 17
and in the glossary from page 18.
All photos, albums and album graphics shown in these operating instructions
are just examples.
Help for problems with home network
Because of the wide variety of configurations of home networks, Loewe
cannot provide support for PC hardware and software or network
components.
For support with configuration of and maintaining network connections,
storage media and network devices, such as routers (positions
4
and
5
in the connection examples on page 5) please contact the administrator
of your network and/ or the specialist retailer.
Access to the MediaNetwork
Start the MediaNetwork using the Assist+menu.
Go to Assist+menu.
56Mark MediaNetwork,
call with OK.
Selection of menu items
Use the arrow buttons 5634 to move the marker on
the user interface.
Use the OK button to select or adopt the object you have
currently marked.
Use the 7 button to go back up a level respectively.
With the END button you return from any item in the
menu overview to the media selection (page 7).
This screen symbol shows you that the required operating
function is currently not available.
Exit MediaNetwork
Go to Assist+menu and select another function (see
above).
Or:
Press TV or RADIO button to change to the corresponding
type of operation.
Or:
Press END button in the media selection (page 7)
to change to the last previously active type of operation
(TV, radio).
- 4
END
OK
TV
Radio digital
Teletext
DR archive
PhotoViewer
MusicBox
MediaNetwork
Index
The access to your PC network
Assist+
english

5 -
Initial installation

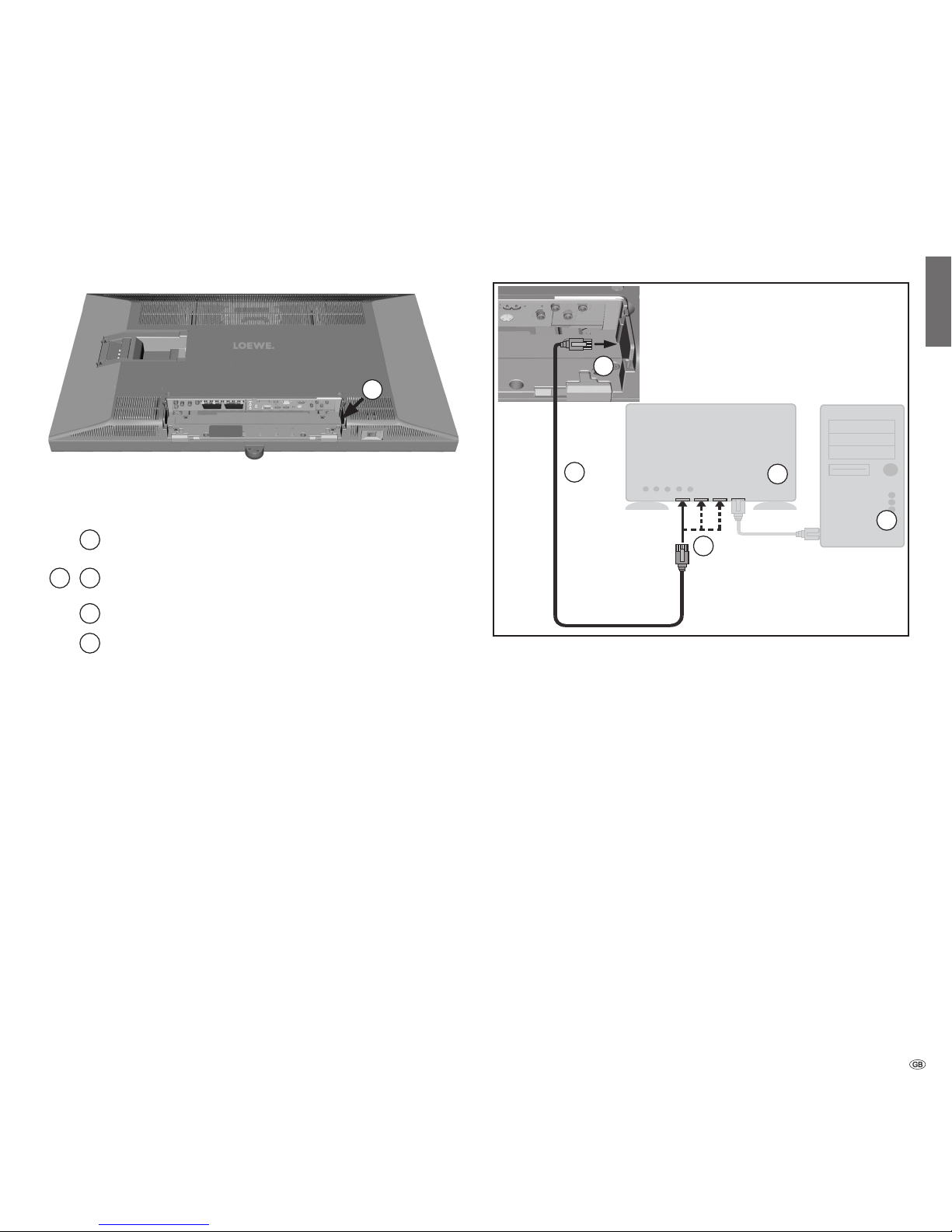

Connecting TV set and home network
Network socket on Loewe TV set
Wired connection between TV set and home network with
a network cable (available from specialist retailers)
LAN switch / router
Home server, e.g. PC
Example of wired connection
1
3
2
4
5
1
2
1
3
4
5
english

- 6
Initial installation
Initial installation
The first time MediaNetwork is called up, initial installation is started.
Select IP Address Assignment Method
56Select IP Address Assignment Method.
OK Activate.
Automatic (DHCP): IP addresses are automatically issued
by a DHCP server on your home network.
➠ A DHCP server has to be set up on a device on the
network (e.g. router).
Input Static IP Address: IP addresses are entered
manually.
Digit buttons: Input digits of IP address.
EPG: Enter dots.
Function of coloured buttons:
Yellow: Delete last position.
Red: Delete address.
OK: Adopt IP address.
Proceed similarly with the subsequent entry of the further
IP addresses of Subnet Mask, Gateway and DNS server.
Network setting
Afterwards you will see a summary of the settings.
OK Adopt settings.
Backwards step by step for changes.
Select server
Lastly, select the media server from which you want to
draw the data.
56Select media server.
OK Activate.
If your required media server should not be found the
first time, then you can press the red button to Rescan
for media servers.
Network setting
Adopt
Adopt the following settings?
Device IP adress: 192.168.1.123
Subnet Mask: 255.255.255.0
Gateway adress: 192.168.1.1
DNS adress: 192.168.1.1
OK
END
Select IP Address Assignment Method
Activate
Automatic (DHCP)
Input Static IP Address
OK
OK
END
Set device IP address
Adopt
192.168.1.123_
OK
Input digits
Delete address
Delete last position
-
Input “.“
0
9
END
EPG
Select source / media server
Activate Rescan
Media-Server 1
Media-Server 2
Media-Server 3
OK
OK
english

7 -
Operating convenience
Media selection
MediaNetwork starts with the media selection. Select the media type
you want.
Select media type
34 Select required media folder,
OK confirm and go to the respective overview.
Photo operation: see page 10.
Video operation: see page 12.
Music operation: see page 14.
MediaNetwork-Menu
MENU: Open MediaNetwork-Menu.
Exit MediaNetwork
END: Exit MediaNetwork for last previously active mode
(TV, Radio).
Function of buttons in the media selection
Green button: Order by ...
Change order objects displayed (folders or files).
➠ The sorting options available depend on the media server
that you are using.
Yellow button: Change view
Switches between preview and list view:
Example: Photo operation, preview
Example: Photo operation, list view
Blue button: Go to page ...
Alternatively to going through pages you can also go
directly to the individual pages on the overview. On the
Go to page ... overview the first title on each page
respectively is shown.
➠Only available if there are more objects than can be
displayed.
➠The number of pages depends on the view selected
(preview or list). You can see the number at the bottom
on the left.
EPG: Select another media server.
END
INFO
MENU
EPG
Order by ...
Change view
Open folder
Select source / media server
MediaNetwork Media-Server 1
OK
\Photo 3 element(s)
Photo Music Video
END
INFO
MENU
P+
P–
Order by ...
Change view
Go to page ...
Slide show
View picture
Page↑/↓ (1/5)
MediaNetwork Media-Server 1
OK
LOEWE_2_hi...LOEWE_1_hi... LOEWE_3_hi... LOEWE_4_hi...
..
LOEWE_5_hi...
\Photo\LOEWE_2_highres 47 Picture(s)
LOEWE_7_hi...LOEWE_6_hi... LOEWE_8_hi... LOEWE_9_hi...
END
INFO
MENU
P+
P–
Order by ...
Change view
Go to page ...
Slide show
View picture
Page↑/↓ (1/5)
MediaNetwork Media-Server 1
OK
OK
..
LOEWE_1_highres
LOEWE_2_highres
LOEWE_3_highres
LOEWE_4_highres
LOEWE_5_highres
LOEWE_6_highres
LOEWE_7_highres
LOEWE_8_highres
LOEWE_9_highres
LOEWE_A_highres
LOEWE_B_highres
\Photo\LOEWE_2_highres 47 Picture(s)
english

- 8
MediaNetwork-Menu
You can make a few settings in the MediaNetwork-Menu to adapt
MediaNetwork to your requirements.
56Select menu item.
34or
OK Adopt settings.
Call Device Information (see page 9).
Leave MediaNetwork-Menu and adopt settings.
Explanation of setting options in the MediaNetwork-Menu
You can select your desired media server in the current
network, e.g. if several servers are active in the network.
Here you can designate a new network.
Select Yes to continue to play back music files that were
being played back even if you are no longer in the music
view (e.g. as background music for a slide show in photo
operation).
The setting also effects the playing back of music tracks
(see page 15).
Select On, to always have the photo information (file
name and number of files in folder) shown with Full
screen display or Slide show (photo operation see
page 10).
Select how long each picture is to be shown for during
a slide show. The display time can be 2, 3, 5, 10, 30 and
60 seconds.
There is a choice of three different photo transitions for
changing slides. You can also have the photo transitions
run in sequence.
See right hand column.
Operating convenience
Software update
It is possible to update the MediaNetwork software on your TV set. A
software update can be installed on your set over the Internet.
➠ The TV set must have a working Internet connection with designated
gateway and DNS server (see page 6 and glossary page 18).
The web address for the software update over the Internet is preset in
the set.
Start software update
56 Select Software update,
OK start update.
If a new software version is available:
OK Load software.
➠ The TV set must not be switched off while the software
is loading!
End update dialogue.
MediaNetwork-Menu
END
INFO
No
Select source/media server
Change network
Background play
Photo info
Slide Show interval
Picture transitions
Software update
Yes
Off
3 sec.

Select source/
media server
Change
network
Background
play
Photo info
Slide Show
interval
transitions
Software
update
english

9 -
Operating convenience
Device Information
➠MediaNetwork menu is open (page 8).
Open Device Information.
This window provides you all information about your network connection
that is currently active.
Explanation of display items
The currently installed software version of your Network
Mediaplayer.
Your current IP address.
Your current subnet mask.
The name of the currently selected media server.
MediaNetwork-Menu
END
INFO
No
Select source/media server
Change network
Background play
Photo info
Slide Show interval
Picture transitions
Software update
Yes
Off
3 sec.

Device Information
Software version
Device IP address
Subnet mask
Server name
2.0.0.810070
192.168.1.123
255.255.255.0
Media-Server 1
Software
version
Device IP
address
Subnet mask
Server name
english

- 10

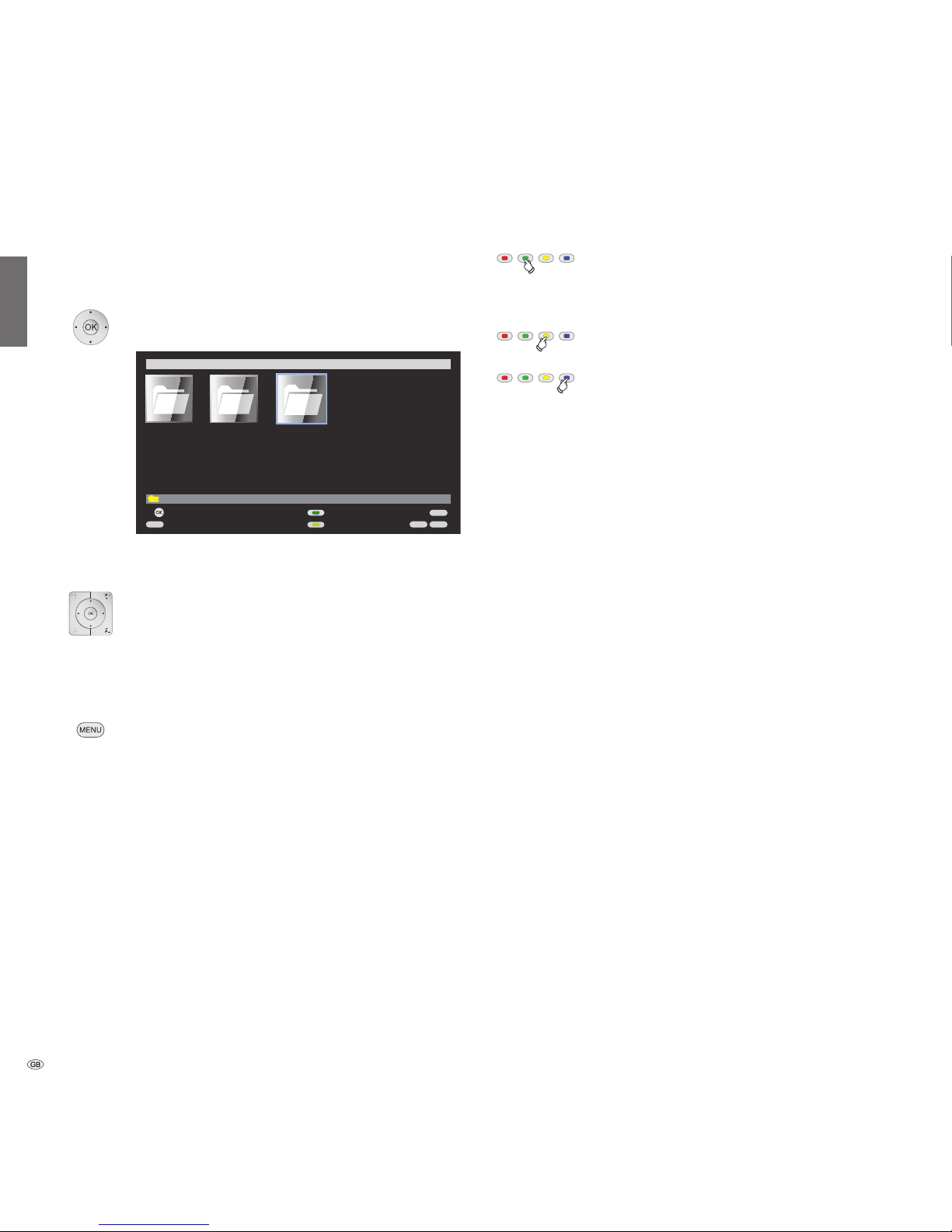

Media overview – photo operation
➠Media selection is shown (page 7).
34Select folder with photos,
OK open folder.
➠ The name of the folder depends on your media server
setting (in example picture: Photo).
5634Select required sub-folder,
OK open folder. If required, repeat.
P+/P- Page up / down.
➠Only available if more objects are available in the current
folder than can be displayed.

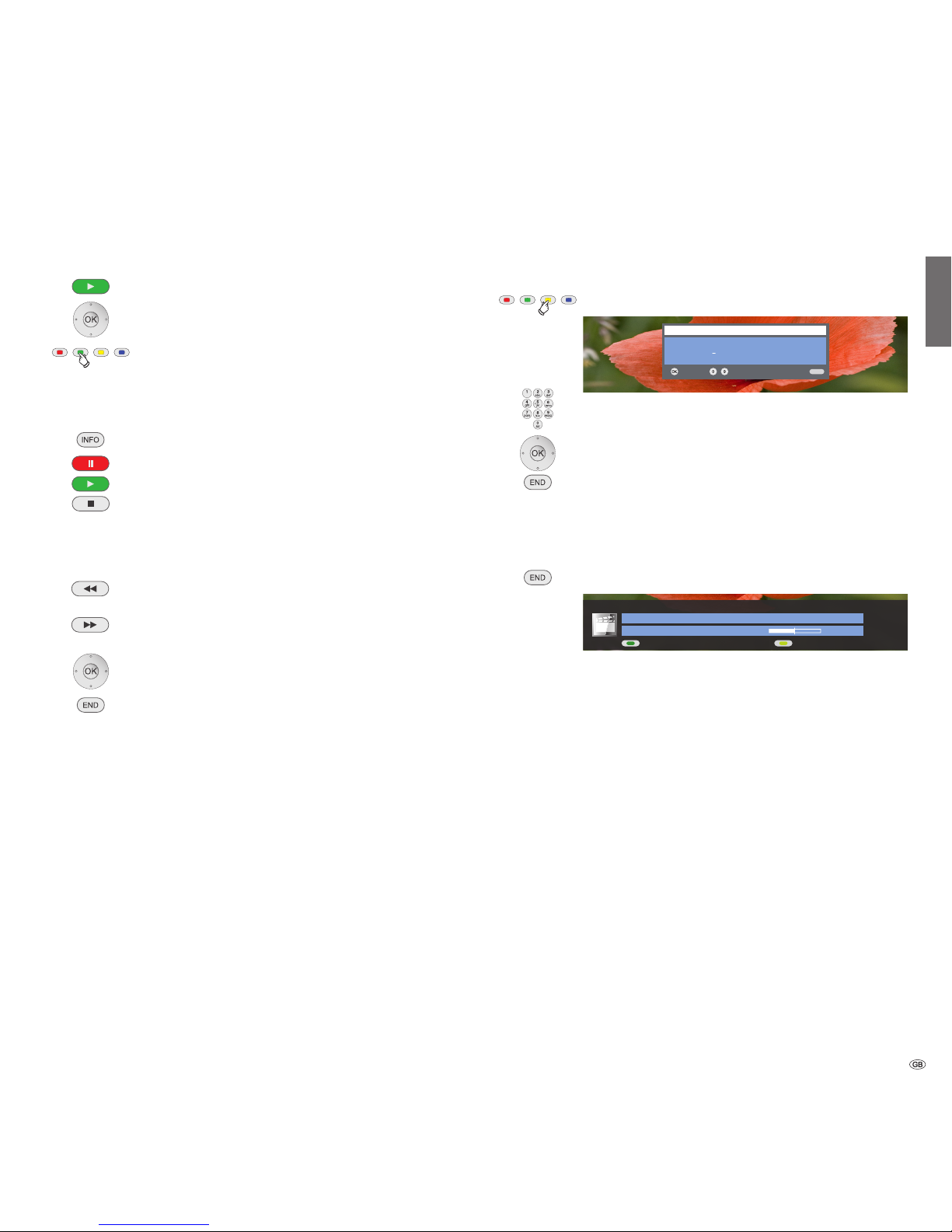

OK View marked picture in full screen mode (see next
page).
MENU: Open MediaNetwork-Menu (see page 8).
Green button: Order by ...
Change order of objects displayed (folders or files).
➠ The sorting options available depend on the media server
that you are using.
Yellow button: Change view
Switches between preview and list view.
Blue button: Go to page ...
Alternatively to going through pages you can also go
directly to the individual pages on the overview. On the
Go to page ... overview, the first title on each page
respectively is shown.
➠Only available if there are more objects than can be
displayed.
➠The number of pages depends on the view selected
(preview or list). You can see the number at the bottom
on the left.
Operating convenience
END
INFO
MENU
EPG
Order by ...
Change view
Open folder
Select source / media server
MediaNetwork Media-Server 1
OK
\Photo 3 element(s)
Photo Music Video
english
